Preparations

Operations

Informations

DSD-500

SPEAKER DOCK

Owner’s Manual

SAFETY PRECAUTIONS

Preparations Operations

Informations

CAUTION

RISK OF ELECTRIC SHOCK

DO NOT OPEN

CAUTION:

TO REDUCE THE RISK OF ELECTRIC SHOCK, DO NOT REMOVE COVER (OR BACK). NO USER-SERVICEABLE PARTS INSIDE. REFER SERVICING TO QUALIFIED SERVICE PERSONNEL.

The lightning ﬂash with arrowhead symbol, within an equilateral triangle, is intended to alert the user to the presence of uninsulated “dangerous voltage” within the product’s enclosure that may be of sufﬁcient magnitude to constitute a risk of electric shock to persons.

The exclamation point within an equilateral triangle is intended to alert the user to the presence of important operating and maintenance (servicing) instructions in the literature accompanying the appliance.

WARNING:

TO REDUCE THE RISK OF FIRE OR ELECTRIC SHOCK, DO NOT EXPOSE THIS APPLIANCE TO RAIN OR MOISTURE.

IMPORTANT SAFETY

INSTRUCTIONS

1. Read these instructions.

2. Keep these instructions.

3. Heed all warnings.

4. Follow all instructions.

5. Do not use this apparatus near water.

6. Clean only with dry cloth.

7. Do not block any ventilation openings. Install in accordance with the manufacturer’s instructions.

8. Do not install near any heat sources such as radiators, heat registers, stoves, or other apparatus (including ampliﬁers) that produce heat.

9. Do not defeat the safety purpose of the polarized or grounding-type plug. A polarized plug has two blades with one wider than the other. A grounding type plug has two blades and a third grounding prong. The wide blade or the third prong are provided for your safety. If the provided plug does not ﬁt into your outlet, consult an electrician for replacement of the obsolete outlet.

10. Protect the power cord from being walked on or pinched particularly at plugs, convenience receptacles, and the point where they exit from the apparatus.

11. Only use attachments/accessories speciﬁed by the manufacturer.

12. Use only with the cart, stand, tripod, bracket, or table speciﬁed by the manufacturer, or sold with the apparatus. When a cart is used, use caution when moving the cart/ apparatus combination to avoid injury from tip-over.

13. Unplug this apparatus during lightning storms or when unused for long periods of time.

14. Refer all servicing to qualiﬁed service personnel. Servicing is required when the apparatus has been damaged in any way, such as power-supply cord or plug is damaged, liquid has been spilled or objects have fallen into the apparatus, the apparatus has been exposed to rain or moisture, does not operate normally, or has been dropped.

15. Batteries shall not be exposed to excessive heat such as sunshine, ﬁre or the like.

CAUTION:

To completely disconnect this product from the mains, disconnect the plug from the wall socket outlet. The mains plug is used to completely interrupt the power supply to the unit and must be within easy access by the user.

FCC Information (For US customers)

1. COMPLIANCE INFORMATION Product Name: Speaker Dock Model Number: DSD-500 This product contains FCC ID: PPQ-DSD500.

This product complies with Part 15 of the FCC Rules. Operation is subject

to the following two conditions: (1) this product may not cause harmful interference, and (2) this product must accept any interference received, including interference that may cause undesired operation.

Denon Electronics (USA), LLC (a D&M Holdings Company) 100 Corporate Drive Mahwah, NJ 07430-2041 Tel. (800) 497-8921

2. IMPORTANT NOTICE: DO NOT MODIFY THIS PRODUCT

This product, when installed as indicated in the instructions contained in this manual, meets FCC requirements. Modiﬁcation not expressly approved by DENON may void your authority, granted by the FCC, to use the product.

3. CAUTION

•TocomplywithFCCRFexposurecompliancerequirement,separation

distance of at least 20 cm must be maintained between this product and all persons.

•Thisproductanditsantennamustnotbeco-locatedoroperatingin

conjunction with any other antenna or transmitter.

4. NOTE

This product has been tested and found to comply with the limits for

a Class B digital device, pursuant to Part 15 of the FCC Rules. These

limits are designed to provide reasonable protection against harmful interference in a residential installation.

This product generates, uses and can radiate radio frequency energy and,

if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this product does cause harmful interference to radio or television reception, which can be determined by turning the product OFF and ON, the user is encouraged to try to correct the interference by one or more of the following measures:

•Reorientorrelocatethereceivingantenna.

•Increasetheseparationbetweentheequipmentandreceiver.

•Connecttheproductintoanoutletonacircuitdifferentfromthatto

which the receiver is connected.

•Consultthelocalretailerauthorizedtodistributethistypeofproductor

an experienced radio/TV technician for help.

IC Information (For Canadian customers)

Preparations Operations

Informations

1. PRODUCT This product contains IC 4491A-DSD500. This product complies with RSS-210 of Industry Canada. Operation is

subject to the following two conditions: (1) this product may not cause harmful interference, and (2) this product must accept any interference received, including interference that may cause undesired operation.

This Class B digital apparatus complies with Canadian ICES-003.

2. CAUTION

To reduce potential radio interference to other users, the antenna

type and its gain should be so chosen that the equivalent isotropically radiated power (e.i.r.p.) is not more than that permitted for successful communication.

For Canadian customers:

This Class B digital apparatus complies with Canadian ICES-003.

NOTES ON USE

WARNINGS

•Avoid high temperatures.

Allow for sufﬁcient heat dispersion when installed in a rack.

•Handle the power cord carefully.

Hold the plug when unplugging the cord.

•Keep the unit free from moisture, water, and dust.

•Unplug the power cord when not using the unit for long periods of time.

•Do not obstruct the ventilation holes.

•Do not let foreign objects into the unit.

•Do not let insecticides, benzene, and thinner come in contact with the unit.

•Never disassemble or modify the unit in any way.

•Ventilation should not be impeded by covering the ventilation openings

with items, such as newspapers, tablecloths or curtains.

•Naked ﬂame sources such as lighted candles should not be placed on

the unit.

•Observe and follow local regulations regarding battery disposal.

•Do not expose the unit to dripping or splashing ﬂuids.

•Do not place objects ﬁlled with liquids, such as vases, on the unit.

•Do not handle the mains cord with wet hands.

•When the switch is in the OFF (STANDBY) position, the equipment is not

completely switched off from MAINS.

•The equipment shall be installed near the power supply so that the power

supply is easily accessible.

•Do not keep the battery in a place exposed to direct sunlight or in places

with extremely high temperatures, such as near a heater.

n CAUTIONS ON INSTALLATION

z z

Wall

z For proper heat dispersal, do not install this unit in a conﬁned

space, such as a bookcase or similar enclosure.

•More than 12 in. (0.3 m) is recommended.

•Do not place any other equipment on this unit.

Getting started

Preparations Operations

Informations

Thank you for purchasing this DENON product. To ensure proper operation, please read this owner’s manual carefully before using the product. After reading them, be sure to keep them for future reference.

Contents

Getting started ·············································································· 1

Accessories ··················································································1 Features ························································································ 2 Cautions on handling ····································································2 Remote operation ········································································· 3

Preparations ·············································································4

Connections ··················································································· 5

Connecting the power cord ·························································· 5 Connecting a USB memory device ··············································· 5 Connecting a portable player ························································ 5 Connecting an iOS device·····························································6

Connecting to a home network (LAN) ········································ 7

Required system···········································································7 Network connections and settings ··············································· 8

Operations ··············································································12

Playback ······················································································· 13

Preparations ················································································ 13 Operations possible during playback ·········································· 13 Various memory functions ·························································· 14 Playing an iOS device ·································································14 AirPlay function ··········································································· 15 Listening to internet radio ··························································· 17 Playing a USB memory device ····················································18 Playing a portable player ····························································· 19 Playing back ﬁles stored on PC or NAS with Cocoon App (Music server) ············································································· 20

How to make detailed settings ·················································· 22

Menu map ··················································································22 Setting the language (Language) ················································ 23 Setting the clock (Clock) ····························································· 23 Setting the volume limit (Max Vol Level) ···································· 25 Setting the network (Network Info.) ··········································· 25

Informations···········································································27

Part names and functions···························································28

Front panel ·················································································· 28 Rear panel ··················································································· 28 Remote control unit ···································································· 29

Other information ·······································································30

Trademark information ································································30 Explanation of terms ··································································· 31

Troubleshooting ·········································································· 33

Resetting the microprocessor ····················································35

Speciﬁcations ··············································································36

Accessories

Check that the following parts are supplied with the product.

q Quick Setup Guide .................................................................. 1

w CD-ROM (Owner’s manual) .................................................... 1

e Safety Instructions .................................................................. 1

r Warranty (for North America model only) ................................ 1

t Service network list ................................................................. 1

y Power cord .............................................................................. 1

u Remote control unit ................................................................. 1

i R03/AAA batteries ................................................................... 2

o Ethernet cable (CAT-5) ............................................................ 1

uy o

Features

Preparations Operations

Informations

Cautions on handling

Equipped with a Dock that supports iPhone®, iPod touch® and iPad® (vpage6)

This unit employs a slide type Dock that comes out when you push its front. By storing the Dock within this unit when you do not use it, this unit becomes compact. You can charge iPhone, iPod touch, or iPad at the same time while playing back music.

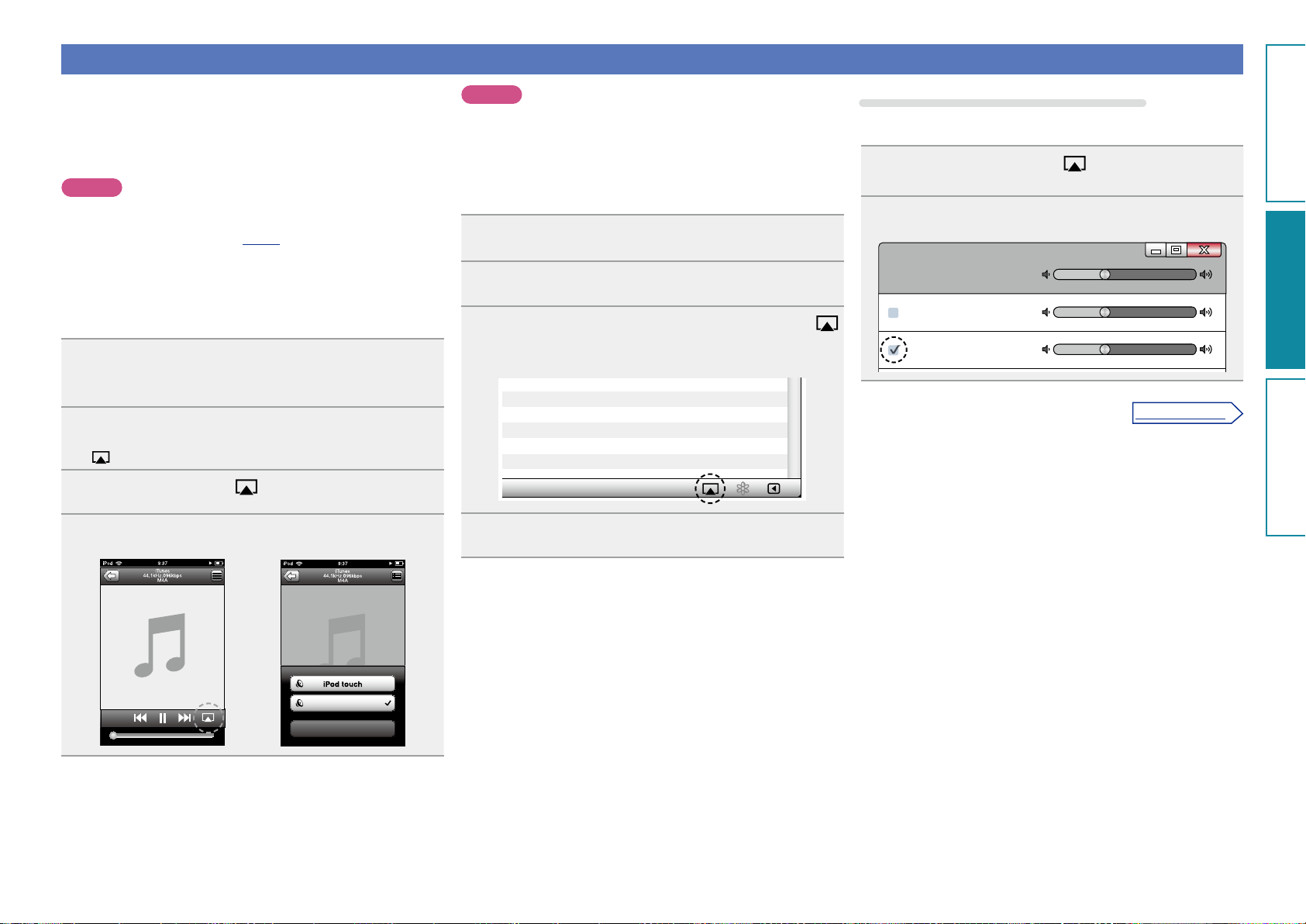

Compatible with the AirPlay® function (vpage15)

You can enjoy comfortable streaming playback of music from iPhone, iPod touch and iPad. Received song and artist names appear on the display.

Compatible with “Cocoon App” for performing basic operations of the unit with an iPhone, iPod touch and iPad (vpage3)

Equipped with Wi-Fi capabilities including Wi-Fi Protected Setup (WPS) (vpage9)

Compatible with the Internet radio (vpage17) Also equipped with the Music Server function that plays back audio content on the network (vpage20)

In addition to music ﬁles stored on PC and music servers on the network, you can enjoy various audio sources on the Internet such as the Internet radio.

•Before turning the power on

Check once again that all connections are correct and that there are no problems with the connection cables.

•Power is supplied to some of the circuitry even when the unit is

set to the standby mode. When going on vacation or leaving home for long periods of time, be sure to unplug the power cord from the power outlet.

•About condensation

If there is a major difference in temperature between the inside of the unit and the surroundings, condensation (dew) may form on the operating parts inside the unit, causing the unit not to operate properly. If this happens, let the unit sit for an hour or two with the power turned off and wait until there is little difference in temperature before using the unit.

•Cautions on using mobile phones

Using a mobile phone near this unit may result in noise. If that occurs, move the mobile phone away from this unit when it is in use.

•Moving the unit

Turn off the power and unplug the power cord from the power outlet. Next, disconnect the connection cables to other system units before moving the unit.

•About care

•Wipe the cabinet and control panel clean with a soft cloth.

•Follow the instructions when using a chemical cleaner.

•Benzene, paint thinner or other organic solvents as well as

insecticide may cause material changes and discoloration if brought into contact with the unit, and should therefore not be used.

Equipped with an organic EL display with great visibility

High contrast with low power can be achieved. Song and artist names are clearly displayed.

Remote operation

Preparations Operations

Informations

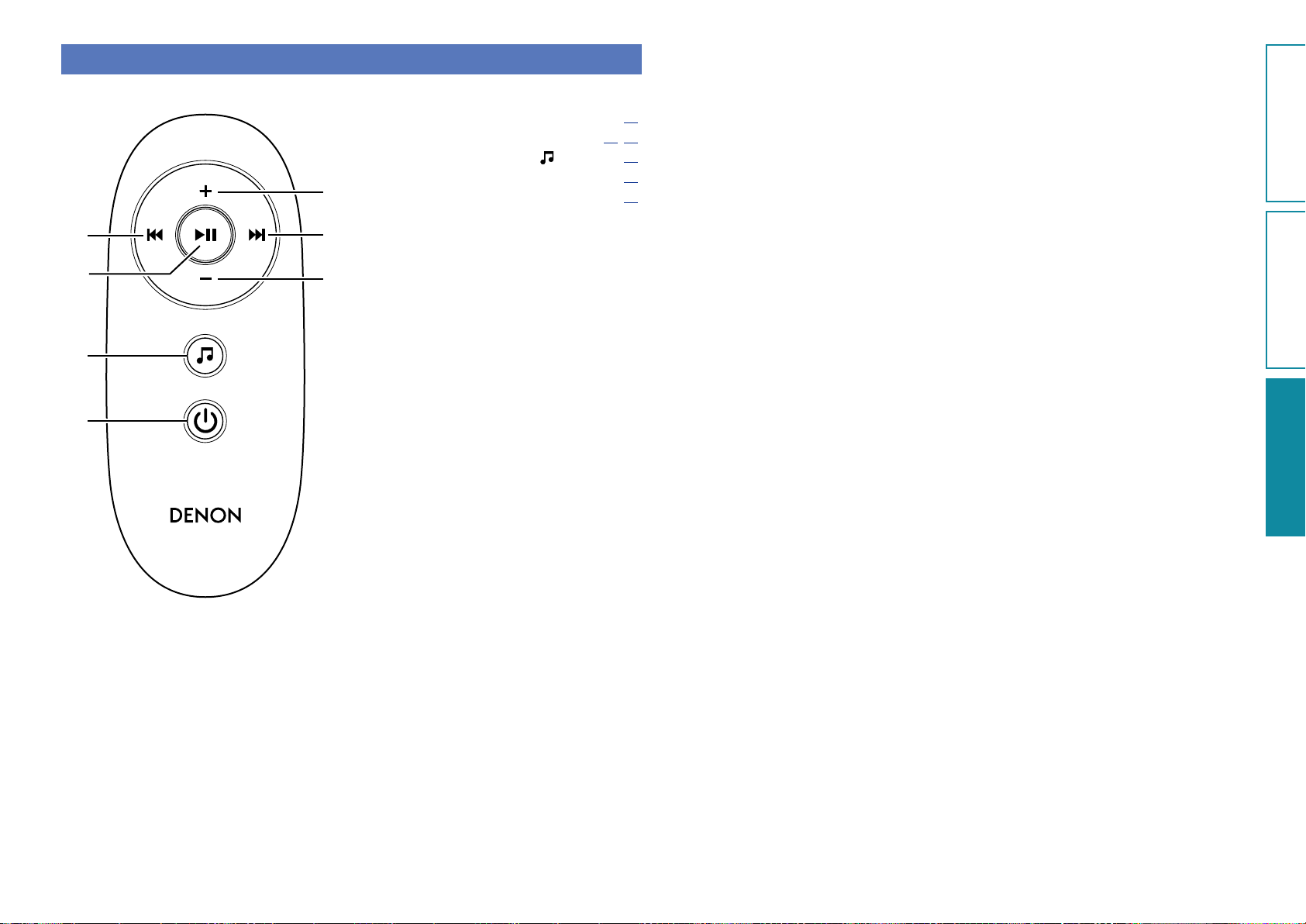

About the remote control unit

n Inserting the batteries

q Remove the rear lid in the

direction of the arrow and remove it.

e Put the rear cover back on.

NOTE

•Insert the speciﬁed batteries in the remote control unit.

•Replace the batteries with new ones if the set does not operate

even when the remote control unit is operated close to the unit. (The supplied batteries are only for verifying operation. Replace them with new batteries at an early date.)

•When inserting the batteries, be sure to do so in the proper direction,

following the q and w marks in the battery compartment.

•To prevent damage or leakage of battery ﬂuid:

•Do not use a new battery together with an old one.

•Do not use two different types of batteries.

•Do not attempt to charge dry batteries.

•Do not short-circuit, disassemble, heat or dispose of batteries in

ﬂames.

•Do not keep the battery in a place exposed to direct sunlight or in

places with extremely high temperatures, such as near a heater.

•If the battery ﬂuid should leak, carefully wipe the ﬂuid off the inside

of the battery compartment and insert new batteries.

•Remove the batteries from the remote control unit if it will not be in

use for long periods.

•Used batteries should be disposed of in accordance with the local

regulations regarding battery disposal.

•The remote control unit may function improperly if rechargeable

batteries are used.

w Load the two batteries properly

as indicated by the marks in the battery compartment.

R03/AAA

n Operating range of the remote control unit

Point the remote control unit at the remote sensor when operating it.

Approx. 23 ft/7 m

30°30°

NOTE

•The set may function improperly or the remote control unit may not

operate if the remote control sensor is exposed to direct sunlight, strong artiﬁcial light from an inverter type ﬂuorescent lamp or infrared light.

•When using 3D video devices that transmit radio communication

signals (such as infrared signals etc) between the various units (such as the monitor, 3D glasses, 3D transmitter unit etc), the remote control unit may not operate due to interference from those radio communication signals. If this occurs, adjust the direction and distance of the 3D communication for each unit, and check that the remote control unit operation is not affected by these signals.

Cocoon App

Cocoon App is DENON’s proprietary application developed for iPhone, iPod touch and iPad.

With Cocoon App, you can use iPhone, iPod touch and iPad to:

•Operate this unit

•Manually make the wireless LAN settings on this unit (vpage9)

•Change preset Internet radio stations (vpage17)

15:05iPod

Cocoon 1

SLEEP TIMER

00:29 min

iDevice

AUXiDeviceInternet RadioMusic Player

TunelnMusic Server

•Bidirectional communication is performed.

•The Cocoon App can be downloaded for free from the App Store.

Preparations

Preparations Operations

Informations

Preparations

Here, we explain the connections methods for this unit.

F Connections vpage5

vpage5

vpage6

vpage5

PORTABLE

F Connecting to a home network (LAN) vpage7

vpage9 vpage10

vpage5

PLAYER

Connections

WIRELESS LAN

NETLINK

WIRELESS LAN

Preparations Operations

Informations

Preparations

NOTE

•Do not plug in the power cord until all connections have been

completed.

•When making connections, also refer to the owner’s manual of the

other components.

•Do not bundle power supply cords together with connection cables.

Doing so can result in humming or noise.

Connecting the power cord

When all of the connections are completed, insert the power plug into the power outlet.

AC IN

USB NETWORK WIRELESS LAN LOUDNESSON /

5V 0.5A

AUX IN NETLINK WPS

Power cord

(Supplied)

To household power outlet

(AC 120 V, 60 Hz)

NOTE

•Only use the supplied power cord.

•Be sure the power cord is unplugged from the power outlet before

connecting or disconnecting it to the AC inlet.

STANDBY

Connecting a USB memory device

•You can enjoy music stored on a USB memory device.

•For operating instructions see “Playing a USB memory device”

(vpage18).

USB

memory

device

AC IN

USB NETWORK

5V 0.5A

•If the USB memory device is divided into multiple partitions, only the

top partition can be selected.

•This unit is compatible with MP3 ﬁles conforming to “MPEG-1 Audio

Layer-3” standards.

•DENON does not guarantee that all USB memory devices will

operate or receive power. When using a portable USB connection type HDD of the kind to which an AC adapter can be connected to supply power, use the AC adapter.

NOTE

•Note that DENON will accept no responsibility whatsoever for any

problems arising with the data on a USB memory device when using this unit in conjunction with the USB memory device.

•USB memory devices will not work via a USB hub.

•It is not possible to use this unit by connecting the unit’s USB port

to a PC via a USB cable.

•Do not use an extension cable when connecting a USB memory

device. This may cause radio interference with other devices.

AUX IN

Connecting a portable player

•If a portable player is connected via the AUX IN jack of the unit,

music from the portable player can be played.

•For operating instructions see “Playing a portable player”

(vpage19).

Cables used for connections

Audio cable (sold separately)

Stereo mini plug cable

AC IN

USB NETWORK

5V 0.5A

Portable

Audio

HEADPHONE

AUX IN NETLINK

Connecting an iOS device

Preparations Operations

Informations

Preparations

•You can enjoy music stored on an iOS device.

•For operating instructions see “Playing an iOS device” (vpage14)

Dismantling

iPod

Dock connector

NOTE

•Depending on the type of iOS device and the software version, some functions may not operate.

•Note that DENON will accept no responsibility whatsoever for any problems arising with the data on an

iOS device when using this unit in conjunction with the iOS device.

How to eject/store the Dock

q Push the front of the Dock, and it comes out. w Push it again to store within this unit.

Supported iPod models

•iPod / iPod classic

•iPod nano

•iPod touch

NOTE

•When ejecting/storing the Dock, hold the upper part of this unit with your hand to prevent this unit from

moving or tipping over.

•When iPhone or iPod touch is not connected to this unit, store the Dock within this unit.

•iPhone

•iPad

(as of July 2012)

Connecting to a home network (LAN)

Preparations Operations

Informations

Preparations

When this unit is connected to your home network (LAN), you can enjoy various audio sources via the network.

•Streaming playback from iPhone, iPod touch or iPad with AirPlay

•Internet radio

•Music ﬁles on music servers

Furthermore, you can operate this unit by using Cocoon App on iPhone, iPod touch or iPad.

To check for any ﬁrmware update available for improving this unit, etc., see “Firmware Update” (vpage26) in the menu.

Required system

n Broadband internet connection n Modem

Device that connects to the broadband circuit and conducts communications on the Internet. A type that is integrated with a router is also available.

n Router

When using this unit, we recommend you use a router equipped with the following functions:

•Built-in DHCP server

This function automatically assigns IP addresses on the LAN.

•Built-in 100BASE-TX switch

When connecting multiple devices, we recommend a switching hub with a speed of 100 Mbps or greater.

•When using with a wireless LAN, prepare a broadband router

with built-in access point.

n Ethernet cable (supplied)

(CAT-5 or greater recommended)

•Use only a shielded STP or ScTP LAN cable which is available at

retailer.

•The normal shielded-type Ethernet cable is recommended. If a

ﬂat-type cable or unshielded-type cable is used, other devices could be affected by noise.

•If you have an Internet provider contract for a line on which network

settings are made manually, make the settings at “When “DHCP” is set to “Off” on your router” (vpage10).

•With this unit, it is possible to use the DHCP and Auto IP functions

to make the network settings automatically.

•When using this unit with the broadband router’s DHCP function

enabled, this unit automatically performs the IP address setting and other settings. When using this unit connected to a network with no DHCP function, make the settings for the IP address, etc., at “When “DHCP” is set to “Off” on your router” (vpage10).

•When setting manually, check the setting contents with the network

administrator.

NOTE

•A contract with an ISP is required to connect to the Internet.

No additional contract is needed if you already have a broadband connection to the Internet.

•The types of routers that can be used depend on the ISP. Contact an

ISP or a computer shop for details.

•DENON assumes no responsibility whatsoever for any

communication errors or troubles resulting from customer’s network environment or connected devices.

•This unit is not compatible with PPPoE. A PPPoE-compatible router

is required if you have a contract for a type of line set by PPPoE.

•Do not connect an NETWORK connector directly to the LAN port/

Ethernet connector on your computer.

•To listen to audio streaming, use a router that supports audio

streaming.

Network connections and settings

Preparations Operations

Informations

Preparations

There are two types of network connections available – wired and wireless. Select either of them according to your router functions and operating environment.

Using a router equipped with the wireless LAN function

Connect this unit to your router wirelessly. Connection procedures differ according to the type of your router.

n When your router is equipped with a WPS button

(vpage9)

n When your router is not equipped with a WPS

button and you are using iPhone, iPod touch or iPad

(vpage9)

Using a router that is not equipped with the wireless LAN function

Connect this unit to your router with an Ethernet cable. Connection procedures differ according to your router settings.

n When “DHCP” is set to “On” on your router

(vpage10)

n When “DHCP” is set to “Off” on your router

(vpage10)

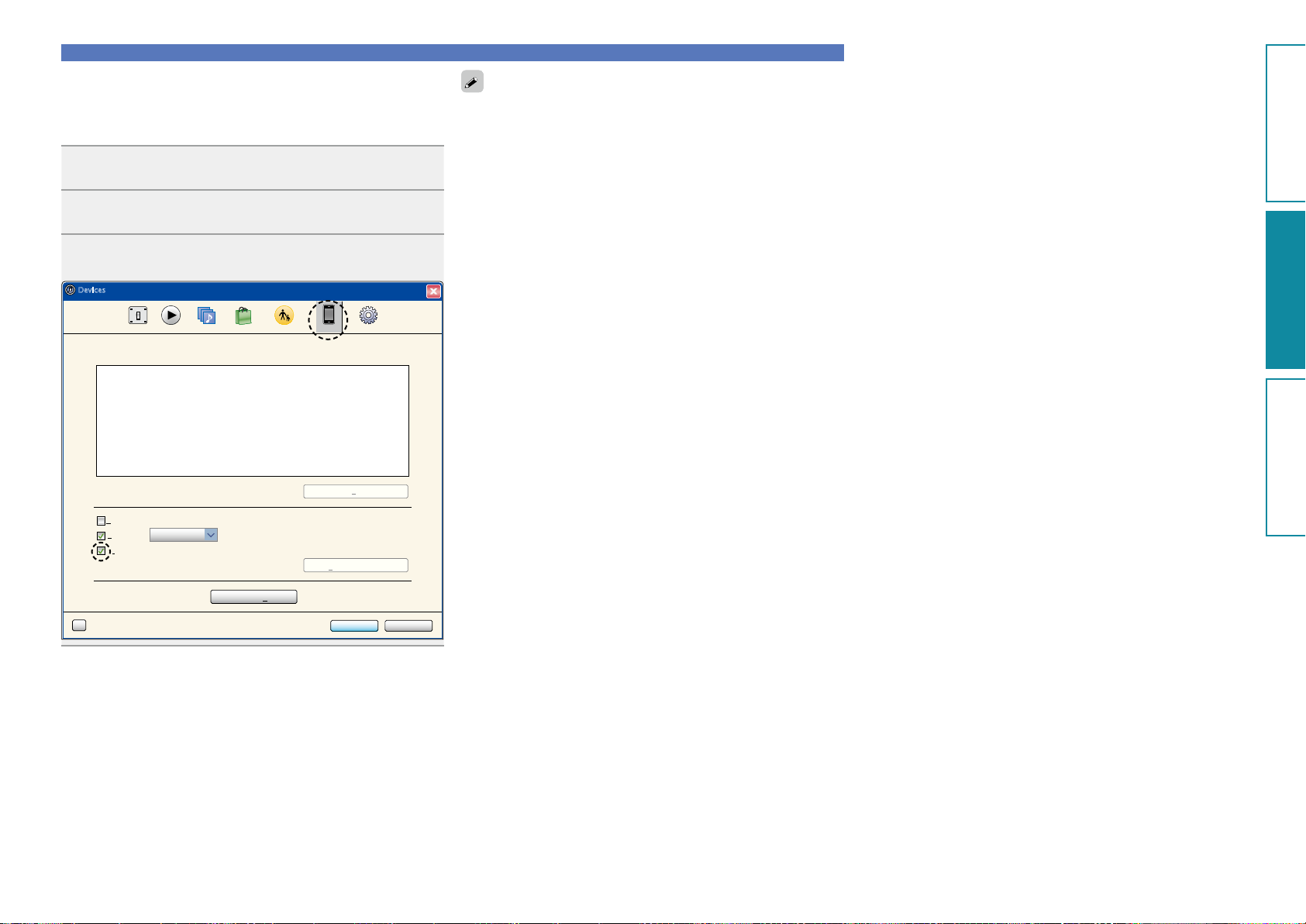

Using PC to make network settings of this unit

You can also use your PC to make network settings of this unit without iPhone, iPod touch or iPad.

n When this unit is connected to your PC through

wireless LAN (vpage11)

“WPS” stands for Wi-Fi Protected Setup, a standard for making it easy to make security settings required when connecting wireless LAN devices.

Wireless LAN

Preparations Operations

Informations

Preparations

v See overleaf

Internet

Modem

To WAN side

Router with access point

n When your router is equipped with a WPS

button

By just pressing the WPS button on your router and this unit, the wireless LAN connection settings are made.

•Before turning this unit on, make sure that an Ethernet cable is

not connected to this unit. If a cable is connected, have this unit enter the power standby mode and disconnect the cable.

•After the unit is turned on, it takes approximately 30 seconds for

the WPS button on this unit to be available.

Press the WPS button of the router.

Press WPS on the rear panel.

“Connecting” is displayed, and the unit starts connecting to the LAN.

Network connections and settings

n When your router is not equipped with

a WPS button and you are using iPhone, iPod touch or iPad

Use the DENON application “Cocoon App” to make the wireless LAN connection settings.

•“Cocoon App” is free.

•Before turning this unit on, make sure that an Ethernet cable is

not connected to this unit. If a cable is connected, have this unit enter the power standby mode and disconnect the cable.

•To make the connection settings by using PC without iPhone,

iPod touch or iPad, see “Using PC to make network settings of this unit” (vpage11).

Download “Cocoon App” to your iPhone, iPod touch

or iPad from App Store.

iPhone, iPod touch

and iPad

AC IN

USB NETWORK

5V 0.5A

•When the connection is made successfully, “Succeeded” appears.

•If the connection cannot be established, “Connection Failed” is

displayed. Perform steps 1 – 2 again.

•If this unit is still not connected to the network after this procedure,

manually enter the PIN code of WPS (vpage25).

WIRELESS LAN LOUDNESS

AUX IN NETLINK WPS

ON / STANDBY

Start the application.

When the “SETUP” screen is

displayed, tap “NetLink”.

•“Scanning network for devices”

is displayed.

SETUPBACK

App Setting

Device DSD500 Bed Room

Theme

NetLink

Language

DSD500 Bed Room Setting

Clock

Network Settings

Volume Settings

English

Auto

Network connections and settings

Preparations Operations

Informations

Preparations

Enter the encryption key.

q Enter the encryption key of your

router that is connected to your iPod, iPhone or iPad.

w Tap “Join”.

21:12iPod

NETLINKBACK JOIN

Access Point

Cocoon

Enter Password

E R T Y U I O P

S D F G H J K L

Z X C V B N M

Join123 space

Place your iPod, iPhone or iPad in the dock of this

unit (vpage 6).

Tap “JOIN”.

The network settings are copied to

this unit from your iPod, iPhone or iPad and this unit is connected to the network.

•When this unit could not connect to the network, the application

displays an error message. Perform steps 1 – 6 again.

15:10iPod

NETLINKBACK JOIN

Access Point

Cocoon

Enter Password

Wired LAN

NAS

Internet

Router

For connections to the Internet, contact an ISP (Internet Service Provider) or a computer shop.

Modem

To WAN side

To LAN port

Ethernet cable

(Supplied)

USB NETWORK WIRELESS LAN LOUDNESSON /

5V 0.5A

AUX IN NETLINK WPS

n When “DHCP” is set to “On” on your router

When using this unit with the broadband router’s DHCP function enabled, this unit automatically performs the IP address setting and other settings.

(Network Attached

LAN port/

Ethernet

connector

STANDBY

Storage)

LAN port/

Ethernet

connector

You may need to set the network connection manually, depending on the provider you use. To set the connection manually, use the setting procedure of “When “DHCP” is set to “Off” on your router”.

n When “DHCP” is set to “Off” on your router

This section explains the settings when connecting this unit to a network that does not have a DHCP function.

To conﬁgure the settings manually, check the setting details with your network administrator.

Complete steps 1 – 4 in “When this unit is connected

to your PC through wireless LAN” (vpage 11).

On the page that appears, set the information

necessary for the network connection.

q Click “Proﬁle Conﬁguration” on the upper left part of the

page.

w Click “ADVANCE SETTING”. e Enter required items. r When settings are completed, click “Apply”. t Connect the Ethernet cable.

•“Connecting” is displayed, and the unit starts connecting to the

LAN.

•When the connection is made successfully, “Succeeded” appears.

•If the connection cannot be established, “Connection Failed” is

displayed. Turn this unit off and on. If this unit is still not connected to the network after this procedure, complete steps 1 – 2 again.

The wireless network name (SSID) and encryption method used for this unit are the same as those set for the connected iPod, iPhone or iPad.

Connect the supplied Ethernet cable by referring to



Press X to turn on power to the main unit.

•When this unit could not connect to the network, perform steps 1

and 2 again.

Using PC to make network settings of this

Preparations Operations

Informations

Preparations

unit

n When this unit is connected to your PC through

wireless LAN

Before turning this unit on, make sure that an Ethernet cable is not connected to this unit. If a cable is connected, have this unit enter the power standby mode and disconnect the cable.

Press X to turn on power to the main unit.

It takes approximately 30 seconds for this unit to start.

Press NETLINK on the rear panel.

This unit restarts and “NetLink” appears on the display.

Connect to “Cocoon_Setup” in the wireless network

settings on your PC.

•If “Cocoon_Setup” is not displayed, refresh the network.

•It may take up to two minutes to establish the connection.

Launch the browser on the PC connected to this unit,

and enter the address “http://169.254.1.1”.

On the page that appears, set the information

necessary for the network connection.

q Click “Proﬁle Conﬁguration” on the upper left part of the

page.

w From the “Digital Media Player Wireless LAN Settings”

dropdown list, select the SSID (Service Set ID) of your router.

e Enter the password. r When settings are completed, click “Apply”.

•“Connecting” is displayed, and the unit starts connecting to the

LAN.

•When the connection is made successfully, “Succeeded” appears.

•If the connection cannot be established, “Connection Failed” is

displayed. Perform steps 1 – 5 again.

•It may take 120 seconds to establish the network connection.

Network connections and settings

•Enter the name in the “Friendly Name” box and click “Set” to

change the friendly name. A friendly name is the name of this unit that is presented to the network.

•In “ADVANCE SETTING”, you can manually make settings such as

the IP address.

NOTE

NETLINK does not support proxy servers.

Operations

Preparations Operations

Informations

Operations

Here, we explain functions and operations that let you make better use of this unit.

F Playback vpage13

vpage14 vpage15 vpage17

vpage18

PORTABLE

PLAYER

vpage19 vpage20

F How to make detailed settings vpage22

Playback

Preparations Operations

Informations

Operations

This section provides how to play back music with this unit. This unit can play back music from the following devices (media).

•iPhone, iPod and iPad

When connected to this unit (vpage14) When using AirPlay (vpage15)

•Internet radio (vpage17)

•Music ﬁles on USB ﬂash memories (vpage18)

•Portable player (vpage19)

•Music server (PC on the network) (vpage20)

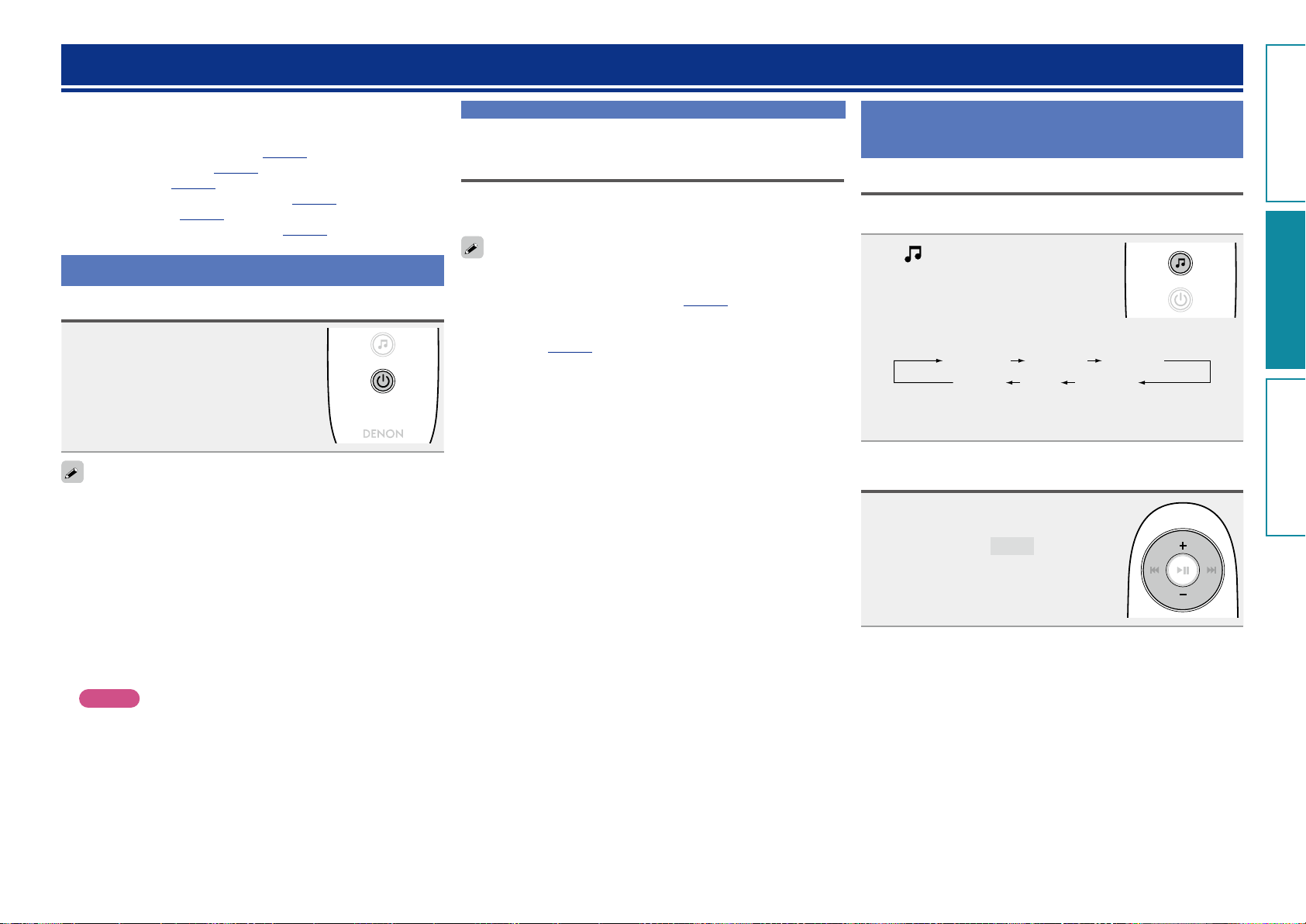

Preparations

Turning the power on

Press X to turn on power to the unit.

This unit is turned on and the operation button on top lights.

You can also switch the power to standby by pressing ON/STANDBY on the main unit.

n When power is switched to standby

Press X.

•The operation button on top lights off and this unit enters the

standby mode.

Preparations

Setting the current time (Auto Adjust) (12Hour Display)

When this unit is connected to the network, the current time is automatically set.

•The default time zone of this unit is set to Eastern Standard Time.

To change the Time Zone and Summer Time, see “Adjusting the clock automatically (Auto Adjust)” (vpage23).

•When this unit is not connected to the network, set the time

manually. See “Setting the current time (Manual Adjust) (12-Hour Display)” (vpage24).

Operations possible during playback

Selecting the input source

You can select the device for which this unit outputs the audio that is connected to this unit.

Press

•The input source is switched each time the button is pressed.

Adjusting the master volume

Press + or –.

The volume level is displayed.

GAdjustable rangeH

iDevice

AUX

z These items are displayed if a relevant device is connected

to this unit.

USB

0 – 50

Preset 2Preset 1

Preset 3

n Completely turning off the power

Power continues to be supplied to some of the circuitry even when the power is in the standby mode. When leaving home for long periods of time, unplug the power cord from the power outlet.

NOTE

The settings made for the various functions may be cleared if the power cord is left unplugged from a power outlet for an extended period of time.

Operations possible during playback

Preparations Operations

Informations

Operations

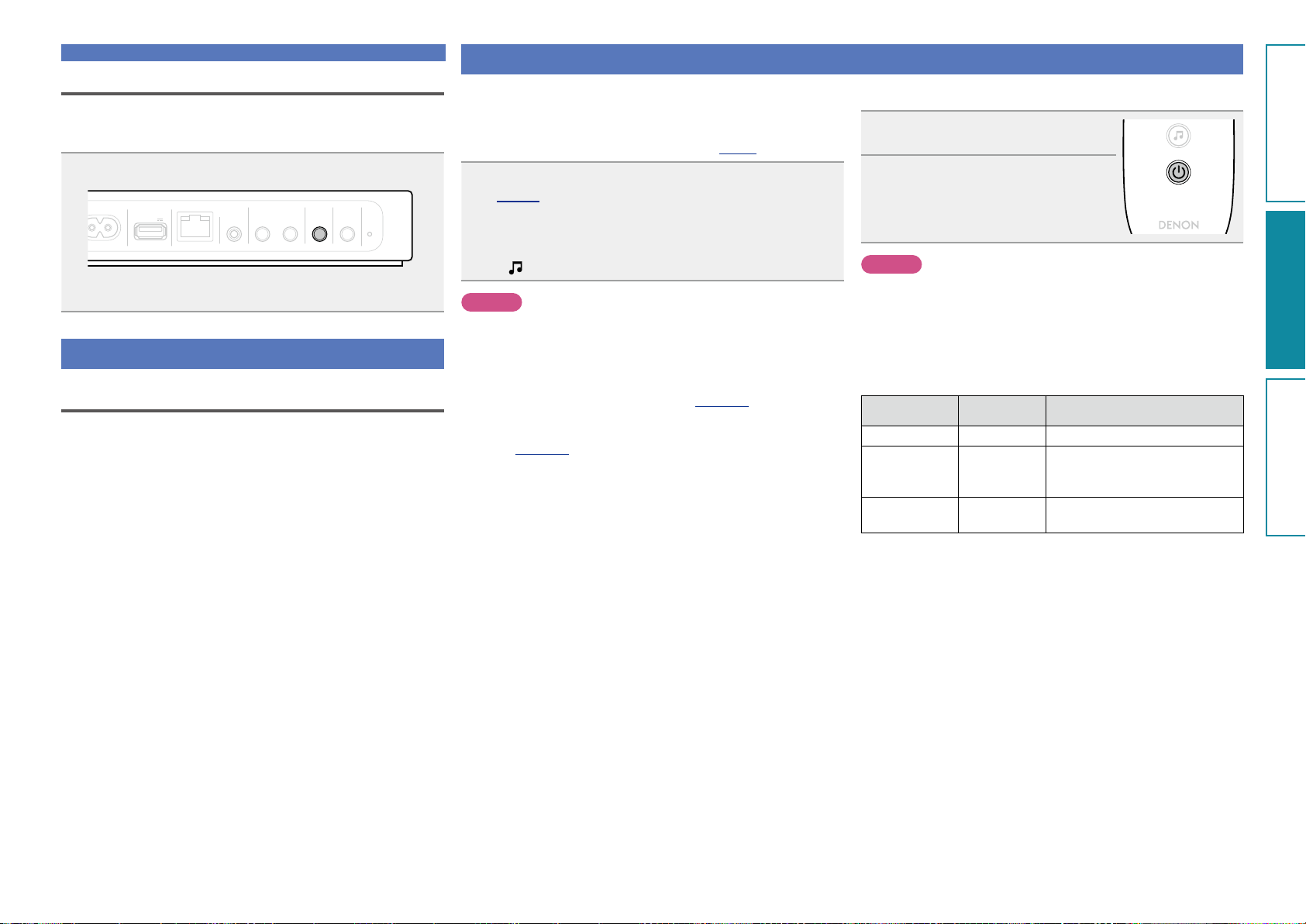

Adjusting the tone (LOUDNESS)

When you press LOUDNESS to the “On” (h) state, bass and treble sounds, which are hard to hear at a low volume level, are enhanced for a more natural audio quality.

Press LOUDNESS on the main unit.

AC IN

USB NETWORK WIRELESS LAN

5V 0.5A

•Press the button again to the “Off” (j) state to return to the

original audio quality.

AUX IN NETLINK WPS

LOUDNESSON /

STANDBY

Various memory functions

Last function memory

This function stores the settings which were made before going into the standby mode. When the power is turned back on, the settings are restored.

Playing an iOS device

With this unit, you can listen to music on an iOS device. It is also possible to operate the iOS device from the main unit or remote control. For information on the iOS device models that can be played back with this unit, see “Connecting an iOS device” (vpage6).

Load the iOS device onto the Dock of this unit (vpage 6 “Connecting an iOS device”).

When the iOS device is loaded to the dock tray on this unit, the input source automatically switches to “iDevice”.

•During AirPlay, the input source does not switch automatically.

Press

NOTE

This function is activated around 30 seconds after the power is turned on.

n Streaming music stored in iPhone, iPod touch or

n Playing iTunes music with this unit

to switch the input source to “iDevice”.

iPad directly to the unit (

vpage15)

(

vpage15)

n Disconnecting the iOS device

Press X to set the standby mode.

Remove the iOS device from the

Dock of this unit.

NOTE

•Depending on the type of iOS device and the software version,

some functions may not operate.

•Note that DENON will accept no responsibility whatsoever for any

problems arising with the data on an iOS device when using this unit in conjunction with the iOS device.

n Remote control and iOS device button relations

Remote control

buttons

13 13

8, 9

(Press and release)

8, 9

(Press and hold)

iOS device

buttons

8, 9

(Press and

release)

8, 9

(Press and hold)

Operation on this unit

Play the track / Pause the track.

Play the track from the beginning/ Play the next track.

Fast-reverse the track/ Fast-forward the track.

AirPlay function

Preparations Operations

Informations

Operations

v See overleaf

Enjoy music from your iTunes library with high quality sound anywhere in your home. Use the Apple Remote appz for iPhone, iPod touch and iPad to control iTunes from any room in your home.

z Available as a free download from the App Store.

NOTE

•Before using the AirPlay function, this unit must be connected to the

network. For how to connect this unit to the network, see “Network connections and settings” (vpage8).

•To use the AirPlay function, you must update iPhone, iPod touch or

iPad to iOS 4.2.1 or higher.

n Streaming music stored in iPhone, iPod touch or

iPad directly to the unit

Make the Wi-Fi settings for iPhone, iPod touch or

iPad.

•For details, see your device’s manual.

Startup iPhone, iPod touch, or iPad music or iPod

app.

is displayed on the iPhone, iPod touch or iPad screen.

NOTE

When the AirPlay function is used, this unit plays back at the volume level set on iPhone, iPod touch, iPad, or iTunes. First minimize the volume level on iPhone, iPod touch, iPad, or iTunes before playback. Then, start playback and adjust the volume to the desired level.

n Playing iTunes music with this unit

Install iTunes 10, or later, on a Mac or Windows PC

that is connected to the same network as this unit.

Turn this unit ON.

Launch iTunes and click the AirPlay icon

displayed in the lower right of the window and select this unit from the list.

Selecting multiple speakers (devices)

It is possible to play iTunes songs on your home’s AirPlay compatible speakers (devices) other than those of this unit.

Click the AirPlay icon

Speakers” from the list.

Check the speakers you want to use.

and select “Multiple

Multiple Speakers

Master Volume

My Computer

This Computer

Cocoon 1

AirPlay Device

3 4

Tap the AirPlay icon

Select the speaker you want to use.

Cocoon 1

Cancel

Choose a song and click play in iTunes.

The music will stream to this unit.

n Perform iTunes playback operations with the

Preparations Operations

Informations

Operations

remote control unit of this unit

With this unit’s remote control unit, you can perform iTunes song play, pause, and auto search (cue) operations.

Select “Edit” – “Preferences...” on the menu.

Select “Devices” in the iTunes setting window.

Check “Allow iTunes control from remote speakers”,

and then click “OK”.

Devices

AirPlay function

•Source input will be switched to “AirPlay” when AirPlay playback

is started.

•You can stop AirPlay playback by choosing other input source.

•For information about how to use iTunes, also see the Help for

iTunes.

•The screen may differ depending on the OS and software versions.

General Playback Sharing Store Parental Advanced

Device backups:

Prevent iPods, iPhones, and iPads from syncing automatically

Allow iTunes control from remote speakers

iTunes is not paired with any Remotes

more than 5%Warn when

of the data on this computer will be changed

Reset Sync History

Devices

Delete Backup ...

Forget All Remotes

OK Cancel

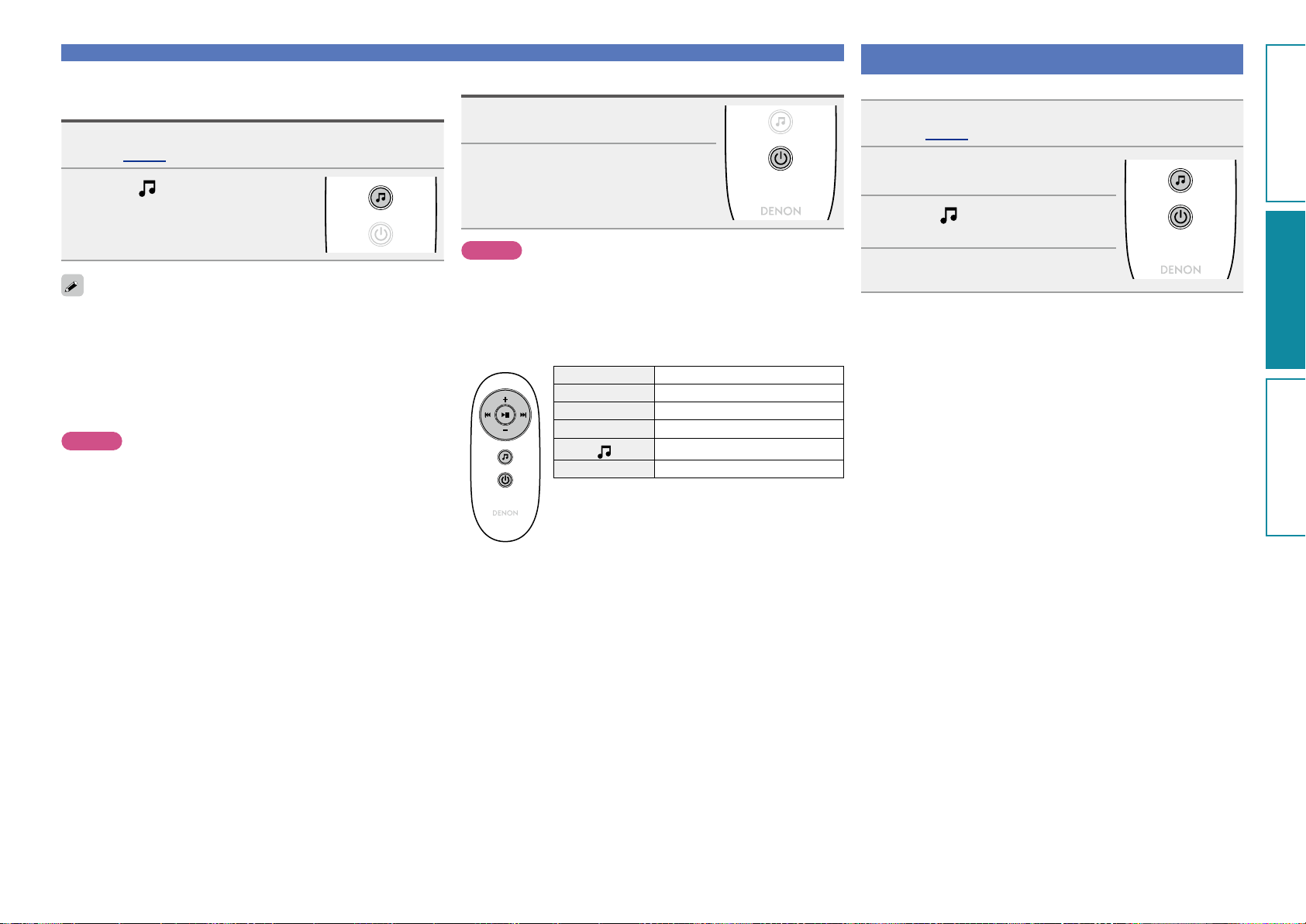

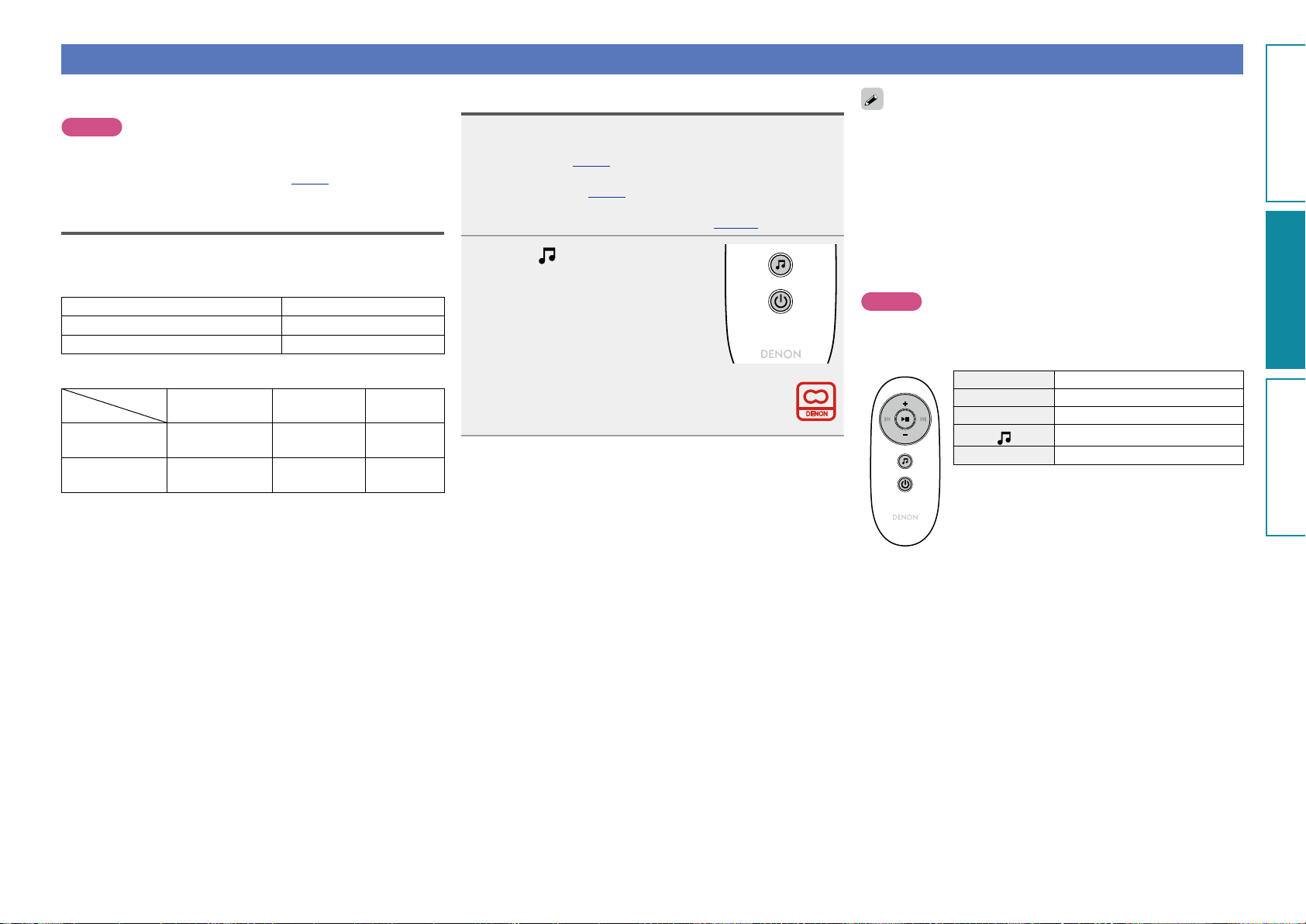

Listening to internet radio

Preparations Operations

Informations

Operations

Internet radio refers to radio broadcasts distributed over the Internet. Internet radio stations from around the world can be received.

NOTE

Before playing back the Internet radio, this unit must be connected to the network. For how to connect this unit to the network, see “Network connections and settings” (vpage8).

Important information

The broad cast station types and speciﬁcations supported by this unit for playback are as follows.

GPlayable broadcast station typesH

Supported ﬁle types Internet radio

WMA (Windows Media Audio)

MP3 (MPEG-1 Audio Layer-3)

GPlayable broadcast station speciﬁcationsH

Sampling

frequency

WMA (Windows

Media Audio)

MP3 (MPEG-1 Audio Layer-3)

32/44.1/48 kHz 48 – 192 kbps .wma

32/44.1/48 kHz 32 – 320 kbps .mp3

Bit rate Extension

Listening to preset Internet radio stations

Prepare for playback.

q Check the network environment, then turn on this unit’s

power (vpage8 “Network connections and settings”).

w If settings are required, make the “Network connections and

settings” (vpage8).

e If settings are required, make the “Setting the current time

(Auto Adjust) (24-Hour Display)” (vpage13).

Press

source to “Preset 1”, “Preset 2” or “Preset 3”.

Playback starts.

•Use Cocoon App to change preset details.

to switch the input

•There are many Internet radio stations on the Internet, and the

quality of the programs they broadcast as well as the bit rate of the tracks varies widely. Generally, the higher the bit rate, the higher the sound quality, but depending on the communication lines and server trafﬁc, the music or audio signals being streamed may be interrupted. Inversely, lower bit rates mean a lower sound quality but less tendency for the sound to be interrupted.

•“Server Full” or “Connection Down”is displayed if the station is

busy or not broadcasting.

•The Internet radio station name appears on the display of this unit.

NOTE

The radio station database service may be suspended without notice.

n Internet radio operation buttons

Operation buttons Function

+, – Volume up / down

Mute On/Off

Switching the input source

Power on/standby

Playing a USB memory device

Preparations Operations

Informations

Operations

A USB memory device can be connected to the USB port of this unit to play music ﬁles stored on the USB memory device.

Important information

•Only USB memory devices conforming to mass storage class and MTP (Media Transfer Protocol)

standards can be played on this unit.

•This unit is compatible with USB memory devices in “FAT16” or “FAT32” format.

•This unit is compatible with MP3 ﬁles conforming to “MPEG-1 Audio Layer-3” standards.

•File types that this unit can play back and speciﬁcations are shown below.

GSupported ﬁle typesH

Supported ﬁle types USB memory devices

WMA (Windows Media Audio)

MP3 (MPEG-1 Audio Layer-3)

WAV

MPEG-4 AAC

FLAC (Free Lossless Audio Codec)

z1 USB memory device

•This unit is compatible with MP3 ID3-Tag (Ver. 2) standard.

•This unit is compatible with WMA META tags.

•If the image size (pixels) of an album artwork exceeds 500 × 500 (WMA/MP3/WAV/FLAC) or 349 ×

349 (MPEG-4 AAC), then music may not be played back properly.

z2 Copyright-protected ﬁles can be played on certain portable players compatible with MTP. z3 Only ﬁles that are not protected by copyright can be played on this unit.

Content downloaded from pay sites on the Internet are copyright protected. Also, ﬁles encoded in

WMA format when ripped from a CD, etc. on a computer may be copyright protected, depending on the computer’s settings.

P P

GCompatible formatsH

Sampling frequency Bit rate Extension

WMA (Windows Media Audio) 32/44.1/48 kHz 48 – 192 kbps .wma

MP3 (MPEG-1 Audio Layer-3) 32/44.1/48 kHz 32 – 320 kbps .mp3

WAV 32/44.1/48 kHz – .wav

.aac/

MPEG-4 AAC 32/44.1/48 kHz 16 – 320 kbps

FLAC (Free Lossless Audio Codec) 32/44.1/48/88.2/96 kHz – .ﬂac

.m4a/

.mp4

n Maximum Number of Playable Files and Forder

The limits on the number of folders and ﬁles that can be displayed by this unit are as follows.

Media

Item

Memory capacity FAT16 : 2 GB, FAT32 : 2 TB

Number of folders FAT16 or FAT32 format 500

Number of ﬁles

z The allowable number of ﬁles may differ according to the USB memory device capacity and the ﬁle size.

USB memory devices

5000

n Folder playback sequence

You can only play back ﬁles stored in the top level folder (root).

If the number of ﬁles stored in a USB memory device exceeds 1,000, the access speed may become slower.

NOTE

File types that this unit does not support are not displayed.

Playing ﬁles stored on USB memory

Preparations Operations

Informations

Operations

devices

Connect the USB memory device to the USB port

(vpage 5 “Connecting a USB memory device”).

Press

source to “USB”.

Playback starts.

•If the USB memory device is divided into multiple partitions, only the

top partition can be selected.

•This unit is compatible with MP3 ﬁles conforming to “MPEG-1 Audio

Layer-3” standards.

•DENON does not guarantee that all USB memory devices will

operate or receive power. When using a portable USB connection type HDD of the kind to which an AC adapter can be connected to supply power, use the AC adapter.

NOTE

•Note that DENON will accept no responsibility whatsoever for any

problems arising with the data on a USB memory device when using this unit in conjunction with the USB memory device.

•USB memory devices will not work via a USB hub.

•It is not possible to connect and use a computer via the USB port of

this unit using a USB cable.

•Do not use an extension cable when connecting a USB memory

device. This may cause radio interference with other devices.

to switch the input

Playing a USB memory device

Removing the USB memory device

Press X to set the standby mode.

Check that the communication

indicator on the USB memory

     

out the USB memory device.

NOTE

Do not remove the USB memory device from the unit when the USB memory communication indicator is ﬂashing. Doing so may damage the USB memory device, or may corrupt the ﬁles recorded on the USB memory device.

n USB memory device operation buttons

Operation buttons Function

+, – Volume up / down

8 9

Auto search (cue) Playback / Pause

Switching the input source

Power on/standby

Playing a portable player

The following describes the procedure for playing portable player.

Connect the portable player to this unit

(vpage 5 “Connecting a portable player”).

Press X to turn on power to the

main unit.

Press

source to “AUX”.

Play the component connected to

this unit.

to switch the input

Playing back ﬁles stored on PC or NAS with Cocoon App (Music Server)

Preparations Operations

Informations

Operations

This unit can play back music ﬁles and playlists (m3u, wpl) stored on a PC, Digital Media Server (DMS) and on Network Attached Storage (NAS) that supports DLNA.

NOTE

•Before playing back music ﬁles on music servers, this unit must be

connected to the network. For how to connect this unit to the network, see “Connecting to a home network (LAN)” (vpage7).

For playable ﬁle formats and restrictions, see“Important information” (vpage21).

Applying media sharing settings

Here, we apply the settings to share music ﬁles stored on a PC and NAS on the network.

n Sharing media stored in PC

If you are using a media server, be sure to apply this setting ﬁrst.

•While this unit is operated by a media control device, “Music Server”

appears on the display of this unit.

•When selecting this unit from the media control device, the name of

this unit is displayed as its friendly name.

•To check the friendly name, see “Checking the network information”

(vpage25).

Settings for playing back with Windows Media Player 12 (Windows 7)

NOTE

Perform this procedure after changing the control panel display to “Category”.

In the PC’s “Control Panel”, select “Network

and Internet” - “Choose homegroup and sharing options”.

Select the “Stream my pictures, music, and videos

to all devices on my home network” check box and select “Choose media streaming options”.

Select “Allowed” in the drop-down list for “Cocoon

1”.

Select “Allowed” in the drop-down list for “Media

programs on this PC and remote connections...”.



Settings for playing back with Windows Media Player 11

Start up Windows Media Player 11 on the PC.

Select “Media Sharing” in the “Library”.

Click the “Share my media” check box, select

“Cocoon 1”, and then click “Allow”.

As you did in step 3, select the icon of the device

(other PCs and mobile devices) you want to use as a media controller, and then click “Allow”.



Sharing media stored in NAS

Change settings on the NAS to allow this unit and other devices (PCs and mobile devices) used as media controllers to access the NAS. For details, see the owner’s manual that came with the NAS.

Playing back ﬁles stored on PC or NAS with Cocoon App (Music Server)

Preparations Operations

Informations

Operations

Important information

About playback

When you start playback on PC, NAS, or DMS, the input source for this unit automatically switches to “Music Server”, and audio is output from this unit. The name of the currently played back track and its artist name appear on the display of this unit. When this unit is operating, you can perform operations such as playing back and stopping ﬁles through DMC operations. You can also adjust or mute the volume. Pressing while this unit is playing back stops the playback on this unit and switches to “Preset 1”.

•When using a server that supports transcoding such as Windows

Media Player (version 11 or higher), you can play back WMA Lossless ﬁles.

•Depending on the played back ﬁle, the track name or artist name

may not be displayed.

NOTE

The music display order depends on the speciﬁcations of your PC, NAS, or DMS.

n Music Server operation buttons

Operation buttons Function

+, – Volume up / down

Mute On/Off

Switching the input source

Power on/standby

•The network audio playback function of this unit connects to the server using technologies shown below.

•Windows Media Player Network Sharing Service

•File types that this unit can play back and speciﬁcations are shown below.

GSupported ﬁle typesH

Supported ﬁle types Music Server

WMA (Windows Media Audio)

MP3 (MPEG-1 Audio Layer-3)

WAV

MPEG-4 AAC

FLAC (Free Lossless Audio Codec)

A server or server software compatible with distribution in the corresponding formats is required to play music ﬁles via a network. z1 Music Server

•This unit is compatible with MP3 ID3-Tag (Ver. 2) standard.

•This unit is compatible with WMA META tags.

z2 Only ﬁles that are not protected by copyright can be played on this unit.

Content downloaded from pay sites on the Internet are copyright protected. Also, ﬁles encoded in WMA format when ripped from a CD, etc. on a computer may be copyright protected, depending on the computer’s settings.

NOTE

File types that this unit does not support are not displayed.

GSpeciﬁcations of supported ﬁlesH

Sampling frequency Bit rate Extension

WMA (Windows Media Audio) 32/44.1/48 kHz 48 – 192 kbps .wma

MP3 (MPEG-1 Audio Layer-3) 32/44.1/48 kHz 32 – 320 kbps .mp3

WAV 32/44.1/48 kHz – .wav

.aac/

MPEG-4 AAC 32/44.1/48 kHz 16 – 320 kbps

FLAC (Free Lossless Audio Codec) 32/44.1/48/88.2/96 kHz – .ﬂac

.m4a/

.mp4

How to make detailed settings

Preparations Operations

Informations

Operations

Menu map

Setting items Detailed items Description Page

Language

Clock

Max Vol Level

Network Info.

WPS

WPS(PIN)

Firmware Update

Factory Reset

Exit

Sets the language for display the menu.

Auto Adjust(On) Automatically performs the clock setting from the time information on

the Internet.

Time Zone(+12H) Sets your local time zone (for Auto Adjust). Summer Time(Off) Sets the Summer Time information (for Auto Adjust).

Auto Adjust Now Obtains the current time.

Manual Adjust Adjusts the clock manually.

Make a setting for maximum volume.

Display network information. Friendly Name / DHCP=On or Off / IP Address / Primary DNS / Secondary DNS / MAC Address

Sets the wireless connection using WPS (PIN code method).

Starts the ﬁrmware update.

Reset to the defaults. –

To exit the menu, select “Exit”.

23 24

Menu operation

NOTE

Use buttons on this unit for menu operations. Buttons on the remote control do not work.

Press + and – at the same time.

Language

•The selected item appears on the display.

Press + or – to select the menu to be set.

Press 13 to enter the setting.

•To return to the previous item, use + or – to select “Exit”, and

press 13.

–

•To exit the menu, select “Exit” in the top menu, and press 13.

The menu disappears.

Setting the language (Language)

Preparations Operations

Informations

Operations

Sets the language for display the menu.

•The factory default setting is “English”.

Press + and – at the same time.

Turns on the menu settings mode and the menu appears on the display (vpage22 “Menu map”).

Language

Press 13, then press + or – to select the language

you want to set.

English

Français

Press 13 to enter the setting

The top menu is displayed again.

Español

(EXIT)

Setting the clock (Clock)

You can automatically adjust the clock of this unit using the Internet.

To use this function, the unit must be connected to the Internet.

Adjusting the clock automatically (Auto Adjust)

Use the following procedure to automatically adjust the clock.

Press + and – at the same time.

Turns on the menu settings mode and the menu appears on the display (vpage22 “Menu map”).

Language

Press + or – to select “Clock”, then press 13.

Press + or – to select “Auto Adjust(On)”, then press

13.

Press + or – to select “On” or “Off”.

The operation to receive the current time starts.

Setting the Time Zone (Time Zone)

Use the following procedure to select your local standard time (time zone).

Press + and – at the same time.

Turns on the menu settings mode and the menu appears on the display (vpage22 “Menu map”).

Language

Press + or – to select “Clock”, then press 13.

“Auto Adjust(On)” is displayed.

Press + or – to select “Time Zone(–5H)”, then press

13.

“–5H(Eastern Standard Time)” is displayed.

Press + or – to select your local standard time (time

zone) in your lives, then press 13.

The “Clock” menu is displayed again.

Automatically adjust the clock.

Off

Does not automatically adjust the clock.

Press 13 to enter the setting

The “Clock” menu is displayed again.

Setting the clock (Clock)

Preparations Operations

Informations

Operations

Setting the Summer Time (Summer Time)

Use the following procedure to set Summer time if the Summer time system is used in your country.

Press + and – at the same time.

Turns on the menu settings mode and the menu appears on the display (vpage22 “Menu map”).

Language

Press + or – to select “Clock”, then press 13.

“Auto Adjust(On)” is displayed.

Press + or – to select “Summer Time(Off)”, then

press 13.

Press + or – to select “Off(0H)” or “On(+1H)”, then

press 13.

The “Clock” menu is displayed again.

Setting the current time (Auto Adjust Now)

When the unit is connected to the Internet, the current time is set automatically.

Press + and – at the same time.

Turns on the menu settings mode and the menu appears on the display (vpage22 “Menu map”).

Language

Press + or – to select “Clock”, then press 13.

“Auto Adjust(On)” is displayed.

Press + or – to select “Auto Adjust Now”, then press

13.

The operation to receive the current time starts.

•The current time is displayed for several seconds when it is

received successfully.

•If the current time is not received successfully, “Connection

Failed” appears.

Setting the current time (Manual Adjust) (12-Hour Display)

When the unit is not connected to the Internet, set the current time manually.

Press + and – at the same time.

Turns on the menu settings mode and the menu appears on the display (vpage22 “Menu map”).

Language

Press + or – to select “Clock”, then press 13.

“Auto Adjust(On)” is displayed.

Press + or – to select “Manual Adjust”, then press

13.

Press + or – to set the “hours”, then press 13.

Press + or – to set the “minutes”, then press 13.

The current time is set.

If you use “Manual Adjust” to set the time, “Auto Adjust” is set to “Off”.

Setting the volume limit

Preparations Operations

Informations

Operations

Setting the network (Network Info.)

(Max Vol Level)

Make a setting for maximum volume.

•The factory default setting is “50”.

Press + and – at the same time.

Turns on the menu settings mode and the menu appears on the display (vpage22 “Menu map”).

Language

Press + or – to select “Max Vol Level”, then press

13.

“Max Volume” menu appears.

Press + or – to select the volume “0 – 50”, then press

13.

The top menu is displayed again.

Checking the network information

Press + and – at the same time.

Turns on the menu settings mode and the menu appears on the display (vpage22 “Menu map”).

Language

Press + or – to select “Network Info.”, then press

13.

Press + or – to select the item you want to check.

•Select “Exit” and press 13 to return to the top menu.

WPS Settings (PIN code method)

Use this procedure to conﬁgure the wireless LAN settings.

Before turning this unit on, make sure that an Ethernet cable is not connected to this unit. If a cable is connected, have this unit enter the power standby mode and disconnect the cable.

Press + and – at the same time.

Turns on the menu settings mode and the menu appears on the display (vpage22 “Menu map”).

Press + or – to select “WPS(PIN)”, then press 13.

“Searching” is displayed, and the access point you have set is displayed.

Press + or – to select the access point whose PIN code

you want to display, and press 13.

PIN code number is displayed.

Set this PIN code to the register.

When connection is established with access point, “Succeeded”

is displayed.

•For how to register the PIN code, see the owner’s manual of your

router with access point.

Firmware Update

Preparations Operations

Informations

Operations

•In order to update the ﬁrmware, the environment and settings

required for connecting to broadband internet are needed

vpage8)

(

•Perform the ﬁrmware update operation after at least 2 minutes has

elapsed since turning this unit’s power ON.

Press + and – at the same time.

Turns on the menu settings mode and the menu appears on the display (vpage22 “Menu map”).

Press + or – to select “Firmware Update”, then press

13.

n Notes concerning use of “Firmware Update”

•Do not turn off the power until updating or upgrading is completed.

•Even with a broadband connection to the Internet, approximately

20 minutes is required for the updating procedure to be completed.

•Once updating starts, normal operations on this unit cannot be

performed until updating is completed. Furthermore, updating the ﬁrmware may reset the backup data for the parameters, etc. set for this unit.

•If the update fails, remove and re-insert the power cord. “Update

Retry” appears on the display and update restarts from the point at which update failed. If the error continues despite this, check the network environment.

Setting the network (Network Info.)

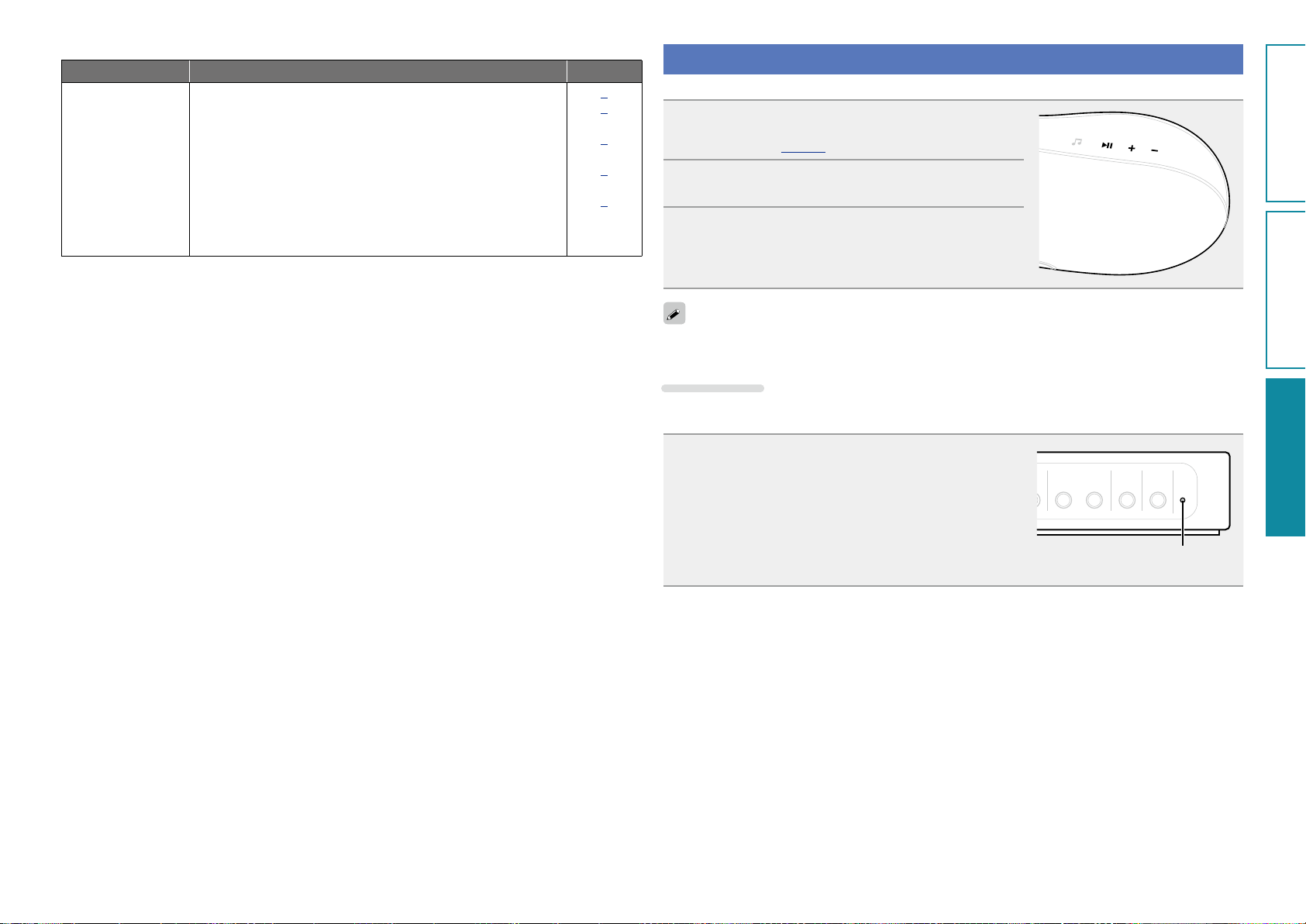

Auto standby

With the Auto Standby ON, this unit will automatically enter the standby mode after about 30 continuous minutes of stop mode with no operation.

•The default setting for the Auto Standby mode is “On”.

Insert the power plug into the

power outlet and press X.

“Always Display Clock?” is displayed.

Press + or – to select “Yes” or

“No”, then press 13.

Press + or – to select “Check for Update” or “Start”,

then press 13.

Check for Update

Use

+ or – to select the item, and press 13.

•Up to Date: It is already the latest ﬁrmware.

•Available Yes: Updates to the latest ﬁrmware.

•Available No: Does not update to the latest ﬁrmware.

Start

+ or – to select the item, and press 13.

Use

•Yes: Performs update.

•No: Does not perform update.

•If updating fails, the set automatically retries, but if updating is still

not possible, one of the messages shown below is displayed. If the display reads as shown below, check the settings and network environment, then update again.

Display Description

Updating fail Updating failed. Login failed Failure to log into server. Server is busy Server is busy. Wait a while then try again. Connection fail Failure in connecting to server. Download fail Downloading of the ﬁrmware has failed.

Check for ﬁrmware updates.

Determines whether to update or not.

See the DENON website for details about updates.

Yes

(Auto Satandby Off)

(Auto Satandby On)

NOTE

In the following situations, the Auto standby function does not operate.

•When iPod, iPhone or iPad is connected to the Dock connector on

this unit.

•When the input source is “AUX” and a devices connected to the

AUX IN jack.

•When the input source being played is “Internet Radio”or “Music

Server”.

The unit does not go into standby automatically.

The unit goes into standby after 30 minutes.

Informations

Preparations Operations

InformationsInformations

Informations

Here, we list various information related to this unit. Please refer to this information as needed.

F Part names and functions vpage28 F Other information vpage30 F Troubleshooting vpage33 F Speciﬁcations vpage36 F Index vpage37

Part names and functions

Preparations Operations

InformationsInformations

Front panel

For buttons not explained here, see the page indicated in parentheses ( ).

q ew

r t y

Rear panel

See the page indicated in parentheses ( ).

AC IN

USB NETWORK WIRELESS LAN LOUDNESSON /

5V 0.5A

wq e r t y u i o Q0

q Security slot

You can attach a security cable to deter theft. Use a security cable that is compatible with this unit. For details, contact your dealer.

NOTE

Security cables have deterrent effects, but do not completely prevent theft or misuse of this unit.

w AC inlet (AC IN) ············································· ( e USB port ························································ (

AUX IN NETLINK WPS

STANDBY

r Network connector (NETWORK) ·············· (10) t AUX IN jack ··················································· ( y NETLINK button ·········································( u WPS button ··················································· ( i LOUDNESS button ····································· ( o Power operation button

(ON/STANDBY) ·········································· ( Turns power to this unit on and off (standby).

Q0 Reset hole ···················································(

11)

14)

13)

35)

q Display

GWireless LAN signal strengthH

: Strong

: Medium

: Weak

: Not connected

w Remote control sensor ································ (3) e Dock ······························································· ( r Input source select button ( t Play/Pause button (13) ················ (

) ················· (13)

14, 22, 35)

y Volume control buttons

(+, – ) ················································ (

13, 22, 35)

Remote control unit

Preparations Operations

InformationsInformations

For buttons not explained here, see the page indicated in parentheses ( ).

q Skip buttons (8, 9) ··························· (14) w Play/Pause button (13) ······················ ( e Input source select button ( r Power operation button (X) ······················ (

t Volume control buttons (+, – ) ·················· (

14, 19)

) ················· (13)

13)

Other information

Preparations Operations

InformationsInformations

n Trademark information (vpage30) n Explanation of terms (

vpage31)

Trademark information

This product uses the following technologies (Random order):

“Made for iPod”, “Made for iPhone” and “Made for iPad” mean that an electronic accessory has been designed to connect speciﬁcally to iPod, iPhone or iPad, respectively, and has been certiﬁed by the developer to meet Apple performance standards. Apple is not responsible for the operation of this device or its compliance with safety and regulatory standards. Please note that the use of this accessory with iPod, iPhone or iPad, may affect wireless performance. AirPlay, the AirPlay logo, iPad, iPhone, iPod, iPod classic, iPod nano, iPod shufﬂe and iPod touch are trademarks of Apple Inc., registered in the U.S. and other countries.

•Individual users are permitted to use iPad, iPhone, iPod, iPod

classic, iPod nano, iPod shufﬂe, and iPod touch for private copy and playback of non-copyrighted contents and contents whose copy and playback is permitted by law. Copyright infringement is prohibited by law.

Explanation of terms

Preparations Operations

InformationsInformations

AES (Advanced Encryption Standard)

This is a next generation standard encryption method replacing the current DES and 3DES, and because of its high security it is expected to be applied widely to wireless LANs in the future. It uses the “Rijndael” algorithm developed by two Belgian cryptographers to divide the data into blocks of ﬁxed lengths and encrypt each block. It supports data lengths of 128, 192 and 256 bits and key lengths of 128, 192 and 256 bits as well, offering extremely high encryption security.

AirPlay

AirPlay sends (plays) contents recorded in iTunes or on an iPhone/iPod touch/iPad to a compatible device via the network.

App Store

App Store is a site that sells application software for such devices as the iPhone or iPod Touch, and is operated by Apple Inc.

Bit rate

This expresses the read amount per 1 second of video/audio data recorded in a disc. A larger number means higher sound quality, but also means a larger ﬁle size.

DLNA

DLNA and DLNA CERTIFIED are trademarks and/ or service marks of Digital Living Network Alliance. Some contents may not be compatible with other DLNA CERTIFIED™ products.

FLAC

FLAC stands for Free lossless Audio Codec, and is a lossless free audio ﬁle format. Lossless means that the audio is compressed without any loss in quality. The FLAC license is as shown below.

Redistribution and use in source and binary forms, with or without modiﬁcation, are permitted provided that the following conditions are met:

•Redistributions of source code must retain the

above copyright notice, this list of conditions and the following disclaimer.

•Redistributions in binary form must reproduce the

above copyright notice, this list of conditions and the following disclaimer in the documentation and/ or other materials provided with the distribution.

•Neither the name of the Xiph.org Foundation nor

the names of its contributors may be used to endorse or promote products derived from this

software without speciﬁc prior written permission. THIS SOFTWARE IS PROVIDED BY THE COPYRIGHT HOLDERS AND CONTRIBUTORS “AS IS” AND ANY EXPRESS OR IMPLIED WARRANTIES, INCLUDING, BUT NOT LIMITED TO, THE IMPLIED WARRANTIES OF MERCHANTABILITY AND FITNESS FOR A PARTICULAR PURPOSE ARE DISCLAIMED. IN NO EVENT SHALL THE FOUNDATION OR CONTRIBUTORS BE LIABLE FOR ANY DIRECT, INDIRECT, INCIDENTAL, SPECIAL, EXEMPLARY, OR CONSEQUENTIAL DAMAGES (INCLUDING, BUT NOT LIMITED TO, PROCUREMENT OF SUBSTITUTE GOODS OR SERVICES; LOSS OF USE, DATA, OR PROFITS; OR BUSINESS INTERRUPTION) HOWEVER CAUSED AND ON ANY THEORY OF LIABILITY, WHETHER IN CONTRACT, STRICT LIABILITY, OR TORT (INCLUDING NEGLIGENCE OR OTHERWISE) ARISING IN ANY WAY OUT OF THE USE OF THIS SOFTWARE, EVEN IF ADVISED OF THE POSSIBILITY OF SUCH DAMAGE.

IEEE 802.11b

This is one wireless LAN standard set by the 802 working group that establishes LAN technology standards at the IEEE (Institute of Electrical and Electronics Engineers) of the United States. It uses the 2.4 GHz band usable freely without a radio frequency license (ISM band), enabling communications at a maximum speed of 11 Mbps.

•The value indicated above is the maximum

theoretical value for the wireless LAN standard, and does not indicate the actual data transfer rate.

IEEE 802.11g

This is another wireless LAN standard set by the 802 working group that establishes LAN technology standards at the IEEE (Institute of Electrical and Electronics Engineers) of the United States, and is compatible with IEEE 802.11b. It also uses the

2.4 GHz band, but enables communications at a maximum speed of 54 Mbps.

•The value indicated above is the maximum

theoretical value for the wireless LAN standard, and does not indicate the actual data transfer rate.

iTunes

iTunes is the name of the multimedia player provided by Apple Inc. It enables management and playback of multimedia contents including music and movies. iTunes supports many main ﬁle formats including AAC, WAV, and MP3.

MP3 (MPEG Audio Layer-3)

This is an internationally standardized audio data compression scheme, using the “MPEG-1” video compression standard. It compresses the data volume to about one eleventh its original size while maintaining sound quality equivalent to a music CD.

MPEG (Moving Picture Experts Group), MPEG-2, MPEG-4

These are the names for digital compression format standards used for the encoding of video and audio. Video standards include “MPEG-1 Video”, “MPEG2 Video”, “MPEG-4 Visual”, “MPEG-4 AVC”. Audio standards include “MPEG-1 Audio”, “MPEG-2 Audio”, “MPEG-4 AAC”.

Network Names (SSID: Security Set Identiﬁer)

When forming wireless LAN networks, groups are formed to prevent interference, data theft, etc. This grouping is done by “SSID” or “Security Set Identiﬁers”. For further security, a WEP key is set and signal transfer is not possible unless the SSID and WEP key match.

Protection Circuit

This is a function to prevent damage to devices within the power supply when an abnormality such as an overload, excess voltage occurs or temperature for any reason. In this unit, the power indicator blinks and the unit enters standby mode when an abnormality occurs.

Sampling frequency

Sampling involves taking a reading of a sound wave (analog signal) at regular intervals and expressing the height of the wave at each reading in digitized format (producing a digital signal). The number of readings taken in one second is called the “sampling frequency”. The larger the value, the closer the reproduced sound is to the original.

TKIP (Temporal Key Integrity Protocol)

This is a network key used for WPA. The encryption algorithm is RC4, the same as for WEP, but the security level is increased by changing the network key used for encryption for each packet.

Preparations Operations

InformationsInformations

vTuner

This is a free online content server for Internet radio. Note that usage fees are included in upgrade costs. For inquiries about this service, visit the vTuner site below. vTuner website: http://www.radiodenon.com This product is protected by certain intellectual property rights of Nothing Else Matters Software and BridgeCo. Use or distribution of such technology outside of this product is prohibited without a license from Nothing Else Matters Software and BridgeCo or an authorized subsidiary.

WEP Key (Network Key)

This is key information used for encrypting data when conducting data transfer. On this unit, the same WEP key is used for data encryption and decryption, so the same WEP key must be set on both devices in order for communications to be established between them.

Wi-Fi

Wi-Fi Certiﬁcation assures tested and proven interoperability by the Wi-Fi Alliance, a group certifying interoperability among wireless LAN devices.

Windows Media DRM

This is a copyright protection technology developed by Microsoft. Content providers are using the digital rights management technology for Windows Media contained in this device (WM-DRM) to protect the integrity of their content (Secure Content) so that their intellectual property, including copyright, in such content is not misappropriated. This device uses WM-DRM software to play Secure Content (WM-DRM Software). If the security of the WM-DRM Software in this device has been compromised, owners of Secure Content (Secure Content Owners) may request that Microsoft revoke the WM-DRM Software’s right to acquire new licenses to copy, display and/or play Secure Content. Revocation does not alter the WM-DRM Software’s ability to play unprotected content. A list of revoked WM-DRM Software is sent to your device whenever you download a license for Secure Content from the Internet or from a PC. Microsoft may, in conjunction with such license, also download revocation list onto your device on behalf of Secure Content Owners.

Windows Media Player Ver.11 or later

This is a media player distributed free of charge by Microsoft Corporation. It can play playlists created with Ver.11 or later of Windows Media Player, as well as WMA, DRM WMA, WAV, and other ﬁles.

WMA (Windows Media Audio)

This is audio compression technology developed by Microsoft Corporation. WMA data can be encoded using Windows Media® Player Ver.7, 7.1, Windows Media® Player for Windows® XP and Windows Media® Player 9 Series. To encode WMA ﬁles, only use applications authorized by Microsoft Corporation. If you use an unauthorized application, the ﬁle may not work properly.

Explanation of terms

WPA (Wi-Fi Protected Access)

This is a security standard established by the Wi-Fi Alliance. In addition to the conventional SSID (network name) and WEP key (network key), it also uses a user identiﬁcation function and encrypting protocol for stronger security.

WPA2 (Wi-Fi Protected Access 2)

This is a new version of the WPA established by the Wi-Fi Alliance, compatible with more secure AES encryption.

WPA-PSK/WPA2-PSK (Pre-shared Key)

This is a simple authentication system for mutual authentication when a preset character string matches on the wireless LAN access point and client.

WPS (Wi-Fi Protected Setup)

This is a standard drawn up by the Wi-Fi Alliance to ease the task of setting up wireless LAN connections and conﬁguring security. There are two methods: push-button and PIN (Personal Identiﬁcation Number) code.

Troubleshooting

Preparations Operations

InformationsInformations

v See overleaf

If a problem should arise, ﬁrst check the following:

1. Are the connections correct?

2. Is the set being operated as described in the owner’s manual?

3. Are the other devices operating properly?

If this unit does not operate properly, check the items listed in the table below. Should the problem persist, there may be a malfunction. In this case, disconnect the power immediately and contact your store of purchase.

GGeneralH

Symptom Cause/Solution Page

Power does not turn on.

The operation buttons on the upper part of this unit ﬂash white approximately every 2 seconds.

The operation buttons on the upper part of this unit ﬂash white approximately every 0.5 seconds.

Set does not operate properly.

GAudioH

Symptom Cause/Solution Page

Audio is not output. •Check the connections for all devices.

•Check whether the power plug is correctly inserted into the power

outlet.

•The protection circuit has been activated by a rise in the humidity

inside the unit. Please turn off power once, and re-apply the power after the temperature has fallen sufﬁciently.

•Please re-install this unit in a place having good ventilation.

•This unit ampliﬁer circuit has failed. Turn off the power and please

contact the DENON service adviser.

•Reset the microprocessor.

•Check whether the audio device power is turned on.

•Adjust the master volume.

•Check the connection with the playback device and select the

proper input source.

–

5,6,9,10

–

13 13

GiPod / USB memory device / Internet radio / Music Server H

Symptom Cause/Solution Page

iOS device cannot be played.

The ﬁle names are not displayed properly (“...”, etc.).

When a USB memory device is connected, “USB” is not displayed on the menu.

Files on a USB memory device cannot be played.

•Some iOS devices do not support being used connected directly

to the Dock connector.

•Characters that cannot be displayed are used. This is not a

malfunction. On this unit, characters that cannot be displayed are replaced with a “.” (period).

•The USB cable connecting the USB memory device and the unit

uses incompatible tags. Use USB memory devices with tags supported by the unit.

•The set cannot recognize a USB memory device. Check the

connection.

•This unit supports mass storage class and MTP-compatible USB

memory devices. It will not recognize other USB memory devices.

•A USB memory device that the set cannot recognize is connected.

This is not a malfunction. DENON does not guarantee that all USB memory devices will operate or receive power.

•USB memory device is connected via USB hub. Connect the USB

memory device directly to the USB port.

•The unit supports ﬁle structures with up to 8 levels and a total

maximum of 5000 subfolders and ﬁles per 1 folder. Change the ﬁle structure of the USB memory device if necessary.

•The USB memory device format should be set to FAT16 or

FAT32. For details, refer to the USB memory device’s operating instructions.

•If the USB memory device is divided into multiple partitions, only

ﬁles in partition one can be played.

•Files are stored in a non-compatible format. Record the ﬁles in a

compatible format.

•You are attempting to play a ﬁle that is copyright protected. Files

that are copyright protected cannot be played on this unit.

–

Symptom Cause/Solution Page

Preparations Operations

InformationsInformations

Internet radio cannot be played.

Files stored on a computer cannot be played.

Music stored on a NAS cannot be played.

Server is not found, or it is not possible to connect to the server.

Cannot connect to preset radio stations.

•Ethernet cable is not properly connected or network is

disconnected. Check the connection status.

•Program is being broadcast in non-compatible format. Only

Internet radio programs in MP3 and WMA can be played on this unit.

•The ﬁrewall of the PC or router has been activated. Check the

ﬁrewall settings of the connected PC or router.

•Radio station is not currently broadcasting. Choose a radio station

that is currently broadcasting.

•IP address is wrong. Check the set’s IP address.

•Some radio stations may go silent at certain times of the day. In

this case, no audio is output even when a station is received. Try again later, or switch to another radio station.

•Files are stored in a non-compatible format. Record in a compatible

format.

•You are attempting to play a ﬁle that is copyright protected. Files

that are copyright protected cannot be played on this unit.

•Set and computer are connected by USB cable. The set’s USB

port cannot be used for connection to a computer.

•Media sharing settings are not correct. Change media sharing

settings so that the unit can access the folders on your computer.

•If you use a NAS in conformity with the DLNA standard, enable

the DLNA server function in the NAS setting.

•If you use a NAS that does not conform with the DLNA standard,

play the music via a PC. Set Windows Media Player’s media sharing function and add NAS to the selected play folder.

•If connection is restricted, set audio equipment as the connection

target.

•The computer’s or router’s ﬁrewall is activated. Check the

computer’s or router’s ﬁrewall settings.

•Computer’s power is not turned on. Turn on the power.

•Server is not running. Launch the server.

•Set’s IP address is wrong. Check the set’s IP address.

•Radio station is not currently broadcasting. Wait a while before

trying again.

•Radio station is not currently in service. It is not possible to

connect to radio stations that are no longer in service.

9,10

–

Symptom Cause/Solution Page

For some radio stations, “Radio station server full” or “Connection down” is displayed and station cannot be connected to.

Sound is broken during playback.

Sound quality is poor or noise is heard during play.

GAirPlayH

Symptom Cause/Solution Page

The AirPlay icon

is not displayed in iTunes or on the iPhone/iPod touch/ iPad.

No sound. •The volume in iTunes or on the iPhone/iPod touch/iPad is set to

When using AirPlay with the iPhone/ iPod touch, the sound suffers from intermittent breaks or AirPlay does not function.

•Station is congested or not currently broadcasting. Wait a while

before trying again.

•Network or USB memory device’s signal transfer speed is slow

or communications lines or radio station is congested. This is not a malfunction. When playing broadcast data with a high bit rate, the sound may be broken, depending on the communications conditions.

•File being played has a low bit rate. This is not a malfunction. –

•This unit and the computer or iPhone/iPod touch/iPad are not

connected to the same network (LAN). Connect the computer or iPhone/iPod touch/iPad to the same network as this unit.

•iTunes or the iPhone/iPod touch/iPad do not have ﬁrmware that

supports AirPlay installed. Update to the latest ﬁrmware.

the minimum setting. Adjust the volume to the optimum level.

•This unit is not selected in the screen that is displayed when

iTunes or the iPhone/iPod touch/iPad is started. Start iTunes or switch on the iPhone/iPod touch/iPad, click the AirPlay icon the displayed screen, and select this unit.

•AirPlay playback has not started. Click the 1 button in iTunes or

press the 1 button on the iPhone/iPod touch/iPod.

•Quit the application running in the background of the iPhone/iPod

touch, and then play using AirPlay.

•When playing via a wireless connection, outside conditions may

affect the unit. To remedy this, change the network environment, e.g. shorten the distance to the wireless LAN access point.

•Update the iPhone/iPod touch application or iTunes to the latest

version.

–

9,10

–

GRemote control unitH

Preparations Operations

InformationsInformations

Symptom Cause/Solution Page

The set cannot be operated with the remote control unit.

•Batteries are worn out. Replace with new batteries.

•Operate the remote control unit within a distance of about

23 ft/7 m from this unit and at an angle of within 30°.

•Remove any obstacle between this unit and the remote control

unit.

•Insert the batteries in the proper direction, checking the q and

w marks.

•The set’s remote control sensor is exposed to strong light (direct

sunlight, inverter type ﬂuorescent bulb light, etc.). Move the set to a place in which the remote control sensor will not be exposed to strong light.

Resetting the microprocessor

3 3

When the microprocessor is reset, all the settings are reset to their default values.

Press + and – at the same time.

Turns on the menu settings mode and the menu appears on the display (vpage22 “Menu map”).

Press + or – to select “Factory Reset”, then press

13.

Press + or – to select “Reset? Yes”, then press

13.

“Initialized” is displayed and the default settings are restored.

If “Initialized” does not display in step 3, start over from step 1.

How to reset

“Reset” is an operation that restarts this unit. Perform this procedure if the display is abnormal or if operations cannot be performed.

When the power of this unit is on, insert a thin stick (z2) into the reset hole (z1), and press the reset button within this unit.

This unit automatically restarts.

•Prepare a thin stick (such as a toothpick and straightened paper

clip) for pressing the reset button within this unit.

z 1 Thickness (dia.): 0.5 mm – 1.5 mm z 2 Length: 30 mm or longer

WIRELESS LAN LOUDNESSON /

NETLINK WPS

STANDBY

Speciﬁcations

Preparations Operations

InformationsInformations

n Audio section

•Ampliﬁers: 4 x 25 W ClassD

•Drivers: 2 x 40 mm Tweeter

n Clock

•Clock method: Within 1 – 2 minutes per month

n Wireless LAN

Network type (wireless LAN standards):

Transfer rate: DS-SS: 11 / 5.5 / 1 Mbps (Automatic switching)

Security: SSID (Network name)

Used frequency range: 2.412 MHz – 2.462 MHz No. of channels: Conforming to IEEE 802.11b : 11 ch (DS-SS) (Of which 1 channel used)

n General

Power supply: AC 120 V, 60 Hz Power consumption: 50 W

z Wi-Fi® conformity indicates tested and proven interoperability by the “Wi-Fi Alliance”, a group certifying

interoperability among wireless LAN devices.

2 x 100 mm Woofer

Conforming to IEEE 802.11b Conforming to IEEE 802.11g (Conforming to Wi-Fi®)z

OFDM: 54 / 48 / 36 / 24 / 18 / 12 / 9 / 6 Mbps (Automatic switching)

WEP key (network key) (64/128 bits) WPA-PSK (TKIP/AES) WPA2-PSK (TKIP/AES)

Conforming to IEEE 802.11g : 11 ch (OFDM) (Of which 1 channel used)

0.5 W (Standby)

For purposes of improvement, speciﬁcations and design are subject to change without notice.

Preparations Operations

InformationsInformations

Index

v A

Accessories ·························································· 1 Adjusting the master volume ····························· 13 Adjusting the tone ·············································· 14 AES ···································································· 31 AirPlay ·························································· 15, 31 App Store ················································· 3, 15, 31 Auto Adjust ························································ 23 Auto Adjust Now ················································ 24 Auto standby ······················································ 26

v B

Bit rate ································································ 31

v C

Cable

Ethernet cable·················································· 10 Power cord ························································ 5 Stereo mini plug cable ······································· 5

Clock

Auto Adjust ······················································ 23 Auto Adjust Now ············································· 24 Manual Adjust ·················································· 24 Summer Time ·················································· 24

Time Zone ························································ 23 Cocoon App ·············································· 3, 17, 20 Condensation ······················································· 2 Connection

Home network (LAN) ········································· 7

iOS device·························································· 6

Portable player ··················································· 5

Power cord ························································ 5

USB memory device ·········································· 5

Wired LAN ······················································· 10

Wireless LAN ····················································· 9

v D

DHCP ································································· 10 Display ································································ 28 DLNA ···························································· 20, 31

v F

Firmware Update ··············································· 26 FLAC ······················································ 18, 21, 31 Front Panel ························································· 28

v H

How to eject/store the Dock ································ 6 How to reset ······················································ 35

v I

IEEE 802.11b ······················································ 31 IEEE 802.11g ······················································ 31 Inputting characters ··········································· 25 iTunes ··························································· 15, 31

v L

Language ···························································· 23

v M

Manual Adjust ···················································· 24 Max Vol Level ····················································· 25 Menu map ·························································· 22 Menu operation ·················································· 22 MP3 ·················································· 17, 18, 21, 31 MPEG ····················································· 18, 21, 31

v N

NETLINK ····························································· 11 Network Info ······················································ 25 Network Info.

Firmware Update ············································· 26 PIN code method ············································· 25

Network Names ················································· 31

v O

Operation Mode ················································· 14

v P

Playback

AirPlay function ················································ 15 FLAC ·························································· 18, 21 Internet radio ··················································· 17 iOS device························································ 14 MP3 ····················································· 17, 18, 21 MPEG-4 AAC ············································· 18, 21 Music server ···················································· 20 NAS·································································· 20 PC ···································································· 20 Portable player ················································· 19 USB memory device ········································ 18 WAV··························································· 18, 21

WMA ··················································· 17, 18, 21 Progressive ························································ 31 Protection circuit ················································ 31

v R

Rear panel ·························································· 28 Remote control unit ··········································· 29

Inserting the batteries········································ 3

Resetting the microprocessor ···························· 35

v S

Sampling frequency ························· 17, 18, 21, 31 Security slot ······················································· 28 Selecting the input source ································· 13 Setting the current time ····································· 13 Setting the volume limit (Max Vol Level) ··················································· 25 Summer Time ···················································· 24 Supported iPod models ········································ 6

v T

Time Zone ·························································· 23 TKIP ···································································· 31 Trademark ·························································· 30 Troubleshooting ················································· 33 Turning the power on ········································· 13

v V

vTuner ································································ 32

v W

WAV ····························································· 18, 21 WEP Key ···························································· 32 Wi-Fi ··································································· 32 Windows Media DRM ········································ 32 Windows Media Player ································ 20, 32 WMA ················································ 17, 18, 21, 32 WPA ··································································· 32 WPA2 ································································· 32 WPA-PSK/WPA2-PSK ········································· 32 WPS ························································· 9, 25, 32

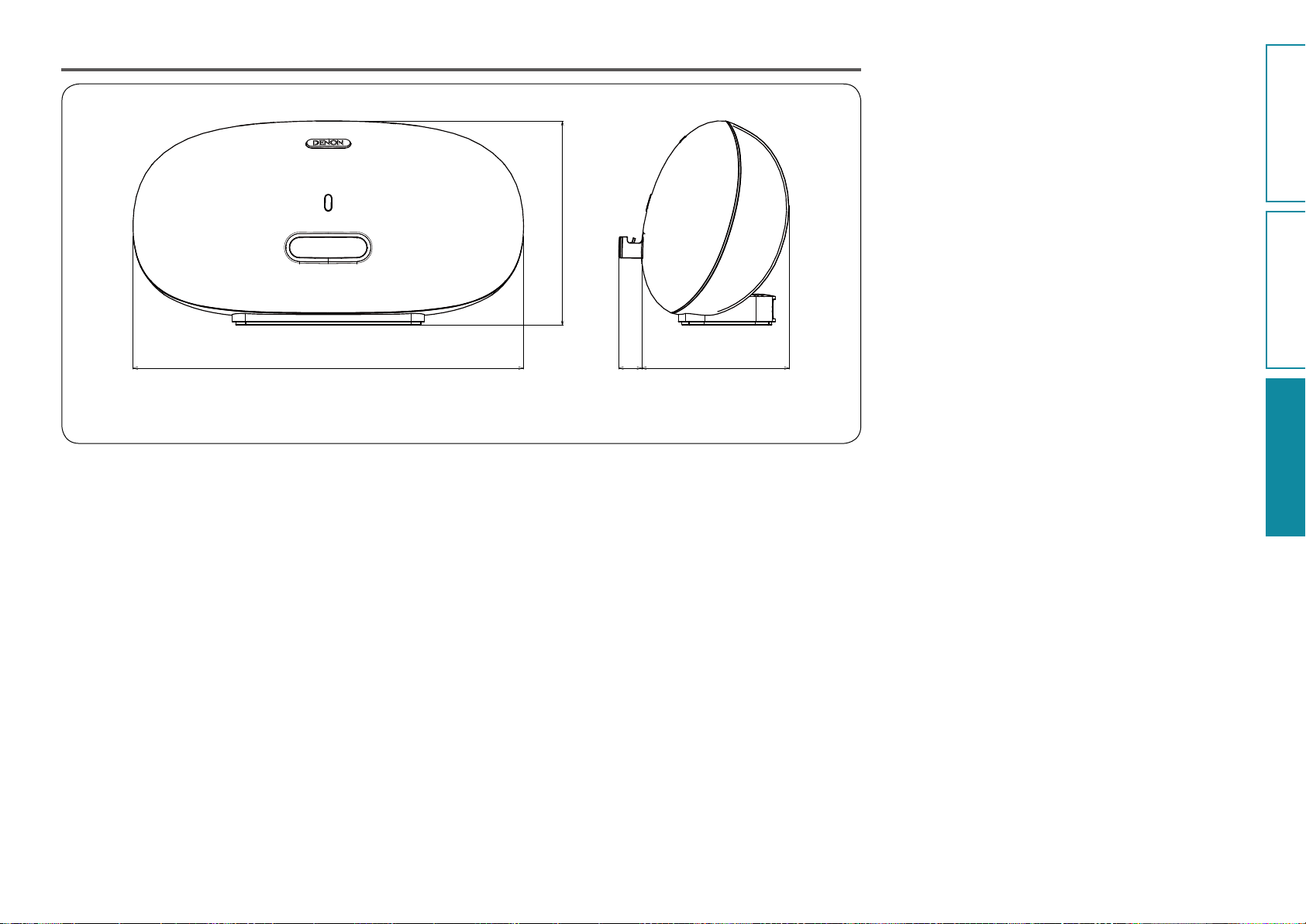

Dimensions

Preparations Operations

InformationsInformations

Unit : in. (mm)

9 19/64 (236.0)

17 3/4 (451.0)

Weight : 11 lbs 14.5 oz (5.4 kg)

1 1/16

(27.0)

6 11/16 (170.0)

V00

www.denon.com

D&M Holdings Inc.

3520 10119 00AD

Notes on radio

USA CANADA

n FCC Information

(For US customers)

1. IMPORTANT NOTICE : DO NOT MODIFY THIS PRODUCT

Any changes or modiﬁcations not expressly approved by the grantee of this device could void the user’s authority to operate the equipment.

2. CAUTION

This equipment must be installed and operated in accordance with provided instructions and the antenna(s) used for this transmitter must be installed to provide a separation distance of at least 20 cm from all persons and must not be co-located or operating in conjunction with any other antenna or transmitter. End-users and installers must be provide with antenna installation instructions and transmitter operating conditions for satisfying RF exposure compliance.

3. COMPLIANCE INFORMATION Product Name : Wireless headphones

This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. Denon Electronics (USA), LLC (a D & M Holdings Company) 100 Corporate Drive Mahwah, NJ 07430-2041 Tel. (800) 497-892

4. NOTE

This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures:

•Reorient or relocate the receiving antenna.

•Increase the separation between the equipment

and receiver.

•Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.

•Consult the dealer or an experienced radio/ TV technician for help.

n IC Information

(For Canadian customers)

CAUTION

To reduce potential radio interference to other users, the antenna type and its gain should be so chosen that the equivalent isotropically radiated power (e.i.r.p.) is not more than that permitted for successful communication.

ATTENTION

Aﬁn de reduire le risque d’interference aux autres utilisateurs, il faut choisir le type d’antenne et son gain de facon a ce que la puissance isotrope rayonnee equivalente (p.i.r.e.) ne soit pas superieure au niveau requis pour l’obtention d’une communication satisfaisante. This equipment complies with FCC/IC radiation exposure limits set forth for an uncontrolled environment and meets the FCC radio frequency (RF) Exposure Guidelines in Supplement C to OET65 and RSS-102 of the IC radio frequency (RF) Exposure rules. This equipment has very low levels of RF energy that are deemed to comply without testing of speciﬁc absorption ratio (SAR).

For Canadian customers:

This Class B digital apparatus complies with Canadian ICES-003 and RSS-210. Operation is subject to the following two conditions: (1) this device may not cause interference, and (2) this device must accept any interference, including interference that may cause undesired operation of the device.

The radiated output power of the Wireless Device is below the Industry Canada (IC) radio frequency exposure limits. The Wireless Device should be used in such a manner such that the potential for human contact during normal operation is minimized.

This device has also been evaluated and shown compliant with the IC RF Exposure limits under mobile exposure conditions. (antennas are greater than 20 cm from a person’s body).

APPAREIL

Cet appareil numérique de classe B est conforme aux normes canadiennes ICES-003 et RSS-210. Son fonctionnement est soumis aux deux conditions suivantes : (1) cet appareil ne doit pas causer d’interférence et (2) cet appareil doit accepter toute interférence, notamment les interférences qui peuvent affecter son fonctionnement.

La puissance de sortie émise par l’appareil de sans ﬁl est inférieure à la limite d’exposition aux fréquences radio d’Industry Canada (IC). Utilisez l’appareil de sans ﬁl de façon à minimiser les contacts humains lors du fonctionnement normal.

Ce périphérique a également été évalué et démontré conforme aux limites d’exposition aux RF d’IC dans des conditions d’exposition à des appareils mobiles (les antennes se situent à moins de 20 cm du corps d’une personne).

[ENGLISH]

1. IMPORTANT NOTICE: DO NOT MODIFY THIS PRODUCT

This product, when installed as indicated in the instructions

contained in this manual, meets R&TTE directive

requirements. Modication of the product could result in

hazardous Radio and EMC radiation.

2. CAUTION

Separation distance of at least 20 cm must be maintained

between this product and all persons.

This product and its antenna must not be co-located

or operating in conjunction with any other antenna or transmitter.

[DEUTSCH]

1. WICHTIGER HINWEIS: NEHMEN SIE KEINE VERÄNDERUNGEN AN DIESEM PRODUKT VOR

Wenn dieses Produkt entsprechend dieser

Bedienungsanleitung aufgebaut wird, entspricht es den Anforderungen der Produkt können zu gefährlicher Funk- und EMV-Strahlung führen.

2. VORSICHT

Zwischen dieses Produkts und Personen muss ein

Schutzabstand von 20 cm eingehalten werden.

Dieses Produkt und seine Antenne dürfen nicht neben

anderen Antennen oder Sendern aufgestellt oder zusammen

mit ihnen verwendet werden.

[FRANÇAIS]

1. MISE EN GARDE IMPORTANTE : NE JAMAIS MODIFIER CE PRODUIT

Si toutes les consignes indiquées dans ce mode ont été

respectées pendant son installation, ce produit est conforme

aux directives R&TTE. Toute modication du produit risquerait alors de générer des radiations radio et EMC dangereuses.

2. ATTENTION

L’appareil devra être située à une distance de 20 cm au

moins des personnes.

Ce produit ainsi que son antenne ne devront en aucun cas

être utilisés à proximité d’une autre antenne ou transmetteur.

[ITALIANO]

1. AVVERTENZA IMPORTANTE: NON MODIFICARE QUESTO PRODOTTO

Se installato come indicato nelle istruzioni del presente

manuale, questo prodotto soddisfa i requisiti della direttiva

R&TTE

. Eventuali modiche apportate al prodotto potrebbero

causare pericolose radiazioni radio ed EMC.

2. ATTENZIONE

È necessario mantenere una distanza minima di 20 cm tra

questo prodotto e le persone.

Questo prodotto e la relativa antenna non devono essere

posizionati in prossimità di altre antenne o trasmettitori e non devono essere utilizzati congiuntamente a questi ultimi.

[ESPAÑOL]

1. NOTA IMPORTANTE: NO MODIFIQUE ESTE PRODUCTO

Este producto, si es instalado de acuerdo con las

instrucciones contenidas en este manual, cumple los requisitos de la directiva R&TTE. La modicación del

producto puede producir radiación de Radio y EMC

peligrosa.

2. PRECAUCIÓN

Se debe mantener una separación de al menos 20 cm del

producto y las personas.

Este producto y su antena no debe instalarse ni utilizarse

conjuntamente con otra antena o transmisor.

R&TTE

-Richtlinie. Veränderungen am

[NEDERLANDS]

1. BELANGRIJKE MEDEDELING: BRENG AAN DIT PRODUCT GEEN AANPASSINGEN AAN

Dit product, indien geïnstalleerd volgens de aanwijzingen in

deze gebruiksaanwijzing, voldoet aan de vereisten van de R&TTE-richtlijn. Aanpassing van dit product kan gevaarlijke radio- en EMC-straling tot gevolg hebben.

2. LET OP

Houd tussen en personen altijd een afstand van tenminste

20 cm aan.

Dit product en zijn antenne mogen niet in de buurt van een

andere antenne of zender worden geplaatst of in combinatie daarmee worden gebruikt.

[SVENSKA]

1. VIKTIGT: APPARATEN FÅR INTE MODIFIERAS

Under förutsättning att apparaten installeras enligt

anvisningarna i denna bruksanvisning, uppfyller denna

kraven i

R&TTE

resultera i farlig radio- och elektromagnetisk strålning.

2. FÖRSIKTIGT

Se till att det nns ett avstånd på minst 20 cm mellan

apparatens och personer i omgivningen.

Apparaten och dess antenn får inte placeras eller användas i

närheten av andra antenner eller sändare.

[РУССКИЙ]

1.ВАЖНО!НЕИЗМЕНЯЙТЕДАННЫЙПРОДУКТ

Продукт, установленный согласно инструкциям в настоящем руководстве, отвечает требованиям директивы

R&TTE

опасного электромагнитного излучения.

2.ПРЕДУПРЕЖДЕНИЕ

Не приближайтесь к данного изделия ближе, чем на 20

см.

Запрещается использовать данный продукт и антенну с

другой антенной или передатчиком.

[POLSKI]

1.UWAGA: MODYFIKACJA TEGO URZĄDZENIA JEST

ZABRONIONA

Po zainstalowaniu zgodnie z instrukcjami zawartymi w

niniejszej instrukcji obsługi urządzenie to będzie spełniać wymogi dyrektywy R&TTE. Wprowadzanie modykacji do tego urządzenia może skutkować powstaniem niebezpiecznego promieniowania elektromagnetycznego

oraz radiowego.

2.OSTRZEŻENIE

Między tego produktu i wszelkimi osobami musi być

zachowana odległość przynajmniej 20 cm.

Urządzenia wraz z anteną nie można instalować w połączeniu

z inną anteną lub nadajnikiem.

This product may be operated in the following countries;

AT BE CZ DK FI FR DE GR HU IE

IT NL PL PT SK

ES SE GB NO CH

Indoor use only.

-direktivet. Ev. modiering av apparaten kan

. Изменение продукта может привести к появлению

R&TTE Directive 1999/5/EC

DSD500_E2E3_Notes on radio_120723.indd 1 2012/07/23 17:46:39

日本

2.4DS/OF4

電波に関するご注意

本機は電波法に基づく工事設計認証を取得した小電力データ通信システムの無線局設備を内蔵しています。

•本機を使用するときに無線局の免許は必要ありません。 ※ 以下のことをおこなうと法律で罰せられることがあり

ます。

•内蔵する小電力データ通信システムの無線局設備を分解 / 改造すること

•内蔵する小電力データ通信システムの無線局設備に貼ってある証明ラベルをはがすことこの機器の使用周波数帯（2.4GHz）では、電子レンジ等の産業・科学・医療用機器のほか、工場の製造ライン等で使用されている移動体識別用の構内無線局（免許を要する無線局）、特定小電力無線局（免許を要しない無線局）、およびアマチュア無線局（免許を要する無線局）が運用されています。

1. この機器を使用する前に、近くで移動体識別用の構

内無線局、特定小電力無線局およびアマチュア無線局が運用されていないことを確認してください。

2. 万が一、この機器から移動体識別用の構内無線局に

対して有害な電波干渉の事例が発生した場合には、速やかに使用周波数を変更するか、または電波の発射を停止した上、下記連絡先にご連絡いただき、混信回避のための処置等についてご相談してください。

3. その他、この機器から移動体識別用の特定小電力無

線局またはアマチュア無線局に対して有害な電波干渉の事例が発生した場合など、何かお困りのことが起きたときには、次の連絡先へお問い合わせください。連絡先：株式会社ディーアンドエムホールディングスお客様相談センター 044（670）5555 http://denon.jp/jp/support/pages/servicecenter.aspx

◎現品表示について

     ： 

2.4

DS/OF

：

 2.4Ghz 帯を使用する無線設備を表します。

 ：

変調方式を表します。

 移動体識別装置の構内無線局に対して想定される与干渉距離を表します（約 40 ｍ）。

2.4GHz 帯の全帯域を使用し、かつ移動体識別装置の帯域を回避可能であることを意味します。

◎ 本機では、2.4GHzの周波数帯の電波を利用している

関係で、下記機器と干渉し、音が途切れたり、雑音が発生したりする可能性があります。

【2.4GHzの周波数帯を使用している主な機器】

•電子レンジ

•無線 LANを利用した機器（ノートパソコン、無線ルーター、無線 LAN 対応

AV機器等）

•コードレスフォン

•Bluetooth対応機器

• ワイヤレス対応 AV機器

•ワイヤレスコントローラー

※ 音が途切れたり雑音が発生したりする場合には、下記

の方法で改善する可能性があります。

1.干渉している機器との距離を離す。

2.干渉している機器の電源を切る。

◎ペースメーカ－等の医療用電気機器をご使用の場合

には、各医療用電気機器メーカ－または販売店に電波による影響をご確認の上ご使用ください。

◎ 人ごみの中で使用したり、本機の間に鉄筋コンクリー

トの壁や家具などの障害物があると、通信状態が悪くなり音が途切れたり、雑音が発生したりすることがあります。音が途切れたり、雑音が発生したりする場合には、見通しの良い場所に設置し直して下さい。

◎設置の距離や障害物がない場合でも、電波の反射等

により受信がうまくいかない場合があります。その場合には本機の向きや位置を変えると改善することがあります。

◎ラジオやテレビ、BS/CS チューナーなどの電波を利
