WARRANTY
All fiber optic transmission systems, products and accessories
manufactured by Liteway, Inc. and it’s subsidiaries are fully tested
prior to shipment and are warranted against defective materials
and workmanship for a period of five full years from the date of the
original shipment. Should a problem occur, a Return Material
Authorization Number (RMA) must be obtained from Liteway Inc.
at (516) 931-2800 and the item returned to Liteway, Inc. 166
Haverford Road, Hicksville, NY 11801, USA, prepaid. Liteway Inc.
will then, at its option repair or replace the defective item.
Liteway, Inc. maximum liability under this warranty is limited to the
cost of the defective item only. No contingent liabilities of any kind
are either assumed or implied.
Any items returned to Liteway, Inc. that have been misused,
abused, damaged, modified, connected or adjusted in any way
contrary to the instructions furnished by Liteway, Inc. or repaired
by unauthorized personnel will not be covered by this warranty.
Any non-warranty repairs required will be quoted at the current
rate for such services.
!
CAUTION ! AVOID DIRECT EXPOSURE TO BEAM.
All –5, -7, -8, and -9 Models use laser diodes. These solid-state
laser diodes are located in the optical ports of these units. Laser
diodes produce invisible radiation that may be harmful to human
eyes. Never look directly into the optical port of any fiber optic
unit designed to operate with single-mode optical fiber.
NOT FOR LIFE SUPPORT SYSTEMS
Liteway, Inc. does not authorize or warrant any of its products or
accessories for use in critical life support systems or applications
of any kind.
© Copyright 2017 Liteway, Inc. 106610 Rev F
Important Notices
OPERATING INSTRUCTIONS
Litelink®
Fiber Optic Analog Video
Transmission System
Models; VT-1001, VR-1001,
VR-1002, VT-1301, VR-1301
The VT/VR-1001 system consists of the VT-1001 transmitter and VR1001 receiver and will transmit high quality analog baseband video in
accordance with NTSC, PAL and SECAM specifications.
Technical Specifications
Video Bandwidth 10 MHz (30 MHz for VT/VR 1301)
In/Out Impedance 75 ohms
In/Out Signal Level 1 volt peak to peak
Signal/Noise Ratio 68 dB minimum
Differential Gain 5% typical
Differential Phase 1.5º max
Operating Wavelength 850 (-1), 1300 (-3,-7), 1550 (-9)
Optical Loss Budget 0 – 12 dB
Fibers Accommodated 1 Multimode (-1,-3), 1 Single-mode (-7,-9)
Temperature Range -35º to +75ºC
Power Requirements 11-24 VAC/DC @150 mA
Physical Size (mm) 5.0”(127)L x 1.0” (25.4)W x 3.0”(7)D
All specifications measured with 1Km of 62.5u multimode fiber.
All specifications are subject to change without prior notice.
Installation Instructions
The diagram below shows the typical installation of the VT-1001 and
VR-1001 fiber optic video transmission units. Both should be
connected exactly as shown. To compensate for the unique fiber
optic losses of your installation there is a level adjustment on the VR-
1001. Apply video signal applied to the transmitter and set the
receiver level adjustment for a 1-volt peak-to-peak video output
signal, or for an acceptable picture. The range of the receiver level
control is adequate to allow the full 0 - 13dB optical path loss range to
be accommodated.
A dual channel unit, the VR-1002 which consists of two VR-1001
mounted in the same housing to conserve rack space is also
available.
VT-1001
Fiber Optic Cable
Camera

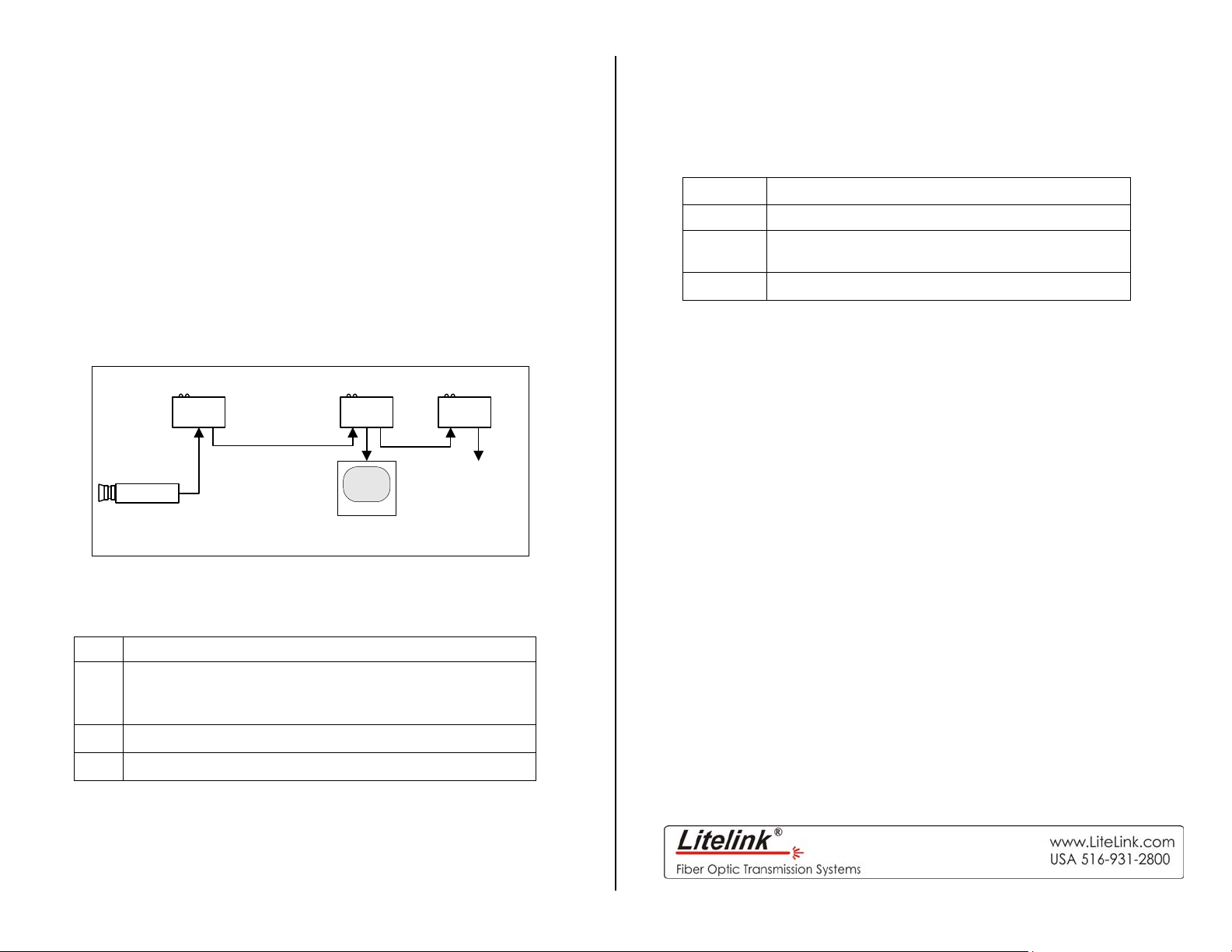

Typical Fiber Optic CCTV System
Power Terminal Block Connections
Pin Function
Alarm output for use with optional Alarm Sensing Unit
1
ALM-1000. No other connections should be made to this
terminal
2 +11 to 24 DC or AC Volts i nput
3 AC or DC return (Common to Housing)
Be certain to check all connections, settings and voltages before
applying power
106610 Rev F
VR-1001 ALM-1000
Alarm
Contacts
Monitor
Indicator Lights
Indicator Lights when
Pwr Proper power is present.
Alrm
Sig A video signal is being transmitted or received.
The Alarm switch is used to turn the alarm function on and off.
The loss of video alarm is activated and there is
no video present
