14+
4+
A
B

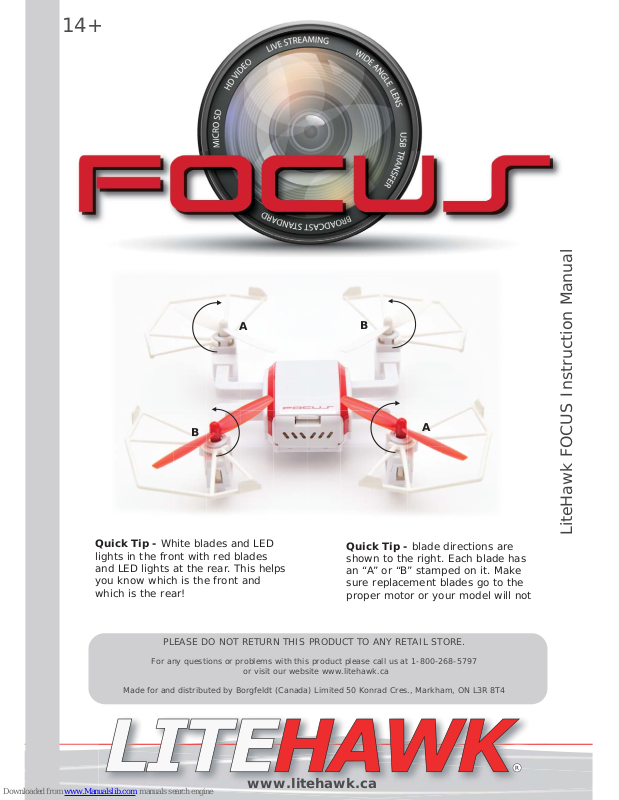

Quick Tip - White blades and LED
lights in the front with red blades
and LED lights at the rear. This helps
you know which is the front and
which is the rear!
B
A
LiteHawk FOCUS Instruction Manual

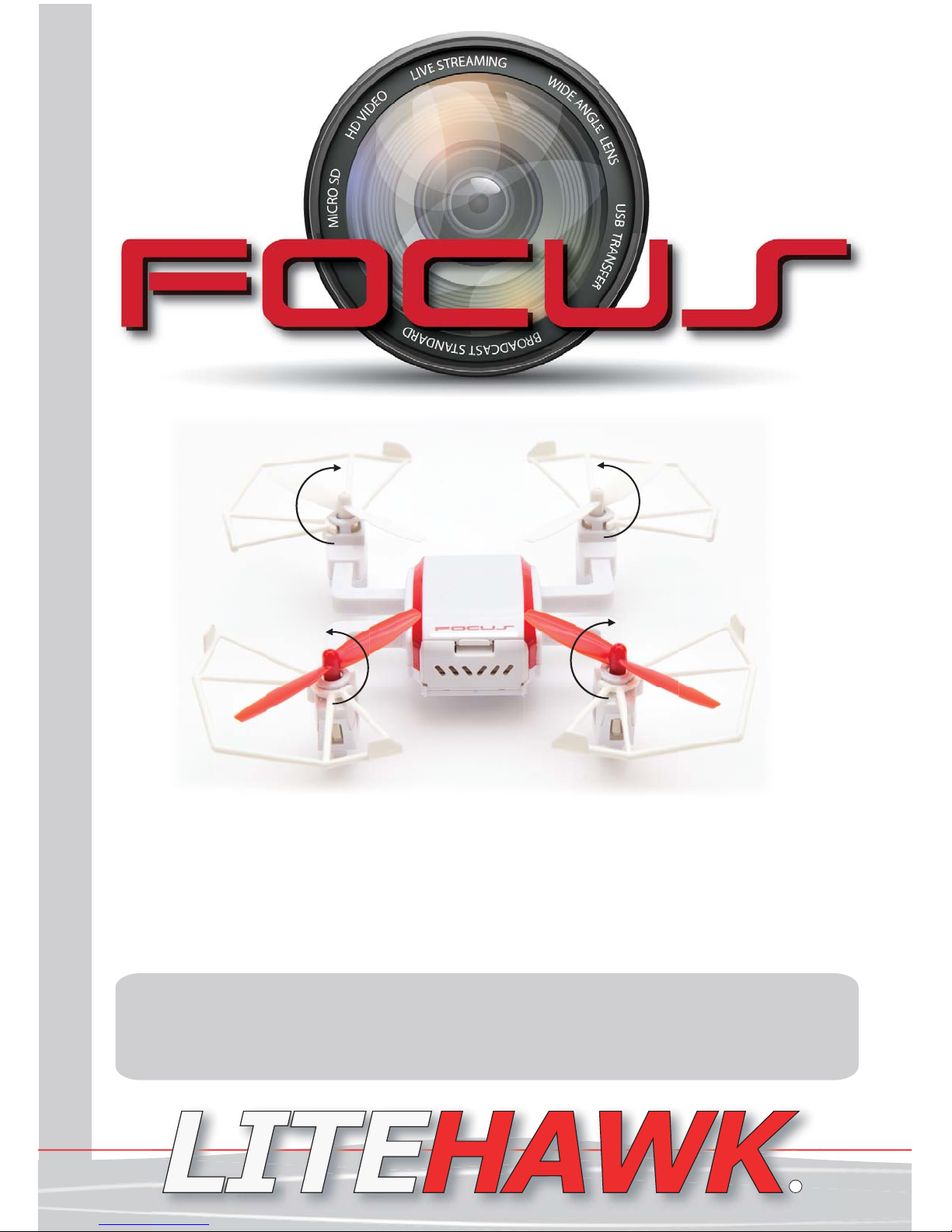

Quick Tip - blade directions are
shown to the right. Each blade has
an “A” or “B” stamped on it. Make
sure replacement blades go to the
proper motor or your model will not
PLEASE DO NOT RETURN THIS PRODUCT TO ANY RETAIL STORE.
For any questions or problems with this product please call us at 1-800-268-5797
Made for and distributed by Borgfeldt (Canada) Limited 50 Konrad Cres., Markham, ON L3R 8T4
or visit our website www.litehawk.ca
R
www.litehawk.ca
LiteHawk FOCUS Precautions - The LiteHawk FOCUS is not intended for children under the age of 14
the screen.
unless closely supervised by an adult. Improper use may cause serious injury. Please read Li-Po
Battery section before use. Do not fly in areas close to high voltage lines or crowds. Do not fly when
windy. Do not fly in rain, snow or if there is lightning and/or thunder. Do not touch ANY moving parts
while the model is powered.
WARNING: CHOKING HAZARD - Small parts. Not For Children under 3 years
CAUTION: Do not touch the running model! Adult supervision is required!
CAUTION: Never insert any sharp objects, pins or screws into the model as this may puncture the internal
battery!
SAFETY PRECAUTIONS
- Keep hands, hair and loose clothing away from moving parts when the model is powered ON.
- Turn off controller and FOCUS when not in use.
- Unplug Li-Po battery from controller when not in use.
- Parental guidance is recommended for the flight.
- Keep your FOCUS in your sight so that you can supervise it at all times.
- Only use the recommended Li-Po battery in controller to obtain maximum performance.
- Your charger is tailor made for the Li-Po batteries used in your LiteHawk FOCUS. Do not use it to charge any
battery other than that in the LiteHawk FOCUS.
BATTERY SAFETY INFORMATION
- Batteries are small objects.
- Replacement of batteries must be done by adults.
- Promptly remove dead batteries from the toy.
- Dispose of used batteries properly.
- Keep batteries dry.
CARE AND MAINTENANCE - Controller
- Always remove battery from the controller when it is not being used for a long period of time and disconnect
battery from drone.
- Keep the toy away from direct heat or extreme cold.
- Do not expose the toy’s interior to water or moisture. This can damage the electronic assemblies.
Your LiteHawk FOCUS Controller and Drone are
each equipped with a Li-Po battery.
Special Li-Po Battery Instructions:
- Never charge battery unattended.
- Charge battery in isolated area. Keep away from
flammable materials.
- Do not expose to direct sunlight. There is a risk of the
batteries exploding, overheating or igniting.
- Do not disassemble, modify, heat or short circuit the
batteries. Do not place them in fires or leave them in hot
LiteHawk FOCUS Instruction Manual 2
places.
Before charging the LiteHawk FOCUS please read the following!
- DO NOT leave the battery unattended during charging.
- DO NOT leave the battery plugged into the charger any longer than 1 hour. If the charging light does not go out
in this time, the charger or battery could be faulty - unplug immediately!
- DO NOT drain the battery to the point at which you can no longer lift off. Stop using the FOCUS when you begin
to lose significant power.
- DO NOT install another battery without letting the motor cool first! 5-10 minutes is sufficient.
- DO NOT recharge the battery until it is cool to the touch! 15 minutes is sufficient.
- DO NOT store battery for longer than 24 hours without recharging to at least 65% capacity.
- Do not charge if battery or connector is wet.
- Remove the battery from the FOCUS Controller and Drone when charging.
Do Not Fully Discharge the battery! Stop and recharge when your Controller or Drone begins to lose
power! Failing to do so will result in irreparable damage to the battery! During flight the LED lights on
the Drone will start to blink, this indicates the battery is running low. The Controllerhas a battery level
indicator on the screen.
on
- Remove batteries for prolonged storage.
- DO NOT incinerate used batteries
- DO NOT dispose of batteries in fire, as batteries may
explode or leak.
- Only charge the batteries with the specified battery
charger.
- Only use the batteries in the device specified by
LiteHawk.
- In the unlikely event of leakage or explosion use sand
or a chemical fire extinguisher for the battery.
- Batteries must be recycled or disposed of properly.
- Keep battery dry.
- Do not leave plugged into quadrocopter when not in
use.
- Do not charge if battery or connector is wet.
R
www.litehawk.ca
Welcome to the World of LiteHawk!
Welcome aboard, this is your new LiteHawk FOCUS! Before we get ready for your first
aerial adventure, let’s cover the basics together!
Attempting to fly your LiteHawk FOCUS without completely reading the manual may cause
injury to yourself and people in the vicinity, as well as damage to the RC model. Please
read the Instruction Manual thoroughly before taking your first flight.
LiteHawk FOCUS - 2.4 Ghz
Your LiteHawk comes with a 2.4 Ghz radio system, which allows you to play without
the fear of ever losing control! Race or play with countless other pilots. The range of
your model is approximately 140ft which, due to its small size, is in excess of normal
vision. The farther the model goes away from you the smaller it will become and the
harder it will be to determine the model’s direction. We suggest you stay at a distance
between 5ft-25ft, this keeps your FOCUS within a safe operational distance.

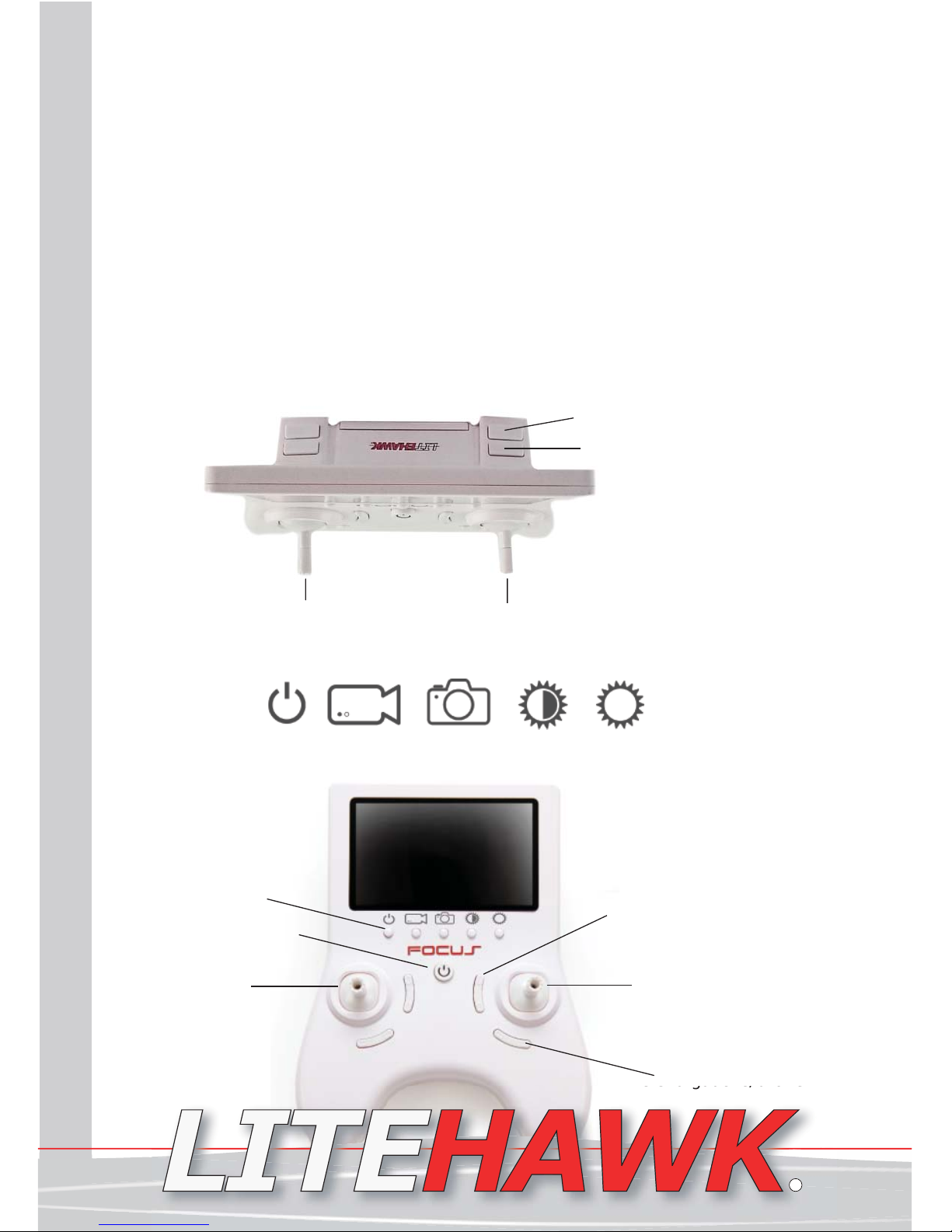

LiteHawk FOCUS - Controller Functions
*Familiarize yourself with the Remote and the Quadrocopter - everything should be
turned off.*
Orientation
Auto Return
Standard/Sport Modes
Screen Power
Controller Power
Throttle
Left/Right Rotation
Left/Right
Rotation Trim
Auto Flip
VideoPower
Photo Screen Brightness
Low High
LiteHawk FOCUS Instruction Manual 3
Forward / Backward Trim
Directional Control Stick
Forward/Backward
Left/Right Roll
Left/Right
Roll Trim
R
www.litehawk.ca

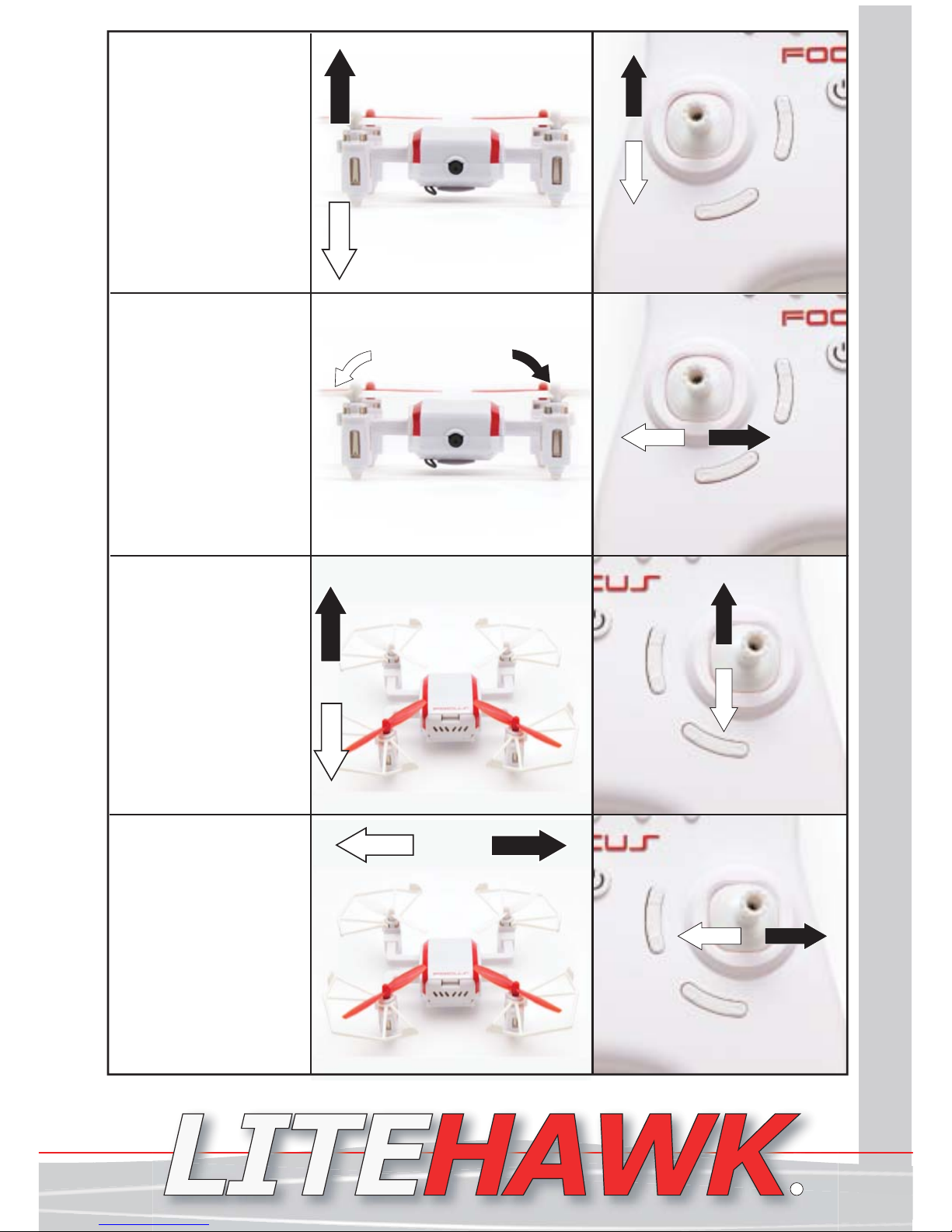

Throttle control:
Moving the stick up
increases power and
will result in more lift.
Lowering the throttle
stick or decreasing
power will result in less
lift.
TIP: This is the same
stick you will use to
“sync” your quadcopter
Up
Down
Rotate control:
Moving the stick to
the left will rotate the
quadrocopter left or
counter-clockwise.
Moving the stick to
the right will rotate
the quadrocopter
right or clockwise.
Pitch Control:
Moving the right
stick up will make
the quadrocopter go
forward. Moving the
right stick down will
make the
quadrocopter go
backwards.
Left
Rotation
Forward
Right
Rotation
LiteHawk FOCUS Instruction Manual 4
Roll Control:
Moving the stick left
will make the
Quadrocopter roll left
(move sideways).
Moving the stick to
the right will make
the Quadrocopter roll
right(move
sideways).
Backward
Left
www.litehawk.ca
Right
R

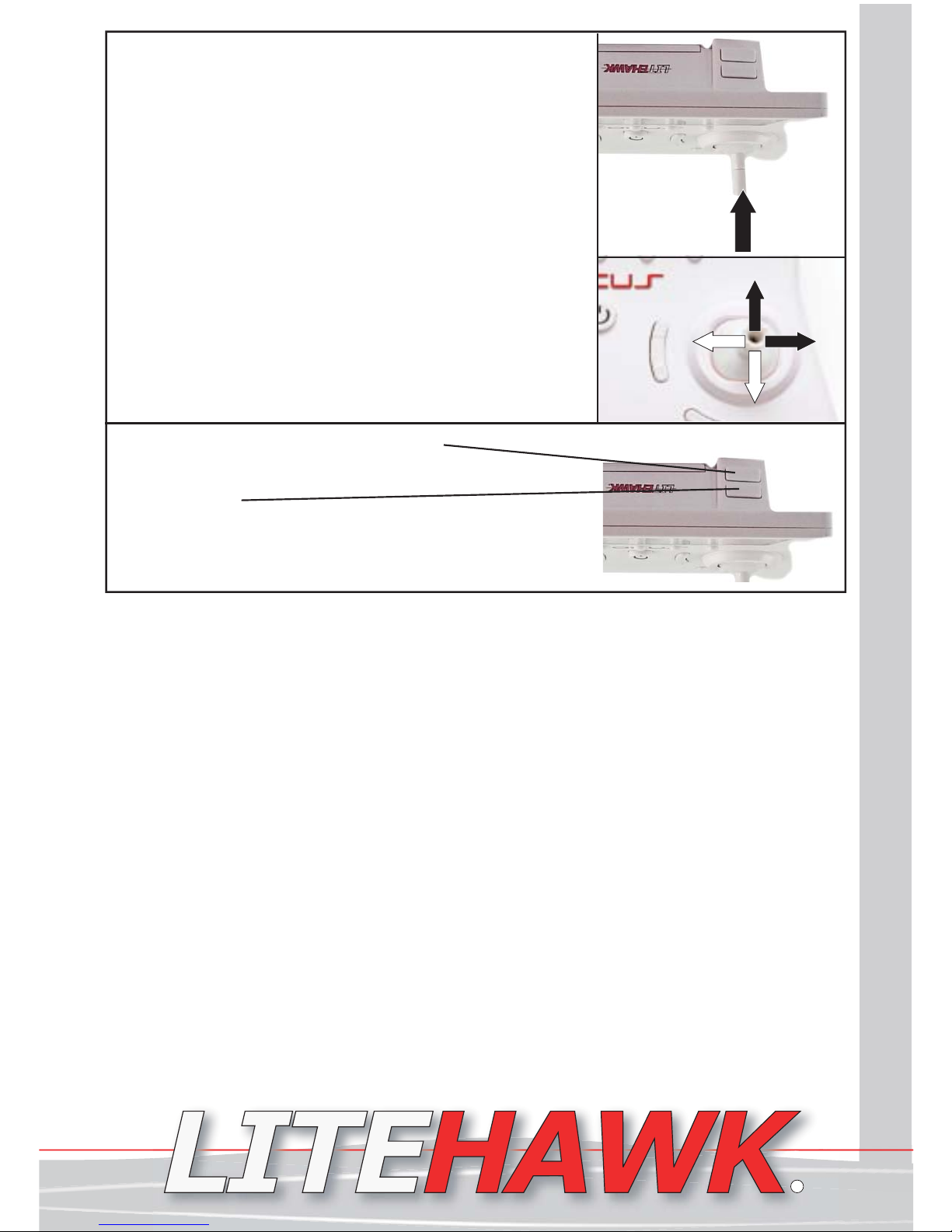

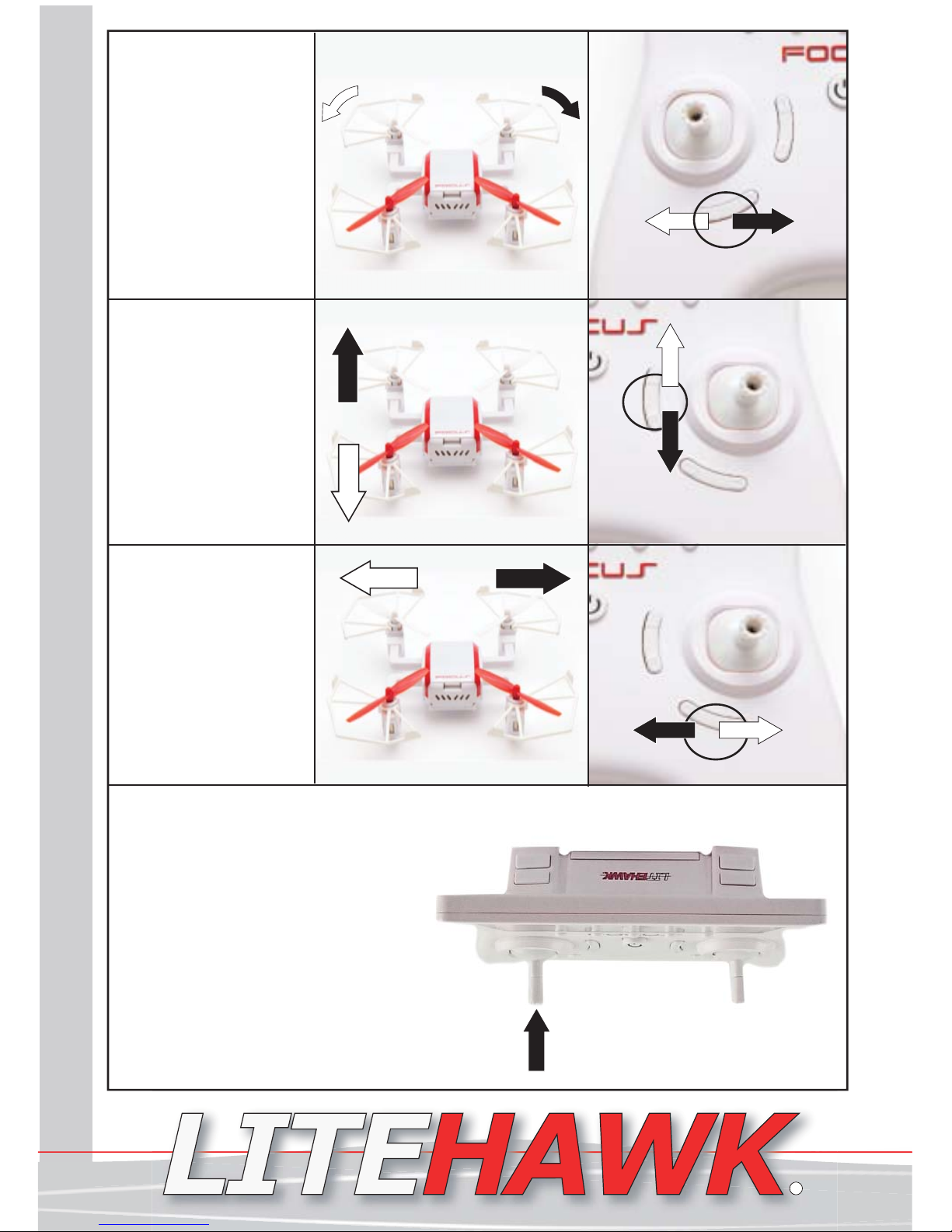

Rotate Trim:
If the Quadrocopter
spins to the left, push
the trim button right
until it stops. If the
Quadrocopter is
spinning to the right,
push the the trim
button left until it is
stable.
Left
Rotation
Right
Rotation
Pitch Trim:
If the Quadrocopter is
moving forward, push
the trim button on the
bottom until its level . If
the Quadrocopter is
moving backwards, push
the trim button on the
top until its level.
Roll Trim:
If the Quadrocopter is
moving sideways (roll) to
the left, push the button
on the right until it is
level. If the
Quadrocopter is moving
sideways (roll) to the
right, push the button on
the left until it is level.
Forward
Backward
Left
Right
Standard/Sport Modes:
Press once and you will hear one beep you are in Standard Mode (response rates
are at 50%). Press again and you will hear
two beeps - you are now in Sport Mode 2
(response rates are at 75%). In Sport
Mode 2, controls are much more
responsive. Press again and you will hear
three beeps - you are now in Sport Mode 3
(response rates are at 100%). This is an
advanced setting and should only be used
when you are comfortable flying your
NEON. Sport Mode 3 is for outdoor use.
Factory setting is Standard Mode.
LiteHawk FOCUS Instruction Manual 5
R
www.litehawk.ca
Flip Mode:
ltht
ba
er
y
y
do
or
Press once and you will hear one beep - you are in Regular
Mode. Press again and you will hear two beeps - you are
now in Flip Mode.
In Flip Mode you can use the RIGHT control stick to flip
forwards or backwards and to flip left or right.
Stunt Flip forward/backward:
Users can do a forward flip with the FOCUS by pressing
the Flip button and moving the right stick UP
simultaneously. To flip backwards, press the Flip button
and move the right stick DOWN simultaneously. Make
sure you do flips in a large, unobstructed space!
Stunt Flip left/right:
Users can do a left flip with the FOCUS by pressing the
Flip button and moving the right stick LEFT
simultaneously. To flip right, press the Flip button and
move the right stick RIGHT simultaneously. Make sure
you do flips in a large, unobstructed space!
Orientation Control:
allows directional override
Auto Return:
By pressing the Auto Return button, the quadrocopter will
return to the controller location. make sure there are NO
obstacles between the toy and the controller.
How to charge the Litehawk FOCUS:
Battery and Charger
To reduce the overall cost of using your new toy both the Controller and Drone comes with
a rechargeable battery and a USB charger.
you do need to make sure to properly maintain your Li-Po Battery.
- Li-Po batteries don’t like to be run down too low. If the voltage is dropped dramatically
they will be damaged and will not recharge! Once the model starts to slow (or the battery
level indicator on the screen reads low), drive your model to a safe place, walk over and
turn it off.
- It is recommend to charge the battery after your run and to always store the battery with
a charge. Never discharge or dead short a Li-Po battery!
- Always have your model battery unplugged and controller turned off and unplugged when
LiteHawk FOCUS Instruction Manual 6
not in use.
Charging:
1. Insert the battery into the USB charger.
2. Plug the USB Charger into a USB port (TV, Computer, etc.)
3. The USB charger led lights up in red when charging. Once the battery is fully charged,
the led goes out. The battery takes about 30 minutes to charge.
Installing the battery
After fully charging your batteries you can then insert them into your Controller and
Drone.
Controller
1. Unscrew the battery door on the back side of the Controller.
2. Plug the Controller battery into the controller. This plug is keyed and only goes in one
way.
3. Re-install the battery door.
inst
e
You should expect 5-8 min run time. However
