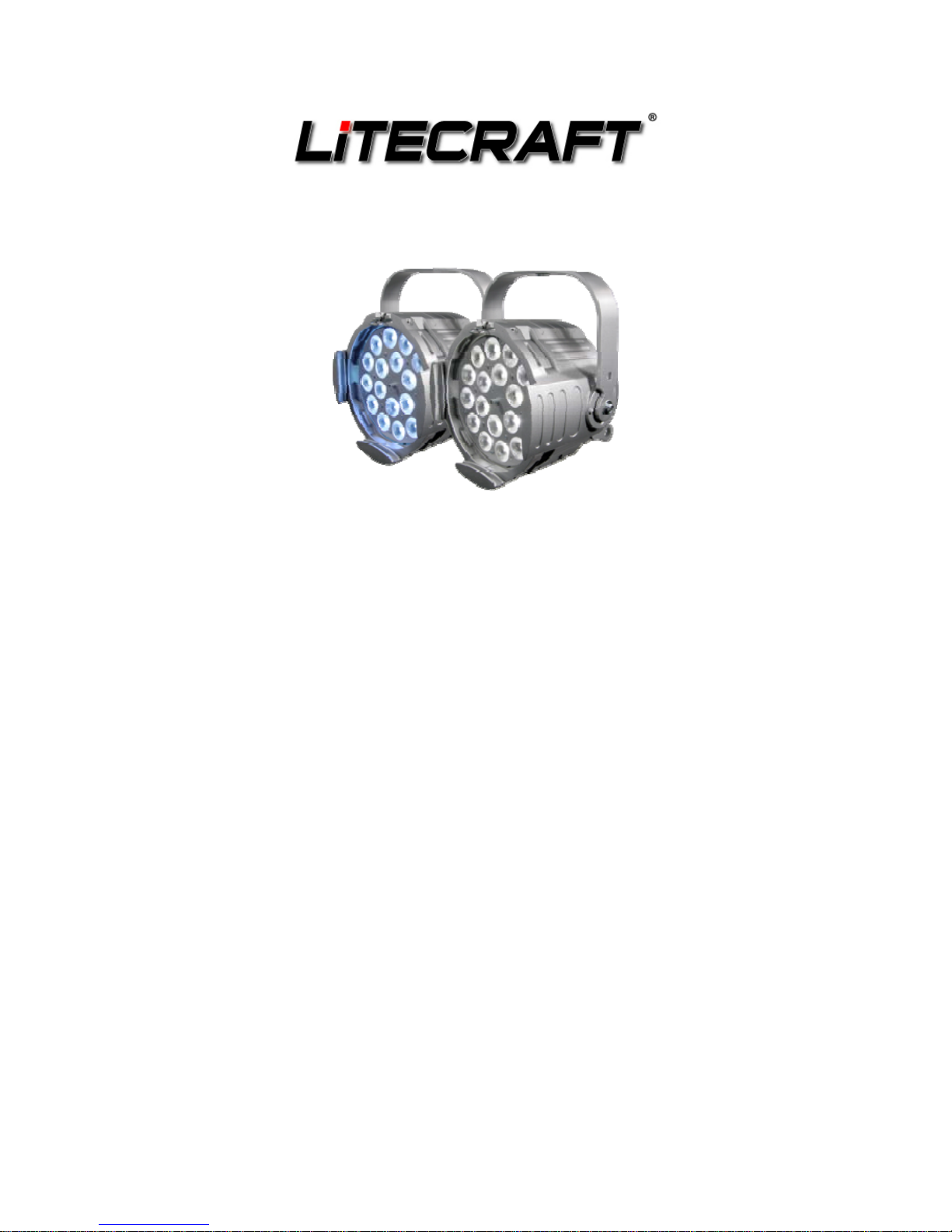

Studio PAR WT6 PRO CW / WW
MANUAL
Thank you for purchasing this LITECRAFT product. For your own safety, please
read the instruction manual carefully before turn on the product for the first time.
SAFETY NOTES
• Each person which is responsible for the installation, the use or service
of this unit must be:
- qualified
- has to follow the instructions in this manual.
• WARNING! Be careful when using the device. You risk an electrical
shock from high voltage, if you touch the wires!
• The device has left our company in manufacturer proofed state. To
maintain this status and to ensure a permanent safe operation, it is
absolutely necessary to follow the safety instructions and warnings in
this manual.
• IMPORTANT: Errors, caused by not following these instructions are not
covered by the warranty. The manufacturer will not accept liability for any
resulting defects or problems.
• Keep the unit away from radiators or other heat sources!
• If the unit has been exposed to tremendous temperature changes (e.g.
after transportation), do not turn it on immediately. The resulting
condensation could damage the unit. Don`t switch unit on until the
device reaches room temperature.
• This device belongs to protection class I. Therefore, it is imperative that
the green/yellow wire is connected to the earth contact of the plug. The
electrical connection must be made by a qualified person.
I
• Make sure that the cable has never been squeezed or damaged by
sharp objects. Check the device and the cables regularly.
• If the cable is damaged, it must be replaced immediately by the
manufacturer, its service agent or a qualified person in order to avoid
danger.
• Lenses, glasses or UV filters must be replaced if they are visually
damaged, or their effectiveness is impaired, e.g. by broken glass or by
deep scratches.
• Ensure that wires never come in contact with other wires! Handle the
power cord and all connections with caution!
• Make sure that the line voltage is not higher than the voltage specified in
this manual.
• Disconnect the unit from the AC mains when it is not in use or when
cleaning it. Disconnect the connection only by pulling the cable plug.
• Using the fixture for the first time, can result in light smoke and odors.
This is a normal process and does not constitute a defect.
• RISK OF BURNS! Do not touch the unit during operation! The housing
may reach high temperatures.
• RISK TO HEALTH! Never look directly into the light source. Especially
epileptics risk an epileptic shock! Disconnect the unit from the AC mains
when not in use or when cleaning it.
• Defects caused by modifications of the device by unqualified handling or
an unqualified person are not covered by the warranty.
• Keep the product away from children and unskilled people.
• There are no wear parts in the device. Maintenance and service must be
performed only by an authorized service partner.
II
III
OPERATION
♦ This device is plug`n`play – this means it can be used without extra
components like DMX-controllers or dimmer units. Just connect the
included PowerCon cable to a convenient power supply like specified in this
manual. It is possible to connect multiple units to the PowerCon outlet.
Depending to the used cables in your application up to 20 units can be
driven from a 10 amps breaker circuit.
NOTE!
NEVER use the unit connected to an electronic dimmer unit. The unit can be
badly damaged. Optional mechanical dimmer units or LEE gels are
available to control the light output.
TECHNICAL SPECIFICATION
voltage
100-240 V, 47-63 Hz
power consumption
0.46 A @ 230 V
measurements
271 x 221 x 304 mm
weight 4.8 kg
fuse T3.15 A @ 250 V
