Litecontrol 2L-P-D specifications

Download

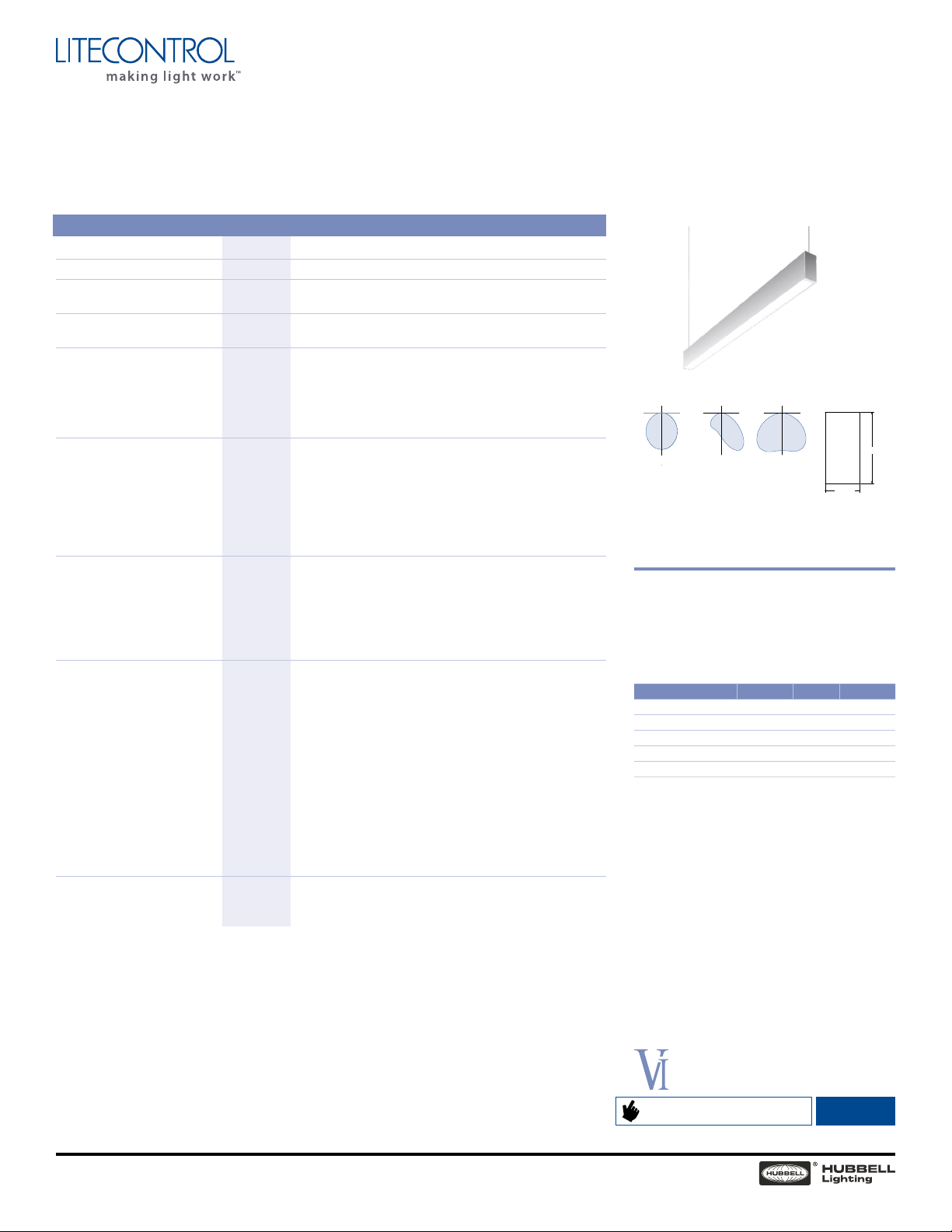

Page 1

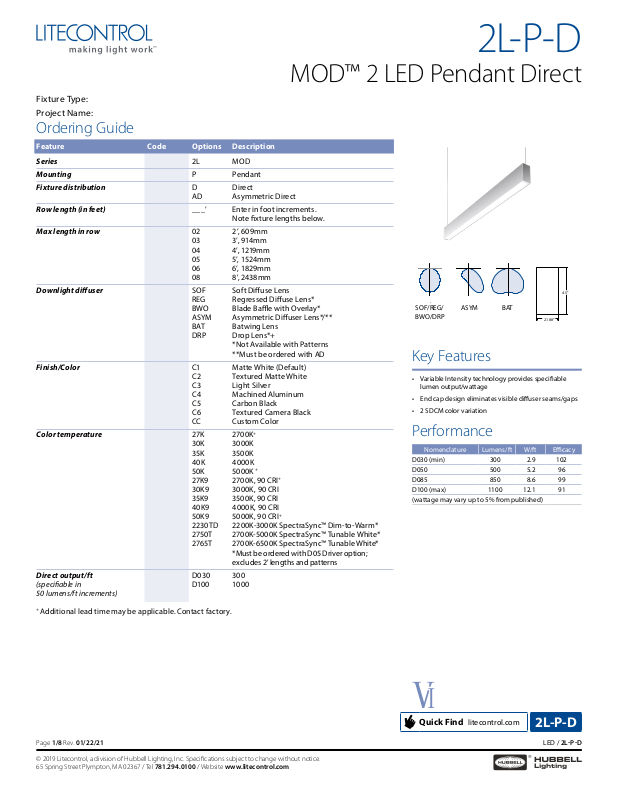

MOD™ 2 LED Pendant Direct

2.900

2.550

2.125

2.900

2.550

2.125

Fixture Type:

Project Name:

Ordering Guide

Feature Code Options Description

Series 2L MOD

Mounting P Pendant

Fixture distribution D Direct

AD Asymmetric Direct

Row length (in feet) ___’ Enter in foot increments. Note xture lengths below.

Max length in row 02 2’, 609mm 03 3’, 914mm 04 4’, 1219mm 05 5’, 1524mm 06 6’, 1829mm 08 8', 2438mm

Downlight diuser SOF Soft Diuse Lens REG Regressed Diuse Lens* BWO Blade Bae with Overlay* ASYM Asymmetric Diuser Lens*/** BAT Batwing Lens DRP Drop Lens*+ *Not Available with Patterns **Must be ordered with AD

Finish/Color C1 Matte White (Default) C2 Textured Matte White C3 Light Silver C4 Machined Aluminum C5 Carbon Black C6 Textured Camera Black CC Custom Color

Color temperature 27K 2700K+ 30K 3000K 35K 3500K 40K 4000K 50K 5000K + 27K9 2700K, 90 CRI+ 30K9 3000K, 90 CRI 35K9 3500K, 90 CRI 40K9 4000K, 90 CRI 50K9 5000K, 90 CRI+ 2230TD 2200K-3000K SpectraSync™ Dim-to-Warm* 2750T 2700K-5000K SpectraSync™ Tunable White* 2765T 2700K- 6500K SpectraSync™ Tunable White* *Must be ordered with D05 Driver option; excludes 2' lengths and patterns

Direct output/ft D030 300

(speciable in D100 1000 50 lumens/ft increments)

Additional lead time may be applicable. Contact factory.

2L-P-D

4.500

4.5"

SOF/REG/ BWO/DRP

Key Features

• Variable Intensity technology provides speciable lumen output/wattage

• End cap design eliminates visible diuser seams/gaps

• 2 SDCM color variation

Performance

Nomenclature Lumens/ft W/ft Ecacy

D030 (min) 300 2.9 102

D050 500 5.2 96 D085 850 8.6 99 D100 (max) 1100 12.1 91 (wattage may vary up to 5% from published)

ASYM BAT

2.200

2.188"

Quick Find litecontrol.com

2L-P-D

LED / 2L-P-DPage 1/8 Rev. 01/22/21

Page 2

MOD™ 2 LED Pendant Direct

Ordering Guide (continued)

Driver NDM Non Dimming D05 5% Dimming, 0-10V* D01 1% Dimming, 0 -10V DS1 Soft-Start 1% Dimming, 0-10V D00 Dim-to-o (1%), 0-10V DS0 Soft-Start Dim-to-o (1%), 0-10V LEC Hi-lume 1% EcoSystem LED driver DALI DALI+ DALIP Powered DALI (2.0)+ *Must be ordered with 2230TD, 2750T or 2765T Option

Circuiting 1C 1 Circuit

Voltage UNV Universal Voltage (120V through 277V)

347 347 Vo lt*+ *Excludes Emergency Battery Pack 'EF' Option. Excludes DALI, DALIP and Lutron (LEC) Dimming Drivers

Suspension kit* FA1 Suspension Kit, 51” FA2 Suspension Kit, 87” FA3 Suspension Kit, 219” FA4 Suspension Kit, 363” * Add sux /V to replace all 2" non-feed canopy covers with 5" canopy covers. FA1/V = 51" suspension kit w/ 5" canopies; canopies and feed cord are supplied in white regardless of xture color unless otherwise specied

Optional Features Code Options Description

Nightlight NL Nightlight Circuit Required. Enter quantity.

Emergency EF 10W Emergency Battery Backup.

Thru-wiring W1 No Thru Wire

W2 Provide Normal and Emergency/Nightlight Thru Wiring* W3 Provide Normal Thru Wiring Only *Only applicable when specied with Emergency/Nightlight

Patterns+* C90L Illuminated 90° corner C120L Illuminated 120° corner C135L Illuminated 135° corner CNL Non-Illuminated Square 90° Connector TNL Non-Illuminated Square T Connector XNL Non-Illuminated Square X Connector VNL Non-Illuminated Triangle 120° Connector YNL Non-Illuminated Triangle Y Connector *Contact factory for pattern congurations Approval drawings required. See page 5.

T-Bar Clips* CB1 T-bar clip - 15/16" CB2 T-bar clip - 9/16" CB3 T-bar clip - 9/16" SS *Includes Luminaire Canopy Box, see page 4 for details

Additional lead time may be applicable. Contact factory.

2NL = 2 nightlight circuits/row

Enter quantity. 2EF = 2 Emergency batteries/row. See Details for restrictions.

2L-P-D

Quick Find litecontrol.com

2L-P-D

LED / 2L-P-DPage 2/8 Rev. 01/22/21

Page 3

MOD™ 2 LED Pendant Direct

Ordering Guide (continued)

Control Options Code Options Description

NX*+ NXE NX Enabled, Dual SmartPorts

NXWE NX Wireless Enabled NXES NX Enabled, Dual SmartPorts, PIR Occupancy Sensor, Dimming Daylight Harvesting NXS NX, PIR Occupancy Sensor, Dimming Daylight Harvesting (standalone) NXSW NX Wireless, PIR Occupancy Sensor, Dimming Daylight Harvesting NXWD NX Wireless Enabled, Dual SmartPORTs NXSWD NX Wireless, PIR Occupancy Sensor, Dimming Daylight Harvesting, Dual SmartPORTs *Not available for row mounting; Only available with 0-10V Driver options; Contact factory for Length restrictions *Only available in 4'+

Sensors* + SD1 Daylight Sensor Required. Enter quantity.

2SD1= 2 daylight sensors/row SO1 Occupancy Sensor Required. Enter quantity. 2SO1= 2 occupancy sensors/row *Only available in 4'+

Additional lead time may be applicable. Contact factory.

2L-P-D

Output Restrictions

Driver options listed below are not available for the output and length as shown

Restrictions-

Direct

Length (feet)

300 350 400 450 500 950 1000

LEC, DALI,

347V

DALI, 347V DALI, 347V LEC LEC

LEC, DALI,

347V

DALI, 347V DALI, 347V DALI, 347V LEC LEC

Output

LEC LEC

Quick Find litecontrol.com

2L-P-D

LED / 2L-P-DPage 3/8 Re v. 01/22/21

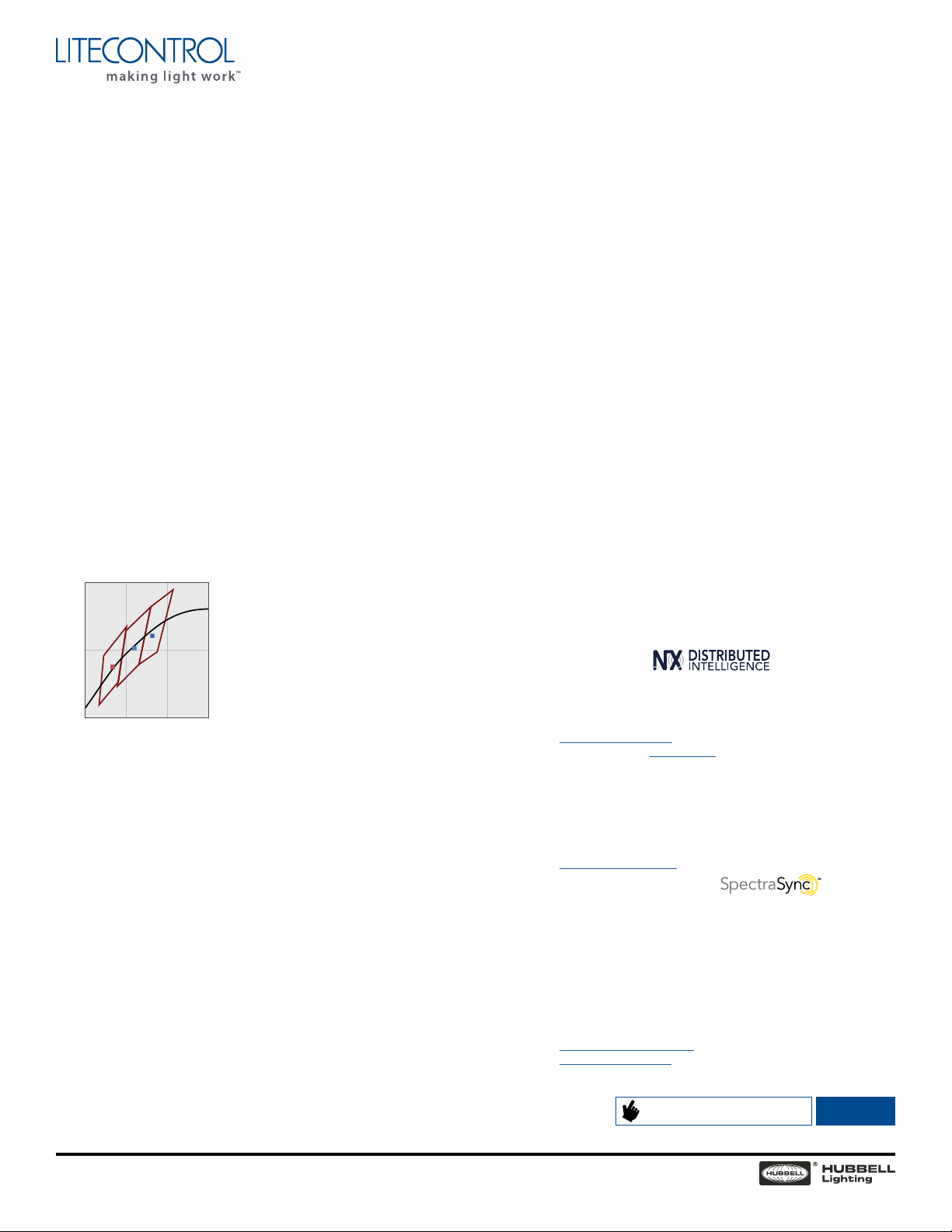

Page 4

MOD™ 2 LED Pendant Direct

Color Tuning Technology

™

Details

Construction:

Housing-extruded aluminum with extruded aluminum end headers/row joining brackets. End caps- Die cast aluminum with magnetic interface. Overlaps diuser at each xture end to eliminate gaps/ LED visibility

Downlight diuser:

SOF-Soft diuse acrylic lens. REG- ½" regressed softglo lens with painted steel inser ts. Output multiplier (.77) BWO- White blade bae with softglo lens overlay. Output multiplier (.70) ASYM- Highly transmissive diuse acrylic lens with linear prisms. BAT- Highly transmissive diuse acrylic lens with linear prisms. DRP- ½" protruding soft diuse lens. Please see the installation instruction sheets for more details.

Finish/Color:

Visit www.litecontrol.com/nishes for details.

CC T:

27K-2700K output multiplier (0.95) 30K-3000K output multiplier (0.98) 35K-3500K output multiplier (1.00)* 40K-4000K output multiplier (1.03) 50K-5000K output multiplier (1.05) 27K9-2700K 90 CRI output multiplier (0.83) 30K9-3000K 90 CRI output multiplier (0.85) 35K9-3500K 90 CRI output multiplier (0.88) 40K9-4000K 90 CRI output multiplier (0.90) 50K9-5000K 90 CRI output multiplier (0.93) *Scale all values from 35K

0.43

.40

.35

.35 .40 .45 .50

Color Variation:

2 step MacAdam ellipse

Driver:*

NDM: Non-dimming. Fixture will be wired for xed light output. D05: Osram 100%-5% dimming range, Fixture will be wired for low voltage 0-10V dimming control. Only applicable if either 2230TD, 2750T or 2765T is selected. D01: 100%-1% dimming range. Fixture will be wired for low voltage

DS1: Soft-Start 100%-1% dimming range. Fixture will be wired for low voltage 0-10V dimming control. D00: Dim-to-o 100%-1% Dimming range. Fixture will be wired for low voltage 0-10V dimming. DS0: Soft-Start Dim-to-o 100%-1% dimming range. Fixture will be wired for low voltage 0-10V dimming control. LEC: Hi-Lume 1% EcoSystem LED Driver with Soft-on, Fade-to-Black dimming technology. DALI: DALI compatible. DALIP: Self-Powered DALI bus (e.g. DEXAL) *See driver limitations in Output Restrictions above.

ANSI 3000K

ANSI 3500K

ANSI 4000K

0-10V dimming control.

2L-P-D

Output (VI technology):

Variable Intensity (VI) technology allows precise specication of xture output/wattage. Fixture will be programmed and labeled to specication. Indirect and direct hemispheres can be independently specied. Specify each in 50 lumen increments/ft within the below range Lumens/f t Nome nclature

Direct Min: 300 D030

Max: 1000 D100

Field Accessibility:

LED boards and drivers can be accessed and removed from xture, while installed. Entire LED module can be removed and replaced.

Circuiting:

1C (1 Circuit) Fixture wired for a single circuit.

Suspension Kit:

3/64” diameter eld-adjustable aircraft cable. Ships separately. Suspension required at ever y row joint. Low prole cable gripper limits visibility while providing maximum horizontal balance adjustment.

Canopy covers:

Non-feed-2” diameter (unless 5” non-feed cover is specied).

Feed cord:

4-wire, 7 amps max; 5-wire, 5 amps max.

Nightlight:

See separate LC-Nightlight spec sheet for additional details.

Emergency:

EF - 10W battery powered driver. Provides a minimum of 90 minutes of emergency lighting. Inverter-Compatible. Provided by others. Available in 4'+' xtures.

NX Distributed Intelligence:

Supports indoor and outdoor applications, wired, wireless and hybrid networked NX lighting control deployments and enabled emerging applications, such as Hubbell Lighting's SpectraSync™ Color Tuning Tec hnolo gy. See separate NX Application Guide for additional details. See Hubbell Controls Solution NX Brochure.

Sensors:

SD1: Daylight sensor(Wattstopper part #FD301). Installs between diusers. SO1: Occupancy sensor(Wattstopper FS-305 with FS-L6 lens). Installs between diusers. NX: NX Sensors installs between diusers. See separate Control Options Guide for additional details.

SpectraSync™ Color Tuning Technology:

Control your space based on the needs of the application, specic activities throughout the day and preferences of the occupants with two distinct SpectraSync™ Color Tuning Technology. Dim to Warm: Dim to Warm mimics the familiar warming eect that occurs with traditional incandescent sources as they are dimmed. (Available with 2200K-3000K). Tunable White: Tunable White oers users the ability to tailor CCT to their personal preference, enhancing task visibility, material and colors or the aesthetics of the space. (Available with 2700K-5000K or 2700K-6500K). See separate SpectraSync™ Tech Sheet for additional details. See separate NX™ Solutions Guide for additional details.

Quick Find litecontrol.com

2L-P-D

LED / 2L-P-DPage 4/8 Re v. 01/22/21

Page 5

Details (continued)

3 3/16" (3L)

4 7/16" (4L) 6 7/16" (6L)

2 5/16"

SCREW DIRECTION LABEL

surface mount location on the linear fixture

male end of row

female end of row

3 3/16" (3L)

4 7/16" (4L) 6 7/16" (6L)

2 5/16"

1/2" 1/2"

NOMINAL FIXTURE LENGTH

FIXTURE LENGTH + 1/2"

4 1/2"

2 1/8"

4 1/2"

CROSS SECTION

2L-P-ID LPA

4 1/2"

2 1/8"

CROSS SECTION

2L-S-D

FAI / ACC

FAI / ACC / F

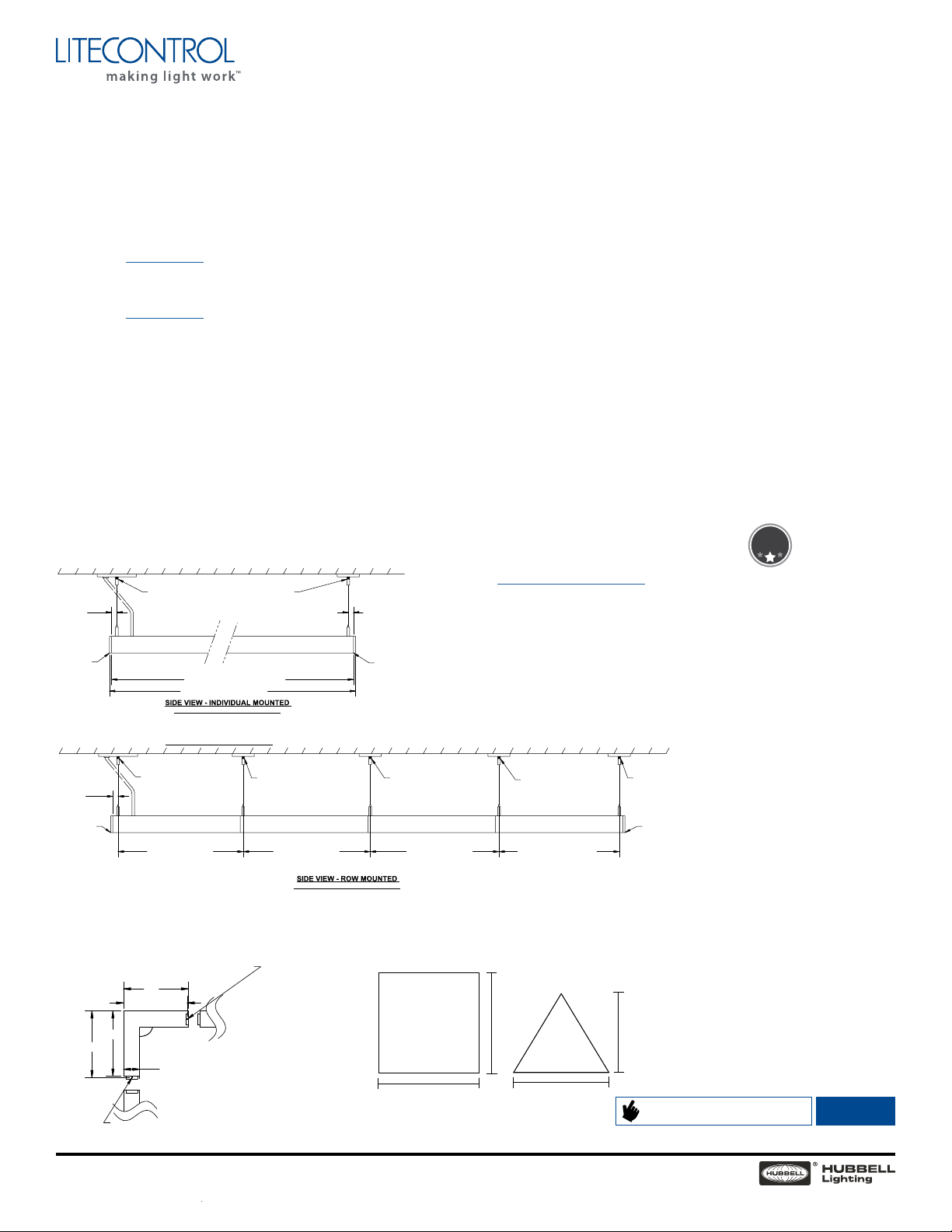

PENDANT MOUNTED FIXTURE

END CAP

CROSS SECTION

2L-P-ID STD

1/2" 1/2"

NOMINAL FIXTURE LENGTH

FIXTURE LENGTH + 1/2"

FIXTURE SERIES: 2L

MOUNTING TYPE: AIRCRAFT CABLE

PAGE: 1 OF 3

1/4"

4 1/2"

2 1/8"

4 1/2"

2L-P-ID LPA

4 1/2"

2 1/8"

CROSS SECTION

2L-S-D

PENDANT MOUNTED FIXTURE

CROSS SECTION

2L-P-ID STD

Speciﬁcations

2L-P-D

MOD™ 2 LED Pendant Direct

Thru wiring:

See separate LC-Thruwire spec sheet for additional details.

Luminaire Canopy Box:

See separate LC instructions for additional details *For use with Grid Ceilings only

T-Bar Clips:

See separate LC instructions for additional details *For use with Grid Ceilings only

Planning for installation:

Suspension Mounting Locations Pendant locations at ends of rows (or individual xtures) are 1/2" from xture ends. Pendant attachment allows for horizontal adjustment to "netune" side-to-side leveling.

Fixture Mounting

FAI / ACC

1/2" 1/2"

END CAP

FAI / ACC / F

1/4"

NOMINAL FIXTURE LENGTH

FIXTURE LENGTH + 1/2"

System Connectors:

90°, 12 0°, 13 5° illuminated corners available. One piece construction, ready to install, with diusers that match adjoining xtures. Corner system connectors must be used to form patterns. The length of each outside or inside lighted corner is 12". Square and Triangle non-illuminated connectors match xture width for continuous look.

Rated Life (LED Board):

Tested in accordance to LM79-2008 & derived from EPA TM-21 calculator L70: >61,000 (reported per TM-21/LM80 6x's limitation) L90: >61,000 (reported per TM-21/LM80 6x's limitation) Driver: ≥50,000 hours (5 year Warranty)

Rated Life (Driver):

Standard = 100,000 hours Lutron = 50,000 hours

Fixture weight:

3 lbs/ft.

Ratings:

CSA listed for damp locations. IBEW. AF of L. UL924. This product qualies as a “designated country construction material” per FAR 52.225-11 Buy American-Construction. Materials under Trade Agreements eective 8/14/2020. See Buy American Act Solutions. Contact factory

BUY AMERICAN SOLUTIONS

See Certiﬁcation

for congurations including SpectraSync, EM, NX, or sensors.

Warranty:

LED Boards- 5 years LED Drivers (Standard)- 5 years, Lutron- 3 years

FAI / ACC / F

1/2"

END CAP

FIXTURE AT END OF ROW LEFT HAND (EORL)

FIXTURE LENGTH FIXTURE LENGTH FIXTURE LENGTH FIXTURE LENGTH - 1"

Patterns:

suspension cable location on female end

11 21/32"

12 11/32"

90°, 120°, 135°

suspension cable location on male end

2 2/16" (2L)

FAI / ACC

PENDANT MOUNTED FIXTURE

FAI / ACC

Non-Illuminated Connectors

INT FIXTUREINT FIXTURE

2 ⁄" 2 ⁄"

2 ⁄"

FAI / ACC

FIXTURE AT END OF ROW RIGHT HAND (EORR)

1 ⁄"

FAI / ACC

END CAP

Quick Find litecontrol.com

2L-P-D

LED / 2L-P-DPage 5/8 Re v. 01/22/21

Page 6

Details (continued)

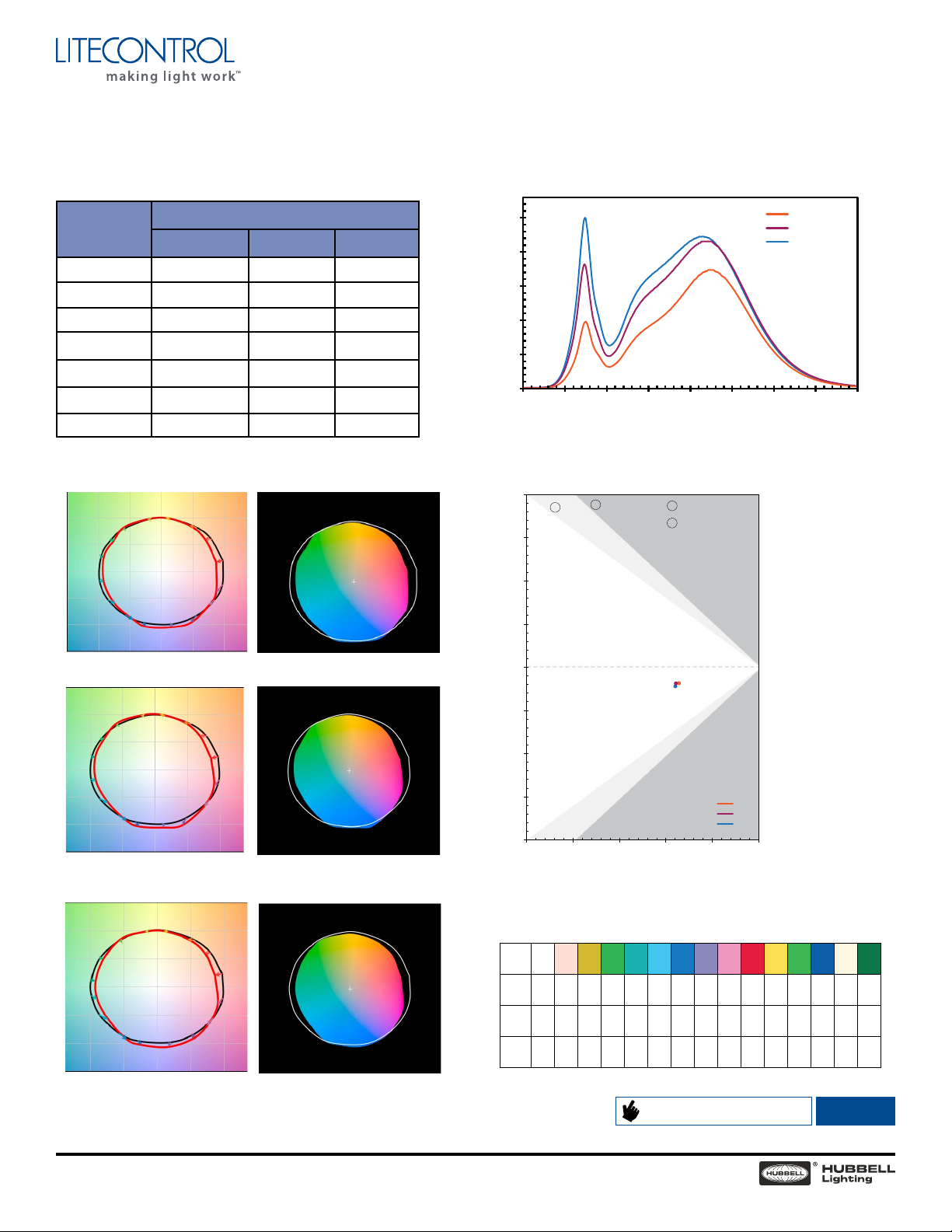

SPECTRAL POWER DISTRIBUTION COMPARISON

30K 35K 40K

Color Characteristics:

2L-P-D

MOD™ 2 LED Pendant Direct

Spectral Distribution:

Value

Ordering Code

30K 35K 40K

Rf 83 82 82

Rg 96 96 96

CCT (K) 3009 3494 3975

Duv -0.0009 -0.0004 -0.0003

x 0.435 0.4052 0.3814

y 0.4012 0.3898 0.3768

CIE Ra 83 83 84

Color Vector Graphic:

30K:

35K:

100%

80%

60%

40%

Relative Power

20%

380 430 480 530 580 630 680 730 780

Color Gamut/Fidelity Plot

140

130

120

110

100

Gamut Index, R

Wavelength (nm)

Rf-RgPlot

Approx. limits for sources on the Planckian locus.

Approx. limits for practical light sources.

30K 35K 40K

40K:

CRI:

80 minimum

50 60 70 80 90 100

Fidelity Index, R

30K 35K 40K

CCT CRI R1 R2 R3 R4 R5 R6 R7 R8 R9 R10 R11 R12 R13 R14

30K 83 82 91 97 81 82 89 84 62 13 79 79 69 84 99

35K 83 81 89 95 81 81 85 86 65 13 73 79 62 83 97

40K 84 82 90 94 82 82 85 87 68 17 74 80 60 84 97

Quick Find litecontrol.com

2L-P-D

LED / 2L-P-DPage 6/8 Re v. 01/22/21

Page 7

Photometry

IES INDOOR REPORT PHOTOMETRIC FILENAME : 2L-P-D-4-SOF-X-CX-35K-D100.IES

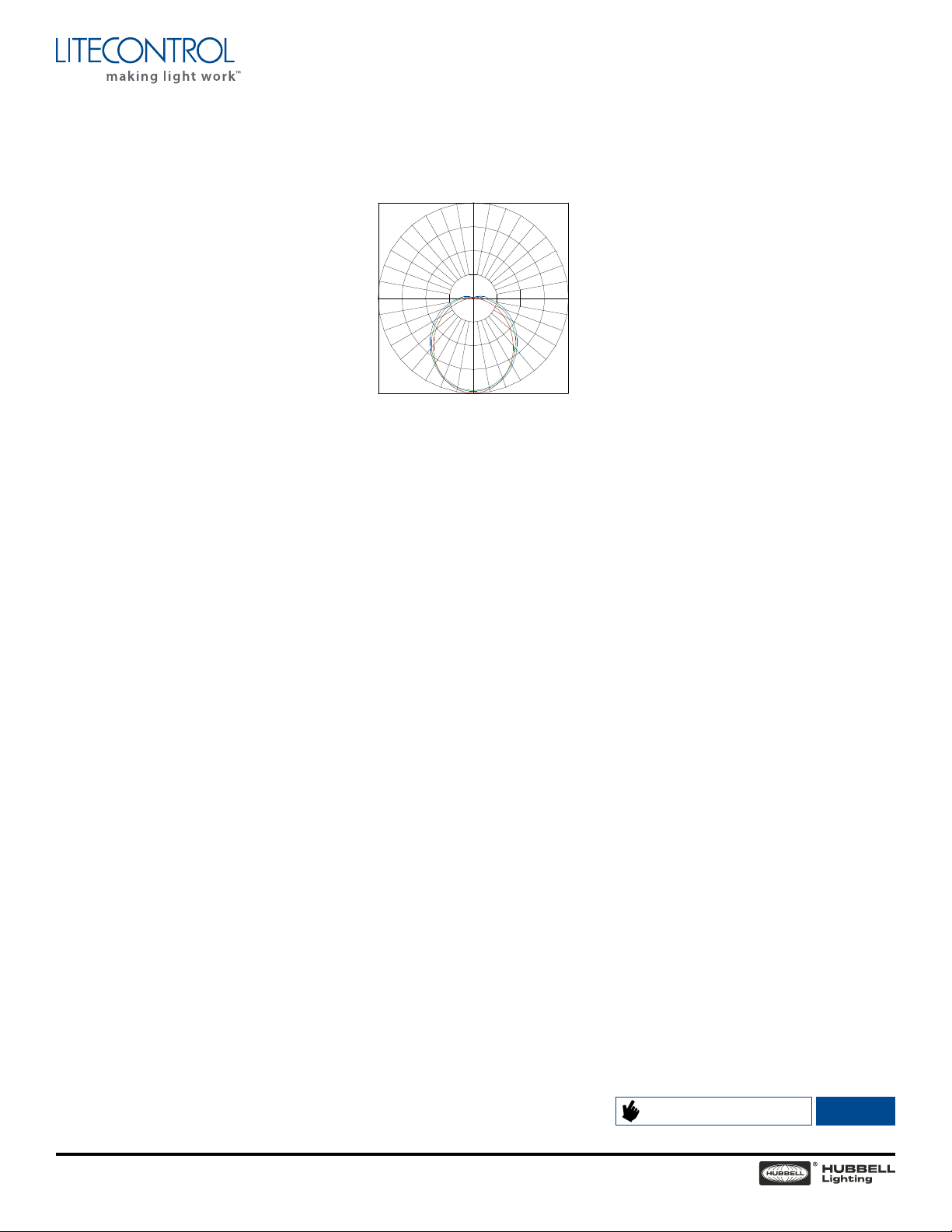

POLAR GRAPH

IES INDOOR REPORT PHOTOMETRIC FILENAME : 2L-P-AD-4-ASYM-X-CX-35K-D050.IES

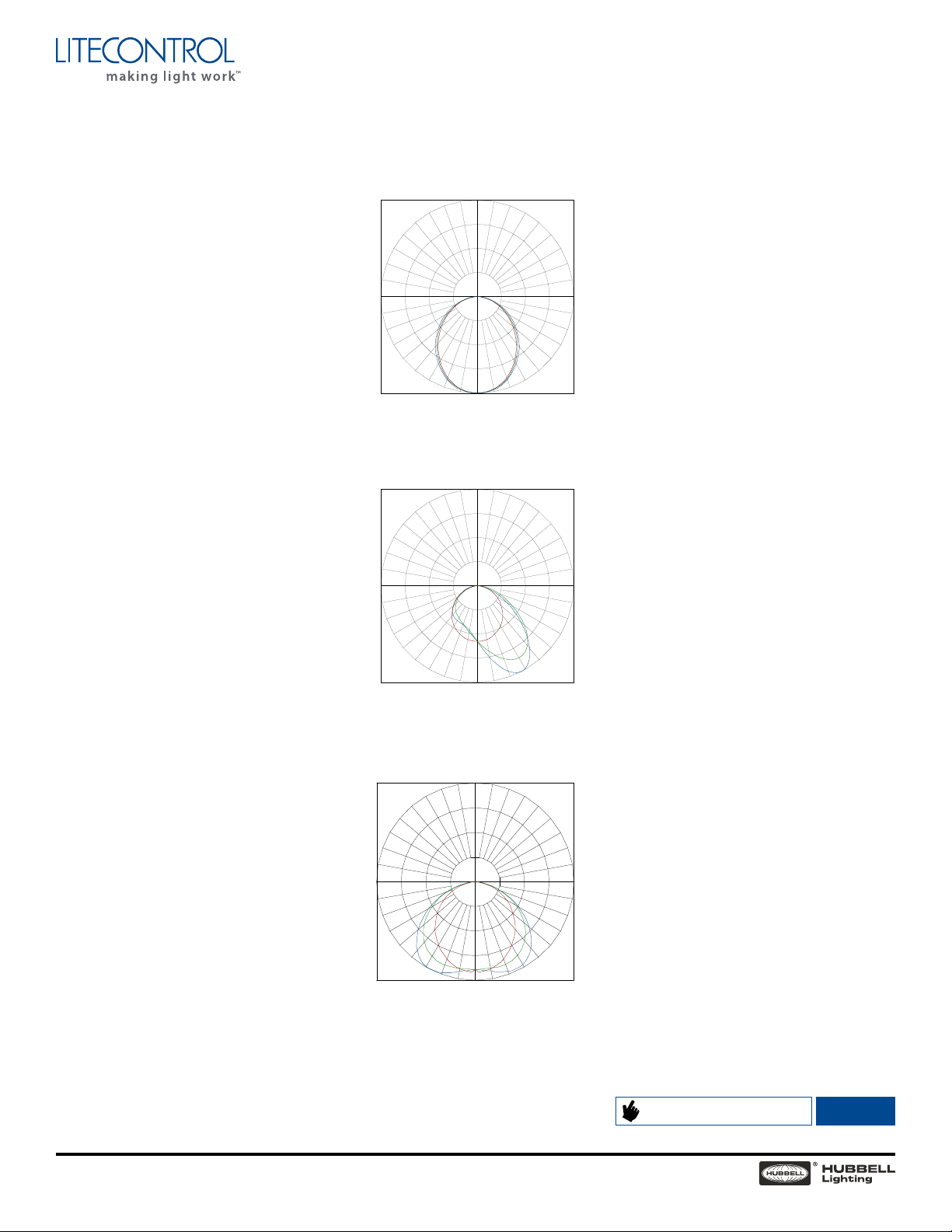

POLAR GRAPH

2L-P-D

MOD™ 2 LED Pendant Direct

Fixture: 2L-P-D-XX-XX-SOF- CX-35K-D100 CCT: 3500K Output: D100 Nominal lumens: 1000 lumens/ft Efficacy: 95 lm/W Test report:2L-P-D-4-SOF-X-CX-35K-D100.IES

Fixture: 2L-P-AD-XX-XX-ASYM -CX-35K-D050 CCT: 3500K Output: D050 Nominal lumens: 500 lumens/ft Efficacy: 82 lm/W Test report: 2L-P-AD-4-ASYM-X-CX-35K-D050.IES

1587

1191

794

397

Legend:

0-deg: Blue

45-deg: Green

90-deg: Red

1024

768

512

256

Zonal Lumens

Zone Lumens Lamp %

0-40 19 05.97 47.7 0 0-60 3229.26 80.70 0-90 3999.61 10 0.0 90 -180 0.00 0.00 0-180 3999.61 100.0

Zonal Lumens

Zone Lumens Lamp %

0-40 8 96.16 44.80 0-60 1613 .68 80.70 0-90 1999.5 100 .0 90 -180 0.46 0.00 0-180 1999.96 100.0

Fixture: 2L-X-D-04-BAT-CX-35K-D100 CCT: 3500K Output: D100 Nominal lumens: 1000 lumens/ft Efficacy: 95 lm/W Test report: 2L-X-D-04-BAT-CX-35K-D100.IES

45-deg: Green

Legend:

0-deg: Blue

90-deg: Red

1377

1033

689

344

Legend:

0-deg: Blue

90-deg: Red

Zonal Lumens

Zone Lumens Lamp %

0-40 1744.7 2 43.6 0-60 3180 .69 79. 5 0-90 3999.29 100.0 90 -180 0 0.0 0-180 3999.29 100.0

Quick Find litecontrol.com

2L-P-D

LED / 2L-P-DPage 7/8 Rev. 01/22/21

Page 8

Photometry (continued)

2L-P-D

MOD™ 2 LED Pendant Direct

Fixture: 2L-X-D-04-DRP-CX-35K-D050 CCT: 3500K Output: D050 Nominal lumens: 500 lumens/ft Efficacy: 95 lm/W Test report: 2L-X-D-04-DRP-CX-35K-D050.IES

663

498

332

166

Legend:

0-deg: Blue

45-deg: Green

90-deg: Red

Zonal Lumens

Zone Lumens Lamp %

0-40 801.88 40.10 0-60 14 08. 37 70.40 0-90 190 4.98 95.20 90 -180 94.99 4.70 0-180 1999.98 100.00

Quick Find litecontrol.com

2L-P-D

LED / 2L-P-DPage 8/8 Re v. 01/22/21
