Listen Technologies LT-82-01 Quick Start Guide

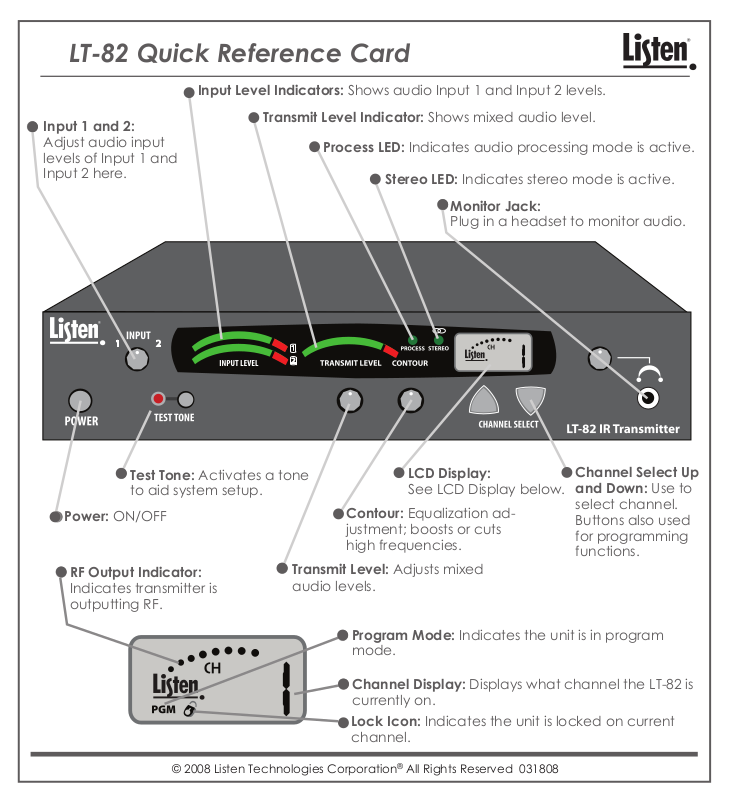

LT-82 Quick Reference Card

Input Level Indicators: Shows audio Input 1 and Input 2 levels.

Input 1 and 2:

Adjust audio input levels of Input 1 and Input 2 here.

Transmit Level Indicator: Shows mixed audio level.

Process LED: Indicates audio processing mode is active.

Stereo LED: Indicates stereo mode is active.

Monitor Jack:

Plug in a headset to monitor audio.

Test Tone: Activates a tone to aid system setup.

Power: ON/OFF

RF Output Indicator:

Indicates transmitter is outputting RF.

LCD Display:

See LCD Display below.

Contour: Equalization adjustment; boosts or cuts high frequencies.

Transmit Level: Adjusts mixed audio levels.

Program Mode: Indicates the unit is in program mode.

Channel Display: Displays what channel the LT-82 is currently on.

Lock Icon: Indicates the unit is locked on current channel.

Channel Select Up and Down: Use to

select channel. Buttons also used for programming functions.

LT-82 Quick Reference Card

Power Input: Connect power supply here (included).

RF Outputs: Output RF signal to radiator(s) and/or additional LT-82.

RF Input:

Input additional RF signal here for multi-channel systems.

Power Outputs: Can be used to power up to two radiators.

Audio Outputs: Input 1 and Input 2 mixed audio outputs.

Input 2: Audio inputs; stereo or mono.

Input 1 Level Switch: Set switch for line or mic level. Phantom power available in Mic-PH Power position.

Input 2 Level Switch: Set switch to match the level of your Input 2 source.

Input 1: Balanced input for connection of a line level or microphone; accepts either a XLR or ¼” phono plug.
