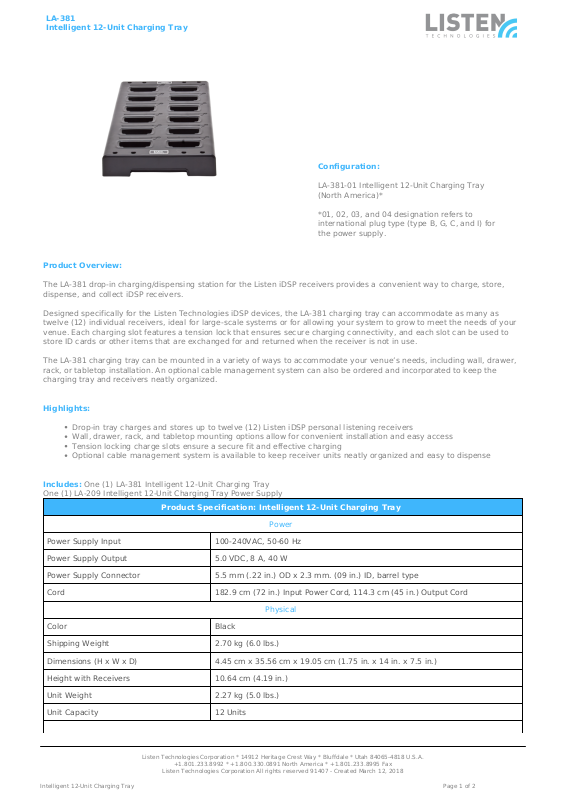

Listen Technologies LS-58-216 Datasheet
LA-381
Intelligent 12-Unit Charging Tray
Configuration:
LA-381-01 Intelligent 12-Unit Charging Tray
(North America)*
*01, 02, 03, and 04 designation refers to
international plug type (type B, G, C, and I) for
the power supply.
Product Overview:
The LA-381 drop-in charging/dispensing station for the Listen iDSP receivers provides a convenient way to charge, store,
dispense, and collect iDSP receivers.
Designed specifically for the Listen Technologies iDSP devices, the LA-381 charging tray can accommodate as many as
twelve (12) individual receivers, ideal for large-scale systems or for allowing your system to grow to meet the needs of your
venue. Each charging slot features a tension lock that ensures secure charging connectivity, and each slot can be used to
store ID cards or other items that are exchanged for and returned when the receiver is not in use.
The LA-381 charging tray can be mounted in a variety of ways to accommodate your venue’s needs, including wall, drawer,
rack, or tabletop installation. An optional cable management system can also be ordered and incorporated to keep the
charging tray and receivers neatly organized.
Highlights:
Drop-in tray charges and stores up to twelve (12) Listen iDSP personal listening receivers
Wall, drawer, rack, and tabletop mounting options allow for convenient installation and easy access
Tension locking charge slots ensure a secure fit and effective charging
Optional cable management system is available to keep receiver units neatly organized and easy to dispense
Includes: One (1) LA-381 Intelligent 12-Unit Charging Tray
One (1) LA-209 Intelligent 12-Unit Charging Tray Power Supply
Product Specification: Intelligent 12-Unit Charging Tray
Power
Power Supply Input 100-240VAC, 50-60 Hz
Power Supply Output 5.0 VDC, 8 A, 40 W
Power Supply Connector 5.5 mm (.22 in.) OD x 2.3 mm. (09 in.) ID, barrel type
Cord 182.9 cm (72 in.) Input Power Cord, 114.3 cm (45 in.) Output Cord
Physical
Color Black
Shipping Weight 2.70 kg (6.0 lbs.)
Dimensions (H x W x D) 4.45 cm x 35.56 cm x 19.05 cm (1.75 in. x 14 in. x 7.5 in.)
Height with Receivers 10.64 cm (4.19 in.)
Unit Weight 2.27 kg (5.0 lbs.)
Unit Capacity 12 Units
Listen Technologies Corporation * 14912 Heritage Crest Way * Bluffdale * Utah 84065-4818 U.S.A.
Intelligent 12-Unit Charging Tray Page 1 of 2
+1.801.233.8992 * +1.800.330.0891 North America * +1.801.233.8995 Fax
Listen Technologies Corporation All rights reserved 91407 - Created March 12, 2018
LA-381
Intelligent 12-Unit Charging Tray
Product Specification: Intelligent 12-Unit Charging Tray
Standards UL, CE, RoHS
Compliance
Powered by TCPDF (www.tcpdf.org)
Listen Technologies Corporation * 14912 Heritage Crest Way * Bluffdale * Utah 84065-4818 U.S.A.
Intelligent 12-Unit Charging Tray Page 2 of 2
+1.801.233.8992 * +1.800.330.0891 North America * +1.801.233.8995 Fax
Listen Technologies Corporation All rights reserved 91407 - Created March 12, 2018
