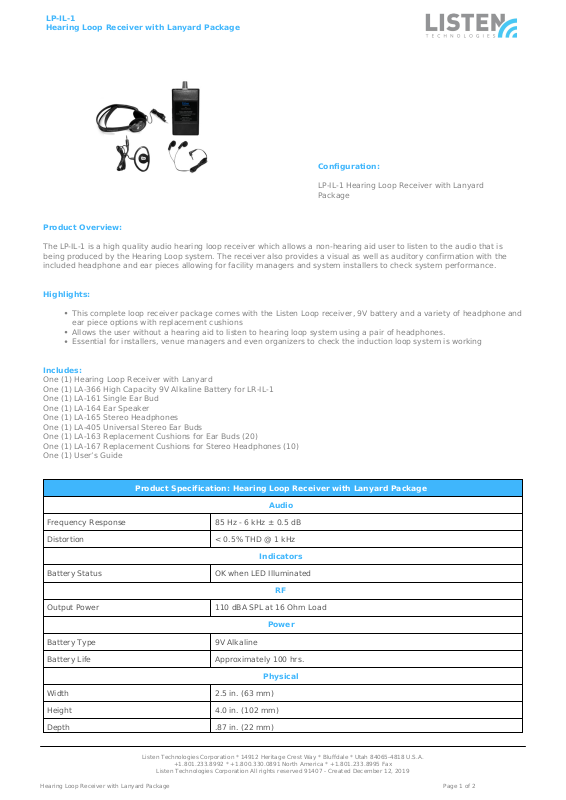

Listen Technologies LP-IL-1 Data Sheet
LP-IL-1
Hearing Loop Receiver with Lanyard Package
Configuration:
LP-IL-1 Hearing Loop Receiver with Lanyard
Package
Product Overview:
The LP-IL-1 is a high quality audio hearing loop receiver which allows a non-hearing aid user to listen to the audio that is
being produced by the Hearing Loop system. The receiver also provides a visual as well as auditory confirmation with the
included headphone and ear pieces allowing for facility managers and system installers to check system performance.
Highlights:
This complete loop receiver package comes with the Listen Loop receiver, 9V battery and a variety of headphone and
ear piece options with replacement cushions
Allows the user without a hearing aid to listen to hearing loop system using a pair of headphones.
Essential for installers, venue managers and even organizers to check the induction loop system is working
Includes:
One (1) Hearing Loop Receiver with Lanyard
One (1) LA-366 High Capacity 9V Alkaline Battery for LR-IL-1
One (1) LA-161 Single Ear Bud
One (1) LA-164 Ear Speaker
One (1) LA-165 Stereo Headphones
One (1) LA-405 Universal Stereo Ear Buds
One (1) LA-163 Replacement Cushions for Ear Buds (20)
One (1) LA-167 Replacement Cushions for Stereo Headphones (10)
One (1) User’s Guide
Product Specification: Hearing Loop Receiver with Lanyard Package
Audio
Frequency Response 85 Hz - 6 kHz ± 0.5 dB
Distortion < 0.5% THD @ 1 kHz
Indicators
Battery Status OK when LED Illuminated
RF
Output Power 110 dBA SPL at 16 Ohm Load
Power
Battery Type 9V Alkaline
Battery Life Approximately 100 hrs.
Physical
Width 2.5 in. (63 mm)
Height 4.0 in. (102 mm)
Depth .87 in. (22 mm)
Listen Technologies Corporation * 14912 Heritage Crest Way * Bluffdale * Utah 84065-4818 U.S.A.
Hearing Loop Receiver with Lanyard Package Page 1 of 2
+1.801.233.8992 * +1.800.330.0891 North America * +1.801.233.8995 Fax
Listen Technologies Corporation All rights reserved 91407 - Created December 12, 2019
LP-IL-1
Hearing Loop Receiver with Lanyard Package
Product Specification: Hearing Loop Receiver with Lanyard Package
Shipping Weight 1.2 lbs. (0.6 kg)
Weight .31 lbs. (.14 kg)
