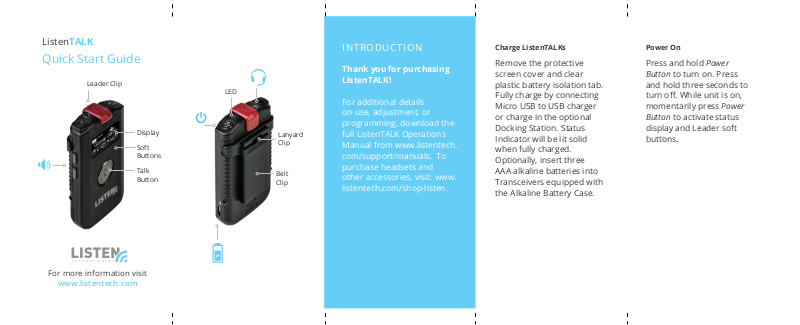

Listen Technologies LK-1-A0 Quick Start Guide

ListenTALK

Quick Start Guide

Leader Clip

For more information visit

www.listentech.com

Display

Soft
Buttons

Talk
Button

LED

Lanyard
Clip

Belt
Clip

INTRODUCTION

Thank you for purchasing
ListenTALK!

For additional details
on use, adjustment, or
programming, download the
full ListenTALK Operations
Manual from www.listentech.
com/support/manuals. To
purchase headsets and
other accessories, visit: www.
listentech.com/shop-listen.

Charge ListenTALKs

Remove the protective
screen cover and clear
plastic battery isolation tab.
Fully charge by connecting
Micro USB to USB charger
or charge in the optional
Docking Station. Status
Indicator will be lit solid
when fully charged.
Optionally, insert three
AAA alkaline batteries into
Transceivers equipped with
the Alkaline Battery Case.

Power On

Press and hold Power
Button to turn on. Press

and hold three seconds to

turn o. While unit is on,

momentarily press Power
Button to activate status

display and Leader soft
buttons.

Create a Group

Create a Leader and Sub­Leaders (optional) by inserting

red Leader Clips. To create
a Group, Pair Leader with

Participants and
Sub-Leaders in the Docking

Station or using Near-Field
Communications as follows:
Press and momentarily hold
Leader’s Right Soft Button.
Then, touch Leader’s back to
each Participant’s and
Sub-Leader’s back. A beep
Indicates successful pairing.
Create multiple, independent
ListenTalk Groups by
repeating this process,
with additional units.

Connect Headsets

Connect Listen Technologies
headsets or use standard
smart-phone earphones.

BASIC OPERATION

Press Volume Up or Volume
Down button to control
volume.

Leader – Press Talk Button
to toggle between Talk and
Mute. Press and momentarily
hold Left Soft Button to select

Talkback modes (O, Leader

or Group). Right Soft Button
initiates pairing.

Participant – Press and hold
Talk Button to speak; release
to mute. Soft Buttons have
no function.

Transceiver Programming
and ListenTALK Software
Suite

The ListenTALK Software
Suite, available at www.

listentech.com/support/
software/, features

complete setup, inventory
management, group creation
and naming. Many options
are accessible from the
Transceiver’s internal menu.
Please refer to the ListenTALK
Operations Manual.

Hearing Safety

This product amplies audio to

a high level which could cause
hearing damage. To protect
your hearing, turn down the
volume before putting on the
Ear Speaker or Headset, then
adjust to your preference.

Medical Device Safety

Before using this product
with an implantable or other
medical device consult with
your physician or the device

manufacturer. Always conrm

you are using this product
in accordance with safety
guidelines established by your
physician or the manufacturer.

Recycling

Please help us protect the
environment by properly
disposing of batteries. Take
batteries or equipment to any
electronic recycling collection
point or return them to the
factory.

© 2017 Listen Technologies Corporation®

All Rights Reserved 2017

Visit Listen at www.listentech.com
or telephone [phone] or

1.800.330.0891
