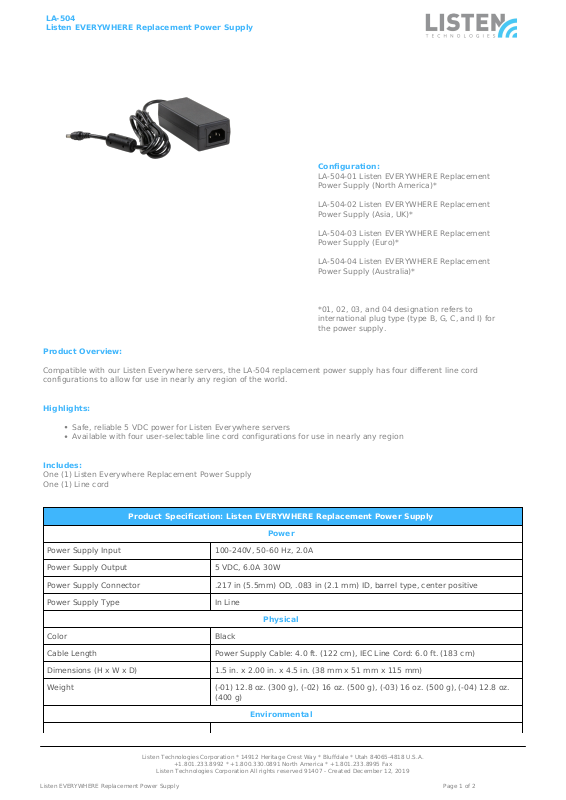

Page 1
LA-504
Listen EVERYWHERE Replacement Power Supply
Configuration:
LA-504-01 Listen EVERYWHERE Replacement
Power Supply (North America)*
LA-504-02 Listen EVERYWHERE Replacement
Power Supply (Asia, UK)*
LA-504-03 Listen EVERYWHERE Replacement
Power Supply (Euro)*
LA-504-04 Listen EVERYWHERE Replacement
Power Supply (Australia)*
*01, 02, 03, and 04 designation refers to
international plug type (type B, G, C, and I) for
the power supply.
Product Overview:
Compatible with our Listen Everywhere servers, the LA-504 replacement power supply has four different line cord
configurations to allow for use in nearly any region of the world.
Highlights:
Safe, reliable 5 VDC power for Listen Everywhere servers
Available with four user-selectable line cord configurations for use in nearly any region
Includes:
One (1) Listen Everywhere Replacement Power Supply
One (1) Line cord
Product Specification: Listen EVERYWHERE Replacement Power Supply
Power
Power Supply Input 100-240V, 50-60 Hz, 2.0A
Power Supply Output 5 VDC, 6.0A 30W
Power Supply Connector .217 in (5.5mm) OD, .083 in (2.1 mm) ID, barrel type, center positive
Power Supply Type In Line
Physical
Color Black
Cable Length Power Supply Cable: 4.0 ft. (122 cm), IEC Line Cord: 6.0 ft. (183 cm)
Dimensions (H x W x D) 1.5 in. x 2.00 in. x 4.5 in. (38 mm x 51 mm x 115 mm)
Weight (-01) 12.8 oz. (300 g), (-02) 16 oz. (500 g), (-03) 16 oz. (500 g), (-04) 12.8 oz.
(400 g)
Environmental
Listen Technologies Corporation * 14912 Heritage Crest Way * Bluffdale * Utah 84065-4818 U.S.A.
Listen EVERYWHERE Replacement Power Supply Page 1 of 2
+1.801.233.8992 * +1.800.330.0891 North America * +1.801.233.8995 Fax
Listen Technologies Corporation All rights reserved 91407 - Created December 12, 2019
Page 2
LA-504
Listen EVERYWHERE Replacement Power Supply
Product Specification: Listen EVERYWHERE Replacement Power Supply
Temperature - Operation -10 °C (14 °F) to +40 (104 °F)
Temperature - Storage -20 °C (-4 °F) to +50 (122 °F)
Relative Humidity 0 to 95% relative humidity, non-condensing
Compliance
Power Supply Compliance CUL, UL, CE, CCC, RCM, CCC, EAC, PSE, FCC, RoHS
