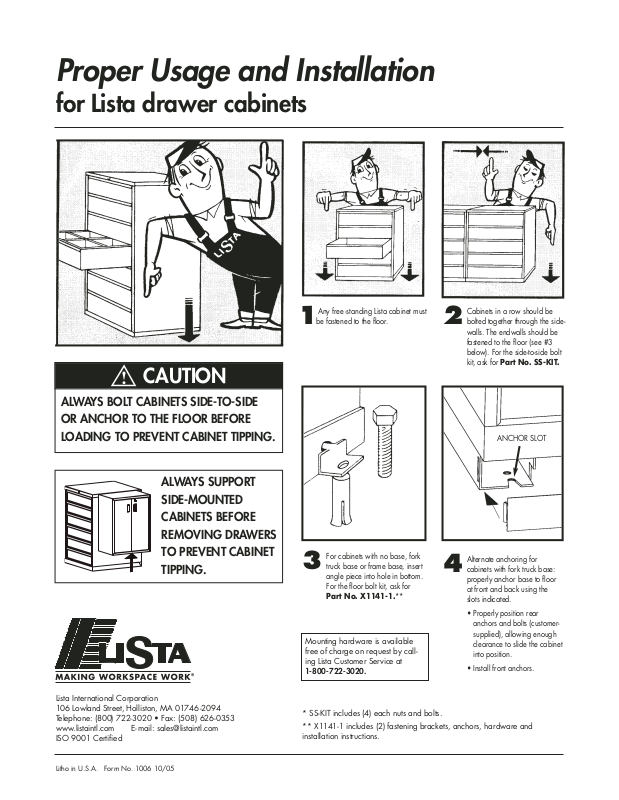

Page 1
Proper Usage and Installation
for Lista drawer cabinets
Mounting hardware is available
free of charge on request by calling Lista Customer Service at
1-800-722-3020.
1
Any free-standing Lista cabinet must
be fastened to the floor.
2
Cabinets in a row should be
bolted together through the sidewalls. The endwalls should be
fastened to the floor (see #3
below). For the side-to-side bolt
kit, ask for Part No. SS-KIT.
3
For cabinets with no base, fork
truck base or frame base, insert
angle piece into hole in bottom.
For the floor bolt kit, ask for
Part No. X1141-1.**
4
Alternate anchoring for
cabinets with fork truck base:
properly anchor base to floor
at front and back using the
slots indicated.
• Properly position rear
anchors and bolts (customersupplied), allowing enough
clearance to slide the cabinet
into position.
• Install front anchors.
Litho in U.S.A. Form No. 1006 10/05
ALWAYS BOLT CABINETS SIDE-TO-SIDE
OR ANCHOR TO THE FLOOR BEFORE
LOADING TO PREVENT CABINET TIPPING.
ALWAYS SUPPORT
SIDE-MOUNTED
CABINETS BEFORE
REMOVING DRAWERS
TO PREVENT CABINET
TIPPING.
CAUTION
* SS-KIT includes (4) each nuts and bolts.
** X1141-1 includes (2) fastening brackets, anchors, hardware and
installation instructions.
ANCHOR SLOT
!
Lista International Corporation
106 Lowland Street, Holliston, MA 01746-2094
Telephone: (800) 722-3020 • Fax: (508) 626-0353
www.listaintl.com E-mail: [email protected]
ISO 9001 Certified
Page 2
All Lista cabinets should be locked while moving.
Do not step into an open drawer.
Base cover plate easily
snaps on and off to
allow for pick-up by
fork or pallet truck.
Do not sit on an open drawer.
Open only one drawer at a time.
The load capacity per drawer (as
shown in the catalog) is designed for
evenly distributed loads.
Do not drop any heavy loads into a
drawer.
All cabinets should be secured
to prevent tipping.
Proper Usage
for Lista drawer cabinets
CAUTION
!
