Page 1
NOTES)
If you want to purchase
Flash memory, you must order
" IC604A "
NOTES)
Warning
Parts that are shaded are critical with
respect to risk of fire or electrical
shock.

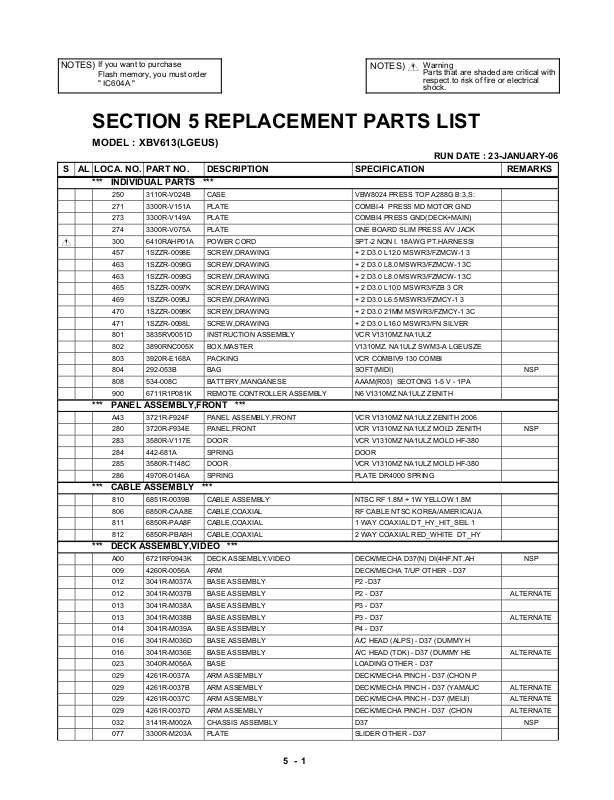

SECTION REPLACEMENT PARTS LIST
MODEL :5XBV613(LGEUS)
RUN DATE : 23-JANUARY-06
SALLOCA. NO. PART NO. DESCRIPTION SPECIFICATION REMARKS
*** INDIVIDUAL PARTS ***
250 3110R-V024B CASE VBW8024 PRESS TOP A288G B:3,S:
271 3300R-V151A PLATE COMBI-4 PRESS MD MOTOR GND
273 3300R-V149A PLATE COMBI4 PRESS GND(DECK+MAIN)
274 3300R-V075A PLATE ONE BOARD SLIM PRESS A/V JACK
300 6410RAHP01A POWER CORD SPT-2 NON I. 18AWG PT.HARNESSI
457 1SZZR-0098E SCREW,DRAWING + 2 D3.0 L12.0 MSWR3/FZMCW-1 3
463 1SZZR-0098G SCREW,DRAWING + 2 D3.0 L8.0 MSWR3/FZMCW-1 3C
463 1SZZR-0098G SCREW,DRAWING + 2 D3.0 L8.0 MSWR3/FZMCW-1 3C
465 1SZZR-0097K SCREW,DRAWING + 2 D3.0 L10.0 MSWR3/FZB 3 CR
469 1SZZR-0098J SCREW,DRAWING + 2 D3.0 L6.5 MSWR3/FZMCY-1 3
470 1SZZR-0098K SCREW,DRAWING + 2 D3.0 21MM MSWR3/FZMCY-1 3C
471 1SZZR-0098L SCREW,DRAWING + 2 D3.0 L16.0 MSWR3/FN SILVER
801 3835RV0051D INSTRUCTION ASSEMBLY VCR V1310MZ.NA1ULZ
802 3890RNC005X BOX,MASTER V1310MZ. NA1ULZ SWM3-A LGEUSZE
803 3920R-E168A PACKING VCR COMBIV9 130 COMBI
804 292-053B BAG SOFT(MIDI) NSP
808 534-008C BATTERY,MANGANESE AAAM(R03) SEOTONG 1-5 V - 1PA
900 6711R1P081K REMOTE CONTROLLER ASSEMBLY N6 V1310MZ.NA1ULZ ZENITH
*** PANEL ASSEMBLY,FRONT ***
A43 3721R-F924F PANEL ASSEMBLY,FRONT VCR V1310MZ NA1ULZ ZENITH 2006
280 3720R-F934E PANEL,FRONT VCR V1310MZ NA1ULZ MOLD ZENITH NSP
283 3580R-V117E DOOR VCR V1310MZ NA1ULZ MOLD HF-380
284 442-681A SPRING DOOR
285 3580R-T148C DOOR VCR V1310MZ NA1ULZ MOLD HF-380
286 4970R-0146A SPRING PLATE DR4000 SPRING
*** CABLE ASSEMBLY ***
810 6851R-0039B CABLE ASSEMBLY NTSC RF 1.8M + 1W YELLOW 1.8M
806 6850R-CAA8E CABLE,COAXIAL RF CABLE NTSC KOREA/AMERICA/JA
811 6850R-PAA8F CABLE,COAXIAL 1 WAY COAXIAL DT_HY_HIT_SEIL 1
812 6850R-PBA8H CABLE,COAXIAL 2 WAY COAXIAL RED_WHITE DT_HY
*** DECK ASSEMBLY,VIDEO ***
A00 6721RF0943K DECK ASSEMBLY,VIDEO DECK/MECHA D37(N) DI(4HF,NT,AH NSP
009 4260R-0056A ARM DECK/MECHA T/UP OTHER - D37
012 3041R-M037A BASE ASSEMBLY P2 -D37
012 3041R-M037B BASE ASSEMBLY P2 - D37 ALTERNATE
013 3041R-M038A BASE ASSEMBLY P3 - D37
013 3041R-M038B BASE ASSEMBLY P3 - D37 ALTERNATE
014 3041R-M039A BASE ASSEMBLY P4 - D37
016 3041R-M036D BASE ASSEMBLY A/C HEAD (ALPS) - D37 (DUMMY H
016 3041R-M036E BASE ASSEMBLY A/C HEAD (TDK) - D37 (DUMMY HE ALTERNATE
023 3040R-M056A BASE LOADING OTHER - D37
029 4261R-0037A ARM ASSEMBLY DECK/MECHA PINCH - D37 (CHON P
029 4261R-0037B ARM ASSEMBLY DECK/MECHA PINCH - D37 (YAMAUC ALTERNATE
029 4261R-0037C ARM ASSEMBLY DECK/MECHA PINCH - D37 (MEIJI) ALTERNATE
029 4261R-0037D ARM ASSEMBLY DECK/MECHA PINCH - D37 (CHON ALTERNATE
032 3141R-M002A CHASSIS ASSEMBLY D37 NSP
077 3300R-M203A PLATE SLIDER OTHER - D37
1-5
Page 2
SALLOCA. NO. PART NO. DESCRIPTION SPECIFICATION REMARKS
079 3040R-M057A BASE TENSION OTHER - D37
100 3301R-M193A PLATE ASSEMBLY TOP - D37
405 1MPC0301270 SCREW MACHINE,PAN HEAD + D3.0 L3.5 SWRCH18A/FZW
406 1MEC0302018 SCREW MACHINE,PAN HEAD SPR W + D3.0 L6.0 MSWR3/FZY
409 1SZZR-0032B SCREW,DRAWING + 1 D2.6 L5.0 SWRCH18A/FZY TAP
410 1APF0262218 SCREW TAP TITE(B),PAN HEAD + D2.6 L6.8 MSWR3/FZY
517 1WZZR-0004D WASHER,DRAWING STOPPER
517 1WZZR-0004F WASHER,DRAWING DECK/MECHA D37 OTHER STOPPER ALTERNATE
518 1WZZR-0004A WASHER,DRAWING STOPPER
A23 4261R-0038A ARM ASSEMBLY DECK/MECHA F/L - D37
110 4260R-0051A ARM DECK/MECHA F/L(L) OTHER - D37
112 3070R-0002A BODY F/L
113 4970R-0169A SPRING COIL F/L(R) - D37
114 4260R-0052A ARM DECK/MECHA F/L (R) OTHER - D37
011 4261R-0040A ARM ASSEMBLY DECK/MECHA TENSION - D37
017 4408R-0005A REEL DECK/MECHA S OTHER - D37
017 4408R-0005B REEL DECK/MECHA S (VE) OTHER - D37 ALTERNATE
021 4421R-M002A BRAKE ASSEMBLY T - D37
024 4261R-0042A ARM ASSEMBLY DECK/MECHA IDLER(N) - D37
027 4470R-0133A GEAR DECK/MECHA WHEEL OTHER - D37
028 4408R-0006A REEL DECK/MECHA T OTHER - D37
051 4400R-0005A BELT CAPSTAN
055 4470R-0140A GEAR DECK/MECHA DRIVE OTHER - D37
056 4470R-0139A GEAR DECK/MECHA CAM OTHER - D37
058 4421R-M001A BRAKE ASSEMBLY CAPSTAN -D37
061 4265R-0007A CLUTCH ASSEMBLY DECK/MECHA D37(N)
064 4470R-0141A GEAR DECK/MECHA SECTOR OTHER - D37
A12 4471R-0015A GEAR ASSEMBLY DECK/MECHA P2 - D37
068 4470R-0134A GEAR DECK/MECHA P2 OTHER - D37 NSP
069 4970R-0122A SPRING COIL D35 NSP
070 4261R-0043A ARM ASSEMBLY DECK/MECHA P2 - D37 NSP
A22 4471R-0016A GEAR ASSEMBLY DECK/MECHA RACK F/L - D37
054 4470R-0136A GEAR DECK/MECHA RACK F/L OTHER - D3
054A 4970R-0171A SPRING COIL RACK F/L - D37
A11 4471R-0017A GEAR ASSEMBLY DECK/MECHA P3 - D37
065 4261R-0044A ARM ASSEMBLY DECK/MECHA P3 - D37 NSP
066 4970R-0122A SPRING COIL D35 NSP
067 4470R-0135A GEAR DECK/MECHA P3 OTHER - D37 NSP
060 4510R-0065A LEVER DECK/MECHA F/R OTHER - D37
076 4510R-0063A LEVER DECK/MECHA SPRING OTHER - D37
078 4510R-0062A LEVER DECK/MECHA TENSION OTHER - D37
080 4510R-0064A LEVER DECK/MECHA BRAKE OTHER - D37
A24 4511R-0005A LEVER ASSEMBLY SWITCH(C) - D37
115 4510R-0070A LEVER DECK/MECHA SWITCH(C) OTHER - D
116 4970R-0163A SPRING COIL D35S SWITCH
003 4930R-0449A HOLDER DECK/MECHA FPCB(6CH) - D37C MO
026 4681RF0039A MOTOR ASSEMBLY DECK/MECHA L/D - (DI) D37 NSP
026 4681RF0039C MOTOR ASSEMBLY DECK/MECHA L/D - (DI) D37 NSP
052 4680R-A015A MOTOR(MECH) CAPSTAN F2QVB66 SANKYO FOR D37
052 4680R-A016A MOTOR(MECH) CAPSTAN MCVC-037AA LGIT FOR D3 ALTERNATE
052 4680R-A017A MOTOR(MECH) CAPSTAN DMVCMC20L SAMSUNG FOR ALTERNATE
052 4680R-A016B MOTOR(MECH) CAPSTAN MCVC-037AB LGIT LB1189 ALTERNATE
A21 4931R-0084A HOLDER ASSEMBLY DECK/MECHA CST - D37
102 4970R-0173A SPRING COIL STOPPER - D37
103 4930R-0452A HOLDER DECK/MECHA SIDE (L) OTHER - D3 NSP
105 4930R-0450A HOLDER DECK/MECHA CST OTHER - D37 NSP
106 4930R-0451A HOLDER DECK/MECHA SIDE(R) OTHER - D37 NSP
2-5
Page 3
SALLOCA. NO. PART NO. DESCRIPTION SPECIFICATION REMARKS
107 4510R-0061A LEVER DECK/MECHA STOPPER OTHER - D37 NSP
004 5006R-0045A CAP DECK/MECHA FPCB - D37C MOLD
008 6850R-HG18Y CABLE,FLAT P=1.25 FFC UL2896(0.05X0.8) 7
015 5870R-0007A OPENER DECK/MECHA LID OTHER - D37
022 6520D00004B HEAD(CIRC) ST ST FE HEAD FOR D37 13.5
022 6520D00006A HEAD(CIRC) HVFHP0055A ALPS FE HEAD FOR CO ALTERNATE
031 4970R-0175A SPRING COIL TENSION - D37
052A 4980R-0029A SUPPORTER DECK/MECHA CAPSTAN OTHER - D37
109 5870R-0008A OPENER DECK/MECHA DOOR OTHER - D37
A01 6723R-0603E DRUM(CIRC) ASSEMBLY DECK/MECHA (9C6S) D37-6CH NTSC
*** CHASSIS ASSEMBLY ***
A44 3141R-V032K CHASSIS ASSEMBLY 2006 COMBI LG MODEL M,A,B OPT.
260 3210R-V011A FRAME ONE BOARD MOLD HIPS 403AF BK NSP
261 5040R-0069S RUBBER CCD 05 NEW SILICON OTHER 2T (3
330 3140R-V010M CHASSIS V10S 2006 COMBI PRESS RCA W/O
452 1SZZR-0098A SCREW,DRAWING + 2 D3.0 L10.0 MSWR3/FZMCY-1 3
*** PWB(PCB) ASSEMBLY,TOTAL ***
A47 6871R-4927B PWB(PCB) ASSEMBLY,TOTAL 2006 COMBI ZORAN WITH DIVX NT
288 4930R-0573A HOLDER VCR V9500 MOLD POWER PWB
BC101 636-004C FILTER(CIRC),EMC BEAD CORE BFS3550R2FD8,R T/P
BD101 0DD160000DA DIODE,RECTIFIERS S1WBA60 BK SHINDENGEN - 600V -
BD101 0DRRE00060A DIODE,RECTIFIERS DB105-C-S-V50 RECTRON BK NON 6 ALTERNATE
C101 624-088L CAPACITOR,DRAWING 435D SUNIL ELECTRONICS 0.1UF/2
C101 624-088N CAPACITOR,DRAWING MPX104K 275VAC BULK ETR ALTERNATE
C101 624-088F CAPACITOR,DRAWING PCX2 275V 0.1UF,M (PILKO) ALTERNATE
C102 624-088L CAPACITOR,DRAWING 435D SUNIL ELECTRONICS 0.1UF/2
C102 624-088F CAPACITOR,DRAWING PCX2 275V 0.1UF,M (PILKO) ALTERNATE
C102 624-088N CAPACITOR,DRAWING MPX104K 275VAC BULK ETR ALTERNATE
C103 0CE1570R610 CAPACITOR,FIXED ELECTROLYTIC 150UF SHL 250V 20% BULK FL
C104 0CN1040K948 CAPACITOR,FIXED TUBULAR(HIGH D 0.1UF D 50V 80%,-20% F(Y5V) TA
C105 0CQ1031Y519 CAPACITOR,FIXED FILM 0.01UF D 630V 10% PE NI TP5
C106 624-087G CAPACITOR,FIXED CERAMIC(HIGH D HIGH-VOL 68PF/1KV SMPS SAMHWA
C107 0CN1030K518 CAPACITOR,TUBULAR(HIGH DIELEC) 0.01UF 50V K B TA26
C108 0CE1054K638 CAPACITOR,FIXED ELECTROLYTIC 1UF SRA,SS 50V 20% FM5 TP 5
C109 0CE3366H638 CAPACITOR,FIXED ELECTROLYTIC 33UF SMS,SG 25V 20% FM5 TP 5
C110 0CG1020U630 CAPACITOR,FIXED CERAMIC(TEMP.C 1000PF D 400V 20% E(Z5U) R
C111 0CG1020U630 CAPACITOR,FIXED CERAMIC(TEMP.C 1000PF D 400V 20% E(Z5U) R
C115 0CN1040K948 CAPACITOR,FIXED TUBULAR(HIGH D 0.1UF D 50V 80%,-20% F(Y5V) TA
C121 624-087D CAPACITOR,FIXED CERAMIC(HIGH D HI-VOL 470P/1KVDC SMPS SAMHWA
C124 0CE477BH630 CAPACITOR,FIXED ELECTROLYTIC 470UF KME TYPE 25V 20% FM5 BUL
C126 624-085D CAPACITOR,FIXED ELECTROLYTIC CE 47UF/50V KME (SMPS)
C127 0CE108BF630 CAPACITOR,FIXED ELECTROLYTIC 1000UF KME TYPE 16V 20% FM5 BU
C128 0CE228BF630 CAPACITOR,FIXED ELECTROLYTIC 2200UF KME TYPE 16V 20% FM5 BU
C134 0CE227CH618 CAPACITOR,FIXED ELECTROLYTIC 220UF SHL,SD 25V 20% FL TP 5
C137 0CE3376D638 CAPACITOR,FIXED ELECTROLYTIC 330UF SMS,SG 10V 20% FM5 TP 5
C138 624-082H CAPACITOR,FIXED ELECTROLYTIC CE 1000UF/10V SHL(10*12.5)T/P
C143 0CQ1042K409 CAPACITOR,FIXED FILM 0.1UF S 50V 5% PE TP5
C159 0CE4754K638 CAPACITOR,FIXED ELECTROLYTIC 4.7UF SRA,SS 50V 20% FM5 TP 5
C160 0CE4754K638 CAPACITOR,FIXED ELECTROLYTIC 4.7UF SRA,SS 50V 20% FM5 TP 5
C161 0CE4754K638 CAPACITOR,FIXED ELECTROLYTIC 4.7UF SRA,SS 50V 20% FM5 TP 5
C162 0CE4776D638 CAPACITOR,FIXED ELECTROLYTIC 470UF SMS,SG 10V 20% FM5 TP 5
C164 0CE1064F638 CAPACITOR,FIXED ELECTROLYTIC 10UF SRA,SS 16V 20% FM5 TP 5
C166 0CN223AK948 CAPACITOR,TUBULAR(HIGH DIELEC) 0.022UF 50V Z F TA26 S
D101 0DD221009AA DIODE,RECTIFIERS ERA22-10 KFLB,TP ,R T/P,FUJI
D102 0DR104009BA DIODE,RECTIFIERS RL104F TP RECTRON - 400V 1A 30
D102 0DRGF00239A DIODE,RECTIFIERS FR104E GULF TP NON 400V 1A 30A ALTERNATE
D121 0DR104009BA DIODE,RECTIFIERS RL104F TP RECTRON - 400V 1A 30
3-5
Page 4
SALLOCA. NO. PART NO. DESCRIPTION SPECIFICATION REMARKS
D121 0DRGF00239A DIODE,RECTIFIERS FR104E GULF TP NON 400V 1A 30A ALTERNATE
D123 0DR810040BA DIODE,RECTIFIERS ERC81-004L22 BK FUJI DO201AD 4
D123 0DR158220AA DIODE,RECTIFIERS 1N5822 BK RECTRON DO201AD 40V ALTERNATE
D123 0DRGF00210A DIODE,RECTIFIERS 1N5822 GULF BK DO201AD 40V 3A ALTERNATE
D124 0DSGF00040A DIODE,SWITCHING UF5402-M11 GULF BK DO201AD 200
D124 0DSDI00110A DIODE,SWITCHING UF3003 DIODES BK DO201AD 200V ALTERNATE
D125 0DSDI00090A DIODE,SWITCHING SB360 DIODES BK DO201AD 60V 3A
D127 0DD133009AA DIODE,SWITCHING 1SS133 TP ROHM KOREA - - - - -
FR101 0RM0221K634 RESISTOR,FIXED CEMENT 2.2 OHM 2 W 5% MF15 MPR
IC101 0IPMGIH005A IC,POWER MANAGEMENT ICE3B0565 INFINEON 8PIN,DIP ST
IC102 657-063A SENSOR LTV-817B,PHOTO COUPLER(LITEON)
IC102 6500RDB010A SENSOR,PHOTO PC123YN2J00F SHARP PHOTOCOUPLE ALTERNATE
IC102 6500RDB011B SENSOR K1010B COSMO 4PIN PHOTOCOUPLER ALTERNATE
IC103 0IKE431000A IC,LINEAR KIA431 3 PIN TP - -
IC103 0ISS431000A IC,LINEAR KA431AZ (LM431AZ) - - - - ALTERNATE
L102 616-145G FILTER(CIRC),DRAWING SHT LFSQ2215V4-04220
L102 616-145E FILTER(CIRC),DRAWING KSE-145E KSE LINE FILTER SQ211 ALTERNATE
L124 633-088G COIL,CHOKE 22MH TOKO 5MM TP
L124 6140R-C011A COIL,RF CHOKE COIL TDK 22UH(=633-088G ALTERNATE
L127 633-088G COIL,CHOKE 22MH TOKO 5MM TP
L127 6140R-C011A COIL,RF CHOKE COIL TDK 22UH(=633-088G ALTERNATE
L128 6140RCC003H COIL,RF CHOKE COIL 22 UH 8X8 5 PIE SAM
PPM01 6630R-BF03M CONNECTOR (CIRC),BOARD TO BOAR JE121-13 JAE EUN 13P 2.54MM
PW101 561-292B CONNECTOR(CIRC),DRAWING GP390 LGC 3P 3.96 STRAIGHT SN
Q161 0TR126809BA TRANSISTOR,BIPOLARS KTA1268-BL TP KEC - -
Q162 0TR319809AC TRANSISTOR,BIPOLARS KTC3198 TP KEC - - -BL (KTC181
Q162 0TR534309BA TRANSISTOR,BIPOLARS 2SC5343-L TP AUK TO92 - ALTERNATE
Q163 0TR127309AA TRANSISTOR,BIPOLARS KTA1273 TP KEC TO92 -Y(KTA966A
Q163 0TR928009AD TRANSISTOR,BIPOLARS KSA928A-Y,TO-92L TP SAMSUNG TO ALTERNATE
Q163 0TR127709AB TRANSISTOR,BIPOLARS AUK KOREA STB1277LY-AT TP TO-9 ALTERNATE
Q164 0TR534309BA TRANSISTOR,BIPOLARS 2SC5343-L TP AUK TO92 -
Q164 0TR534409AA TRANSISTOR,BIPOLARS 2SC5344Y TP AUK - - ALTERNATE
Q165 0TR127309AA TRANSISTOR,BIPOLARS KTA1273 TP KEC TO92 -Y(KTA966A
Q165 0TR127709AB TRANSISTOR,BIPOLARS AUK KOREA STB1277LY-AT TP TO-9 ALTERNATE
Q165 0TR928009AD TRANSISTOR,BIPOLARS KSA928A-Y,TO-92L TP SAMSUNG TO ALTERNATE
Q166 0TR320509AB TRANSISTOR,BIPOLARS KTC3205-Y(KTC2236A) TP KEC TO9
Q166 0TR232809AB TRANSISTOR,BIPOLARS KSC2328A-Y TP SAMSUNG TO-92L - ALTERNATE
Q166 0TR186209AB TRANSISTOR,BIPOLARS AUK KOREA STD1862LY-AT TP TO-9 ALTERNATE
R100 0RD1504H632 RESISTOR,FIXED CARBON FILM 1.5M OHM 1/2 W 5.00% MF10
R104 0RS5602K619 RESISTOR,FIXED METAL OXIDE FIL 56K OHM 2 W 5.00% TR
R105 0RD0102F608 RESISTOR,FIXED CARBON FILM 10 OHM 1/6 W 5% TA26
R109 0RS0750K619 RESISTOR,FIXED METAL OXIDE FIL 0.75 OHM 2 W 5.00% TR
R136 0RD1003F608 RESISTOR,FIXED CARBON FILM 100K OHM 1/6 W 5% TA26
R141 0RD2200F608 RESISTOR,FIXED CARBON FILM 220 OHM 1/6 W 5% TA26
R142 0RD2201F608 RESISTOR,FIXED CARBON FILM 2.2K OHM 1/6 W 5% TA26
R143 0RD1001F608 RESISTOR,FIXED CARBON FILM 1K OHM 1/6 W 5% TA26
R144 0RN3301F408 RESISTOR,FIXED METAL FILM 3.3K OHM 1/6 W 1% TA26
R145 0RN2701F408 RESISTOR,FIXED METAL FILM 2.7K OHM 1/6 W 1% TA26
R146 0RD2700F608 RESISTOR,FIXED CARBON FILM 270 OHM 1/6 W 5% TA26
R154 0RD1001F608 RESISTOR,FIXED CARBON FILM 1K OHM 1/6 W 5% TA26
R155 0RD1802F608 RESISTOR,FIXED CARBON FILM 18K OHM 1/6 W 5% TA26
R156 0RD1001F608 RESISTOR,FIXED CARBON FILM 1K OHM 1/6 W 5% TA26
R157 0RD3300F608 RESISTOR,FIXED CARBON FILM 330 OHM 1/6 W 5% TA26
R163 0RD4701F608 RESISTOR,FIXED CARBON FILM 4.7K OHM 1/6 W 5% TA26
R164 0RD4701F608 RESISTOR,FIXED CARBON FILM 4.7K OHM 1/6 W 5% TA26
R166 0RD5601F608 RESISTOR,FIXED CARBON FILM 5.6K OHM 1/6 W 5% TA26
R168 0RD5601F608 RESISTOR,FIXED CARBON FILM 5.6K OHM 1/6 W 5% TA26
4-5
Page 5
SALLOCA. NO. PART NO. DESCRIPTION SPECIFICATION REMARKS
R172 0RD1001F608 RESISTOR,FIXED CARBON FILM 1K OHM 1/6 W 5% TA26
R174 0RD3300F608 RESISTOR,FIXED CARBON FILM 330 OHM 1/6 W 5% TA26
T101 6170RNGW12P TRANSFORMER,SMPS[COIL] EER2828 15 PIN SOOJUNG,SAMWHA
V101 656-004C VARISTOR,DRAWING SVC681D-10A SAMHWA 4.O CUT
ZD102 0DZ202609AA DIODE,ZENERS UZ-20BSB 26MM TP PYUNG CHANG D
ZD103 0DZ622609BB DIODE,ZENERS UZ-6.2BSB 26MM TP PYUNG CHANG
ZD151 0DZ132609AB DIODE,ZENERS GDZJ13A 26MM TP GRANDE DO34 0
ZD151 0DZ132609BB DIODE,ZENERS UZ-13BSA 26MM TP PYUNG CHANG ALTERNATE
ZD152 0DZ102609BB DIODE,ZENERS UZ-10BSB 26MM TP PYUNG CHANG D
ZD152 0DZ100009HA DIODE,ZENERS UZ-10BM TP PYUNG CHANG - 0.5W ALTERNATE
*** BOARD ASSEMBLY ***
A46 3501R-9310D BOARD ASSEMBLY VCR V1310MZ.NA1ULZ MAIN BOARD
322 3110R-V013A CASE SHIELD(SLIM-COMBI) PRESS .
323 3111R-0089E CASE ASSEMBLY PRE AMP SLIM COMBI C-CORE A NO
324 4930R-0472A HOLDER VCR ONE BOARD SLIM MOLD HIPS 6
IC604A 6957R-931AB PROGRAM COMBI-P NTSC 2006 ZV1002020010
CN201 6630R-FB10W CONNECTOR (CIRC),FFC/FPC 00-6232-023-006-800 ELCO 23PIN
CN202 6630R-FB109 CONNECTOR (CIRC),FFC/FPC 00-6232-009-006-800 ELCO 9P 1-
CN702 6630B60E913 CONNECTOR (CIRC),BOARD TO BOAR JE117-D22T-13 JAE EUN 13P 2.54
IC301 0ILNRHI009B IC,LINEAR HA118725ANF-E PB-FREE HITACHI
IC301 0ILNRHI009A IC,LINEAR HA118725NF HITACHI 100PIN QFP ALTERNATE
JK901 6612J00049A JACK,RCA RCA-1205A-01-01 YUQIU 2004 COM
JK904 6612B00011A JACK,DIN DIN405 YUQIU 2004 COMBI
P3D01 561-234S CONNECTOR (CIRC),FFC/FPC GF120-9S-TS-A LG CABLE 9P 1.25
P3D02 6630R5S008J CONNECTOR(CIRC),DRAWING 06(11)FM22.5H-BTR-SH (LF)(SN)
P3D03 561-251B CONNECTOR(CIRC),DRAWING GB201-2P-TS-B(LGC)
TU701 6700NFNL05A TUNER TADM-H202F(US.LGIT) LG INOTEK
X601 6212AA2271F RESONATOR,CRYSTAL HC-49S KITELCO 27MHZ +/- 20 PP
C201 0CE1074C638 CAPACITOR,FIXED ELECTROLYTIC 100UF SRA,SS 6.3V 20% FM5 TP 5
C208 0CE4764C638 CAPACITOR,FIXED ELECTROLYTIC 47UF SRA,SS 6.3V 20% FM5 TP 5
C209 0CE4764C638 CAPACITOR,FIXED ELECTROLYTIC 47UF SRA,SS 6.3V 20% FM5 TP 5
C214 0CE4773C630 CAPACITOR,FIXED ELECTROLYTIC 470UF SRE,SE 6.3V 20% FM5 BULK
C216 0CE4764C638 CAPACITOR,FIXED ELECTROLYTIC 47UF SRA,SS 6.3V 20% FM5 TP 5
C217 0CE1074C638 CAPACITOR,FIXED ELECTROLYTIC 100UF SRA,SS 6.3V 20% FM5 TP 5
C223 0CE4764C638 CAPACITOR,FIXED ELECTROLYTIC 47UF SRA,SS 6.3V 20% FM5 TP 5
C301 0CE4764C638 CAPACITOR,FIXED ELECTROLYTIC 47UF SRA,SS 6.3V 20% FM5 TP 5
C303 0CE1054K638 CAPACITOR,FIXED ELECTROLYTIC 1UF SRA,SS 50V 20% FM5 TP 5
C305 0CE4754K638 CAPACITOR,FIXED ELECTROLYTIC 4.7UF SRA,SS 50V 20% FM5 TP 5
C308 0CE4754K638 CAPACITOR,FIXED ELECTROLYTIC 4.7UF SRA,SS 50V 20% FM5 TP 5
C309 0CE2264F638 CAPACITOR,FIXED ELECTROLYTIC 22UF SRA,SS 16V 20% FM5 TP 5
C310 0CE2264F638 CAPACITOR,FIXED ELECTROLYTIC 22UF SRA,SS 16V 20% FM5 TP 5
C313 0CQ2231N409 CAPACITOR,FIXED FILM 0.022UF D 100V 5% PE TP5
C314 0CE4764C638 CAPACITOR,FIXED ELECTROLYTIC 47UF SRA,SS 6.3V 20% FM5 TP 5
C317 0CE1064F638 CAPACITOR,FIXED ELECTROLYTIC 10UF SRA,SS 16V 20% FM5 TP 5
C319 0CE1064F638 CAPACITOR,FIXED ELECTROLYTIC 10UF SRA,SS 16V 20% FM5 TP 5
C325 0CE1054K638 CAPACITOR,FIXED ELECTROLYTIC 1UF SRA,SS 50V 20% FM5 TP 5
C327 0CE2254K638 CAPACITOR,FIXED ELECTROLYTIC 2.2UF SRA,SS 50V 20% FM5 TP 5
C328 0CE2274C638 CAPACITOR,FIXED ELECTROLYTIC 220UF SRA,SS 6.3V 20% FM5 TP 5
C337 0CE1063F638 CAPACITOR,FIXED ELECTROLYTIC 10UF SRE,SE 16V 20% FM5 TP 5
C339 0CE3354K638 CAPACITOR,FIXED ELECTROLYTIC 3.3UF SRA,SS 50V 20% FM5 TP 5
C340 0CE1063F638 CAPACITOR,FIXED ELECTROLYTIC 10UF SRE,SE 16V 20% FM5 TP 5
C343 0CE4764C638 CAPACITOR,FIXED ELECTROLYTIC 47UF SRA,SS 6.3V 20% FM5 TP 5
C348 0CE1054K638 CAPACITOR,FIXED ELECTROLYTIC 1UF SRA,SS 50V 20% FM5 TP 5
C349 0CC0500K015 CAPACITOR,FIXED CERAMIC(TEMP.C 5PF D 50V O.25 PF NP0 TR
C350 0CE4764C638 CAPACITOR,FIXED ELECTROLYTIC 47UF SRA,SS 6.3V 20% FM5 TP 5
C353 0CE3354K638 CAPACITOR,FIXED ELECTROLYTIC 3.3UF SRA,SS 50V 20% FM5 TP 5
C355 0CE2254K638 CAPACITOR,FIXED ELECTROLYTIC 2.2UF SRA,SS 50V 20% FM5 TP 5
5-5
Page 6
SALLOCA. NO. PART NO. DESCRIPTION SPECIFICATION REMARKS
C358 0CE1054K638 CAPACITOR,FIXED ELECTROLYTIC 1UF SRA,SS 50V 20% FM5 TP 5
C359 0CE4754K638 CAPACITOR,FIXED ELECTROLYTIC 4.7UF SRA,SS 50V 20% FM5 TP 5
C366 0CE4764C638 CAPACITOR,FIXED ELECTROLYTIC 47UF SRA,SS 6.3V 20% FM5 TP 5
C3A1 0CE4754K638 CAPACITOR,FIXED ELECTROLYTIC 4.7UF SRA,SS 50V 20% FM5 TP 5
C402 0CE4775C638 CAPACITOR,FIXED ELECTROLYTIC 470UF SR,SV 6.3V 20% FM5 TP 5
C405 0CE1064F638 CAPACITOR,FIXED ELECTROLYTIC 10UF SRA,SS 16V 20% FM5 TP 5
C406 0CE2263F638 CAPACITOR,FIXED ELECTROLYTIC 22UF SRE,SE 16V 20% FM5 TP 5
C407 0CE1074F638 CAPACITOR,FIXED ELECTROLYTIC 100UF SRA,SS 16V 20% FM5 TP 5
C408 0CE2263F638 CAPACITOR,FIXED ELECTROLYTIC 22UF SRE,SE 16V 20% FM5 TP 5
C413 0CE1074F638 CAPACITOR,FIXED ELECTROLYTIC 100UF SRA,SS 16V 20% FM5 TP 5
C414 0CE2263F638 CAPACITOR,FIXED ELECTROLYTIC 22UF SRE,SE 16V 20% FM5 TP 5
C415 0CE2263F638 CAPACITOR,FIXED ELECTROLYTIC 22UF SRE,SE 16V 20% FM5 TP 5
C416 0CQ3921N409 CAPACITOR,FIXED FILM 0.0039UF D 100V 5% PE TP5
C417 0CQ3921N409 CAPACITOR,FIXED FILM 0.0039UF D 100V 5% PE TP5
C500 0CE4775C638 CAPACITOR,FIXED ELECTROLYTIC 470UF SR,SV 6.3V 20% FM5 TP 5
C503 0CE2274C638 CAPACITOR,FIXED ELECTROLYTIC 220UF SRA,SS 6.3V 20% FM5 TP 5
C516 0CE1064F638 CAPACITOR,FIXED ELECTROLYTIC 10UF SRA,SS 16V 20% FM5 TP 5
C531 0CE2274C638 CAPACITOR,FIXED ELECTROLYTIC 220UF SRA,SS 6.3V 20% FM5 TP 5
C534 0CE4754H638 CAPACITOR,FIXED ELECTROLYTIC 4.7UF SRA,SS 25V 20% FM5 TP 5
C535 0CE4754H638 CAPACITOR,FIXED ELECTROLYTIC 4.7UF SRA,SS 25V 20% FM5 TP 5
C546 0CE4764H638 CAPACITOR,FIXED ELECTROLYTIC 47UF SRA,SS 25V 20% FM5 TP 5
C561 0CE1064F638 CAPACITOR,FIXED ELECTROLYTIC 10UF SRA,SS 16V 20% FM5 TP 5
C578 0CE2274C638 CAPACITOR,FIXED ELECTROLYTIC 220UF SRA,SS 6.3V 20% FM5 TP 5
C579 0CE2274C638 CAPACITOR,FIXED ELECTROLYTIC 220UF SRA,SS 6.3V 20% FM5 TP 5
C584 0CE4764C638 CAPACITOR,FIXED ELECTROLYTIC 47UF SRA,SS 6.3V 20% FM5 TP 5
C586 0CE1064F638 CAPACITOR,FIXED ELECTROLYTIC 10UF SRA,SS 16V 20% FM5 TP 5
C592 0CE1064F638 CAPACITOR,FIXED ELECTROLYTIC 10UF SRA,SS 16V 20% FM5 TP 5
C5G1 0CE1086C638 CAPACITOR,FIXED ELECTROLYTIC 1000000000PF SMS,SG 6.3V 20% F
C612 0CE2274C638 CAPACITOR,FIXED ELECTROLYTIC 220UF SRA,SS 6.3V 20% FM5 TP 5
C614 0CE1074C638 CAPACITOR,FIXED ELECTROLYTIC 100UF SRA,SS 6.3V 20% FM5 TP 5
C616 0CE1074C638 CAPACITOR,FIXED ELECTROLYTIC 100UF SRA,SS 6.3V 20% FM5 TP 5
C618 0CE1074C638 CAPACITOR,FIXED ELECTROLYTIC 100UF SRA,SS 6.3V 20% FM5 TP 5
C642 0CE4764C638 CAPACITOR,FIXED ELECTROLYTIC 47UF SRA,SS 6.3V 20% FM5 TP 5
C643 0CE4764C638 CAPACITOR,FIXED ELECTROLYTIC 47UF SRA,SS 6.3V 20% FM5 TP 5
C673 0CE4764F638 CAPACITOR,FIXED ELECTROLYTIC 47UF SRA,SS 16V 20% FM5 TP 5
C6A7 0CE1074C638 CAPACITOR,FIXED ELECTROLYTIC 100UF SRA,SS 6.3V 20% FM5 TP 5
C6C9 0CE2274C638 CAPACITOR,FIXED ELECTROLYTIC 220UF SRA,SS 6.3V 20% FM5 TP 5
C701 0CE4754K638 CAPACITOR,FIXED ELECTROLYTIC 4.7UF SRA,SS 50V 20% FM5 TP 5
C702 0CE4774C638 CAPACITOR,FIXED ELECTROLYTIC 470UF SRA,SS 6.3V 20% FM5 TP 5
C712 0CE1064F638 CAPACITOR,FIXED ELECTROLYTIC 10UF SRA,SS 16V 20% FM5 TP 5
C801 0CE4754K638 CAPACITOR,FIXED ELECTROLYTIC 4.7UF SRA,SS 50V 20% FM5 TP 5
C806 0CE4754K638 CAPACITOR,FIXED ELECTROLYTIC 4.7UF SRA,SS 50V 20% FM5 TP 5
C807 0CE4754K638 CAPACITOR,FIXED ELECTROLYTIC 4.7UF SRA,SS 50V 20% FM5 TP 5
C808 0CE1054K638 CAPACITOR,FIXED ELECTROLYTIC 1UF SRA,SS 50V 20% FM5 TP 5
C816 0CE2254K638 CAPACITOR,FIXED ELECTROLYTIC 2.2UF SRA,SS 50V 20% FM5 TP 5
C826 0CE1064F638 CAPACITOR,FIXED ELECTROLYTIC 10UF SRA,SS 16V 20% FM5 TP 5
C828 0CE4764F638 CAPACITOR,FIXED ELECTROLYTIC 47UF SRA,SS 16V 20% FM5 TP 5
C829 0CE2264F638 CAPACITOR,FIXED ELECTROLYTIC 22UF SRA,SS 16V 20% FM5 TP 5
C830 0CE1064F638 CAPACITOR,FIXED ELECTROLYTIC 10UF SRA,SS 16V 20% FM5 TP 5
C831 0CE4754K638 CAPACITOR,FIXED ELECTROLYTIC 4.7UF SRA,SS 50V 20% FM5 TP 5
C833 0CE2264F638 CAPACITOR,FIXED ELECTROLYTIC 22UF SRA,SS 16V 20% FM5 TP 5
C839 0CE4754K638 CAPACITOR,FIXED ELECTROLYTIC 4.7UF SRA,SS 50V 20% FM5 TP 5
C840 0CE1064F638 CAPACITOR,FIXED ELECTROLYTIC 10UF SRA,SS 16V 20% FM5 TP 5
C843 0CE2264F638 CAPACITOR,FIXED ELECTROLYTIC 22UF SRA,SS 16V 20% FM5 TP 5
C846 0CE4754K638 CAPACITOR,FIXED ELECTROLYTIC 4.7UF SRA,SS 50V 20% FM5 TP 5
C847 0CE1064F638 CAPACITOR,FIXED ELECTROLYTIC 10UF SRA,SS 16V 20% FM5 TP 5
C851 0CE4754K638 CAPACITOR,FIXED ELECTROLYTIC 4.7UF SRA,SS 50V 20% FM5 TP 5
6-5
Page 7
SALLOCA. NO. PART NO. DESCRIPTION SPECIFICATION REMARKS
C866 0CE2254K638 CAPACITOR,FIXED ELECTROLYTIC 2.2UF SRA,SS 50V 20% FM5 TP 5
C871 0CE4753K638 CAPACITOR,FIXED ELECTROLYTIC 4.7UF SRE,SE 50V 20% FM5 TAPPI
C873 0CE2254K638 CAPACITOR,FIXED ELECTROLYTIC 2.2UF SRA,SS 50V 20% FM5 TP 5
C876 0CE1054K638 CAPACITOR,FIXED ELECTROLYTIC 1UF SRA,SS 50V 20% FM5 TP 5
C877 0CE1054K638 CAPACITOR,FIXED ELECTROLYTIC 1UF SRA,SS 50V 20% FM5 TP 5
C879 0CE2254K638 CAPACITOR,FIXED ELECTROLYTIC 2.2UF SRA,SS 50V 20% FM5 TP 5
C880 0CE4754K638 CAPACITOR,FIXED ELECTROLYTIC 4.7UF SRA,SS 50V 20% FM5 TP 5
C881 0CE1054K638 CAPACITOR,FIXED ELECTROLYTIC 1UF SRA,SS 50V 20% FM5 TP 5
C882 0CE4764F638 CAPACITOR,FIXED ELECTROLYTIC 47UF SRA,SS 16V 20% FM5 TP 5
C883 0CE1054K638 CAPACITOR,FIXED ELECTROLYTIC 1UF SRA,SS 50V 20% FM5 TP 5
C886 0CE4754K638 CAPACITOR,FIXED ELECTROLYTIC 4.7UF SRA,SS 50V 20% FM5 TP 5
C887 0CE3354K638 CAPACITOR,FIXED ELECTROLYTIC 3.3UF SRA,SS 50V 20% FM5 TP 5
C888 0CE4754K638 CAPACITOR,FIXED ELECTROLYTIC 4.7UF SRA,SS 50V 20% FM5 TP 5
C889 0CE4754K638 CAPACITOR,FIXED ELECTROLYTIC 4.7UF SRA,SS 50V 20% FM5 TP 5
C902 0CE4774C638 CAPACITOR,FIXED ELECTROLYTIC 470UF SRA,SS 6.3V 20% FM5 TP 5
C903 0CE1085C638 CAPACITOR,FIXED ELECTROLYTIC 1000UF SR,SV 6.3V 20% FM5 TP 5
C904 0CE4774C638 CAPACITOR,FIXED ELECTROLYTIC 470UF SRA,SS 6.3V 20% FM5 TP 5
C908 0CE1085C638 CAPACITOR,FIXED ELECTROLYTIC 1000UF SR,SV 6.3V 20% FM5 TP 5
C910 0CE1074C638 CAPACITOR,FIXED ELECTROLYTIC 100UF SRA,SS 6.3V 20% FM5 TP 5
C911 0CE4774C638 CAPACITOR,FIXED ELECTROLYTIC 470UF SRA,SS 6.3V 20% FM5 TP 5
C913 0CE2264F638 CAPACITOR,FIXED ELECTROLYTIC 22UF SRA,SS 16V 20% FM5 TP 5
D201 0DR104009AB DIODE,RECTIFIERS RL104 R. TP GULF SEMICONDUCTOR
D802 0DD133009AA DIODE,SWITCHING 1SS133 TP ROHM KOREA - - - - -
IC504 0IKE703100A IC,LINEAR KIA7031P 3P 3.1V RESET(TAPING)
IC505 0IKE704200B IC,POWER MANAGEMENT KIA7042P(AT) TO-92 4.2V RESET
L300 0LR0332K035 INDUCTOR,RADIAL LEAD 33UH 10% TP 6 X 6 TR5 -
L301 0LR1000J0N5 INDUCTOR,RADIAL LEAD 100UH 5% TP 3X5 TR5 -
L302 0LR1000K035 INDUCTOR,RADIAL LEAD 100UH 10% TP 6 X 6 TR5 -
L303 0LA1200K018 INDUCTOR,AXIAL LEAD 120UH 10% TP 2.3 X 3.4 TA26 -
L304 0LR1000J0N5 INDUCTOR,RADIAL LEAD 100UH 5% TP 3X5 TR5 -
L306 0LR1000J0N5 INDUCTOR,RADIAL LEAD 100UH 5% TP 3X5 TR5 -
L307 0LA0122K018 INDUCTOR,AXIAL LEAD 12UH 10% TP 2.3 X 3.4 TA26 -
L308 0LR1000J0N5 INDUCTOR,RADIAL LEAD 100UH 5% TP 3X5 TR5 -
L311 0LR1000J0N5 INDUCTOR,RADIAL LEAD 100UH 5% TP 3X5 TR5 -
L501 0LR1000J0N5 INDUCTOR,RADIAL LEAD 100UH 5% TP 3X5 TR5 -
L511 0LA0221K018 INDUCTOR,AXIAL LEAD 2.2UH 10% TP 2.3 X 3.4 TA26 -
L512 0LR1000J0N5 INDUCTOR,RADIAL LEAD 100UH 5% TP 3X5 TR5 -
L5F1 0LA0102K018 INDUCTOR,AXIAL LEAD 10UH 10% TP 2.3 X 3.4 TA26 -
L5F2 0LA0102K018 INDUCTOR,AXIAL LEAD 10UH 10% TP 2.3 X 3.4 TA26 -
L5G1 0LR4700K035 INDUCTOR,RADIAL LEAD 470UH 10% TP 6 X 6 TR5 -
L701 0LR0102K035 INDUCTOR,RADIAL LEAD 10UH 10% TP 6 X 6 TR5 -
L822 0LR1000J0N5 INDUCTOR,RADIAL LEAD 100UH 5% TP 3X5 TR5 -
L906 0LA0102K018 INDUCTOR,AXIAL LEAD 10UH 10% TP 2.3 X 3.4 TA26 -
L907 0LA0102K018 INDUCTOR,AXIAL LEAD 10UH 10% TP 2.3 X 3.4 TA26 -
L908 0LA0102K018 INDUCTOR,AXIAL LEAD 10UH 10% TP 2.3 X 3.4 TA26 -
L909 0LA0102K018 INDUCTOR,AXIAL LEAD 10UH 10% TP 2.3 X 3.4 TA26 -
Q301 0TR534409AA TRANSISTOR,BIPOLARS 2SC5344Y TP AUK - -
Q301 0TR320309AA TRANSISTOR,BIPOLARS KTC3203 KEC TP TO92 50V 150MA ALTERNATE
Q302 0TR928009AD TRANSISTOR,BIPOLARS KSA928A-Y,TO-92L TP SAMSUNG TO
Q302 0TR127709AB TRANSISTOR,BIPOLARS AUK KOREA STB1277LY-AT TP TO-9 ALTERNATE
Q302 0TR127309AA TRANSISTOR,BIPOLARS KTA1273 TP KEC TO92 -Y(KTA966A ALTERNATE
Q503 0TR928009AD TRANSISTOR,BIPOLARS KSA928A-Y,TO-92L TP SAMSUNG TO
Q503 0TR127709AB TRANSISTOR,BIPOLARS AUK KOREA STB1277LY-AT TP TO-9 ALTERNATE
Q503 0TR127309AA TRANSISTOR,BIPOLARS KTA1273 TP KEC TO92 -Y(KTA966A ALTERNATE
Q701 0TR534409AA TRANSISTOR,BIPOLARS 2SC5344Y TP AUK - -
SW501 556-213C SWITCH,DETECTOR THV10912B TACT DC 12 V 5-0 A V
SW501 6600RRT001R SWITCH,TACT SKHVBG3910-AA FORWARD 12V DC 5 ALTERNATE
7-5
Page 8
SALLOCA. NO. PART NO. DESCRIPTION SPECIFICATION REMARKS
SW501 6600RRT001G SWITCH,TACT EVQ 213 09K MATSUSHITA 15V DC ALTERNATE
SW502 556-213C SWITCH,DETECTOR THV10912B TACT DC 12 V 5-0 A V
SW502 6600RRT001R SWITCH,TACT SKHVBG3910-AA FORWARD 12V DC 5 ALTERNATE
SW502 6600RRT001G SWITCH,TACT EVQ 213 09K MATSUSHITA 15V DC ALTERNATE
SW503 556-213C SWITCH,DETECTOR THV10912B TACT DC 12 V 5-0 A V
SW503 6600RRT001G SWITCH,TACT EVQ 213 09K MATSUSHITA 15V DC ALTERNATE
SW503 6600RRT001R SWITCH,TACT SKHVBG3910-AA FORWARD 12V DC 5 ALTERNATE
SW504 556-213C SWITCH,DETECTOR THV10912B TACT DC 12 V 5-0 A V
SW504 6600RRT001R SWITCH,TACT SKHVBG3910-AA FORWARD 12V DC 5 ALTERNATE
SW504 6600RRT001G SWITCH,TACT EVQ 213 09K MATSUSHITA 15V DC ALTERNATE
SW505 556-213C SWITCH,DETECTOR THV10912B TACT DC 12 V 5-0 A V
SW505 6600RRT001R SWITCH,TACT SKHVBG3910-AA FORWARD 12V DC 5 ALTERNATE
SW505 6600RRT001G SWITCH,TACT EVQ 213 09K MATSUSHITA 15V DC ALTERNATE
SW506 556-213C SWITCH,DETECTOR THV10912B TACT DC 12 V 5-0 A V
SW506 6600RRT001R SWITCH,TACT SKHVBG3910-AA FORWARD 12V DC 5 ALTERNATE
SW506 6600RRT001G SWITCH,TACT EVQ 213 09K MATSUSHITA 15V DC ALTERNATE
X502 6212AA2148F RESONATOR,CRYSTAL HC-49S KITELCO 14.31818MHZ +/-
ZD701 0DZ622609AB DIODE,ZENERS UZ-6.2BSA 26MM TP PYUNG CHANG
C202 0CH1104K942 CAPACITOR,FIXED CERAMIC(TEMP.C 0.1UF 50V 80%,-20% Y5V(F) 1608
C203 0CH1103K562 CAPACITOR,FIXED CERAMIC(TEMP.C 0.01UF 50V 10% X7R(X) 1608 R/T
C204 0CH1104K942 CAPACITOR,FIXED CERAMIC(TEMP.C 0.1UF 50V 80%,-20% Y5V(F) 1608
C205 0CH1104K942 CAPACITOR,FIXED CERAMIC(TEMP.C 0.1UF 50V 80%,-20% Y5V(F) 1608
C206 0CH1104K942 CAPACITOR,FIXED CERAMIC(TEMP.C 0.1UF 50V 80%,-20% Y5V(F) 1608
C207 0CH1104K942 CAPACITOR,FIXED CERAMIC(TEMP.C 0.1UF 50V 80%,-20% Y5V(F) 1608
C210 0CH1104K942 CAPACITOR,FIXED CERAMIC(TEMP.C 0.1UF 50V 80%,-20% Y5V(F) 1608
C211 0CH1104K942 CAPACITOR,FIXED CERAMIC(TEMP.C 0.1UF 50V 80%,-20% Y5V(F) 1608
C212 0CH1104K942 CAPACITOR,FIXED CERAMIC(TEMP.C 0.1UF 50V 80%,-20% Y5V(F) 1608
C213 0CH1104K942 CAPACITOR,FIXED CERAMIC(TEMP.C 0.1UF 50V 80%,-20% Y5V(F) 1608
C219 0CH1104K942 CAPACITOR,FIXED CERAMIC(TEMP.C 0.1UF 50V 80%,-20% Y5V(F) 1608
C220 0CH1104K942 CAPACITOR,FIXED CERAMIC(TEMP.C 0.1UF 50V 80%,-20% Y5V(F) 1608
C224 0CH1103K562 CAPACITOR,FIXED CERAMIC(TEMP.C 0.01UF 50V 10% X7R(X) 1608 R/T
C225 0CH4101K412 CAPACITOR,FIXED CERAMIC(HIGH D 100PF 50V 5% NP0 1608 R/TP
C302 0CH1103K562 CAPACITOR,FIXED CERAMIC(TEMP.C 0.01UF 50V 10% X7R(X) 1608 R/T
C304 0CH1103K562 CAPACITOR,FIXED CERAMIC(TEMP.C 0.01UF 50V 10% X7R(X) 1608 R/T
C306 0CH1222K562 CAPACITOR,FIXED CERAMIC(TEMP.C 2200PF 50V 10% X7R(X) 1608 R/T
C307 0CH1152K512 CAPACITOR,FIXED CERAMIC(TEMP.C 1500PF 50V 10% B(5YP) 1608 R/T
C311 0CH4151K412 CAPACITOR,FIXED CERAMIC(HIGH D 150PF 50V 5% NP0 1608 R/TP
C312 0CH1561K462 CAPACITOR,FIXED CERAMIC(TEMP.C 560PF 50V 5% X7R(X) 1608 R/TP
C320 0CH4151K412 CAPACITOR,FIXED CERAMIC(HIGH D 150PF 50V 5% NP0 1608 R/TP
C321 0CH1104K942 CAPACITOR,FIXED CERAMIC(TEMP.C 0.1UF 50V 80%,-20% Y5V(F) 1608
C322 0CH1104K942 CAPACITOR,FIXED CERAMIC(TEMP.C 0.1UF 50V 80%,-20% Y5V(F) 1608
C323 0CH4470K412 CAPACITOR,FIXED CERAMIC(HIGH D 47PF 50V 5% NP0 1608 R/TP
C324 0CH1104K942 CAPACITOR,FIXED CERAMIC(TEMP.C 0.1UF 50V 80%,-20% Y5V(F) 1608
C326 0CH1105F942 CAPACITOR,FIXED CERAMIC(TEMP.C 1000000PF 16V 80%,-20% Y5V(F)
C329 0CH1104K942 CAPACITOR,FIXED CERAMIC(TEMP.C 0.1UF 50V 80%,-20% Y5V(F) 1608
C330 0CH1105F942 CAPACITOR,FIXED CERAMIC(TEMP.C 1000000PF 16V 80%,-20% Y5V(F)
C331 0CH1104K942 CAPACITOR,FIXED CERAMIC(TEMP.C 0.1UF 50V 80%,-20% Y5V(F) 1608
C332 0CH1104K942 CAPACITOR,FIXED CERAMIC(TEMP.C 0.1UF 50V 80%,-20% Y5V(F) 1608
C335 0CH1104K942 CAPACITOR,FIXED CERAMIC(TEMP.C 0.1UF 50V 80%,-20% Y5V(F) 1608
C336 0CH1104K942 CAPACITOR,FIXED CERAMIC(TEMP.C 0.1UF 50V 80%,-20% Y5V(F) 1608
C338 0CH1104K942 CAPACITOR,FIXED CERAMIC(TEMP.C 0.1UF 50V 80%,-20% Y5V(F) 1608
C341 0CH1103K562 CAPACITOR,FIXED CERAMIC(TEMP.C 0.01UF 50V 10% X7R(X) 1608 R/T
C342 0CH4331K412 CAPACITOR,FIXED CERAMIC(HIGH D 330PF 50V 5% NP0 1608 R/TP
C344 0CH1473H942 CAPACITOR,FIXED CERAMIC(TEMP.C 0.047UF 25V 80%,-20% Y5V(F) 16
C346 0CH1103K562 CAPACITOR,FIXED CERAMIC(TEMP.C 0.01UF 50V 10% X7R(X) 1608 R/T
C347 0CH1103K562 CAPACITOR,FIXED CERAMIC(TEMP.C 0.01UF 50V 10% X7R(X) 1608 R/T
C351 0CH1103K562 CAPACITOR,FIXED CERAMIC(TEMP.C 0.01UF 50V 10% X7R(X) 1608 R/T
8-5
Page 9
SALLOCA. NO. PART NO. DESCRIPTION SPECIFICATION REMARKS
C352 0CH1104K942 CAPACITOR,FIXED CERAMIC(TEMP.C 0.1UF 50V 80%,-20% Y5V(F) 1608
C354 0CH1472K562 CAPACITOR,FIXED CERAMIC(TEMP.C 4700PF 50V 10% X7R(X) 1608 R/T
C356 0CH1333K562 CAPACITOR,FIXED CERAMIC(TEMP.C 0.033UF 50V 10% X7R(X) 1608 R/
C357 0CH1223K942 CAPACITOR,FIXED CERAMIC(TEMP.C 0.022UF 50V 80%,-20% Y5V(F) 16
C360 0CH1103K562 CAPACITOR,FIXED CERAMIC(TEMP.C 0.01UF 50V 10% X7R(X) 1608 R/T
C362 0CH4270K412 CAPACITOR,FIXED CERAMIC(HIGH D 27PF 50V 5% NP0 1608 R/TP
C365 0CH1103K562 CAPACITOR,FIXED CERAMIC(TEMP.C 0.01UF 50V 10% X7R(X) 1608 R/T
C367 0CH1103K562 CAPACITOR,FIXED CERAMIC(TEMP.C 0.01UF 50V 10% X7R(X) 1608 R/T
C368 0CH1103K562 CAPACITOR,FIXED CERAMIC(TEMP.C 0.01UF 50V 10% X7R(X) 1608 R/T
C369 0CH1103K562 CAPACITOR,FIXED CERAMIC(TEMP.C 0.01UF 50V 10% X7R(X) 1608 R/T
C370 0CH1103K562 CAPACITOR,FIXED CERAMIC(TEMP.C 0.01UF 50V 10% X7R(X) 1608 R/T
C371 0CH1104K942 CAPACITOR,FIXED CERAMIC(TEMP.C 0.1UF 50V 80%,-20% Y5V(F) 1608
C374 0CH1105F942 CAPACITOR,FIXED CERAMIC(TEMP.C 1000000PF 16V 80%,-20% Y5V(F)
C376 0CH4181K412 CAPACITOR,FIXED CERAMIC(HIGH D 180PF 50V 5% NP0 1608 R/TP
C377 0CH4151K412 CAPACITOR,FIXED CERAMIC(HIGH D 150PF 50V 5% NP0 1608 R/TP
C401 0CH1104K942 CAPACITOR,FIXED CERAMIC(TEMP.C 0.1UF 50V 80%,-20% Y5V(F) 1608
C409 0CH4101K412 CAPACITOR,FIXED CERAMIC(HIGH D 100PF 50V 5% NP0 1608 R/TP
C410 0CH4101K412 CAPACITOR,FIXED CERAMIC(HIGH D 100PF 50V 5% NP0 1608 R/TP
C411 0CH4101K412 CAPACITOR,FIXED CERAMIC(HIGH D 100PF 50V 5% NP0 1608 R/TP
C412 0CH4101K412 CAPACITOR,FIXED CERAMIC(HIGH D 100PF 50V 5% NP0 1608 R/TP
C418 0CH1104K942 CAPACITOR,FIXED CERAMIC(TEMP.C 0.1UF 50V 80%,-20% Y5V(F) 1608
C501 0CH1104K942 CAPACITOR,FIXED CERAMIC(TEMP.C 0.1UF 50V 80%,-20% Y5V(F) 1608
C502 0CH1104K942 CAPACITOR,FIXED CERAMIC(TEMP.C 0.1UF 50V 80%,-20% Y5V(F) 1608
C505 0CH1104K942 CAPACITOR,FIXED CERAMIC(TEMP.C 0.1UF 50V 80%,-20% Y5V(F) 1608
C508 0CH1223K942 CAPACITOR,FIXED CERAMIC(TEMP.C 0.022UF 50V 80%,-20% Y5V(F) 16
C510 0CH1104K942 CAPACITOR,FIXED CERAMIC(TEMP.C 0.1UF 50V 80%,-20% Y5V(F) 1608
C511 0CH1223K942 CAPACITOR,FIXED CERAMIC(TEMP.C 0.022UF 50V 80%,-20% Y5V(F) 16
C514 0CH4240K412 CAPACITOR,FIXED CERAMIC(HIGH D 24PF 50V 5% NP0 1608 R/TP
C515 0CH4240K412 CAPACITOR,FIXED CERAMIC(HIGH D 24PF 50V 5% NP0 1608 R/TP
C520 0CH1223K942 CAPACITOR,FIXED CERAMIC(TEMP.C 0.022UF 50V 80%,-20% Y5V(F) 16
C525 0CH1104K512 CAPACITOR,FIXED CERAMIC(TEMP.C 0.1UF 50V 10% B(5YP) 1608 R/TP
C542 0CH4681K412 CAPACITOR,FIXED CERAMIC(HIGH D 680PF 50V 5% NP0 1608 R/TP
C543 0CH1223K942 CAPACITOR,FIXED CERAMIC(TEMP.C 0.022UF 50V 80%,-20% Y5V(F) 16
C544 0CH1473H942 CAPACITOR,FIXED CERAMIC(TEMP.C 0.047UF 25V 80%,-20% Y5V(F) 16
C545 0CH1223K942 CAPACITOR,FIXED CERAMIC(TEMP.C 0.022UF 50V 80%,-20% Y5V(F) 16
C551 0CH1333K562 CAPACITOR,FIXED CERAMIC(TEMP.C 0.033UF 50V 10% X7R(X) 1608 R/
C552 0CH1103K562 CAPACITOR,FIXED CERAMIC(TEMP.C 0.01UF 50V 10% X7R(X) 1608 R/T
C566 0CH1102K512 CAPACITOR,FIXED CERAMIC(TEMP.C 1000PF 50V 10% B(5YP) 1608 R/T
C567 0CH1102K512 CAPACITOR,FIXED CERAMIC(TEMP.C 1000PF 50V 10% B(5YP) 1608 R/T
C568 0CH1102K512 CAPACITOR,FIXED CERAMIC(TEMP.C 1000PF 50V 10% B(5YP) 1608 R/T
C569 0CH1102K512 CAPACITOR,FIXED CERAMIC(TEMP.C 1000PF 50V 10% B(5YP) 1608 R/T
C570 0CH4180K412 CAPACITOR,FIXED CERAMIC(HIGH D 18PF 50V 5% NP0 1608 R/TP
C571 0CH4200K412 CAPACITOR,FIXED CERAMIC(HIGH D 20PF 50V 5% NP0 1608 R/TP
C572 0CH1223K942 CAPACITOR,FIXED CERAMIC(TEMP.C 0.022UF 50V 80%,-20% Y5V(F) 16
C573 0CH1103K562 CAPACITOR,FIXED CERAMIC(TEMP.C 0.01UF 50V 10% X7R(X) 1608 R/T
C574 0CH1102K512 CAPACITOR,FIXED CERAMIC(TEMP.C 1000PF 50V 10% B(5YP) 1608 R/T
C577 0CH1223K942 CAPACITOR,FIXED CERAMIC(TEMP.C 0.022UF 50V 80%,-20% Y5V(F) 16
C580 0CH1223K942 CAPACITOR,FIXED CERAMIC(TEMP.C 0.022UF 50V 80%,-20% Y5V(F) 16
C581 0CH1103K562 CAPACITOR,FIXED CERAMIC(TEMP.C 0.01UF 50V 10% X7R(X) 1608 R/T
C582 0CH1103K562 CAPACITOR,FIXED CERAMIC(TEMP.C 0.01UF 50V 10% X7R(X) 1608 R/T
C583 0CH1102K512 CAPACITOR,FIXED CERAMIC(TEMP.C 1000PF 50V 10% B(5YP) 1608 R/T
C585 0CH1103K562 CAPACITOR,FIXED CERAMIC(TEMP.C 0.01UF 50V 10% X7R(X) 1608 R/T
C588 0CH1102K512 CAPACITOR,FIXED CERAMIC(TEMP.C 1000PF 50V 10% B(5YP) 1608 R/T
C589 0CH4221K412 CAPACITOR,FIXED CERAMIC(HIGH D 220PF 50V 5% NP0 1608 R/TP
C590 0CH1105F942 CAPACITOR,FIXED CERAMIC(TEMP.C 1000000PF 16V 80%,-20% Y5V(F)
C593 0CH4471K412 CAPACITOR,FIXED CERAMIC(HIGH D 470PF 50V 5% NP0 1608 R/TP
C594 0CH1104K942 CAPACITOR,FIXED CERAMIC(TEMP.C 0.1UF 50V 80%,-20% Y5V(F) 1608
9-5
Page 10
SALLOCA. NO. PART NO. DESCRIPTION SPECIFICATION REMARKS
C595 0CH4120K412 CAPACITOR,FIXED CERAMIC(HIGH D 12PF 50V 5% NP0 1608 R/TP
C596 0CH4120K412 CAPACITOR,FIXED CERAMIC(HIGH D 12PF 50V 5% NP0 1608 R/TP
C597 0CH4681K412 CAPACITOR,FIXED CERAMIC(HIGH D 680PF 50V 5% NP0 1608 R/TP
C598 0CH1104K942 CAPACITOR,FIXED CERAMIC(TEMP.C 0.1UF 50V 80%,-20% Y5V(F) 1608
C5L2 0CH1102K512 CAPACITOR,FIXED CERAMIC(TEMP.C 1000PF 50V 10% B(5YP) 1608 R/T
C5L3 0CH1102K512 CAPACITOR,FIXED CERAMIC(TEMP.C 1000PF 50V 10% B(5YP) 1608 R/T
C602 0CH1273F562 CAPACITOR,FIXED CERAMIC(TEMP.C 0.027UF 1608 16V 10% X7R R/TP
C604 0CH1102K562 CAPACITOR,FIXED CERAMIC(TEMP.C 1000PF 50V 10% X7R(X) 1608 R/T
C605 0CH1103K562 CAPACITOR,FIXED CERAMIC(TEMP.C 0.01UF 50V 10% X7R(X) 1608 R/T
C606 0CH1103K562 CAPACITOR,FIXED CERAMIC(TEMP.C 0.01UF 50V 10% X7R(X) 1608 R/T
C607 0CH1103K562 CAPACITOR,FIXED CERAMIC(TEMP.C 0.01UF 50V 10% X7R(X) 1608 R/T
C608 0CH1104K942 CAPACITOR,FIXED CERAMIC(TEMP.C 0.1UF 50V 80%,-20% Y5V(F) 1608
C609 0CH1102K562 CAPACITOR,FIXED CERAMIC(TEMP.C 1000PF 50V 10% X7R(X) 1608 R/T
C610 0CH1102K562 CAPACITOR,FIXED CERAMIC(TEMP.C 1000PF 50V 10% X7R(X) 1608 R/T
C611 0CH1104K942 CAPACITOR,FIXED CERAMIC(TEMP.C 0.1UF 50V 80%,-20% Y5V(F) 1608
C613 0CH1104K942 CAPACITOR,FIXED CERAMIC(TEMP.C 0.1UF 50V 80%,-20% Y5V(F) 1608
C615 0CH1104K942 CAPACITOR,FIXED CERAMIC(TEMP.C 0.1UF 50V 80%,-20% Y5V(F) 1608
C617 0CH1105F942 CAPACITOR,FIXED CERAMIC(TEMP.C 1000000PF 16V 80%,-20% Y5V(F)
C619 0CH4180K412 CAPACITOR,FIXED CERAMIC(HIGH D 18PF 50V 5% NP0 1608 R/TP
C622 0CH4150K412 CAPACITOR,FIXED CERAMIC(HIGH D 15PF 50V 5% NP0 1608 R/TP
C623 0CH1103K562 CAPACITOR,FIXED CERAMIC(TEMP.C 0.01UF 50V 10% X7R(X) 1608 R/T
C624 0CH1103K562 CAPACITOR,FIXED CERAMIC(TEMP.C 0.01UF 50V 10% X7R(X) 1608 R/T
C626 0CH1102K562 CAPACITOR,FIXED CERAMIC(TEMP.C 1000PF 50V 10% X7R(X) 1608 R/T
C627 0CH1103K562 CAPACITOR,FIXED CERAMIC(TEMP.C 0.01UF 50V 10% X7R(X) 1608 R/T
C628 0CH1103K562 CAPACITOR,FIXED CERAMIC(TEMP.C 0.01UF 50V 10% X7R(X) 1608 R/T
C629 0CH1103K562 CAPACITOR,FIXED CERAMIC(TEMP.C 0.01UF 50V 10% X7R(X) 1608 R/T
C631 0CH1103K562 CAPACITOR,FIXED CERAMIC(TEMP.C 0.01UF 50V 10% X7R(X) 1608 R/T
C632 0CH1103K562 CAPACITOR,FIXED CERAMIC(TEMP.C 0.01UF 50V 10% X7R(X) 1608 R/T
C633 0CH1103K562 CAPACITOR,FIXED CERAMIC(TEMP.C 0.01UF 50V 10% X7R(X) 1608 R/T
C634 0CH1103K562 CAPACITOR,FIXED CERAMIC(TEMP.C 0.01UF 50V 10% X7R(X) 1608 R/T
C635 0CH1103K562 CAPACITOR,FIXED CERAMIC(TEMP.C 0.01UF 50V 10% X7R(X) 1608 R/T
C636 0CH1102K562 CAPACITOR,FIXED CERAMIC(TEMP.C 1000PF 50V 10% X7R(X) 1608 R/T
C637 0CH1103K562 CAPACITOR,FIXED CERAMIC(TEMP.C 0.01UF 50V 10% X7R(X) 1608 R/T
C638 0CH1103K562 CAPACITOR,FIXED CERAMIC(TEMP.C 0.01UF 50V 10% X7R(X) 1608 R/T
C639 0CH1103K562 CAPACITOR,FIXED CERAMIC(TEMP.C 0.01UF 50V 10% X7R(X) 1608 R/T
C640 0CH1103K562 CAPACITOR,FIXED CERAMIC(TEMP.C 0.01UF 50V 10% X7R(X) 1608 R/T
C641 0CH1102K562 CAPACITOR,FIXED CERAMIC(TEMP.C 1000PF 50V 10% X7R(X) 1608 R/T
C644 0CH1104K942 CAPACITOR,FIXED CERAMIC(TEMP.C 0.1UF 50V 80%,-20% Y5V(F) 1608
C648 0CH1103K562 CAPACITOR,FIXED CERAMIC(TEMP.C 0.01UF 50V 10% X7R(X) 1608 R/T
C649 0CH1103K562 CAPACITOR,FIXED CERAMIC(TEMP.C 0.01UF 50V 10% X7R(X) 1608 R/T
C650 0CH1103K562 CAPACITOR,FIXED CERAMIC(TEMP.C 0.01UF 50V 10% X7R(X) 1608 R/T
C651 0CH1103K562 CAPACITOR,FIXED CERAMIC(TEMP.C 0.01UF 50V 10% X7R(X) 1608 R/T
C652 0CH1103K562 CAPACITOR,FIXED CERAMIC(TEMP.C 0.01UF 50V 10% X7R(X) 1608 R/T
C657 0CH1103K562 CAPACITOR,FIXED CERAMIC(TEMP.C 0.01UF 50V 10% X7R(X) 1608 R/T
C660 0CH1104K942 CAPACITOR,FIXED CERAMIC(TEMP.C 0.1UF 50V 80%,-20% Y5V(F) 1608
C662 0CH1104K942 CAPACITOR,FIXED CERAMIC(TEMP.C 0.1UF 50V 80%,-20% Y5V(F) 1608
C664 0CH1104K942 CAPACITOR,FIXED CERAMIC(TEMP.C 0.1UF 50V 80%,-20% Y5V(F) 1608
C674 0CH1102K562 CAPACITOR,FIXED CERAMIC(TEMP.C 1000PF 50V 10% X7R(X) 1608 R/T
C675 0CH1223F512 CAPACITOR,FIXED CERAMIC(TEMP.C 0.022UF 16V 10% B(5YP) 1608 R/
C678 0CH1103K562 CAPACITOR,FIXED CERAMIC(TEMP.C 0.01UF 50V 10% X7R(X) 1608 R/T
C679 0CH4101K412 CAPACITOR,FIXED CERAMIC(HIGH D 100PF 50V 5% NP0 1608 R/TP
C680 0CH4101K412 CAPACITOR,FIXED CERAMIC(HIGH D 100PF 50V 5% NP0 1608 R/TP
C681 0CH4101K412 CAPACITOR,FIXED CERAMIC(HIGH D 100PF 50V 5% NP0 1608 R/TP
C683 0CH1103K562 CAPACITOR,FIXED CERAMIC(TEMP.C 0.01UF 50V 10% X7R(X) 1608 R/T
C684 0CH1103K562 CAPACITOR,FIXED CERAMIC(TEMP.C 0.01UF 50V 10% X7R(X) 1608 R/T
C692 0CH4330K412 CAPACITOR,FIXED CERAMIC(HIGH D 33PF 50V 5% NP0 1608 R/TP
C693 0CH1102K562 CAPACITOR,FIXED CERAMIC(TEMP.C 1000PF 50V 10% X7R(X) 1608 R/T
10-5
Page 11
SALLOCA. NO. PART NO. DESCRIPTION SPECIFICATION REMARKS
C694 0CH1102K562 CAPACITOR,FIXED CERAMIC(TEMP.C 1000PF 50V 10% X7R(X) 1608 R/T
C696 0CH1102K562 CAPACITOR,FIXED CERAMIC(TEMP.C 1000PF 50V 10% X7R(X) 1608 R/T
C697 0CH4330K412 CAPACITOR,FIXED CERAMIC(HIGH D 33PF 50V 5% NP0 1608 R/TP
C698 0CH1102K562 CAPACITOR,FIXED CERAMIC(TEMP.C 1000PF 50V 10% X7R(X) 1608 R/T
C699 0CH1104K942 CAPACITOR,FIXED CERAMIC(TEMP.C 0.1UF 50V 80%,-20% Y5V(F) 1608
C6A1 0RH0000C622 RESISTOR,METAL GLAZED(CHIP) 0 OHM 1 / 16 W 1608 5.00% D
C6A6 0CH4330K412 CAPACITOR,FIXED CERAMIC(HIGH D 33PF 50V 5% NP0 1608 R/TP
C6A8 0CH1103K562 CAPACITOR,FIXED CERAMIC(TEMP.C 0.01UF 50V 10% X7R(X) 1608 R/T
C6C2 0CH4330K412 CAPACITOR,FIXED CERAMIC(HIGH D 33PF 50V 5% NP0 1608 R/TP
C6C3 0CH4330K412 CAPACITOR,FIXED CERAMIC(HIGH D 33PF 50V 5% NP0 1608 R/TP
C6D1 0CH1102K562 CAPACITOR,FIXED CERAMIC(TEMP.C 1000PF 50V 10% X7R(X) 1608 R/T
C6D2 0CH4330K412 CAPACITOR,FIXED CERAMIC(HIGH D 33PF 50V 5% NP0 1608 R/TP
C6D3 0CH4330K412 CAPACITOR,FIXED CERAMIC(HIGH D 33PF 50V 5% NP0 1608 R/TP
C6D4 0CH4330K412 CAPACITOR,FIXED CERAMIC(HIGH D 33PF 50V 5% NP0 1608 R/TP
C6D5 0CH4330K412 CAPACITOR,FIXED CERAMIC(HIGH D 33PF 50V 5% NP0 1608 R/TP
C6D6 0CH4330K412 CAPACITOR,FIXED CERAMIC(HIGH D 33PF 50V 5% NP0 1608 R/TP
C6D7 0CH4330K412 CAPACITOR,FIXED CERAMIC(HIGH D 33PF 50V 5% NP0 1608 R/TP
C6D8 0CH4330K412 CAPACITOR,FIXED CERAMIC(HIGH D 33PF 50V 5% NP0 1608 R/TP
C6D9 0CH4330K412 CAPACITOR,FIXED CERAMIC(HIGH D 33PF 50V 5% NP0 1608 R/TP
C6E3 0CH1104K942 CAPACITOR,FIXED CERAMIC(TEMP.C 0.1UF 50V 80%,-20% Y5V(F) 1608
C6E5 0CH1103K562 CAPACITOR,FIXED CERAMIC(TEMP.C 0.01UF 50V 10% X7R(X) 1608 R/T
C6H1 0CH1102K562 CAPACITOR,FIXED CERAMIC(TEMP.C 1000PF 50V 10% X7R(X) 1608 R/T
C6H2 0CH1333K562 CAPACITOR,FIXED CERAMIC(TEMP.C 0.033UF 50V 10% X7R(X) 1608 R/
C6H3 0CH1333K562 CAPACITOR,FIXED CERAMIC(TEMP.C 0.033UF 50V 10% X7R(X) 1608 R/
C6H5 0CH1103K562 CAPACITOR,FIXED CERAMIC(TEMP.C 0.01UF 50V 10% X7R(X) 1608 R/T
C6H6 0CH4330K412 CAPACITOR,FIXED CERAMIC(HIGH D 33PF 50V 5% NP0 1608 R/TP
C6H7 0CH4080K112 CAPACITOR,FIXED CERAMIC(HIGH D 8PF 50V 0.5 PF NP0 1608 R/TP
C703 0CH1104K512 CAPACITOR,FIXED CERAMIC(TEMP.C 0.1UF 50V 10% B(5YP) 1608 R/TP
C704 0CH1104K512 CAPACITOR,FIXED CERAMIC(TEMP.C 0.1UF 50V 10% B(5YP) 1608 R/TP
C706 0CH4300K412 CAPACITOR,FIXED CERAMIC(HIGH D 30PF 50V 5% NP0 1608 R/TP
C707 0CH4300K412 CAPACITOR,FIXED CERAMIC(HIGH D 30PF 50V 5% NP0 1608 R/TP
C718 0CH4560K412 CAPACITOR,FIXED CERAMIC(HIGH D 56PF 50V 5% NP0 1608 R/TP
C821 0CH1105F942 CAPACITOR,FIXED CERAMIC(TEMP.C 1000000PF 16V 80%,-20% Y5V(F)
C822 0CH1222K562 CAPACITOR,FIXED CERAMIC(TEMP.C 2200PF 50V 10% X7R(X) 1608 R/T
C823 0CH1104K942 CAPACITOR,FIXED CERAMIC(TEMP.C 0.1UF 50V 80%,-20% Y5V(F) 1608
C827 0CH1105F942 CAPACITOR,FIXED CERAMIC(TEMP.C 1000000PF 16V 80%,-20% Y5V(F)
C832 0CH1103K562 CAPACITOR,FIXED CERAMIC(TEMP.C 0.01UF 50V 10% X7R(X) 1608 R/T
C834 0CH1472K562 CAPACITOR,FIXED CERAMIC(TEMP.C 4700PF 50V 10% X7R(X) 1608 R/T
C836 0CH1103K562 CAPACITOR,FIXED CERAMIC(TEMP.C 0.01UF 50V 10% X7R(X) 1608 R/T
C838 0CH1104K942 CAPACITOR,FIXED CERAMIC(TEMP.C 0.1UF 50V 80%,-20% Y5V(F) 1608
C841 0CH1103K562 CAPACITOR,FIXED CERAMIC(TEMP.C 0.01UF 50V 10% X7R(X) 1608 R/T
C844 0CH1472K562 CAPACITOR,FIXED CERAMIC(TEMP.C 4700PF 50V 10% X7R(X) 1608 R/T
C845 0CH1103K562 CAPACITOR,FIXED CERAMIC(TEMP.C 0.01UF 50V 10% X7R(X) 1608 R/T
C848 0CH1105F942 CAPACITOR,FIXED CERAMIC(TEMP.C 1000000PF 16V 80%,-20% Y5V(F)
C849 0CH1105F942 CAPACITOR,FIXED CERAMIC(TEMP.C 1000000PF 16V 80%,-20% Y5V(F)
C872 0CH4560K412 CAPACITOR,FIXED CERAMIC(HIGH D 56PF 50V 5% NP0 1608 R/TP
C874 0CH1105F942 CAPACITOR,FIXED CERAMIC(TEMP.C 1000000PF 16V 80%,-20% Y5V(F)
C875 0CH1333K562 CAPACITOR,FIXED CERAMIC(TEMP.C 0.033UF 50V 10% X7R(X) 1608 R/
C878 0CH4560K412 CAPACITOR,FIXED CERAMIC(HIGH D 56PF 50V 5% NP0 1608 R/TP
C884 0CH1104K942 CAPACITOR,FIXED CERAMIC(TEMP.C 0.1UF 50V 80%,-20% Y5V(F) 1608
C885 0CH1104K942 CAPACITOR,FIXED CERAMIC(TEMP.C 0.1UF 50V 80%,-20% Y5V(F) 1608
C914 0CH1103K562 CAPACITOR,FIXED CERAMIC(TEMP.C 0.01UF 50V 10% X7R(X) 1608 R/T
C918 0CH4151K412 CAPACITOR,FIXED CERAMIC(HIGH D 150PF 50V 5% NP0 1608 R/TP
C919 0CH4181K412 CAPACITOR,FIXED CERAMIC(HIGH D 180PF 50V 5% NP0 1608 R/TP
C921 0CH4151K412 CAPACITOR,FIXED CERAMIC(HIGH D 150PF 50V 5% NP0 1608 R/TP
C923 0CH4181K412 CAPACITOR,FIXED CERAMIC(HIGH D 180PF 50V 5% NP0 1608 R/TP
C925 0CH1104K942 CAPACITOR,FIXED CERAMIC(TEMP.C 0.1UF 50V 80%,-20% Y5V(F) 1608
11-5
Page 12
SALLOCA. NO. PART NO. DESCRIPTION SPECIFICATION REMARKS
C926 0CH1104K942 CAPACITOR,FIXED CERAMIC(TEMP.C 0.1UF 50V 80%,-20% Y5V(F) 1608
C996 0CH1104K942 CAPACITOR,FIXED CERAMIC(TEMP.C 0.1UF 50V 80%,-20% Y5V(F) 1608
C9A1 0CH1102K512 CAPACITOR,FIXED CERAMIC(TEMP.C 1000PF 50V 10% B(5YP) 1608 R/T
C9A3 0CH1102K512 CAPACITOR,FIXED CERAMIC(TEMP.C 1000PF 50V 10% B(5YP) 1608 R/T
C9A5 0CH1102K512 CAPACITOR,FIXED CERAMIC(TEMP.C 1000PF 50V 10% B(5YP) 1608 R/T
C9A7 0CH1102K512 CAPACITOR,FIXED CERAMIC(TEMP.C 1000PF 50V 10% B(5YP) 1608 R/T
C9B1 0CH1104K942 CAPACITOR,FIXED CERAMIC(TEMP.C 0.1UF 50V 80%,-20% Y5V(F) 1608
D401 0DSRM00118A DIODE,SWITCHING DAP202K T146 ROHM R/TP SMD 80V
IC201 0ILNR00091A IC,LINEAR AM5869S AMTEK HSOP28 REEL TAPI
IC401 0IPRPTI064A IC,PERIPHERALS PCM1753DBQR TEXAS INSTRUMENT 1
IC402 0ILNRUC001A IC,LINEAR MC4580 UTC 8PIN,SOP R/TP 2CH O
IC402 0ILNRAU017A IC,LINEAR S4580 AUK KOREA 8PIN,SOP R/TP ALTERNATE
IC5F1 0ILNRPY001B IC,LINEAR PT6955 PTC 24PIN SOP R/TP LED
IC5F1 0IPRPG5001B IC,PERIPHERALS LG5-6955 LED DRIVER G-FIVE 24P ALTERNATE
IC601 0ILNR00090A IC,LINEAR ZR36882ELCG ZORAN 208PIN,LQFP
IC603 0IMMREO001A IC,MEMORIES EM638165TS-7G ETRON 50PIN,TSOP
IC603 0IMMRHY001M IC,MEMORIES HY57V641620ETP-7,LF HYNIX 54P ALTERNATE
IC603 0IMMREB004E IC,MEMORIES M12L64164A-7TG ESMT 54P TSOPII ALTERNATE
IC605 0ISS240210A IC,MEMORIES S524A40X21-SCT0 SOP8 TP EEPROM
IC605 0IMMRSE002A IC,MEMORIES S-24CC02A-J8T1G SEIKO 8PIN,SOP ALTERNATE
IC801 0ILNRSA013B IC,LINEAR LA72670BM-L-MPB-E SANYO 80PIN
IC901 0ILNR00048A IC,LINEAR MM1692XVBE MITSUMI 16PIN TSOP
J339 0RH0000C622 RESISTOR,METAL GLAZED(CHIP) 0 OHM 1 / 16 W 1608 5.00% D
J602 0RH1100C622 RESISTOR,METAL GLAZED(CHIP) 110 OHM 1 / 16 W 1608 5.00% D
J603 0RH1100C622 RESISTOR,METAL GLAZED(CHIP) 110 OHM 1 / 16 W 1608 5.00% D
J604 0RH1100C622 RESISTOR,METAL GLAZED(CHIP) 110 OHM 1 / 16 W 1608 5.00% D
J901 6200HJC102A FILTER(CIRC),EMC HB-1M2012-102JT CERATECH TP 3K
J902 6200HJC102A FILTER(CIRC),EMC HB-1M2012-102JT CERATECH TP 3K
J903 6200HJC102A FILTER(CIRC),EMC HB-1M2012-102JT CERATECH TP 3K
J904 0RH0000D622 RESISTOR,METAL GLAZED(CHIP) 0 OHM 1 / 10 W 2012 5.00% D
J905 0RH0000D622 RESISTOR,METAL GLAZED(CHIP) 0 OHM 1 / 10 W 2012 5.00% D
L201 6200HJC102A FILTER(CIRC),EMC HB-1M2012-102JT CERATECH TP 3K
L202 6200HJC102A FILTER(CIRC),EMC HB-1M2012-102JT CERATECH TP 3K
L203 6200HJC102A FILTER(CIRC),EMC HB-1M2012-102JT CERATECH TP 3K
L205 6200HJC102A FILTER(CIRC),EMC HB-1M2012-102JT CERATECH TP 3K
L206 6200HJC102A FILTER(CIRC),EMC HB-1M2012-102JT CERATECH TP 3K
L310 0LCCE00004L INDUCTOR,CHIP 1UH , CHIP2012 CERATECH R/TP
L601 6200S-JC01B FILTER(CIRC),EMC HB-1M2012-221JT CERATECH TP
L602 6200S-JC01B FILTER(CIRC),EMC HB-1M2012-221JT CERATECH TP
L603 6200S-JC01B FILTER(CIRC),EMC HB-1M2012-221JT CERATECH TP
L604 6200S-JC01B FILTER(CIRC),EMC HB-1M2012-221JT CERATECH TP
L605 6200S-JC01B FILTER(CIRC),EMC HB-1M2012-221JT CERATECH TP
L607 6200S-JC01B FILTER(CIRC),EMC HB-1M2012-221JT CERATECH TP
L609 6200S-JC01B FILTER(CIRC),EMC HB-1M2012-221JT CERATECH TP
L610 6200S-JC01B FILTER(CIRC),EMC HB-1M2012-221JT CERATECH TP
L6A3 0RH0000D622 RESISTOR,METAL GLAZED(CHIP) 0 OHM 1 / 10 W 2012 5.00% D
L6A5 6200S-JC01B FILTER(CIRC),EMC HB-1M2012-221JT CERATECH TP
L6A8 6200S-JC01B FILTER(CIRC),EMC HB-1M2012-221JT CERATECH TP
L6A9 6200S-JC01B FILTER(CIRC),EMC HB-1M2012-221JT CERATECH TP
L6B2 6200S-JC01B FILTER(CIRC),EMC HB-1M2012-221JT CERATECH TP
Q201 0TR103709BB TRANSISTOR,BIPOLARS 2SA1037K-Q CHIP TP ROHM - -
Q202 0TR103709BB TRANSISTOR,BIPOLARS 2SA1037K-Q CHIP TP ROHM - -
Q203 0TRKE80068A TRANSISTOR,BIPOLARS KTA1531T-Y GRADE KEC R/TP TSM
Q204 0TRKE80068A TRANSISTOR,BIPOLARS KTA1531T-Y GRADE KEC R/TP TSM
Q206 0TR150409AC TRANSISTOR,BIPOLARS KTA1504 TP KEC - -GR-T1(ASG) C
Q303 0TR103009AA TRANSISTOR,BIPOLARS CHIP KRC103S-T1(NC)22-22 TP KE
Q305 0TR387509AC TRANSISTOR,BIPOLARS CHIP KTC3875S-GR-T1(ALG) TP KE
12-5
Page 13
SALLOCA. NO. PART NO. DESCRIPTION SPECIFICATION REMARKS
Q306 0TR387509AC TRANSISTOR,BIPOLARS CHIP KTC3875S-GR-T1(ALG) TP KE
Q307 0TR103009AC TRANSISTOR,BIPOLARS KRA103S-T1(PC)22-22 CHIP TP KE
Q403 0TR103009AC TRANSISTOR,BIPOLARS KRA103S-T1(PC)22-22 CHIP TP KE
Q404 0TR103009AC TRANSISTOR,BIPOLARS KRA103S-T1(PC)22-22 CHIP TP KE
Q405 0TR103709BB TRANSISTOR,BIPOLARS 2SA1037K-Q CHIP TP ROHM - -
Q501 0TRON80009A TRANSISTOR,BIPOLARS BC846ALT1 ON SEMI(MOTOROLA) R/
Q501 0TRAU80017A TRANSISTOR,BIPOLARS 2SC5343SG AUK KOREA R/TP SOT23 ALTERNATE
Q501 0TR387509AC TRANSISTOR,BIPOLARS CHIP KTC3875S-GR-T1(ALG) TP KE ALTERNATE
Q504 0TRON80009A TRANSISTOR,BIPOLARS BC846ALT1 ON SEMI(MOTOROLA) R/
Q504 0TR387509AC TRANSISTOR,BIPOLARS CHIP KTC3875S-GR-T1(ALG) TP KE ALTERNATE
Q504 0TRAU80017A TRANSISTOR,BIPOLARS 2SC5343SG AUK KOREA R/TP SOT23 ALTERNATE
Q505 0TRON80009A TRANSISTOR,BIPOLARS BC846ALT1 ON SEMI(MOTOROLA) R/
Q505 0TR387509AC TRANSISTOR,BIPOLARS CHIP KTC3875S-GR-T1(ALG) TP KE ALTERNATE
Q505 0TRAU80017A TRANSISTOR,BIPOLARS 2SC5343SG AUK KOREA R/TP SOT23 ALTERNATE
Q507 0TR150409AC TRANSISTOR,BIPOLARS KTA1504 TP KEC - -GR-T1(ASG) C
Q601 0TR390409DA TRANSISTOR,BIPOLARS 2N3904S NPN SOT-23 TP KEC - -
Q602 0TR390409DA TRANSISTOR,BIPOLARS 2N3904S NPN SOT-23 TP KEC - -
Q603 0TR390409DA TRANSISTOR,BIPOLARS 2N3904S NPN SOT-23 TP KEC - -
Q805 0TRON80009A TRANSISTOR,BIPOLARS BC846ALT1 ON SEMI(MOTOROLA) R/
Q805 0TRAU80017A TRANSISTOR,BIPOLARS 2SC5343SG AUK KOREA R/TP SOT23 ALTERNATE
Q805 0TR387509AC TRANSISTOR,BIPOLARS CHIP KTC3875S-GR-T1(ALG) TP KE ALTERNATE
Q901 0TR387509AC TRANSISTOR,BIPOLARS CHIP KTC3875S-GR-T1(ALG) TP KE
Q901 0TRON80009A TRANSISTOR,BIPOLARS BC846ALT1 ON SEMI(MOTOROLA) R/ ALTERNATE
Q901 0TRAU80017A TRANSISTOR,BIPOLARS 2SC5343SG AUK KOREA R/TP SOT23 ALTERNATE
Q902 0TR387509AC TRANSISTOR,BIPOLARS CHIP KTC3875S-GR-T1(ALG) TP KE
Q902 0TRON80009A TRANSISTOR,BIPOLARS BC846ALT1 ON SEMI(MOTOROLA) R/ ALTERNATE
Q902 0TRAU80017A TRANSISTOR,BIPOLARS 2SC5343SG AUK KOREA R/TP SOT23 ALTERNATE
Q924 0TR150409AC TRANSISTOR,BIPOLARS KTA1504 TP KEC - -GR-T1(ASG) C
Q930 0TR387509AC TRANSISTOR,BIPOLARS CHIP KTC3875S-GR-T1(ALG) TP KE
Q930 0TRON80009A TRANSISTOR,BIPOLARS BC846ALT1 ON SEMI(MOTOROLA) R/ ALTERNATE
Q930 0TRAU80017A TRANSISTOR,BIPOLARS 2SC5343SG AUK KOREA R/TP SOT23 ALTERNATE
R201 0RJ4300C477 RESISTOR,METAL GLAZED(CHIP) 430 OHM 1/16 W 1% 1608 R/TP
R202 0RH1001C422 RESISTOR,METAL GLAZED(CHIP) 1K OHM 1 / 16 W 1608 1.00% D
R203 0RH1201C422 RESISTOR,METAL GLAZED(CHIP) 1.2K OHM 1 / 16 W 1608 1.00% D
R204 0RH0332C622 RESISTOR,METAL GLAZED(CHIP) 33 OHM 1 / 16 W 1608 5.00% D
R205 0RH2001C622 RESISTOR,METAL GLAZED(CHIP) 2K OHM 1 / 16 W 1608 5.00% D
R206 0RH1000C422 RESISTOR,METAL GLAZED(CHIP) 100 OHM 1 / 16 W 1608 1.00% D
R207 0RH1000C422 RESISTOR,METAL GLAZED(CHIP) 100 OHM 1 / 16 W 1608 1.00% D
R208 0RH1501C622 RESISTOR,METAL GLAZED(CHIP) 1.5K OHM 1 / 16 W 1608 5.00% D
R209 0RH2701C622 RESISTOR,METAL GLAZED(CHIP) 2.7K OHM 1 / 16 W 1608 5.00% D
R211 0RH1002C622 RESISTOR,METAL GLAZED(CHIP) 10K OHM 1 / 16 W 1608 5.00% D
R212 0RH0000C622 RESISTOR,METAL GLAZED(CHIP) 0 OHM 1 / 16 W 1608 5.00% D
R213 0RH2202C622 RESISTOR,METAL GLAZED(CHIP) 22K OHM 1 / 16 W 1608 5.00% D
R214 0RH0332C622 RESISTOR,METAL GLAZED(CHIP) 33 OHM 1 / 16 W 1608 5.00% D
R216 0RH2200C622 RESISTOR,METAL GLAZED(CHIP) 220 OHM 1 / 16 W 1608 5.00% D
R217 0RH0331C622 RESISTOR,METAL GLAZED(CHIP) 3.3 OHM 1 / 16 W 1608 5.00% D
R218 0RH2200C622 RESISTOR,METAL GLAZED(CHIP) 220 OHM 1 / 16 W 1608 5.00% D
R219 0RH0471C622 RESISTOR,METAL GLAZED(CHIP) 4.7 OHM 1 / 16 W 1608 5.00% D
R220 0RH4701C622 RESISTOR,METAL GLAZED(CHIP) 4.7K OHM 1 / 16 W 1608 5.00% D
R221 0RH4701C622 RESISTOR,METAL GLAZED(CHIP) 4.7K OHM 1 / 16 W 1608 5.00% D
R222 0RH1001C622 RESISTOR,METAL GLAZED(CHIP) 1K OHM 1 / 16 W 1608 5.00% D
R226 0RH2201C622 RESISTOR,METAL GLAZED(CHIP) 2.2K OHM 1 / 16 W 1608 5.00% D
R262 0RH5602C622 RESISTOR,METAL GLAZED(CHIP) 56K OHM 1 / 16 W 1608 5.00% D
R263 0RH5601C622 RESISTOR,METAL GLAZED(CHIP) 5.6K OHM 1 / 16 W 1608 5.00% D
R270 0RH3302C622 RESISTOR,METAL GLAZED(CHIP) 33K OHM 1 / 16 W 1608 5.00% D
R301 0RH1202C622 RESISTOR,METAL GLAZED(CHIP) 12K OHM 1 / 16 W 1608 5.00% D
R302 0RH3303C622 RESISTOR,METAL GLAZED(CHIP) 330K OHM 1 / 16 W 1608 5.00% D
13-5
Page 14
SALLOCA. NO. PART NO. DESCRIPTION SPECIFICATION REMARKS
R303 0RH2200C622 RESISTOR,METAL GLAZED(CHIP) 220 OHM 1 / 16 W 1608 5.00% D
R304 0RH4702C622 RESISTOR,METAL GLAZED(CHIP) 47K OHM 1 / 16 W 1608 5.00% D
R305 0RH2202C622 RESISTOR,METAL GLAZED(CHIP) 22K OHM 1 / 16 W 1608 5.00% D
R306 0RH0000C622 RESISTOR,METAL GLAZED(CHIP) 0 OHM 1 / 16 W 1608 5.00% D
R307 0RH7501C622 RESISTOR,METAL GLAZED(CHIP) 7.5K OHM 1 / 16 W 1608 5.00% D
R308 0RH0000C622 RESISTOR,METAL GLAZED(CHIP) 0 OHM 1 / 16 W 1608 5.00% D
R309 0RH1002C622 RESISTOR,METAL GLAZED(CHIP) 10K OHM 1 / 16 W 1608 5.00% D
R310 0RH1000C622 RESISTOR,METAL GLAZED(CHIP) 100 OHM 1 / 16 W 1608 5.00% D
R311 0RH2701C622 RESISTOR,METAL GLAZED(CHIP) 2.7K OHM 1 / 16 W 1608 5.00% D
R312 0RH4701C622 RESISTOR,METAL GLAZED(CHIP) 4.7K OHM 1 / 16 W 1608 5.00% D
R313 0RH1000C622 RESISTOR,METAL GLAZED(CHIP) 100 OHM 1 / 16 W 1608 5.00% D
R315 0RH2201C622 RESISTOR,METAL GLAZED(CHIP) 2.2K OHM 1 / 16 W 1608 5.00% D
R316 0RH2701C622 RESISTOR,METAL GLAZED(CHIP) 2.7K OHM 1 / 16 W 1608 5.00% D
R317 0RH4701C622 RESISTOR,METAL GLAZED(CHIP) 4.7K OHM 1 / 16 W 1608 5.00% D
R319 0RH0752C622 RESISTOR,METAL GLAZED(CHIP) 75 OHM 1 / 16 W 1608 5.00% D
R320 0RH4701C622 RESISTOR,METAL GLAZED(CHIP) 4.7K OHM 1 / 16 W 1608 5.00% D
R322 0RH8202C622 RESISTOR,METAL GLAZED(CHIP) 82K OHM 1 / 16 W 1608 5.00% D
R323 0RH6801C622 RESISTOR,METAL GLAZED(CHIP) 6.8K OHM 1 / 16 W 1608 5.00% D
R324 0RH1501C622 RESISTOR,METAL GLAZED(CHIP) 1.5K OHM 1 / 16 W 1608 5.00% D
R325 0RH4701C622 RESISTOR,METAL GLAZED(CHIP) 4.7K OHM 1 / 16 W 1608 5.00% D
R326 0RH1002C622 RESISTOR,METAL GLAZED(CHIP) 10K OHM 1 / 16 W 1608 5.00% D
R328 0RH1502C622 RESISTOR,METAL GLAZED(CHIP) 15K OHM 1 / 16 W 1608 5.00% D
R332 0RH1001C622 RESISTOR,METAL GLAZED(CHIP) 1K OHM 1 / 16 W 1608 5.00% D
R333 0RH5601C622 RESISTOR,METAL GLAZED(CHIP) 5.6K OHM 1 / 16 W 1608 5.00% D
R337 0RH6801C622 RESISTOR,METAL GLAZED(CHIP) 6.8K OHM 1 / 16 W 1608 5.00% D
R338 0RH5601C622 RESISTOR,METAL GLAZED(CHIP) 5.6K OHM 1 / 16 W 1608 5.00% D
R339 0RJ6804C677 RESISTOR,METAL GLAZED(CHIP) 6.8M OHM 1/16 W 5% 1608 R/TP
R340 0RH0000C622 RESISTOR,METAL GLAZED(CHIP) 0 OHM 1 / 16 W 1608 5.00% D
R341 0RH0000C622 RESISTOR,METAL GLAZED(CHIP) 0 OHM 1 / 16 W 1608 5.00% D
R3J1 0RH0000C622 RESISTOR,METAL GLAZED(CHIP) 0 OHM 1 / 16 W 1608 5.00% D
R403 0RH4700C622 RESISTOR,METAL GLAZED(CHIP) 470 OHM 1 / 16 W 1608 5.00% D
R404 0RH1002C622 RESISTOR,METAL GLAZED(CHIP) 10K OHM 1 / 16 W 1608 5.00% D
R405 0RH4701C622 RESISTOR,METAL GLAZED(CHIP) 4.7K OHM 1 / 16 W 1608 5.00% D
R406 0RH4701C622 RESISTOR,METAL GLAZED(CHIP) 4.7K OHM 1 / 16 W 1608 5.00% D
R407 0RH5601C622 RESISTOR,METAL GLAZED(CHIP) 5.6K OHM 1 / 16 W 1608 5.00% D
R408 0RH4701C622 RESISTOR,METAL GLAZED(CHIP) 4.7K OHM 1 / 16 W 1608 5.00% D
R409 0RH1502C622 RESISTOR,METAL GLAZED(CHIP) 15K OHM 1 / 16 W 1608 5.00% D
R410 0RH6801C622 RESISTOR,METAL GLAZED(CHIP) 6.8K OHM 1 / 16 W 1608 5.00% D
R411 0RH1001C622 RESISTOR,METAL GLAZED(CHIP) 1K OHM 1 / 16 W 1608 5.00% D
R412 0RH6801C622 RESISTOR,METAL GLAZED(CHIP) 6.8K OHM 1 / 16 W 1608 5.00% D
R413 0RH1502C622 RESISTOR,METAL GLAZED(CHIP) 15K OHM 1 / 16 W 1608 5.00% D
R414 0RH3300C622 RESISTOR,METAL GLAZED(CHIP) 330 OHM 1 / 16 W 1608 5.00% D
R415 0RH3300C622 RESISTOR,METAL GLAZED(CHIP) 330 OHM 1 / 16 W 1608 5.00% D
R416 0RH1001C622 RESISTOR,METAL GLAZED(CHIP) 1K OHM 1 / 16 W 1608 5.00% D
R417 0RH1001C622 RESISTOR,METAL GLAZED(CHIP) 1K OHM 1 / 16 W 1608 5.00% D
R418 0RH1001C622 RESISTOR,METAL GLAZED(CHIP) 1K OHM 1 / 16 W 1608 5.00% D
R419 0RH1001C622 RESISTOR,METAL GLAZED(CHIP) 1K OHM 1 / 16 W 1608 5.00% D
R422 0RH0222C622 RESISTOR,METAL GLAZED(CHIP) 22 OHM 1 / 16 W 1608 5.00% D
R423 0RH0472C622 RESISTOR,METAL GLAZED(CHIP) 47 OHM 1 / 16 W 1608 5.00% D
R424 0RH0472C622 RESISTOR,METAL GLAZED(CHIP) 47 OHM 1 / 16 W 1608 5.00% D
R425 0RH0472C622 RESISTOR,METAL GLAZED(CHIP) 47 OHM 1 / 16 W 1608 5.00% D
R501 0RH1000C622 RESISTOR,METAL GLAZED(CHIP) 100 OHM 1 / 16 W 1608 5.00% D
R502 0RH1000C622 RESISTOR,METAL GLAZED(CHIP) 100 OHM 1 / 16 W 1608 5.00% D
R504 0RH1001C622 RESISTOR,METAL GLAZED(CHIP) 1K OHM 1 / 16 W 1608 5.00% D
R505 0RH1001C622 RESISTOR,METAL GLAZED(CHIP) 1K OHM 1 / 16 W 1608 5.00% D
R507 0RH4701C622 RESISTOR,METAL GLAZED(CHIP) 4.7K OHM 1 / 16 W 1608 5.00% D
R508 0RH2702C622 RESISTOR,METAL GLAZED(CHIP) 27K OHM 1 / 16 W 1608 5.00% D
14-5
Page 15
SALLOCA. NO. PART NO. DESCRIPTION SPECIFICATION REMARKS
R509 0RH5600C622 RESISTOR,METAL GLAZED(CHIP) 560 OHM 1 / 16 W 1608 5.00% D
R511 0RH1001C622 RESISTOR,METAL GLAZED(CHIP) 1K OHM 1 / 16 W 1608 5.00% D
R512 0RH1001C622 RESISTOR,METAL GLAZED(CHIP) 1K OHM 1 / 16 W 1608 5.00% D
R513 0RH3300C622 RESISTOR,METAL GLAZED(CHIP) 330 OHM 1 / 16 W 1608 5.00% D
R515 0RH2700C622 RESISTOR,METAL GLAZED(CHIP) 270 OHM 1 / 16 W 1608 5.00% D
R516 0RH5602C622 RESISTOR,METAL GLAZED(CHIP) 56K OHM 1 / 16 W 1608 5.00% D
R518 0RH1000C622 RESISTOR,METAL GLAZED(CHIP) 100 OHM 1 / 16 W 1608 5.00% D
R519 0RH1000C622 RESISTOR,METAL GLAZED(CHIP) 100 OHM 1 / 16 W 1608 5.00% D
R520 0RH1000C622 RESISTOR,METAL GLAZED(CHIP) 100 OHM 1 / 16 W 1608 5.00% D
R521 0RH2701C622 RESISTOR,METAL GLAZED(CHIP) 2.7K OHM 1 / 16 W 1608 5.00% D
R522 0RH1001C622 RESISTOR,METAL GLAZED(CHIP) 1K OHM 1 / 16 W 1608 5.00% D
R523 0RH5601C622 RESISTOR,METAL GLAZED(CHIP) 5.6K OHM 1 / 16 W 1608 5.00% D
R525 0RH1002C622 RESISTOR,METAL GLAZED(CHIP) 10K OHM 1 / 16 W 1608 5.00% D
R526 0RH1002C622 RESISTOR,METAL GLAZED(CHIP) 10K OHM 1 / 16 W 1608 5.00% D
R528 0RH2701C622 RESISTOR,METAL GLAZED(CHIP) 2.7K OHM 1 / 16 W 1608 5.00% D
R529 0RH1002C622 RESISTOR,METAL GLAZED(CHIP) 10K OHM 1 / 16 W 1608 5.00% D
R531 0RH4701C622 RESISTOR,METAL GLAZED(CHIP) 4.7K OHM 1 / 16 W 1608 5.00% D
R533 0RH1002C622 RESISTOR,METAL GLAZED(CHIP) 10K OHM 1 / 16 W 1608 5.00% D
R534 0RH1002C622 RESISTOR,METAL GLAZED(CHIP) 10K OHM 1 / 16 W 1608 5.00% D
R535 0RH4701C622 RESISTOR,METAL GLAZED(CHIP) 4.7K OHM 1 / 16 W 1608 5.00% D
R536 0RH1001C622 RESISTOR,METAL GLAZED(CHIP) 1K OHM 1 / 16 W 1608 5.00% D
R537 0RH4701C622 RESISTOR,METAL GLAZED(CHIP) 4.7K OHM 1 / 16 W 1608 5.00% D
R538 0RH1001C622 RESISTOR,METAL GLAZED(CHIP) 1K OHM 1 / 16 W 1608 5.00% D
R541 0RH2201C622 RESISTOR,METAL GLAZED(CHIP) 2.2K OHM 1 / 16 W 1608 5.00% D
R544 0RH1003C622 RESISTOR,METAL GLAZED(CHIP) 100K OHM 1 / 16 W 1608 5.00% D
R546 0RH4701C622 RESISTOR,METAL GLAZED(CHIP) 4.7K OHM 1 / 16 W 1608 5.00% D
R547 0RH1002C622 RESISTOR,METAL GLAZED(CHIP) 10K OHM 1 / 16 W 1608 5.00% D
R550 0RH2200C622 RESISTOR,METAL GLAZED(CHIP) 220 OHM 1 / 16 W 1608 5.00% D
R553 0RH2200C622 RESISTOR,METAL GLAZED(CHIP) 220 OHM 1 / 16 W 1608 5.00% D
R554 0RH1004C622 RESISTOR,METAL GLAZED(CHIP) 1M OHM 1 / 16 W 1608 5.00% D
R555 0RH2200C622 RESISTOR,METAL GLAZED(CHIP) 220 OHM 1 / 16 W 1608 5.00% D
R556 0RH2202C622 RESISTOR,METAL GLAZED(CHIP) 22K OHM 1 / 16 W 1608 5.00% D
R557 0RH2702C622 RESISTOR,METAL GLAZED(CHIP) 27K OHM 1 / 16 W 1608 5.00% D
R558 0RH2202C622 RESISTOR,METAL GLAZED(CHIP) 22K OHM 1 / 16 W 1608 5.00% D
R563 0RH4701C622 RESISTOR,METAL GLAZED(CHIP) 4.7K OHM 1 / 16 W 1608 5.00% D
R564 0RH2702C622 RESISTOR,METAL GLAZED(CHIP) 27K OHM 1 / 16 W 1608 5.00% D
R566 0RH2701C622 RESISTOR,METAL GLAZED(CHIP) 2.7K OHM 1 / 16 W 1608 5.00% D
R569 0RH4701C622 RESISTOR,METAL GLAZED(CHIP) 4.7K OHM 1 / 16 W 1608 5.00% D
R570 0RH4701C622 RESISTOR,METAL GLAZED(CHIP) 4.7K OHM 1 / 16 W 1608 5.00% D
R571 0RH2200C622 RESISTOR,METAL GLAZED(CHIP) 220 OHM 1 / 16 W 1608 5.00% D
R575 0RH4701C622 RESISTOR,METAL GLAZED(CHIP) 4.7K OHM 1 / 16 W 1608 5.00% D
R576 0RH4701C622 RESISTOR,METAL GLAZED(CHIP) 4.7K OHM 1 / 16 W 1608 5.00% D
R577 0RH4701C622 RESISTOR,METAL GLAZED(CHIP) 4.7K OHM 1 / 16 W 1608 5.00% D
R578 0RH4701C622 RESISTOR,METAL GLAZED(CHIP) 4.7K OHM 1 / 16 W 1608 5.00% D
R579 0RH5602C622 RESISTOR,METAL GLAZED(CHIP) 56K OHM 1 / 16 W 1608 5.00% D
R580 0RH1202C622 RESISTOR,METAL GLAZED(CHIP) 12K OHM 1 / 16 W 1608 5.00% D
R581 0RH2201C622 RESISTOR,METAL GLAZED(CHIP) 2.2K OHM 1 / 16 W 1608 5.00% D
R582 0RH4701C622 RESISTOR,METAL GLAZED(CHIP) 4.7K OHM 1 / 16 W 1608 5.00% D
R583 0RH1002C622 RESISTOR,METAL GLAZED(CHIP) 10K OHM 1 / 16 W 1608 5.00% D
R586 0RH1801C622 RESISTOR,METAL GLAZED(CHIP) 1.8K OHM 1 / 16 W 1608 5.00% D
R587 0RH1801C622 RESISTOR,METAL GLAZED(CHIP) 1.8K OHM 1 / 16 W 1608 5.00% D
R588 0RH3301C622 RESISTOR,METAL GLAZED(CHIP) 3.3K OHM 1 / 16 W 1608 5.00% D
R589 0RH1501C622 RESISTOR,METAL GLAZED(CHIP) 1.5K OHM 1 / 16 W 1608 5.00% D
R592 0RH1002C622 RESISTOR,METAL GLAZED(CHIP) 10K OHM 1 / 16 W 1608 5.00% D
R593 0RH1002C622 RESISTOR,METAL GLAZED(CHIP) 10K OHM 1 / 16 W 1608 5.00% D
R594 0RH1001C622 RESISTOR,METAL GLAZED(CHIP) 1K OHM 1 / 16 W 1608 5.00% D
R595 0RH1001C622 RESISTOR,METAL GLAZED(CHIP) 1K OHM 1 / 16 W 1608 5.00% D
15-5
Page 16
SALLOCA. NO. PART NO. DESCRIPTION SPECIFICATION REMARKS
R596 0RH1002C622 RESISTOR,METAL GLAZED(CHIP) 10K OHM 1 / 16 W 1608 5.00% D
R597 0RH2201C622 RESISTOR,METAL GLAZED(CHIP) 2.2K OHM 1 / 16 W 1608 5.00% D
R598 0RH1201C622 RESISTOR,METAL GLAZED(CHIP) 1.2K OHM 1 / 16 W 1608 5.00% D
R599 0RH1001C622 RESISTOR,METAL GLAZED(CHIP) 1K OHM 1 / 16 W 1608 5.00% D
R5C6 0RH1001C622 RESISTOR,METAL GLAZED(CHIP) 1K OHM 1 / 16 W 1608 5.00% D
R5C7 0RH1001C622 RESISTOR,METAL GLAZED(CHIP) 1K OHM 1 / 16 W 1608 5.00% D
R5D1 0RH0000C622 RESISTOR,METAL GLAZED(CHIP) 0 OHM 1 / 16 W 1608 5.00% D
R5D2 0RH1001C622 RESISTOR,METAL GLAZED(CHIP) 1K OHM 1 / 16 W 1608 5.00% D
R5D3 0RH1001C622 RESISTOR,METAL GLAZED(CHIP) 1K OHM 1 / 16 W 1608 5.00% D
R5D4 0RH1001C622 RESISTOR,METAL GLAZED(CHIP) 1K OHM 1 / 16 W 1608 5.00% D
R5D5 0RH1001C622 RESISTOR,METAL GLAZED(CHIP) 1K OHM 1 / 16 W 1608 5.00% D
R5K1 0RH6800C622 RESISTOR,METAL GLAZED(CHIP) 680 OHM 1 / 16 W 1608 5.00% D
R5K2 0RH8200C622 RESISTOR,METAL GLAZED(CHIP) 820 OHM 1 / 16 W 1608 5.00% D
R5K3 0RH1201C622 RESISTOR,METAL GLAZED(CHIP) 1.2K OHM 1 / 16 W 1608 5.00% D
R5K4 0RH1501C622 RESISTOR,METAL GLAZED(CHIP) 1.5K OHM 1 / 16 W 1608 5.00% D
R5K5 0RH2201C622 RESISTOR,METAL GLAZED(CHIP) 2.2K OHM 1 / 16 W 1608 5.00% D
R5L1 0RH0752C622 RESISTOR,METAL GLAZED(CHIP) 75 OHM 1 / 16 W 1608 5.00% D
R601 0RH3902C622 RESISTOR,METAL GLAZED(CHIP) 39K OHM 1 / 16 W 1608 5.00% D
R602 0RH1502C622 RESISTOR,METAL GLAZED(CHIP) 15K OHM 1 / 16 W 1608 5.00% D
R604 0RH4302C622 RESISTOR,METAL GLAZED(CHIP) 43K OHM 1 / 16 W 1608 5.00% D
R605 0RH2002C422 RESISTOR,METAL GLAZED(CHIP) 20K OHM 1 / 16 W 1608 1.00% D
R606 0RH0000C622 RESISTOR,METAL GLAZED(CHIP) 0 OHM 1 / 16 W 1608 5.00% D
R607 0RH0912C622 RESISTOR,METAL GLAZED(CHIP) 91 OHM 1 / 16 W 1608 5.00% D
R608 0RH0912C622 RESISTOR,METAL GLAZED(CHIP) 91 OHM 1 / 16 W 1608 5.00% D
R609 0RH0752C422 RESISTOR,METAL GLAZED(CHIP) 75 OHM 1 / 16 W 1608 1.00% D
R610 0RH0752C422 RESISTOR,METAL GLAZED(CHIP) 75 OHM 1 / 16 W 1608 1.00% D
R611 0RH0752C422 RESISTOR,METAL GLAZED(CHIP) 75 OHM 1 / 16 W 1608 1.00% D
R612 0RH0752C422 RESISTOR,METAL GLAZED(CHIP) 75 OHM 1 / 16 W 1608 1.00% D
R613 0RJ3920C477 RESISTOR,METAL GLAZED(CHIP) 392 OHM 1/16 W 1% 1608 R/TP
R614 0RH0752C422 RESISTOR,METAL GLAZED(CHIP) 75 OHM 1 / 16 W 1608 1.00% D
R621 0RH2201C622 RESISTOR,METAL GLAZED(CHIP) 2.2K OHM 1 / 16 W 1608 5.00% D
R623 0RH4701C622 RESISTOR,METAL GLAZED(CHIP) 4.7K OHM 1 / 16 W 1608 5.00% D
R624 0RH0332C622 RESISTOR,METAL GLAZED(CHIP) 33 OHM 1 / 16 W 1608 5.00% D
R625 0RH0332C622 RESISTOR,METAL GLAZED(CHIP) 33 OHM 1 / 16 W 1608 5.00% D
R626 0RH0332C622 RESISTOR,METAL GLAZED(CHIP) 33 OHM 1 / 16 W 1608 5.00% D
R628 0RH4701C622 RESISTOR,METAL GLAZED(CHIP) 4.7K OHM 1 / 16 W 1608 5.00% D
R629 0LC11608D01 INDUCTOR,CHIP HB-1M1608-121JT CERATECH R/TP
R629 0LCCE00003D INDUCTOR,CHIP HB-1M1608-121JT 120 OHM CERATE ALTERNATE
R630 0RH1000C622 RESISTOR,METAL GLAZED(CHIP) 100 OHM 1 / 16 W 1608 5.00% D
R631 0RH1000C622 RESISTOR,METAL GLAZED(CHIP) 100 OHM 1 / 16 W 1608 5.00% D
R632 0RH4701C622 RESISTOR,METAL GLAZED(CHIP) 4.7K OHM 1 / 16 W 1608 5.00% D
R633 0RH4701C622 RESISTOR,METAL GLAZED(CHIP) 4.7K OHM 1 / 16 W 1608 5.00% D
R634 0RH0000C622 RESISTOR,METAL GLAZED(CHIP) 0 OHM 1 / 16 W 1608 5.00% D
R636 0RH0000C622 RESISTOR,METAL GLAZED(CHIP) 0 OHM 1 / 16 W 1608 5.00% D
R638 0RH4701C622 RESISTOR,METAL GLAZED(CHIP) 4.7K OHM 1 / 16 W 1608 5.00% D
R639 0RH2001C622 RESISTOR,METAL GLAZED(CHIP) 2K OHM 1 / 16 W 1608 5.00% D
R640 0RH2001C622 RESISTOR,METAL GLAZED(CHIP) 2K OHM 1 / 16 W 1608 5.00% D
R641 0RH4701C622 RESISTOR,METAL GLAZED(CHIP) 4.7K OHM 1 / 16 W 1608 5.00% D
R642 0RH4701C622 RESISTOR,METAL GLAZED(CHIP) 4.7K OHM 1 / 16 W 1608 5.00% D
R643 0RH4701C622 RESISTOR,METAL GLAZED(CHIP) 4.7K OHM 1 / 16 W 1608 5.00% D
R644 0RH7501C622 RESISTOR,METAL GLAZED(CHIP) 7.5K OHM 1 / 16 W 1608 5.00% D
R646 0RH4701C622 RESISTOR,METAL GLAZED(CHIP) 4.7K OHM 1 / 16 W 1608 5.00% D
R649 0RH4700C622 RESISTOR,METAL GLAZED(CHIP) 470 OHM 1 / 16 W 1608 5.00% D
R650 0RH4700C622 RESISTOR,METAL GLAZED(CHIP) 470 OHM 1 / 16 W 1608 5.00% D
R651 0RH3302C622 RESISTOR,METAL GLAZED(CHIP) 33K OHM 1 / 16 W 1608 5.00% D
R658 0RH4700C622 RESISTOR,METAL GLAZED(CHIP) 470 OHM 1 / 16 W 1608 5.00% D
R660 0RH0332C622 RESISTOR,METAL GLAZED(CHIP) 33 OHM 1 / 16 W 1608 5.00% D
16-5
Page 17
SALLOCA. NO. PART NO. DESCRIPTION SPECIFICATION REMARKS
R661 0RH4701C622 RESISTOR,METAL GLAZED(CHIP) 4.7K OHM 1 / 16 W 1608 5.00% D
R670 0RH0332C622 RESISTOR,METAL GLAZED(CHIP) 33 OHM 1 / 16 W 1608 5.00% D
R671 0RH0332C622 RESISTOR,METAL GLAZED(CHIP) 33 OHM 1 / 16 W 1608 5.00% D
R682 0RH4701C622 RESISTOR,METAL GLAZED(CHIP) 4.7K OHM 1 / 16 W 1608 5.00% D
R683 0RH4700C622 RESISTOR,METAL GLAZED(CHIP) 470 OHM 1 / 16 W 1608 5.00% D
R684 0RH3301C622 RESISTOR,METAL GLAZED(CHIP) 3.3K OHM 1 / 16 W 1608 5.00% D
R685 0RH3301C622 RESISTOR,METAL GLAZED(CHIP) 3.3K OHM 1 / 16 W 1608 5.00% D
R686 0RH3301C622 RESISTOR,METAL GLAZED(CHIP) 3.3K OHM 1 / 16 W 1608 5.00% D
R687 0RH0000C622 RESISTOR,METAL GLAZED(CHIP) 0 OHM 1 / 16 W 1608 5.00% D
R688 0RH0000C622 RESISTOR,METAL GLAZED(CHIP) 0 OHM 1 / 16 W 1608 5.00% D
R690 0RH0752C422 RESISTOR,METAL GLAZED(CHIP) 75 OHM 1 / 16 W 1608 1.00% D
R691 0RH1003C622 RESISTOR,METAL GLAZED(CHIP) 100K OHM 1 / 16 W 1608 5.00% D
R694 0RH0332C622 RESISTOR,METAL GLAZED(CHIP) 33 OHM 1 / 16 W 1608 5.00% D
R696 0RH0332C622 RESISTOR,METAL GLAZED(CHIP) 33 OHM 1 / 16 W 1608 5.00% D
R697 0RH0332C622 RESISTOR,METAL GLAZED(CHIP) 33 OHM 1 / 16 W 1608 5.00% D
R698 0RH1001C622 RESISTOR,METAL GLAZED(CHIP) 1K OHM 1 / 16 W 1608 5.00% D
R6A1 0RH1003C622 RESISTOR,METAL GLAZED(CHIP) 100K OHM 1 / 16 W 1608 5.00% D
R6A2 0RH0000C622 RESISTOR,METAL GLAZED(CHIP) 0 OHM 1 / 16 W 1608 5.00% D
R702 0RH1001C622 RESISTOR,METAL GLAZED(CHIP) 1K OHM 1 / 16 W 1608 5.00% D
R706 0RH6800C622 RESISTOR,METAL GLAZED(CHIP) 680 OHM 1 / 16 W 1608 5.00% D
R707 0RH6800C622 RESISTOR,METAL GLAZED(CHIP) 680 OHM 1 / 16 W 1608 5.00% D
R708 0RH1001C622 RESISTOR,METAL GLAZED(CHIP) 1K OHM 1 / 16 W 1608 5.00% D
R711 0RH1001C622 RESISTOR,METAL GLAZED(CHIP) 1K OHM 1 / 16 W 1608 5.00% D
R714 0RH2201C622 RESISTOR,METAL GLAZED(CHIP) 2.2K OHM 1 / 16 W 1608 5.00% D
R801 0RH1000C622 RESISTOR,METAL GLAZED(CHIP) 100 OHM 1 / 16 W 1608 5.00% D
R802 0RH4702C622 RESISTOR,METAL GLAZED(CHIP) 47K OHM 1 / 16 W 1608 5.00% D
R804 0RH4701C622 RESISTOR,METAL GLAZED(CHIP) 4.7K OHM 1 / 16 W 1608 5.00% D
R805 0RH4702C622 RESISTOR,METAL GLAZED(CHIP) 47K OHM 1 / 16 W 1608 5.00% D
R806 0RH6801C622 RESISTOR,METAL GLAZED(CHIP) 6.8K OHM 1 / 16 W 1608 5.00% D
R807 0RH5602C622 RESISTOR,METAL GLAZED(CHIP) 56K OHM 1 / 16 W 1608 5.00% D
R808 0RH2201C622 RESISTOR,METAL GLAZED(CHIP) 2.2K OHM 1 / 16 W 1608 5.00% D
R809 0RH1800C622 RESISTOR,METAL GLAZED(CHIP) 180 OHM 1 / 16 W 1608 5.00% D
R810 0RH1801C622 RESISTOR,METAL GLAZED(CHIP) 1.8K OHM 1 / 16 W 1608 5.00% D
R811 0RH5602C622 RESISTOR,METAL GLAZED(CHIP) 56K OHM 1 / 16 W 1608 5.00% D
R812 0RH6801C622 RESISTOR,METAL GLAZED(CHIP) 6.8K OHM 1 / 16 W 1608 5.00% D
R813 0RH5602C622 RESISTOR,METAL GLAZED(CHIP) 56K OHM 1 / 16 W 1608 5.00% D
R814 0RH6801C622 RESISTOR,METAL GLAZED(CHIP) 6.8K OHM 1 / 16 W 1608 5.00% D
R817 0RH1502C622 RESISTOR,METAL GLAZED(CHIP) 15K OHM 1 / 16 W 1608 5.00% D
R818 0RH4701C622 RESISTOR,METAL GLAZED(CHIP) 4.7K OHM 1 / 16 W 1608 5.00% D
R821 0RH1002C622 RESISTOR,METAL GLAZED(CHIP) 10K OHM 1 / 16 W 1608 5.00% D
R822 0RH1003C622 RESISTOR,METAL GLAZED(CHIP) 100K OHM 1 / 16 W 1608 5.00% D
R823 0RH3002C622 RESISTOR,METAL GLAZED(CHIP) 30K OHM 1 / 16 W 1608 5.00% D
R836 0RH4700C622 RESISTOR,METAL GLAZED(CHIP) 470 OHM 1 / 16 W 1608 5.00% D
R838 0RH2701C622 RESISTOR,METAL GLAZED(CHIP) 2.7K OHM 1 / 16 W 1608 5.00% D
R839 0RH3902C622 RESISTOR,METAL GLAZED(CHIP) 39K OHM 1 / 16 W 1608 5.00% D
R842 0RH1000C622 RESISTOR,METAL GLAZED(CHIP) 100 OHM 1 / 16 W 1608 5.00% D
R843 0RH1000C622 RESISTOR,METAL GLAZED(CHIP) 100 OHM 1 / 16 W 1608 5.00% D
R844 0RH1000C622 RESISTOR,METAL GLAZED(CHIP) 100 OHM 1 / 16 W 1608 5.00% D
R845 0RH1000C622 RESISTOR,METAL GLAZED(CHIP) 100 OHM 1 / 16 W 1608 5.00% D
R851 0RH1000C622 RESISTOR,METAL GLAZED(CHIP) 100 OHM 1 / 16 W 1608 5.00% D
R856 0RH6801C622 RESISTOR,METAL GLAZED(CHIP) 6.8K OHM 1 / 16 W 1608 5.00% D
R857 0RH5602C622 RESISTOR,METAL GLAZED(CHIP) 56K OHM 1 / 16 W 1608 5.00% D
R858 0RH4702C622 RESISTOR,METAL GLAZED(CHIP) 47K OHM 1 / 16 W 1608 5.00% D
R866 0RH4702C622 RESISTOR,METAL GLAZED(CHIP) 47K OHM 1 / 16 W 1608 5.00% D
R867 0RH1502C622 RESISTOR,METAL GLAZED(CHIP) 15K OHM 1 / 16 W 1608 5.00% D
R874 0RH4701C622 RESISTOR,METAL GLAZED(CHIP) 4.7K OHM 1 / 16 W 1608 5.00% D
R8J1 0RH0000C622 RESISTOR,METAL GLAZED(CHIP) 0 OHM 1 / 16 W 1608 5.00% D
17-5
Page 18
SALLOCA. NO. PART NO. DESCRIPTION SPECIFICATION REMARKS
R901 0RH0752C622 RESISTOR,METAL GLAZED(CHIP) 75 OHM 1 / 16 W 1608 5.00% D
R902 0RH8202C622 RESISTOR,METAL GLAZED(CHIP) 82K OHM 1 / 16 W 1608 5.00% D
R903 0RH8202C622 RESISTOR,METAL GLAZED(CHIP) 82K OHM 1 / 16 W 1608 5.00% D
R904 0RH0752C622 RESISTOR,METAL GLAZED(CHIP) 75 OHM 1 / 16 W 1608 5.00% D
R905 0RH1001C622 RESISTOR,METAL GLAZED(CHIP) 1K OHM 1 / 16 W 1608 5.00% D
R906 0RH1001C622 RESISTOR,METAL GLAZED(CHIP) 1K OHM 1 / 16 W 1608 5.00% D
R910 0RH2700C622 RESISTOR,METAL GLAZED(CHIP) 270 OHM 1 / 16 W 1608 5.00% D
R912 0RH2700C622 RESISTOR,METAL GLAZED(CHIP) 270 OHM 1 / 16 W 1608 5.00% D
R928 0RH1001C622 RESISTOR,METAL GLAZED(CHIP) 1K OHM 1 / 16 W 1608 5.00% D
R931 0RH0752C622 RESISTOR,METAL GLAZED(CHIP) 75 OHM 1 / 16 W 1608 5.00% D
R933 0RH0752C622 RESISTOR,METAL GLAZED(CHIP) 75 OHM 1 / 16 W 1608 5.00% D
R934 0RH0752C622 RESISTOR,METAL GLAZED(CHIP) 75 OHM 1 / 16 W 1608 5.00% D
R935 0RH0752C622 RESISTOR,METAL GLAZED(CHIP) 75 OHM 1 / 16 W 1608 5.00% D
R936 0RH0752C622 RESISTOR,METAL GLAZED(CHIP) 75 OHM 1 / 16 W 1608 5.00% D
X301 6212AB2359C RESONATOR,CRYSTAL HC-49/SM BUBANG 3.579545MHZ +/
X301 6212AB2359E RESONATOR,CRYSTAL HC-49/SM CSC(SSANGTAI) 3.57954 ALTERNATE
CN603 561-036A CONNECTOR (CIRC),WAFER MA V 8283-0212 WH ELCO
CS5D1 6600M000026 SWITCH,PUSH MPU12970MLB0 VCR CST IN S/W MI
ES501 4931R-0085C HOLDER ASSEMBLY VCR DECK/MECHA END(S)
ES502 4931R-0085C HOLDER ASSEMBLY VCR DECK/MECHA END(S)
IC501 0IMCRMI105C IC,MICRO CONTROLLER M3776AMCH-1D6GP 3RD RENESAS 10
JK5L1 6612J00053A JACK,RCA DPAE-0385 DOOWON RGB 2004 CO
LD501 4931R-0089C HOLDER ASSEMBLY VCR DECK/MECHA END(S)
LED501 6301R2U011A LED ASSEMBLY TOS-366AGMGMRMY-B OASIS UNIVER
MS501 6600JR3002D SWITCH,MODE SSS-51MD-3 SHINMEI 5VDC 1MA D3
MS501 6600JR3002E SWITCH,MODE MMS01080ZMBO MIC 5VDC 1MA D37 ALTERNATE
PMC01 6630BK01612 CONNECTOR (CIRC),BOARD TO BOAR JE612-A2T-12A JAE EUN 12P 2.0M
RC501 6712R1938EA REMOTE CONTROLLER RECEIVER TSOP2238AY VISHAY 38KHZ LGEDI
RC501 6712R1938HA REMOTE CONTROLLER RECEIVER 356VF4 OPTO 38.0KHZ 19MM(356VF ALTERNATE
RS501 6500RAB008A SENSOR KIT-3001A REEL SENSOR KODENSHI
RS502 6500RAB008A SENSOR KIT-3001A REEL SENSOR KODENSHI
X501 6202R-DA01B RESONATOR,CRYSTAL CFS-308 CITIZEN 32.768KHZ +/-
X501 6212AC2327E RESONATOR,CRYSTAL C-001R SEIKO EPSON 32.768 KHZ ALTERNATE
*** DECK ASSEMBLY,DVD ***
A26 6721RFD090B DECK ASSEMBLY,DVD DVD DP-10C ZORAN882 COMBI - DI NSP
430 1SZZR-0064B SCREW,DRAWING + 1 D1.7 L7.0 SWCH18A/BZN DP8
A02 3041R-D040A BASE ASSEMBLY DP-10C LOADING
013 4400R-0006B BELT DECK/MECHA DP2-5, DP7C,DP7A OT
014 4470R-0154A GEAR DECK/MECHA DP8 PULLEY MOLD
015 4681R-A015A MOTOR ASSEMBLY DECK/MECHA LOADING DP-9 SH
017 4470R-0176A GEAR DVD DP-9 LOADING MOLD
018 4974R-0067A GUIDE DVD DP-9C UP/DOWN MOLD
019 3210R-M008A FRAME DP-9C UP/DOWN MOLD
020 3040R-M064A BASE MAIN DP-9C MOLD
435 1SZZR-0011A SCREW,DRAWING MACHINE
439 1SZZR-0075A SCREW,DRAWING + 1 D1.7 L10.0 SWRCH18A/FZW DP
440 1SZZH-1007B SCREW,DRAWING + D2.0 6MM SWRCH16A/ZNBK 4MM 1
015A 4680R-E008A MOTOR(MECH) FEEDING RF-300EA-1D390 MABUCHI NSP
015B 4560R-0008A PULLEY MOTOR
016 6871R-9297A PWB(PCB) ASSEMBLY,TOTAL DP-10C LOADING/FEEDING
A03 3041R-M075B BASE ASSEMBLY DP-10C FEEDING (MTK 1389E, ZOR
010 6850R-JW23Z CABLE,FLAT P=1.0 FFC UL2896(0.035X0.7) 23
021 4681R-B009C MOTOR ASSEMBLY DECK/MECHA DP-10 FEEDING
024 4470R-0179A GEAR DVD DP-9 PINION MOLD
025 4470R-0178A GEAR DVD DP-9 MIDDLE MOLD
030 4470R-0180A GEAR DVD DP-9 RACK MOLD
036 4370R-0136A SHAFT DVD PU, DR-02 SUS-420J2 OTHER
18-5
Page 19
SALLOCA. NO. PART NO. DESCRIPTION SPECIFICATION REMARKS
431 1SZZR-0062A SCREW,DRAWING + 1 D1.7 L4.5 SWCH18A/NI DP8 P
432 1SZZR-0072A SCREW,DRAWING + 1 D1.7 L4.5 SWRCH18A/FZY DP8
435 1SZZR-0011A SCREW,DRAWING MACHINE
439 1SZZR-0075A SCREW,DRAWING + 1 D1.7 L10.0 SWRCH18A/FZW DP
026 3390R-0030A TRAY DVD DP-9C DISK MOLD
A01 4861R-0016B CLAMP ASSEMBLY DISC DP7 - SH
001 3300R-0547A PLATE CLAMP NSP
002 5016H-1016B MAGNET CLAMP(LDM-R608,10*5,1*1.5T) NSP
003 4860R-0021A CLAMP UPPER DP7 NSP
012 5040R-0083A RUBBER DVD DP-6, DP-8 FRONT RIGHT 20
012A 5040R-0110A RUBBER DVD REAR DP8 RIGHT 20 OTHER BL
*** PWB(PCB) ASSEMBLY,TOTAL ***
A50 6871R-7861C PWB(PCB) ASSEMBLY,TOTAL 05 LGEDI P-COMBI ZORAN W/O DIV
CN501 6631R-E007T CONNECTOR ASSEMBLY 8283-02/9073-02ST 2PIN 60M/M P
R5J1 0RD1501F608 RESISTOR,FIXED CARBON FILM 1.5K OHM 1/6 W 5% TA26
R5J2 0RD1201F608 RESISTOR,FIXED CARBON FILM 1.2K OHM 1/6 W 5% TA26
R5J3 0RD1501F608 RESISTOR,FIXED CARBON FILM 1.5K OHM 1/6 W 5% TA26
SW507 556-213C SWITCH,DETECTOR THV10912B TACT DC 12 V 5-0 A V
SW508 556-213C SWITCH,DETECTOR THV10912B TACT DC 12 V 5-0 A V
SW509 556-213C SWITCH,DETECTOR THV10912B TACT DC 12 V 5-0 A V
SW510 556-213C SWITCH,DETECTOR THV10912B TACT DC 12 V 5-0 A V
19-5
Loading...
