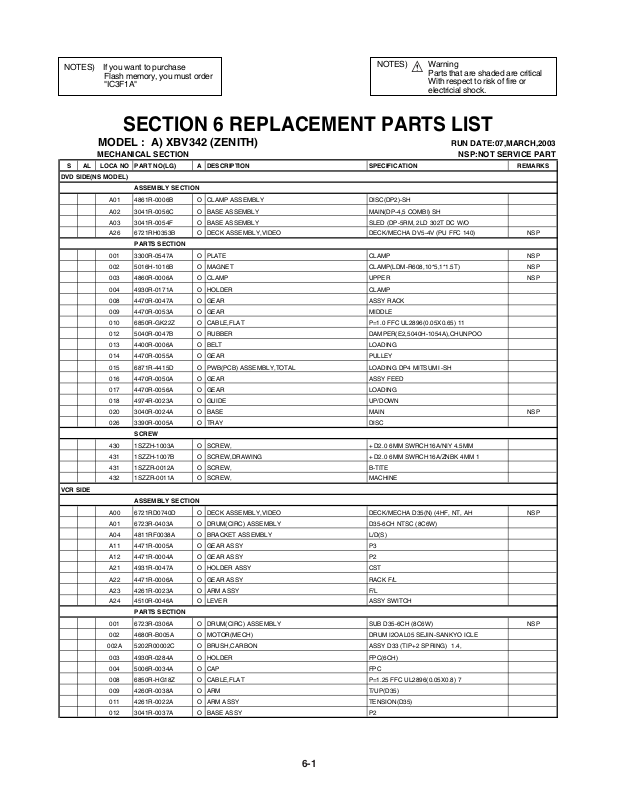

6-1
SECTION 6 REPLACEMENT PARTS LIST
MODEL : A) XBV342 (ZENITH) RUN DATE:07,MARCH,2003
MECHANICAL SECTION NSP:NOT SERVICE PART
S AL LOCA NO PART NO(LG) A DESCRIPTION SPECIFICATION REMARKS
DVD SIDE(NS MODEL)
ASSEMBLY SECTION
A01 4861R-0006B O CLAMP ASSEMBLY DISC(DP2)-SH
A02 3041R-0056C O BASE ASSEMBLY MAIN(DP-4,5 COMBI) SH
A03 3041R-0054F O BASE ASSEMBLY SLED (DP-5RM, 2LD 302T DC W/O
A26 6721RH0353B O DECK ASSEMBLY,VIDEO DECK/MECHA DV5-4V (PU FFC 140) NSP
PARTS SECTION
001 3300R-0547A O PLATE CLAMP NSP
002 5016H-1016B O MAGNET CLAMP(LDM-R608,10*5,1*1.5T) NSP
003 4860R-0006A O CLAMP UPPER NSP
004 4930R-0171A O HOLDER CLAMP
008 4470R-0047A O GEAR ASSY RACK
009 4470R-0053A O GEAR MIDDLE
010 6850R-GK22Z O CABLE,FLAT P=1.0 FFC UL2896(0.05X0.65) 11
012 5040R-0047B O RUBBER DAMPER(E2,5040H-1054A),CHUNPOO
013 4400R-0006A O BELT LOADING
014 4470R-0055A O GEAR PULLEY
015 6871R-4415D O PWB(PCB) ASSEMBLY,TOTAL LOADING DP4 MITSUMI -SH
016 4470R-0050A O GEAR ASSY FEED
017 4470R-0056A O GEAR LOADING
018 4974R-0023A O GUIDE UP/DOWN
020 3040R-0024A O BASE MAIN NSP
026 3390R-0005A O TRAY DISC
SCREW
430 1SZZH-1003A O SCREW, + D2.0 6MM SWRCH16A/NIY 4.5MM
431 1SZZH-1007B O SCREW,DRAWING + D2.0 6MM SWRCH16A/ZNBK 4MM 1
431 1SZZR-0012A O SCREW, B-TITE
432 1SZZR-0011A O SCREW, MACHINE
VCR SIDE
ASSEMBLY SECTION
A00 6721RD0740D O DECK ASSEMBLY,VIDEO DECK/MECHA D35(N) (4HF, NT, AH NSP
A01 6723R-0403A O DRUM(CIRC) ASSEMBLY D35-6CH NTSC (8C6W)
A04 4811RF0038A O BRACKET ASSEMBLY L/D(S)
A11 4471R-0005A O GEAR ASSY P3
A12 4471R-0004A O GEAR ASSY P2
A21 4931R-0047A O HOLDER ASSY CST
A22 4471R-0006A O GEAR ASSY RACK F/L
A23 4261R-0023A O ARM ASSY F/L
A24 4510R-0046A O LEVER ASSY SWITCH
PARTS SECTION
001 6723R-0306A O DRUM(CIRC) ASSEMBLY SUB D35-6CH (8C6W) NSP
002 4680R-B005A O MOTOR(MECH) DRUM I2OAL05 SEJIN-SANKYO ICLE
002A 5202R00002C O BRUSH,CARBON ASSY D33 (TIP+2 SPRING) 1.4,
003 4930R-0284A O HOLDER FPC(6CH)
004 5006R-0034A O CAP FPC
008 6850R-HG18Z O CABLE,FLAT P=1.25 FFC UL2896(0.05X0.8) 7
009 4260R-0038A O ARM T/UP(D35)
011 4261R-0022A O ARM ASSY TENSION(D35)
012 3041R-0037A O BASE ASSY P2
NOTES) Warning
NOTES) Parts that are shaded are critical
NOTES) With respect to risk of fire or
NOTES) electricial shock.
NOTES) If you want to purchase
Flash memory, you must order
"IC3F1A"
Page 2
6-2
S AL LOCA NO PART NO(LG) A DESCRIPTION SPECIFICATION REMARKS
013 3041R-0038A O BASE ASSY P3
014 3041R-0039A O BASE ASSY P4
015 5870R-0005A O OPENER LID(D35)
016 3041R-0036A O BASE ASSEMBLY A/C HEAD (ALPS)
017 4408R-0003A O REEL S
018 4970R-0140A O SPRING COIL RS D35
019 4421R-0008A O BRAKE ASSEMBLY RS
020 4970R-0128A O SPRING COIL D35 (TB)
021 4421R-0006A O BRAKE ASSY T
022 6520D00002A O HEAD(CIRC) D35 FE ST FE HEAD
023 3040R-0057A O BASE LOADING
024 4261R-0029A O ARM ASSEMBLY IDLER (N)
025 4810R-0118A O BRACKET L/D(S) NSP
026 4680R-D002A O MOTOR(MECH) LOADING MDB2B66 SANKYO D35 ASP NSP
027 4470R-0093A O GEAR WHEEL NSP
028 4408R-0004A O REEL T
030 4510R-0043A O LEVER T/UP
031 4970R-0123A O SPRING COIL TENSION(D35)
032 3141R-0040A O CHASSIS ASSY D35 NSP
051 4400R-0005A O BELT CAPSTAN
052 4680R-A007A O MOTOR(MECH) CAPSTAN F2QVB06 SANKYO D35 ASR
052A 4980R-0023A O SUPPORTER CAPSTAN(D35)
054 4470R-0100A O GEAR RACK F/L
054A 4970R-0124B O SPRING COIL D35 (RACK F/L)
055 4470R-0097A O GEAR DRIVE(D35)
056 4470R-0096A O GEAR CAM(D35)
058 4421R-0007A O BRAKE ASSY CAPSTAN
060 4510R-0040A O LEVER F/R(D35)
061 4265R-0006A O CLUTCH ASSEMBLY D35 (N)
064 4470R-0098A O GEAR SECTOR(D35)
065 4261R-0021A O ARM ASSY P3 NSP
066 4970R-0122A O SPRING COIL D35 NSP
067 4470R-0095A O GEAR P3 NSP
068 4470R-0094A O GEAR P2 NSP
069 4970R-0122A O SPRING COIL D35 NSP
070 4261R-0020A O ARM ASSY P2 NSP
076 4510R-0047A O LEVER SPRING
077 3300R-M116A O PLATE SLIDER
078 4510R-0041A O LEVER TENSION
079 3040R-0056A O BASE TENSION(D35)
100 3301R-M022A O PLATE ASSEMBLY TOP
100A 3300R-0184A O PLATE GND
100B 3300R-M118A O PLATE TOP(D35)
102 4970R-0130A O SPRING COIL D35 (STOPPER)
103 4930R-0276A O HOLDER SIDE(L) NSP
105 4930R-0274A O HOLDER CST NSP
106 4930R-0275A O HOLDER SIDE(R) NSP
107 4510R-0044A O LEVER STOPPER NSP
109 5870R-0004A O OPENER DOOR
110 4260R-0035A O ARM F/L(L) NSP
112 3070R-0002A O BODY F/L NSP
113 4970R-0127A O SPRING COIL D35 (F/L(R)) NSP
114 4260R-0036A O ARM F/L(R) NSP
115 4510R-0042A O LEVER SWITCH
116 4970R-0138A O SPRING COIL D35 SWITCH
117 3300R-M137A O PLATE SPRING CST
SCREW & WASHER
401 1MEC0261518 O SCREW MACHINE,PAN HEAD SPR W #NAME?
402 1MPC0261418 O SCREW MACHINE,PAN HEAD D 2.6 L 4.0 MSWR3/FZY
405 1SZZR-0031B O SCREW,DRAWING + 1 D2.6 L5.8 SWRCH16A/FZY TAP
Page 3
6-3
S AL LOCA NO PART NO(LG) A DESCRIPTION SPECIFICATION REMARKS
406 1MEC0302018 O PAN HEAD MACHINE SCREW S/W + D 3.0 L 6.0 MSWR3/FZY
409 1SZZR-0032B O SCREW,DRAWING + 1 D2.6 L5.0 SWRCH18A/FZY TAP
410 1APF0262218 O SCREW TAP TITE(B),PAN HEAD #NAME?
517 1WZZR-0004D O WASHER STOPPER
518 1WZZR-0004A O WASHER STOPPER
CABINET & MAIN FRAME SECTION
ASSEMBLY SECTION
A42 3501R-9902A O BOARD ASSEMBLY VCR VC693M HA1UZZ
A43 3721R-F342E O PANEL ASSEMBLY,FRONT VCR VC693M HA1UZZ VHS --> VCR
A46 3501R-8510E O BOARD ASSEMBLY VCR VC663M VCR MAIN
A46A 6885R-1101P O SUB PWB(PCB) ASSEMBLY 5553004C100504 FF 090810033D
A48 6871R-8511B O PWB(PCB) ASSEMBLY,TOTAL VC663M HA1UZZ POWER
A49 3501R-9901A O BOARD ASSEMBLY VCR VC693M HA1UZZ
PARTS SECTION
250 3110R-V004C O CASE (COMBI-2) PRESS J597G(ZENITH)-
260 3210R-V002A O FRAME COMBI-2 MOLD 403AF-BK NSP
275 4930R-0102A O HOLDER LED
276 4930R-0298B O HOLDER VCR - TIMER PWB(D+V-RIB CUTTIN
285 3580R-T049C O DOOR,CASE VCR DC596M TRAY (EVNT)
300 6410RAHX02A O POWER CORD SP-120P/JL001 CHAUS/JULIAN UL/
323 3111R-0089B O CASE ASSY PRE-AMP (PBSB-SH)
330 3140R-V001A O CHASSIS COMBI-2 PRESS RCA TYPE
SCREW
452 353-051A O SCREW SPECIAL
465 353-046K O SCREW SPECIAL (3X10 B.K)
457 353-051E O SCREW SPECIAL (3X12)
467 353-051G O SCREW,DRAWING + 2 D3.0 L8.0 MSWR3/FN TB ROUN
PACKING & ACCESSORY SECTION
801 3835RM0056U O INSTRUCTION ASSEMBLY VCR VC693M.HA1UZZ ZENITH DVD+V
802 3890R-H813G O BOX VC693M HA1UZZ SWM3-A 1.297 4 O
803 3920R-E076A O PACKING,CASING VC69_S 0.02 100 EPS 4 1 1
804 292-053E O BAG V3 NSP
808 841-0021 O BATTERY,MN ER03X HI WATT 1.5V .MA/H AAA
806 6850R-CAA81 O CABLE,COAXIAL RF CABLE NTSC PLUG ALL STILL H
810 6851R-0032B O CABLE ASSEMBLY 1WAY(Y) + 2WAY(R/W) 1.8M + RF-
811 6611R1D003A O PLUG ASSEMBLY 1WAY RC1-18RRBS1-0 FREE OF CD
812 6611R2D003A O PLUG ASSEMBLY 2WAY RC2-18RRBS1-0 FREE OF CD_
900 6711R1N112A O REMOTE CONTROLLER ASSEMBLY N8 VC673M NA1UZZ ZENITH
Page 4
6-4
ELECTRICAL SECTION
S AL LOCA NO PART NO(LG) A DESCRIPTION SPECIFICATION REMARKS
VCR SIDE
A46 (BOARD ASSEMBLY)
A46 3501R-8510E O BOARD ASSEMBLY VCR VC663M VCR MAIN
C301 0CQ2232L559 O CAPACITOR,POLYESTER 0.022UF S 63V K PP NI TP5
C302 0CE4765K618 O CAPACITOR,AL.ELECTROLYTIC 47UF SR,SV 50V M FL TP 5
C303 0CH1223K516 O CAPA,CHIP CERAMIC M/L H.D F/S 0.022U 50V K B 2.0X1.2 R/TP
C304 0CH1103K516 O CHIP CAPA CERAMIC M/L H.D F/S 0.01U 50V K B 2.0X1.25 R/TP
C305 0CH1104K946 O CAPACITOR,FIXED CERAMIC(TEMP.C 0.1UF 2012 50V 80%,-20% Y5V(F)
C306 0CH1104K946 O CAPACITOR,FIXED CERAMIC(TEMP.C 0.1UF 2012 50V 80%,-20% Y5V(F)
C308 0CE4764F638 O CAPACITOR,ELECTROLYTIC 47M SRA/SS 16V M FM5 TP(5)
C310 0CE2264F638 O CAPACITOR,ELECTROLYTIC 22M SRA 16V M FM5 TP(5)
C311 0CE1054K638 O CAPACITOR,ELECTROLYTIC 1.0M SRA/SS50V M FM5 TP(5)
C312 0CE3364F638 O CAPACITOR,ELECTROLYTIC 33M SRA 16V M FM5 TP(5)
C313 0CH1104K946 O CAPACITOR,FIXED CERAMIC(TEMP.C 0.1UF 2012 50V 80%,-20% Y5V(F)
C314 0CH1103K516 O CHIP CAPA CERAMIC M/L H.D F/S 0.01U 50V K B 2.0X1.25 R/TP
C315 0CE1064F638 O CAPACITOR,ELECTROLYTIC 10M SRA 16V M FM5 TP(5)
C316 0CH1222K516 O CHIP CAPA CERAMIC M/L H.D F/S 2200P 50V K B 2.0X1.25 R/TP
C317 0CH1821K516 O CAPACITOR,FIXED CERAMIC(Temp.c 820PF 50V 10% B(5YP) 2012 R/TP
C318 0CE4754K638 O CAPACITOR,FIXED ELECTROLYTIC 4.7UF SRA,SS 50V 20% FM5 TP 5
C319 0CE1054K638 O CAPACITOR,ELECTROLYTIC 1.0M SRA/SS50V M FM5 TP(5)
C320 0CH4391K416 O CAPACITOR,CHIP[CERAMIC M/L TC 390PF 50V J NP0 2012 R/TP
C321 0CH1104K946 O CAPACITOR,FIXED CERAMIC(TEMP.C 0.1UF 2012 50V 80%,-20% Y5V(F)
C322 0CH4101K416 O CAPA,CHIP CERAMIC M/L T.C F/S 100P 50V J NP0 2.0*1.25 R/TP
C323 0CH4101K416 O CAPA,CHIP CERAMIC M/L T.C F/S 100P 50V J NP0 2.0*1.25 R/TP
C324 0CE1054K638 O CAPACITOR,ELECTROLYTIC 1.0M SRA/SS50V M FM5 TP(5)
C325 0CE4764F638 O CAPACITOR,ELECTROLYTIC 47M SRA/SS 16V M FM5 TP(5)
C327 0CE2264F638 O CAPACITOR,ELECTROLYTIC 22M SRA 16V M FM5 TP(5)
C328 0CE1054K638 O CAPACITOR,ELECTROLYTIC 1.0M SRA/SS50V M FM5 TP(5)
C329 0CE1064F638 O CAPACITOR,ELECTROLYTIC 10M SRA 16V M FM5 TP(5)
C330 0CE1064F638 O CAPACITOR,ELECTROLYTIC 10M SRA 16V M FM5 TP(5)
C331 0CE1064F638 O CAPACITOR,ELECTROLYTIC 10M SRA 16V M FM5 TP(5)
C332 0CE1054K638 O CAPACITOR,ELECTROLYTIC 1.0M SRA/SS50V M FM5 TP(5)
C333 0CE1054K638 O CAPACITOR,ELECTROLYTIC 1.0M SRA/SS50V M FM5 TP(5)
C334 0CE1054K638 O CAPACITOR,ELECTROLYTIC 1.0M SRA/SS50V M FM5 TP(5)
C335 0CE1054K638 O CAPACITOR,ELECTROLYTIC 1.0M SRA/SS50V M FM5 TP(5)
C336 0CH1103K516 O CHIP CAPA CERAMIC M/L H.D F/S 0.01U 50V K B 2.0X1.25 R/TP
C337 0CH1103K516 O CHIP CAPA CERAMIC M/L H.D F/S 0.01U 50V K B 2.0X1.25 R/TP
C338 0CH1104K946 O CAPACITOR,FIXED CERAMIC(TEMP.C 0.1UF 2012 50V 80%,-20% Y5V(F)
C339 0CE4764F638 O CAPACITOR,ELECTROLYTIC 47M SRA/SS 16V M FM5 TP(5)
C340 0CE1054K638 O CAPACITOR,ELECTROLYTIC 1.0M SRA/SS50V M FM5 TP(5)
C341 0CH1103K516 O CHIP CAPA CERAMIC M/L H.D F/S 0.01U 50V K B 2.0X1.25 R/TP
C342 0CE1054K638 O CAPACITOR,ELECTROLYTIC 1.0M SRA/SS50V M FM5 TP(5)
C343 0CH1223K516 O CAPA,CHIP CERAMIC M/L H.D F/S 0.022U 50V K B 2.0X1.2 R/TP
C344 0CE1054K638 O CAPACITOR,ELECTROLYTIC 1.0M SRA/SS50V M FM5 TP(5)
C346 0CE4764F638 O CAPACITOR,ELECTROLYTIC 47M SRA/SS 16V M FM5 TP(5)
C347 0CH1473K516 O CHIP CAPA CERAMIC M/L H.D F/S 0.047U 50V K X7R 2.0X1.2 R/TP
C348 0CH1473K516 O CHIP CAPA CERAMIC M/L H.D F/S 0.047U 50V K X7R 2.0X1.2 R/TP
C349 0CH1333K566 O CAPACITOR,CHIP[CERAMIC M/L HD 0.0330UF 50V K X7R(X) 2012 R/T
C350 0CE4764F638 O CAPACITOR,ELECTROLYTIC 47M SRA/SS 16V M FM5 TP(5)
C351 0CH1104K946 O CAPACITOR,FIXED CERAMIC(TEMP.C 0.1UF 2012 50V 80%,-20% Y5V(F)
C354 0CH1104K946 O CAPACITOR,FIXED CERAMIC(TEMP.C 0.1UF 2012 50V 80%,-20% Y5V(F)
C355 0CE1064F638 O CAPACITOR,ELECTROLYTIC 10M SRA 16V M FM5 TP(5)
C360 0CE1064F638 O CAPACITOR,ELECTROLYTIC 10M SRA 16V M FM5 TP(5)
C500 0CE4775C638 O CAPACITOR,FIXED ELECTROLYTIC 470UF SR,SV 6.3V 20% FM5 TP 5
C501 0CH1104K946 O CAPACITOR,FIXED CERAMIC(TEMP.C 0.1UF 2012 50V 80%,-20% Y5V(F)
C502 0CH1104K946 O CAPACITOR,FIXED CERAMIC(TEMP.C 0.1UF 2012 50V 80%,-20% Y5V(F)
C503 0CE2274C638 O CAPACITOR,ELECTROLYTIC 220M SRA 6.3V M FM5 TP(5)
C504 0CH1223K516 O CAPA,CHIP CERAMIC M/L H.D F/S 0.022U 50V K B 2.0X1.2 R/TP
C505 0CH1104K946 O CAPACITOR,FIXED CERAMIC(TEMP.C 0.1UF 2012 50V 80%,-20% Y5V(F)
Page 5
6-5
S AL LOCA NO PART NO(LG) A DESCRIPTION SPECIFICATION REMARKS
C508 0CH1223K516 O CAPA,CHIP CERAMIC M/L H.D F/S 0.022U 50V K B 2.0X1.2 R/TP
C511 0CH1223K516 O CAPA,CHIP CERAMIC M/L H.D F/S 0.022U 50V K B 2.0X1.2 R/TP
C514 0CH4240K416 O CAPACITOR,CHIP[CERAMIC M/L TC 24PF 50V J NP0 2012 R/TP
C515 0CH4270K416 O CHIP CAPA CERAMIC M/L T.C F/S 27P 50V J COG 2.0X1.2 R/TP
C519 0CH1223K516 O CAPA,CHIP CERAMIC M/L H.D F/S 0.022U 50V K B 2.0X1.2 R/TP
C520 0CH1223K516 O CAPA,CHIP CERAMIC M/L H.D F/S 0.022U 50V K B 2.0X1.2 R/TP
C525 0CH1104K946 O CAPACITOR,FIXED CERAMIC(TEMP.C 0.1UF 2012 50V 80%,-20% Y5V(F)
C526 0CE4765K618 O CAPACITOR,AL.ELECTROLYTIC 47UF SR,SV 50V M FL TP 5
C531 0CE1064F638 O CAPACITOR,ELECTROLYTIC 10M SRA 16V M FM5 TP(5)
C534 0CH1105F946 O CAPACITOR,CHIP[CERAMIC M/L HD 1UF 16V Z Y5V(F) 2012 R/TP
C535 0CH1105F946 O CAPACITOR,CHIP[CERAMIC M/L HD 1UF 16V Z Y5V(F) 2012 R/TP
C542 0CH4681K416 O CAPA,CHIP CERAMIC M/L T.C F/S 680PF 50V J NP0 2012 R/TP
C543 0CH1223K516 O CAPA,CHIP CERAMIC M/L H.D F/S 0.022U 50V K B 2.0X1.2 R/TP
C544 0CH1473K516 O CHIP CAPA CERAMIC M/L H.D F/S 0.047U 50V K X7R 2.0X1.2 R/TP
C545 0CH1223K516 O CAPA,CHIP CERAMIC M/L H.D F/S 0.022U 50V K B 2.0X1.2 R/TP
C546 0CE4764H638 O CAPACITOR,FIXED ELECTROLYTIC 47M SRA 25V M FM5 TP(5)
C551 0CH1333H516 O CHIP CAPA CERAMIC M/L H.D F/S 0.033U 25V K B 2.0X1.25 R/TP
C552 0CH1103K516 O CHIP CAPA CERAMIC M/L H.D F/S 0.01U 50V K B 2.0X1.25 R/TP
C561 0CE1064F638 O CAPACITOR,ELECTROLYTIC 10M SRA 16V M FM5 TP(5)
C566 0CH4102K416 O CAPACITOR,FIXED CERAMIC(High d 1000PF 50V 5% NP0 2012 R/TP
C567 0CH4102K416 O CAPACITOR,FIXED CERAMIC(High d 1000PF 50V 5% NP0 2012 R/TP
C568 0CH4102K416 O CAPACITOR,FIXED CERAMIC(High d 1000PF 50V 5% NP0 2012 R/TP
C569 0CH4102K416 O CAPACITOR,FIXED CERAMIC(High d 1000PF 50V 5% NP0 2012 R/TP
C570 0CH4180K416 O CHIP CAPA CERAMIC M/L T.C F/S 18P 50V J C 2.0X1.2 R/TP
C571 0CH4180K416 O CHIP CAPA CERAMIC M/L T.C F/S 18P 50V J C 2.0X1.2 R/TP
C572 0CH1223K516 O CAPA,CHIP CERAMIC M/L H.D F/S 0.022U 50V K B 2.0X1.2 R/TP
C573 0CH1103K516 O CHIP CAPA CERAMIC M/L H.D F/S 0.01U 50V K B 2.0X1.25 R/TP
C574 0CH4102K416 O CAPACITOR,FIXED CERAMIC(High d 1000PF 50V 5% NP0 2012 R/TP
C577 0CH1223K516 O CAPA,CHIP CERAMIC M/L H.D F/S 0.022U 50V K B 2.0X1.2 R/TP
C578 0CE2274C638 O CAPACITOR,ELECTROLYTIC 220M SRA 6.3V M FM5 TP(5)
C579 0CE2274C638 O CAPACITOR,ELECTROLYTIC 220M SRA 6.3V M FM5 TP(5)
C580 0CH1223K516 O CAPA,CHIP CERAMIC M/L H.D F/S 0.022U 50V K B 2.0X1.2 R/TP
C581 0CH1103K516 O CHIP CAPA CERAMIC M/L H.D F/S 0.01U 50V K B 2.0X1.25 R/TP
C582 0CH1103K516 O CHIP CAPA CERAMIC M/L H.D F/S 0.01U 50V K B 2.0X1.25 R/TP
C583 0CH4102K416 O CAPACITOR,FIXED CERAMIC(High d 1000PF 50V 5% NP0 2012 R/TP
C584 0CE4764C638 O CAPACITOR,ELECTROLYTIC 47M SRA 6.3V M FM5 TP(5)
C585 0CH1103K516 O CHIP CAPA CERAMIC M/L H.D F/S 0.01U 50V K B 2.0X1.25 R/TP
C586 0CE1064F638 O CAPACITOR,ELECTROLYTIC 10M SRA 16V M FM5 TP(5)
C588 0CH4102K416 O CAPACITOR,FIXED CERAMIC(High d 1000PF 50V 5% NP0 2012 R/TP
C589 0CH4221K416 O CAPA,CHIP CERAMIC M/L T.C F/S 220P 50V J 2.0X1.25 R/TP
C590 0CH1105F946 O CAPACITOR,CHIP[CERAMIC M/L HD 1UF 16V Z Y5V(F) 2012 R/TP
C592 0CE1064F638 O CAPACITOR,ELECTROLYTIC 10M SRA 16V M FM5 TP(5)
C593 0CH4471K416 O CAPA,CHIP CERAMIC M/L T.C F/S 470P 50V J 2.0*1.25 R/TP
C594 0CH1104K946 O CAPACITOR,FIXED CERAMIC(TEMP.C 0.1UF 2012 50V 80%,-20% Y5V(F)
C595 0CH4120K416 O CHIP CAPA CERAMIC M/L T.C F/S 12P 50V NPO 2.0X1.25 R/TP
C596 0CH4180K416 O CHIP CAPA CERAMIC M/L T.C F/S 18P 50V J C 2.0X1.2 R/TP
C597 0CH4681K416 O CAPA,CHIP CERAMIC M/L T.C F/S 680PF 50V J NP0 2012 R/TP
C598 0CH1104K946 O CAPACITOR,FIXED CERAMIC(TEMP.C 0.1UF 2012 50V 80%,-20% Y5V(F)
C599 0CH1223K516 O CAPA,CHIP CERAMIC M/L H.D F/S 0.022U 50V K B 2.0X1.2 R/TP
C5L1 0CH1105F946 O CAPACITOR,CHIP[CERAMIC M/L HD 1UF 16V Z Y5V(F) 2012 R/TP
C601 0CE4764F638 O CAPACITOR,ELECTROLYTIC 47M SRA/SS 16V M FM5 TP(5)
C602 0CE1074F638 O CAPACITOR,ELECTROLYTIC 100U SRA 16V M FM5 TP(5)
C603 0CE4775C638 O CAPACITOR,FIXED ELECTROLYTIC 470UF SR,SV 6.3V 20% FM5 TP 5
C604 0CE1074F638 O CAPACITOR,ELECTROLYTIC 100U SRA 16V M FM5 TP(5)
C606 0CE1064F638 O CAPACITOR,ELECTROLYTIC 10M SRA 16V M FM5 TP(5)
C607 0CH1104K946 O CAPACITOR,FIXED CERAMIC(TEMP.C 0.1UF 2012 50V 80%,-20% Y5V(F)
C608 0CH1104K946 O CAPACITOR,FIXED CERAMIC(TEMP.C 0.1UF 2012 50V 80%,-20% Y5V(F)
C609 0CE2264F638 O CAPACITOR,ELECTROLYTIC 22M SRA 16V M FM5 TP(5)
C610 0CE1074C638 O CAPACITOR,FIXED ELECTROLYTIC 100UF SRA,SS 6.3V 20% FM5 TP 5
C611 0CE1064F638 O CAPACITOR,ELECTROLYTIC 10M SRA 16V M FM5 TP(5)
Page 6
6-6
S AL LOCA NO PART NO(LG) A DESCRIPTION SPECIFICATION REMARKS
C612 0CE1064F638 O CAPACITOR,ELECTROLYTIC 10M SRA 16V M FM5 TP(5)
C613 0CE4775C638 O CAPACITOR,FIXED ELECTROLYTIC 470UF SR,SV 6.3V 20% FM5 TP 5
C614 0CE2274C638 O CAPACITOR,ELECTROLYTIC 220M SRA 6.3V M FM5 TP(5)
C701 0CE4754K638 O CAPACITOR,FIXED ELECTROLYTIC 4.7UF SRA,SS 50V 20% FM5 TP 5
C702 0CE2274C638 O CAPACITOR,ELECTROLYTIC 220M SRA 6.3V M FM5 TP(5)
C703 0CH1104K946 O CAPACITOR,FIXED CERAMIC(TEMP.C 0.1UF 2012 50V 80%,-20% Y5V(F)
C704 0CH1104K946 O CAPACITOR,FIXED CERAMIC(TEMP.C 0.1UF 2012 50V 80%,-20% Y5V(F)
C706 0CH4300K416 O CHIP CAPA CERAMIC M/L T.C F/S 30P 50V J CH 2.0X1.2 R/TP
C707 0CH4300K416 O CHIP CAPA CERAMIC M/L T.C F/S 30P 50V J CH 2.0X1.2 R/TP
C708 0CH1104K946 O CAPACITOR,FIXED CERAMIC(TEMP.C 0.1UF 2012 50V 80%,-20% Y5V(F)
C731 0CE1064F638 O CAPACITOR,ELECTROLYTIC 10M SRA 16V M FM5 TP(5)
C751 0CE4754K638 O CAPACITOR,FIXED ELECTROLYTIC 4.7UF SRA,SS 50V 20% FM5 TP 5
C752 0CE4754K638 O CAPACITOR,FIXED ELECTROLYTIC 4.7UF SRA,SS 50V 20% FM5 TP 5
C801 0CE4754K638 O CAPACITOR,FIXED ELECTROLYTIC 4.7UF SRA,SS 50V 20% FM5 TP 5
C803 0CH1102K516 O CHIP CAPA CERAMIC M/L H.D F/S 1000P 50V K B 2.0X1.25 R/TP
C804 0RH0000D622 O RESISTOR,METAL GLAZED(CHIP) 0 OHM 1 / 10 W 2012 5.00% D
C806 0CE4754K638 O CAPACITOR,FIXED ELECTROLYTIC 4.7UF SRA,SS 50V 20% FM5 TP 5
C807 0CE4754K638 O CAPACITOR,FIXED ELECTROLYTIC 4.7UF SRA,SS 50V 20% FM5 TP 5
C808 0CE1054K638 O CAPACITOR,ELECTROLYTIC 1.0M SRA/SS50V M FM5 TP(5)
C816 0CE2254K638 O CAPACITOR,FIXED ELECTROLYTIC 2.2UF SRA,SS 50V 20% FM5 TP 5
C821 0CE1064F638 O CAPACITOR,ELECTROLYTIC 10M SRA 16V M FM5 TP(5)
C822 0CH1222K516 O CHIP CAPA CERAMIC M/L H.D F/S 2200P 50V K B 2.0X1.25 R/TP
C823 0CH1104K946 O CAPACITOR,FIXED CERAMIC(TEMP.C 0.1UF 2012 50V 80%,-20% Y5V(F)
C825 0CE1064F638 O CAPACITOR,ELECTROLYTIC 10M SRA 16V M FM5 TP(5)
C826 0CE1064F638 O CAPACITOR,ELECTROLYTIC 10M SRA 16V M FM5 TP(5)
C827 0CH1105F946 O CAPACITOR,CHIP[CERAMIC M/L HD 1UF 16V Z Y5V(F) 2012 R/TP
C828 0CE1064F638 O CAPACITOR,ELECTROLYTIC 10M SRA 16V M FM5 TP(5)
C829 0CE2264F638 O CAPACITOR,ELECTROLYTIC 22M SRA 16V M FM5 TP(5)
C830 0CE1064F638 O CAPACITOR,ELECTROLYTIC 10M SRA 16V M FM5 TP(5)
C831 0CE4754K638 O CAPACITOR,FIXED ELECTROLYTIC 4.7UF SRA,SS 50V 20% FM5 TP 5
C832 0CH1103K516 O CHIP CAPA CERAMIC M/L H.D F/S 0.01U 50V K B 2.0X1.25 R/TP
C833 0CE2264F638 O CAPACITOR,ELECTROLYTIC 22M SRA 16V M FM5 TP(5)
C834 0CH1472K516 O CAPA,CHIP CERAMIC M/L H.D F/S 4700P 50V K B 2.0*1.25 R/TP
C836 0CH1103K516 O CHIP CAPA CERAMIC M/L H.D F/S 0.01U 50V K B 2.0X1.25 R/TP
C838 0CH1104K946 O CAPACITOR,FIXED CERAMIC(TEMP.C 0.1UF 2012 50V 80%,-20% Y5V(F)
C839 0CE4754K638 O CAPACITOR,FIXED ELECTROLYTIC 4.7UF SRA,SS 50V 20% FM5 TP 5
C840 0CE1064F638 O CAPACITOR,ELECTROLYTIC 10M SRA 16V M FM5 TP(5)
C841 0CH1103K516 O CHIP CAPA CERAMIC M/L H.D F/S 0.01U 50V K B 2.0X1.25 R/TP
C842 0CE1064F638 O CAPACITOR,ELECTROLYTIC 10M SRA 16V M FM5 TP(5)
C843 0CE2264F638 O CAPACITOR,ELECTROLYTIC 22M SRA 16V M FM5 TP(5)
C844 0CH1472K516 O CAPA,CHIP CERAMIC M/L H.D F/S 4700P 50V K B 2.0*1.25 R/TP
C845 0CH1103K516 O CHIP CAPA CERAMIC M/L H.D F/S 0.01U 50V K B 2.0X1.25 R/TP
C846 0CE4754K638 O CAPACITOR,FIXED ELECTROLYTIC 4.7UF SRA,SS 50V 20% FM5 TP 5
C847 0CE1064F638 O CAPACITOR,ELECTROLYTIC 10M SRA 16V M FM5 TP(5)
C848 0CH1105F946 O CAPACITOR,CHIP[CERAMIC M/L HD 1UF 16V Z Y5V(F) 2012 R/TP
C849 0CH1105F946 O CAPACITOR,CHIP[CERAMIC M/L HD 1UF 16V Z Y5V(F) 2012 R/TP
C851 0CE4754K638 O CAPACITOR,FIXED ELECTROLYTIC 4.7UF SRA,SS 50V 20% FM5 TP 5
C853 0CH1102K516 O CHIP CAPA CERAMIC M/L H.D F/S 1000P 50V K B 2.0X1.25 R/TP
C854 0RH0000D622 O RESISTOR,METAL GLAZED(CHIP) 0 OHM 1 / 10 W 2012 5.00% D
C866 0CE2254K638 O CAPACITOR,FIXED ELECTROLYTIC 2.2UF SRA,SS 50V 20% FM5 TP 5
C871 0CE4754K638 O CAPACITOR,FIXED ELECTROLYTIC 4.7UF SRA,SS 50V 20% FM5 TP 5
C872 0CH4560K416 O CHIP CAPA CERAMIC M/L T.C F/S 56P 50V J NPO 2.0X1.25 R/TP
C873 0CE2254K638 O CAPACITOR,FIXED ELECTROLYTIC 2.2UF SRA,SS 50V 20% FM5 TP 5
C874 0CH1105F946 O CAPACITOR,CHIP[CERAMIC M/L HD 1UF 16V Z Y5V(F) 2012 R/TP
C875 0CH1333K566 O CAPACITOR,CHIP[CERAMIC M/L HD 0.0330UF 50V K X7R(X) 2012 R/T
C876 0CE1054K638 O CAPACITOR,ELECTROLYTIC 1.0M SRA/SS50V M FM5 TP(5)
C877 0CE1054K638 O CAPACITOR,ELECTROLYTIC 1.0M SRA/SS50V M FM5 TP(5)
C878 0CH4560K416 O CHIP CAPA CERAMIC M/L T.C F/S 56P 50V J NPO 2.0X1.25 R/TP
C879 0CE2254K638 O CAPACITOR,FIXED ELECTROLYTIC 2.2UF SRA,SS 50V 20% FM5 TP 5
C880 0CE4754K638 O CAPACITOR,FIXED ELECTROLYTIC 4.7UF SRA,SS 50V 20% FM5 TP 5
Page 7
6-7
S AL LOCA NO PART NO(LG) A DESCRIPTION SPECIFICATION REMARKS
C881 0CE1054K638 O CAPACITOR,ELECTROLYTIC 1.0M SRA/SS50V M FM5 TP(5)
C882 0CE1064F638 O CAPACITOR,ELECTROLYTIC 10M SRA 16V M FM5 TP(5)
C883 0CE1054K638 O CAPACITOR,ELECTROLYTIC 1.0M SRA/SS50V M FM5 TP(5)
C884 0CH1104K946 O CAPACITOR,FIXED CERAMIC(TEMP.C 0.1UF 2012 50V 80%,-20% Y5V(F)
C885 0CH1104K946 O CAPACITOR,FIXED CERAMIC(TEMP.C 0.1UF 2012 50V 80%,-20% Y5V(F)
C886 0CE4754K638 O CAPACITOR,FIXED ELECTROLYTIC 4.7UF SRA,SS 50V 20% FM5 TP 5
C887 0CE3354K638 O CAPACITOR,FIXED ELECTROLYTIC 3.3UF SRA,SS 50V 20% FM5 TP 5
C888 0CE4754K638 O CAPACITOR,FIXED ELECTROLYTIC 4.7UF SRA,SS 50V 20% FM5 TP 5
C889 0CE4754K638 O CAPACITOR,FIXED ELECTROLYTIC 4.7UF SRA,SS 50V 20% FM5 TP 5
CS501 6600M000026 O SWITCH,PUSH MPU12970MLB0 VCR CST IN S/W MI
D802 0DS141489BB O DIODE,SWITCHING 1N4148 26MM TP GRANDE DO34 75V
ES501 4931R-0050A O HOLDER ASSY END
ES502 4931R-0050A O HOLDER ASSY END
F601 6200HJC901A O FILTER(CIRC),EMC CFI06B1H101MF SAMHWA TP 2-5K
F602 6200HJC901A O FILTER(CIRC),EMC CFI06B1H101MF SAMHWA TP 2-5K
F603 6200HJC901A O FILTER(CIRC),EMC CFI06B1H101MF SAMHWA TP 2-5K
FL301 633-032K O COIL,IFT BIAC OSC,1CHIP 5V(KS-75M) KWAN
IC301 0ILNRSA012A O IC,LINEAR LA71206M-MPB SANYO 80PIN QFP T
IC302 0IJR223400D O IC,JRC NJM2234L SIP8 ST S/W IC(3INPUT
IC501 0IMCRMI051B O IC,MICRO CONTROLLER M37762MCA-1K5GP MITSUBISHI 100
IC504 0IKE703100A O IC,KEC KIA7031P 3P 3.1V RESET(TAPING)
IC505 0IKE704200B O IC,KEC KIA7042P 3P 4.2V RESET(TAPING)
IC601 0IPRPMT002A O IC,PERIPHERALS MM1510XNRE MITSUMI 6,SOT-26A R
IC602 0IPRPMT006A O IC,PERIPHERALS MM1225XFBE MITSUMI 8PIN SOP R/
IC801 0ILNRSA013A O IC,LINEAR LA72670M-MPB SANYO 80PIN QFP T
J502 874-000T O WIRE COPPER TIN COATED D=0.6 ROLL
J503 874-000T O WIRE COPPER TIN COATED D=0.6 ROLL
J802 0RH0000D622 O RESISTOR,METAL GLAZED(CHIP) 0 OHM 1 / 10 W 2012 5.00% D
JK601 6612J00025E O JACK,RCA RCA/DIN-36(SILVER) YUQIU
JK603 6612K00003B O JACK,FIBER OPTIC PLT131/T5/12(12MBPS) EVERLIGHT
L301 0LR1000K035 O INDUCTOR RADIAL LEAD 100M K 6X6 L5 TP
L303 0LR1000K035 O INDUCTOR RADIAL LEAD 100M K 6X6 L5 TP
L305 0LR0102K035 O INDUCTOR RADIAL LEAD 10M K 6X6 L5 TP
L501 0LR1000K035 O INDUCTOR RADIAL LEAD 100M K 6X6 L5 TP
L510 0LR0682K035 O INDUCTOR RADIAL LEAD 68M K 6X6 L5 TP
L511 0LR0221J0N5 O INDUCTOR,RADIAL LEAD 2.2UH 5% TP 3X5 TR5
L512 0LR1000K035 O INDUCTOR RADIAL LEAD 100M K 6X6 L5 TP
L601 0LA0101K018 O INDUCTOR AXIAL LEAD 1.0M K 2.3X3.4 L5 TP
L706 0LR0102K035 O INDUCTOR RADIAL LEAD 10M K 6X6 L5 TP
LD501 4931R-0017A O HOLDER ASSY LED
MS501 6600JB8005B O SWITCH,MODE NON 5V 1MA VERTICAL -G
Q301 0TR150409AC O TRANSISTOR KTA1504-GR-T1(ASG) CHIP KEC
Q302 0TR387509AC O TRANSISTOR CHIP KTC3875S-GR-T1(ALG) KEC
Q303 0TR387509AC O TRANSISTOR CHIP KTC3875S-GR-T1(ALG) KEC
Q304 0TR320309AA O TRANSISTOR,BIPOLARS KTC3203 KEC TP TO92 50V 150MA
Q305 0TR127309AA O TRANSISTOR KTA1273-TP-Y (KTA966A)KEC
Q306 0TR150409AC O TRANSISTOR KTA1504-GR-T1(ASG) CHIP KEC
Q307 0TR150409AC O TRANSISTOR KTA1504-GR-T1(ASG) CHIP KEC
Q308 0TR127309AA O TRANSISTOR KTA1273-TP-Y (KTA966A)KEC
Q309 0TR103009AA O TRANSISTOR CHIP KRC103S-T1(NC)22-22 KEC
Q310 0TR103009AC O TRANSISTOR KRA103S-T1(PC)22-22 CHIP KEC
Q501 0TR387509AC O TRANSISTOR CHIP KTC3875S-GR-T1(ALG) KEC
Q503 0TR127309AA O TRANSISTOR KTA1273-TP-Y (KTA966A)KEC
Q504 0TR387509AC O TRANSISTOR CHIP KTC3875S-GR-T1(ALG) KEC
Q505 0TR387509AC O TRANSISTOR CHIP KTC3875S-GR-T1(ALG) KEC
Q506 0TR103009AA O TRANSISTOR CHIP KRC103S-T1(NC)22-22 KEC
Q507 0TR150409AC O TRANSISTOR KTA1504-GR-T1(ASG) CHIP KEC
Q601 0TR387509AC O TRANSISTOR CHIP KTC3875S-GR-T1(ALG) KEC
Q602 0TR387509AC O TRANSISTOR CHIP KTC3875S-GR-T1(ALG) KEC
Q701 0TR320309AA O TRANSISTOR,BIPOLARS KTC3203 KEC TP TO92 50V 150MA
Page 8
6-8
S AL LOCA NO PART NO(LG) A DESCRIPTION SPECIFICATION REMARKS
Q702 0TR320309AA O TRANSISTOR,BIPOLARS KTC3203 KEC TP TO92 50V 150MA
Q805 0TR387509AC O TRANSISTOR CHIP KTC3875S-GR-T1(ALG) KEC
R301 0RH1002D622 O RESISTOR,METAL GLAZED(CHIP) 10K OHM 1 / 10 W 2012 5.00% D
R302 0RH2702D622 O RESISTOR,METAL GLAZED(CHIP) 27K OHM 1 / 10 W 2012 5.00% D
R303 0RH1001D622 O RESISTOR,METAL GLAZED(CHIP) 1K OHM 1 / 10 W 2012 5.00% D
R304 0RH2201D622 O RESISTOR,METAL GLAZED(CHIP) 2.2K OHM 1 / 10 W 2012 5.00% D
R305 0RH5600D622 O RESISTOR,METAL GLAZED(CHIP) 560 OHM 1 / 10 W 2012 5.00% D
R306 0RH0472D622 O RESISTOR,METAL GLAZED(CHIP) 47 OHM 1 / 10 W 2012 5.00% D
R307 0RH1001D622 O RESISTOR,METAL GLAZED(CHIP) 1K OHM 1 / 10 W 2012 5.00% D
R308 0RH0221D622 O RESISTOR,METAL GLAZED(CHIP) 2.2 OHM 1 / 10 W 2012 5.00% D
R309 0RH2202D622 O RESISTOR,METAL GLAZED(CHIP) 22K OHM 1 / 10 W 2012 5.00% D
R310 0RH2201D622 O RESISTOR,METAL GLAZED(CHIP) 2.2K OHM 1 / 10 W 2012 5.00% D
R311 0RH3301D622 O RESISTOR,METAL GLAZED(CHIP) 3.3K OHM 1 / 10 W 2012 5.00% D
R312 0RH3901D622 O RESISTOR,METAL GLAZED(CHIP) 3.9K OHM 1 / 10 W 2012 5.00% D
R313 0RH1801D622 O RESISTOR,METAL GLAZED(CHIP) 1.8K OHM 1 / 10 W 2012 5.00% D
R317 0RH8201D622 O RESISTOR,METAL GLAZED(CHIP) 8.2K OHM 1 / 10 W 2012 5.00% D
R318 0RH3303D622 O RESISTOR,METAL GLAZED(CHIP) 330K OHM 1 / 10 W 2012 5.00% D
R319 0RH1202D622 O RESISTOR,METAL GLAZED(CHIP) 12K OHM 1 / 10 W 2012 5.00% D
R320 0RH1500D622 O RESISTOR,METAL GLAZED(CHIP) 150 OHM 1 / 10 W 2012 5.00% D
R321 0RH2702D622 O RESISTOR,METAL GLAZED(CHIP) 27K OHM 1 / 10 W 2012 5.00% D
R322 0RH1001D622 O RESISTOR,METAL GLAZED(CHIP) 1K OHM 1 / 10 W 2012 5.00% D
R324 0RH1001D622 O RESISTOR,METAL GLAZED(CHIP) 1K OHM 1 / 10 W 2012 5.00% D
R325 0RH1001D622 O RESISTOR,METAL GLAZED(CHIP) 1K OHM 1 / 10 W 2012 5.00% D
R326 0RH1502D622 O RESISTOR,METAL GLAZED(CHIP) 15K OHM 1 / 10 W 2012 5.00% D
R327 0RH6801D622 O RESISTOR,METAL GLAZED(CHIP) 6.8K OHM 1 / 10 W 2012 5.00% D
R328 0RH1501D622 O RESISTOR,METAL GLAZED(CHIP) 1.5K OHM 1 / 10 W 2012 5.00% D
R331 0RH2201D622 O RESISTOR,METAL GLAZED(CHIP) 2.2K OHM 1 / 10 W 2012 5.00% D
R332 0RH1801D622 O RESISTOR,METAL GLAZED(CHIP) 1.8K OHM 1 / 10 W 2012 5.00% D
R333 0RH1201D622 O RESISTOR,METAL GLAZED(CHIP) 1.2K OHM 1 / 10 W 2012 5.00% D
R335 0RH8201D622 O RESISTOR,METAL GLAZED(CHIP) 8.2K OHM 1 / 10 W 2012 5.00% D
R336 0RH1202D622 O RESISTOR,METAL GLAZED(CHIP) 12K OHM 1 / 10 W 2012 5.00% D
R337 0RH2202D622 O RESISTOR,METAL GLAZED(CHIP) 22K OHM 1 / 10 W 2012 5.00% D
R338 0RH1002D622 O RESISTOR,METAL GLAZED(CHIP) 10K OHM 1 / 10 W 2012 5.00% D
R339 0RH1802D622 O RESISTOR,METAL GLAZED(CHIP) 18K OHM 1 / 10 W 2012 5.00% D
R340 0RH1501D622 O RESISTOR,METAL GLAZED(CHIP) 1.5K OHM 1 / 10 W 2012 5.00% D
R341 0RH1000D622 O RESISTOR,METAL GLAZED(CHIP) 100 OHM 1 / 10 W 2012 5.00% D
R342 0RH4700D622 O RESISTOR,METAL GLAZED(CHIP) 470 OHM 1 / 10 W 2012 5.00% D
R344 0RH1000D622 O RESISTOR,METAL GLAZED(CHIP) 100 OHM 1 / 10 W 2012 5.00% D
R345 0RH0000D622 O RESISTOR,METAL GLAZED(CHIP) 0 OHM 1 / 10 W 2012 5.00% D
R346 0RH0000D622 O RESISTOR,METAL GLAZED(CHIP) 0 OHM 1 / 10 W 2012 5.00% D
R348 0RH2202D622 O RESISTOR,METAL GLAZED(CHIP) 22K OHM 1 / 10 W 2012 5.00% D
R349 0RH0000D622 O RESISTOR,METAL GLAZED(CHIP) 0 OHM 1 / 10 W 2012 5.00% D
R501 0RH1000D622 O RESISTOR,METAL GLAZED(CHIP) 100 OHM 1 / 10 W 2012 5.00% D
R502 0RH1000D622 O RESISTOR,METAL GLAZED(CHIP) 100 OHM 1 / 10 W 2012 5.00% D
R504 0RH1001D622 O RESISTOR,METAL GLAZED(CHIP) 1K OHM 1 / 10 W 2012 5.00% D
R505 0RH1001D622 O RESISTOR,METAL GLAZED(CHIP) 1K OHM 1 / 10 W 2012 5.00% D
R506 0RH0000D622 O RESISTOR,METAL GLAZED(CHIP) 0 OHM 1 / 10 W 2012 5.00% D
R507 0RH4701D622 O RESISTOR,METAL GLAZED(CHIP) 4.7K OHM 1 / 10 W 2012 5.00% D
R508 0RH2702D622 O RESISTOR,METAL GLAZED(CHIP) 27K OHM 1 / 10 W 2012 5.00% D
R509 0RH6800D622 O RESISTOR,METAL GLAZED(CHIP) 680 OHM 1 / 10 W 2012 5.00% D
R510 0RH0000D622 O RESISTOR,METAL GLAZED(CHIP) 0 OHM 1 / 10 W 2012 5.00% D
R511 0RH1001D622 O RESISTOR,METAL GLAZED(CHIP) 1K OHM 1 / 10 W 2012 5.00% D
R512 0RH1001D622 O RESISTOR,METAL GLAZED(CHIP) 1K OHM 1 / 10 W 2012 5.00% D
R514 0RH0000D622 O RESISTOR,METAL GLAZED(CHIP) 0 OHM 1 / 10 W 2012 5.00% D
R515 0RH2700D622 O RESISTOR,METAL GLAZED(CHIP) 270 OHM 1 / 10 W 2012 5.00% D
R517 0RH0000D622 O RESISTOR,METAL GLAZED(CHIP) 0 OHM 1 / 10 W 2012 5.00% D
R518 0RH1000D622 O RESISTOR,METAL GLAZED(CHIP) 100 OHM 1 / 10 W 2012 5.00% D
R519 0RH1000D622 O RESISTOR,METAL GLAZED(CHIP) 100 OHM 1 / 10 W 2012 5.00% D
R520 0RH1000D622 O RESISTOR,METAL GLAZED(CHIP) 100 OHM 1 / 10 W 2012 5.00% D
R521 0RH2701D622 O RESISTOR,METAL GLAZED(CHIP) 2.7K OHM 1 / 10 W 2012 5.00% D
Page 9
6-9
S AL LOCA NO PART NO(LG) A DESCRIPTION SPECIFICATION REMARKS
R522 0RH1001D622 O RESISTOR,METAL GLAZED(CHIP) 1K OHM 1 / 10 W 2012 5.00% D
R523 0RH5601D622 O RESISTOR,METAL GLAZED(CHIP) 5.6K OHM 1 / 10 W 2012 5.00% D
R524 0RH0000D622 O RESISTOR,METAL GLAZED(CHIP) 0 OHM 1 / 10 W 2012 5.00% D
R525 0RH1002D622 O RESISTOR,METAL GLAZED(CHIP) 10K OHM 1 / 10 W 2012 5.00% D
R526 0RH1002D622 O RESISTOR,METAL GLAZED(CHIP) 10K OHM 1 / 10 W 2012 5.00% D
R528 0RH2701D622 O RESISTOR,METAL GLAZED(CHIP) 2.7K OHM 1 / 10 W 2012 5.00% D
R529 0RH1002D622 O RESISTOR,METAL GLAZED(CHIP) 10K OHM 1 / 10 W 2012 5.00% D
R530 0RH0000D622 O RESISTOR,METAL GLAZED(CHIP) 0 OHM 1 / 10 W 2012 5.00% D
R531 0RH4701D622 O RESISTOR,METAL GLAZED(CHIP) 4.7K OHM 1 / 10 W 2012 5.00% D
R533 0RH1002D622 O RESISTOR,METAL GLAZED(CHIP) 10K OHM 1 / 10 W 2012 5.00% D
R534 0RH1002D622 O RESISTOR,METAL GLAZED(CHIP) 10K OHM 1 / 10 W 2012 5.00% D
R535 0RH4701D622 O RESISTOR,METAL GLAZED(CHIP) 4.7K OHM 1 / 10 W 2012 5.00% D
R536 0RH1001D622 O RESISTOR,METAL GLAZED(CHIP) 1K OHM 1 / 10 W 2012 5.00% D
R537 0RH4701D622 O RESISTOR,METAL GLAZED(CHIP) 4.7K OHM 1 / 10 W 2012 5.00% D
R538 0RH1001D622 O RESISTOR,METAL GLAZED(CHIP) 1K OHM 1 / 10 W 2012 5.00% D
R539 0RH0000D622 O RESISTOR,METAL GLAZED(CHIP) 0 OHM 1 / 10 W 2012 5.00% D
R540 0RH4701D622 O RESISTOR,METAL GLAZED(CHIP) 4.7K OHM 1 / 10 W 2012 5.00% D
R541 0RH2201D622 O RESISTOR,METAL GLAZED(CHIP) 2.2K OHM 1 / 10 W 2012 5.00% D
R542 0RH4701D622 O RESISTOR,METAL GLAZED(CHIP) 4.7K OHM 1 / 10 W 2012 5.00% D
R543 0RH1001D622 O RESISTOR,METAL GLAZED(CHIP) 1K OHM 1 / 10 W 2012 5.00% D
R544 0RH1003D622 O RESISTOR,METAL GLAZED(CHIP) 100K OHM 1 / 10 W 2012 5.00% D
R545 0RH0000D622 O RESISTOR,METAL GLAZED(CHIP) 0 OHM 1 / 10 W 2012 5.00% D
R546 0RH4701D622 O RESISTOR,METAL GLAZED(CHIP) 4.7K OHM 1 / 10 W 2012 5.00% D
R547 0RH1002D622 O RESISTOR,METAL GLAZED(CHIP) 10K OHM 1 / 10 W 2012 5.00% D
R548 0RH0000D622 O RESISTOR,METAL GLAZED(CHIP) 0 OHM 1 / 10 W 2012 5.00% D
R550 0RH2200D622 O RESISTOR,METAL GLAZED(CHIP) 220 OHM 1 / 10 W 2012 5.00% D
R553 0RH2200D622 O RESISTOR,METAL GLAZED(CHIP) 220 OHM 1 / 10 W 2012 5.00% D
R554 0RH1004D622 O RESISTOR,METAL GLAZED(CHIP) 1M OHM 1 / 10 W 2012 5.00% D
R555 0RH2200D622 O RESISTOR,METAL GLAZED(CHIP) 220 OHM 1 / 10 W 2012 5.00% D
R556 0RH2202D622 O RESISTOR,METAL GLAZED(CHIP) 22K OHM 1 / 10 W 2012 5.00% D
R557 0RH2702D622 O RESISTOR,METAL GLAZED(CHIP) 27K OHM 1 / 10 W 2012 5.00% D
R558 0RH2202D622 O RESISTOR,METAL GLAZED(CHIP) 22K OHM 1 / 10 W 2012 5.00% D
R563 0RH4701D622 O RESISTOR,METAL GLAZED(CHIP) 4.7K OHM 1 / 10 W 2012 5.00% D
R564 0RH2702D622 O RESISTOR,METAL GLAZED(CHIP) 27K OHM 1 / 10 W 2012 5.00% D
R566 0RH2701D622 O RESISTOR,METAL GLAZED(CHIP) 2.7K OHM 1 / 10 W 2012 5.00% D
R569 0RH4701D622 O RESISTOR,METAL GLAZED(CHIP) 4.7K OHM 1 / 10 W 2012 5.00% D
R570 0RH4701D622 O RESISTOR,METAL GLAZED(CHIP) 4.7K OHM 1 / 10 W 2012 5.00% D
R571 0RH2200D622 O RESISTOR,METAL GLAZED(CHIP) 220 OHM 1 / 10 W 2012 5.00% D
R575 0RH4701D622 O RESISTOR,METAL GLAZED(CHIP) 4.7K OHM 1 / 10 W 2012 5.00% D
R576 0RH4701D622 O RESISTOR,METAL GLAZED(CHIP) 4.7K OHM 1 / 10 W 2012 5.00% D
R577 0RH4701D622 O RESISTOR,METAL GLAZED(CHIP) 4.7K OHM 1 / 10 W 2012 5.00% D
R578 0RH4701D622 O RESISTOR,METAL GLAZED(CHIP) 4.7K OHM 1 / 10 W 2012 5.00% D
R579 0RH5602D622 O RESISTOR,METAL GLAZED(CHIP) 56K OHM 1 / 10 W 2012 5.00% D
R580 0RH1202D622 O RESISTOR,METAL GLAZED(CHIP) 12K OHM 1 / 10 W 2012 5.00% D
R581 0RH2201D622 O RESISTOR,METAL GLAZED(CHIP) 2.2K OHM 1 / 10 W 2012 5.00% D
R582 0RH4701D622 O RESISTOR,METAL GLAZED(CHIP) 4.7K OHM 1 / 10 W 2012 5.00% D
R583 0RH1002D622 O RESISTOR,METAL GLAZED(CHIP) 10K OHM 1 / 10 W 2012 5.00% D
R586 0RH1801D622 O RESISTOR,METAL GLAZED(CHIP) 1.8K OHM 1 / 10 W 2012 5.00% D
R587 0RH1801D622 O RESISTOR,METAL GLAZED(CHIP) 1.8K OHM 1 / 10 W 2012 5.00% D
R588 0RH2701D622 O RESISTOR,METAL GLAZED(CHIP) 2.7K OHM 1 / 10 W 2012 5.00% D
R589 0RH1501D622 O RESISTOR,METAL GLAZED(CHIP) 1.5K OHM 1 / 10 W 2012 5.00% D
R591 0RH0000D622 O RESISTOR,METAL GLAZED(CHIP) 0 OHM 1 / 10 W 2012 5.00% D
R592 0RH1002D622 O RESISTOR,METAL GLAZED(CHIP) 10K OHM 1 / 10 W 2012 5.00% D
R593 0RH1002D622 O RESISTOR,METAL GLAZED(CHIP) 10K OHM 1 / 10 W 2012 5.00% D
R594 0RH1001D622 O RESISTOR,METAL GLAZED(CHIP) 1K OHM 1 / 10 W 2012 5.00% D
R595 0RH1001D622 O RESISTOR,METAL GLAZED(CHIP) 1K OHM 1 / 10 W 2012 5.00% D
R596 0RH1002D622 O RESISTOR,METAL GLAZED(CHIP) 10K OHM 1 / 10 W 2012 5.00% D
R597 0RH2201D622 O RESISTOR,METAL GLAZED(CHIP) 2.2K OHM 1 / 10 W 2012 5.00% D
R598 0RH1201D622 O RESISTOR,METAL GLAZED(CHIP) 1.2K OHM 1 / 10 W 2012 5.00% D
R599 0RH1001D622 O RESISTOR,METAL GLAZED(CHIP) 1K OHM 1 / 10 W 2012 5.00% D
Page 10
6-10
S AL LOCA NO PART NO(LG) A DESCRIPTION SPECIFICATION REMARKS
R5C6 0RH1001D622 O RESISTOR,METAL GLAZED(CHIP) 1K OHM 1 / 10 W 2012 5.00% D
R601 0RH0752D622 O RESISTOR,METAL GLAZED(CHIP) 75 OHM 1 / 10 W 2012 5.00% D
R602 0RH0000D622 O RESISTOR,METAL GLAZED(CHIP) 0 OHM 1 / 10 W 2012 5.00% D
R603 0RH0000D622 O RESISTOR,METAL GLAZED(CHIP) 0 OHM 1 / 10 W 2012 5.00% D
R608 0RH1001D622 O RESISTOR,METAL GLAZED(CHIP) 1K OHM 1 / 10 W 2012 5.00% D
R610 0RH1001D622 O RESISTOR,METAL GLAZED(CHIP) 1K OHM 1 / 10 W 2012 5.00% D
R611 0RH0222D622 O RESISTOR,METAL GLAZED(CHIP) 22 OHM 1 / 10 W 2012 5.00% D
R612 0RH0222D622 O RESISTOR,METAL GLAZED(CHIP) 22 OHM 1 / 10 W 2012 5.00% D
R613 0RH1001D622 O RESISTOR,METAL GLAZED(CHIP) 1K OHM 1 / 10 W 2012 5.00% D
R625 0RH0752D622 O RESISTOR,METAL GLAZED(CHIP) 75 OHM 1 / 10 W 2012 5.00% D
R626 0RH8202D622 O RESISTOR,METAL GLAZED(CHIP) 82K OHM 1 / 10 W 2012 5.00% D
R627 0RH8202D622 O RESISTOR,METAL GLAZED(CHIP) 82K OHM 1 / 10 W 2012 5.00% D
R628 0RH0752D622 O RESISTOR,METAL GLAZED(CHIP) 75 OHM 1 / 10 W 2012 5.00% D
R702 0RH1001D622 O RESISTOR,METAL GLAZED(CHIP) 1K OHM 1 / 10 W 2012 5.00% D
R703 0RH3901D622 O RESISTOR,METAL GLAZED(CHIP) 3.9K OHM 1 / 10 W 2012 5.00% D
R706 0RH6800D622 O RESISTOR,METAL GLAZED(CHIP) 680 OHM 1 / 10 W 2012 5.00% D
R707 0RH6800D622 O RESISTOR,METAL GLAZED(CHIP) 680 OHM 1 / 10 W 2012 5.00% D
R708 0RH3302D622 O RESISTOR,METAL GLAZED(CHIP) 33K OHM 1 / 10 W 2012 5.00% D
R711 0RH1001D622 O RESISTOR,METAL GLAZED(CHIP) 1K OHM 1 / 10 W 2012 5.00% D
R751 0RH4701D622 O RESISTOR,METAL GLAZED(CHIP) 4.7K OHM 1 / 10 W 2012 5.00% D
R752 0RH4701D622 O RESISTOR,METAL GLAZED(CHIP) 4.7K OHM 1 / 10 W 2012 5.00% D
R801 0RH1000D622 O RESISTOR,METAL GLAZED(CHIP) 100 OHM 1 / 10 W 2012 5.00% D
R802 0RH4702D622 O RESISTOR,METAL GLAZED(CHIP) 47K OHM 1 / 10 W 2012 5.00% D
R804 0RH4701D622 O RESISTOR,METAL GLAZED(CHIP) 4.7K OHM 1 / 10 W 2012 5.00% D
R805 0RH4702D622 O RESISTOR,METAL GLAZED(CHIP) 47K OHM 1 / 10 W 2012 5.00% D
R806 0RH7501D622 O RESISTOR,METAL GLAZED(CHIP) 7.5K OHM 1 / 10 W 2012 5.00% D
R807 0RH5602D622 O RESISTOR,METAL GLAZED(CHIP) 56K OHM 1 / 10 W 2012 5.00% D
R808 0RH2202D622 O RESISTOR,METAL GLAZED(CHIP) 22K OHM 1 / 10 W 2012 5.00% D
R809 0RH1800D622 O RESISTOR,METAL GLAZED(CHIP) 180 OHM 1 / 10 W 2012 5.00% D
R810 0RH1801D622 O RESISTOR,METAL GLAZED(CHIP) 1.8K OHM 1 / 10 W 2012 5.00% D
R811 0RH5602D622 O RESISTOR,METAL GLAZED(CHIP) 56K OHM 1 / 10 W 2012 5.00% D
R812 0RH7501D622 O RESISTOR,METAL GLAZED(CHIP) 7.5K OHM 1 / 10 W 2012 5.00% D
R813 0RH5602D622 O RESISTOR,METAL GLAZED(CHIP) 56K OHM 1 / 10 W 2012 5.00% D
R814 0RH7501D622 O RESISTOR,METAL GLAZED(CHIP) 7.5K OHM 1 / 10 W 2012 5.00% D
R817 0RH1502D622 O RESISTOR,METAL GLAZED(CHIP) 15K OHM 1 / 10 W 2012 5.00% D
R818 0RH4701D622 O RESISTOR,METAL GLAZED(CHIP) 4.7K OHM 1 / 10 W 2012 5.00% D
R821 0RH1002D622 O RESISTOR,METAL GLAZED(CHIP) 10K OHM 1 / 10 W 2012 5.00% D
R822 0RH1003D622 O RESISTOR,METAL GLAZED(CHIP) 100K OHM 1 / 10 W 2012 5.00% D
R823 0RH4702D622 O RESISTOR,METAL GLAZED(CHIP) 47K OHM 1 / 10 W 2012 5.00% D
R835 0RH0000D622 O RESISTOR,METAL GLAZED(CHIP) 0 OHM 1 / 10 W 2012 5.00% D
R836 0RH4700D622 O RESISTOR,METAL GLAZED(CHIP) 470 OHM 1 / 10 W 2012 5.00% D
R837 0RH0000D622 O RESISTOR,METAL GLAZED(CHIP) 0 OHM 1 / 10 W 2012 5.00% D
R838 0RH2701D622 O RESISTOR,METAL GLAZED(CHIP) 2.7K OHM 1 / 10 W 2012 5.00% D
R839 0RH3902D622 O RESISTOR,METAL GLAZED(CHIP) 39K OHM 1 / 10 W 2012 5.00% D
R840 0RH0000D622 O RESISTOR,METAL GLAZED(CHIP) 0 OHM 1 / 10 W 2012 5.00% D
R842 0RH1000D622 O RESISTOR,METAL GLAZED(CHIP) 100 OHM 1 / 10 W 2012 5.00% D
R843 0RH1000D622 O RESISTOR,METAL GLAZED(CHIP) 100 OHM 1 / 10 W 2012 5.00% D
R844 0RH1000D622 O RESISTOR,METAL GLAZED(CHIP) 100 OHM 1 / 10 W 2012 5.00% D
R845 0RH1000D622 O RESISTOR,METAL GLAZED(CHIP) 100 OHM 1 / 10 W 2012 5.00% D
R851 0RH1000D622 O RESISTOR,METAL GLAZED(CHIP) 100 OHM 1 / 10 W 2012 5.00% D
R856 0RH7501D622 O RESISTOR,METAL GLAZED(CHIP) 7.5K OHM 1 / 10 W 2012 5.00% D
R857 0RH5602D622 O RESISTOR,METAL GLAZED(CHIP) 56K OHM 1 / 10 W 2012 5.00% D
R858 0RH4702D622 O RESISTOR,METAL GLAZED(CHIP) 47K OHM 1 / 10 W 2012 5.00% D
R866 0RH4702D622 O RESISTOR,METAL GLAZED(CHIP) 47K OHM 1 / 10 W 2012 5.00% D
R867 0RH1502D622 O RESISTOR,METAL GLAZED(CHIP) 15K OHM 1 / 10 W 2012 5.00% D
R874 0RH4701D622 O RESISTOR,METAL GLAZED(CHIP) 4.7K OHM 1 / 10 W 2012 5.00% D
RS501 6500RAB003A O SENSOR SG-260 KODENSHI D33 REEL SENSO
RS502 6500RAB003A O SENSOR SG-260 KODENSHI D33 REEL SENSO
SW601 6600R-SH18A O SWITCH,TACT CSS-4206 CHANGSHIN DC 30 V 10
TU701 6700NFNL04A O TUNER TADM-H102F(US,LGIT) LG INOTEK
Page 11
6-11
S AL LOCA NO PART NO(LG) A DESCRIPTION SPECIFICATION REMARKS
X501 6212AC2327E O RESONATOR,CRYSTAL C-001R SEIKO EPSON 32.768 KHZ
X502 6202R1143DC O RESONATOR,CRYSTAL H49U BUBANG 14-31818HZ 25PPM 1
ZD501 0DZ560009CJ O DIODE,ZENERS GDZJ5.6B 26MM GRANDE TP26 DO34
ZD502 0DZ560009CJ O DIODE,ZENERS GDZJ5.6B 26MM GRANDE TP26 DO34
ZD751 0DZ102609BB O DIODE,ZENER UZ-10BSB 26MM TP PYUNG CHANG D
ZD752 0DZ562609BA O DIODE,ZENER GDZJ5.6C 26MM TP GRANDE DO34
A49 (BOARD ASSEMBLY)
A49 3501R-9901A O BOARD ASSEMBLY VCR VC693M HA1UZZ
C601 0CE1064F638 O CAPACITOR,ELECTROLYTIC 10M SRA 16V M FM5 TP(5)
C6G1 0CE4775C638 O CAPACITOR,FIXED ELECTROLYTIC 470UF SR,SV 6.3V 20% FM5 TP 5
C6G2 0CE4775C638 O CAPACITOR,FIXED ELECTROLYTIC 470UF SR,SV 6.3V 20% FM5 TP 5
IC601 0ILNRPY001A O IC,LINEAR PT6955 PTC 24P SOP ST LED DRIV
L601 0LR4700K035 O INDUCTOR RADIAL LEAD 470M K 6X6 L5 TP
LD601 6301R2U008B O LED ASSEMBLY TOS-3664AGMGMRMY-B OASIS UNIVE
R604 0RD5602F608 O RESISTOR,FIXED CARBON FILM 56K OHM 1/6 W 5% TA26
R605 0RD3300F608 O RESISTOR,FIXED CARBON FILM 330 OHM 1/6 W 5% TA26
R611 0RD6800F608 O RESISTOR,FIXED CARBON FILM 680 OHM 1/6 W 5% TA26
R612 0RD8200F608 O RESISTOR,FIXED CARBON FILM 820 OHM 1/6 W 5% TA26
R613 0RD1201F608 O RESISTOR,FIXED CARBON FILM 1.2K OHM 1/6 W 5% TA26
R614 0RD1501F608 O RESISTOR,FIXED CARBON FILM 1.5K OHM 1/6 W 5% TA26
R615 0RD2201F608 O RESISTOR,FIXED CARBON FILM 2.2K OHM 1/6 W 5% TA26
R616 0RD3301F608 O RESISTOR,FIXED CARBON FILM 3.3K OHM 1/6 W 5% TA26
R617 0RD4701F608 O RESISTOR,FIXED CARBON FILM 4.7K OHM 1/6 W 5% TA26
R618 0RD6800F608 O RESISTOR,FIXED CARBON FILM 680 OHM 1/6 W 5% TA26
R619 0RD8200F608 O RESISTOR,FIXED CARBON FILM 820 OHM 1/6 W 5% TA26
R620 0RD2701F608 O RESISTOR,FIXED CARBON FILM 2.7K OHM 1/6 W 5% TA26
RC601 6712R0838GA O REMOTE CONTROLLER RECEIVER TSOP1238UQ1 VISHAY(TEMIC) 37-9
SW601 556-219B O SWITCH,TACT THVV502GAA POSTECH DC 12 V 5-
SW602 556-219B O SWITCH,TACT THVV502GAA POSTECH DC 12 V 5-
SW603 556-219B O SWITCH,TACT THVV502GAA POSTECH DC 12 V 5-
SW604 556-219B O SWITCH,TACT THVV502GAA POSTECH DC 12 V 5-
SW605 556-219B O SWITCH,TACT THVV502GAA POSTECH DC 12 V 5-
SW606 556-219B O SWITCH,TACT THVV502GAA POSTECH DC 12 V 5-
SW607 556-219B O SWITCH,TACT THVV502GAA POSTECH DC 12 V 5-
SW611 556-219B O SWITCH,TACT THVV502GAA POSTECH DC 12 V 5-
SW612 556-219B O SWITCH,TACT THVV502GAA POSTECH DC 12 V 5-
SW613 556-219B O SWITCH,TACT THVV502GAA POSTECH DC 12 V 5-
A42 (BOARD ASSEMBLY)
A42 3501R-9902A O BOARD ASSEMBLY VCR VC693M HA1UZZ
C611 0CN1020K518 O CAPACITOR TUBULA(HIGH DIELE) 1000P 50V K B TA26
C612 0CN1020K518 O CAPACITOR TUBULA(HIGH DIELE) 1000P 50V K B TA26
JK601 6612JH003AC O JACK,RCA BJP-113D BAE EUN YELLOW
JK602 6612JH003AB O JACK,RCA BJP-113C BAE EUN WHITE
JK603 6612JH003AA O JACK,RCA BJP-113B BAE EUN RED
L602 0LA1000K018 O INDUCTOR AXIAL LEAD 100M K 2.3X3.4 L5 TP
L603 0LA1000K018 O INDUCTOR AXIAL LEAD 100M K 2.3X3.4 L5 TP
LED601 0DL112000AJ O DIODE,LED DL-11S2RNS(SUPER,RED,03)KOC
LED602 0DL112000AJ O DIODE,LED DL-11S2RNS(SUPER,RED,03)KOC
Q601 0TR103009AE O TRANSISTOR,BIPOLARS KRC103M(KRC1203) KEC TP TO92M
Q602 0TR103009AE O TRANSISTOR,BIPOLARS KRC103M(KRC1203) KEC TP TO92M
R621 0RD1501F608 O RESISTOR,FIXED CARBON FILM 1.5K OHM 1/6 W 5% TA26
R622 0RD1201F608 O RESISTOR,FIXED CARBON FILM 1.2K OHM 1/6 W 5% TA26
R630 0RD1500F608 O RESISTOR,FIXED CARBON FILM 150 OHM 1/6 W 5% TA26
R631 0RD1500F608 O RESISTOR,FIXED CARBON FILM 150 OHM 1/6 W 5% TA26
R641 0RD0752F608 O RESISTOR,FIXED CARBON FILM 75 OHM 1/6 W 5.00% TA26
SW608 556-219B O SWITCH,TACT THVV502GAA POSTECH DC 12 V 5-
SW614 556-219B O SWITCH,TACT THVV502GAA POSTECH DC 12 V 5-
SW615 556-219B O SWITCH,TACT THVV502GAA POSTECH DC 12 V 5-
A48 PWB(PCB) ASSEMBLY,TOTAL
A48 6871R-8511B O PWB(PCB) ASSEMBLY,TOTAL VC663M HA1UZZ POWER
Page 12
6-12
S AL LOCA NO PART NO(LG) A DESCRIPTION SPECIFICATION REMARKS
BD01 636-004C O FILTER(CIRC),EMC BEAD CORE BFS3550R2FD8,R T/P
BD02 636-004C O FILTER(CIRC),EMC BEAD CORE BFS3550R2FD8,R T/P
BD101 0DD160000DA O DIODE S1WBA60(1A 600V) SHIDENKEN
C101 624-088S O CAPACITOR,DRAWING MPX104K ETR/EUROPTRONIC BULK
C102 624-088S O CAPACITOR,DRAWING MPX104K ETR/EUROPTRONIC BULK
C103 0CE157CR610 O CAPACITOR,AL.ELECTROLYTIC 150UF SHL,SD 250V M FL BULK
C105 0CQ1031Y519 O CAPACITOR,POLYESTER 0.01UF D 630V K PE NI TP
C106 624-087B O CAPACITOR HIGH-VOL 100P/1KV SMPS SAMHWA
C107 0CE1054K638 O CAPACITOR,ELECTROLYTIC 1.0M SRA/SS50V M FM5 TP(5)
C108 0CE336BH638 O CAPACITOR,ELECTROLYTIC 33UF KME 25V M FM5 TP5
C109 0CN223AK948 O CAPACITOR,TUBULAR(HIGH DIELEC) 0.022UF 50V Z F TA26 S
C110 0CG1020U630 O CAPACITOR,SEMI CERAMIC 1000PF 400V M E(Z5U) R
C111 0CG2220U630 O CAPACITOR,SEMI CERAMIC 2200 PF 400V M E R (NK,AD,SD)
C123 0CE477BH630 O CAPACITOR,AL.ELECTROLYTIC 470UF KME TYPE 25V M FM5 BULK
C126 0CE2276H638 O CAPACITOR,FIXED ELECTROLYTIC 220UF SMS,SG 25V 20% FM5 TP 5
C127 0CE108BF630 O CAPACITOR,FIXED ELECTROLYTIC 1000UF KME 16V M FM5 BULK
C128 0CE3376D638 O CAPACITOR,ELECTROLYTIC 330UF SMS 10V M FM5 TP5
C129 0CE228BF630 O CAPACITOR,FIXED ELECTROLYTIC 2200UF KME TYPE 16V 20% FM5 BU
C131 624-082H O CAPACITOR CE 1000UF/10V SHL(10*12.5)T/P
C132 624-085D O CAPACITOR CE 47UF/50V KME (SMPS)
C133 0CQ1042K409 O CAPACITOR,FIXED FILM 0.1UF S 50V J PE TP
C151 0CE4754K638 O CAPACITOR,FIXED ELECTROLYTIC 4.7UF SRA,SS 50V 20% FM5 TP 5
C152 0CE4754K638 O CAPACITOR,FIXED ELECTROLYTIC 4.7UF SRA,SS 50V 20% FM5 TP 5
C153 0CE1064F638 O CAPACITOR,ELECTROLYTIC 10M SRA 16V M FM5 TP(5)
C154 0CE1074F638 O CAPACITOR,ELECTROLYTIC 100U SRA 16V M FM5 TP(5)
C155 0CE1064F638 O CAPACITOR,ELECTROLYTIC 10M SRA 16V M FM5 TP(5)
C159 0CE1064F638 O CAPACITOR,ELECTROLYTIC 10M SRA 16V M FM5 TP(5)
C161 0CE4764C638 O CAPACITOR,ELECTROLYTIC 47M SRA 6.3V M FM5 TP(5)
C163 624-087H O CAPACITOR HIGH-VOL 220PF/1KV CERAMIC
D101 0DD221009AA O DIODE,RECTIFIERS ERA22-10 KFLB,TP ,R T/P,FUJI
D102 0DD010009AC O DIODE EU01W(R-FORM) TP SANKEN
D110 0DR302000AB O DIODE,RECTIFIER HER302 BK RECTRON DO201AD 100V
D111 0DR158220AA O DIODE,RECTIFIER 1N5822 BK RECTRON DO201AD 40V
D112 0DR158220AA O DIODE,RECTIFIER 1N5822 BK RECTRON DO201AD 40V
D113 0DD010009AC O DIODE EU01W(R-FORM) TP SANKEN
D114 0DR104009AB O DIODE,RECTIFIER RL104 R. TP GULF SEMICONDUCTOR
D115 0DR104009AB O DIODE,RECTIFIER RL104 R. TP GULF SEMICONDUCTOR
D121 0DS141489BB O DIODE,SWITCHING 1N4148 26MM TP GRANDE DO34 75V
F101 0FS1601B51B O FUSE,SLOW BLOW 1600MA 250 V 5.2X20 CY/GL KS /
IC101 0IPMGFF001A O IC,POWER MANAGEMENT ICE2B265 INFINEON 8 DIP ST SMP
IC102 657-063A O SENSOR LTV-817B,PHOTO COUPLER(LITEON)
IC103 0ISS431000A O IC,SAMSUNG ELECTRONICS KA431AZ (LM431AZ)
IC151 0IPMGKE008B O IC,POWER MANAGEMENT KIA78R08PI CU KEC 4P TO-220IS
IC152 0IPMGKE022B O IC,POWER MANAGEMENT KIA278R33PI-CU KEC 4PIN TO-220
L102 616-145P O FILTER(CIRC),DRAWING LFSQ2215V4-04220B SAMWAH TECOM
L122 633-088G O COIL,CHOKE CHOCK(22MH) 5MM TOKO TP
L123 633-088G O COIL,CHOKE CHOCK(22MH) 5MM TOKO TP
L124 633-088G O COIL,CHOKE CHOCK(22MH) 5MM TOKO TP
Q156 0TR320509AB O TRANSISTOR KTC3205-TP-Y (KTC2236A)KEC
Q160 0TR127309AA O TRANSISTOR KTA1273-TP-Y (KTA966A)KEC
Q161 0TR126809BA O TRANSISTOR,BIPOLARS KTA1268-BL TP KEC
Q162 0TR319809AC O TRANSISTOR KTC3198-TP-BL (KTC1815)KEC
R100 0RD1504H632 O RESISTOR,FIXED CARBON FILM 1.5M OHM 1/2 W 5.00% MF10
R101 614-007A O RESISTOR 2.7/2W CEMENT SMPS V
R104 0RS5602K619 O RESISTOR,FIXED METAL OXIDE FIL 56K OHM 2 W 5.00% TR
R105 0RD0222F608 O RESISTOR,FIXED CARBON FILM 22 OHM 1/6 W 5% TA26
R106 0RD0222F608 O RESISTOR,FIXED CARBON FILM 22 OHM 1/6 W 5% TA26
R107 0RS0350K619 O RESISTOR,FIXED METAL OXIDE FIL 0.35 OHM 2 W 5.00% TR
R112 0RD2200F608 O RESISTOR,FIXED CARBON FILM 220 OHM 1/6 W 5% TA26
R113 0RD2201F608 O RESISTOR,FIXED CARBON FILM 2.2K OHM 1/6 W 5% TA26
Page 13
6-13
S AL LOCA NO PART NO(LG) A DESCRIPTION SPECIFICATION REMARKS
R114 0RD1001F608 O RESISTOR,FIXED CARBON FILM 1K OHM 1/6 W 5% TA26
R115 0RN3301F408 O RESISTOR,FIXED METAL FILM 3.3K OHM 1/6 W 1% TA26
R116 0RN2701F408 O RESISTOR,FIXED METAL FILM 2.7K OHM 1/6 W 1% TA26
R117 0RD2700F608 O RESISTOR,FIXED CARBON FILM 270 OHM 1/6 W 5% TA26
R119 0RD1003F608 O RESISTOR,FIXED CARBON FILM 100K OHM 1/6 W 5% TA26
R131 0RD2203F608 O RESISTOR,FIXED CARBON FILM 220K OHM 1/6 W 5% TA26
R132 0RD2203F608 O RESISTOR,FIXED CARBON FILM 220K OHM 1/6 W 5% TA26
R153 0RD4701F608 O RESISTOR,FIXED CARBON FILM 4.7K OHM 1/6 W 5% TA26
R154 0RD1001F608 O RESISTOR,FIXED CARBON FILM 1K OHM 1/6 W 5% TA26
R155 0RD1802F608 O RESISTOR,FIXED CARBON FILM 18K OHM 1/6 W 5% TA26
R156 0RD1002F608 O RESISTOR,FIXED CARBON FILM 10K OHM 1/6 W 5% TA26
R157 0RD1001F608 O RESISTOR,FIXED CARBON FILM 1K OHM 1/6 W 5% TA26
R158 0RD3300F608 O RESISTOR,FIXED CARBON FILM 330 OHM 1/6 W 5% TA26
R159 0RD3300F608 O RESISTOR,FIXED CARBON FILM 330 OHM 1/6 W 5% TA26
R163 0RD4701F608 O RESISTOR,FIXED CARBON FILM 4.7K OHM 1/6 W 5% TA26
R164 0RD4701F608 O RESISTOR,FIXED CARBON FILM 4.7K OHM 1/6 W 5% TA26
R170 0RD1002F608 O RESISTOR,FIXED CARBON FILM 10K OHM 1/6 W 5% TA26
R171 0RD1001F608 O RESISTOR,FIXED CARBON FILM 1K OHM 1/6 W 5% TA26
T101 6170RNGW12A O TRANSFORMER,SMPS[COIL] EER3530 SOOJUNG WIDE EER3530
V101 656-004C O VARISTOR,DRAWING SVC681D-10A SAMHWA 4.O CUT
ZD103 0DZ132609AB O DIODE,ZENER GDZJ13A 26MM TP GRANDE DO34 0
Q162 0TR319909AF O TRANSISTOR,BIPOLARS KTC3199-BL MINI TP KEC
DVD SIDE(NS MODEL)
A46A (SUB PWB(PCB) ASSEMBLY)
A46A 6885R-1101P O SUB PWB(PCB) ASSEMBLY 5553004C100504 FF 090810033D
C201 0CH1104K942 O CAPACITOR,CHIP[CERAMIC M/L HD 0.1UF 50V Z Y5V(F) 1508 R/TP
C202 0CH1104K942 O CAPACITOR,CHIP[CERAMIC M/L HD 0.1UF 50V Z Y5V(F) 1508 R/TP
C203 0CH1104K942 O CAPACITOR,CHIP[CERAMIC M/L HD 0.1UF 50V Z Y5V(F) 1508 R/TP
C204 0CH1104K942 O CAPACITOR,CHIP[CERAMIC M/L HD 0.1UF 50V Z Y5V(F) 1508 R/TP
C205 0CH1104K942 O CAPACITOR,CHIP[CERAMIC M/L HD 0.1UF 50V Z Y5V(F) 1508 R/TP
C206 0CH1104K942 O CAPACITOR,CHIP[CERAMIC M/L HD 0.1UF 50V Z Y5V(F) 1508 R/TP
C207 0CH1105D942 O CAPACITOR,CHIP[CERAMIC M/L HD 1UF 10V Z Y5V(F) 1508 R/TP
C208 0CH1104K942 O CAPACITOR,CHIP[CERAMIC M/L HD 0.1UF 50V Z Y5V(F) 1508 R/TP
C209 0CH1104K942 O CAPACITOR,CHIP[CERAMIC M/L HD 0.1UF 50V Z Y5V(F) 1508 R/TP
C210 0CH1104K942 O CAPACITOR,CHIP[CERAMIC M/L HD 0.1UF 50V Z Y5V(F) 1508 R/TP
C211 0CE1064F638 O CAPACITOR,ELECTROLYTIC 10M SRA 16V M FM5 TP(5)
C212 0CE1064F638 O CAPACITOR,ELECTROLYTIC 10M SRA 16V M FM5 TP(5)
C213 0CE1064F638 O CAPACITOR,ELECTROLYTIC 10M SRA 16V M FM5 TP(5)
C214 0CH1104K942 O CAPACITOR,CHIP[CERAMIC M/L HD 0.1UF 50V Z Y5V(F) 1508 R/TP
C215 0CH1104K942 O CAPACITOR,CHIP[CERAMIC M/L HD 0.1UF 50V Z Y5V(F) 1508 R/TP
C216 0CH1104K942 O CAPACITOR,CHIP[CERAMIC M/L HD 0.1UF 50V Z Y5V(F) 1508 R/TP
C224 0CH1104K942 O CAPACITOR,CHIP[CERAMIC M/L HD 0.1UF 50V Z Y5V(F) 1508 R/TP
C225 0CH1105D942 O CAPACITOR,CHIP[CERAMIC M/L HD 1UF 10V Z Y5V(F) 1508 R/TP
C226 0CH1105D942 O CAPACITOR,CHIP[CERAMIC M/L HD 1UF 10V Z Y5V(F) 1508 R/TP
C229 0CH1104K942 O CAPACITOR,CHIP[CERAMIC M/L HD 0.1UF 50V Z Y5V(F) 1508 R/TP
C230 0CH1104K942 O CAPACITOR,CHIP[CERAMIC M/L HD 0.1UF 50V Z Y5V(F) 1508 R/TP
C231 0CH1104K942 O CAPACITOR,CHIP[CERAMIC M/L HD 0.1UF 50V Z Y5V(F) 1508 R/TP
C232 0CE1064F638 O CAPACITOR,ELECTROLYTIC 10M SRA 16V M FM5 TP(5)
C238 0CH1104K942 O CAPACITOR,CHIP[CERAMIC M/L HD 0.1UF 50V Z Y5V(F) 1508 R/TP
C239 0CH1104K942 O CAPACITOR,CHIP[CERAMIC M/L HD 0.1UF 50V Z Y5V(F) 1508 R/TP
C240 0CH1222K562 O CAPACITOR,CHIP[CERAMIC M/L HD 2200PF 50V K X7R(X) 1608 R/TP
C242 0CH1104K942 O CAPACITOR,CHIP[CERAMIC M/L HD 0.1UF 50V Z Y5V(F) 1508 R/TP
C245 0CH1105D942 O CAPACITOR,CHIP[CERAMIC M/L HD 1UF 10V Z Y5V(F) 1508 R/TP
C251 0CH1105D942 O CAPACITOR,CHIP[CERAMIC M/L HD 1UF 10V Z Y5V(F) 1508 R/TP
C252 0CH4100K112 O CHIP CAPA CERAMIC M/L T.C F/S 10P 50V D COG 1.6X0.8 R/TP
C253 0CH1105D942 O CAPACITOR,CHIP[CERAMIC M/L HD 1UF 10V Z Y5V(F) 1508 R/TP
C254 0CH1105D942 O CAPACITOR,CHIP[CERAMIC M/L HD 1UF 10V Z Y5V(F) 1508 R/TP
C255 0CH1104K942 O CAPACITOR,CHIP[CERAMIC M/L HD 0.1UF 50V Z Y5V(F) 1508 R/TP
C258 0CH1105D942 O CAPACITOR,CHIP[CERAMIC M/L HD 1UF 10V Z Y5V(F) 1508 R/TP
C261 0CE1064F638 O CAPACITOR,ELECTROLYTIC 10M SRA 16V M FM5 TP(5)
Page 14
6-14
S AL LOCA NO PART NO(LG) A DESCRIPTION SPECIFICATION REMARKS
C262 0CE1064F638 O CAPACITOR,ELECTROLYTIC 10M SRA 16V M FM5 TP(5)
C263 0CE1064F638 O CAPACITOR,ELECTROLYTIC 10M SRA 16V M FM5 TP(5)
C264 0CE1064F638 O CAPACITOR,ELECTROLYTIC 10M SRA 16V M FM5 TP(5)
C265 0CE1064F638 O CAPACITOR,ELECTROLYTIC 10M SRA 16V M FM5 TP(5)
C272 0CE4764F638 O CAPACITOR,ELECTROLYTIC 47M SRA/SS 16V M FM5 TP(5)
C273 0CH1225F944 O CAPACITOR,FIXED CERAMIC(Temp.c 2.2UF 16V 80%,-20% Y5V(F) 3216
C274 0CE4764F638 O CAPACITOR,ELECTROLYTIC 47M SRA/SS 16V M FM5 TP(5)
C277 0CH1104K942 O CAPACITOR,CHIP[CERAMIC M/L HD 0.1UF 50V Z Y5V(F) 1508 R/TP
C278 0CE1064F638 O CAPACITOR,ELECTROLYTIC 10M SRA 16V M FM5 TP(5)
C279 0CE1064F638 O CAPACITOR,ELECTROLYTIC 10M SRA 16V M FM5 TP(5)
C280 0CE1064F638 O CAPACITOR,ELECTROLYTIC 10M SRA 16V M FM5 TP(5)
C281 0CE1064F638 O CAPACITOR,ELECTROLYTIC 10M SRA 16V M FM5 TP(5)
C282 0CH1104K942 O CAPACITOR,CHIP[CERAMIC M/L HD 0.1UF 50V Z Y5V(F) 1508 R/TP
C284 0CE4764F638 O CAPACITOR,ELECTROLYTIC 47M SRA/SS 16V M FM5 TP(5)
C285 0CE1064F638 O CAPACITOR,ELECTROLYTIC 10M SRA 16V M FM5 TP(5)
C286 0CH1104K942 O CAPACITOR,CHIP[CERAMIC M/L HD 0.1UF 50V Z Y5V(F) 1508 R/TP
C287 0CE1064F638 O CAPACITOR,ELECTROLYTIC 10M SRA 16V M FM5 TP(5)
C288 0CE1064F638 O CAPACITOR,ELECTROLYTIC 10M SRA 16V M FM5 TP(5)
C289 0CH1104K942 O CAPACITOR,CHIP[CERAMIC M/L HD 0.1UF 50V Z Y5V(F) 1508 R/TP
C290 0CH4180K412 O CAPACITOR,CHIP[CERAMIC M/L TC 18P 50V J COG 1.6X0.8 R/TP
C291 0CH4180K412 O CAPACITOR,CHIP[CERAMIC M/L TC 18P 50V J COG 1.6X0.8 R/TP
C292 0CH1104K942 O CAPACITOR,CHIP[CERAMIC M/L HD 0.1UF 50V Z Y5V(F) 1508 R/TP
C293 0CH1104K942 O CAPACITOR,CHIP[CERAMIC M/L HD 0.1UF 50V Z Y5V(F) 1508 R/TP
C294 0CH1104K942 O CAPACITOR,CHIP[CERAMIC M/L HD 0.1UF 50V Z Y5V(F) 1508 R/TP
C295 0CH1104K942 O CAPACITOR,CHIP[CERAMIC M/L HD 0.1UF 50V Z Y5V(F) 1508 R/TP
C296 0CH1104K942 O CAPACITOR,CHIP[CERAMIC M/L HD 0.1UF 50V Z Y5V(F) 1508 R/TP
C297 0CE4764F638 O CAPACITOR,ELECTROLYTIC 47M SRA/SS 16V M FM5 TP(5)
C298 0CE4775C638 O CAPACITOR,FIXED ELECTROLYTIC 470UF SR,SV 6.3V 20% FM5 TP 5
C299 0CH4220K412 O CAPA,CHIP CERAMIC M/L T.C F/S 22P 50V J COG 1.6X0.8 R/TP
C2A0 0CE4764F638 O CAPACITOR,ELECTROLYTIC 47M SRA/SS 16V M FM5 TP(5)
C2A3 0CH1104K942 O CAPACITOR,CHIP[CERAMIC M/L HD 0.1UF 50V Z Y5V(F) 1508 R/TP
C2A4 0CE1064F638 O CAPACITOR,ELECTROLYTIC 10M SRA 16V M FM5 TP(5)
C2A5 0CH1683F942 O CAPACITOR,FIXED CERAMIC(Temp.c 0.068UF 16V 80%,-20% Y5V(F) 16
C2A6 0CH1102K562 O CAPACITOR,FIXED CERAMIC(Temp.c 1000PF 50V 10% X7R(X) 1608 R/T
C2A7 0CH1104K942 O CAPACITOR,CHIP[CERAMIC M/L HD 0.1UF 50V Z Y5V(F) 1508 R/TP
C2A8 0CH1152K562 O CAPACITOR,FIXED CERAMIC(Temp.c 1500PF 50V 10% X7R(X) 1608 R/T
C2A9 0CH1104K942 O CAPACITOR,CHIP[CERAMIC M/L HD 0.1UF 50V Z Y5V(F) 1508 R/TP
C2B3 0CH1392K562 O CAPACITOR,FIXED CERAMIC(Temp.c 3900PF 50V K Z5U(E) 1608 R/TP
C2B4 0CH1683F942 O CAPACITOR,FIXED CERAMIC(Temp.c 0.068UF 16V 80%,-20% Y5V(F) 16
C2B5 0CH1333K562 O CAPACITOR,CHIP[CERAMIC M/L HD 0.033UF 50V K X7R(X) 1508 R/TP
C2B9 0CH1104K942 O CAPACITOR,CHIP[CERAMIC M/L HD 0.1UF 50V Z Y5V(F) 1508 R/TP
C2C1 0CH1103K562 O CAPACITOR,FIXED CERAMIC(Temp.c 0.01UF 50V 10% X7R(X) 1608 R/T
C2C2 0CE1064F638 O CAPACITOR,ELECTROLYTIC 10M SRA 16V M FM5 TP(5)
C2C4 0CH1102K562 O CAPACITOR,FIXED CERAMIC(Temp.c 1000PF 50V 10% X7R(X) 1608 R/T
C2C5 0CH1332K562 O CAPACITOR,CHIP[CERAMIC M/L HD 3300P 50V K X7R 1.6X0.8 R/TP
C2C6 0CH1102K562 O CAPACITOR,FIXED CERAMIC(Temp.c 1000PF 50V 10% X7R(X) 1608 R/T
C2C8 0CH1104K942 O CAPACITOR,CHIP[CERAMIC M/L HD 0.1UF 50V Z Y5V(F) 1508 R/TP
C2C9 0CE1064F638 O CAPACITOR,ELECTROLYTIC 10M SRA 16V M FM5 TP(5)
C2D0 0CE4764F638 O CAPACITOR,ELECTROLYTIC 47M SRA/SS 16V M FM5 TP(5)
C2D1 0CE4764F638 O CAPACITOR,ELECTROLYTIC 47M SRA/SS 16V M FM5 TP(5)
C2D2 0CH1104K942 O CAPACITOR,CHIP[CERAMIC M/L HD 0.1UF 50V Z Y5V(F) 1508 R/TP
C2D3 0CH1104K942 O CAPACITOR,CHIP[CERAMIC M/L HD 0.1UF 50V Z Y5V(F) 1508 R/TP
C2D4 0CE4764F638 O CAPACITOR,ELECTROLYTIC 47M SRA/SS 16V M FM5 TP(5)
C2D5 0CE1064F638 O CAPACITOR,ELECTROLYTIC 10M SRA 16V M FM5 TP(5)
C2D6 0CH1104K942 O CAPACITOR,CHIP[CERAMIC M/L HD 0.1UF 50V Z Y5V(F) 1508 R/TP
C2D7 0CH1152K562 O CAPACITOR,FIXED CERAMIC(Temp.c 1500PF 50V 10% X7R(X) 1608 R/T
C2D9 0CH1104K942 O CAPACITOR,CHIP[CERAMIC M/L HD 0.1UF 50V Z Y5V(F) 1508 R/TP
C2E1 0CH4470K412 O CAPA,CHIP CERAMIC M/L T.C F/S 47P 50V J COG 1.6X0.8 R/TP
C2E2 0CH4470K412 O CAPA,CHIP CERAMIC M/L T.C F/S 47P 50V J COG 1.6X0.8 R/TP
C2E3 0CH4470K412 O CAPA,CHIP CERAMIC M/L T.C F/S 47P 50V J COG 1.6X0.8 R/TP
Page 15
6-15
S AL LOCA NO PART NO(LG) A DESCRIPTION SPECIFICATION REMARKS
C2E4 0CH4470K412 O CAPA,CHIP CERAMIC M/L T.C F/S 47P 50V J COG 1.6X0.8 R/TP
C2M1 0CE1074F638 O CAPACITOR,ELECTROLYTIC 100U SRA 16V M FM5 TP(5)
C2M2 0CH1682K562 O CAPACITOR,CHIP[CERAMIC M/L HD 6800P 50V K X7R 1.6X0.8 R/TP
C2M3 0CH1472K562 O CAPACITOR,CHIP[CERAMIC M/L HD 4700PF 50V K X7R(X) 1608 R/TP
C2M4 0CH1104K942 O CAPACITOR,CHIP[CERAMIC M/L HD 0.1UF 50V Z Y5V(F) 1508 R/TP
C2M5 0CH1104K942 O CAPACITOR,CHIP[CERAMIC M/L HD 0.1UF 50V Z Y5V(F) 1508 R/TP
C2M6 0CH1104K942 O CAPACITOR,CHIP[CERAMIC M/L HD 0.1UF 50V Z Y5V(F) 1508 R/TP
C2M7 0CH1104K942 O CAPACITOR,CHIP[CERAMIC M/L HD 0.1UF 50V Z Y5V(F) 1508 R/TP
C2M8 0CH1104K942 O CAPACITOR,CHIP[CERAMIC M/L HD 0.1UF 50V Z Y5V(F) 1508 R/TP
C2M9 0CH1104K942 O CAPACITOR,CHIP[CERAMIC M/L HD 0.1UF 50V Z Y5V(F) 1508 R/TP
C2N1 0CH1104K942 O CAPACITOR,CHIP[CERAMIC M/L HD 0.1UF 50V Z Y5V(F) 1508 R/TP
C2N3 0CH1223K942 O CAPACITOR,CHIP[CERAMIC M/L HD 0.022UF 50V Z Y5V(F) 1508 R/TP
C2N4 0CH1225F944 O CAPACITOR,FIXED CERAMIC(Temp.c 2.2UF 16V 80%,-20% Y5V(F) 3216
C301 0CH1104K942 O CAPACITOR,CHIP[CERAMIC M/L HD 0.1UF 50V Z Y5V(F) 1508 R/TP
C302 0CH1225F944 O CAPACITOR,FIXED CERAMIC(Temp.c 2.2UF 16V 80%,-20% Y5V(F) 3216
C303 0CH1104K942 O CAPACITOR,CHIP[CERAMIC M/L HD 0.1UF 50V Z Y5V(F) 1508 R/TP
C304 0CH1104K942 O CAPACITOR,CHIP[CERAMIC M/L HD 0.1UF 50V Z Y5V(F) 1508 R/TP
C305 0CH1104K942 O CAPACITOR,CHIP[CERAMIC M/L HD 0.1UF 50V Z Y5V(F) 1508 R/TP
C306 0CH1104K942 O CAPACITOR,CHIP[CERAMIC M/L HD 0.1UF 50V Z Y5V(F) 1508 R/TP
C308 0CE4764F638 O CAPACITOR,ELECTROLYTIC 47M SRA/SS 16V M FM5 TP(5)
C309 0CH1225F944 O CAPACITOR,FIXED CERAMIC(Temp.c 2.2UF 16V 80%,-20% Y5V(F) 3216
C314 0CH1104K942 O CAPACITOR,CHIP[CERAMIC M/L HD 0.1UF 50V Z Y5V(F) 1508 R/TP
C316 0CH1104K942 O CAPACITOR,CHIP[CERAMIC M/L HD 0.1UF 50V Z Y5V(F) 1508 R/TP
C317 0CE4764F638 O CAPACITOR,ELECTROLYTIC 47M SRA/SS 16V M FM5 TP(5)
C318 0CH1104K942 O CAPACITOR,CHIP[CERAMIC M/L HD 0.1UF 50V Z Y5V(F) 1508 R/TP
C319 0CH1104K942 O CAPACITOR,CHIP[CERAMIC M/L HD 0.1UF 50V Z Y5V(F) 1508 R/TP
C320 0CH1104K942 O CAPACITOR,CHIP[CERAMIC M/L HD 0.1UF 50V Z Y5V(F) 1508 R/TP
C321 0CE4764F638 O CAPACITOR,ELECTROLYTIC 47M SRA/SS 16V M FM5 TP(5)
C323 0CH1104K942 O CAPACITOR,CHIP[CERAMIC M/L HD 0.1UF 50V Z Y5V(F) 1508 R/TP
C324 0CH1104K942 O CAPACITOR,CHIP[CERAMIC M/L HD 0.1UF 50V Z Y5V(F) 1508 R/TP
C3F1 0CH1225F944 O CAPACITOR,FIXED CERAMIC(Temp.c 2.2UF 16V 80%,-20% Y5V(F) 3216
C3F2 0CH1104K942 O CAPACITOR,CHIP[CERAMIC M/L HD 0.1UF 50V Z Y5V(F) 1508 R/TP
C3F3 0CE4764F638 O CAPACITOR,ELECTROLYTIC 47M SRA/SS 16V M FM5 TP(5)
C401 0CE2264F638 O CAPACITOR,ELECTROLYTIC 22M SRA 16V M FM5 TP(5)
C402 0CE2264F638 O CAPACITOR,ELECTROLYTIC 22M SRA 16V M FM5 TP(5)
C403 0CE2264F638 O CAPACITOR,ELECTROLYTIC 22M SRA 16V M FM5 TP(5)
C404 0CE2264F638 O CAPACITOR,ELECTROLYTIC 22M SRA 16V M FM5 TP(5)
C405 0CE4764F638 O CAPACITOR,ELECTROLYTIC 47M SRA/SS 16V M FM5 TP(5)
C406 0CH1104K942 O CAPACITOR,CHIP[CERAMIC M/L HD 0.1UF 50V Z Y5V(F) 1508 R/TP
C408 0CE1064F638 O CAPACITOR,ELECTROLYTIC 10M SRA 16V M FM5 TP(5)
C409 0CE2274C638 O CAPACITOR,ELECTROLYTIC 220M SRA 6.3V M FM5 TP(5)
C410 0CH4271K412 O CAPACITOR,FIXED CERAMIC(HIGH D 270PF 50V 5% NP0 1608 R/TP
C411 0CH1102K512 O CAPACITOR,FIXED CERAMIC(Temp.c 1000PF 50V 10% B(5YP) 1608 R/T
C412 0CH4271K412 O CAPACITOR,FIXED CERAMIC(HIGH D 270PF 50V 5% NP0 1608 R/TP
C413 0CE1064F638 O CAPACITOR,ELECTROLYTIC 10M SRA 16V M FM5 TP(5)
C414 0CH1104K942 O CAPACITOR,CHIP[CERAMIC M/L HD 0.1UF 50V Z Y5V(F) 1508 R/TP
C415 0CE1064F638 O CAPACITOR,ELECTROLYTIC 10M SRA 16V M FM5 TP(5)
C416 0CH1102K512 O CAPACITOR,FIXED CERAMIC(Temp.c 1000PF 50V 10% B(5YP) 1608 R/T
C417 0CH4271K412 O CAPACITOR,FIXED CERAMIC(HIGH D 270PF 50V 5% NP0 1608 R/TP
C418 0CH1392K562 O CAPACITOR,FIXED CERAMIC(Temp.c 3900PF 50V K Z5U(E) 1608 R/TP
C419 0CE2264F638 O CAPACITOR,ELECTROLYTIC 22M SRA 16V M FM5 TP(5)
C420 0CH1392K562 O CAPACITOR,FIXED CERAMIC(Temp.c 3900PF 50V K Z5U(E) 1608 R/TP
C421 0CE2264F638 O CAPACITOR,ELECTROLYTIC 22M SRA 16V M FM5 TP(5)
C422 0CE1064F638 O CAPACITOR,ELECTROLYTIC 10M SRA 16V M FM5 TP(5)
C423 0CH4271K412 O CAPACITOR,FIXED CERAMIC(HIGH D 270PF 50V 5% NP0 1608 R/TP
C424 0CH1104K942 O CAPACITOR,CHIP[CERAMIC M/L HD 0.1UF 50V Z Y5V(F) 1508 R/TP
C425 0CH1104K942 O CAPACITOR,CHIP[CERAMIC M/L HD 0.1UF 50V Z Y5V(F) 1508 R/TP
C501 0CE4764F638 O CAPACITOR,ELECTROLYTIC 47M SRA/SS 16V M FM5 TP(5)
C502 0CH1104F942 O CAPACITOR,FIXED CERAMIC(Temp.c 0.1UF 16V 80%,-20% Y5V(F) 1608
C503 0CH1104F942 O CAPACITOR,FIXED CERAMIC(Temp.c 0.1UF 16V 80%,-20% Y5V(F) 1608
Page 16
6-16
S AL LOCA NO PART NO(LG) A DESCRIPTION SPECIFICATION REMARKS
C504 0CE1064F638 O CAPACITOR,ELECTROLYTIC 10M SRA 16V M FM5 TP(5)
C506 0CH1225F944 O CAPACITOR,FIXED CERAMIC(Temp.c 2.2UF 16V 80%,-20% Y5V(F) 3216
C507 0CE4764F638 O CAPACITOR,ELECTROLYTIC 47M SRA/SS 16V M FM5 TP(5)
C508 0CH1104F942 O CAPACITOR,FIXED CERAMIC(Temp.c 0.1UF 16V 80%,-20% Y5V(F) 1608
C509 0CH1104F942 O CAPACITOR,FIXED CERAMIC(Temp.c 0.1UF 16V 80%,-20% Y5V(F) 1608
C510 0CH1104F942 O CAPACITOR,FIXED CERAMIC(Temp.c 0.1UF 16V 80%,-20% Y5V(F) 1608
C511 0CH1104F942 O CAPACITOR,FIXED CERAMIC(Temp.c 0.1UF 16V 80%,-20% Y5V(F) 1608
C512 0CH1104F942 O CAPACITOR,FIXED CERAMIC(Temp.c 0.1UF 16V 80%,-20% Y5V(F) 1608
C513 0CH1104F942 O CAPACITOR,FIXED CERAMIC(Temp.c 0.1UF 16V 80%,-20% Y5V(F) 1608
C514 0CH1104F942 O CAPACITOR,FIXED CERAMIC(Temp.c 0.1UF 16V 80%,-20% Y5V(F) 1608
C515 0CH1104F942 O CAPACITOR,FIXED CERAMIC(Temp.c 0.1UF 16V 80%,-20% Y5V(F) 1608
C516 0CH1104F942 O CAPACITOR,FIXED CERAMIC(Temp.c 0.1UF 16V 80%,-20% Y5V(F) 1608
C517 0CH1104F942 O CAPACITOR,FIXED CERAMIC(Temp.c 0.1UF 16V 80%,-20% Y5V(F) 1608
C518 0CH1104F942 O CAPACITOR,FIXED CERAMIC(Temp.c 0.1UF 16V 80%,-20% Y5V(F) 1608
C519 0CH1104F942 O CAPACITOR,FIXED CERAMIC(Temp.c 0.1UF 16V 80%,-20% Y5V(F) 1608
C520 0CH1104F942 O CAPACITOR,FIXED CERAMIC(Temp.c 0.1UF 16V 80%,-20% Y5V(F) 1608
C521 0CH1104F942 O CAPACITOR,FIXED CERAMIC(Temp.c 0.1UF 16V 80%,-20% Y5V(F) 1608
C522 0CH1104F942 O CAPACITOR,FIXED CERAMIC(Temp.c 0.1UF 16V 80%,-20% Y5V(F) 1608
C523 0CH1225F944 O CAPACITOR,FIXED CERAMIC(Temp.c 2.2UF 16V 80%,-20% Y5V(F) 3216
C525 0CH1104F942 O CAPACITOR,FIXED CERAMIC(Temp.c 0.1UF 16V 80%,-20% Y5V(F) 1608
C526 0CH1104F942 O CAPACITOR,FIXED CERAMIC(Temp.c 0.1UF 16V 80%,-20% Y5V(F) 1608
C527 0CH1104F942 O CAPACITOR,FIXED CERAMIC(Temp.c 0.1UF 16V 80%,-20% Y5V(F) 1608
C528 0CH1104F942 O CAPACITOR,FIXED CERAMIC(Temp.c 0.1UF 16V 80%,-20% Y5V(F) 1608
C529 0CH1104F942 O CAPACITOR,FIXED CERAMIC(Temp.c 0.1UF 16V 80%,-20% Y5V(F) 1608
C530 0CH1104F942 O CAPACITOR,FIXED CERAMIC(Temp.c 0.1UF 16V 80%,-20% Y5V(F) 1608
C531 0CH1104F942 O CAPACITOR,FIXED CERAMIC(Temp.c 0.1UF 16V 80%,-20% Y5V(F) 1608
C532 0CH1104F942 O CAPACITOR,FIXED CERAMIC(Temp.c 0.1UF 16V 80%,-20% Y5V(F) 1608
C533 0CH1104F942 O CAPACITOR,FIXED CERAMIC(Temp.c 0.1UF 16V 80%,-20% Y5V(F) 1608
C534 0CH1104F942 O CAPACITOR,FIXED CERAMIC(Temp.c 0.1UF 16V 80%,-20% Y5V(F) 1608
C535 0CH1104F942 O CAPACITOR,FIXED CERAMIC(Temp.c 0.1UF 16V 80%,-20% Y5V(F) 1608
C536 0CH1104F942 O CAPACITOR,FIXED CERAMIC(Temp.c 0.1UF 16V 80%,-20% Y5V(F) 1608
C538 0CH1225F944 O CAPACITOR,FIXED CERAMIC(Temp.c 2.2UF 16V 80%,-20% Y5V(F) 3216
C540 0CH4220K412 O CAPA,CHIP CERAMIC M/L T.C F/S 22P 50V J COG 1.6X0.8 R/TP
C541 0CH4270K412 O CAPACITOR,CHIP[CERAMIC M/L TC 27PF 50V J NP0 1608 R/TP
C542 0CH1104F942 O CAPACITOR,FIXED CERAMIC(Temp.c 0.1UF 16V 80%,-20% Y5V(F) 1608
C543 0CH1104F942 O CAPACITOR,FIXED CERAMIC(Temp.c 0.1UF 16V 80%,-20% Y5V(F) 1608
C544 0CH1225F944 O CAPACITOR,FIXED CERAMIC(Temp.c 2.2UF 16V 80%,-20% Y5V(F) 3216
C546 0CH4221K412 O CAPACITOR,CHIP[CERAMIC M/L TC 220P 50V J COG 1.6X0.8 R/TP
C549 0CH4221K412 O CAPACITOR,CHIP[CERAMIC M/L TC 220P 50V J COG 1.6X0.8 R/TP
C550 0CH1104F942 O CAPACITOR,FIXED CERAMIC(Temp.c 0.1UF 16V 80%,-20% Y5V(F) 1608
C553 0CH4221K412 O CAPACITOR,CHIP[CERAMIC M/L TC 220P 50V J COG 1.6X0.8 R/TP
C554 0CH1104F942 O CAPACITOR,FIXED CERAMIC(Temp.c 0.1UF 16V 80%,-20% Y5V(F) 1608
C555 0CH4101K412 O CHIP CAPA CERAMIC M/L T.C F/S 100P 50V J COG 1.6X0.8 R/TP
C556 0CH4101K412 O CHIP CAPA CERAMIC M/L T.C F/S 100P 50V J COG 1.6X0.8 R/TP
C557 0CH4270K412 O CAPACITOR,CHIP[CERAMIC M/L TC 27PF 50V J NP0 1608 R/TP
C558 0CH1104F942 O CAPACITOR,FIXED CERAMIC(Temp.c 0.1UF 16V 80%,-20% Y5V(F) 1608
C559 0CE4764F638 O CAPACITOR,ELECTROLYTIC 47M SRA/SS 16V M FM5 TP(5)
C560 0CH1225F944 O CAPACITOR,FIXED CERAMIC(Temp.c 2.2UF 16V 80%,-20% Y5V(F) 3216
C561 0CE4764F638 O CAPACITOR,ELECTROLYTIC 47M SRA/SS 16V M FM5 TP(5)
D201 0DR495009AA O DIODE,RECTIFIER RB495D TP ROHM SMD 40V 400A 2A
D2A1 0DS202009CA O DIODE,SWITCHING DAN202K TP ROHM KOREA SOT23 80
D2A2 0DS202009CA O DIODE,SWITCHING DAN202K TP ROHM KOREA SOT23 80
D2A3 0DS202009CA O DIODE,SWITCHING DAN202K TP ROHM KOREA SOT23 80
D401 0DSRM00118A O DIODE,SWITCHING DAP202K T146 ROHM R/TP SMD 80V
IC201 0ILNRHY002B O IC,LINEAR HDC25D811B HYUNDAI 208 QFP TRA
IC203 0IEB121616B O IC,ELITE MEMORY TECHNOLOGY M12L16161A-7T-L 50PIN TSOP TRA
IC206 GITO704000F O IC,TOSHIBA TC7W04FU
IC2A1 0ILNRHI003A O IC,LINEAR HD153702TF HITACHI 64 TQFP TRA
IC2A2 0IJR341400C O IC,JRC NJM3414AM-TE1,3K/REEL. JRC
IC2A4 0IKE393000G O IC,KEC KIA393F-EL FLP-8 TP DUAL COMPA
Page 17
6-17
S AL LOCA NO PART NO(LG) A DESCRIPTION SPECIFICATION REMARKS
IC2M1 0ILNRFA013A O IC,LINEAR FAN8004 FAIRCHILD 48 QFP TRAY
IC301 0ICTMHY011A O IC,CUSTOMIZED HS353106 HYNIX 100 TQFP TRAY C
IC305 0IMMRHY025A O IC,MEMORIES HY57V643220CT-7 HYUNDAI 86P TS
IC3F1A 6957R-254AJ O PROGRAM COMBI DVD MODULE : ZV600210
IC401 0IPRPCI003B O IC,PERIPHERALS CS4391-KZR CIRRUS LOGIC 20 TSS
IC402 0IJR458000B O IC,JRC NJM4580M 8,DMP8 TP OP AMP 2K/R
IC501 0INS860100A O IC,NATIONAL SEMICONDUCTOR NDV8601 240 VQFP BK MICOM+MPEG
IC502 0IMMRCB001A O IC,MEMORIES CAT93C56S-TE13 CRYSTAL SEMICON
IC503 0IFA742440F O IC,FAIRCHILD MM74HCT244SJ 20P SOIC TP 3-STA
IC506 0IPMGA7001A O IC,POWER MANAGEMENT AMC1117-1.8SJ ADD MICROTECH 3P
L201 6200HJC102A O FILTER(CIRC),EMC HB-1M2012-102JT CERATECH TP
L206 6200HJC102A O FILTER(CIRC),EMC HB-1M2012-102JT CERATECH TP
L207 6200HJC102A O FILTER(CIRC),EMC HB-1M2012-102JT CERATECH TP
L208 6200HJC102A O FILTER(CIRC),EMC HB-1M2012-102JT CERATECH TP
L2A1 6200HJC102A O FILTER(CIRC),EMC HB-1M2012-102JT CERATECH TP
L2A2 6200HJC102A O FILTER(CIRC),EMC HB-1M2012-102JT CERATECH TP
L301 6200HJC102A O FILTER(CIRC),EMC HB-1M2012-102JT CERATECH TP
L302 6200HJC102A O FILTER(CIRC),EMC HB-1M2012-102JT CERATECH TP
L3F1 6200HJC102A O FILTER(CIRC),EMC HB-1M2012-102JT CERATECH TP
L501 6200HJC102A O FILTER(CIRC),EMC HB-1M2012-102JT CERATECH TP
L502 6200HJC102A O FILTER(CIRC),EMC HB-1M2012-102JT CERATECH TP
L503 6200HJC102A O FILTER(CIRC),EMC HB-1M2012-102JT CERATECH TP
L504 6200HJC102A O FILTER(CIRC),EMC HB-1M2012-102JT CERATECH TP
L505 6200HJC102A O FILTER(CIRC),EMC HB-1M2012-102JT CERATECH TP
L506 6200HJC102A O FILTER(CIRC),EMC HB-1M2012-102JT CERATECH TP
L507 6200HJC102A O FILTER(CIRC),EMC HB-1M2012-102JT CERATECH TP
L508 6200HJC102A O FILTER(CIRC),EMC HB-1M2012-102JT CERATECH TP
L509 6200HJC102A O FILTER(CIRC),EMC HB-1M2012-102JT CERATECH TP
L510 6200HJC102A O FILTER(CIRC),EMC HB-1M2012-102JT CERATECH TP
L511 6200HJC102A O FILTER(CIRC),EMC HB-1M2012-102JT CERATECH TP
Q2A1 0TR150409AC O TRANSISTOR KTA1504-GR-T1(ASG) CHIP KEC
Q2A2 0TR150409AC O TRANSISTOR KTA1504-GR-T1(ASG) CHIP KEC
Q2A5 0TR388209AA O TRANSISTOR,BIPOLARS CHIP KTC3882 SOT-23 TP KEC - -
Q2A6 0TR388209AA O TRANSISTOR,BIPOLARS CHIP KTC3882 SOT-23 TP KEC - -
Q2M1 0TR103009AA O TRANSISTOR CHIP KRC103S-T1(NC)22-22 KEC
Q401 0TR150409AC O TRANSISTOR KTA1504-GR-T1(ASG) CHIP KEC
Q404 0TR103009AC O TRANSISTOR KRA103S-T1(PC)22-22 CHIP KEC
Q405 0TR103009AC O TRANSISTOR KRA103S-T1(PC)22-22 CHIP KEC
R201 0RH0000C622 O RESISTOR,METAL GLAZED(CHIP) 0 OHM 1 / 16 W 1608 5.00% D
R202 0RH0000C622 O RESISTOR,METAL GLAZED(CHIP) 0 OHM 1 / 16 W 1608 5.00% D
R203 0RH1001C622 O RESISTOR,METAL GLAZED(CHIP) 1K OHM 1 / 16 W 1608 5.00% D
R204 0RH1001C622 O RESISTOR,METAL GLAZED(CHIP) 1K OHM 1 / 16 W 1608 5.00% D
R207 0RH1004C622 O RESISTOR,METAL GLAZED(CHIP) 1M OHM 1 / 16 W 1608 5.00% D
R217 0RH0102C622 O RESISTOR,METAL GLAZED(CHIP) 10 OHM 1 / 16 W 1608 5.00% D
R218 0RH4700C622 O RESISTOR,METAL GLAZED(CHIP) 470 OHM 1 / 16 W 1608 5.00% D
R219 0RH1002C622 O RESISTOR,METAL GLAZED(CHIP) 10K OHM 1 / 16 W 1608 5.00% D
R220 0RH1002C622 O RESISTOR,METAL GLAZED(CHIP) 10K OHM 1 / 16 W 1608 5.00% D
R230 0RH1000C622 O RESISTOR,METAL GLAZED(CHIP) 100 OHM 1 / 16 W 1608 5.00% D
R231 0RH1000C622 O RESISTOR,METAL GLAZED(CHIP) 100 OHM 1 / 16 W 1608 5.00% D
R232 0RH1000C622 O RESISTOR,METAL GLAZED(CHIP) 100 OHM 1 / 16 W 1608 5.00% D
R233 0RH1000C622 O RESISTOR,METAL GLAZED(CHIP) 100 OHM 1 / 16 W 1608 5.00% D
R234 0RH1000C622 O RESISTOR,METAL GLAZED(CHIP) 100 OHM 1 / 16 W 1608 5.00% D
R235 0RH1000C622 O RESISTOR,METAL GLAZED(CHIP) 100 OHM 1 / 16 W 1608 5.00% D
R236 0RH1000C622 O RESISTOR,METAL GLAZED(CHIP) 100 OHM 1 / 16 W 1608 5.00% D
R237 0RH1000C622 O RESISTOR,METAL GLAZED(CHIP) 100 OHM 1 / 16 W 1608 5.00% D
R239 0RH0000C622 O RESISTOR,METAL GLAZED(CHIP) 0 OHM 1 / 16 W 1608 5.00% D
R240 0RH0000C622 O RESISTOR,METAL GLAZED(CHIP) 0 OHM 1 / 16 W 1608 5.00% D
R241 0RH0000C622 O RESISTOR,METAL GLAZED(CHIP) 0 OHM 1 / 16 W 1608 5.00% D
R242 0RH0000C622 O RESISTOR,METAL GLAZED(CHIP) 0 OHM 1 / 16 W 1608 5.00% D
R243 0RH0000C622 O RESISTOR,METAL GLAZED(CHIP) 0 OHM 1 / 16 W 1608 5.00% D
Page 18
6-18
S AL LOCA NO PART NO(LG) A DESCRIPTION SPECIFICATION REMARKS
R252 0RH0000C622 O RESISTOR,METAL GLAZED(CHIP) 0 OHM 1 / 16 W 1608 5.00% D
R269 0RH0222C622 O RESISTOR,METAL GLAZED(CHIP) 22 OHM 1 / 16 W 1608 5.00% D
R273 0RH1501C622 O RESISTOR,METAL GLAZED(CHIP) 1.5K OHM 1 / 16 W 1608 5.00% D
R274 0RH6200C622 O RESISTOR,METAL GLAZED(CHIP) 620 OHM 1 / 16 W 1608 5.00% D
R275 0RH1501C622 O RESISTOR,METAL GLAZED(CHIP) 1.5K OHM 1 / 16 W 1608 5.00% D
R276 0RH9100C622 O RESISTOR,METAL GLAZED(CHIP) 910 OHM 1 / 16 W 1608 5.00% D
R277 0RH1500C622 O RESISTOR,METAL GLAZED(CHIP) 150 OHM 1 / 16 W 1608 5.00% D
R278 0RH0000C622 O RESISTOR,METAL GLAZED(CHIP) 0 OHM 1 / 16 W 1608 5.00% D
R279 0RH0000C622 O RESISTOR,METAL GLAZED(CHIP) 0 OHM 1 / 16 W 1608 5.00% D
R281 0RH0000C622 O RESISTOR,METAL GLAZED(CHIP) 0 OHM 1 / 16 W 1608 5.00% D
R290 0RH0000C622 O RESISTOR,METAL GLAZED(CHIP) 0 OHM 1 / 16 W 1608 5.00% D
R291 0RH1000C622 O RESISTOR,METAL GLAZED(CHIP) 100 OHM 1 / 16 W 1608 5.00% D
R292 0RH1002C622 O RESISTOR,METAL GLAZED(CHIP) 10K OHM 1 / 16 W 1608 5.00% D
R2A1 0RH0912C622 O RESISTOR,METAL GLAZED(CHIP) 91 OHM 1 / 16 W 1608 5.00% D
R2A2 0RH0000C622 O RESISTOR,METAL GLAZED(CHIP) 0 OHM 1 / 16 W 1608 5.00% D
R2A6 0RH1202C622 O RESISTOR,METAL GLAZED(CHIP) 12K OHM 1 / 16 W 1608 5.00% D
R2A9 0RH5602C622 O RESISTOR,METAL GLAZED(CHIP) 56K OHM 1 / 16 W 1608 5.00% D
R2B0 0RH1001C622 O RESISTOR,METAL GLAZED(CHIP) 1K OHM 1 / 16 W 1608 5.00% D
R2B1 0RH1001C622 O RESISTOR,METAL GLAZED(CHIP) 1K OHM 1 / 16 W 1608 5.00% D
R2B2 0RH0182C622 O RESISTOR,METAL GLAZED(CHIP) 18 OHM 1 / 16 W 1608 5.00% D
R2B3 0RH0182C622 O RESISTOR,METAL GLAZED(CHIP) 18 OHM 1 / 16 W 1608 5.00% D
R2B4 0RH0000C622 O RESISTOR,METAL GLAZED(CHIP) 0 OHM 1 / 16 W 1608 5.00% D
R2B5 0RH1001C622 O RESISTOR,METAL GLAZED(CHIP) 1K OHM 1 / 16 W 1608 5.00% D
R2B6 0RH0182C622 O RESISTOR,METAL GLAZED(CHIP) 18 OHM 1 / 16 W 1608 5.00% D
R2B7 0RH0182C622 O RESISTOR,METAL GLAZED(CHIP) 18 OHM 1 / 16 W 1608 5.00% D
R2B8 0RH0000C622 O RESISTOR,METAL GLAZED(CHIP) 0 OHM 1 / 16 W 1608 5.00% D
R2C0 0RH5601C622 O RESISTOR,METAL GLAZED(CHIP) 5.6K OHM 1 / 16 W 1608 5.00% D
R2C4 0RH1001C622 O RESISTOR,METAL GLAZED(CHIP) 1K OHM 1 / 16 W 1608 5.00% D
R2C5 0RH1001C622 O RESISTOR,METAL GLAZED(CHIP) 1K OHM 1 / 16 W 1608 5.00% D
R2C6 0RH5601C622 O RESISTOR,METAL GLAZED(CHIP) 5.6K OHM 1 / 16 W 1608 5.00% D
R2C7 0RH5601C622 O RESISTOR,METAL GLAZED(CHIP) 5.6K OHM 1 / 16 W 1608 5.00% D
R2C8 0RH5601C622 O RESISTOR,METAL GLAZED(CHIP) 5.6K OHM 1 / 16 W 1608 5.00% D
R2C9 0RH5601C622 O RESISTOR,METAL GLAZED(CHIP) 5.6K OHM 1 / 16 W 1608 5.00% D
R2D0 0RH5601C622 O RESISTOR,METAL GLAZED(CHIP) 5.6K OHM 1 / 16 W 1608 5.00% D
R2D1 0RH0000C622 O RESISTOR,METAL GLAZED(CHIP) 0 OHM 1 / 16 W 1608 5.00% D
R2D2 0RH0000C622 O RESISTOR,METAL GLAZED(CHIP) 0 OHM 1 / 16 W 1608 5.00% D
R2D3 0RH5601C622 O RESISTOR,METAL GLAZED(CHIP) 5.6K OHM 1 / 16 W 1608 5.00% D
R2D4 0RH5601C622 O RESISTOR,METAL GLAZED(CHIP) 5.6K OHM 1 / 16 W 1608 5.00% D
R2D5 0RH6801C622 O RESISTOR,METAL GLAZED(CHIP) 6.8K OHM 1 / 16 W 1608 5.00% D
R2D6 0RH0912C622 O RESISTOR,METAL GLAZED(CHIP) 91 OHM 1 / 16 W 1608 5.00% D
R2E6 0RH1000C622 O RESISTOR,METAL GLAZED(CHIP) 100 OHM 1 / 16 W 1608 5.00% D
R2E7 0RH1000C622 O RESISTOR,METAL GLAZED(CHIP) 100 OHM 1 / 16 W 1608 5.00% D
R2E8 0RH0000C622 O RESISTOR,METAL GLAZED(CHIP) 0 OHM 1 / 16 W 1608 5.00% D
R2F1 0RH2200C622 O RESISTOR,METAL GLAZED(CHIP) 220 OHM 1 / 16 W 1608 5.00% D
R2F2 0RH2200C622 O RESISTOR,METAL GLAZED(CHIP) 220 OHM 1 / 16 W 1608 5.00% D
R2F3 0RH1000C622 O RESISTOR,METAL GLAZED(CHIP) 100 OHM 1 / 16 W 1608 5.00% D
R2F4 0RH1000C622 O RESISTOR,METAL GLAZED(CHIP) 100 OHM 1 / 16 W 1608 5.00% D
R2F5 0RH2202C422 O RESISTOR,METAL GLAZED(CHIP) 22K OHM 1 / 16 W 1608 1.00% D
R2F6 0RH5601C622 O RESISTOR,METAL GLAZED(CHIP) 5.6K OHM 1 / 16 W 1608 5.00% D
R2F7 0RH5601C622 O RESISTOR,METAL GLAZED(CHIP) 5.6K OHM 1 / 16 W 1608 5.00% D
R2F8 0RH2201C622 O RESISTOR,METAL GLAZED(CHIP) 2.2K OHM 1 / 16 W 1608 5.00% D
R2F9 0RH2201C622 O RESISTOR,METAL GLAZED(CHIP) 2.2K OHM 1 / 16 W 1608 5.00% D
R2G1 0RH2201C622 O RESISTOR,METAL GLAZED(CHIP) 2.2K OHM 1 / 16 W 1608 5.00% D
R2G2 0RH2201C622 O RESISTOR,METAL GLAZED(CHIP) 2.2K OHM 1 / 16 W 1608 5.00% D
R2G3 0RH5601C622 O RESISTOR,METAL GLAZED(CHIP) 5.6K OHM 1 / 16 W 1608 5.00% D
R2G4 0RH5601C622 O RESISTOR,METAL GLAZED(CHIP) 5.6K OHM 1 / 16 W 1608 5.00% D
R2G7 0RH1002C622 O RESISTOR,METAL GLAZED(CHIP) 10K OHM 1 / 16 W 1608 5.00% D
R2G9 0RH1500C622 O RESISTOR,METAL GLAZED(CHIP) 150 OHM 1 / 16 W 1608 5.00% D
R2M1 0RH1001C622 O RESISTOR,METAL GLAZED(CHIP) 1K OHM 1 / 16 W 1608 5.00% D
R2M2 0RH1002C622 O RESISTOR,METAL GLAZED(CHIP) 10K OHM 1 / 16 W 1608 5.00% D
Page 19
6-19
S AL LOCA NO PART NO(LG) A DESCRIPTION SPECIFICATION REMARKS
R2M3 0RH7501C622 O RESISTOR,METAL GLAZED(CHIP) 7.5K OHM 1 / 16 W 1608 5.00% D
R2M5 0RH1001C622 O RESISTOR,METAL GLAZED(CHIP) 1K OHM 1 / 16 W 1608 5.00% D
R2M6 0RH1002C622 O RESISTOR,METAL GLAZED(CHIP) 10K OHM 1 / 16 W 1608 5.00% D
R2M7 0RH1002C622 O RESISTOR,METAL GLAZED(CHIP) 10K OHM 1 / 16 W 1608 5.00% D
R2M8 0RH1001C622 O RESISTOR,METAL GLAZED(CHIP) 1K OHM 1 / 16 W 1608 5.00% D
R2M9 0RH1002C622 O RESISTOR,METAL GLAZED(CHIP) 10K OHM 1 / 16 W 1608 5.00% D
R2N0 0RH1202C622 O RESISTOR,METAL GLAZED(CHIP) 12K OHM 1 / 16 W 1608 5.00% D
R2N1 0RH1001C622 O RESISTOR,METAL GLAZED(CHIP) 1K OHM 1 / 16 W 1608 5.00% D
R2N2 0RH5601C622 O RESISTOR,METAL GLAZED(CHIP) 5.6K OHM 1 / 16 W 1608 5.00% D
R2N3 0RH1002C622 O RESISTOR,METAL GLAZED(CHIP) 10K OHM 1 / 16 W 1608 5.00% D
R2N4 0RH1502C622 O RESISTOR,METAL GLAZED(CHIP) 15K OHM 1 / 16 W 1608 5.00% D
R2N5 0RH1202C622 O RESISTOR,METAL GLAZED(CHIP) 12K OHM 1 / 16 W 1608 5.00% D
R2N6 0RH1001C622 O RESISTOR,METAL GLAZED(CHIP) 1K OHM 1 / 16 W 1608 5.00% D
R2N7 0RH1001C622 O RESISTOR,METAL GLAZED(CHIP) 1K OHM 1 / 16 W 1608 5.00% D
R2N8 0RH1002C622 O RESISTOR,METAL GLAZED(CHIP) 10K OHM 1 / 16 W 1608 5.00% D
R2N9 0RH1002C622 O RESISTOR,METAL GLAZED(CHIP) 10K OHM 1 / 16 W 1608 5.00% D
R2P0 0RH4701C622 O RESISTOR,METAL GLAZED(CHIP) 4.7K OHM 1 / 16 W 1608 5.00% D
R2P1 0RH1002C622 O RESISTOR,METAL GLAZED(CHIP) 10K OHM 1 / 16 W 1608 5.00% D
R2P2 0RH1002C622 O RESISTOR,METAL GLAZED(CHIP) 10K OHM 1 / 16 W 1608 5.00% D
R2P3 0RH1002C622 O RESISTOR,METAL GLAZED(CHIP) 10K OHM 1 / 16 W 1608 5.00% D
R2P7 0RH2202C622 O RESISTOR,METAL GLAZED(CHIP) 22K OHM 1 / 16 W 1608 5.00% D
R2P8 0RH1201C622 O RESISTOR,METAL GLAZED(CHIP) 1.2K OHM 1 / 16 W 1608 5.00% D
R2P9 0RH4701C622 O RESISTOR,METAL GLAZED(CHIP) 4.7K OHM 1 / 16 W 1608 5.00% D
R2Q1 0RH1002C622 O RESISTOR,METAL GLAZED(CHIP) 10K OHM 1 / 16 W 1608 5.00% D
R2R1 0RH1001C622 O RESISTOR,METAL GLAZED(CHIP) 1K OHM 1 / 16 W 1608 5.00% D
R2R2 0RH4701C622 O RESISTOR,METAL GLAZED(CHIP) 4.7K OHM 1 / 16 W 1608 5.00% D
R303 0RH0000C622 O RESISTOR,METAL GLAZED(CHIP) 0 OHM 1 / 16 W 1608 5.00% D
R306 0RH4701C622 O RESISTOR,METAL GLAZED(CHIP) 4.7K OHM 1 / 16 W 1608 5.00% D
R307 0RH1001C622 O RESISTOR,METAL GLAZED(CHIP) 1K OHM 1 / 16 W 1608 5.00% D
R308 0RH1001C622 O RESISTOR,METAL GLAZED(CHIP) 1K OHM 1 / 16 W 1608 5.00% D
R309 0RH1002C622 O RESISTOR,METAL GLAZED(CHIP) 10K OHM 1 / 16 W 1608 5.00% D
R310 0RH1001C622 O RESISTOR,METAL GLAZED(CHIP) 1K OHM 1 / 16 W 1608 5.00% D
R315 0RH1002C622 O RESISTOR,METAL GLAZED(CHIP) 10K OHM 1 / 16 W 1608 5.00% D
R317 0RH1002C622 O RESISTOR,METAL GLAZED(CHIP) 10K OHM 1 / 16 W 1608 5.00% D
R318 0RH4701C622 O RESISTOR,METAL GLAZED(CHIP) 4.7K OHM 1 / 16 W 1608 5.00% D
R319 0RH4701C622 O RESISTOR,METAL GLAZED(CHIP) 4.7K OHM 1 / 16 W 1608 5.00% D
R320 0RH4701C622 O RESISTOR,METAL GLAZED(CHIP) 4.7K OHM 1 / 16 W 1608 5.00% D
R321 0RH1001C622 O RESISTOR,METAL GLAZED(CHIP) 1K OHM 1 / 16 W 1608 5.00% D
R322 0RH4701C622 O RESISTOR,METAL GLAZED(CHIP) 4.7K OHM 1 / 16 W 1608 5.00% D
R323 0RH0000C622 O RESISTOR,METAL GLAZED(CHIP) 0 OHM 1 / 16 W 1608 5.00% D
R364 0RH0000C622 O RESISTOR,METAL GLAZED(CHIP) 0 OHM 1 / 16 W 1608 5.00% D
R365 0RH0000C622 O RESISTOR,METAL GLAZED(CHIP) 0 OHM 1 / 16 W 1608 5.00% D
R366 0RH0000C622 O RESISTOR,METAL GLAZED(CHIP) 0 OHM 1 / 16 W 1608 5.00% D
R367 0RH1002C622 O RESISTOR,METAL GLAZED(CHIP) 10K OHM 1 / 16 W 1608 5.00% D
R368 0RH1002C622 O RESISTOR,METAL GLAZED(CHIP) 10K OHM 1 / 16 W 1608 5.00% D
R369 0RH1002C622 O RESISTOR,METAL GLAZED(CHIP) 10K OHM 1 / 16 W 1608 5.00% D
R3F1 0RH0000C622 O RESISTOR,METAL GLAZED(CHIP) 0 OHM 1 / 16 W 1608 5.00% D
R3F2 0RH1001C622 O RESISTOR,METAL GLAZED(CHIP) 1K OHM 1 / 16 W 1608 5.00% D
R3F3 0RH0000C622 O RESISTOR,METAL GLAZED(CHIP) 0 OHM 1 / 16 W 1608 5.00% D
R3F4 0RH1002C622 O RESISTOR,METAL GLAZED(CHIP) 10K OHM 1 / 16 W 1608 5.00% D
R3F5 0RH1002C622 O RESISTOR,METAL GLAZED(CHIP) 10K OHM 1 / 16 W 1608 5.00% D
R401 0RH0182C622 O RESISTOR,METAL GLAZED(CHIP) 18 OHM 1 / 16 W 1608 5.00% D
R403 0RH0102C622 O RESISTOR,METAL GLAZED(CHIP) 10 OHM 1 / 16 W 1608 5.00% D
R404 0RH6801C622 O RESISTOR,METAL GLAZED(CHIP) 6.8K OHM 1 / 16 W 1608 5.00% D
R405 0RH1801C622 O RESISTOR,METAL GLAZED(CHIP) 1.8K OHM 1 / 16 W 1608 5.00% D
R406 0RH1801C622 O RESISTOR,METAL GLAZED(CHIP) 1.8K OHM 1 / 16 W 1608 5.00% D
R407 0RH1002C622 O RESISTOR,METAL GLAZED(CHIP) 10K OHM 1 / 16 W 1608 5.00% D
R409 0RH6801C622 O RESISTOR,METAL GLAZED(CHIP) 6.8K OHM 1 / 16 W 1608 5.00% D
R410 0RH6801C622 O RESISTOR,METAL GLAZED(CHIP) 6.8K OHM 1 / 16 W 1608 5.00% D
R411 0RH6801C622 O RESISTOR,METAL GLAZED(CHIP) 6.8K OHM 1 / 16 W 1608 5.00% D
Page 20
6-20
S AL LOCA NO PART NO(LG) A DESCRIPTION SPECIFICATION REMARKS
R412 0RH1801C622 O RESISTOR,METAL GLAZED(CHIP) 1.8K OHM 1 / 16 W 1608 5.00% D
R413 0RH8201C622 O RESISTOR,METAL GLAZED(CHIP) 8.2K OHM 1 / 16 W 1608 5.00% D
R414 0RH5601C622 O RESISTOR,METAL GLAZED(CHIP) 5.6K OHM 1 / 16 W 1608 5.00% D
R415 0RH4701C622 O RESISTOR,METAL GLAZED(CHIP) 4.7K OHM 1 / 16 W 1608 5.00% D
R416 0RH8201C622 O RESISTOR,METAL GLAZED(CHIP) 8.2K OHM 1 / 16 W 1608 5.00% D
R417 0RH1801C622 O RESISTOR,METAL GLAZED(CHIP) 1.8K OHM 1 / 16 W 1608 5.00% D
R418 0RH1002C622 O RESISTOR,METAL GLAZED(CHIP) 10K OHM 1 / 16 W 1608 5.00% D
R419 0RH3300C622 O RESISTOR,METAL GLAZED(CHIP) 330 OHM 1 / 16 W 1608 5.00% D
R420 0RH3300C622 O RESISTOR,METAL GLAZED(CHIP) 330 OHM 1 / 16 W 1608 5.00% D
R428 0RH0000C622 O RESISTOR,METAL GLAZED(CHIP) 0 OHM 1 / 16 W 1608 5.00% D
R429 0RH0000C622 O RESISTOR,METAL GLAZED(CHIP) 0 OHM 1 / 16 W 1608 5.00% D
R430 0RH0000C622 O RESISTOR,METAL GLAZED(CHIP) 0 OHM 1 / 16 W 1608 5.00% D
R431 0RH1001C622 O RESISTOR,METAL GLAZED(CHIP) 1K OHM 1 / 16 W 1608 5.00% D
R432 0RH0000C622 O RESISTOR,METAL GLAZED(CHIP) 0 OHM 1 / 16 W 1608 5.00% D
R433 0RH5600C622 O RESISTOR,METAL GLAZED(CHIP) 560 OHM 1 / 16 W 1608 5.00% D
R434 0RH5600C622 O RESISTOR,METAL GLAZED(CHIP) 560 OHM 1 / 16 W 1608 5.00% D
R435 0RH1001C622 O RESISTOR,METAL GLAZED(CHIP) 1K OHM 1 / 16 W 1608 5.00% D
R436 0RH1001C622 O RESISTOR,METAL GLAZED(CHIP) 1K OHM 1 / 16 W 1608 5.00% D
R437 0RH1001C622 O RESISTOR,METAL GLAZED(CHIP) 1K OHM 1 / 16 W 1608 5.00% D
R438 0RH1001C622 O RESISTOR,METAL GLAZED(CHIP) 1K OHM 1 / 16 W 1608 5.00% D
R439 0RH1001C622 O RESISTOR,METAL GLAZED(CHIP) 1K OHM 1 / 16 W 1608 5.00% D
R440 0RH1001C622 O RESISTOR,METAL GLAZED(CHIP) 1K OHM 1 / 16 W 1608 5.00% D
R441 0RH1001C622 O RESISTOR,METAL GLAZED(CHIP) 1K OHM 1 / 16 W 1608 5.00% D
R501 0RH3301C622 O RESISTOR,METAL GLAZED(CHIP) 3.3K OHM 1 / 16 W 1608 5.00% D
R502 0RH0000C622 O RESISTOR,METAL GLAZED(CHIP) 0 OHM 1 / 16 W 1608 5.00% D
R503 0RH0000C622 O RESISTOR,METAL GLAZED(CHIP) 0 OHM 1 / 16 W 1608 5.00% D
R504 0RH1500C422 O RESISTOR,METAL GLAZED(CHIP) 150 OHM 1 / 16 W 1608 1.00% D
R505 0RH0102C622 O RESISTOR,METAL GLAZED(CHIP) 10 OHM 1 / 16 W 1608 5.00% D
R506 0RH1001C422 O RESISTOR,METAL GLAZED(CHIP) 1K OHM 1 / 16 W 1608 1.00% D
R507 0RH1100C622 O RESISTOR,METAL GLAZED(CHIP) 110 OHM 1 / 16 W 1608 5.00% D
R508 0RH0752C622 O RESISTOR,METAL GLAZED(CHIP) 75 OHM 1 / 16 W 1608 5.00% D
R509 0RH1100C622 O RESISTOR,METAL GLAZED(CHIP) 110 OHM 1 / 16 W 1608 5.00% D
R510 0RH0222C622 O RESISTOR,METAL GLAZED(CHIP) 22 OHM 1 / 16 W 1608 5.00% D
R514 0RH0222C622 O RESISTOR,METAL GLAZED(CHIP) 22 OHM 1 / 16 W 1608 5.00% D
R515 0RH0222C622 O RESISTOR,METAL GLAZED(CHIP) 22 OHM 1 / 16 W 1608 5.00% D
R516 0RH1000C622 O RESISTOR,METAL GLAZED(CHIP) 100 OHM 1 / 16 W 1608 5.00% D
R520 0RH0222C622 O RESISTOR,METAL GLAZED(CHIP) 22 OHM 1 / 16 W 1608 5.00% D
R521 0RH4701C622 O RESISTOR,METAL GLAZED(CHIP) 4.7K OHM 1 / 16 W 1608 5.00% D
R522 0RH1002C622 O RESISTOR,METAL GLAZED(CHIP) 10K OHM 1 / 16 W 1608 5.00% D
R523 0RH4701C622 O RESISTOR,METAL GLAZED(CHIP) 4.7K OHM 1 / 16 W 1608 5.00% D
R524 0RH1001C622 O RESISTOR,METAL GLAZED(CHIP) 1K OHM 1 / 16 W 1608 5.00% D
R525 0LC0233002B O INDUCTOR,CHIP HB-1S1608-800JT CERATECH R/TP
R530 0RH1201C622 O RESISTOR,METAL GLAZED(CHIP) 1.2K OHM 1 / 16 W 1608 5.00% D
R531 0RH1201C622 O RESISTOR,METAL GLAZED(CHIP) 1.2K OHM 1 / 16 W 1608 5.00% D
R532 0RH1201C622 O RESISTOR,METAL GLAZED(CHIP) 1.2K OHM 1 / 16 W 1608 5.00% D
R533 0RH1201C622 O RESISTOR,METAL GLAZED(CHIP) 1.2K OHM 1 / 16 W 1608 5.00% D
R534 0RH6800C622 O RESISTOR,METAL GLAZED(CHIP) 680 OHM 1 / 16 W 1608 5.00% D
R535 0RH1201C622 O RESISTOR,METAL GLAZED(CHIP) 1.2K OHM 1 / 16 W 1608 5.00% D
R541 0RH1002C622 O RESISTOR,METAL GLAZED(CHIP) 10K OHM 1 / 16 W 1608 5.00% D
R588 0RH0752C622 O RESISTOR,METAL GLAZED(CHIP) 75 OHM 1 / 16 W 1608 5.00% D
R589 0RH0752C622 O RESISTOR,METAL GLAZED(CHIP) 75 OHM 1 / 16 W 1608 5.00% D
R590 0RH0752C622 O RESISTOR,METAL GLAZED(CHIP) 75 OHM 1 / 16 W 1608 5.00% D
R591 0RH0752C622 O RESISTOR,METAL GLAZED(CHIP) 75 OHM 1 / 16 W 1608 5.00% D
R592 0RH0000C622 O RESISTOR,METAL GLAZED(CHIP) 0 OHM 1 / 16 W 1608 5.00% D
X201 6202R-BM04C O RESONATOR,CRYSTAL HC-49/S BUBANG 33-8688MHZ 5
X501 6212AA2271F O RESONATOR,CRYSTAL HC-49S KITELCO 27MHZ +/- 20 PP
Loading...
