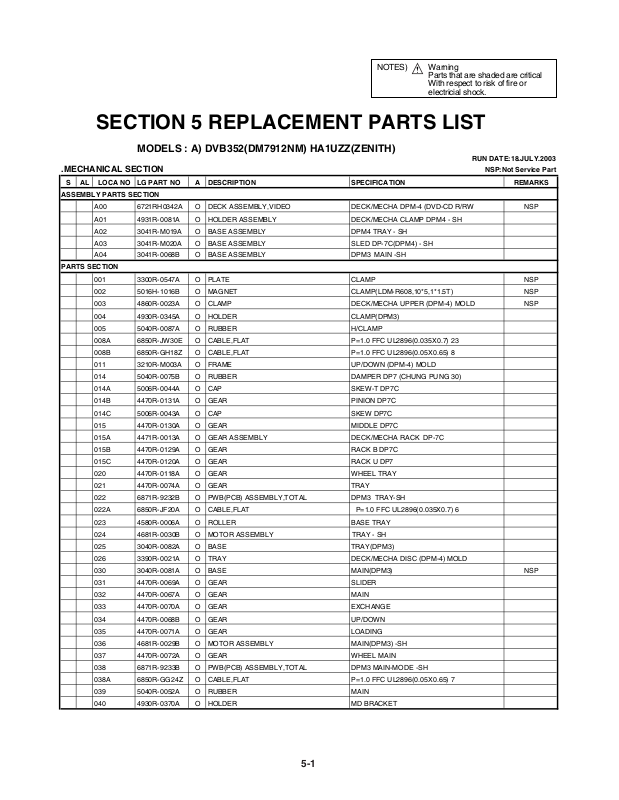

Page 1
5-1
SECTION 5 REPLACEMENT PARTS LIST
MODELS : A) DVB352(DM7912NM) HA1UZZ(ZENITH)
RUN DATE:18.JULY.2003
.MECHANICAL SECTION NSP:Not Service Part
S AL LOCA NO LG PART NO A DESCRIPTION SPECIFICATION REMARKS
ASSEMBLY PARTS SECTION
A00 6721RH0342A O DECK ASSEMBLY,VIDEO DECK/MECHA DPM-4 (DVD-CD R/RW NSP
A01 4931R-0081A O HOLDER ASSEMBLY DECK/MECHA CLAMP DPM4 - SH
A02 3041R-M019A O BASE ASSEMBLY DPM4 TRAY - SH
A03 3041R-M020A O BASE ASSEMBLY SLED DP-7C(DPM4) - SH
A04 3041R-0068B O BASE ASSEMBLY DPM3 MAIN -SH
PARTS SECTION
001 3300R-0547A O PLATE CLAMP NSP
002 5016H-1016B O MAGNET CLAMP(LDM-R608,10*5,1*1.5T) NSP
003 4860R-0023A O CLAMP DECK/MECHA UPPER (DPM-4) MOLD NSP
004 4930R-0345A O HOLDER CLAMP(DPM3)
005 5040R-0087A O RUBBER H/CLAMP
008A 6850R-JW30E O CABLE,FLAT P=1.0 FFC UL2896(0.035X0.7) 23
008B 6850R-GH18Z O CABLE,FLAT P=1.0 FFC UL2896(0.05X0.65) 8
011 3210R-M003A O FRAME UP/DOWN (DPM-4) MOLD
014 5040R-0075B O RUBBER DAMPER DP7 (CHUNG PUNG 30)
014A 5006R-0044A O CAP SKEW-T DP7C
014B 4470R-0131A O GEAR PINION DP7C
014C 5006R-0043A O CAP SKEW DP7C
015 4470R-0130A O GEAR MIDDLE DP7C
015A 4471R-0013A O GEAR ASSEMBLY DECK/MECHA RACK DP-7C
015B 4470R-0129A O GEAR RACK B DP7C
015C 4470R-0120A O GEAR RACK U DP7
020 4470R-0118A O GEAR WHEEL TRAY
021 4470R-0074A O GEAR TRAY
022 6871R-9232B O PWB(PCB) ASSEMBLY,TOTAL DPM3 TRAY-SH
022A 6850R-JF20A O CABLE,FLAT P=1.0 FFC UL2896(0.035X0.7) 6
023 4580R-0006A O ROLLER BASE TRAY
024 4681R-0030B O MOTOR ASSEMBLY TRAY - SH
025 3040R-0082A O BASE TRAY(DPM3)
026 3390R-0021A O TRAY DECK/MECHA DISC (DPM-4) MOLD
030 3040R-0081A O BASE MAIN(DPM3) NSP
031 4470R-0069A O GEAR SLIDER
032 4470R-0067A O GEAR MAIN
033 4470R-0070A O GEAR EXCHANGE
034 4470R-0068B O GEAR UP/DOWN
035 4470R-0071A O GEAR LOADING
036 4681R-0029B O MOTOR ASSEMBLY MAIN(DPM3) -SH
037 4470R-0072A O GEAR WHEEL MAIN
038 6871R-9233B O PWB(PCB) ASSEMBLY,TOTAL DPM3 MAIN-MODE -SH
038A 6850R-GG24Z O CABLE,FLAT P=1.0 FFC UL2896(0.05X0.65) 7
039 5040R-0052A O RUBBER MAIN
040 4930R-0370A O HOLDER MD BRACKET
NOTES) Warning
NOTES) Parts that are shaded are critical
NOTES) With respect to risk of fire or
NOTES) electricial shock.
Page 2
5-2
S AL LOCA NO LG PART NO A DESCRIPTION SPECIFICATION REMARKS
SCREW
413 4000R-0006A O SCREW Audio TAPTITE 3*8(353-025B)
414 353-051E O SCREW SPECIAL (3X12)
415 1MPC0301118 O SCREW MACHINE,PAN HEAD #NAME?
416 4404R-0017A O MECHANISM Audio 3*12*12(88H-0004)
430 1SZZH-1003A O SCREW, + D2.0 6MM SWRCH16A/NIY 4.5MM
431 1SZZH-1007B O SCREW,DRAWING + D2.0 6MM SWRCH16A/ZNBK 4MM 1
431A 1SZZR-0023B O SCREW,DRAWING + 1 D1.7 L6.0 SWRCH16A/FZY RAC
434 353-051E O SCREW SPECIAL (3X12)
.CABINET & MAIN FRAME SECTION
ASSEMBLY PARTS SECTION
A42 6871R-5097A O PWB(PCB) ASSEMBLY,TOTAL DM6000 SH KEY1
A43 3501RF4030L O BOARD ASSEMBLY DVD DM7912NM HA1UZZ FRONT
A46 6885R-0700A O SUB PWB(PCB) ASSEMBLY DM7912NM HA1UZZ 55(U),53(S),00
A47 6871R-6857A O PWB(PCB) ASSEMBLY,TOTAL DM7000 POWER
A48 6871R-5096A O PWB(PCB) ASSEMBLY,TOTAL DM6000 SH TIMER
A49 6871R-5098B O PWB(PCB) ASSEMBLY,TOTAL DM6912N HA1UZZ 5 SLIM KEY2 ZEN
PARTS SECTION
250 3111R-D001D O CASE ASSEMBLY DM6912N HA1UZZ TOP
260 3140R-0056A O CHASSIS DVD DM6000 MAIN
261A 5040R-0069D O RUBBER FOOT(SILICONE SPONGE DS-08 T=
275 4930R-0351A O HOLDER DVD DM6000 BRACKET
280 3721R-F300L O PANEL ASSEMBLY,FRONT[NORMAL PA DM7912NM HA1UZZ NSP
NSP
283 3581R-T067G O DOOR ASSEMBLY DVD DM7912NM HA1UZZ TRAY
300 6410RAHX02B O POWER CORD SP-120P/JL001 CHAUS/JULIAN UL/
320 3720R-D068W O PANEL,VIDEO DVD DM7912NM HA1UZZ PRESS BACK
SCREW
452 353-051A O SCREW SPECIAL
463 353-051G O SCREW,DRAWING + 2 D3.0 L8.0 MSWR3/FN TB ROUN
465 353-046K O SCREW SPECIAL (3X10 B.K)
467 353-046N O SCREW,DRAWING SPECIAL(3X8 BK.)
.PACKING & ACCESSORY SECTION
801 3835RS0060B O INSTRUCTION ASSEMBLY DVD DM7912NM HA1UZZ
802 3890R-H819L O BOX DM7921PM HA1UZZ SWM3-A 1.472 4
803 3920R-E063A O PACKING,CASING DM6000S 0.02 120 EPS 4 615 128
804 292-053D O BAG LVP-1 NSP
806 6850R-DDA82 O CABLE,DIN MDC-18-MMBS1-0 S-VHS SM TECH 1
808 841-0021 O BATTERY,MN ER03X HI WATT 1.5V .MA/H AAA
810 6851R-0033A O CABLE ASSEMBLY 1WAY(Y) + 2WAY(R/W) 1.8M + S-V
811 6611R1D003A O PLUG ASSEMBLY 1WAY RC1-18RRBS1-0 FREE OF CD
812 6611R2D003A O PLUG ASSEMBLY 2WAY RC2-18RRBS1-0 FREE OF CD_
.REMOTE CONTROL SECTION
900 6711R1N104D O REMOTE CONTROLLER ASSEMBLY N6 NOR DM7912NM HA1UZZ ZENITH
261 4930R-0350A O HOLDER
Page 3
5-3
.ELECTRICAL SECTION
S AL LOCA NO LG PART NO A DESCRIPTION SPECIFICATION REMARKS
BC101 636-004C O FILTER(CIRC),EMC BEAD CORE BFS3550R2FD8,R T/P
BD101 0DD160000DA O DIODE S1WBA60(1A 600V) SHIDENKEN
C101 624-088S O CAPACITOR,DRAWING MPX104K ETR/EUROPTRONIC BULK
C102 624-088S O CAPACITOR,DRAWING MPX104K ETR/EUROPTRONIC BULK
C103 0CE1076Q600 O CAPACITOR,ELECTROLYTIC 100UF SMS 200V M W BULK
C104 624-085D O CAPACITOR CE 47UF/50V KME (SMPS)
C106 0CE1064F638 O CAPACITOR,ELECTROLYTIC 10M SRA 16V M FM5 TP(5)
C107 0CG2220U630 O CAPACITOR,SEMI CERAMIC 2200 PF 400V M E R (NK,AD,SD)
C108 0CE4744K638 O CAPACITOR,ELECTROLYTIC 0.47M SRA 50V M FM5 TP(5)
C109 0CE108BF630 O CAPACITOR,FIXED ELECTROLYTIC 1000UF KME 16V M FM5 BULK
C110 0CN4730K948 O CAPACITOR,FIXED TUBULAR(High d 0.047UF D 50V 80%,-20% F(Y5V)
C112 0CE3376D638 O CAPACITOR,ELECTROLYTIC 330UF SMS 10V M FM5 TP5
C113 0CG1020U630 O CAPACITOR,SEMI CERAMIC 1000PF 400V M E(Z5U) R
C115 0CE3366K638 O CAPACITOR,FIXED ELECTROLYTIC 33UF SMS,SG 50V 20% FM5 TP 5
C116 0CE477BH630 O CAPACITOR,AL.ELECTROLYTIC 470UF KME TYPE 25V M FM5 BULK
C118 0CE1074F638 O CAPACITOR,ELECTROLYTIC 100U SRA 16V M FM5 TP(5)
C119 624-087G O CAPACITOR HIGH-VOL 68PF/1KV SMPS SAMHWA
C120 0CE1074F638 O CAPACITOR,ELECTROLYTIC 100U SRA 16V M FM5 TP(5)
C121 0CE2276F638 O CAPACITOR,ELECTROLYTIC 220U SMS 16V M FM5 TP(5)
C122 624-085D O CAPACITOR CE 47UF/50V KME (SMPS)
C123 0CE108BF630 O CAPACITOR,FIXED ELECTROLYTIC 1000UF KME 16V M FM5 BULK
C124 0CE337CH618 O CAPACITOR,FIXED ELECTROLYTIC 330UF SHL,SD 25V 20% FL TP 5
C126 0CQ1031Y519 O CAPACITOR,POLYESTER 0.01UF D 630V K PE NI TP
C128 0CQ1042K409 O CAPACITOR,FIXED FILM 0.1UF S 50V J PE TP
C130 0CE1074F638 O CAPACITOR,ELECTROLYTIC 100U SRA 16V M FM5 TP(5)
C131 0CE1074F638 O CAPACITOR,ELECTROLYTIC 100U SRA 16V M FM5 TP(5)
C136 0CE1064F638 O CAPACITOR,ELECTROLYTIC 10M SRA 16V M FM5 TP(5)
C137 0CE3376D638 O CAPACITOR,ELECTROLYTIC 330UF SMS 10V M FM5 TP5
C201 0CH1104K942 O CAPACITOR,CHIP[CERAMIC M/L HD 0.1UF 50V Z Y5V(F) 1508 R/TP
C202 0CH1104K942 O CAPACITOR,CHIP[CERAMIC M/L HD 0.1UF 50V Z Y5V(F) 1508 R/TP
C203 0CH1104K942 O CAPACITOR,CHIP[CERAMIC M/L HD 0.1UF 50V Z Y5V(F) 1508 R/TP
C206 0CE1074F638 O CAPACITOR,ELECTROLYTIC 100U SRA 16V M FM5 TP(5)
C207 0CE4764F638 O CAPACITOR,ELECTROLYTIC 47M SRA/SS 16V M FM5 TP(5)
C208 0CE4764F638 O CAPACITOR,ELECTROLYTIC 47M SRA/SS 16V M FM5 TP(5)
C211 0CH1104K942 O CAPACITOR,CHIP[CERAMIC M/L HD 0.1UF 50V Z Y5V(F) 1508 R/TP
C212 0CH1104K942 O CAPACITOR,CHIP[CERAMIC M/L HD 0.1UF 50V Z Y5V(F) 1508 R/TP
C213 0CH1104K942 O CAPACITOR,CHIP[CERAMIC M/L HD 0.1UF 50V Z Y5V(F) 1508 R/TP
C214 0CH1104K942 O CAPACITOR,CHIP[CERAMIC M/L HD 0.1UF 50V Z Y5V(F) 1508 R/TP
C215 0CH1104K942 O CAPACITOR,CHIP[CERAMIC M/L HD 0.1UF 50V Z Y5V(F) 1508 R/TP
C216 0CE4764F638 O CAPACITOR,ELECTROLYTIC 47M SRA/SS 16V M FM5 TP(5)
C231 0CH1104K942 O CAPACITOR,CHIP[CERAMIC M/L HD 0.1UF 50V Z Y5V(F) 1508 R/TP
C232 0CH1104K942 O CAPACITOR,CHIP[CERAMIC M/L HD 0.1UF 50V Z Y5V(F) 1508 R/TP
C233 0CH1104K942 O CAPACITOR,CHIP[CERAMIC M/L HD 0.1UF 50V Z Y5V(F) 1508 R/TP
C234 0CH1104K942 O CAPACITOR,CHIP[CERAMIC M/L HD 0.1UF 50V Z Y5V(F) 1508 R/TP
C239 0CH1104K942 O CAPACITOR,CHIP[CERAMIC M/L HD 0.1UF 50V Z Y5V(F) 1508 R/TP
C240 0CH1153K562 O CAPACITOR,FIXED CERAMIC(Temp.c 0.015UF 50V 10% X7R(X) 1608 R/
C241 0CE4764F638 O CAPACITOR,ELECTROLYTIC 47M SRA/SS 16V M FM5 TP(5)
C243 0CH4561K412 O CAPACITOR,FIXED CERAMIC(High d 560PF 50V 5% NP0 1608 R/TP
C244 0CH4561K412 O CAPACITOR,FIXED CERAMIC(High d 560PF 50V 5% NP0 1608 R/TP
C245 0CH1104K942 O CAPACITOR,CHIP[CERAMIC M/L HD 0.1UF 50V Z Y5V(F) 1508 R/TP
C251 0CH1104K942 O CAPACITOR,CHIP[CERAMIC M/L HD 0.1UF 50V Z Y5V(F) 1508 R/TP
C252 0CH1104K942 O CAPACITOR,CHIP[CERAMIC M/L HD 0.1UF 50V Z Y5V(F) 1508 R/TP
C253 0CH1104K942 O CAPACITOR,CHIP[CERAMIC M/L HD 0.1UF 50V Z Y5V(F) 1508 R/TP
C254 0CH1104K942 O CAPACITOR,CHIP[CERAMIC M/L HD 0.1UF 50V Z Y5V(F) 1508 R/TP
Page 4
5-4
S AL LOCA NO LG PART NO A DESCRIPTION SPECIFICATION REMARKS
C255 0CH1104K942 O CAPACITOR,CHIP[CERAMIC M/L HD 0.1UF 50V Z Y5V(F) 1508 R/TP
C257 0CH1105D942 O CAPACITOR,CHIP[CERAMIC M/L HD 1UF 10V Z Y5V(F) 1508 R/TP
C258 0CH1105D942 O CAPACITOR,CHIP[CERAMIC M/L HD 1UF 10V Z Y5V(F) 1508 R/TP
C259 0CH1105D942 O CAPACITOR,CHIP[CERAMIC M/L HD 1UF 10V Z Y5V(F) 1508 R/TP
C260 0CH1105D942 O CAPACITOR,CHIP[CERAMIC M/L HD 1UF 10V Z Y5V(F) 1508 R/TP
C261 0CH1105D942 O CAPACITOR,CHIP[CERAMIC M/L HD 1UF 10V Z Y5V(F) 1508 R/TP
C262 0CH1104K942 O CAPACITOR,CHIP[CERAMIC M/L HD 0.1UF 50V Z Y5V(F) 1508 R/TP
C263 0CH1104K942 O CAPACITOR,CHIP[CERAMIC M/L HD 0.1UF 50V Z Y5V(F) 1508 R/TP
C264 0CH1153K562 O CAPACITOR,FIXED CERAMIC(Temp.c 0.015UF 50V 10% X7R(X) 1608 R/
C265 0CH1104K942 O CAPACITOR,CHIP[CERAMIC M/L HD 0.1UF 50V Z Y5V(F) 1508 R/TP
C266 0CH1104K942 O CAPACITOR,CHIP[CERAMIC M/L HD 0.1UF 50V Z Y5V(F) 1508 R/TP
C267 0CH1104K942 O CAPACITOR,CHIP[CERAMIC M/L HD 0.1UF 50V Z Y5V(F) 1508 R/TP
C268 0CH1104K942 O CAPACITOR,CHIP[CERAMIC M/L HD 0.1UF 50V Z Y5V(F) 1508 R/TP
C269 0CH1104K942 O CAPACITOR,CHIP[CERAMIC M/L HD 0.1UF 50V Z Y5V(F) 1508 R/TP
C270 0CH1104K942 O CAPACITOR,CHIP[CERAMIC M/L HD 0.1UF 50V Z Y5V(F) 1508 R/TP
C271 0CH4391K412 O CAPACITOR,CHIP[CERAMIC M/L TC 390PF 50V J NP0 1508 R/TP
C272 0CH4391K412 O CAPACITOR,CHIP[CERAMIC M/L TC 390PF 50V J NP0 1508 R/TP
C273 0CH1333K562 O CAPACITOR,CHIP[CERAMIC M/L HD 0.033UF 50V K X7R(X) 1508 R/TP
C274 0CH4471K412 O CAPACITOR,CHIP[CERAMIC M/L TC 470PF 50V J NP0 1508 R/TP
C276 0CH4100K112 O CHIP CAPA CERAMIC M/L T.C F/S 10P 50V D COG 1.6X0.8 R/TP
C277 0CH1153K562 O CAPACITOR,FIXED CERAMIC(Temp.c 0.015UF 50V 10% X7R(X) 1608 R/
C278 0CH4270K412 O CAPACITOR,CHIP[CERAMIC M/L TC 27PF 50V J NP0 1608 R/TP
C279 0CH1104K942 O CAPACITOR,CHIP[CERAMIC M/L HD 0.1UF 50V Z Y5V(F) 1508 R/TP
C280 0CH1104K942 O CAPACITOR,CHIP[CERAMIC M/L HD 0.1UF 50V Z Y5V(F) 1508 R/TP
C281 0CH1104K942 O CAPACITOR,CHIP[CERAMIC M/L HD 0.1UF 50V Z Y5V(F) 1508 R/TP
C282 0CH1104K942 O CAPACITOR,CHIP[CERAMIC M/L HD 0.1UF 50V Z Y5V(F) 1508 R/TP
C283 0CH1104K942 O CAPACITOR,CHIP[CERAMIC M/L HD 0.1UF 50V Z Y5V(F) 1508 R/TP
C291 0CE1074F638 O CAPACITOR,ELECTROLYTIC 100U SRA 16V M FM5 TP(5)
C292 0CE4764F638 O CAPACITOR,ELECTROLYTIC 47M SRA/SS 16V M FM5 TP(5)
C293 0CE4764F638 O CAPACITOR,ELECTROLYTIC 47M SRA/SS 16V M FM5 TP(5)
C295 0CE1064F638 O CAPACITOR,ELECTROLYTIC 10M SRA 16V M FM5 TP(5)
C296 0CH1103K562 O CAPACITOR,FIXED CERAMIC(Temp.c 0.01UF 50V 10% X7R(X) 1608 R/T
C297 0CH4101K412 O CHIP CAPA CERAMIC M/L T.C F/S 100P 50V J COG 1.6X0.8 R/TP
C401 0CH1104K942 O CAPACITOR,CHIP[CERAMIC M/L HD 0.1UF 50V Z Y5V(F) 1508 R/TP
C402 0CE4764F638 O CAPACITOR,ELECTROLYTIC 47M SRA/SS 16V M FM5 TP(5)
C405 0CH1104K942 O CAPACITOR,CHIP[CERAMIC M/L HD 0.1UF 50V Z Y5V(F) 1508 R/TP
C406 0CH1105D942 O CAPACITOR,CHIP[CERAMIC M/L HD 1UF 10V Z Y5V(F) 1508 R/TP
C407 0CH1105D942 O CAPACITOR,CHIP[CERAMIC M/L HD 1UF 10V Z Y5V(F) 1508 R/TP
C408 0CH1104K942 O CAPACITOR,CHIP[CERAMIC M/L HD 0.1UF 50V Z Y5V(F) 1508 R/TP
C409 0CE2264F638 O CAPACITOR,ELECTROLYTIC 22M SRA 16V M FM5 TP(5)
C410 0CE2264F638 O CAPACITOR,ELECTROLYTIC 22M SRA 16V M FM5 TP(5)
C411 0CH1102K562 O CAPACITOR,FIXED CERAMIC(Temp.c 1000PF 50V 10% X7R(X) 1608 R/T
C412 0CE1074F638 O CAPACITOR,ELECTROLYTIC 100U SRA 16V M FM5 TP(5)
C413 0CH1104K942 O CAPACITOR,CHIP[CERAMIC M/L HD 0.1UF 50V Z Y5V(F) 1508 R/TP
C414 0CE477CD638 O CAPACITOR,AL.ELECTROLYTIC 470UF SHL,SD 10V M FM5 TP 5
C415 0CE2264F638 O CAPACITOR,ELECTROLYTIC 22M SRA 16V M FM5 TP(5)
C416 0CH1102K562 O CAPACITOR,FIXED CERAMIC(Temp.c 1000PF 50V 10% X7R(X) 1608 R/T
C417 0CE2264F638 O CAPACITOR,ELECTROLYTIC 22M SRA 16V M FM5 TP(5)
C418 0CH4271K412 O CAPACITOR,FIXED CERAMIC(HIGH D 270PF 50V 5% NP0 1608 R/TP
C419 0CE2264F638 O CAPACITOR,ELECTROLYTIC 22M SRA 16V M FM5 TP(5)
C420 0CH4271K412 O CAPACITOR,FIXED CERAMIC(HIGH D 270PF 50V 5% NP0 1608 R/TP
C421 0CH4271K412 O CAPACITOR,FIXED CERAMIC(HIGH D 270PF 50V 5% NP0 1608 R/TP
C422 0CH4271K412 O CAPACITOR,FIXED CERAMIC(HIGH D 270PF 50V 5% NP0 1608 R/TP
C423 0CH1392K562 O CAPACITOR,FIXED CERAMIC(Temp.c 3900PF 50V K Z5U(E) 1608 R/TP
C424 0CE2264F638 O CAPACITOR,ELECTROLYTIC 22M SRA 16V M FM5 TP(5)
Page 5
5-5
S AL LOCA NO LG PART NO A DESCRIPTION SPECIFICATION REMARKS
C425 0CH1392K562 O CAPACITOR,FIXED CERAMIC(Temp.c 3900PF 50V K Z5U(E) 1608 R/TP
C426 0CE2264F638 O CAPACITOR,ELECTROLYTIC 22M SRA 16V M FM5 TP(5)
C502 0CH1103K562 O CAPACITOR,FIXED CERAMIC(Temp.c 0.01UF 50V 10% X7R(X) 1608 R/T
C503 0CH1103K562 O CAPACITOR,FIXED CERAMIC(Temp.c 0.01UF 50V 10% X7R(X) 1608 R/T
C504 0CH1103K562 O CAPACITOR,FIXED CERAMIC(Temp.c 0.01UF 50V 10% X7R(X) 1608 R/T
C505 0CH1103K562 O CAPACITOR,FIXED CERAMIC(Temp.c 0.01UF 50V 10% X7R(X) 1608 R/T
C506 0CH4101K412 O CHIP CAPA CERAMIC M/L T.C F/S 100P 50V J COG 1.6X0.8 R/TP
C507 0CH1103K562 O CAPACITOR,FIXED CERAMIC(Temp.c 0.01UF 50V 10% X7R(X) 1608 R/T
C508 0CH1225F944 O CAPACITOR,FIXED CERAMIC(Temp.c 2.2UF 16V 80%,-20% Y5V(F) 3216
C509 0CH1104K942 O CAPACITOR,CHIP[CERAMIC M/L HD 0.1UF 50V Z Y5V(F) 1508 R/TP
C510 0CH4101K412 O CHIP CAPA CERAMIC M/L T.C F/S 100P 50V J COG 1.6X0.8 R/TP
C511 0CE4764F638 O CAPACITOR,ELECTROLYTIC 47M SRA/SS 16V M FM5 TP(5)
C513 0CH1104K942 O CAPACITOR,CHIP[CERAMIC M/L HD 0.1UF 50V Z Y5V(F) 1508 R/TP
C514 0CH1104K942 O CAPACITOR,CHIP[CERAMIC M/L HD 0.1UF 50V Z Y5V(F) 1508 R/TP
C515 0CH1104K942 O CAPACITOR,CHIP[CERAMIC M/L HD 0.1UF 50V Z Y5V(F) 1508 R/TP
C516 0CH1225F944 O CAPACITOR,FIXED CERAMIC(Temp.c 2.2UF 16V 80%,-20% Y5V(F) 3216
C517 0CH1104K942 O CAPACITOR,CHIP[CERAMIC M/L HD 0.1UF 50V Z Y5V(F) 1508 R/TP
C518 0CH1104K942 O CAPACITOR,CHIP[CERAMIC M/L HD 0.1UF 50V Z Y5V(F) 1508 R/TP
C519 0CH1104K942 O CAPACITOR,CHIP[CERAMIC M/L HD 0.1UF 50V Z Y5V(F) 1508 R/TP
C520 0CH1104K942 O CAPACITOR,CHIP[CERAMIC M/L HD 0.1UF 50V Z Y5V(F) 1508 R/TP
C521 0CH1104K942 O CAPACITOR,CHIP[CERAMIC M/L HD 0.1UF 50V Z Y5V(F) 1508 R/TP
C522 0CH1104K942 O CAPACITOR,CHIP[CERAMIC M/L HD 0.1UF 50V Z Y5V(F) 1508 R/TP
C523 0CH1104K942 O CAPACITOR,CHIP[CERAMIC M/L HD 0.1UF 50V Z Y5V(F) 1508 R/TP
C524 0CH1104K942 O CAPACITOR,CHIP[CERAMIC M/L HD 0.1UF 50V Z Y5V(F) 1508 R/TP
C525 0CH1104K942 O CAPACITOR,CHIP[CERAMIC M/L HD 0.1UF 50V Z Y5V(F) 1508 R/TP
C526 0CH1104K942 O CAPACITOR,CHIP[CERAMIC M/L HD 0.1UF 50V Z Y5V(F) 1508 R/TP
C527 0CH1104K942 O CAPACITOR,CHIP[CERAMIC M/L HD 0.1UF 50V Z Y5V(F) 1508 R/TP
C528 0CE4764F638 O CAPACITOR,ELECTROLYTIC 47M SRA/SS 16V M FM5 TP(5)
C529 0CH1103K562 O CAPACITOR,FIXED CERAMIC(Temp.c 0.01UF 50V 10% X7R(X) 1608 R/T
C530 0CH1104K942 O CAPACITOR,CHIP[CERAMIC M/L HD 0.1UF 50V Z Y5V(F) 1508 R/TP
C531 0CH1104K942 O CAPACITOR,CHIP[CERAMIC M/L HD 0.1UF 50V Z Y5V(F) 1508 R/TP
C532 0CH1104K942 O CAPACITOR,CHIP[CERAMIC M/L HD 0.1UF 50V Z Y5V(F) 1508 R/TP
C533 0CH4180K412 O CAPACITOR,CHIP[CERAMIC M/L TC 18P 50V J COG 1.6X0.8 R/TP
C534 0CH4330K412 O CAPACITOR,CHIP[CERAMIC M/L TC 33P 50V J COG 1.6X0.8 R/TP
C535 0CH1104K942 O CAPACITOR,CHIP[CERAMIC M/L HD 0.1UF 50V Z Y5V(F) 1508 R/TP
C536 0CH1102K562 O CAPACITOR,FIXED CERAMIC(Temp.c 1000PF 50V 10% X7R(X) 1608 R/T
C537 0CH1102K562 O CAPACITOR,FIXED CERAMIC(Temp.c 1000PF 50V 10% X7R(X) 1608 R/T
C538 0CH1102K562 O CAPACITOR,FIXED CERAMIC(Temp.c 1000PF 50V 10% X7R(X) 1608 R/T
C539 0CH1104K942 O CAPACITOR,CHIP[CERAMIC M/L HD 0.1UF 50V Z Y5V(F) 1508 R/TP
C540 0CH1104K942 O CAPACITOR,CHIP[CERAMIC M/L HD 0.1UF 50V Z Y5V(F) 1508 R/TP
C541 0CE1064F638 O CAPACITOR,ELECTROLYTIC 10M SRA 16V M FM5 TP(5)
C542 0CH1104K942 O CAPACITOR,CHIP[CERAMIC M/L HD 0.1UF 50V Z Y5V(F) 1508 R/TP
C543 0CE1064F638 O CAPACITOR,ELECTROLYTIC 10M SRA 16V M FM5 TP(5)
C544 0CH1104K942 O CAPACITOR,CHIP[CERAMIC M/L HD 0.1UF 50V Z Y5V(F) 1508 R/TP
C545 0CE1064F638 O CAPACITOR,ELECTROLYTIC 10M SRA 16V M FM5 TP(5)
C554 0CH1104K942 O CAPACITOR,CHIP[CERAMIC M/L HD 0.1UF 50V Z Y5V(F) 1508 R/TP
C556 0CH1104K942 O CAPACITOR,CHIP[CERAMIC M/L HD 0.1UF 50V Z Y5V(F) 1508 R/TP
C557 0CH1104K942 O CAPACITOR,CHIP[CERAMIC M/L HD 0.1UF 50V Z Y5V(F) 1508 R/TP
C558 0CH1104K942 O CAPACITOR,CHIP[CERAMIC M/L HD 0.1UF 50V Z Y5V(F) 1508 R/TP
C559 0CH1104K942 O CAPACITOR,CHIP[CERAMIC M/L HD 0.1UF 50V Z Y5V(F) 1508 R/TP
C560 0CH1104K942 O CAPACITOR,CHIP[CERAMIC M/L HD 0.1UF 50V Z Y5V(F) 1508 R/TP
C561 0CH1104K942 O CAPACITOR,CHIP[CERAMIC M/L HD 0.1UF 50V Z Y5V(F) 1508 R/TP
C563 0CE2274C638 O CAPACITOR,ELECTROLYTIC 220M SRA 6.3V M FM5 TP(5)
C564 0CE2274C638 O CAPACITOR,ELECTROLYTIC 220M SRA 6.3V M FM5 TP(5)
C565 0CH4221K412 O CAPACITOR,CHIP[CERAMIC M/L TC 220P 50V J COG 1.6X0.8 R/TP
Page 6
5-6
S AL LOCA NO LG PART NO A DESCRIPTION SPECIFICATION REMARKS
C566 0CH4221K412 O CAPACITOR,CHIP[CERAMIC M/L TC 220P 50V J COG 1.6X0.8 R/TP
C567 0CH4221K412 O CAPACITOR,CHIP[CERAMIC M/L TC 220P 50V J COG 1.6X0.8 R/TP
C568 0CH4221K412 O CAPACITOR,CHIP[CERAMIC M/L TC 220P 50V J COG 1.6X0.8 R/TP
C569 0CH4221K412 O CAPACITOR,CHIP[CERAMIC M/L TC 220P 50V J COG 1.6X0.8 R/TP
C575 0CH1104K942 O CAPACITOR,CHIP[CERAMIC M/L HD 0.1UF 50V Z Y5V(F) 1508 R/TP
C576 0CH1104K942 O CAPACITOR,CHIP[CERAMIC M/L HD 0.1UF 50V Z Y5V(F) 1508 R/TP
C577 0CH1104K942 O CAPACITOR,CHIP[CERAMIC M/L HD 0.1UF 50V Z Y5V(F) 1508 R/TP
C578 0CH1104K942 O CAPACITOR,CHIP[CERAMIC M/L HD 0.1UF 50V Z Y5V(F) 1508 R/TP
C579 0CH1104K942 O CAPACITOR,CHIP[CERAMIC M/L HD 0.1UF 50V Z Y5V(F) 1508 R/TP
C580 0CH1104K942 O CAPACITOR,CHIP[CERAMIC M/L HD 0.1UF 50V Z Y5V(F) 1508 R/TP
C581 0CH1104K942 O CAPACITOR,CHIP[CERAMIC M/L HD 0.1UF 50V Z Y5V(F) 1508 R/TP
C582 0CH1104K942 O CAPACITOR,CHIP[CERAMIC M/L HD 0.1UF 50V Z Y5V(F) 1508 R/TP
C583 0CE2274C638 O CAPACITOR,ELECTROLYTIC 220M SRA 6.3V M FM5 TP(5)
C584 0CH4221K412 O CAPACITOR,CHIP[CERAMIC M/L TC 220P 50V J COG 1.6X0.8 R/TP
C589 0CH1104K942 O CAPACITOR,CHIP[CERAMIC M/L HD 0.1UF 50V Z Y5V(F) 1508 R/TP
C592 0CH1104K942 O CAPACITOR,CHIP[CERAMIC M/L HD 0.1UF 50V Z Y5V(F) 1508 R/TP
C596 0CH1104K942 O CAPACITOR,CHIP[CERAMIC M/L HD 0.1UF 50V Z Y5V(F) 1508 R/TP
C598 0CE2274C638 O CAPACITOR,ELECTROLYTIC 220M SRA 6.3V M FM5 TP(5)
C5A1 0CE1064F638 O CAPACITOR,ELECTROLYTIC 10M SRA 16V M FM5 TP(5)
C5A2 0CH1104K942 O CAPACITOR,CHIP[CERAMIC M/L HD 0.1UF 50V Z Y5V(F) 1508 R/TP
C5A3 0CH4221K412 O CAPACITOR,CHIP[CERAMIC M/L TC 220P 50V J COG 1.6X0.8 R/TP
C5A9 0CH4221K412 O CAPACITOR,CHIP[CERAMIC M/L TC 220P 50V J COG 1.6X0.8 R/TP
C628 0CE1054K638 O CAPACITOR,ELECTROLYTIC 1.0M SRA/SS50V M FM5 TP(5)
C629 0CE1054K638 O CAPACITOR,ELECTROLYTIC 1.0M SRA/SS50V M FM5 TP(5)
C630 0CE1054K638 O CAPACITOR,ELECTROLYTIC 1.0M SRA/SS50V M FM5 TP(5)
C631 0CE1054K638 O CAPACITOR,ELECTROLYTIC 1.0M SRA/SS50V M FM5 TP(5)
C632 0CE1054K638 O CAPACITOR,ELECTROLYTIC 1.0M SRA/SS50V M FM5 TP(5)
C633 0CH1104K942 O CAPACITOR,CHIP[CERAMIC M/L HD 0.1UF 50V Z Y5V(F) 1508 R/TP
C634 0CE2264F638 O CAPACITOR,ELECTROLYTIC 22M SRA 16V M FM5 TP(5)
C635 0CH1104K942 O CAPACITOR,CHIP[CERAMIC M/L HD 0.1UF 50V Z Y5V(F) 1508 R/TP
C636 0CE4764F638 O CAPACITOR,ELECTROLYTIC 47M SRA/SS 16V M FM5 TP(5)
C643 0CE1054K638 O CAPACITOR,ELECTROLYTIC 1.0M SRA/SS50V M FM5 TP(5)
C647 0CE1086C638 O CAPACITOR,FIXED ELECTROLYTIC 1000000000 PF SMS,SG 6.3V M FM
C651 0CE1086C638 O CAPACITOR,FIXED ELECTROLYTIC 1000000000 PF SMS,SG 6.3V M FM
C655 0CE1086C638 O CAPACITOR,FIXED ELECTROLYTIC 1000000000 PF SMS,SG 6.3V M FM
C659 0CE4775C638 O CAPACITOR,FIXED ELECTROLYTIC 470UF SR,SV 6.3V 20% FM5 TP 5
C663 0CE4775C638 O CAPACITOR,FIXED ELECTROLYTIC 470UF SR,SV 6.3V 20% FM5 TP 5
C673 0CH1104K942 O CAPACITOR,CHIP[CERAMIC M/L HD 0.1UF 50V Z Y5V(F) 1508 R/TP
C674 0CH1104K942 O CAPACITOR,CHIP[CERAMIC M/L HD 0.1UF 50V Z Y5V(F) 1508 R/TP
C675 0CE1074F638 O CAPACITOR,ELECTROLYTIC 100U SRA 16V M FM5 TP(5)
C676 0CH1104K942 O CAPACITOR,CHIP[CERAMIC M/L HD 0.1UF 50V Z Y5V(F) 1508 R/TP
C677 0CH1104K942 O CAPACITOR,CHIP[CERAMIC M/L HD 0.1UF 50V Z Y5V(F) 1508 R/TP
C678 0CH1104K942 O CAPACITOR,CHIP[CERAMIC M/L HD 0.1UF 50V Z Y5V(F) 1508 R/TP
C679 0CE2274C638 O CAPACITOR,ELECTROLYTIC 220M SRA 6.3V M FM5 TP(5)
C680 0CH1104K942 O CAPACITOR,CHIP[CERAMIC M/L HD 0.1UF 50V Z Y5V(F) 1508 R/TP
C681 0CH1104K942 O CAPACITOR,CHIP[CERAMIC M/L HD 0.1UF 50V Z Y5V(F) 1508 R/TP
C682 0CH1104K942 O CAPACITOR,CHIP[CERAMIC M/L HD 0.1UF 50V Z Y5V(F) 1508 R/TP
C683 0CH1104K942 O CAPACITOR,CHIP[CERAMIC M/L HD 0.1UF 50V Z Y5V(F) 1508 R/TP
C696 0CH1104K942 O CAPACITOR,CHIP[CERAMIC M/L HD 0.1UF 50V Z Y5V(F) 1508 R/TP
C6W1 0CH1104K942 O CAPACITOR,CHIP[CERAMIC M/L HD 0.1UF 50V Z Y5V(F) 1508 R/TP
C6W2 0CH1104K942 O CAPACITOR,CHIP[CERAMIC M/L HD 0.1UF 50V Z Y5V(F) 1508 R/TP
C6W3 0CE1064F638 O CAPACITOR,ELECTROLYTIC 10M SRA 16V M FM5 TP(5)
C6W4 0CH4101K412 O CHIP CAPA CERAMIC M/L T.C F/S 100P 50V J COG 1.6X0.8 R/TP
C6W5 0CH4270K412 O CAPACITOR,CHIP[CERAMIC M/L TC 27PF 50V J NP0 1608 R/TP
C6W6 0CH4101K412 O CHIP CAPA CERAMIC M/L T.C F/S 100P 50V J COG 1.6X0.8 R/TP
Page 7
5-7
S AL LOCA NO LG PART NO A DESCRIPTION SPECIFICATION REMARKS
C901 0CN1040K948 O CAPACITOR,FIXED TUBULAR(High d 0.1UF D 50V 80%,-20% F(Y5V) TA
C905 0CN6810K518 O CAPACITOR TUBULA(HIGH DIELE) 680P 50V K B TA26
C906 0CE1063F638 O CAPACITOR,AL.ELECTROLYTIC 10M SRE/SE 16V M FM5 TP(5)
C907 0CE4763C638 O CAPACITOR,FIXED ELECTROLYTIC 47UF SRE,SE 6.3V 20% FM5 TP 5
C909 0CN1040K948 O CAPACITOR,FIXED TUBULAR(High d 0.1UF D 50V 80%,-20% F(Y5V) TA
C910 0CN1040K948 O CAPACITOR,FIXED TUBULAR(High d 0.1UF D 50V 80%,-20% F(Y5V) TA
C911 0CN1040K948 O CAPACITOR,FIXED TUBULAR(High d 0.1UF D 50V 80%,-20% F(Y5V) TA
C912 0CE4763C638 O CAPACITOR,FIXED ELECTROLYTIC 47UF SRE,SE 6.3V 20% FM5 TP 5
C921 0CE4763C638 O CAPACITOR,FIXED ELECTROLYTIC 47UF SRE,SE 6.3V 20% FM5 TP 5
D100 0DD221009AA O DIODE,RECTIFIERS ERA22-10 KFLB,TP ,R T/P,FUJI
D102 0DR158220AA O DIODE,RECTIFIER 1N5822 BK RECTRON DO201AD 40V
D103 0DR310000AA O DIODE,RECTIFIERS RU3YXLF-C1 BK SANKEN D4 100V 2
D104 0DD010009AC O DIODE EU01W(R-FORM) TP SANKEN
D106 0DR104009AB O DIODE,RECTIFIER RL104 R. TP GULF SEMICONDUCTOR
D107 0DD010009AC O DIODE EU01W(R-FORM) TP SANKEN
D108 0DD010009AC O DIODE EU01W(R-FORM) TP SANKEN
D109 0DR310000AA O DIODE,RECTIFIERS RU3YXLF-C1 BK SANKEN D4 100V 2
D110 0DR104009BA O DIODE,RECTIFIER RL104F TP RECTRON NON 400V 1A
D111 0DRRE00029A O DIODE,RECTIFIERS 1N17 RECTRON TP NON 20V 1A 20
D600 0DSRM00118A O DIODE,SWITCHING DAP202K T146 ROHM R/TP SMD 80V
D670 0DR104009BA O DIODE,RECTIFIER RL104F TP RECTRON NON 400V 1A
DIG901 6302R-V124A O DIGITRON 7-BT-285GN FUTABA SEG VFD 5 CH
F101 0FS1601B51B O FUSE,SLOW BLOW 1600MA 250 V 5.2X20 CY/GL KS /
F102 0RF0200F708 O RESISTOR,VARIABLE[CARBON FILM] 0.2 OHM 1/6 W 10% TA26
F103 874-000T O WIRE COPPER TIN COATED D=0.6 ROLL
F105 874-000T O WIRE COPPER TIN COATED D=0.6 ROLL
F501 6200JB8010V O FILTER(CIRC),EMC LFA20-2A1E473MT MITSUBISHI MAT
F502 6200JB8010V O FILTER(CIRC),EMC LFA20-2A1E473MT MITSUBISHI MAT
F605 6200HJC901A O FILTER(CIRC),EMC CFI06B1H101MF SAMHWA TP 2-5K
F606 6200HJC901A O FILTER(CIRC),EMC CFI06B1H101MF SAMHWA TP 2-5K
FH101 586-008B O HOLDER FUSE CLIP TP SINSUNG
FH102 586-008B O HOLDER FUSE CLIP TP SINSUNG
IC101 0IPMGIH004A O IC,POWER MANAGEMENT ICE2B0565 INFINEON 8PIN DIP ST
IC102 657-063A O SENSOR LTV-817B,PHOTO COUPLER(LITEON)
IC103 0IPMGFA017A O IC,POWER MANAGEMENT KA78R12TSTU FAIRCHILD 4P TO-22
IC104 0IKE431000A O IC,KEC KIA431 3 PIN TP
IC105 0IPMGFA016A O IC,POWER MANAGEMENT KA78R08TSTU FAIRCHILD 4P TO-22
IC106 0IPMGFA015A O IC,POWER MANAGEMENT KA78R33TSTU FAIRCHILD 4P TO-22
IC201 0ILNRNF006A O IC,LINEAR MT1336E MEDIATEK INCORPORATION
IC202 0IPRPSA010A O IC,PERIPHERALS LA6560-A-TE-L SANYO HSOP-36R R
IC203 0ILNRFA023A O IC,LINEAR FAN8082DTF FAIRCHILD 8PIN SOP
IC401 0IPRPCI003B O IC,PERIPHERALS CS4391-KZR CIRRUS LOGIC 20 TSS
IC402 0IJR458000B O IC,JRC NJM4580M 8,DMP8 TP OP AMP 2K/R
IC501 0ILNRNF007B O IC,LINEAR MT1379DEC MEDIATEK INCORPORATI
IC502 0IMMREB006A O IC,MEMORIES M12L16161A-7T-TI ELITE MEMORY
IC503 0IMMREB006A O IC,MEMORIES M12L16161A-7T-TI ELITE MEMORY
IC505 0ISS240210A O IC,SAMSUNG ELECTRONICS S524A40X21-SCT0 SOP8 TP EEPROM
IC510 0IFA742440F O IC,FAIRCHILD MM74HCT244SJ 20P SOIC TP 3-STA
IC5A1 0IMMRFU011A O IC,MEMORIES MBM29LV160TE-70PFTN FUJITSU 48
IC604 0IPRPMT008A O IC,PERIPHERALS MM1623XFBE MITSUMI 28PIN SOP R
IC901 0IMCRHY031D O IC,MICRO CONTROLLER GMS81C2012-HI019 HYNIX 64 QFP
IC902 0IKE704200B O IC,KEC KIA7042P 3P 4.2V RESET(TAPING)
JK602 6612JH003JA O JACK,RCA RCA/DIN-30G YUQIU FOR DVD6000
L101 616-145M O FILTER(CIRC),DRAWING V-04350 LS FUTAI BULK =616-145
L102 633-088D O COIL,CHOKE CHOCK ,20UH KWANGSUNG LEAD CU
Page 8
5-8
S AL LOCA NO LG PART NO A DESCRIPTION SPECIFICATION REMARKS
L103 633-088G O COIL,CHOKE CHOCK(22MH) 5MM TOKO TP
L105 633-088G O COIL,CHOKE CHOCK(22MH) 5MM TOKO TP
L201 0LR0102J025 O INDUCTOR,RADIAL LEAD 10UH 5% 4X5 TR5
L202 6200HJC102A O FILTER(CIRC),EMC HB-1M2012-102JT CERATECH TP
L203 0LR0102J025 O INDUCTOR,RADIAL LEAD 10UH 5% 4X5 TR5
L204 6200HJC102A O FILTER(CIRC),EMC HB-1M2012-102JT CERATECH TP
L231 6200HJC102A O FILTER(CIRC),EMC HB-1M2012-102JT CERATECH TP
L251 6200HJC102A O FILTER(CIRC),EMC HB-1M2012-102JT CERATECH TP
L401 6200HJC102A O FILTER(CIRC),EMC HB-1M2012-102JT CERATECH TP
L403 6200HJC102A O FILTER(CIRC),EMC HB-1M2012-102JT CERATECH TP
L501 6200HJC102A O FILTER(CIRC),EMC HB-1M2012-102JT CERATECH TP
L502 6200HJC102A O FILTER(CIRC),EMC HB-1M2012-102JT CERATECH TP
L504 6200HJC102A O FILTER(CIRC),EMC HB-1M2012-102JT CERATECH TP
L510 6200HJC102A O FILTER(CIRC),EMC HB-1M2012-102JT CERATECH TP
L602 6200HJC102A O FILTER(CIRC),EMC HB-1M2012-102JT CERATECH TP
L673 6200HJC102A O FILTER(CIRC),EMC HB-1M2012-102JT CERATECH TP
L674 6200HJC102A O FILTER(CIRC),EMC HB-1M2012-102JT CERATECH TP
L6F1 6200HJC102A O FILTER(CIRC),EMC HB-1M2012-102JT CERATECH TP
L901 0LR1000K035 O INDUCTOR RADIAL LEAD 100M K 6X6 L5 TP
L902 0LR1000K035 O INDUCTOR RADIAL LEAD 100M K 6X6 L5 TP
LED901 0DL325319AA O LED SPR325MVWT31 TP ROHM GREEN/RED
Q101 0TR319809AC O TRANSISTOR KTC3198-TP-BL (KTC1815)KEC
Q102 0TR105009AD O TRANSISTOR,BIPOLARS KRA105M KEC TP TO92 50V 100MA
Q107 0TR115100AA O TRANSISTOR KSB1151-Y BK SAMSUNG TO-126
Q108 0TR319809AC O TRANSISTOR KTC3198-TP-BL (KTC1815)KEC
Q201 0TR387509AC O TRANSISTOR CHIP KTC3875S-GR-T1(ALG) KEC
Q202 0TRRH80042A O TRANSISTOR,BIPOLARS 2SK3018 T106 ROHM KOREA R/TP U
Q203 0TRRH80042A O TRANSISTOR,BIPOLARS 2SK3018 T106 ROHM KOREA R/TP U
Q204 0TR150409AC O TRANSISTOR KTA1504-GR-T1(ASG) CHIP KEC
Q205 0TR150409AC O TRANSISTOR KTA1504-GR-T1(ASG) CHIP KEC
Q206 0TR103009AA O TRANSISTOR CHIP KRC103S-T1(NC)22-22 KEC
Q501 0TR387509AC O TRANSISTOR CHIP KTC3875S-GR-T1(ALG) KEC
Q600 0TR150409AC O TRANSISTOR KTA1504-GR-T1(ASG) CHIP KEC
Q601 0TR103009AC O TRANSISTOR KRA103S-T1(PC)22-22 CHIP KEC
Q602 0TR103009AC O TRANSISTOR KRA103S-T1(PC)22-22 CHIP KEC
Q603 0TR387509AC O TRANSISTOR CHIP KTC3875S-GR-T1(ALG) KEC
Q604 0TR387509AC O TRANSISTOR CHIP KTC3875S-GR-T1(ALG) KEC
Q605 0TR387509AC O TRANSISTOR CHIP KTC3875S-GR-T1(ALG) KEC
Q606 0TR387509AC O TRANSISTOR CHIP KTC3875S-GR-T1(ALG) KEC
Q902 0TR103009AE O TRANSISTOR,BIPOLARS KRC103M(KRC1203) KEC TP TO92M
R100 0RD1504H632 O RESISTOR,FIXED CARBON FILM 1.5M OHM 1/2 W 5.00% MF10
R101 614-007A O RESISTOR 2.7/2W CEMENT SMPS V
R103 0RS5602K619 O RESISTOR,FIXED METAL OXIDE FIL 56K OHM 2 W 5.00% TR
R107 0RS0600K619 O RESISTOR,FIXED METAL OXIDE FIL 0.6 OHM 2 W 5% TR
R108 874-000T O WIRE COPPER TIN COATED D=0.6 ROLL
R109 0RD2203F608 O RESISTOR,FIXED CARBON FILM 220K OHM 1/6 W 5% TA26
R110 0RD2203F608 O RESISTOR,FIXED CARBON FILM 220K OHM 1/6 W 5% TA26
R112 0RD0392F608 O RESISTOR,FIXED CARBON FILM 39 OHM 1/6 W 5% TA26
R114 0RD1003F608 O RESISTOR,FIXED CARBON FILM 100K OHM 1/6 W 5% TA26
R115 0RD0182F608 O RESISTOR,FIXED CARBON FILM 18 OHM 1/6 W 5.00% TA26
R116 0RD0182F608 O RESISTOR,FIXED CARBON FILM 18 OHM 1/6 W 5.00% TA26
R120 0RD4702F608 O RESISTOR,FIXED CARBON FILM 47K OHM 1/6 W 5% TA26
R121 0RD1201F608 O RESISTOR,FIXED CARBON FILM 1.2K OHM 1/6 W 5% TA26
R122 0RD2200F608 O RESISTOR,FIXED CARBON FILM 220 OHM 1/6 W 5% TA26
R123 0RD1001F608 O RESISTOR,FIXED CARBON FILM 1K OHM 1/6 W 5% TA26
Page 9
5-9
S AL LOCA NO LG PART NO A DESCRIPTION SPECIFICATION REMARKS
R124 0RD1800F608 O RESISTOR,FIXED CARBON FILM 180 OHM 1/6 W 5% TA26
R125 0RD3901F608 O RESISTOR,FIXED CARBON FILM 3.9K OHM 1/6 W 5% TA26
R126 0RD1001F608 O RESISTOR,FIXED CARBON FILM 1K OHM 1/6 W 5% TA26
R127 0RN3601E408 O RESISTOR,FIXED METAL FILM 3.6K OHM 1/8 W 1.00% TA26
R128 0RN3301E408 O RESISTOR,FIXED METAL FILM 3.3K OHM 1/8 W 1.00% TA26
R129 874-000T O WIRE COPPER TIN COATED D=0.6 ROLL
R130 0RD1002F608 O RESISTOR,FIXED CARBON FILM 10K OHM 1/6 W 5% TA26
R131 0RD2201F608 O RESISTOR,FIXED CARBON FILM 2.2K OHM 1/6 W 5% TA26
R132 0RD1002F608 O RESISTOR,FIXED CARBON FILM 10K OHM 1/6 W 5% TA26
R140 0RD1001F608 O RESISTOR,FIXED CARBON FILM 1K OHM 1/6 W 5% TA26
R142 0RD1001F608 O RESISTOR,FIXED CARBON FILM 1K OHM 1/6 W 5% TA26
R145 0RD4700F608 O RESISTOR,FIXED CARBON FILM 470 OHM 1/6 W 5% TA26
R201 0RH1002C622 O RESISTOR,METAL GLAZED(CHIP) 10K OHM 1 / 16 W 1608 5.00% D
R202 0RH1003C622 O RESISTOR,METAL GLAZED(CHIP) 100K OHM 1 / 16 W 1608 5.00% D
R203 0RH1002C622 O RESISTOR,METAL GLAZED(CHIP) 10K OHM 1 / 16 W 1608 5.00% D
R204 0RH1003C622 O RESISTOR,METAL GLAZED(CHIP) 100K OHM 1 / 16 W 1608 5.00% D
R205 0RH0272C622 O RESISTOR,METAL GLAZED(CHIP) 27 OHM 1 / 16 W 1608 5.00% D
R206 0RH0272C622 O RESISTOR,METAL GLAZED(CHIP) 27 OHM 1 / 16 W 1608 5.00% D
R207 0RH0000C622 O RESISTOR,METAL GLAZED(CHIP) 0 OHM 1 / 16 W 1608 5.00% D
R208 0RH0000C622 O RESISTOR,METAL GLAZED(CHIP) 0 OHM 1 / 16 W 1608 5.00% D
R209 0RH0000C622 O RESISTOR,METAL GLAZED(CHIP) 0 OHM 1 / 16 W 1608 5.00% D
R210 0RH0000C622 O RESISTOR,METAL GLAZED(CHIP) 0 OHM 1 / 16 W 1608 5.00% D
R211 0RH0221C622 O RESISTOR,METAL GLAZED(CHIP) 2.2 OHM 1 / 16 W 1608 5.00% D
R212 0RJ7503C677 O RESISTOR,METAL GLAZED(CHIP) 750K OHM 1/16 W 5% 1608 R/TP
R213 0RH3903C622 O RESISTOR,METAL GLAZED(CHIP) 390K OHM 1 / 16 W 1608 5.00% D
R214 0RJ7503C677 O RESISTOR,METAL GLAZED(CHIP) 750K OHM 1/16 W 5% 1608 R/TP
R215 0RH3903C622 O RESISTOR,METAL GLAZED(CHIP) 390K OHM 1 / 16 W 1608 5.00% D
R216 0RH0101C622 O RESISTOR,METAL GLAZED(CHIP) 1 OHM 1 / 16 W 1608 5.00% D
R217 0RH0221C622 O RESISTOR,METAL GLAZED(CHIP) 2.2 OHM 1 / 16 W 1608 5.00% D
R218 0RH0221C622 O RESISTOR,METAL GLAZED(CHIP) 2.2 OHM 1 / 16 W 1608 5.00% D
R220 0RH0272C622 O RESISTOR,METAL GLAZED(CHIP) 27 OHM 1 / 16 W 1608 5.00% D
R221 0RH0272C622 O RESISTOR,METAL GLAZED(CHIP) 27 OHM 1 / 16 W 1608 5.00% D
R231 0RH2201C622 O RESISTOR,METAL GLAZED(CHIP) 2.2K OHM 1 / 16 W 1608 5.00% D
R232 0RH2201C622 O RESISTOR,METAL GLAZED(CHIP) 2.2K OHM 1 / 16 W 1608 5.00% D
R233 0RH0221C622 O RESISTOR,METAL GLAZED(CHIP) 2.2 OHM 1 / 16 W 1608 5.00% D
R234 0RH0221C622 O RESISTOR,METAL GLAZED(CHIP) 2.2 OHM 1 / 16 W 1608 5.00% D
R235 0RH1002C622 O RESISTOR,METAL GLAZED(CHIP) 10K OHM 1 / 16 W 1608 5.00% D
R236 0RH1502C622 O RESISTOR,METAL GLAZED(CHIP) 15K OHM 1 / 16 W 1608 5.00% D
R237 0RH2702C622 O RESISTOR,METAL GLAZED(CHIP) 27K OHM 1 / 16 W 1608 5.00% D
R238 0RH1002C622 O RESISTOR,METAL GLAZED(CHIP) 10K OHM 1 / 16 W 1608 5.00% D
R239 0RH1002C622 O RESISTOR,METAL GLAZED(CHIP) 10K OHM 1 / 16 W 1608 5.00% D
R240 0RH1002C622 O RESISTOR,METAL GLAZED(CHIP) 10K OHM 1 / 16 W 1608 5.00% D
R241 0RH1002C622 O RESISTOR,METAL GLAZED(CHIP) 10K OHM 1 / 16 W 1608 5.00% D
R242 0RH2702C622 O RESISTOR,METAL GLAZED(CHIP) 27K OHM 1 / 16 W 1608 5.00% D
R243 0RH1002C622 O RESISTOR,METAL GLAZED(CHIP) 10K OHM 1 / 16 W 1608 5.00% D
R244 0RH1502C622 O RESISTOR,METAL GLAZED(CHIP) 15K OHM 1 / 16 W 1608 5.00% D
R245 0RH1002C622 O RESISTOR,METAL GLAZED(CHIP) 10K OHM 1 / 16 W 1608 5.00% D
R246 0RH1002C622 O RESISTOR,METAL GLAZED(CHIP) 10K OHM 1 / 16 W 1608 5.00% D
R247 0RH0000C622 O RESISTOR,METAL GLAZED(CHIP) 0 OHM 1 / 16 W 1608 5.00% D
R248 0RH0000C622 O RESISTOR,METAL GLAZED(CHIP) 0 OHM 1 / 16 W 1608 5.00% D
R251 0RH3302C622 O RESISTOR,METAL GLAZED(CHIP) 33K OHM 1 / 16 W 1608 5.00% D
R252 0RH1003C622 O RESISTOR,METAL GLAZED(CHIP) 100K OHM 1 / 16 W 1608 5.00% D
R253 0RH2702C622 O RESISTOR,METAL GLAZED(CHIP) 27K OHM 1 / 16 W 1608 5.00% D
R254 0RH0000C622 O RESISTOR,METAL GLAZED(CHIP) 0 OHM 1 / 16 W 1608 5.00% D
R255 0RH0000C622 O RESISTOR,METAL GLAZED(CHIP) 0 OHM 1 / 16 W 1608 5.00% D
Page 10
5-10
S AL LOCA NO LG PART NO A DESCRIPTION SPECIFICATION REMARKS
R256 0RH1002C622 O RESISTOR,METAL GLAZED(CHIP) 10K OHM 1 / 16 W 1608 5.00% D
R257 0RH1002C622 O RESISTOR,METAL GLAZED(CHIP) 10K OHM 1 / 16 W 1608 5.00% D
R258 0RH0000C622 O RESISTOR,METAL GLAZED(CHIP) 0 OHM 1 / 16 W 1608 5.00% D
R259 0RH0000C622 O RESISTOR,METAL GLAZED(CHIP) 0 OHM 1 / 16 W 1608 5.00% D
R260 0RH4702C622 O RESISTOR,METAL GLAZED(CHIP) 47K OHM 1 / 16 W 1608 5.00% D
R261 0RH4701C622 O RESISTOR,METAL GLAZED(CHIP) 4.7K OHM 1 / 16 W 1608 5.00% D
R262 0RH1001C622 O RESISTOR,METAL GLAZED(CHIP) 1K OHM 1 / 16 W 1608 5.00% D
R2D1 0RH0000C622 O RESISTOR,METAL GLAZED(CHIP) 0 OHM 1 / 16 W 1608 5.00% D
R2D2 0RH0000C622 O RESISTOR,METAL GLAZED(CHIP) 0 OHM 1 / 16 W 1608 5.00% D
R401 0RH1001C622 O RESISTOR,METAL GLAZED(CHIP) 1K OHM 1 / 16 W 1608 5.00% D
R407 0RH0000C622 O RESISTOR,METAL GLAZED(CHIP) 0 OHM 1 / 16 W 1608 5.00% D
R408 0RH4700C622 O RESISTOR,METAL GLAZED(CHIP) 470 OHM 1 / 16 W 1608 5.00% D
R409 0RH4700C622 O RESISTOR,METAL GLAZED(CHIP) 470 OHM 1 / 16 W 1608 5.00% D
R410 0RH4700C622 O RESISTOR,METAL GLAZED(CHIP) 470 OHM 1 / 16 W 1608 5.00% D
R411 0RH1801C622 O RESISTOR,METAL GLAZED(CHIP) 1.8K OHM 1 / 16 W 1608 5.00% D
R412 0RH7501C622 O RESISTOR,METAL GLAZED(CHIP) 7.5K OHM 1 / 16 W 1608 5.00% D
R413 0RH1801C622 O RESISTOR,METAL GLAZED(CHIP) 1.8K OHM 1 / 16 W 1608 5.00% D
R414 0RH5601C622 O RESISTOR,METAL GLAZED(CHIP) 5.6K OHM 1 / 16 W 1608 5.00% D
R415 0RH8201C622 O RESISTOR,METAL GLAZED(CHIP) 8.2K OHM 1 / 16 W 1608 5.00% D
R416 0RH4701C622 O RESISTOR,METAL GLAZED(CHIP) 4.7K OHM 1 / 16 W 1608 5.00% D
R417 0RH8201C622 O RESISTOR,METAL GLAZED(CHIP) 8.2K OHM 1 / 16 W 1608 5.00% D
R418 0RH7501C622 O RESISTOR,METAL GLAZED(CHIP) 7.5K OHM 1 / 16 W 1608 5.00% D
R419 0RH1801C622 O RESISTOR,METAL GLAZED(CHIP) 1.8K OHM 1 / 16 W 1608 5.00% D
R420 0RH7501C622 O RESISTOR,METAL GLAZED(CHIP) 7.5K OHM 1 / 16 W 1608 5.00% D
R421 0RH8201C622 O RESISTOR,METAL GLAZED(CHIP) 8.2K OHM 1 / 16 W 1608 5.00% D
R422 0RH1801C622 O RESISTOR,METAL GLAZED(CHIP) 1.8K OHM 1 / 16 W 1608 5.00% D
R423 0RH8201C622 O RESISTOR,METAL GLAZED(CHIP) 8.2K OHM 1 / 16 W 1608 5.00% D
R424 0RH3300C622 O RESISTOR,METAL GLAZED(CHIP) 330 OHM 1 / 16 W 1608 5.00% D
R425 0RH3300C622 O RESISTOR,METAL GLAZED(CHIP) 330 OHM 1 / 16 W 1608 5.00% D
R487 0RH7501C622 O RESISTOR,METAL GLAZED(CHIP) 7.5K OHM 1 / 16 W 1608 5.00% D
R501 0RH8201C622 O RESISTOR,METAL GLAZED(CHIP) 8.2K OHM 1 / 16 W 1608 5.00% D
R502 0RJ7503C677 O RESISTOR,METAL GLAZED(CHIP) 750K OHM 1/16 W 5% 1608 R/TP
R503 0RH0471C622 O RESISTOR,METAL GLAZED(CHIP) 4.7 OHM 1 / 16 W 1608 5.00% D
R504 0RH0000C622 O RESISTOR,METAL GLAZED(CHIP) 0 OHM 1 / 16 W 1608 5.00% D
R505 0RH0471C622 O RESISTOR,METAL GLAZED(CHIP) 4.7 OHM 1 / 16 W 1608 5.00% D
R506 0RH0471C622 O RESISTOR,METAL GLAZED(CHIP) 4.7 OHM 1 / 16 W 1608 5.00% D
R507 0RH1801C622 O RESISTOR,METAL GLAZED(CHIP) 1.8K OHM 1 / 16 W 1608 5.00% D
R508 0RH1003C622 O RESISTOR,METAL GLAZED(CHIP) 100K OHM 1 / 16 W 1608 5.00% D
R509 0RH0000C622 O RESISTOR,METAL GLAZED(CHIP) 0 OHM 1 / 16 W 1608 5.00% D
R510 0RH0000C622 O RESISTOR,METAL GLAZED(CHIP) 0 OHM 1 / 16 W 1608 5.00% D
R511 0RH1802C622 O RESISTOR,METAL GLAZED(CHIP) 18K OHM 1 / 16 W 1608 5.00% D
R512 0RH1003C622 O RESISTOR,METAL GLAZED(CHIP) 100K OHM 1 / 16 W 1608 5.00% D
R513 0RH0000C622 O RESISTOR,METAL GLAZED(CHIP) 0 OHM 1 / 16 W 1608 5.00% D
R515 0RH0332C622 O RESISTOR,METAL GLAZED(CHIP) 33 OHM 1 / 16 W 1608 5.00% D
R516 0RH0332C622 O RESISTOR,METAL GLAZED(CHIP) 33 OHM 1 / 16 W 1608 5.00% D
R517 0RH0332C622 O RESISTOR,METAL GLAZED(CHIP) 33 OHM 1 / 16 W 1608 5.00% D
R518 0RH0332C622 O RESISTOR,METAL GLAZED(CHIP) 33 OHM 1 / 16 W 1608 5.00% D
R519 0RH0332C622 O RESISTOR,METAL GLAZED(CHIP) 33 OHM 1 / 16 W 1608 5.00% D
R520 0RH0332C622 O RESISTOR,METAL GLAZED(CHIP) 33 OHM 1 / 16 W 1608 5.00% D
R521 0RH0332C622 O RESISTOR,METAL GLAZED(CHIP) 33 OHM 1 / 16 W 1608 5.00% D
R522 0RH0332C622 O RESISTOR,METAL GLAZED(CHIP) 33 OHM 1 / 16 W 1608 5.00% D
R523 0RH1201C622 O RESISTOR,METAL GLAZED(CHIP) 1.2K OHM 1 / 16 W 1608 5.00% D
R524 0RH1201C622 O RESISTOR,METAL GLAZED(CHIP) 1.2K OHM 1 / 16 W 1608 5.00% D
R525 0RH1201C622 O RESISTOR,METAL GLAZED(CHIP) 1.2K OHM 1 / 16 W 1608 5.00% D
R526 0RH1000C622 O RESISTOR,METAL GLAZED(CHIP) 100 OHM 1 / 16 W 1608 5.00% D
Page 11
5-11
S AL LOCA NO LG PART NO A DESCRIPTION SPECIFICATION REMARKS
R527 0RH4701C622 O RESISTOR,METAL GLAZED(CHIP) 4.7K OHM 1 / 16 W 1608 5.00% D
R528 0RH1201C622 O RESISTOR,METAL GLAZED(CHIP) 1.2K OHM 1 / 16 W 1608 5.00% D
R529 0RH0000C622 O RESISTOR,METAL GLAZED(CHIP) 0 OHM 1 / 16 W 1608 5.00% D
R534 0RH1001C622 O RESISTOR,METAL GLAZED(CHIP) 1K OHM 1 / 16 W 1608 5.00% D
R535 0RH1001C622 O RESISTOR,METAL GLAZED(CHIP) 1K OHM 1 / 16 W 1608 5.00% D
R536 0RH0000C622 O RESISTOR,METAL GLAZED(CHIP) 0 OHM 1 / 16 W 1608 5.00% D
R564 0RH1802C622 O RESISTOR,METAL GLAZED(CHIP) 18K OHM 1 / 16 W 1608 5.00% D
R565 0RH1802C622 O RESISTOR,METAL GLAZED(CHIP) 18K OHM 1 / 16 W 1608 5.00% D
R566 0RH1002C622 O RESISTOR,METAL GLAZED(CHIP) 10K OHM 1 / 16 W 1608 5.00% D
R567 0RH1002C622 O RESISTOR,METAL GLAZED(CHIP) 10K OHM 1 / 16 W 1608 5.00% D
R573 0RH0000C622 O RESISTOR,METAL GLAZED(CHIP) 0 OHM 1 / 16 W 1608 5.00% D
R574 0RH0000C622 O RESISTOR,METAL GLAZED(CHIP) 0 OHM 1 / 16 W 1608 5.00% D
R575 0RH0000C622 O RESISTOR,METAL GLAZED(CHIP) 0 OHM 1 / 16 W 1608 5.00% D
R576 0RH0000C622 O RESISTOR,METAL GLAZED(CHIP) 0 OHM 1 / 16 W 1608 5.00% D
R577 0RH0000C622 O RESISTOR,METAL GLAZED(CHIP) 0 OHM 1 / 16 W 1608 5.00% D
R578 0RH3300C622 O RESISTOR,METAL GLAZED(CHIP) 330 OHM 1 / 16 W 1608 5.00% D
R579 0RH1001C622 O RESISTOR,METAL GLAZED(CHIP) 1K OHM 1 / 16 W 1608 5.00% D
R580 0RH1001C622 O RESISTOR,METAL GLAZED(CHIP) 1K OHM 1 / 16 W 1608 5.00% D
R581 0RH1001C622 O RESISTOR,METAL GLAZED(CHIP) 1K OHM 1 / 16 W 1608 5.00% D
R5A3 0RH1201C622 O RESISTOR,METAL GLAZED(CHIP) 1.2K OHM 1 / 16 W 1608 5.00% D
R5A7 0RH1002C622 O RESISTOR,METAL GLAZED(CHIP) 10K OHM 1 / 16 W 1608 5.00% D
R5A9 0RH1001C622 O RESISTOR,METAL GLAZED(CHIP) 1K OHM 1 / 16 W 1608 5.00% D
R621 0RH2200C622 O RESISTOR,METAL GLAZED(CHIP) 220 OHM 1 / 16 W 1608 5.00% D
R622 0RH2200C622 O RESISTOR,METAL GLAZED(CHIP) 220 OHM 1 / 16 W 1608 5.00% D
R623 0RH1003C622 O RESISTOR,METAL GLAZED(CHIP) 100K OHM 1 / 16 W 1608 5.00% D
R624 0RH1003C622 O RESISTOR,METAL GLAZED(CHIP) 100K OHM 1 / 16 W 1608 5.00% D
R625 0RH1002C622 O RESISTOR,METAL GLAZED(CHIP) 10K OHM 1 / 16 W 1608 5.00% D
R626 0RH1001C622 O RESISTOR,METAL GLAZED(CHIP) 1K OHM 1 / 16 W 1608 5.00% D
R627 0RH1001C622 O RESISTOR,METAL GLAZED(CHIP) 1K OHM 1 / 16 W 1608 5.00% D
R628 0RH1001C622 O RESISTOR,METAL GLAZED(CHIP) 1K OHM 1 / 16 W 1608 5.00% D
R629 0RH1001C622 O RESISTOR,METAL GLAZED(CHIP) 1K OHM 1 / 16 W 1608 5.00% D
R634 0RH1001C622 O RESISTOR,METAL GLAZED(CHIP) 1K OHM 1 / 16 W 1608 5.00% D
R635 0RH4701C622 O RESISTOR,METAL GLAZED(CHIP) 4.7K OHM 1 / 16 W 1608 5.00% D
R636 0RH4701C622 O RESISTOR,METAL GLAZED(CHIP) 4.7K OHM 1 / 16 W 1608 5.00% D
R640 0RH1500C422 O RESISTOR,METAL GLAZED(CHIP) 150 OHM 1 / 16 W 1608 1.00% D
R643 0RH1500C422 O RESISTOR,METAL GLAZED(CHIP) 150 OHM 1 / 16 W 1608 1.00% D
R649 0RH1500C422 O RESISTOR,METAL GLAZED(CHIP) 150 OHM 1 / 16 W 1608 1.00% D
R652 0RH1500C422 O RESISTOR,METAL GLAZED(CHIP) 150 OHM 1 / 16 W 1608 1.00% D
R655 0RH1500C422 O RESISTOR,METAL GLAZED(CHIP) 150 OHM 1 / 16 W 1608 1.00% D
R656 0RH0000C622 O RESISTOR,METAL GLAZED(CHIP) 0 OHM 1 / 16 W 1608 5.00% D
R661 0RH0752C622 O RESISTOR,METAL GLAZED(CHIP) 75 OHM 1 / 16 W 1608 5.00% D
R662 0RH0752C622 O RESISTOR,METAL GLAZED(CHIP) 75 OHM 1 / 16 W 1608 5.00% D
R663 0RH0752C622 O RESISTOR,METAL GLAZED(CHIP) 75 OHM 1 / 16 W 1608 5.00% D
R664 0RH0752C622 O RESISTOR,METAL GLAZED(CHIP) 75 OHM 1 / 16 W 1608 5.00% D
R665 0RH0752C622 O RESISTOR,METAL GLAZED(CHIP) 75 OHM 1 / 16 W 1608 5.00% D
R666 0RH0752C622 O RESISTOR,METAL GLAZED(CHIP) 75 OHM 1 / 16 W 1608 5.00% D
R691 0RH0000C622 O RESISTOR,METAL GLAZED(CHIP) 0 OHM 1 / 16 W 1608 5.00% D
R695 0RH4701C622 O RESISTOR,METAL GLAZED(CHIP) 4.7K OHM 1 / 16 W 1608 5.00% D
R696 0RH2200C622 O RESISTOR,METAL GLAZED(CHIP) 220 OHM 1 / 16 W 1608 5.00% D
R697 0RH2200C622 O RESISTOR,METAL GLAZED(CHIP) 220 OHM 1 / 16 W 1608 5.00% D
R698 0RH1003C622 O RESISTOR,METAL GLAZED(CHIP) 100K OHM 1 / 16 W 1608 5.00% D
R699 0RH1003C622 O RESISTOR,METAL GLAZED(CHIP) 100K OHM 1 / 16 W 1608 5.00% D
R6W1 0RH1100C622 O RESISTOR,METAL GLAZED(CHIP) 110 OHM 1 / 16 W 1608 5.00% D
R6W2 0RH0752C622 O RESISTOR,METAL GLAZED(CHIP) 75 OHM 1 / 16 W 1608 5.00% D
R6W3 0RH0222C622 O RESISTOR,METAL GLAZED(CHIP) 22 OHM 1 / 16 W 1608 5.00% D
Page 12
5-12
S AL LOCA NO LG PART NO A DESCRIPTION SPECIFICATION REMARKS
R6W4 0RH1100C622 O RESISTOR,METAL GLAZED(CHIP) 110 OHM 1 / 16 W 1608 5.00% D
R6W5 0RH0222C622 O RESISTOR,METAL GLAZED(CHIP) 22 OHM 1 / 16 W 1608 5.00% D
R735 0RH0000C622 O RESISTOR,METAL GLAZED(CHIP) 0 OHM 1 / 16 W 1608 5.00% D
R901 0RD6800F608 O RESISTOR,FIXED CARBON FILM 680 OHM 1/6 W 5% TA26
R910 0RD6800F608 O RESISTOR,FIXED CARBON FILM 680 OHM 1/6 W 5% TA26
R911 0RD8200F608 O RESISTOR,FIXED CARBON FILM 820 OHM 1/6 W 5% TA26
R912 0RD1201F608 O RESISTOR,FIXED CARBON FILM 1.2K OHM 1/6 W 5% TA26
R913 0RD1501F608 O RESISTOR,FIXED CARBON FILM 1.5K OHM 1/6 W 5% TA26
R914 0RD2201F608 O RESISTOR,FIXED CARBON FILM 2.2K OHM 1/6 W 5% TA26
R915 0RD3301F608 O RESISTOR,FIXED CARBON FILM 3.3K OHM 1/6 W 5% TA26
R925 0RD1002F608 O RESISTOR,FIXED CARBON FILM 10K OHM 1/6 W 5% TA26
R926 0RD1002F608 O RESISTOR,FIXED CARBON FILM 10K OHM 1/6 W 5% TA26
R933 0RD3300F608 O RESISTOR,FIXED CARBON FILM 330 OHM 1/6 W 5% TA26
R939 0RD2200F608 O RESISTOR,FIXED CARBON FILM 220 OHM 1/6 W 5% TA26
R940 0RD3301F608 O RESISTOR,FIXED CARBON FILM 3.3K OHM 1/6 W 5% TA26
R941 0RD1002F608 O RESISTOR,FIXED CARBON FILM 10K OHM 1/6 W 5% TA26
R942 0RD1001F608 O RESISTOR,FIXED CARBON FILM 1K OHM 1/6 W 5% TA26
R944 0RD1002F608 O RESISTOR,FIXED CARBON FILM 10K OHM 1/6 W 5% TA26
R991 0RD1001F608 O RESISTOR,FIXED CARBON FILM 1K OHM 1/6 W 5% TA26
RC901 6712R1538GF O REMOTE CONTROLLER RECEIVER TSOP2438KU1 VISHAY 38KHZ =TSOP
SW901 556-219B O SWITCH,TACT THVV502GAA POSTECH DC 12 V 5-
SW902 556-219B O SWITCH,TACT THVV502GAA POSTECH DC 12 V 5-
SW906 556-219B O SWITCH,TACT THVV502GAA POSTECH DC 12 V 5-
SW907 556-219B O SWITCH,TACT THVV502GAA POSTECH DC 12 V 5-
SW908 556-219B O SWITCH,TACT THVV502GAA POSTECH DC 12 V 5-
SW909 556-219B O SWITCH,TACT THVV502GAA POSTECH DC 12 V 5-
SW910 556-219B O SWITCH,TACT THVV502GAA POSTECH DC 12 V 5-
SW911 556-219B O SWITCH,TACT THVV502GAA POSTECH DC 12 V 5-
SW912 556-219B O SWITCH,TACT THVV502GAA POSTECH DC 12 V 5-
T101 6170RNGW22B O TRANSFORMER,SMPS[COIL] EE2621 FEELUX/SAMWHA/SOOJUNG
V101 656-004C O VARISTOR,DRAWING SVC681D-10A SAMHWA 4.O CUT
X501 6202R-BL06C O RESONATOR,CRYSTAL HC-49/S BUBANG 27MHZ 20PPM 1
X901 6212BA3004A O RESONATOR,CERAMIC CSTLS6M00G53-A0 MURATA 6MHZ +/
ZD101 0DZ560009CJ O DIODE,ZENERS GDZJ5.6B 26MM GRANDE TP26 DO34
ZD102 0DZ332609FB O DIODE,ZENERS GDZJ3.3B 26MM GRANDE TP26 DO34
ZD103 0DZ240009AF O DIODE,ZENERS GDZJ24B GRANDE TP26 DO34 0.5W
ZD201 0DZPH00108A O DIODE,ZENERS BZX84-C4V7 PHILIPS R/TP SOT23
ZD510 0DZ562609AA O DIODE,ZENER GDZJ5.6B 26MM TP GRANDE DO34
Loading...
