As a foreign substance turns up within the SET,

a work of clearing foreign substance should be done

by using Clean Cover(Number 405, 406) of Back Cover

without SET disintegration(disjointing).

620

-24 -

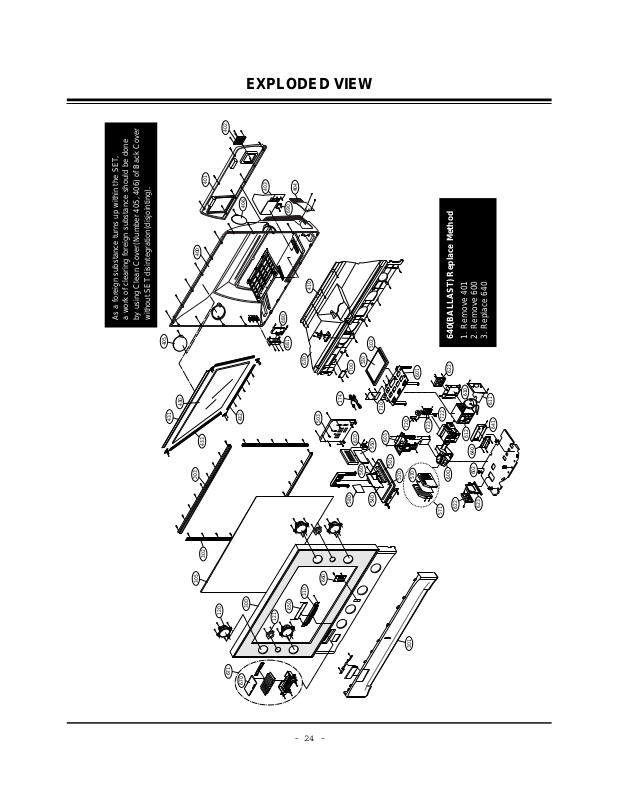

EXPLODED VIEW

640(BALLAST) Replace Method

1. Remove 401

2. Remove 600

3. Replace 640

Page 2

-25 -

EXPLODED VIEW PARTS LIST

120 6400GTTC02A SPEAKER,FULLRANGE F30C-6622-1 16OHM 15/25W 80DB 80 NOTHING LUSTER 121 6400DTTA01A SPEAKER,TWEETER F20T-6624 8OHM 15/25W 84DB 50 NOTHING LUSTER 174 6410VUH004A POWER CORD,UL/CSA3000MM 3P HUG BLACK VOLEX CSA 3000MM HUG BLACK 500MH 7A 300 3091V00807B CABINET ASSEMBLY,DU-62SX40D NON NB05EB PUSH 301 3550V00638A COVER,FRONT DU-62SX40D ABS, AF-303S BEST BUY 302 4980V00D32F SUPPORTER,SCREEN AL RIGHT/LEFT 62SX40 303 4980V00D32E SUPPORTER,SCREEN AL TOP/BOTTOM 62SX40 305 3351V00028A SCREEN ASSEMBLY,DNP LGE WLF DN-62SZ71D 1393*794*4.0 . 310 5020V01057B BUTTON,CONTROL DU-52SX40D ABS, HF-380 8KEY USA 400 3809V00579A BACK COVER ASSEMBLY,DU-62SX40D NON TOTAL ASSY FOR BEST BUY 401 3809V00544A BACK COVER ASSEMBLY,DU-62SY20 NON ,ASSY OF 3808V00535 402 3550V00269E COVER,LAMP FAN DUCT PC-ABS TN-56SZ70LR 403 3110V00475A CASE,DN-62SX40 ABS, AF-303S LAMP DUCT 404 3550V00595A COVER,LAMP DN-62SX40D HIPS 40AF SIDE 405 3550V00597A COVER,DN-62SX40D HIPS 40AF DUST CLEAN(L) 406 3550V00596A COVER,DN-62SX40D HIPS 40AF DUST CLEAN(R) 410 3550V00639A COVER,DUCT DN-62SX40D HIPS 40AF DUST COVER ASSY 430 5018V00086E MIRROR ASSY,KIT GLASS FRONTSIDE . DN-62X40D 431 4980V01079A SUPPORTER,MIRROR AL TOP,TN-62SZ70LR 432 4980V01080A SUPPORTER,MIRROR AL ,BOTTOM,TN-62SZ70LR 433 4980V01081A SUPPORTER,MIRROR AL ,SIDE,TN-62SZ70LR 501 3210V00165A FRAME,HIPS 40AF RN-48SZ40 SMPS CHASSIS 502 3210V00280A FRAME,CHASSIS HIPS 40AF DU-44SZ53D SMPS 503 4811V00152E BRACKET ASSEMBLY,REAR AV DU-52SX40D NB05CA ASSY 520 6871VMMZL7A PCB ASSEMBLY,MAIN NB-05EB DU-52SX40D M/I 530 6871VPMA88J PCB ASSEMBLY,POWER SMPS NB-05EB AC INPUT M/I 540 6871VSMADYA PCB ASSEMBLY,SUB TUNER NB05EB DU-52SX40D M/I 550 6871VSMS28B PCB ASSEMBLY,SUB DIGITAL NB05EB DU-52SX40D M/I 560 6871VSMAEWA PCB ASSEMBLY,SUB NB05EB DU-52SX40D COMP M/I 570 6871VSMH07E PCB ASSEMBLY,SUB,CRM MB042K HD3 LVDS M/I FOR DN-52SZ82D 571 3141VSNH17E CHASSIS ASSEMBLY,SUB MB042K HD3 DMD BOARD FOR DN-52SZ82D 580 6871VSME85A PCB ASSEMBLY,SUB AUDIO MB042A DN-44SZ80L 600 3141VSNH18H CHASSIS ASSEMBLY,SUB MB042K HD3 SUB ENGINE ASSY FOR NEW CONDENSING LENS 601 4980V00C01C SUPPORTER,SMPS EGI RU-44SZ63D 602 4980V00D11B SUPPORTER,ENGINE SECC(EGI) BASE,DU-62SY20D 603 3550V00567B COVER,DU-62SX40D HIPS 40AF LENS COVER HD3 610 6912B22007B LAMP,HIGH PRESSURE MECURY UHP 120W 1.0 PH E22 PHILIPS 70V 1.6A 130MM/160MM XHD3 611 4814V00502C SHIELD ASSY,RU-44SZ63D NB03KB SECC(EGI) 4980V00B43B+4814V00530B 612 3110V00477A CASE,DU-62SY20D NON E-22 LAMP CASE 620 5900V06007A FAN,DC F6025S06B2-RH DONGYANG 60*60*25 6 2000RPM . 650MM 622 5900V09008C FAN,DC G9232S06B2-AA DONGYANG 92*92*32 6V 1700RPM DC5-8V 0.34CFM 750MM 623 4980V00D73B SUPPORTER,EGI DMD FAN SUPPORTER(PRESS MOLD) 630 6871VSN221K PCB ASSEMBLY,SUB NB05CA PRE-AMP DN-52SX40D 640 6316000009B BALLAST,EUC-120P/11 PHILIPS REV 0.2 120W DLP PJT 641 4930V00432A HOLDER,BRACKET BALLAST PS . 650 6871VSMADTA PCB ASSEMBLY,SUB CONT NB05CA COTROL DN-52SX40D 660 6871VSMAEXA PCB ASSEMBLY,SUB LED NB05EB DU-62SX40D LED M/I 670 6871VSMH20A PCB ASSEMBLY,SUB NB05CB SX40D EPF M/I 671 3141VSNH97C CHASSIS ASSEMBLY,SUB NB05CB DU-52SX40D EPF ASSY 680 6871VSN220L PCB ASSEMBLY,SUB NB05CB SIDE A/V FOR DN-62SX40D 681 3500V00118A BOARD ASSY,DU-62SY20D NB05EA . 690 6871VSME03L PCB ASSEMBLY,SUB NB05CA CASE DET S/W, SX40D 700 6871VSME82A PCB ASSEMBLY,SUB INTER MB042A DN-44SZ80L 710 6871VPMB01B PCB ASSEMBLY,POWER SMPS NB05EB DU-62SX40D M/I ASSY 720 6871VSMW40D PCB ASSEMBLY,SUB SENSOR MB03CC HD3 DLP SENSOR 722 3300V00420A PLATE,LOCK AL . RT-52SZ60D HD3 PLATE UNAXIS C/W 723 4980V00B42B SUPPORTER,AL COLOR WHEEL HOLDER(WITH HEAT SINK)
