Page 1
Module : LSN8001
FCC Qualification Application to
MOST
by Li Seng Technology Ltd.
Rev 1.1 Jan-2013
2013/1/7 1
Page 2
Aims & Content
Content :
User Manual / User Guide
FCC Statement
Label of End Product
User Manual of End Product
Overiew
Functional Block Diagram
Technical Description
Circuit Schematics
PCB Layout & Component Layouts
Part List
Page 3

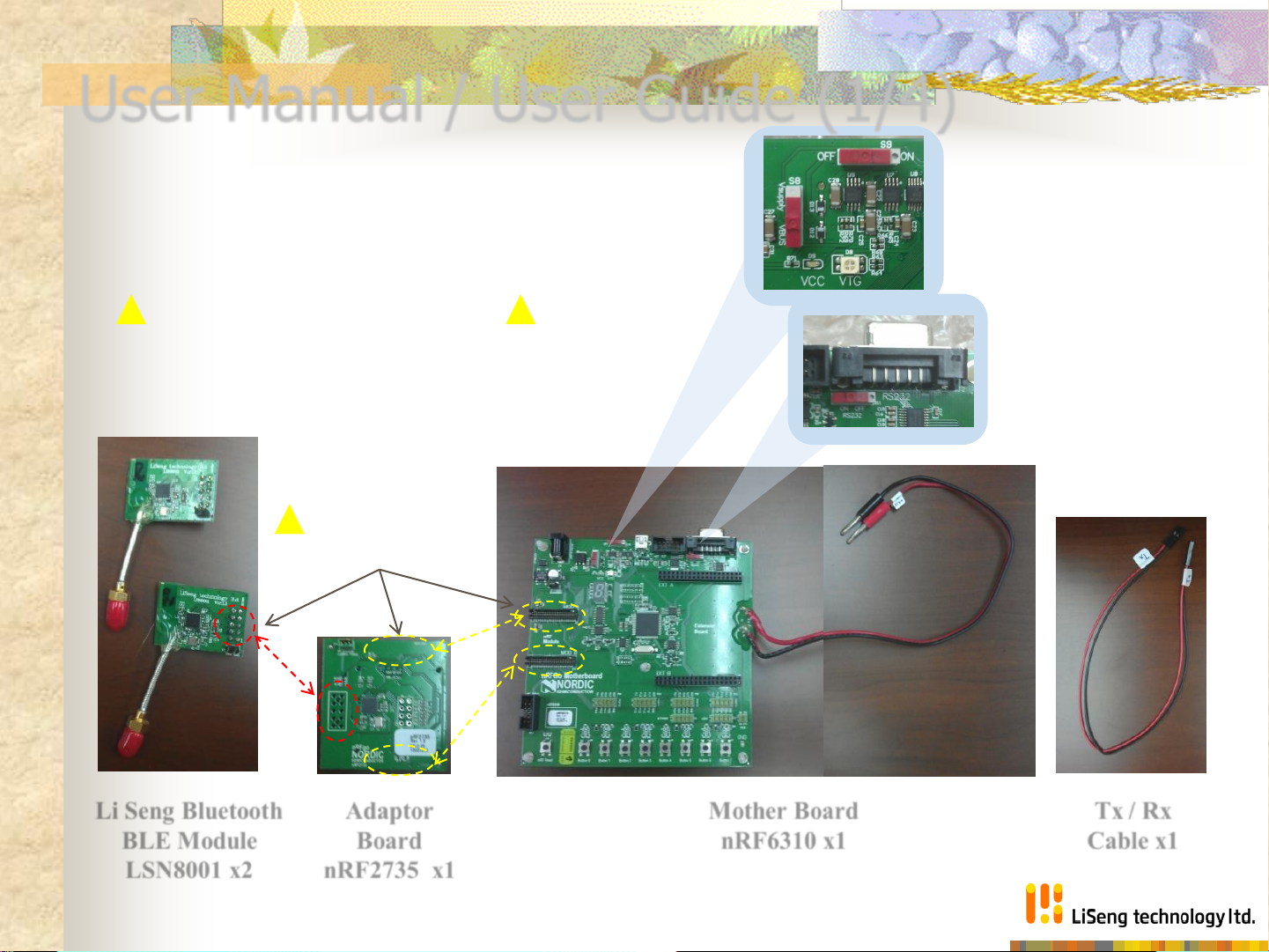

User Manual / User Guide (1/4)
Parts Description & Before Installation :
! : Antenna
Protection Cap :
Remove before
Test
Li Seng Bluetooth
BLE Module
LSN8001 x2
! : Connection Socket
Position
Adaptor
Board
nRF2735 x1
! : Side Switch Setting
> RS232 ON
> S8 VBUS
> S9 OFF
> Power Source (Banana
Plug) : 4.5V DC
Mother Board
nRF6310 x1
Tx / Rx
Cable x1
Page 4

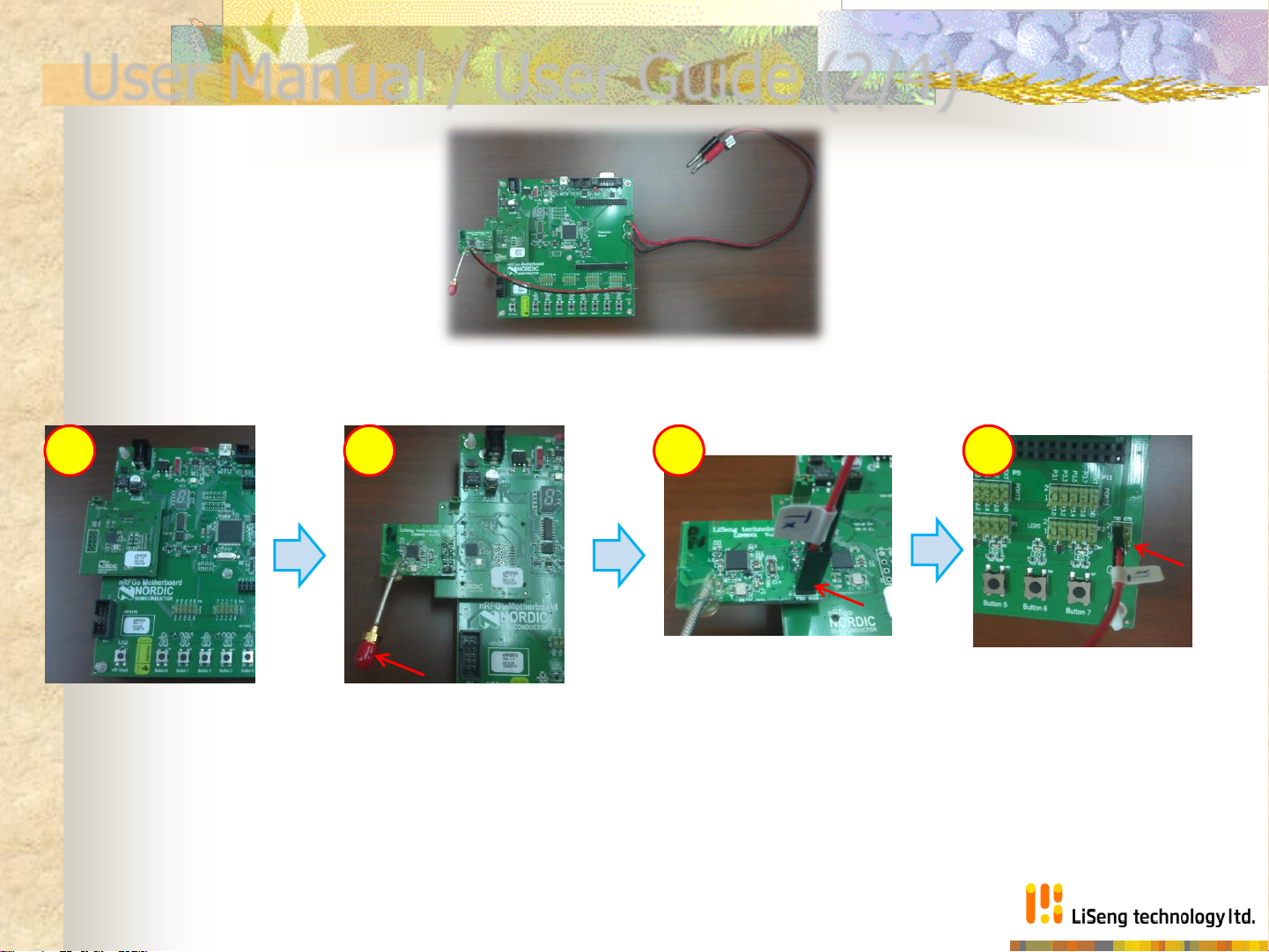

User Manual / User Guide (2/4)
Installation :
Finished Assembly
1 2 3 4
1) Place the “Adaptor Board
nRF2735”
on
“Mother Board nRF 6310”
2) Place the “Li Seng Bluetooth
BLE Module LSN8001”
on
“Adaptor Board nRF2735”
Remove “Antenna Protection
Cap” and Connect to Testing
Equipment
3) Connect “Tx/Rx cable”
on
“Li Seng Bluetooth BLE
Module LSN8001”
4) Connect “Tx/Rx cable”
on
“Mother Board nRF6310”
Page 5

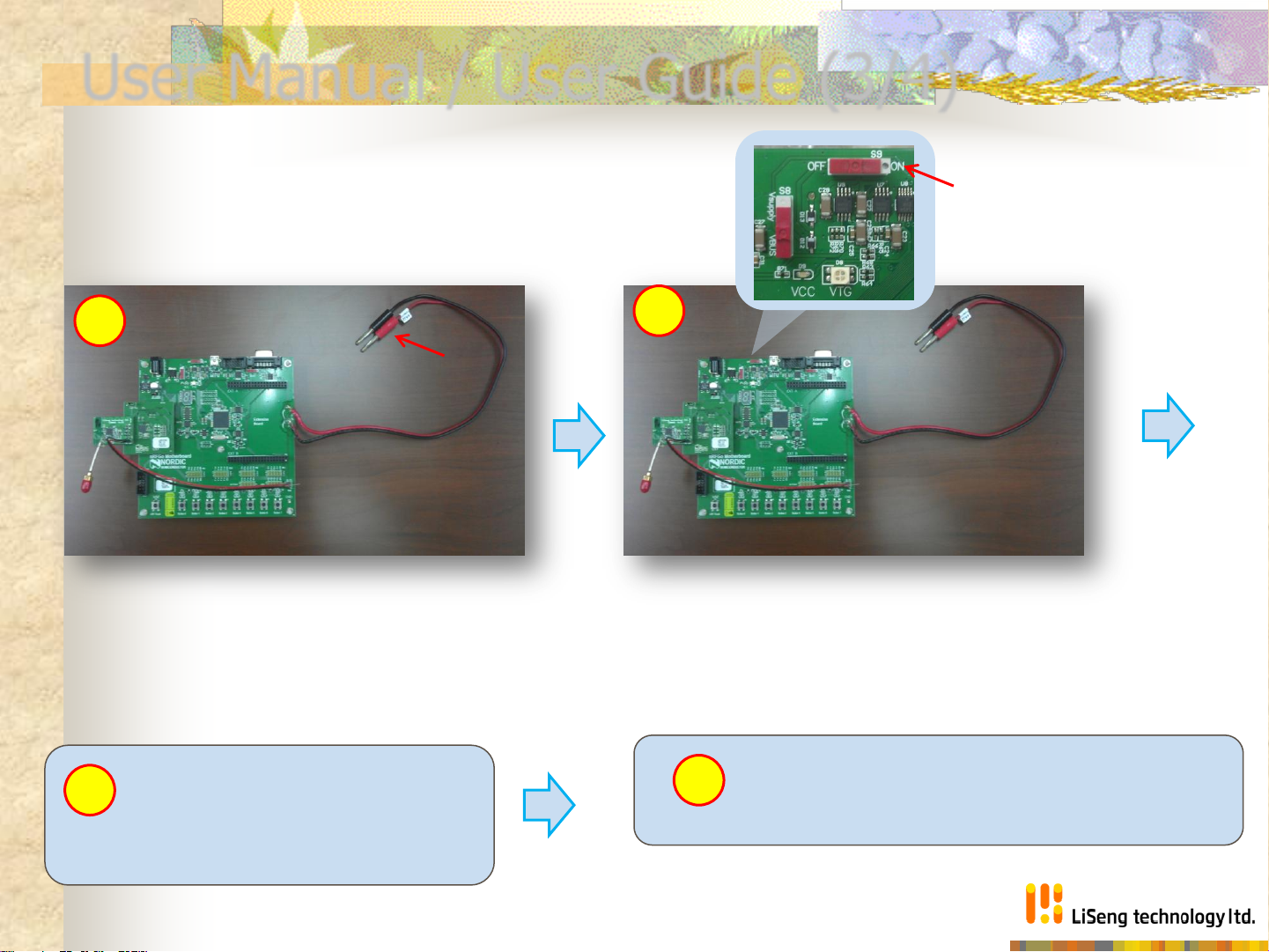

User Manual / User Guide (3/4)
Installation :
5
5) Connect Power Source by
“Banana Plug” 4.5V DC
(Beware of + & - )
The Unit is Ready
7
6
6) Power On the Unit by
Power ON Silde Switch S9
Power OFF the unit by Switch OFF
8
the Slide Switch S9 after Testing
for Testing
Page 6

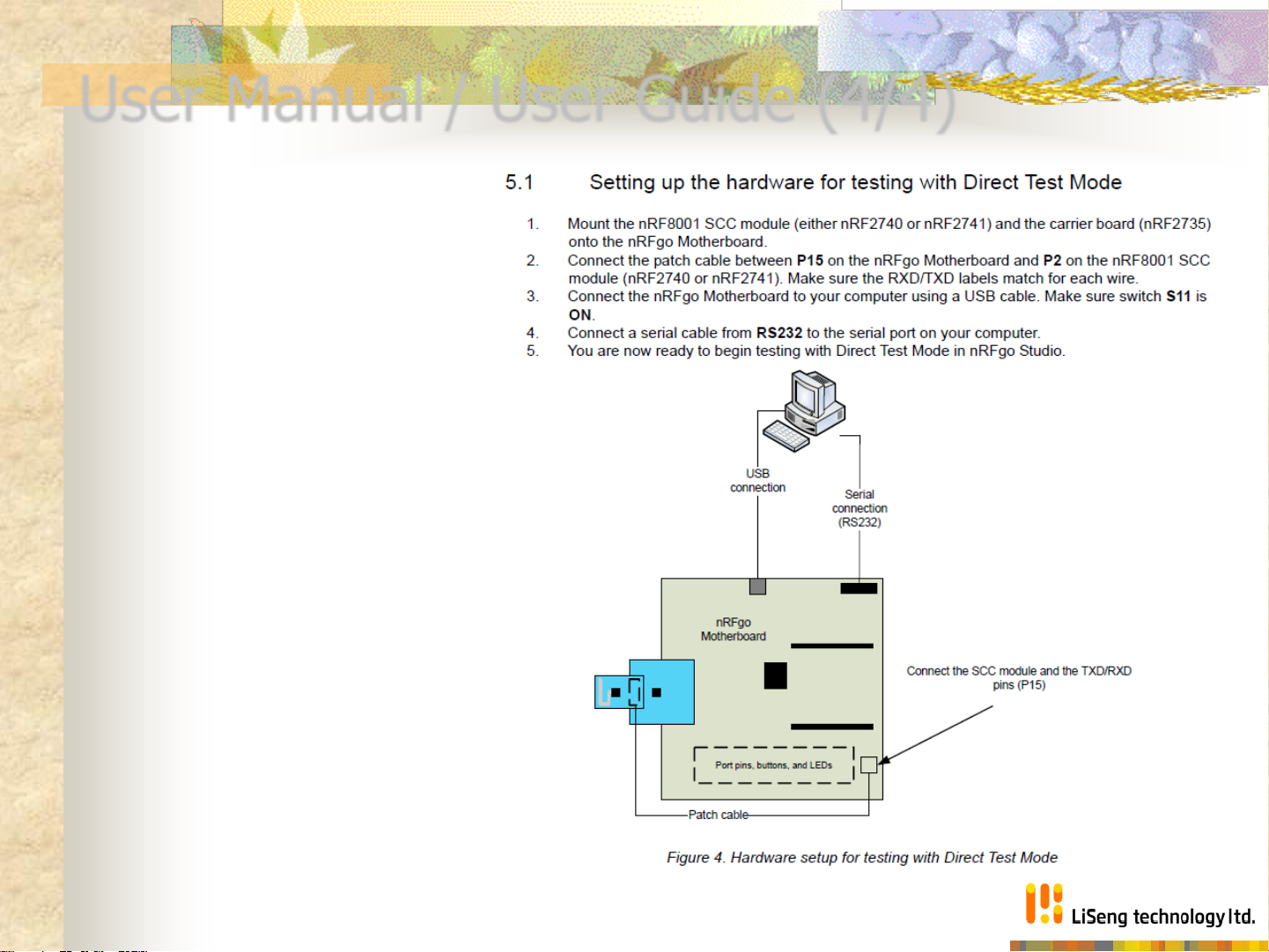

User Manual / User Guide (4/4)
Direct Test Mode :
The DTM RS232 interface :
Baud Rate : 192000
Number of data bits : 8
No Parity
1 Stop bit
No flow control (meaning no RTS/CTS)
Page 7
FCC statement :
This equipment has been tested and found to comply with the limits for a Class B
digital device, pursuant to part 15 of the FCC Rules. These limits are designed to
provide reasonable protection against harmful interference in a residential
installation. This equipment generates, uses and can radiate radio frequency energy
and, if not installed and used in accordance with the instructions, may cause harmful
interference to radio communications. However, there is no guarantee that
interference will not occur in a particular installation. If this equipment does cause
harmful interference to radio or television reception, which can be determined by
turning the equipment off and on, the user is encouraged to try to correct the
interference by one or more of the following measures:
—Reorient or relocate the receiving antenna.
—Increase the separation between the equipment and receiver.
—Connect the equipment into an outlet on a circuit different from that to which the
receiver is connected.
—Consult the dealer or an experienced radio/TV technician for help.
Caution: Any changes or modifications not expressly approved by
the party responsible for compliance could void the user's authority
to operate the equipment.
Page 8
Label Of The End Product :
The final end product must be labeled in a visible area with the following " Contains TX
FCC ID: RR3-LSN8001 ". If the size of the end product is larger than 8x10cm, then the
following FCC part 15.19 statement has to also be available on the label: This device
complies with Part 15 of FCC rules. Operation is subject to the following two conditions:
(1) this device may not cause harmful interference and
(2) this device must accept any interference received, including interference that may cause
undesired operation.
Page 9

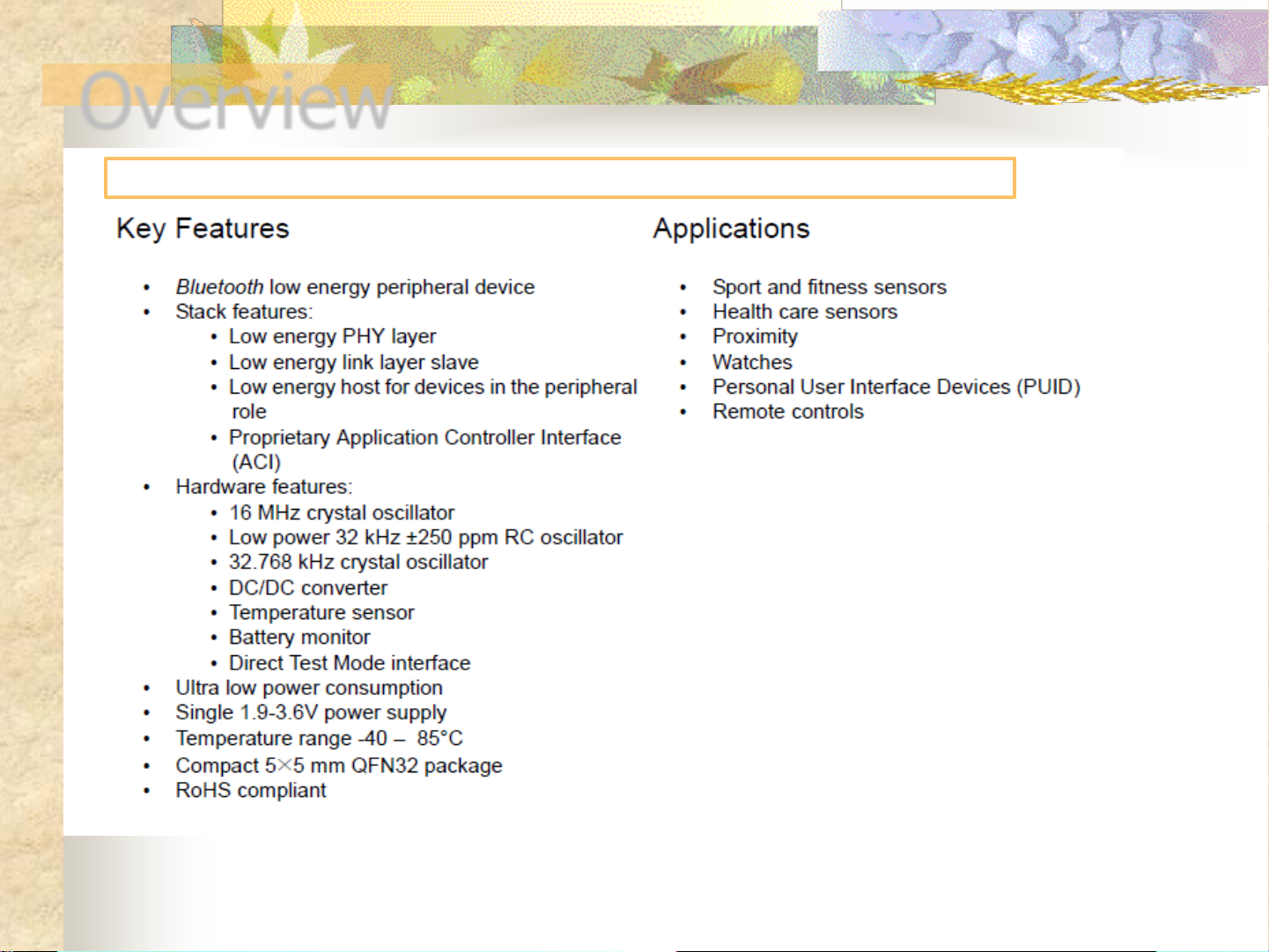

Overview
LSN8001 Module Apply to Bluetooth Low Energy (4.0) as Bluetooth Smart.
Page 10

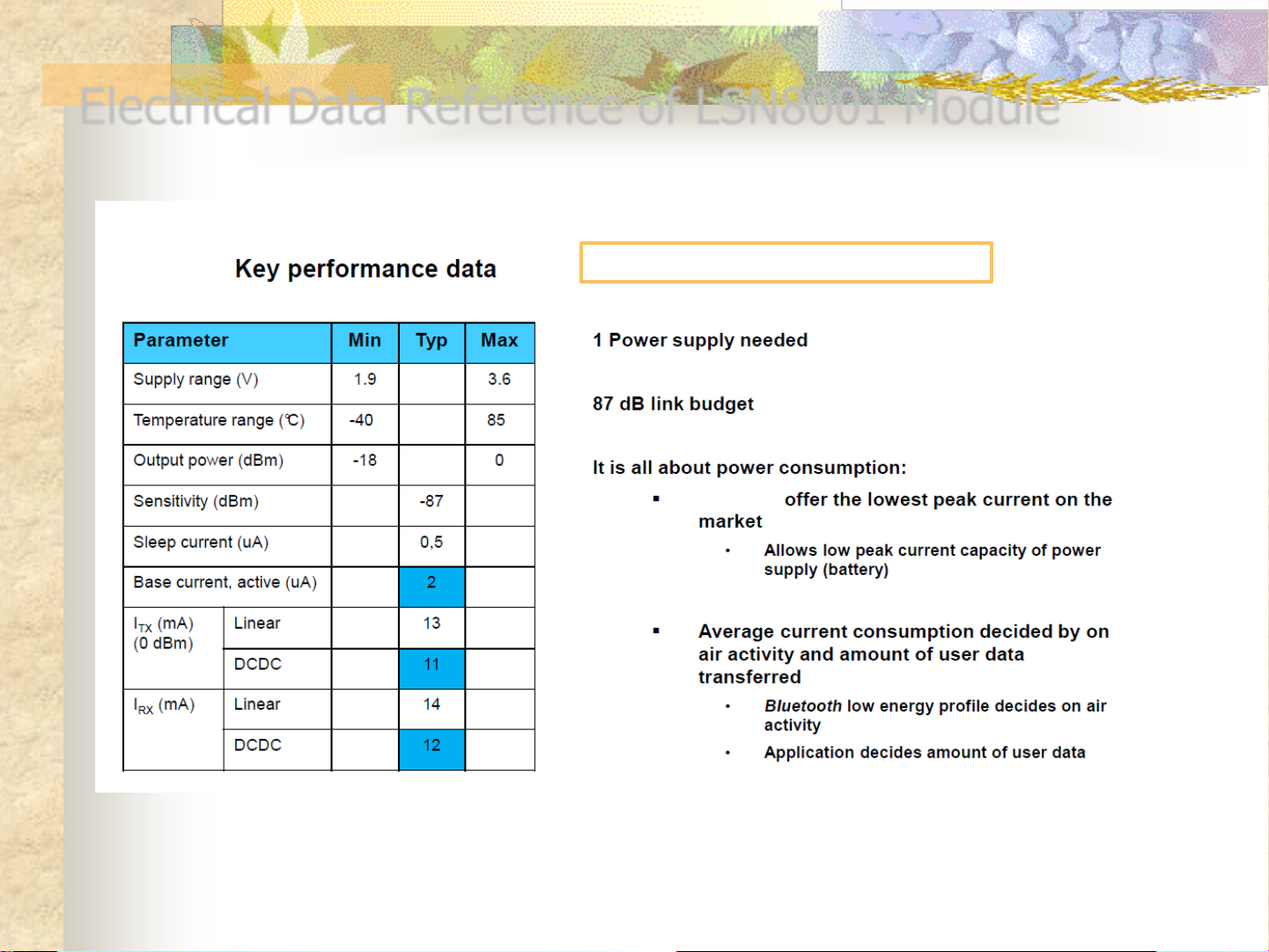

Electrical Data Reference of LSN8001 Module
LSN8001
Module Supply Power : 1.9V to 3.6 V DC
LSN8001
Page 11

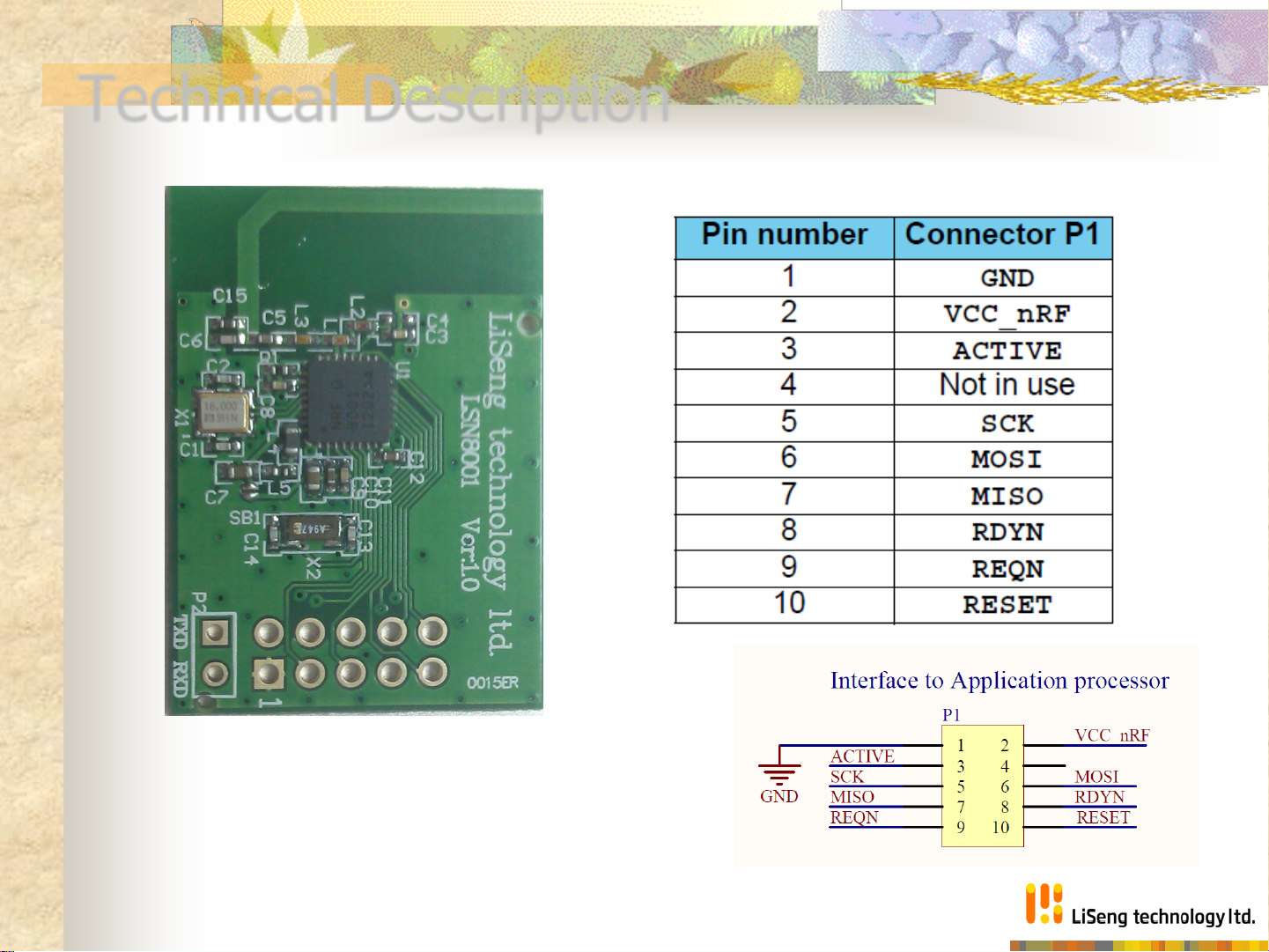

Technical Description
Module Dimension : 33 x 23 x 3 (15.0)mm
Page 12

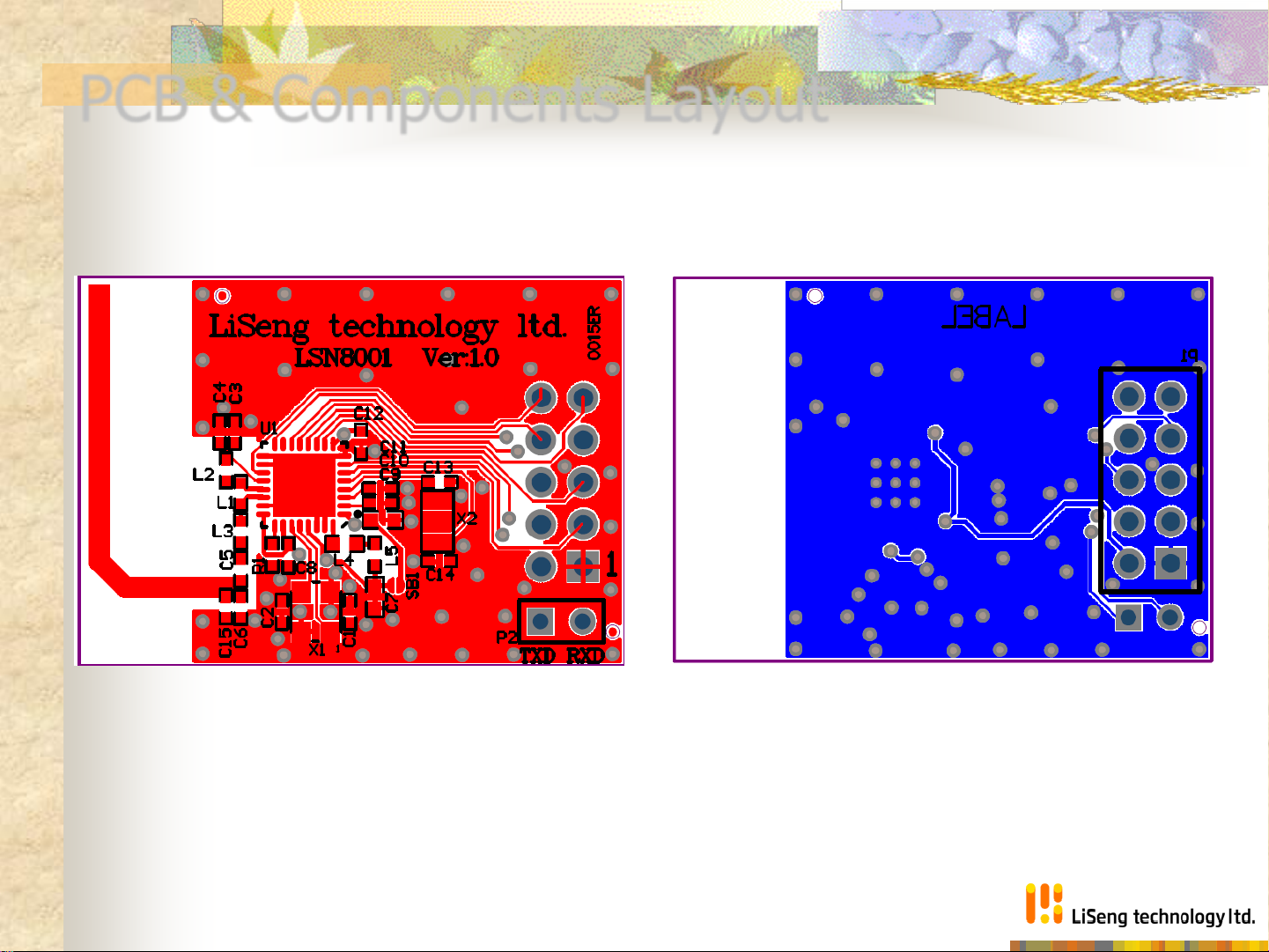

PCB & Components Layout
Front
Rear
Page 13
Part List
Bill of material
PCB:
LSN8001
Version:
1.0
Designator
Value
Footprint
Description
Comment
Quanti
ty
Digi-Key part number
Farnell part
number
C1, C2, C13, C14
15pF
0402s
Capacitor
NP0 +/- 2%
4
C3
2.2nF
0402s
Capacitor
X7R +/- 10%
1
C4
NA
0402s
Capacitor
Not mounted
0
C5
1.8pF
0402s
Capacitor
NP0 +/-0.1pF
1
1650788
C6
1.2pF
0402s
Capacitor
NP0 +/-0.1pF
1
C7, C9
1.0µF
0603s
Capacitor
X7R +/- 10%,TAIYO YUDEN LMK107B7105KA-T
2
587-1242-1-ND
1683674
C8
1.0nF
0402s
Capacitor
X7R +/- 10%
1
C10, C12
100nF
0402s
Capacitor
X7R +/- 10%
2
C11
33nF
0402s
Capacitor
X7R +/- 10%
1
C15
1.5pF
0402s
Capacitor
NP0 +/-0.1pF
1
L1
8.2nH
0402s
Inductor
+/-5%, Murata LQP15MN8N2B02D
1
L2
5.6nH
0402s
Inductor
+/-5%, Murata LQP15MN5N6B02D
1
L3
3.9nH
0402s
Inductor
+/-5%, Murata LQP15MN3N9B02D
1
L4
10µH
0603s
Inductor
I
DC,min
= 50mA, +/-20%, TAIYO YUDEN -
LBMF1608T100K
1
587-1714-1-ND
178-6105
L5
15nH
0402s
Inductor
+/-10%, TAIYO YUDEN - HK100515NJ-T
587-1521-1-ND
6581328
P1
HDR2x5 - small
Header, 5-Pin, Dual
row, B=5.8mm,
A=5.3mm
Fisher Elektronik, SL2/53/72G 2x36-pin
2.54mm
1
P2
HDR1X2
Header, 2-Pin
UART
1
R1
22k
0402s
Resistor
1%
1
U1
nRF8001
Nordic_QFN50P500X500X
90-33N
2.4GHz Single chip
Bluetooth low
energy
QFN32 5x5
1
X1
16MHz
3.2 x 2.5 mm
Crystal
Epson-Toyocom TSX-3225, 16MHz,
Cl=9pF, Total tolerance (at 25ºC + temp.
drift + aging) = ±50ppm max, ESR=100Ω
max, C0=7pF max, Operating
temperature range = -20ºC to +70ºC min.
1
X2
32.768kHz
3.2 x 1.5 mm
Crystal
FC-135, 32.768kHz, Cl=9pF, Frequency
toleranse = ±20ppm, Operating
temperature range = -20ºC to +70ºC min.
1
1278037
Page 14
Thank You ~!
Further contact :
Danny Tsang
Hong Kong office:
Address: 9/F, Shiu Fung Hong Building, 239-241 Wing Lok Street, Sheung Wan, Hong Kong
Cellphone : (852) 9430-7943
Main : (852) 2540-8348
Fax : (852) 2547-5706
