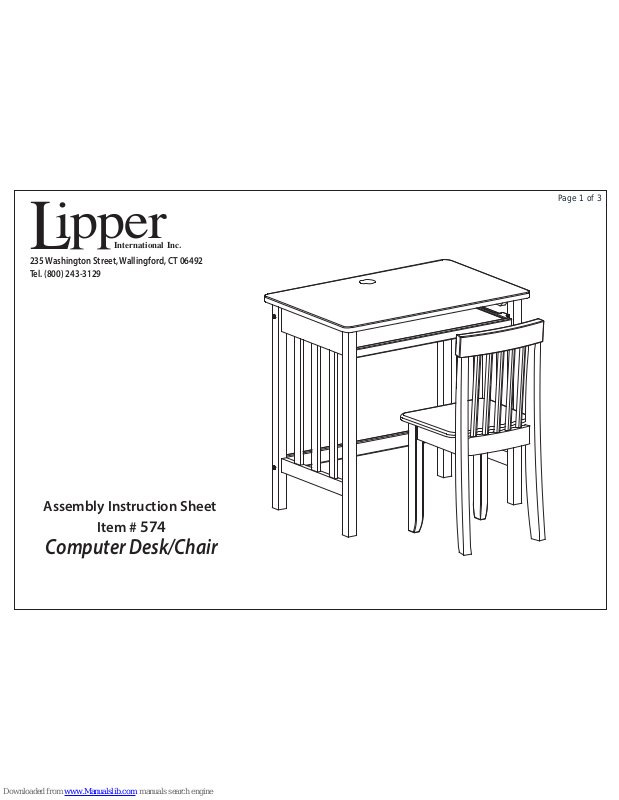

Assembly Instruction Sheet
Item #
574

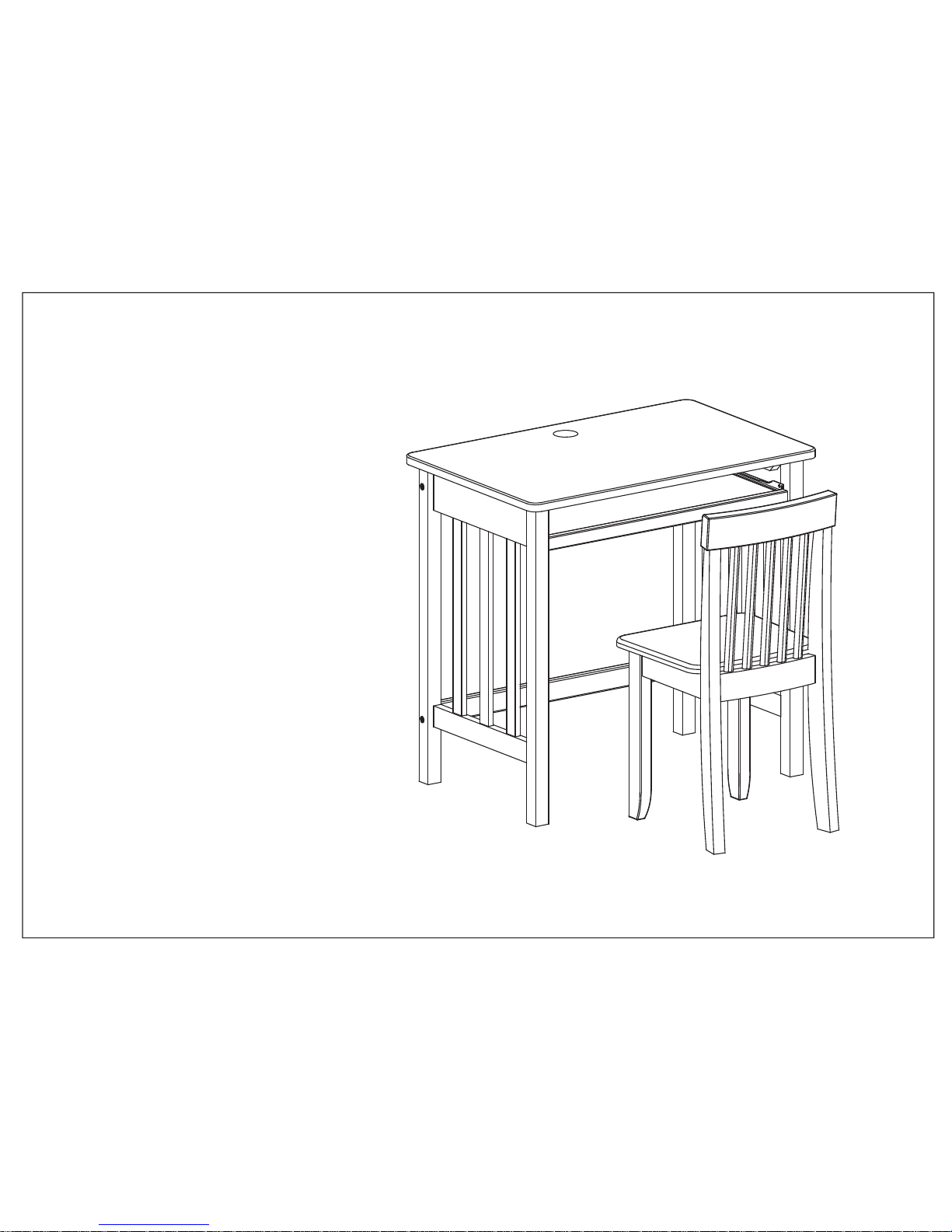

Computer Desk/Chair
LSSHU
/
,QWHUQDWLRQDO,QF
235 Washington Street, Wallingford, CT 06492
Tel. (800) 243-3129
Page 2
Page 2 of 3
A
Desktop
1 Pc.
BDrawer
1 Pc.
C
Left Panel
1 Pc.
D
Right Panel
E
Back Panel
1 Pc.
F
Crossbar
1 Pc.
1 Pc.
Part Description
RF10052 RF10042 RF40103
Screw JCB M6 x 30
RF10052
x 2
R
F10042
x 1
RF10052
x 6
E
A
A
E
C
B
A
C
F
D
G
Wood Support
2 Pcs.
G
G
Screw JCB M6 x 45
Allen Wrench
List of parts
List of Hardware

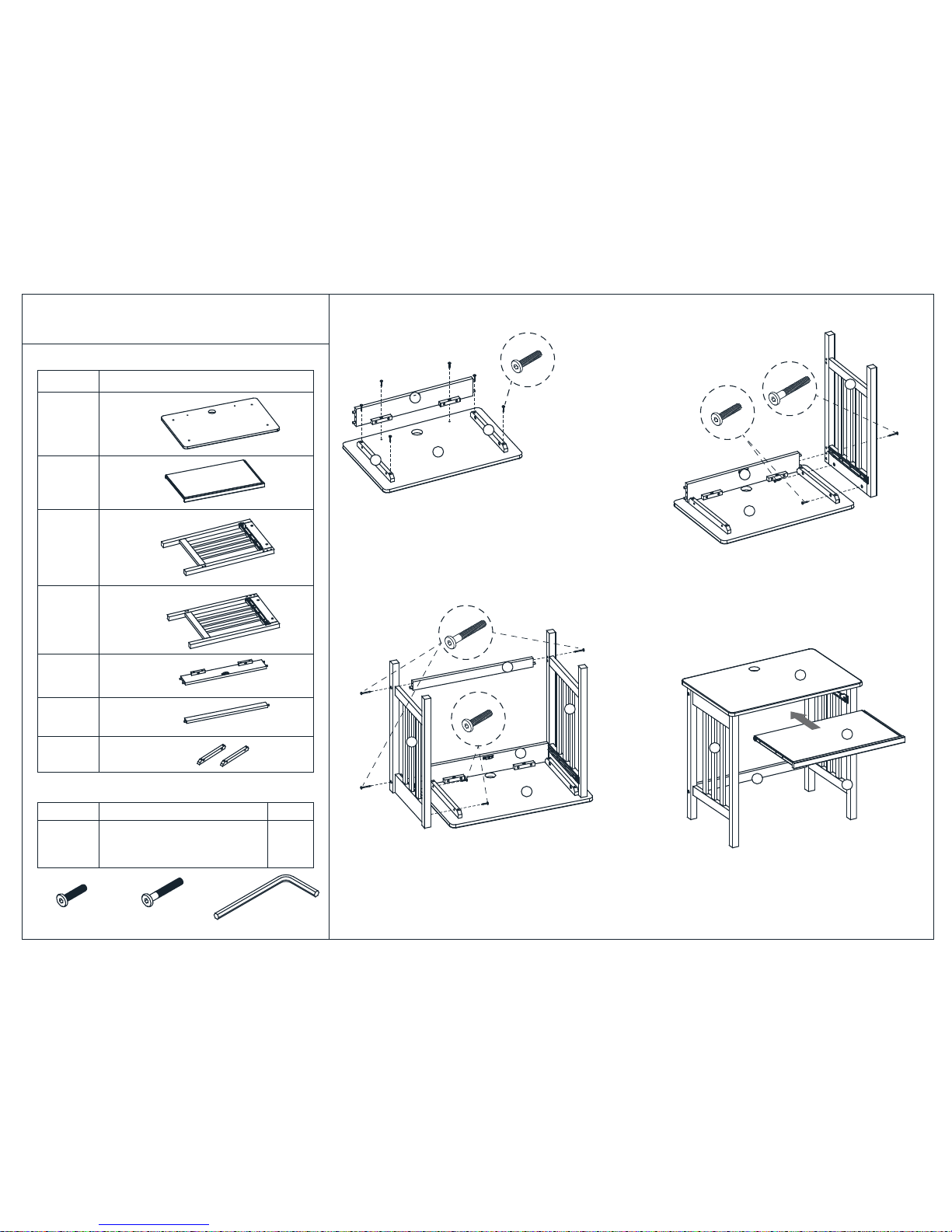

Assembly Instruction : Desk
Parts Description
RF10052 Screw JCB M6 x 30 mm.
RF10042 Screw JCB M6 x 45 mm.
Q'ty
10
4
RF40103 Allen Wrench 1
RF1
0052
x 2
RF10042
x 3
D
C
A
E
F
Invert the Desktop (A) on a soft surface.
Attach Back Panel (E) and Wood Support (G) into
the Desktop (A) using 6 Screws (RF10052)
as per Diag.1.
Attach Left Panel (C) into the Desktop (A)
and Back Panel (E) using 2 screws (RF10052)
and screw (RF10042) as per Diag.2.
Attach Right Panel (D) by repeat Diag.2.
and attach Crossbar (F) together using
2 Screws (RF10052) and 3 Screws (RF10042)
as per Diag.3.
Upright the unit and slide in Drawer (B)
as per Diag.4.
Diagram 1.
Diagram 2.
Diagram 3.
Diagram 4.
CAUTION: Hardware Assembly Package Contains Small Parts
Adult Assembly Required
Page 3
Part Description
Back Rest
G
1 Pc.
Front Left Leg
H
1 Pc.
Front Right Leg
I
1 Pc.
Chair Seat Frame
J
1 Pc.
List of parts
List of Hardware
RF10041 RF10034 RF10076
RF40052 RF40193 RF40015
Parts Description
RF10041 Screw JCB M6 x 40 mm.
RF10034 Screw JCB M6 x 50 mm.
Q'ty
2
4
RF10076 Screw JCB M6 x 75 mm. 2
RF40052 Washer 8
RF40193 Spring Washer 8
RF40015 Allen Wrench 1
J
Diagram 5.
RF10041
RF10076
RF40193
G
RF40052
J
G

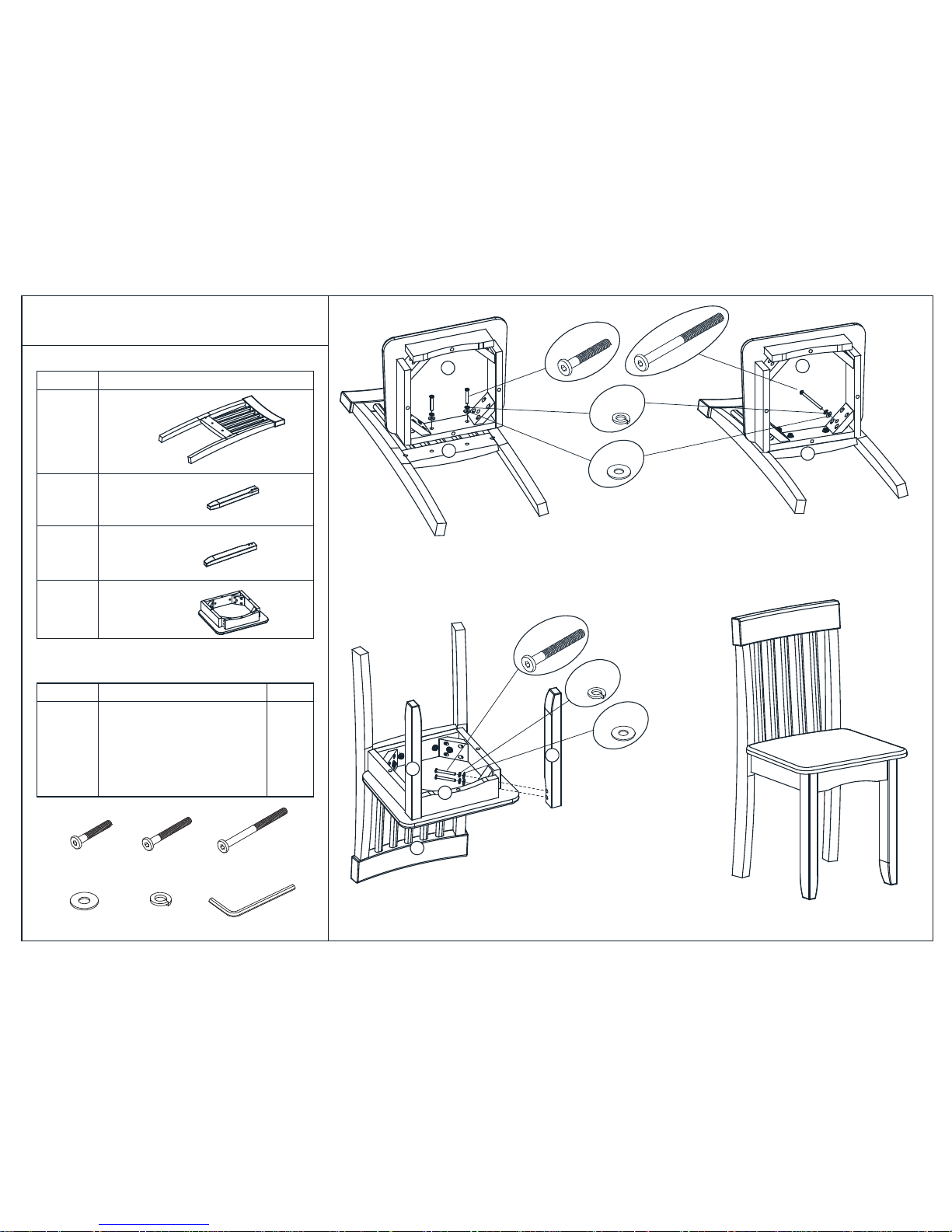

Assembly Instruction : Chair
Page 3 of 3
Diagram 6.
H
I
G
RF10034
RF40193
J
RF40052
Attach Chair Seat Frame (J) to the Back Rest (G) by using Screw (RF10041), Washer (RF40052),
Spring Washer (RF40193) and corner using screw (RF10076), Spring Washer (RF40193), Washer (RF40052)
and tighten with Allen Wrench (RF40015)as per diag. 5.
Attach Front Left Leg (H) and Front Right Leg (I) to the Chair Seat Frame (J)
by using Screw (RF10034), Spring Washer (RF40193), Washer (RF40052) as per diag. 6.
