Lion 75623, 90823, 90814 User Manual

Ontario, California 91761

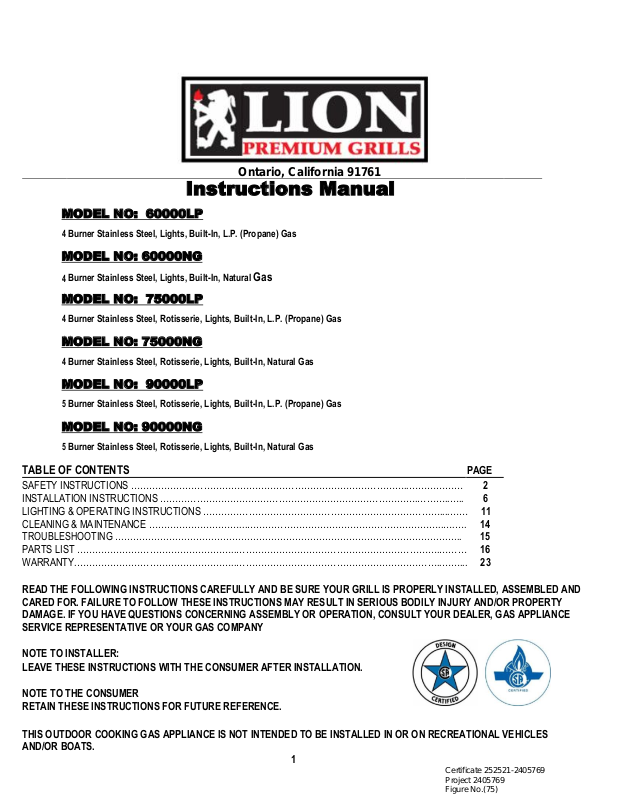

Instructions Manual
4
Burner Stainless Steel, Lights, Built-In, L.P. (Propane) Gas
4
Burner Stainless Steel, Lights, Built-In, Natural Gas
4

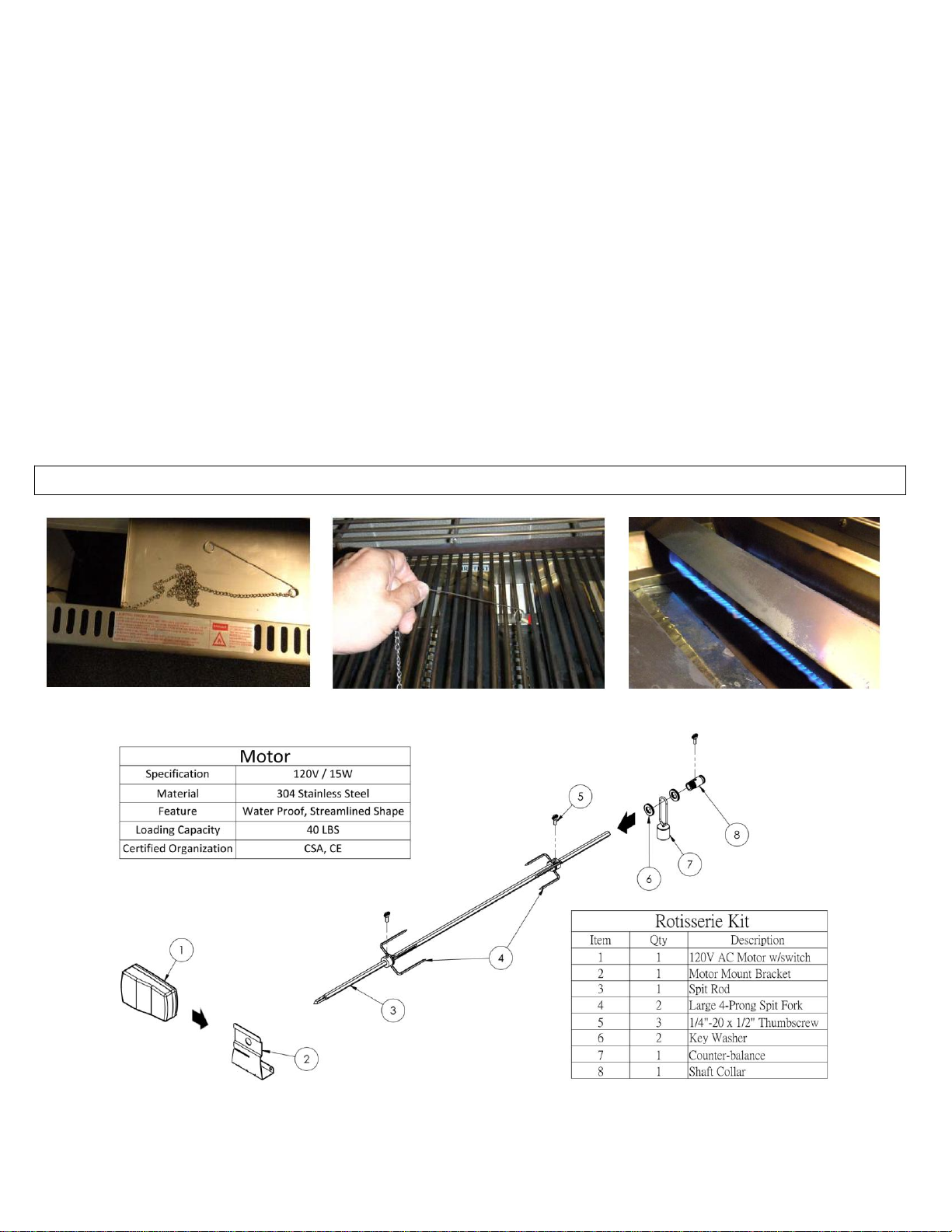

Burner Stainless Steel, Rotisserie, Lights, Built-In, L.P. (Propane) Gas
4
Burner Stainless Steel, Rotisserie, Lights, Built-In, Natural Gas
5
Burner Stainless Steel, Rotisserie, Lights, Built-In, L.P. (Propane) Gas
5
Burner Stainless Steel, Rotisserie, Lights, Built-In, Natural Gas
PAGE
2
6
CLEANING & MAINTENANCE …………………………...………………………………………………………..….….
14
TROUBLESHOOTING ……………………………………………………………………………………………………..
15
PARTS LIST ……………………………………………..………………………………………………………….………
16
LIGHTING & OPERATING INSTRUCTIONS ……………………………………………………………………....…… 11
WARRANTY.……………………………………………..…………………………………………………………..……... 23
READ THE FOLLOWING INSTRUCTIONS CAREFULLY AND BE SURE YOUR GRILL IS PROPERLY INSTALLED, ASSEMBLED AND CARED FOR. FAILURE TO FOLLOW THESE INSTRUCTIONS MAY RESULT IN SERIOUS BODILY INJURY AND/OR PROPERTY DAMAGE. IF YOU HAVE QUESTIONS CONCERNING ASSEMBLY OR OPERATION, CONSULT YOUR DEALER, GAS APPLIANCE
SERVICE REPRESENTATIVE OR YOUR GAS COMPANY NOTE TO INSTALLER:
LEAVE THESE INSTRUCTIONS WITH THE CONSUMER AFTER INSTALLATION. NOTE TO THE CONSUMER
RETAIN THESE INSTRUCTIONS FOR FUTURE REFERENCE.
THIS OUTDOOR COOKING GAS APPLIANCE IS NOT INTENDED TO BE INSTALLED IN OR ON RECREATIONAL VEHICLES
AND/OR BOATS.
1
Certificate 252521-2405769 Project 2405769 Figure No.(75)
This gas grill must be installed in accordance with local codes or, if in an area without local codes, with the latest edition of the National Fuel
Gas Code ANSI Z223.1/NFPA54, Natural Gas and Propane Installation Code, CSA B149.1 or Propane Storage and Handling Code, B149.2.
SAFETY INSTRUCTIONS
Read carefully before assembling and operating your gas grill
WARNING: Fuels used in gas or oil-fired appliances and the products of combustion of such fuels, contain chemicals known to the State of
California to cause cancer, birth defects and/or reproductive harm. This warning is issued pursuant to California Health & Safety Code Sec.
25249.6.
THE LOCATION FOR YOUR GRILL
Your gas grill is to be used OUTDOORS ONLY, with at least 21” from the back and side of any combustible surface. The grill should not be
placed under or on top of any surface that will burn. Do not obstruct the flow of combustion and ventilation air around the grill housing.
PROTECT CHILDREN: keep them away from grill during use and until grill has cooled after you are finished. Do not allow children to
operate grill.
Keep the fuel hose any electrical cord away from hot surfaces. Protect fuel hose from dripping grease. Avoid unnecessary twisting
of hose. Visually inspect hose prior to each use for cuts, cracks excessive wear or other damage. Replace hose, if necessary. NEVER test for gas leaks with a lighted match or open flame. NEVER light grill with lid closed or before checking to insure burner tubes are fully seated aver gas valve orifices.
NEVER lean over cooking surface while lighting grill. Use barbecue tools with wood handles and good quality insulated oven mitts when
operating grill.
CHECKING FOR GAS LEAKS
NEVER TEST FOR GAS LEAKS WITH A FLAME...prior to first use and at the beginning of each new season (or, if using LP, whenever gas
cylinder is changed), it is a must that you check for gas leaks. Follow these steps:
1. Make a soap solution by mixing one part liquid detergent and one part water. Turn off heat control valve(s), and then turn on gas at source.
2. Apply the soap solution to all gas connections: bubbles will appear in the soap solution if connections are not properly sealed. Tighten
or repair as necessary.
3. If you have a gas leak that you cannot repair, turn off the gas at the source, disconnect fuel line from grill and immediately call your grill
dealer and gas supplier for professional assistance.
2
Certificate 252521-2405769 Project 2405769 Figure No.(75)
If an external electrical source is utilized, a statement that the outdoor cooking gas appliance, when installed, must be electrically grounded in accordance with local codes or, in the absence of local codes, with the National Electrical Code, ANSI/NFPA 70, or the Canadian Electrical Code, CSA C22 1
This outdoor cooking gas appliance shall be used only outdoors and shall not be used in a building, garage or any other enclosed area
A serial number and model number located on this appliance should be provided for services.
This outdoor cooking gas appliance is to be used with at least 21” from the back and sides of any combustible surface. The grill should not be placed under or on top of any surface that will burn. Do not obstruct the flow of combustion and ventilation air around the grill housing.
a. Instructions for electrical equipment, separately approved by a nationally recognized testing agency that is required to be provided with instructions for use shall be included with the instructions required with an outdoor cooking gas appliance. This can be in its original form of duplicated within the instructions provided with the outdoor cooking gas appliance.
b. Electrical equipment provided with the outdoor cooking gas appliance shall have the following in the instructions:
1 To protect against electric shock, do not immerse cord or plugs in water or other liquid 2 Unplug from the outlet when not in use and before cleaning. Allow to cool before putting on or taking off
parts;
Constructed and marked in accordance with the Specifications for LP-Gas Cylinders of the U.S. Department of Transportation (D.O.T.) or the National Standard of Canada, CAN/CSA-B339, Cylinders, Spheres and Tubes for Transportation of Dangerous Goods; and Commission, as applicable; and provided with a listed overfilling prevention device, provided with a cylinder connection device compatible with the connection for outdoor cooking appliances
Instructions, including illustrations, on the proper cylinder orientation to provide vapor withdraw. The cylinder used must include a collar to protect the cylinder valve
(a) Do not store a spare LP-gas cylinder under or near this appliance; (b) Never fill the cylinder beyond 80 percent full; (c) If the information in “-b12(a)” and “-b12(b)” is not followed exactly, a fire causing death or serious
injury may occur
This appliance designed to use a CGA 791 Connection: “Place dust cap on cylinder valve outlet whenever the
cylinder is not in use. Only install the type of dust cap on the cylinder valve outlet that is provided with the cylinder valve. Other types of caps or plugs may result in leakage of propane.”
Proper selection of non-combustible or combustible materials for the built-in enclosure, as applicable This appliance is only for installation in a built-in enclosure constructed of non-combustible materials. (a) Keeping outdoor cooking gas appliance area clear and free from combustible materials, gasoline and
other flammable vapors and liquids (b) Not obstructing the flow of combustion and ventilation air (c) Keeping the ventilation opening(s) of the cylinder enclosure free and clear from debris (d) Visually checking burner flames including pilot burner flame if provided, with pictorial representations.
3
Certificate 252521-2405769 Project 2405769 Figure No.(75)
Use Power Supply; 120V AC, 60 Hz, 0.5 A. Do not use this appliance under overhead combustible surfaces.
For a built-in appliance, Only for installation in a built-in enclosure constructed of non-combustible materials If this appliance provided with a flexible service cord for connection to a line-voltage electrical supply shall bear
a Class VI marking attached to the plug end of the cord which includes the following information:
Warning
Electrical Grounding Instructions
This outdoor cooking gas appliance is equipped with a three -prong (grounding) plug for your protection against shock hazard and should be plugged directly into a properly grounded three-prong receptacle. Do not cut or remove the grounding prong from this plug.
1 To protect against electric shock, do not immerse cord or plugs in water or other liquid; 2 Unplug from the outlet when not in use and before cleaning. Allow to cool before putting on or taking off parts; 3
Do not operate any outdoor cooking gas appliance with a damaged cord, plug, or after the appliance malfunctions
or has been damaged in any manner. Contact the manufacturer for repair; 4 Do not let the cord hang over the edge of a table or touch hot surfaces; 5 Do not use an outdoor cooking gas appliance for purposes other than intended; 6 When connecting, first connect plus to the outdoor cooking gas appliance then plug appliance into the outlet; 7 Use only a Ground Fault Interrupter (GFI) protected circuit with this outdoor cooking gas appliance; 8 Never remove the grounding plug or use with an adapter of 2 prongs; 9 Use only extension cords with a 3 prong grounding plus, rated for the power of the equipment, and approved for
outdoor use with a W-A marking
4
Certificate 252521-2405769 Project 2405769 Figure No.(75)
Your Natural Gas grill is designed to operate on natural gas ONLY, at a pressure of 4” water column (W.C.) regulated at the natural gas regulator attached at the back of the grill. Check with your gas utility for local gas pressure and with your local municipality for building code
requirements.
NATURAL GAS SAFETY
Check with your gas utility or with local building codes for instructions to install gas supply line, or call a licensed and knowledgeable installer.
It is recommended that an ON-OFF” shutoff valve be installed at the gas supply source:
- Outdoors after gas line piping exits outside wall and before quick-disconnect or before gas line piping enters ground.
- Indoors in the branch fuel line in an accessible location near the supply line.
Pipe sealing compound or pipe thread tape of the type resistant to the action of natural gas must be used on all male pipe thread.
Apply compound or tape to at least the first three threads when making the connection.
This appliance and its individual shutoff valve must be disconnected from the gas supply piping system during any pressure testing of
that system at pressures in excess of 1/2 psig (3.5 kPa).
This appliance must be isolated from the gas supply piping system by closing its individual manual shutoff valve during any pressure testing
of the gas supply piping system at test pressures equal to or less than ½ psi (3.5kpa)
Turn off your gas grill when the gas supply is being tested at low pressures. This appliance must be isolated from the gas supply
piping system by closing its individual valve.
WARNING: Gas valves are preset at the factory to operate on LP or natural gas. If you wish to convert, be sure to contact your grill dealer
FIRST!
Your Propane gas grill is designed to operate on propane gas ONLY, at a pressure regulated at 11” water column (W.C.) when equipped
with the correct propane orifices on the valves and a propane regulator on the supply line regulated at the residential meter.
Your propane gas grill is designed to be used with a standard 20 lbs gas cylinder and must be constructed and marked in accordance
with specifications of the US Department of Transportation for Propane gas cylinders.
PROPANE GAS SAFETY
Always keep cylinder securely fastened in an upright position. Never connect an unregulated propane gas cylinder to the grill. Do not subject Propane cylinders to excessive heat.
CAUTION: Never store a Propane gas cylinder inside a building or in the vicinity of any gas-burning appliance.
WARNING: Gas valves are preset at the factory to operate on LP or Natural Gas. If you wish to convert, be sure to contact your grill dealer
FIRST!
SAFETY ! BEWARE OF SPIDERS
CAUTION: BURNER TUBES MUST BE INSPECTED AND CLEANED BEFORE FIRST USE.
Spiders and small insects occasionally spin webs or make nests in the burner tubes during warehousing and transit. These webs can lead to a gas flow obstruction, which could result in a fire in and around the burner tubes. This type of fire is known as “FLASH-BACK” and can cause serious damage to your grill and create an unsafe operating condition for the user. Although an obstructed burner tube is not the
only cause of “FLASH BACK‟ it is the most common cause, and frequent inspection and cleaning of the burner tubes is necessary.
5
Certificate 252521-2405769 Project 2405769 Figure No.(75)
INSTALLATION INSTRUCTIONS
PLEASE READ THESE INSTRUCTIONS BEFORE INSTALLING YOUR GAS GRILL
Your Gas BBQ Grill comes to you fully assembled. We strongly recommend professional installation and hookup of the Gas BBQ grill. These instructions will provide you with the measurements necessary for you or your builder to construct a masonry structure to house your outdoor
gas grill.
NOTE TO INSTALLER: Leave these instructions with the consumer for future reference. Your grill must be installed in accordance with all
local building codes.

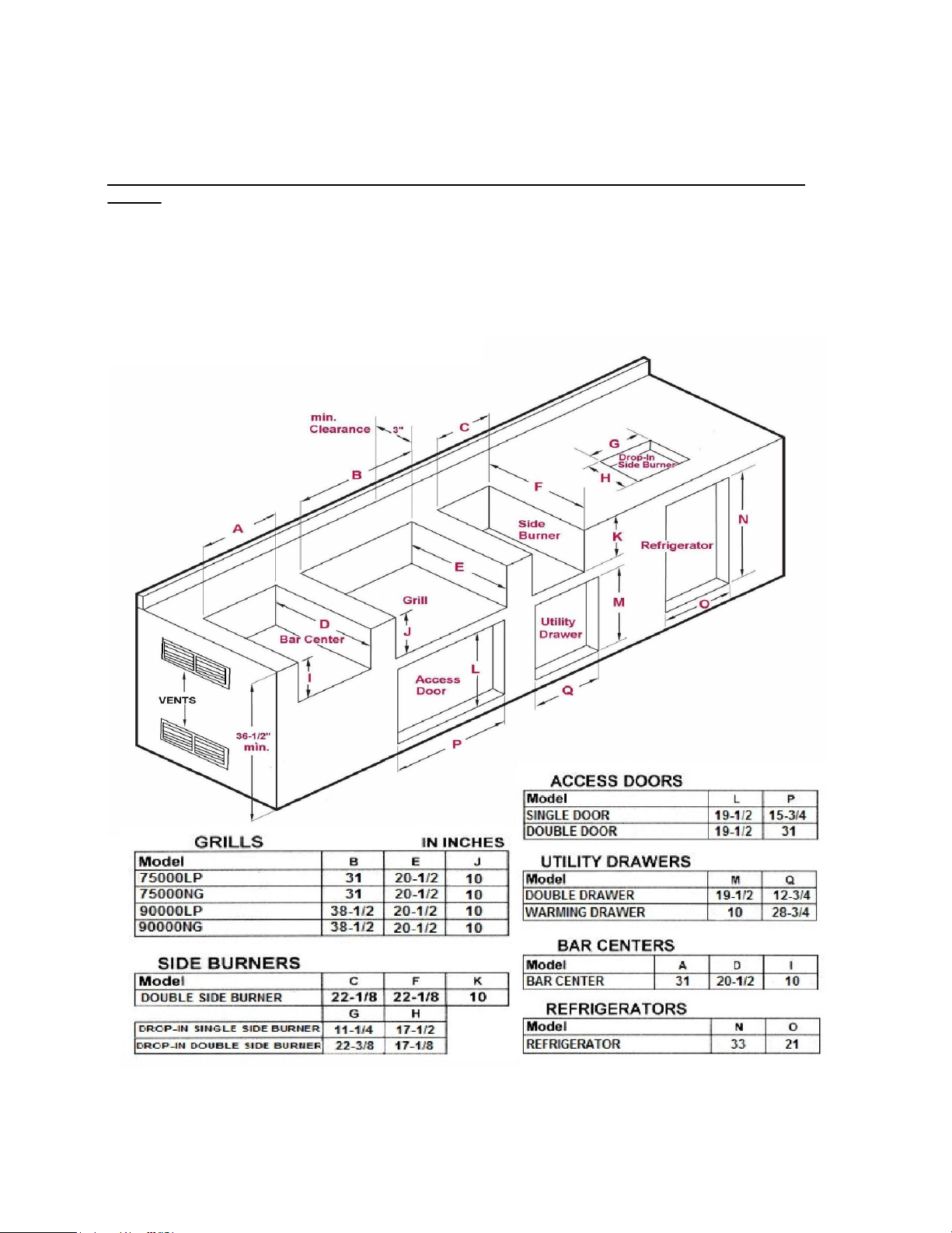

SPECIFICATIONS FOR BARBECUE STRUCTURE
1. Masonry of your choice can be used for cabinet construction for the built-in gas grill. It must be non- combustible material. Keep in
mind when choosing a location for your grill that it should NOT be located under any overhead combustible construction. Upper and ground level vents must be provided for combustion air on both sides of built-in cabinet. Vents on BBQ firebox must remain unobstructed to allow for combustion air.

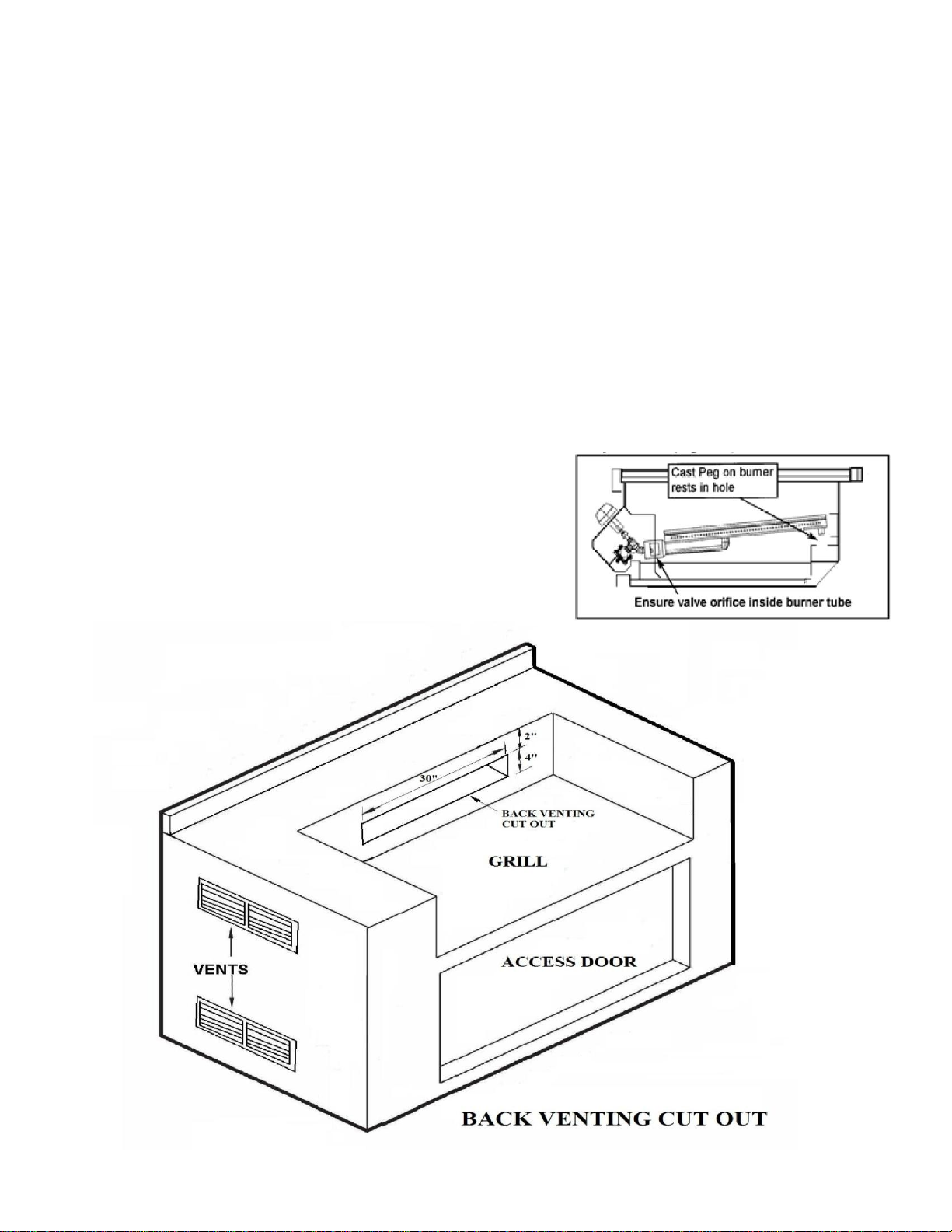

2. The BBQ Grill cabinet requires a wall opening of the following dimensions:
3. Place gas grill assembly into wall opening as shown in illustration. BBQ rests on side and back edges of BBQ grill.
4. For Propane Gas LP TANK MUST BE SECURED FASTENED AND STORAGE AREA MUST BE ISOLATED FROM GRILL AND
VENTED.
5. Do not use any combustible materials for this construction. Minimum horizontal clearance to adjacent combustible surface
and back of the grill must be 21 inches.
CONNECTING TO GAS SOURCE
Refer to the following instructions and illustrations for typical gas supply connections. We strongly suggest professional installation and hook-
up of the Gas BBQ. IMPORTANT: Before connecting grill to gas source, make sure BBQ Grill control knobs are in “OFF”
LP Gas regulator assembly hose should be at least 20” long.
Use 20 LB LP gas tank only
6
Certificate 252521-2405769 Project 2405769 Figure No.(75)
from side
NATURAL GAS CONNECTIONS
Pipe sealing compound or pipe thread tape of the type resistant to the action of natural gas must be used on all male pipe thread. Apply compound or tape to at least the first three threads when making the connection.
Remove plastic cap from regulator installed on grill.
Attach outdoor flex line ½ ” for main burner supply or 3/8” for
side burner to the regulator.
Attached the other end of flex line to shut-off valve thru a
nipple. Attach a shut-off valve to gas supply pipe. PERFORM GAS LEAK CHECK -SEE PAGE 2
PROPANE GAS CONNECTIONS
The LP gas pressure regulator and hose assembly supplied with this unit must be used without alteration. If this assembly needs to be replaced,
use only the type 1 specified in the parts list supplied with this unit.
Use a LP tank with a type 1 cylinder valve. Make sure the tank is firmly
secured in an upright position.
Turn the black coupling nut of the hose and regulator assembly in a clockwise direction. Make sure it is completely threaded onto the cylinder
valve before turning gas supply on. PERFORM GAS LEAK CHECK — SEE PAGE 2
LP Gas regulator assembly hose should be
At least 20” long.
7
Certificate 252521-2405769 Project 2405769 Figure No.(75)
