Linx MS Compact User Manual

MS Compact

Handheld Transmitter

Master Development System

User's Guide

Table of Contents

1 Introduction
2 Ordering Information
2 MS Series Decoder Development Board
3 Using the Master Development System
3 Troubleshooting
4 Setting the Transmitter Address
4 OTX-***-HH-CP8-MS Button Assignments
5 Contention Considerations
5 Battery Replacement
5 Assembly Diagram
6 The Decoder Board
11 Installing the Software and Drivers
12 Master Development Software
15 Resources

Warning: Some customers may want Linx radio frequency (“RF”)

products to control machinery or devices remotely, including machinery
or devices that can cause death, bodily injuries, and/or property
damage if improperly or inadvertently triggered, particularly in industrial
settings or other applications implicating life-safety concerns (“Life and
Property Safety Situations”).

NO OEM LINX REMOTE CONTROL OR FUNCTION MODULE
SHOULD EVER BE USED IN LIFE AND PROPERTY SAFETY
SITUATIONS. No OEM Linx Remote Control or Function Module

should be modified for Life and Property Safety Situations. Such
modification cannot provide sufficient safety and will void the product’s
regulatory certification and warranty.

Customers may use our (non-Function) Modules, Antenna and
Connectors as part of other systems in Life Safety Situations, but
only with necessary and industry appropriate redundancies and
in compliance with applicable safety standards, including without
limitation, ANSI and NFPA standards. It is solely the responsibility
of any Linx customer who uses one or more of these products to
incorporate appropriate redundancies and safety standards for the Life
and Property Safety Situation application.

Do not use this or any Linx product to trigger an action directly
from the data line or RSSI lines without a protocol or encoder/
decoder to validate the data. Without validation, any signal from

another unrelated transmitter in the environment received by the module
could inadvertently trigger the action.

All RF products are susceptible to RF interference that can prevent
communication. RF products without frequency agility or hopping

implemented are more subject to interference. This module does have
a frequency hopping protocol built in, but the developer should still be
aware of the risk of interference.

Do not use any Linx product over the limits in this data guide.
Excessive voltage or extended operation at the maximum voltage could
cause product failure. Exceeding the reflow temperature profile could
cause product failure which is not immediately evident.

Do not make any physical or electrical modifications to any Linx
product. This will void the warranty and regulatory and UL certifications

and may cause product failure which is not immediately evident.

!

– –

1

Introduction

The Linx MS Compact Handheld transmitter offers a simple, efficient and
cost-effective method of adding remote control capabilities to any product.
This Master Development System gives a designer all the tools necessary
to incorporate the transmitter, LR Series receiver and MS Series decoder
into a product. The Master Development System serves several important
functions:

• Rapid Evaluation: It allows the performance and features of the
transmitter, LR Series receiver and MS Series encoders and decoders
to be evaluated quickly in a user’s environment.

• Range Testing: The transmitter and receiver board form a full remote
control system so that the range performance can be evaluated.

• Design Benchmark: The boards provide a known benchmark against
which the performance of a custom design may be judged.

• Application Development: An onboard prototyping area allows for the
development of custom circuits directly on the development board. All
signal lines are available on a header for easy access.

The Master Development System includes 2 MS Compact Handheld
transmitters, 2 LR Series receivers*, 2 MS Series decoders*, 1 receiver /
decoder development board,1 CW Series antenna, demonstration software
CD and full documentation.

*One part is soldered to the board, one extra is for use on your first prototype board

MS Compact Handheld Transmitter
Master Development System

Data Guide

Revised 9/11/14

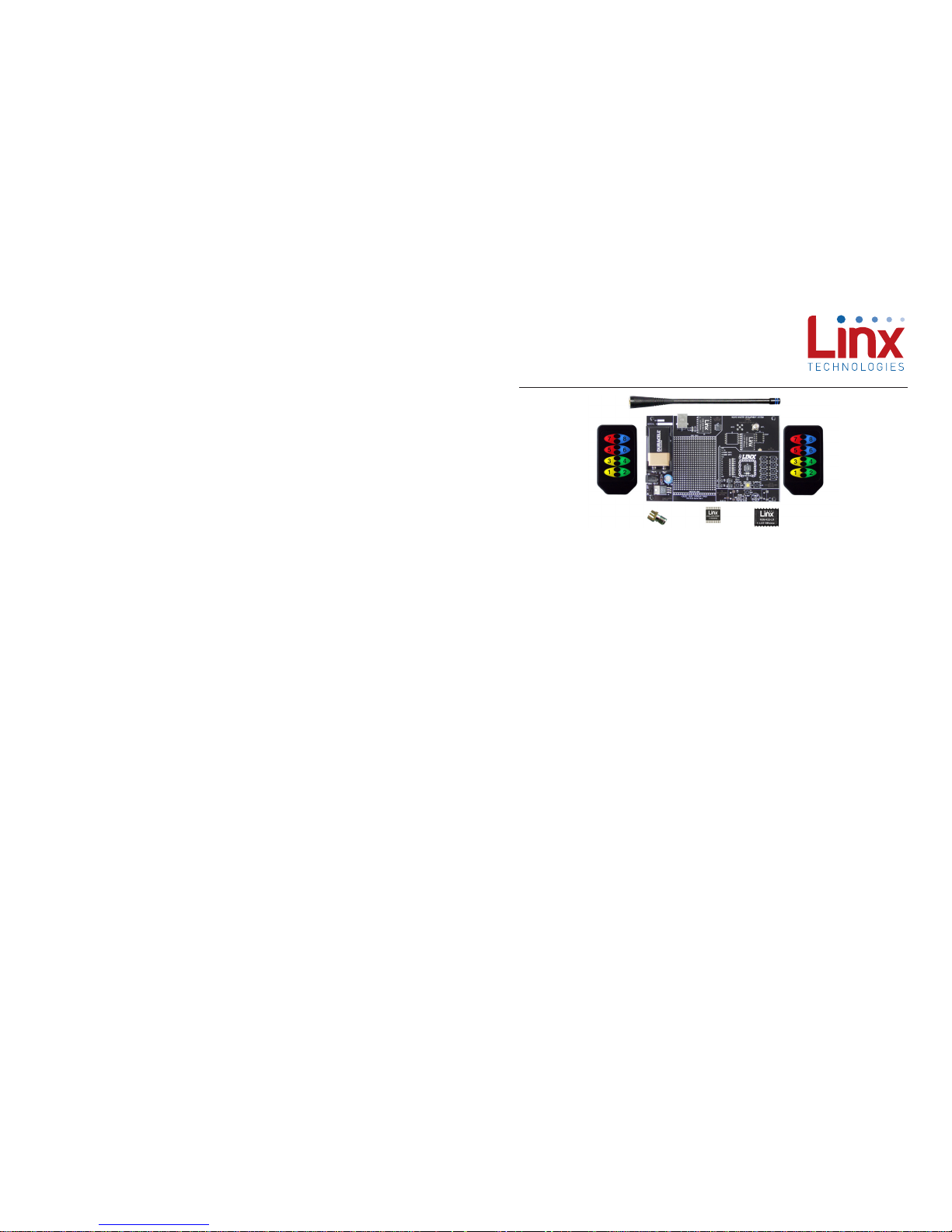

Figure 1: MS Compact Handheld Transmitter Master Development System

– – – –

2 3

MS Series Decoder Development Board

1. 9V Battery

2. Power Jack

3. On-Off Switch

4. Voltage Regulator

5. QS Series USB Module

6. Prototype Area

7. Break-Out Header

8. RP-SMA Antenna Connector

9. LR Series Receiver

10. MS Series Decoder

11. Data Line LEDs

12. Indicator LEDs

13. Function Switches

14. LEARN Button

Using the Master Development System

Using the Master Development System is straightforward. After unpacking
the board, screw the antenna onto the connector, install the supplied
9V battery, and turn on the power switch. The encoder and decoder are
configured from the factory and work straight out of the box. To create a
new address (if desired), follow these easy steps:

1. Press and hold the CREATE button on the transmitter to create a new
Code Word. This is done by sticking a paper clip through the hole on
the back of the case and pressing the button inside. The Code Word is
randomized for as long as the button is held down. Once comfortable
that the number is sufficiently random, release the button.

2. Once the button is released, the MODE_IND LED begins flashing to
indicate that it is ready to accept Control Permissions. Press all of the
data line buttons that are to be recognized, then press the CREATE
button again or let it time out after seventeen seconds.

3. Press the LEARN button on the decoder board and the MODE_IND
LED starts flashing. Press any of the data line buttons on the
transmitter and press the LEARN button again. The encoder’s Code
Word has now been learned by the decoder and they will operate
together.

Troubleshooting

If the boards fail to work out of the box, then try the following:

• Check the battery to make sure it is not dead.

• Make sure the baud rate switches are set to 9,600bps on the decoder

board.

• Make sure that the antenna is connected.

• Check to see if the PDN switch is on, placing the decoder into Power

Down Mode. In most cases, the decoder PDN switch should be on.

• Make sure that the Control Permissions are set correctly. If the encoder
has not been set to use a particular line, then when that button is
pressed on the transmitter, the MODE_IND LED on the decoder board
lights up, but the data line LED does not light up.

If all of these appear to be in order, then you can call [phone] or
e-mail [email protected] for technical support.

Ordering Information

Part Number Description

MDEV-***-HH-CP8-MS MS Compact Transmitter Master Development System

*** = 315, 418 (Standard) or 433.92MHz

Ordering Information

Figure 2: Ordering Information

2

3

4

5

1

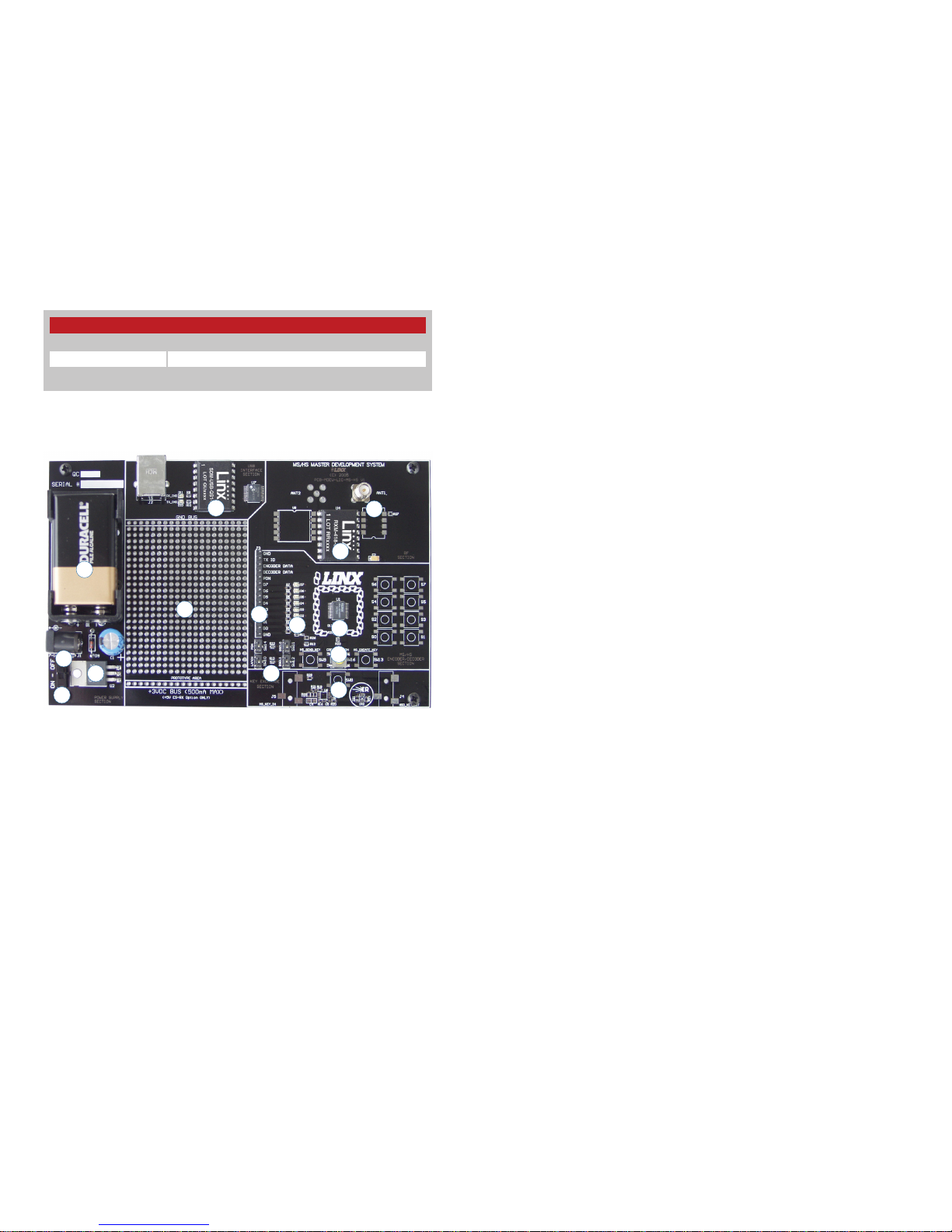

Figure 3: The MS Series Decoder Development Board

6

7

8

9

10

11

12

13

14

– – – –

4 5

Setting the Transmitter Address

The MS Compact Handheld
Transmitter allows the selection
of one of 16,777,216 (224) unique
addresses. All transmitters are
supplied set to a unique address
to avoid contention with other
units; however, the address can be
changed. This is accomplished by
using a paper clip or probe to press
the CREATE button on the board
through the hole in the back of the
case. Press the button and an LED lights up in the MODE_IND window,
indicating that the address is being created. The address is randomized for
as long as the button is held down. Release the button and the randomized
address is saved and the LED begins flashing to indicate that the Control
Permissions may now be set. Press the buttons that the transmitter should
have the authority to access. Press the CREATE button with the paper
clip again or wait 17 seconds for it to time out. The address and Control
Permissions are now set. The decoder needs to learn the address before it
will accept any transmissions. Please see the Typical Applications section
of this data guide or the MS Series Decoder Data Guide for details.

OTX-***-HH-CP8-MS Button Assignments

Figure 5 illustrates the relationship between the button locations and
encoder data lines.

MODE_IND Window

CREATE Button

D6 D7

D4 D5

D2 D3

D0 D1

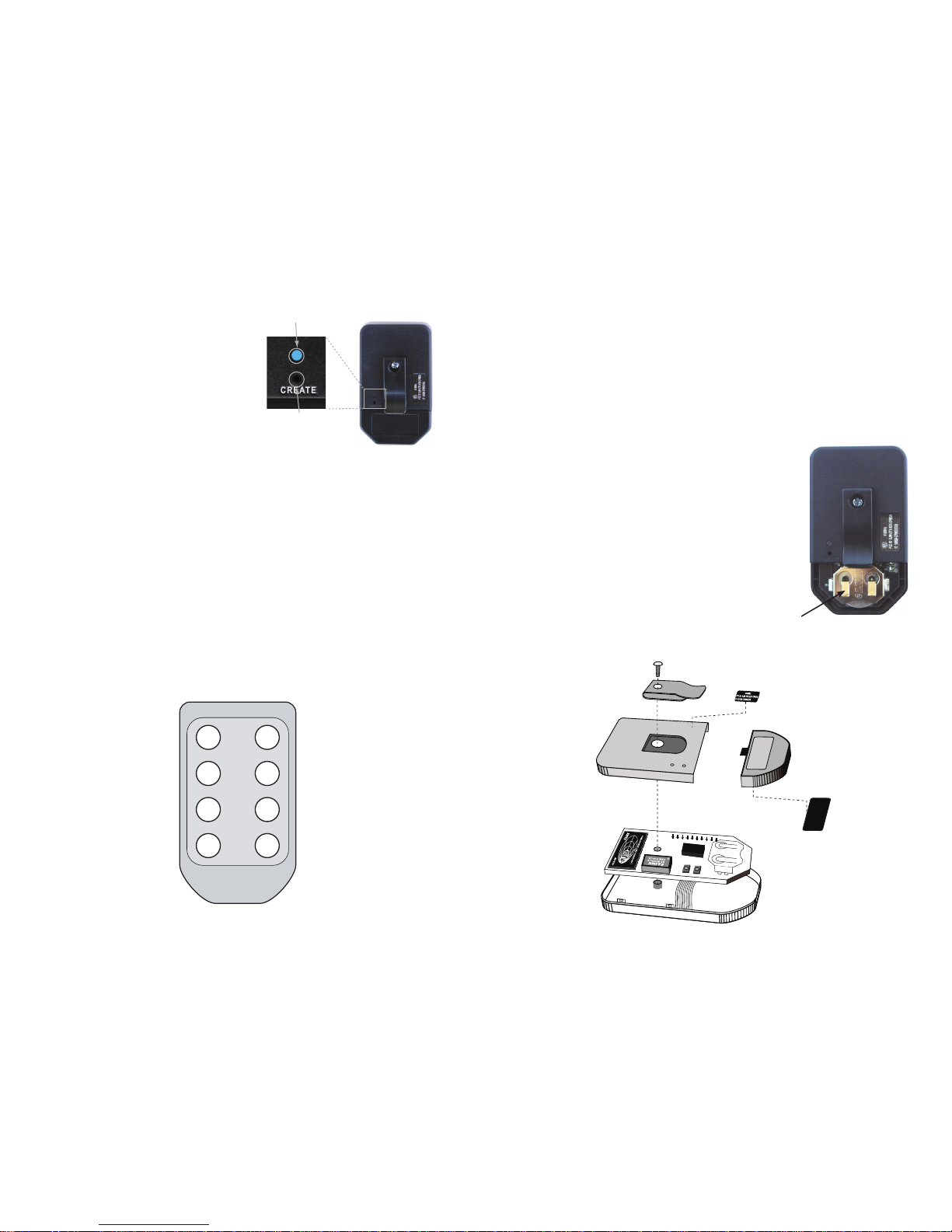

Figure 4: CREATE Button Access

Figure 5: OTX-***-HH-CP8-MS Button Assignments

Contention Considerations

It is important to understand that only one transmitter at a time can be
activated within a reception area. While the transmitted signal consists
of encoded digital data, only one carrier of any particular frequency can
occupy airspace without contention at any given time. If two transmitters
are activated in the same area at the same time, then the signals will
interfere with each other and the decoder will not see a valid transmission,
so it will not take any action.

Battery Replacement

The remote unit utilizes a standard CR2032 lithium
button cell. In normal use, it provides 1 to 2 years of
operation. To replace the battery, remove the access
cover by pressing firmly on the label area and sliding it
off. Once the unit is open, remove the battery by sliding
it from beneath the holder. Replace it with the same
type of battery while observing the polarity shown in
Figure 6.

There may be the risk of explosion if the battery is
replaced by the wrong type.

Assembly Diagram

Battery access

FCC ID: OJM-OTX-XXX-CPMSA
IC: 5840A-CPMSXXXA

418MHz

Figure 6: Battery Access

Figure 7: OTX-***-HH-CP8-MS Assembly

+

– – – –

6 7

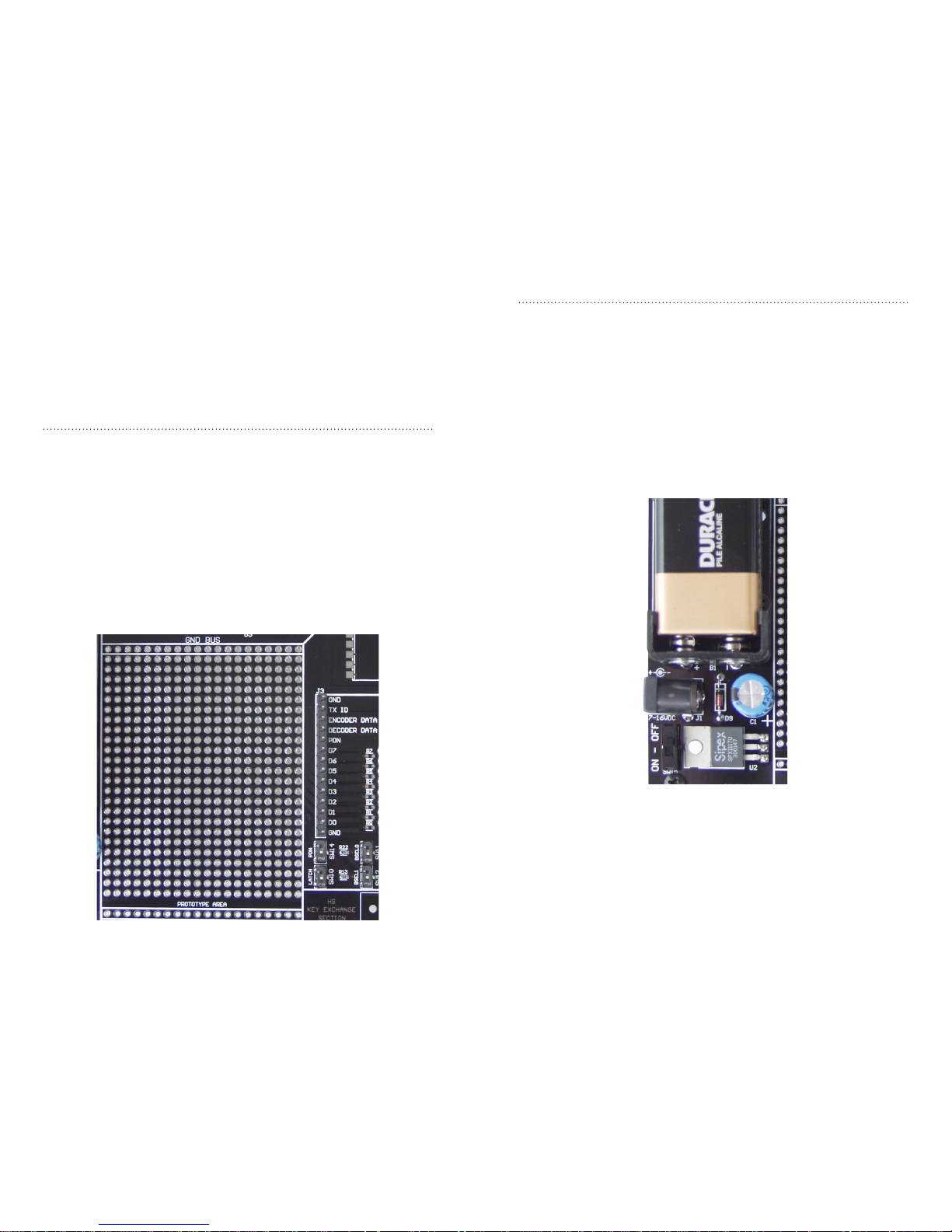

The Power Supply

The power supply on the decoder board consists of a 9V battery
and power jack connected to a 3.0V voltage regulator. It can provide
approximately 500mA of current to the prototyping area, so if the added
circuitry will need more than this, the designer must add an external supply.
If the circuit consistently draws more than 100mA of current, it might be
better to use the power jack rather than the battery, as the battery may run
down fairly quickly, reducing testing and development time.

The jack accepts a standard 5.5mm plug with the tip ground and the outer
shell 7 to 16VDC positive supply. While a reverse voltage protection diode
has been included on the board to protect the circuitry in case the voltage
on the plug is reversed, it is still a good idea to double-check the polarity.

Figure 9: The Decoder Board Power Supply Area

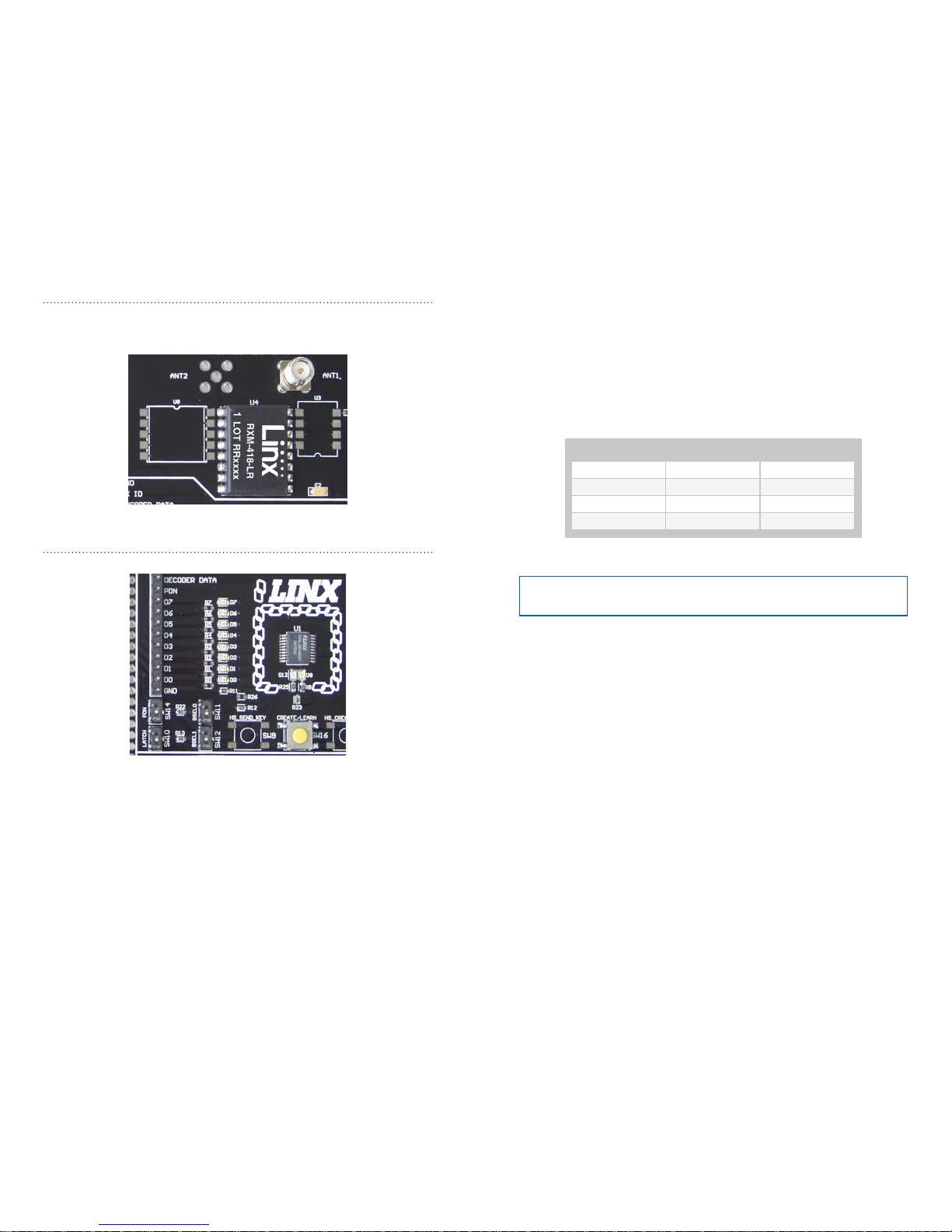

The Decoder Board

The decoder board included with the evaluation kit uses an LR Series
receiver to receive the signal from the Handheld transmitter and then
feeds it into an MS Series decoder. The board is designed to allow full
access to the many features of the decoder and to speed development
and integration of the LR and MS into a product. The following sections
describe the features of this board in detail.

The Prototyping Area

The prototyping area on the decoder board contains a large section of
plated through-holes so that external circuitry can be placed on the board.
This circuitry can be interfaced with the MS Series decoder through the
breakout header to the right of the holes. At the bottom of this area is a row
connected to the 3V power supply and at the top is a row connected to
ground.

All of the data lines are connected to a wire-wrap header to the right,
allowing easy access from the prototyping area. The Decoder Data and
TX ID lines are also available on the header as well as the PDN line from
the RF module. This allows complete control of the entire system from the
prototyping area, giving the designer a great deal of flexibility in using the
board.

Figure 8: The Decoder Board Prototyping Area

– – – –

8 9

Under the LEDs is a button that is connected to the LEARN line. This
button is used to learn the Code Word from the encoder as described in
the MS Series Decoder Data Guide.

There are four switches to the left of the CREATE / LEARN button. BSEL0
and BSEL1 are used to set the baud rate of the decoder as shown in
Figure 12. The Keyfob transmitter is set to 9,600bps, so BSEL0 should be
on and BSEL1 should be off. If the switch is up, then the line is high (on); if
down, then the line is low (off).

The PDN switch connects the RX_CNTL line of the encoder to the PDN line
of the receiver so that the RX Control Mode can be tested. This mode is
described in the MS Series Decoder Data Guide.

The LATCH switch places the decoder into Latch Mode when on, so that
the data lines go high when a valid signal is received and stay high until
a second valid signal is received. If the switch is off, the data lines are
momentary.

BSEL1 BSEL0 Baud Rate

0 0 2,400

0 1 9,600

1 0 19,200

1 1 28,800

Note: The decoder board must be set to the same baud rate as the

transmitter in order for the signal to be received correctly.

Figure 12: Baud Rate Controls

The RF Area

The Figure 10 shows the RF area of the development board. The board
uses the LR Series receiver as shown. Attach the included antenna to the
reverse polarity SMA connector before operation.

The Decoder Area

Figure 11 shows the decoder area of the development board.

The decoder is in the center beneath the Linx logo. To the left are LEDs that
are connected to the decoder data lines. These light up when the decoder
receives a signal from the transmitter instructing it to take the data line high.
LED D0 corresponds to data line D0 and so forth.

Beneath the decoder are two LEDs. D12 is connected to the MODE_IND
line. D8 is connected to the RX_CNTL line and provides visual feedback
by lighting up when the decoder activates the receiver when in RX Control
Mode.

Figure 10: The Decoder Board RF Area

Figure 11: The Decoder Area

– – – –

10 11

Installing the Software and Drivers

The Master Development System uses the QS Series USB module to
provide a simple serial interface to a PC via a USB connection. The module
requires drivers to be installed on the PC before it can function properly.
The QS Series Drivers are included on the CD with the software.

The first time the QS module is plugged into the computer, Windows
displays the Found New Hardware Wizard, which guides the installation
of the drivers. Application Note AN-00201 describes the installation of
the drivers in detail. The drivers should be installed before running the
Development Software.

The MS Master Development Software automatically starts when the CD is
inserted and the player in Figure 14 appears.

Clicking the Install Software button starts the Installation Wizard,
which guides the installation of the development software. The View
Documentation button shows a list of the application notes and manuals
related to the MS Series. Selecting one of these opens the file in Adobe
Acrobat. The Play Movie button plays a short video about Linx on the
Player Screen, which can be controlled with the Selection Keypad. Clicking
the button on the bottom right of the player opens the Linx Technologies
website in the computer’s default browser.

The View Documentation list allows for the installation of Adobe Acrobat
Reader so that the documents may be viewed. There is also the option
of installing Flash, which may be required if the Linx video does not play
correctly.

Install Software

View Documentation

Play Movie

Exit

Go to the
Linx Website

Selection Keypad

Player Screen

Figure 14: Software Installer

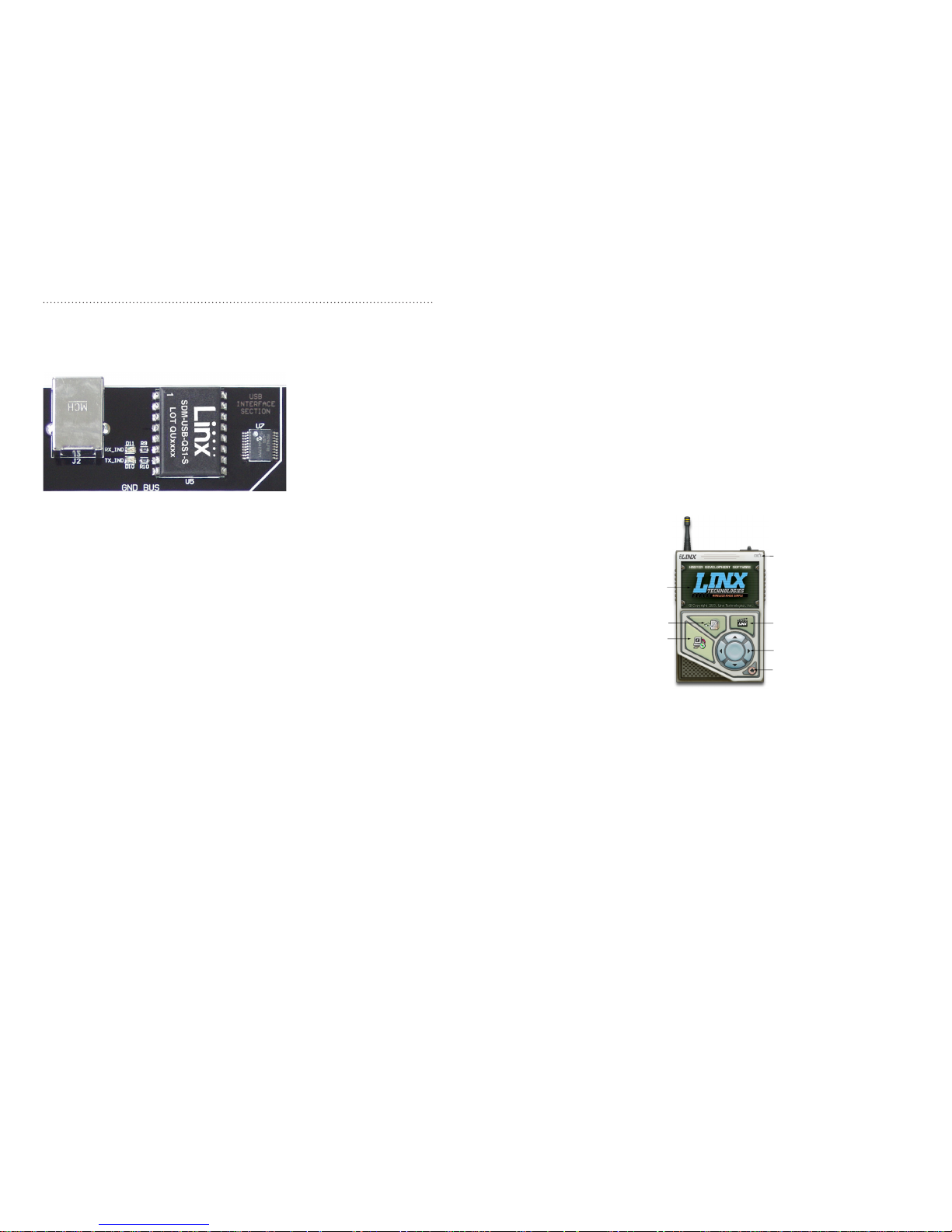

The USB Area

The decoder board has a Linx SDM-USB-QS-S USB module for use with
the included development software. This module is powered by the USB
bus, so it does not pull any current from the battery. Figure 13 shows this
section.

The microcontroller on the right monitors the data lines and generates
commands that are sent to the development software on the PC via the
QS Series USB module. The RX_IND LED to the left of the module flashes
to indicate that data is being received from the PC, and the TX_IND line
flashes to indicate that the module is sending data to the PC.

The QS Series USB module provides a simple serial link to a PC via a
USB connection. It converts logic-level serial signals to USB-compliant
signals and vice versa, so it can be connected to virtually any serial device,
including microcontrollers, RS-232 / RS-485 level converters, or Linx RF
modules. It is completely self-contained, requiring only a USB type B jack,
and includes all necessary firmware and drivers.

Figure 13: The Decoder Board USB Area

– – – –

12 13

LATCH

RA2/AN2

1

RA3/AN3

2

RA4/AN4

3

RA5/MCLR

4

GND

5

GND

6

RB0/INT

7

RB1

8

RB2/RX

9

RB3

10

RB4

11

RB5/TX

12

RB6/AN5

13

RB7/AN6

14

VCC

15

VCC

16

RA6

17

RA7

18

RA0/AN0

19

RA1/AN1

20

U7

PIC16LF88

GND

VCC

GND VCC

GND

GND

GND

GND

GND

D7

D4

TX_ID

D6

D3

D0

D1

D2 D5

DATA_PC

PDN

DEC_DATA

GND

GND

VCC

RF1ES RF

1

GND

2

NC

3

GND

4

VCC

5

LR PDN

6

LR RSSI

7

LR DATA

8

NC

9

ES AUDIO REF

10

ES AUDIO

11

ES DATA

12

ES RSSI

13

ES PDN

14

GND

15

LR RF

16

U4

RXM-XXX-LR
RXM-XXX-ES

GND

PDN

DEC_DATA

RF2

ANT1
REVSMAPCB

GND

RF1

ANT2
REVSMAPCB

GND

RF2

DATA_PC

5V

1

DAT -

2

DAT+

3

GND

4

GSHD

5

GSHD

6

J2
USB-B

USBDP

1

USBDM

2

GND

3

VCC

4

SUSP IND

5

RX IND

6

TX IND

7

485 TX8DTR

9

CTS

10

RTS

11

DATA OUT

12

DATA IN

13

DSR

14

DCD

15

RI

16

U5

SDM-USB-QS

GND

GND

GNDGND

R9

200

D11

RX_IND

R10

200

D10

TX_ID

D7D4D6

DEC_DATA

D3D0D1D2D5

GND

D2

D2_INDD3D3_INDD4D4_INDD5D5_INDD6D6_IND

GND

R11

200

D7

D7_IND

D0

D0_INDD1D1_IND

SEND

PDN

R7

100K

R6

100K

R0

100KR1100KR2100KR3100KR4100KR5100K

DATA_OUT

TX_ID

GND

GND

GND

GND

GND

GND

GND

GND

1

2345678

9

1011121314

J3

CON14

GND

B1
9V BATTERY

GND

SW15

POWER SWITCH

GND

+

C1
220uF

GND

VCC

C2
10uF

GND

VCC

D9

DIODE400

Vb

SW Vb

Va

J1

PWRJACK

GND

GND

1

Vout

2

Vin

3

U2

VREG-3V
VREG-5V (ES RX ONLY)

PDN

1

LVL/AM

2

VCC

3

GND

4

DATA

5

/CLK

6

/CLK SEL

7

LV DET

8

GND

9

RF

10

U8

TXM-xxx-ES

GND

VCC

DATA_OUT

PDN RF2

GND

VCC

GND

1

DATA IN

2

GND

3

LADJ/VCC

4

RF OUT

5

GND

6

VCC

7

PDN

8

U3

TXM-xxx-LR

GND

VCC

GND

GND

DATA_OUT

PDN

RF1

R27

620ohm

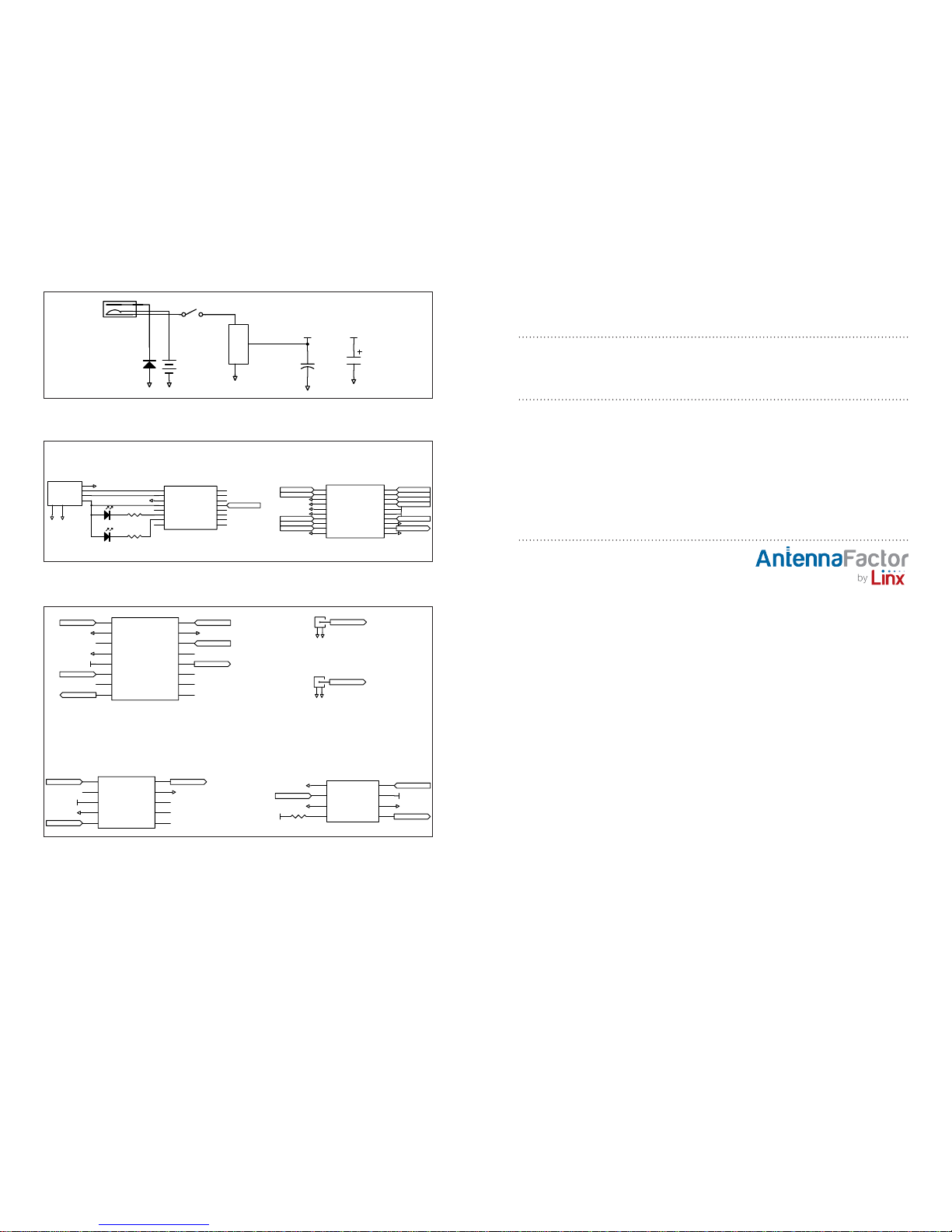

POWER SUPPLY SECTION

USB SECTION

RF SECTION

VCC

GND

R13

100k

GND

DEC_DATA

GND

R22

100k

LATCH

SW9

HS_SEND_KEY

VCC

SW13

HS_CREATE_KEY

VCC

J5

HS_KEY_IN

J4

HSD_KEY_OUT

GND

GND

R25

200

D12

MODE_IND

GND

GND

SW16

CREATE/LEARN

GND

R23

100K

DATA_OUT

VCC

GND

D7D4D6

D3D0D1

D2

D5

VCC

VCC

S5

D5

VCC

S4

D4S3D3S2D2S1D1S0D0

S6D6S7

D7

PDN

SEND

VCC

GND

R12

100k

R26

0K

D6D7SEL_BAUD0

SEL_BAUD1/HSE_GND/HSD_SEND_KEY

GND

GND

KEY_IN/MSE_GND/MSD_LATCH

TX_CNTL/MSD_RX_CNTL/HSD_CREATE_KEY

DATA_OUT/MSD_TX_ID/HSD_KEY_OUT

MODE_IND CREATE_ADDR/DEC_LEARN

SEND/DEC_DATA_IN

D0

D1

VCC

VCC

D2D3D4

D5

U1

LICAL-XXX-MS

LICAL-XXX-HS

SW11

SEL_BAUD0

TX_ID

SW10

LATCH

SW14

PDN

SW12

SEL_BAUD1

GND

AOUT

1

AIN-2AIN+3GND

4

CIN+

5

CIN-

6

COUT

7

VCC

8

U6

TLV2302

HS-ENC

R21

100K

VCC

R18

9.1M

R20

51K

C5

0.01uF

VCC

VCC

GND

GND

GND

GND

C4

4.7uF

R16

9.1M

R15

9.1M

R19

10K

R14

5.1M

R17

9.1M

IR1

PS1102

SW8

SW-PB

GND

IR2

IR KEY_OUT

R24

150 ohm

GND

GND

R8

200

D8

TX_EN

R28

10K

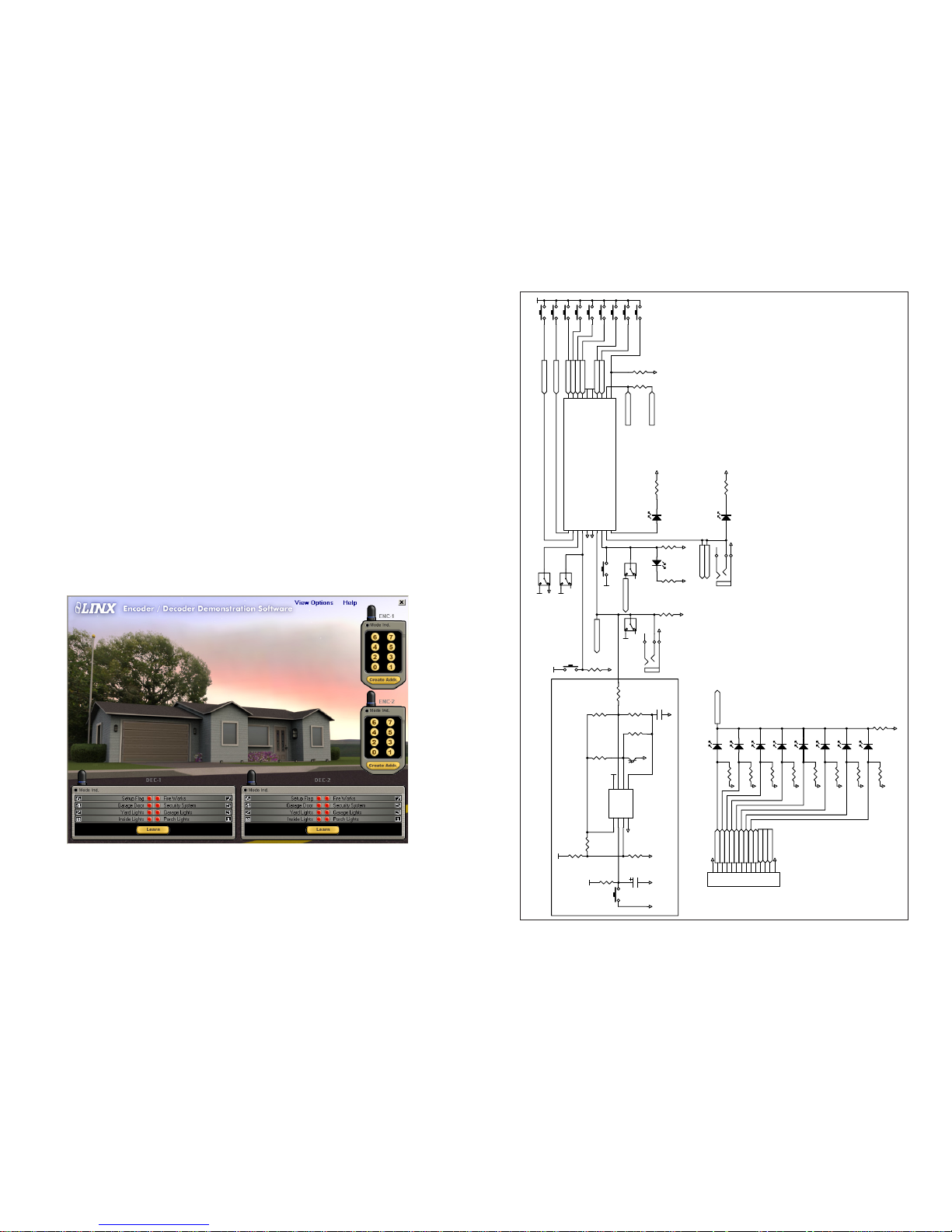

Figure 16: Encoder / Decoder Section

Master Development Software

This software is designed to give a complete understanding of how the MS
Series encoders and decoders work together, as well as showing how they
can be used in a system.

The Master Development software can be used in one of two modes.
The default mode is a software simulation of the system and does not
require any hardware. It simulates two handheld transmitters as well as two
receiving devices. This is a good way of showing how the MS Series can
work in a system by turning on lights and opening doors.

The second mode is for use with the Master Development System. When
the decoder board is plugged into a USB port on the PC, the transmitter
can be used to activate the features in the software. If the LEDs on the
evaluation board turn on, then the LEDs in the program turn on and
activate the corresponding data line function.

Figure 15 is a screen shot of the program set up in Software Operation
Mode for simulating the operation of the system.

The transmitters are on the right hand side and the receivers are at the
bottom. Complete instructions for using the software can be found by
clicking on the Help label at the top right of the window.

Figure 15: MS Encoder / Decoder Demonstration Software

– – – –

14 15

Resources

Support

For technical support, product documentation, application notes, regulatory
guidelines and software updates, visit www.linxtechnologies.com

RF Design Services

For customers who need help implementing Linx modules, Linx offers
design services including board layout assistance, programming,
certification advice and packaging design. For more complex RF solutions,
Apex Wireless, a division of Linx Technologies, creates optimized designs
with RF components and firmware selected for the customer’s application.
Call [phone] ([phone] if outside the United States) for
more information.

Antenna Factor Antennas

Linx’s Antenna Factor division has the
industry’s broadest selection of antennas
for a wide variety of applications. For
customers with specialized needs, custom
antennas and design services are available along with simulations of
antenna performance to speed development. Learn more at
www.linxtechnologies.com.

B1
9V BATTERY

GND

SW15

POWER SWITCH

GND

+

C1
220uF

GND

VCC

C2
10uF

GND

VCC

D9

DIODE400

Vb

SW Vb

Va

J1

PWRJACK

GND

GND

1

Vout

2

Vin

3

U2

VREG-3V
VREG-5V (ES RX ONLY)

POWER SUPPLY SECTION

LATCH

RA2/AN2

1

RA3/AN3

2

RA4/AN4

3

RA5/MCLR

4

GND

5

GND

6

RB0/INT

7

RB1

8

RB2/RX

9

RB3

10

RB4

11

RB5/TX

12

RB6/AN5

13

RB7/AN6

14

VCC

15

VCC

16

RA6

17

RA7

18

RA0/AN0

19

RA1/AN1

20

U7

PIC16LF88

GND

VCC

GND VCC

GND

GND

GND

GND

GND

D7

D4

TX_ID

D6

D3

D0

D1

D2 D5

DATA_PC

DATA_PC

5V

1

DAT -

2

DAT+

3

GND

4

GSHD

5

GSHD

6

J2
USB-B

USBDP

1

USBDM

2

GND

3

VCC

4

SUSP IND

5

RX IND

6

TX IND

7

485 TX8DTR

9

CTS

10

RTS

11

DATA OUT

12

DATA IN

13

DSR

14

DCD

15

RI

16

U5

SDM-USB-QS

GND

GND

GNDGND

R9

200

D11

RX_IND

R10

200

D10

TX_ID

B1
9V BATTERY

GND

SW15

POWER SWITCH

GND

+

C1
220uF

GND

VCC

C2
10uF

GND

VCC

D9

DIODE400

Vb

SW Vb

Va

J1

PWRJACK

GND

GND

1

Vout

2

Vin

3

U2

VREG-3V
VREG-5V (ES RX ONLY)

POWER SUPPLY SECTION

USB SECTION

LATCH

RA2/AN2

1

RA3/AN3

2

RA4/AN4

3

RA5/MCLR

4

GND

5

GND

6

RB0/INT

7

RB1

8

RB2/RX

9

RB3

10

RB4

11

RB5/TX

12

RB6/AN5

13

RB7/AN6

14

VCC

15

VCC

16

RA6

17

RA7

18

RA0/AN0

19

RA1/AN1

20

U7

PIC16LF88

GND

VCC

GND VCC

GND

GND

GND

GND

GND

D7

D4

TX_ID

D6

D3

D0

D1

D2 D5

DATA_PC

PDN

DEC_DATA

GND

GND

VCC

RF1ES RF

1

GND

2

NC

3

GND

4

VCC

5

LR PDN

6

LR RSSI

7

LR DATA

8

NC

9

ES AUDIO REF

10

ES AUDIO

11

ES DATA

12

ES RSSI

13

ES PDN

14

GND

15

LR RF

16

U4

RXM-XXX-LR
RXM-XXX-ES

GND

PDN

DEC_DATA

RF2

ANT1
REVSMAPCB

GND

RF1

ANT2
REVSMAPCB

GND

RF2

DATA_PC

5V

1

DAT -

2

DAT+

3

GND

4

GSHD

5

USBDP

1

USBDM

2

GND

3

VCC

4

SUSP IND

5

RX IND

6

TX IND

7

485 TX8DTR

9

CTS

10

RTS

11

DATA OUT

12

DATA IN

13

DSR

14

DCD

15

RI

16

U5

SDM-USB-QS

GND

GND

R9

200

D11

RX_IND

R10

200

D10

TX_ID

B1
9V BATTERY

GND

SW15

POWER SWITCH

GND

+

C1
220uF

GND

VCC

C2
10uF

GND

VCC

D9

DIODE400

Vb

SW Vb

Va

J1

PWRJACK

GND

GND

1

Vout

2

Vin

3

U2

VREG-3V
VREG-5V (ES RX ONLY)

PDN

1

LVL/AM

2

VCC

3

GND

4

DATA

5

/CLK

6

/CLK SEL

7

LV DET

8

GND

9

RF

10

U8

TXM-xxx-ES

GND

VCC

DATA_OUT

PDN RF2

GND

VCC

GND

1

DATA IN

2

GND

3

LADJ/VCC

4

RF OUT

5

GND

6

VCC

7

PDN

8

U3

TXM-xxx-LR

GND

VCC

GND

GND

DATA_OUT

PDN

RF1

R27

620ohm

POWER SUPPLY SECTION

USB SECTION

RF SECTION

Figure 17: Power Supply Section

Figure 18: USB Section

Figure 19: RF Section

Linx Technologies

159 Ort Lane

Merlin, OR, US 97532

Phone: [phone]

Fax: [phone]

www.linxtechnologies.com

Disclaimer

Linx Technologies is continually striving to improve the quality and function of its products. For this reason, we
reserve the right to make changes to our products without notice. The information contained in this Data Guide
is believed to be accurate as of the time of publication. Specifications are based on representative lot samples.
Values may vary from lot-to-lot and are not guaranteed. “Typical” parameters can and do vary over lots and
application. Linx Technologies makes no guarantee, warranty, or representation regarding the suitability of any
product for use in any specific application. It is the customer’s responsibility to verify the suitability of the part for
the intended application. NO LINX PRODUCT IS INTENDED FOR USE IN ANY APPLICATION WHERE THE SAFETY

OF LIFE OR PROPERTY IS AT RISK.

Linx Technologies DISCLAIMS ALL WARRANTIES OF MERCHANTABILITY AND FITNESS FOR A PARTICULAR
PURPOSE. IN NO EVENT SHALL LINX TECHNOLOGIES BE LIABLE FOR ANY OF CUSTOMER’S INCIDENTAL OR
CONSEQUENTIAL DAMAGES ARISING IN ANY WAY FROM ANY DEFECTIVE OR NON-CONFORMING PRODUCTS
OR FOR ANY OTHER BREACH OF CONTRACT BY LINX TECHNOLOGIES. The limitations on Linx Technologies’

liability are applicable to any and all claims or theories of recovery asserted by Customer, including, without
limitation, breach of contract, breach of warranty, strict liability, or negligence. Customer assumes all liability
(including, without limitation, liability for injury to person or property, economic loss, or business interruption) for all
claims, including claims from third parties, arising from the use of the Products. The Customer will indemnify,
defend, protect, and hold harmless Linx Technologies and its officers, employees, subsidiaries, affiliates,
distributors, and representatives from and against all claims, damages, actions, suits, proceedings, demands,
assessments, adjustments, costs, and expenses incurred by Linx Technologies as a result of or arising from any
Products sold by Linx Technologies to Customer. Under no conditions will Linx Technologies be responsible for
losses arising from the use or failure of the device in any application, other than the repair, replacement, or refund
limited to the original product purchase price. Devices described in this publication may contain proprietary,
patented, or copyrighted techniques, components, or materials. Under no circumstances shall any user be
conveyed any license or right to the use or ownership of such items.

All rights reserved. ©2014 Linx Technologies

The stylized Linx logo, Wireless Made Simple, CipherLinx and the stylized CL logo are trademarks of Linx Technologies.
