The GM Series GNSS receiver module is a self-contained
high-performance Global Satellite Navigation System receiver. Based on
the MediaTek chipset, it can simultaneously acquire and track multiple
satellite constellations. These include the United States GPS system,
Europe’s GALILEO, Russia’s GLONASS and Japan’s QZSS.

The module provides exceptional sensitivity, even in dense foliage and
urban canyons. It’s very low power consumption helps maximize runtimes
in battery powered applications. Hybrid ephemeris prediction can be used
to achieve cold start times of less than 15 seconds. The module outputs
standard NMEA data.

The evaluation module contains the surface mount GM Series GNSS
module, SMA connector and a ferrite bead (used to supply power to an
external active antenna, such as the Linx SH Series active GPS antenna)
on a single board with through-hole headers. This small board makes
prototyping with the GM Series module very easy.

GM Series Evaluation Module

User's Guide

Revised 9/24/13

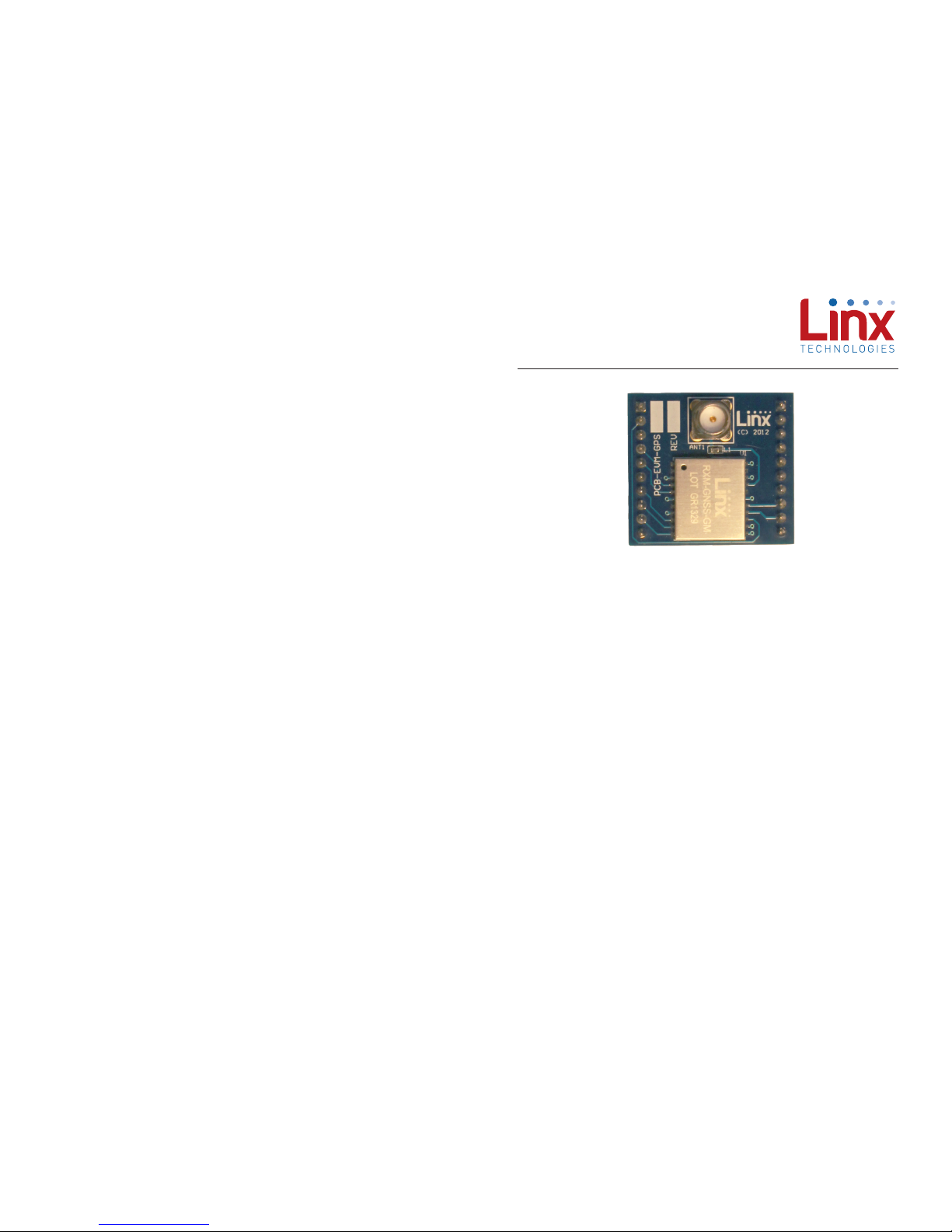

Figure 1: GM Series Evaluation Module

– – – –

2 3

Ordering Information

ElectricalSpecications

Warning: This product incorporates numerous static-sensitive

components. Always wear an ESD wrist strap and observe proper ESD
handling procedures when working with this device. Failure to observe
this precaution may result in module damage or failure.

Schematic

2-5

1
2
3
4
5
6
7
8
9
10

J2

GND

GND

VCC

VBACKUP

1
2
3
4
5
6
7
8
9
10

J1

GND

GND

TXD
RXD

1PPS

RESET

TXD

RXD

VCC

RF

1

GND

ANT1

CONSMA001

GND

GND

GND

GND GND

NC

1

NC

2

1PPS

3

TX

4

RX

5

NC

6

NC

7

RESET

8

NC

9

NC10VBACKUP

11

VCC

12

NC

13

NC

14

NC

15

NC

16

VOUT

17

GND

18

RFIN

19

GND

20

GND21GND

22

U1

RXM-GPS-GM

1PPS

VBACKUP

RESET

L1

300ohm BEAD

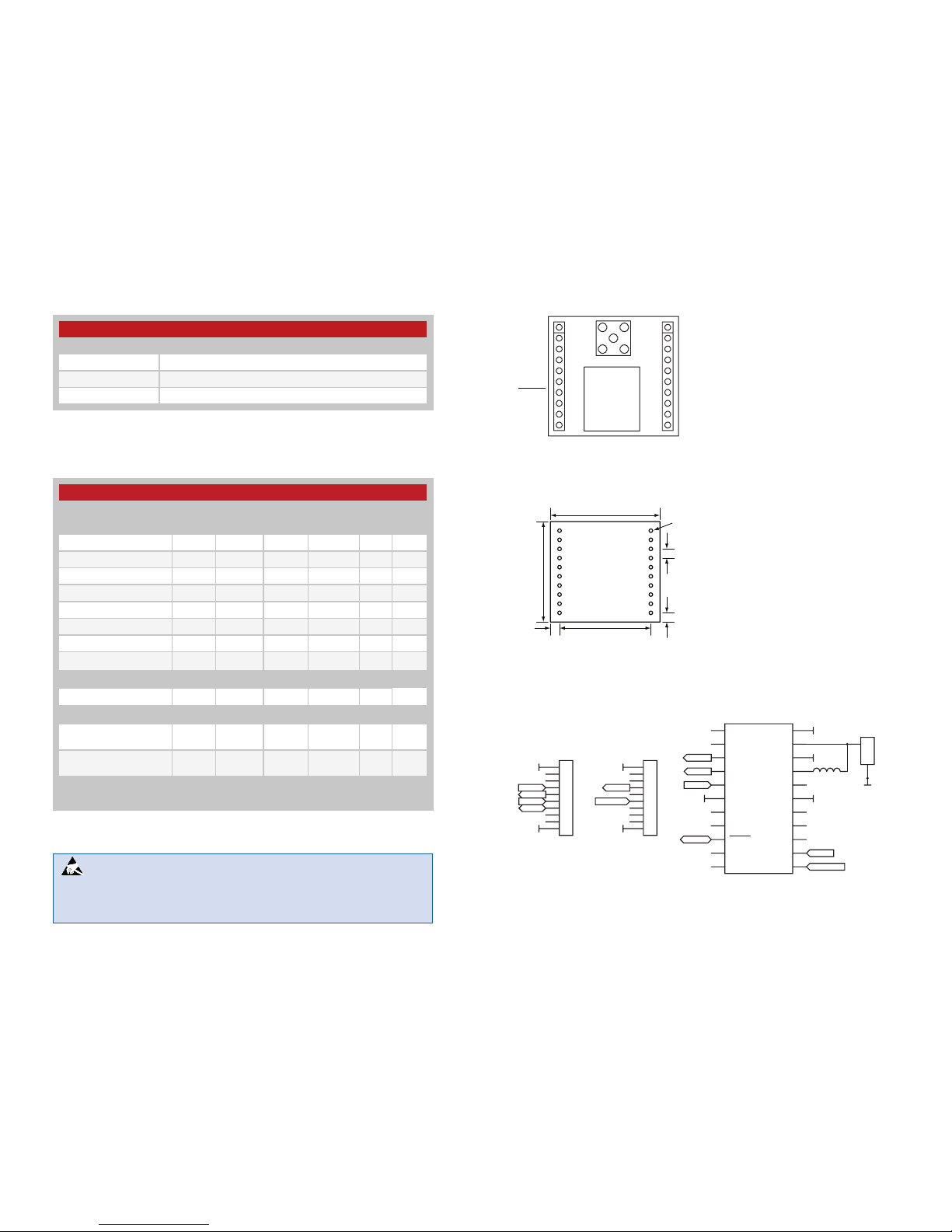

Ordering Information

Part Number Description

EVM-GNSS-GM GM Series Evaluation Module

RXM-GNSS-GM GM Series GNSS Receiver Module

MDEV-GNSS-GM GM Series GNSS Receiver Master Development System

Figure 2: Ordering Information

Figure 3: Electrical Specifications

1.20”

(47.24)

0.10”

(2.54)

0.10”

(2.54)

0.10”

(2.54)

1.10”

(27.94)

1.00”

(25.40)

Ø0.04” x 10

(1.02)

PCB Layout

GM Series GNSS Receiver Specifications

Parameter Symbol Min. Typ. Max. Units Notes

Power Supply

Operating Voltage V

CC

3.0 3.3 4.3 VDC

Supply Current l

CC

Peak 150 mA 1

Acquisition 24 mA 1

Tracking 16 mA 1

Standby 0.365 mA 1

Backup Battery Voltage V

BAT

2.0 4.3 VDC

Backup Battery Current I

BAT

7 µA 2

Antenna Port

RF Impedance R

IN

50 Ω

Environmental

Operating Temperature
Range

–40 +85 °C

Storage Temperature
Range

–40 +85 °C

1. VCC = 3.3V, without active antenna, ephemeris prediction is off

2. VCC = 0V

PinAssignments

GND
NC
NC
VCC
NC
VBACKUP
NC
NC
NC
GND

GND

NC

NC
TXD
RXD

1PPS

RESET

NC

NC

GND

Figure 4: EVM-GNSS-GM Pin Assignments

Figure 5: EVM-GNSS-GM PCB Layout Dimensions

Figure 6: EVM-GNSS-GM Schematic
