Thank You for choosing the Linx 12X64 as your
new tablet.
This quick guide will help to give you an overview
of your new tablet, its features, and explain how
to setup and get going.
Page 3
4
Contents.
Product overview. 5
Instructions for use. 8
Check the package contents 8
Charging your tablet. 8
Rechargeable Lithium-ion Battery 8
Using your tablet. 9
Turning your tablet on 9
Putting your tablet into Sleep Mode 9
Turning your tablet off 9
Emergency reboot 9
Increasing and decreasing the volume 9
Using headphones with your tablet 9
Installing a Micro SDHC/XC card 9
Using the kickstand 10
Using Windows 10 Home 10
Using the Keyboard Cover 11
Connecting to your tablet 11
Using the function keys 12
Using the Touchpad 13
Technical information. 15
Important safety information. 18
General use 18
Recycling 19
Disposal of Waste Electrical & Electronic
Equipment (WEEE) 19
Digital Rights Management 19
Rechargeable Lithium-Ion Battery 19
Battery and Charger Safety 19
Small children 19
Medical devices 20
Implanted medical devices 20
Hearing 20
Warranty 21
Page 4
5

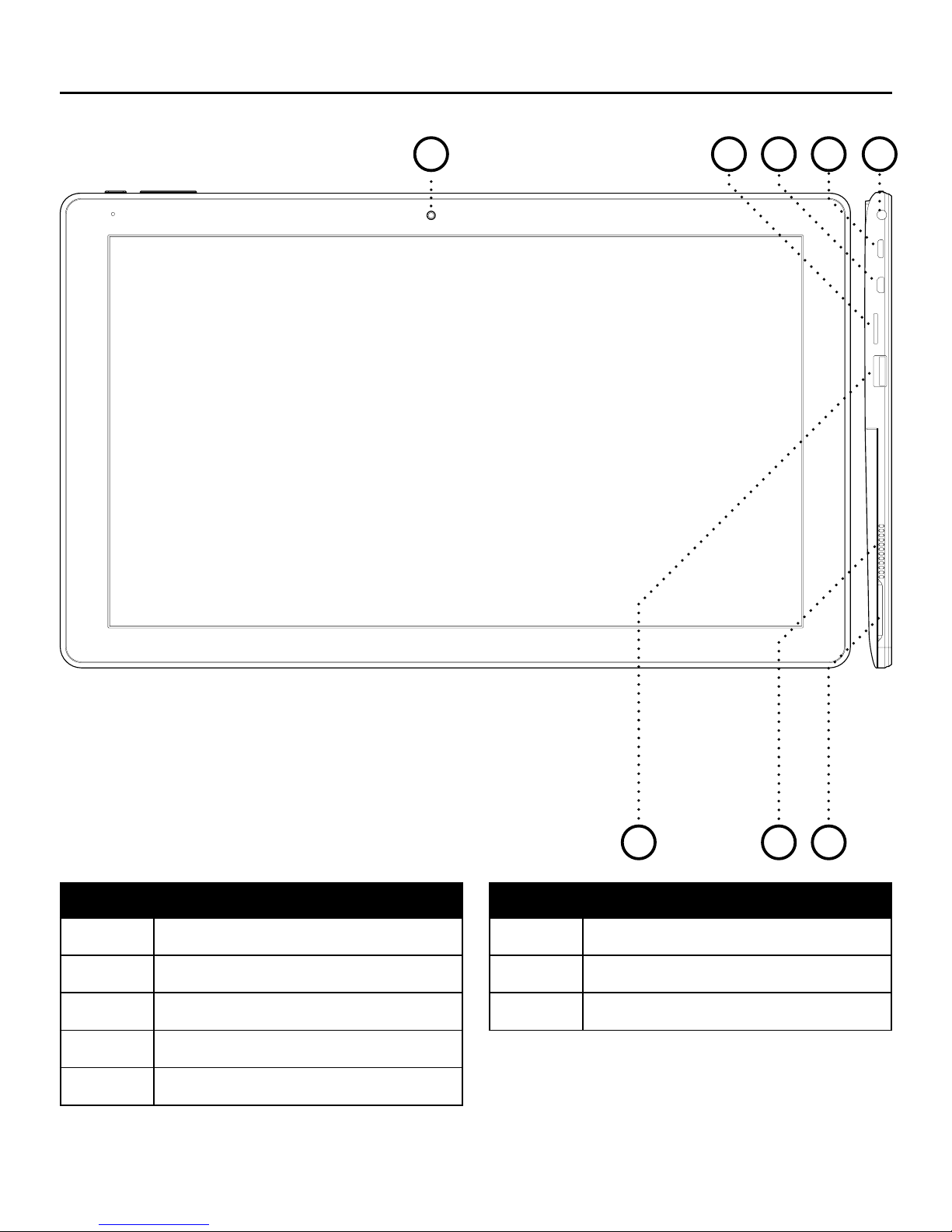

Product overview.
F
Full-size USB 3.0 (Type-A)
G
Loudspeaker
H
Thumbslot for kickstand access
A C D E
Specification.
A
2.0 Megapxiel Front Camera
B
Micro SDHC / SDXC Card Slot
C
Micro HDMI 1.4
D
Micro USB (Type-B)
E
3.5mm Headphone Port
B
G HF
Page 5
6

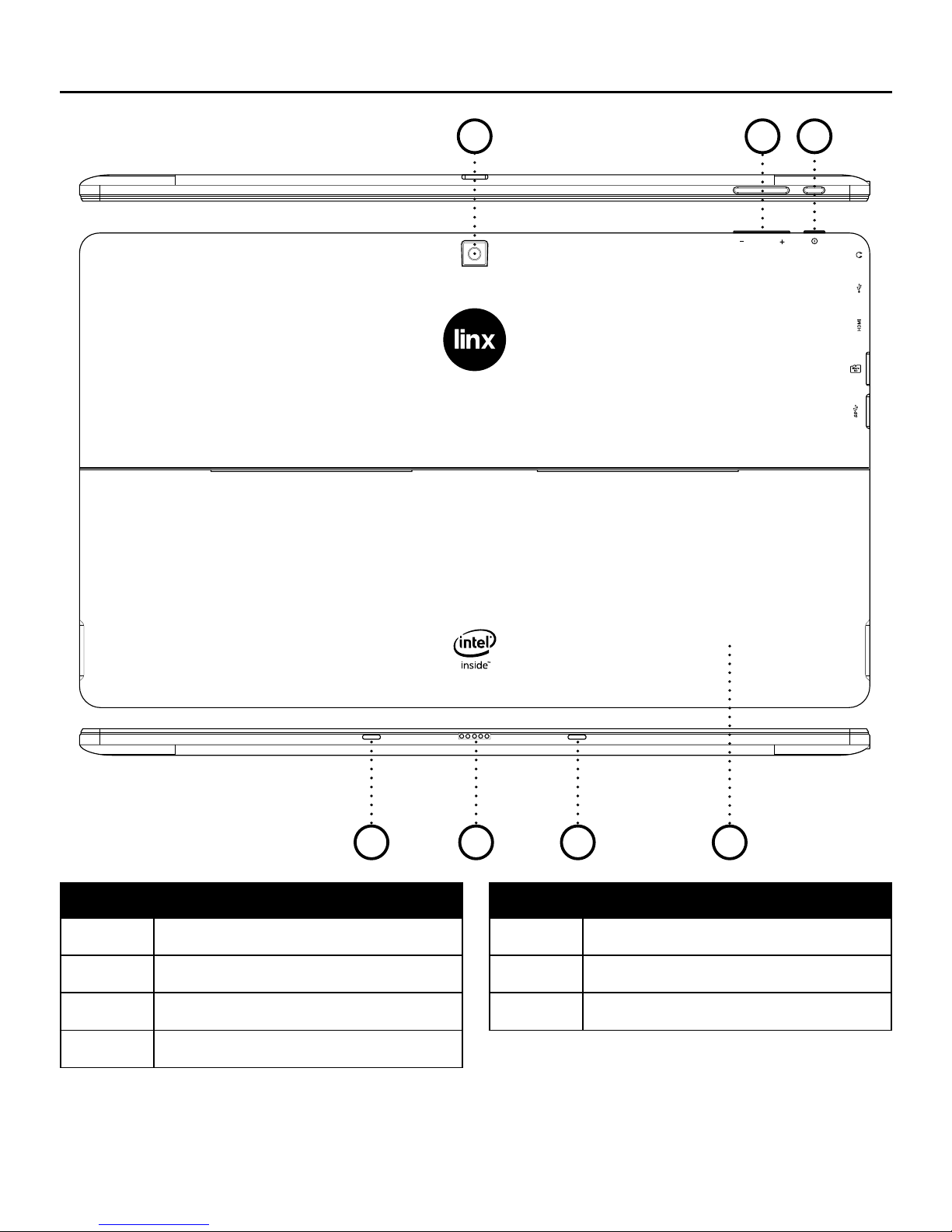

Product overview.
J
2.0 Megapixel Rear Camera
K
Volume Up / Down
L
Power / Sleep
M
Keyboard Mount Point
N
5-Pin Connector for Keyboard Cover
O
Keyboard Mount Point
P
Kickstand
Specification.
J K L
M N O P
Page 6
7
Product overview.

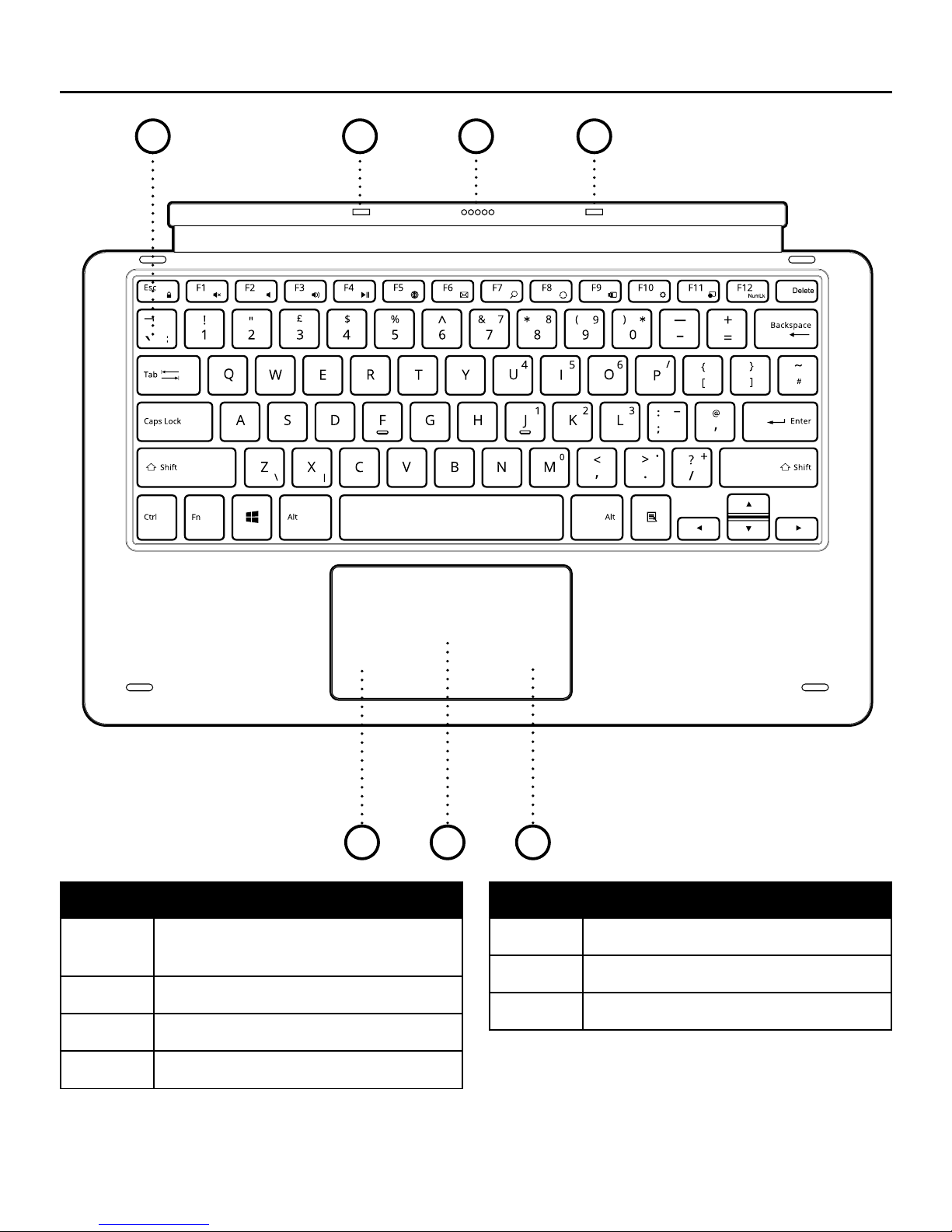

A
QWERTY keyboard with island-style
keys
B
Keyboard Docking Mount
C
5-Pin Connector for Keyboard Cover
D
Keyboard Docking Mount
E
Left Mouse Click
F
Trackpad
G
Right Mouse Click
Specification.
A B D
FE G
C
Page 7
8
Instructions for use.
Check the package contents.
The package contains:
• 1 x Linx 12X64 Tablet
• 1 x Linx 12XKDB Keyboard Cover
• 1 x Mains Charger with Micro USB cable
• 1 x User Guide
Charging your tablet.
Your battery has been partially charged at the factory,
but you may need to recharge it before you can
switch the tablet on for the first time.
Note: It is recommended to recharge the battery of
the tablet fully before turning on for the first time.
Important: Use only the provided or approved
chargers or cables with this tablet.
1. Plug the Mains Charger into a compatible wall
socket.
Important: Please ensure the power at the wall
socket is switched off.
3. Connect the Mains Charger to your tablet using
the integrated Micro USB cable.
4. Turn the power at the wall socket on, your tablet
should now begin to charge. The power indicator
LED will light up on your tablet when charging.
When the battery is full, disconnect the charger from
the tablet, then from the wall outlet.
Note: To check the current charge level of the
battery, press the
icon located at the bottom
right of the screen.
Note: You don’t need to charge the tablet for
specific length of time, and you can use the tablet
while it is charging.
Note: If the battery is completely discharged, it may
take several minutes before the tablet can be used.
Rechargeable Lithium-Ion battery
Your tablet has an internal Lithium-ion polymer
battery which should last the lifetime of the product.
If you suspect that the battery is dead, try charging
it several times and follow the steps for charging
your tablet.
• Do NOT attempt to change the battery yourself.
• CAUTION: Danger of explosion if batteries are
incorrectly replaced.
• NEVER use or charge the battery if it appears to
be leaking, discoloured, deformed or in any way
abnormal.
• NEVER expose the battery to any liquid.
• NEVER expose the battery to excessive heat
such as direct sunlight or fire.
• NEVER throw batteries in a fire or attempt to
open the outer casing.
• Batteries are harmful if swallowed, so keep
away from and out of reach of infants and young
children.
Page 8
9
Using your tablet.
Turning your tablet On
To turn your tablet on, press and hold the Power/
Sleep button and the tablet will begin to power up.
Putting your tablet into Sleep mode
To put your tablet into Sleep mode, press the Power/
Sleep button once. The screen should switch off and
your tablet will be in Sleep mode.
To wake the tablet from Sleep mode, press the
Power/Sleep button once. The screen should wake
up and display the lock-screen.
Turning your tablet Off
To turn your tablet off, press and hold the Power/
Sleep button until you are prompted with the ‘Slide
to shut down your PC’ message. Slide and drag
your finger down the screen to begin the shut down
process and turn off your tablet.
Emergency reboot
To reboot your tablet if the screen becomes
unresponsive, press and hold the Power/Sleep
button for approx. 10 seconds until the screen turns
off.
Note: Leave the tablet for 15 seconds before trying
to reboot the tablet.
Important: Avoid powering the tablet down
by using the emergency reboot wherever possible.
Always try to shut down your tablet using the correct
shut down method to avoid loss or damage to data.
Increasing and decreasing the volume
To increase the volume level on your device, press
the Volume up button. Repeatedly press the Volume
up button until the desired volume is reached.
To decrease the volume level on your device, press
the Volume down button. Repeatedly press the
Volume down button until the desired volume is
reached.
Using headphones with your tablet
You can connect headphones with a 3.5mm plug
(not included) to your tablet. The headphone socket
can be found on the device highlighted with
.
When you have headphones connected, the tablet
speakers are switched off and all sound is sent via
the headphones.
Installing a Micro SDHC/XC card
Your tablet supports Micro SDHC and SDXC cards
(not included) for additional storage of data and files.
Important: Use only compatible memory cards
approved for use with this device. Incompatible cards
may damage both the memory card and the tablet
and may corrupt data stored on the card.
To install a Micro SDHC/SDXC memory card:
1. Locate the Micro SDHC/SDXC card slot on the
tablet.
2. Insert the Micro SDHC/SDXC card into the slot,
carefully slide the memory card into the slot, pushing
gently until it clicks into place.
Note: To remove a memory card, push the memory
card gently until it clicks and the spring will push the
card out to allow you to remove it from the tablet.
Important: Do not remove a memory card
when files are currently being used by the tablet. This
may corrupt or lose the data stored on the memory
card.
Page 9
10

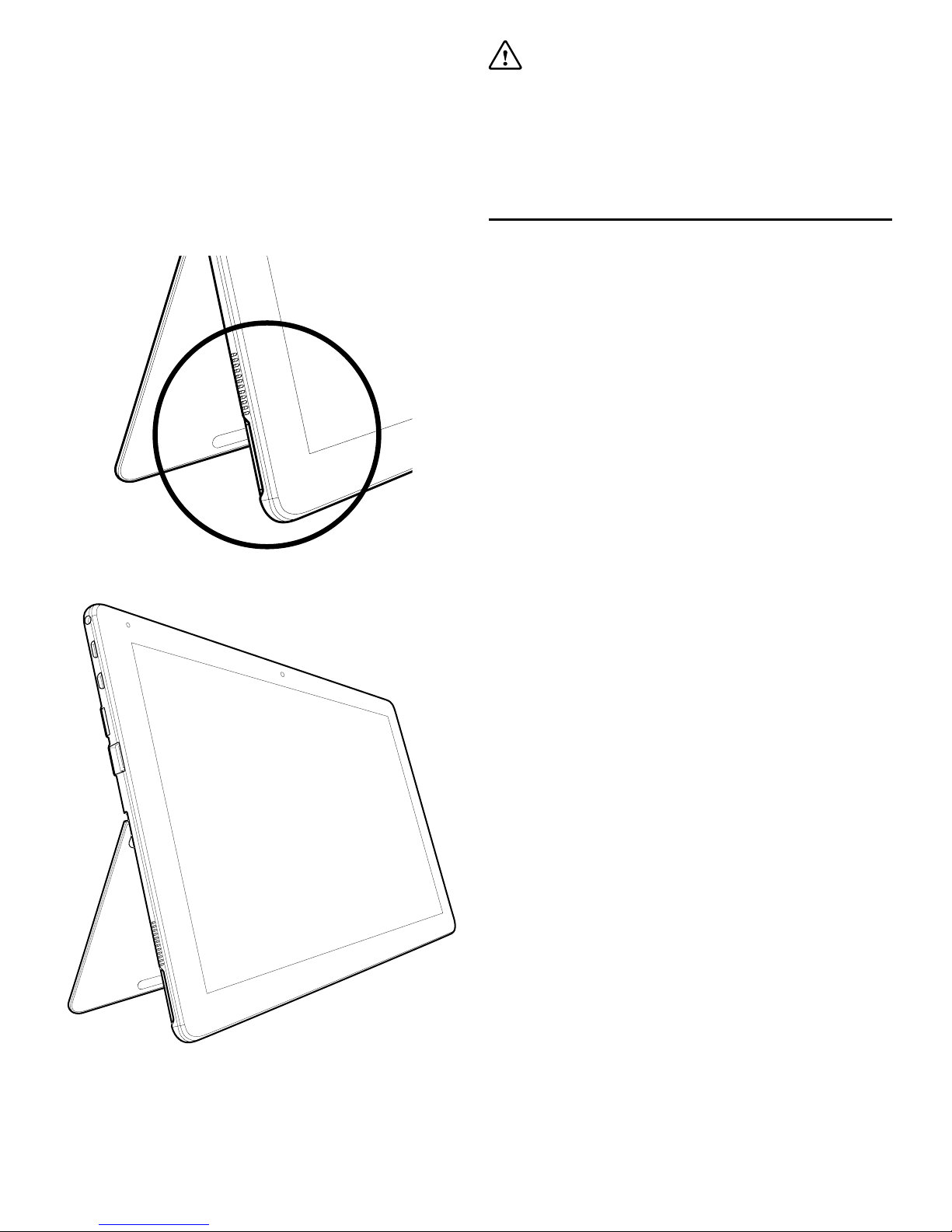

Using the kickstand
The integrated kickstand can be used to position the
tablet to a more suitable viewing angle to make using
the tablet easier.
To use the kickstand, locate the recess in the bottom
left and bottom right corners, towards the rear of the
tablet, and push or pull the tablet stand until it clicks
into the desired position.
Important: Do not use excessive force when
setting the kickstand angle or push down on the
tablet when stood using the kickstand. This may
damage the tablet and can cause the kickstand to
stop working correctly.
Using Windows 10 Home
For a quick introduction to Windows 10 Home and
up-to-date guides to help you get more from your
tablet, please visit our support page at:
support.linxtablets.com
Page 10
11
Using the Keyboard Cover
Connecting to your tablet
Important: Before connecting the tablet with
the Keyboard Cover for the first time, please turn
on your tablet and wait for the boot process to
be completed and the Windows desktop to finish
loading.
1. Place the Keyboard Cover onto a firm surface for
support when docking your tablet.

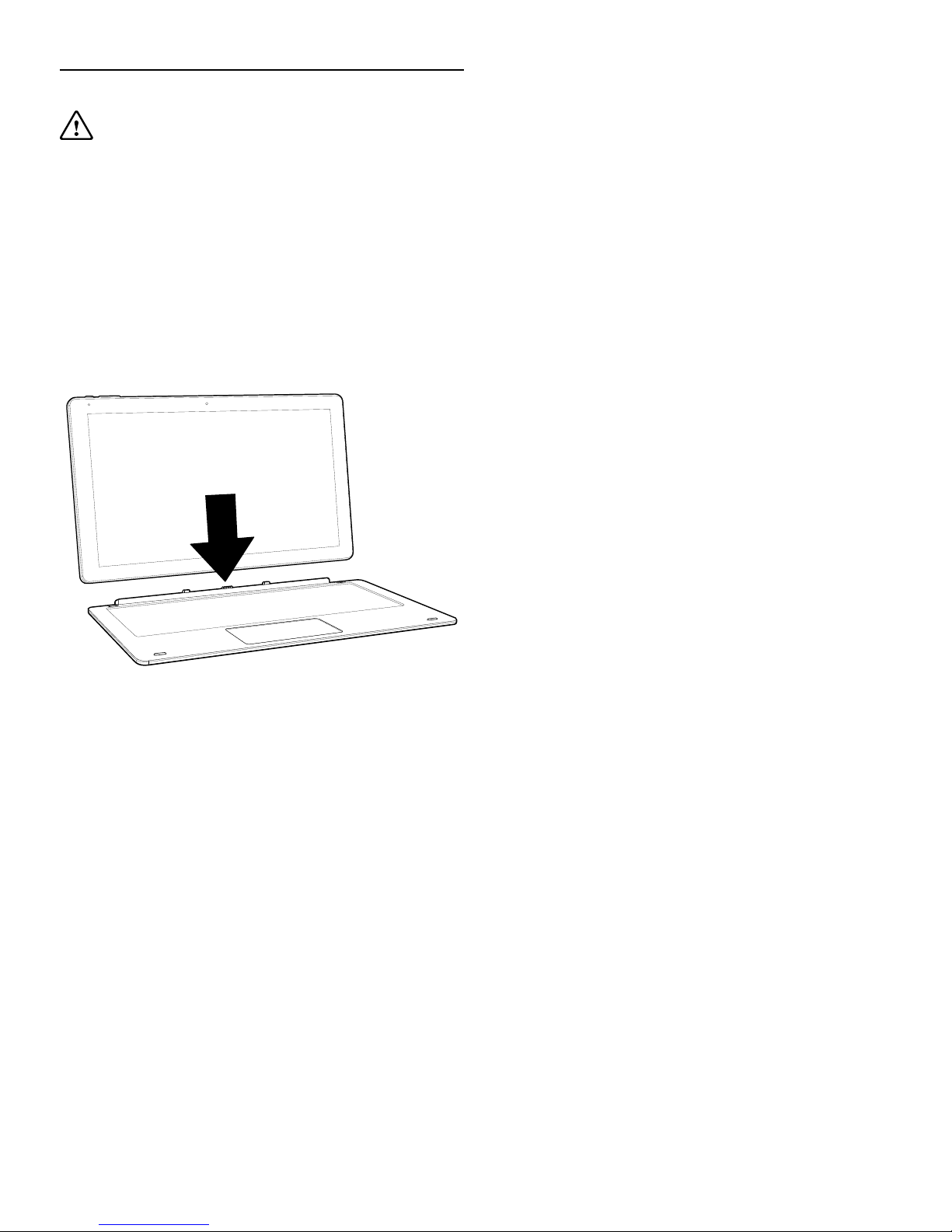

2. Connect the tablet to the Keyboard Cover by
locating the Pogo Pin connection and placing your
tablet into the docking slot.
Windows will now automatically detect the
connection and begin to set up your accessory.
Please DO NOT undock the tablet during this
process.
Note: The time taken to automatically detect and
setup the Keyboard Cover can vary depending on
the hardware configuration, number of applications
running and number of external devices connected
to the tablet. Please be patient during this process.
3. After the auto-detection and setup of the
Keyboard Cover is complete, a confirmation prompt
will display on your tablet.
Your Linx Keyboard Cover is now successfully set up
with your tablet and is ready-to-use.
Note: When you have successfully set up the
keyboard for the first time, the setup process will not
have to be run again when docking your tablet into
the keyboard, making it faster and easier to use.
Page 11
12
Using the function keys
Additional enhanced function keys provide shortcuts
to useful functions, such as volume levels
and screen brightness. To use the enhanced
functions, first press and hold the ‘Fn’ key;
then press the function key that you wish to use.
Note: The additional functions have been printed
on the keyboard in blue to provide a clear visual
difference when using the keyboard.
Note: The numerical functions require the ‘number
lock’ function to be enabled before use.
Icon
Function
Description
Key
Combination
Lock screen Fn + Esc
Mute volume Fn + F1
Volume down Fn + F2
Volume up Fn + F3
Play/Pause Fn + F4
Open web browser Fn + F5
Open email Fn + F6
Search Fn + F7
Open share function Fn + F8
Search and connect
to wireless device
Fn + F9
Settings Fn + F10
Enable/Disable
trackpad
Fn + F11
Number Lock Fn + F12
Backslash Fn + Z
Vertical bar/Pipe Fn + X
Numeral 0 (after enabling
number lock)
M
Numeral 1 (after enabling
number lock)
J
Numeral 2 (after enabling
number lock)
K
Numeral 3 (after enabling
number lock)
L
Numeral 4 (after enabling
number lock)
U
Numeral 5 (after enabling
number lock)
I
Numeral 6 (after enabling
number lock)
O
Numeral 7 (after enabling
number lock)
7
Numeral 8 (after enabling
number lock)
8
Numeral 9 (after enabling
number lock)
9
Multiply (after enabling
number lock)
0
Divide (after enabling
number lock)
P
Minus (after enabling
number lock)
:
Add (after enabling
number lock)
?
Decimal (after enabling
number lock)
>
Page 12
13
Using the touchpad

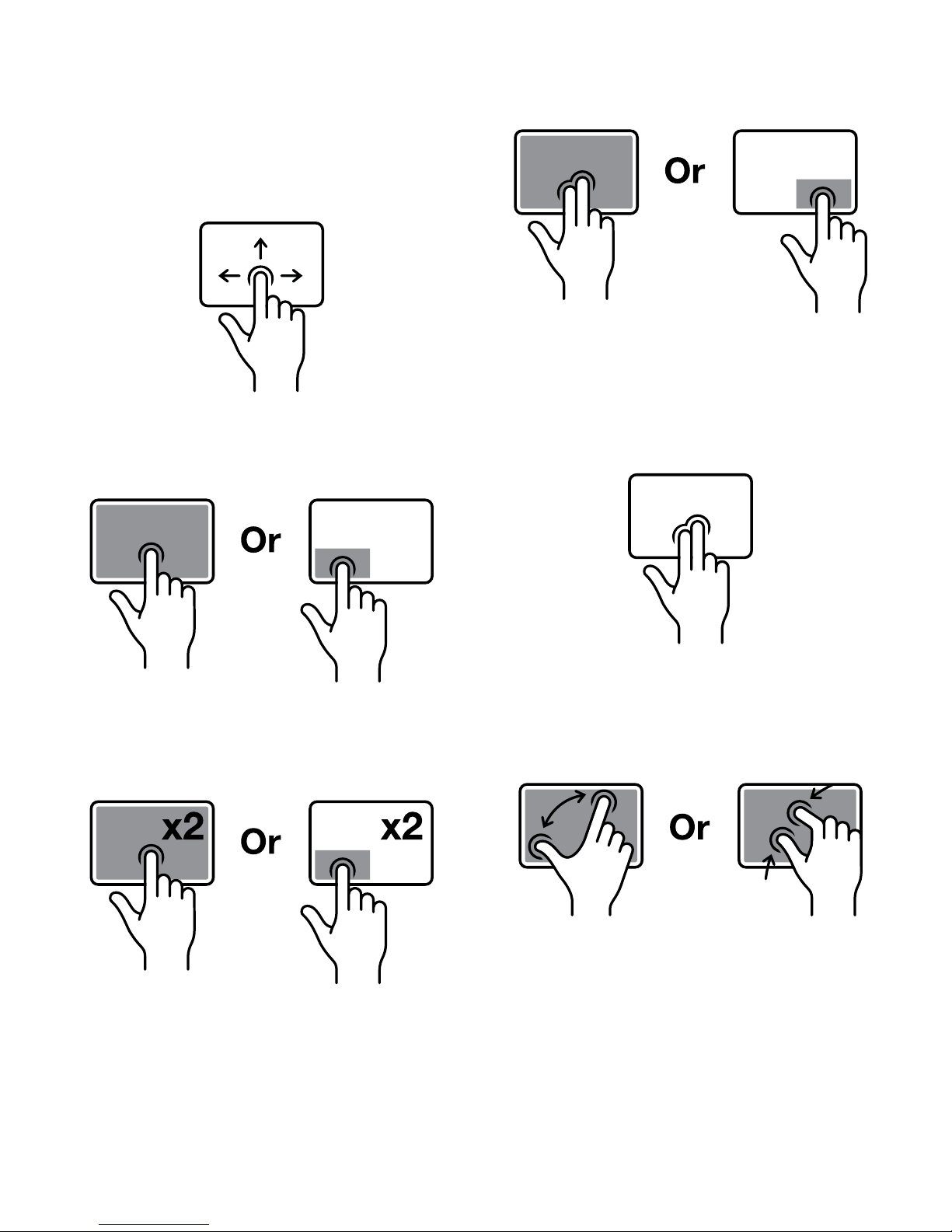

The multi-gesture touchpad allows you to navigate
Windows without the need of a mouse:
Moving
To move the cursor, move your finger around the
touchpad
Clicking
To click, tap on the touchpad once or press the
left-click button
Double-clicking
To double-click, double-tap on the touchpad or press
the left-click button twice
Right-clicking
To right-click, tap on the touchpad with two fingers
or press the right-click button
Horizontal or vertical scroll
To scroll horizontally or vertically in the same way that
a mouse wheel can be used, tap on the touchpad
with two fingers and slide either up/down or left/right
on the touchpad.
Zooming in or out
To zoom in to an image, map or part of a webpage
spread two fingers apart on the touchpad. To zoom
out, pinch two fingers together.
Page 13
14

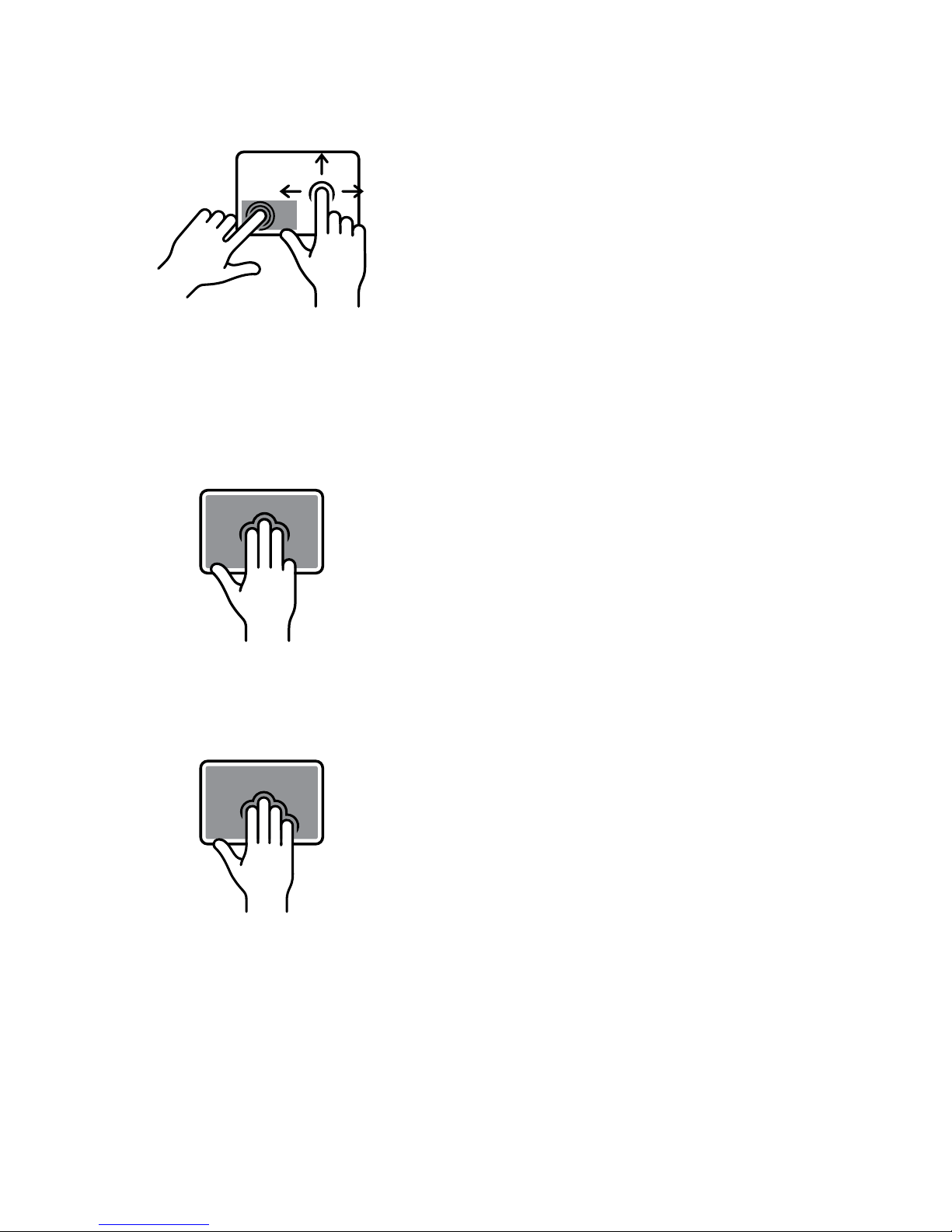

Dragging an item or icon
To move items to a new location, press and hold the
left-click button and drag to the desired location by
moving your finger around the touchpad.
Alternatively, you can double-tap and hold the item,
and then drag to the desired location.
Quickly start a search
To quickly start a search, tap on the touchpad using
three fingers.
Quickly open the action centre
To quickly open the action centre, tap on the
touchpad using four fingers.
Additional multitaksing gestures
To use the additional multitaksing gestures, use three
fingers on the touchpad to slide in from any direction.
Page 14
15
Technical information.
Tablet.
Physical Properties.
Dimensions (HWD) 314.7 × 189 × 10.7mm
Primary Orientation Landscape
Screen Size 12.5” (Diagonal)
Screen Resolution / Aspect Ratio 1920 × 1080 / 16:9
Touch Module 10-Point Capacitive Touch Panel
Battery Type Rechargeable Lithium-ion Polymer
Battery Capacity 9,000mAh / 3.7V
Battery Life Up to 5-7 Hours / Approx. (Dependent on use)
System Hardware Configuration.
CPU Type Intel
®
Atom™ x5-Z8350
Clock Speed Quad-Core, 1.44GHz - 1.92GHz, 2MB Cache
GPU Intel
®
HD Graphics (Generation 8)
RAM 4GB LPDDR3 SDRAM
ROM Flash 64GB eMMC
Camera
2.0 Megapixel (MP) CMOS (Front)
2.0 Megapixel (MP) CMOS (Rear)
Speaker(s) 2 x Built-in 8Ω / 0.8W Speakers
G-Sensor Gravity Acceleration Sensor
Microphone Built-in
Network Connections.
Wi-Fi
Wi-Fi 802.11 ac/a/b/g/n, Dual Band 2.4GHz and
5.0GHz
Bluetooth Version Bluetooth 4.0
Page 15
16
Technical information.
Interface Configuration.
Expandable Memory Slot
Supports Micro SDHC/XC up to 128GB.
Note: Some Micro SDHC/XC card capacity/speed
specifications may not be compatible.
USB
1 x Full-size USB 3.0 (Type-A)
1 x Micro USB (Type-B)
Headphone Jack 3.5mm Headphone Port
HDMI Micro HDMI 1.4
Keyboard Support
5-Pin Connector to Keyboard Cover
USB
Bluetooth
Wired / Wireless
Mouse Support
USB
Bluetooth
Wired / Wireless
Included Accessories.
Power Adaptor
Mains Charger with integrated Micro USB (5V / 2.5A)
Software Configuration.
Operating System Windows 10 Home
Note: Specifications and external appearance are subject to change without notice.
Page 16
17
Technical information.
Keyboard Cover.
Physical Properties.
Dimensions (HWD) 314 × 207 × 5mm
Keypad Format UK, QWERTY
Key Style Island-style keys
Key Lifespand More than 3 million uses per key
Touchpad Capacitive touchpad controller
Gesture Support Yes
Cradle Style Open hinge with Support Mounts
Technical Details.
Connectivity Interface 5-Pin Pogo Pin
Power
Pogo Pin : DC 5V / 0.5A (Max.)
Operating Current : 11mAh
Standby Current : 1.5mAh
Required Products.
Compatible Tablet(s) Linx 12X64 (LINX12X64/BUN)
Software Configuration.
Compatible Operating System Windows 10 Home
Note: Specifications and external appearance are subject to change without notice.
Page 17
18
Important safety information.
Your tablet should be treated with care. The information below has been provided in the
interest of safety and will help you to enjoy this product and the benefits it brings for many
years.
General use
DO NOT use or press down on the Tablet screen
with any sharp objects, they may scratch or damage
the LCD screen.
DO NOT place the Tablet on an uneven or unstable
work surface.
DO NOT use harsh chemicals, cleaning solvents or
detergents to clean the product. Wipe with a dry soft
cloth or tissue paper to clean. Disconnect the Tablet
PC from the electrical outlet and remove any installed
batteries or accessories before cleaning.
DO NOT shove any foreign objects into the Tablet.
DO NOT attempt to open the product. This product
does not contain any user serviceable parts.
Unauthorised handling of the device may damage it
and will void your warranty.
DO NOT expose the Tablet to strong magnetic or
electrical fields.
NEVER use your Tablet, and always disconnect
your Tablet from the mains power supply, during an
electrical storm.
DO NOT expose the Tablet to direct sunlight, or
leave the Tablet facing the sun for long periods of
time as it can damage the LCD Screen.
SAFE TEMP: This Tablet should only be used in
environments with ambient temperatures between
0°C and 40°C
The underneath and sides of the product may
become warm after a long period of use. This is
normal.
CAUTION: This Tablet has some metal parts to
disperse heat.
DO NOT block or cover slots, holes or openings
on the product by placing on soft furnishings such
as carpets, rugs or beds as these are provided
for functionality and/or ventilation to ensure safe
operation of the product.
DO NOT leave it in low temperatures as moisture
can form inside the product, which may damage the
circuit board.
DO NOT leave it in high temperatures as electronic
devices and plastic parts may warp in heat.
DO NOT leave the Tablet on your lap or any part of
the body in order to prevent discomfort or injury from
heat exposure.
INPUT RATING: Refer to the rating label on the
Tablet and be sure that the Power Adapter complies
with the rating. Only use the Power Adaptor that
came with the product. Using an unauthorised
power supply will invalidate your warranty and may
irrecoverably damage the product.
CAUTION: When the Power Adaptor or an
appliance coupler is used and then disconnected,
the Tablet shall remain with an electronic charge until
power is drained.
Check the connections between any accessories
and the Tablet before turning on.
DO NOT insert anything into the Tablet PC that may
result in short circuit or damage the circuit.
Page 18
19
Recycling
Always return your used electronic products,
batteries, and packaging materials to dedicated
collection points. This way you help to prevent
uncontrolled waste disposal and promote the
recycling of materials. All materials of the device can
be recovered as material and energy.
DO NOT throw the Tablet in municipal waste. Check
local regulations for disposal of electronic products.
Disposal of Waste Electrical & Electronic
Equipment (WEEE)
This symbol on the product or on its packaging
indicates that this product should not be treated
as household waste. Instead it should be handed
over to a suitable collection point for the recycling of
electrical and electronic equipment. By ensuring this
product is disposed of correctly, you will help prevent
potential negative consequences for the environment
and human health, which could otherwise be caused
by inappropriate waste handling of this product. The
recycling of materials will help to conserve natural
resources. For more information about the recycling
of this product, please contact your local council
office, your household waste disposal service or the
shop where you purchased the product.
Digital Rights Management
When using this device, obey all laws and respect
local customs, privacy and legitimate rights of others,
including copyrights. Copyright protection may
prevent you from copying, modifying, or transferring
photos, music, and other content.
Rechargeable Lithium-Ion battery
This device has an internal, non-removable,
rechargeable Lithium-ion polymer battery. Do not
attempt to open the back cover or remove the
battery, as you may damage the device. To replace
the battery, take the device to the nearest authorised
service facility.
Only use the power supply that came with the
product. Using an unauthorised power supply could
invalidate your guarantee and may irrecoverably
damage the product.
The battery can be charged and discharged
hundreds of times, but it will eventually wear out.
When battery life is noticeably shorter than normal,
to replace the battery, take the device to the nearest
authorised service facility.
CAUTION: Risk of explosion if battery is replaced
by an incorrect type. Dispose of used batteries
according to the instructions.
Battery and charger safety
To unplug a charger or an accessory, hold and pull
the plug, not the cord.
When your charger is not in use, unplug it.
If your Tablet is left unused on standby, a fully
charged battery will still lose its charge over time.
The Tablet internal battery operates best at
temperatures between 59°F and 77°F (15°C and
25°C). Extreme temperatures reduce the capacity
and lifetime of the battery. A device with a hot or cold
battery may not work temporarily.
Do not dispose of batteries in a fire as they may
explode. Obey local regulations. Recycle when
possible. Do not dispose as household garbage.
Do not dismantle, cut, crush, bend, puncture, or
otherwise damage the battery in any way. If a battery
leaks, do not let liquid touch skin or eyes. If this
happens, immediately flush the affected areas with
water, or seek medical help.
Small children
Your device and its accessories are not toys. They
may contain small parts. Keep them out of the reach
of small children.
Page 19
20
Medical devices
Operation of radio transmitting equipment, including
wireless phones, may interfere with inadequately
shielded medical devices’ function. Consult a
physician or the medical device’s manufacturer to
determine if it is adequately shielded from external
radio energy.
Implanted medical devices
To avoid potential interference, manufacturers of
implanted medical devices recommend a minimum
separation of 6 inches (15.3 centimeters) between a
wireless device and the medical device. Persons who
have such devices should:
• Always keep the wireless device more than
6 inches (15.3 centimeters) from the medical
device.
• Turn the wireless device off if there is any reason
to suspect that interference is taking place.
• Follow the manufacturer directions for the
implanted medical device.
If you have any questions about using your wireless
device with an implanted medical device, consult
your health care provider.
Hearing
Warning: When you use a headset or
earphones, your ability to hear outside sounds may
be affected. Do not use the headset where it can
endanger your safety.
To prevent possible hearing damage, do not listen
to audio at high volume levels for extended periods
of time.
Page 20
21
Warranty.
For the purpose of this warranty, references
to “Supplier” mean Exertis (UK) Limited who
is the supplier of the warranty; references to
“Tablet” mean the tablet which this Warranty
accompanies, the details of which appear at
the end of this document; references to “You”
and “Your” means you the owner/purchaser of
the Tablet.
Supplier warrants to You that this product will be free
from defects in materials and workmanship in the
course of normal use for a period of 12 months (or 6
months for batteries) from the date of purchase. This
guarantee covers breakdowns due to manufacturing
or design faults. If a genuine fault is found that is
covered under this warranty, Supplier ‘s obligation
shall be to repair or replace the Tablet or any
components free of charge to You.
The guarantee is subject to the following provisions:
• The warranty does not cover accidental damage,
however caused, wear and tear, or negligence.
• The Tablet must be solely used for domestic
purposes.
• The warranty will be rendered invalid if the
product is re-sold or is damaged through any
adjustment, modification or repair not authorised
by Supplier or its Authorised Service Centres.
• Specifications of both Tablet and warranty terms
are subject to change without prior notice.
• Supplier makes no warranty or representation
to any pre-installed software, its quality and
performance, or that the operation of the software
will be uninterrupted or error free.
• Supplier will not be liable for damage to, or
loss, of data stored on the Tablet. It is Your
responsibility to make a full backup of your data.
• Supplier will not be responsible for loss of, or
damage to, additional accessories such as
removable storage media.
• The Supplier disclaims any liability for the
incidental or consequential damages.
• The warranty is in addition to and does not
diminish your statutory or legal right.
In the unlikely event of experiencing any anomalies
with Your Tablet, please visit our support website at
support.linxtablets.com for further guidance.
Supplier:
Exertis (UK) Limited,
Shorton Brook Way,
Altham Business Park,
Altham,
Accrington,
Lancashire.
BB5 5YJ
Trademarks
Linx, the Linx logo, Exertis, and the Exertis logo are
trademarks or registered trademarks of Exertis (UK)
Limited.
December 2016/Issue No. 3
Page 21
24
Loading...
