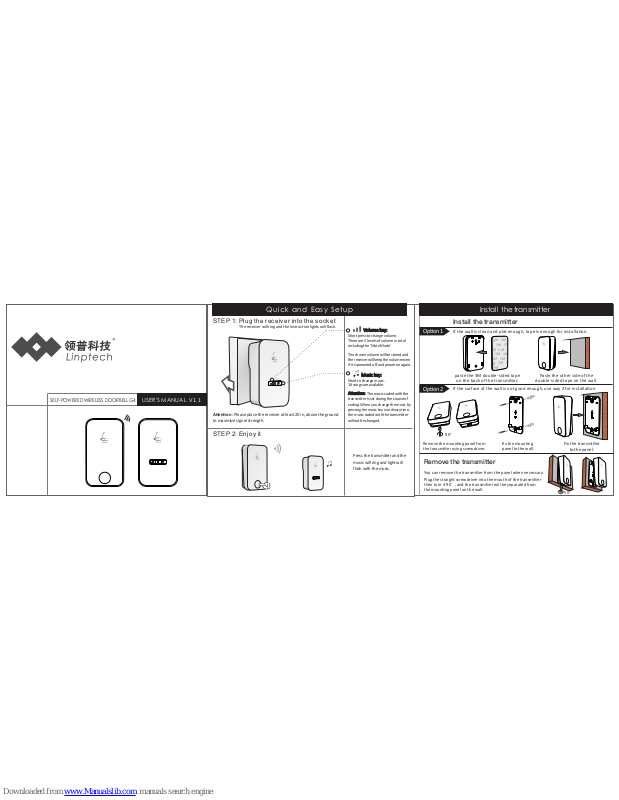

Linptech G4 User Manual

Remove the transmitter

3

M

3

M

3M

3

M

M

3

M

3

M

3M

3

M

3M

3

M

3M

3

M

V1. 1

USER 'S MANUA L

STEP 1: Plug t he rece ive r in to th e so cke t

Aenon : Please place the receiver at least 20 in, above the ground
to maximize signal strength.

Quick a nd Easy S etup

Install the transmitter

SELF-POWERED WIRELESS DOORBELL G4

Short press to change volume.
There are 5 levels of volume in total
including the ‘Mute Mode’

The chosen volume will be stored and

the receiver will keep the volume even
if it is powered off and power on again.

Attention: The music coded with the

transmitter is set during the course of

coding. When you change the music by

pressing the music key in ordinary time,

the music coded with the transmitter

will not be changed.

STEP 2: Enjo y it

Opon 1

Opon 2

If the w all is cl ean and p lat eno ugh, ta pe is eno ugh for in stall aon.

If the s urfac e of the wa ll is not go od enou gh, use w ay 2 for ins talla on

Press the transmitter and the

music will ring and light will

flash with the music.

past e the 3M do uble- sided t ape

on the b ack of th e trans mier.

Paste t he othe r side of t he

doub le-si ded tap e on the wa ll.

Remove the mounng pane l from
the transmier usin g screwdriver.

Fix the transmier

to the panel.

You can remove the transmier from the panel when nec essary.

Plug the straight screwdr iver into the mouth of the transmier
then turn it 90°,and the transm ier will be separated from
the mounng panel on the wall .

The receiver will ring and the instruction lights will flash.

90°

fix the mounng
panel to the wall.

Install the transmitter

Volume key:

90°

Music key:
Short to change music.
16 songs are available.

Repe at press ing the m usic ke y

to cho ose mus ic unti l you fin d your favo rite mu sic.

Press the volume key or the music key constant ly for at least 3
seconds, the light wi ll flash. (It shows that the receiver has ente red into
the coding mode and it is waitin g for your pressing the transmitter.)
Till now, you can release the key of the receiver.

The 1 st step:
Cho ose the m usic.

The 2 nd step:

Ente r codin g

mod el

The 3 rd step:

Jus t press th e

tran smie r.

The coding has been done before the doo rbell out of the factory. You can use it directly without
coding. Coding is need ed only when you add transmier or change transm ier. Through coding,
one transmier can match with seve ral receivers or several transmiers can match one rece iver.

83m m*48m m*23. 5mm

59

At this time:

if you still need to change music, you can press the music key to change music.
If you want to quit the coding course, you can press the volume key.
If no action is done within 30 seconds, the receiver will quit the mode of coding.

At this time, the music that has been ch osen by you will ring,
it means successf ul coding.

After this, when you press the transmitter, the music that has been
chosen by you will ring . Every time you press the transmitter , the
music will be the same one, even after sudden power-off.

Press the music key or the volume key constant ly at least seconds, until the light fl ashes times. 10 4
All the transmitters con nected with the receiver will be remove d. At this time, if you press the
transmitter, the receiver wil l not react.

83m m*46m m*20m m

45
