Linpa Technology LBS26 User Manual

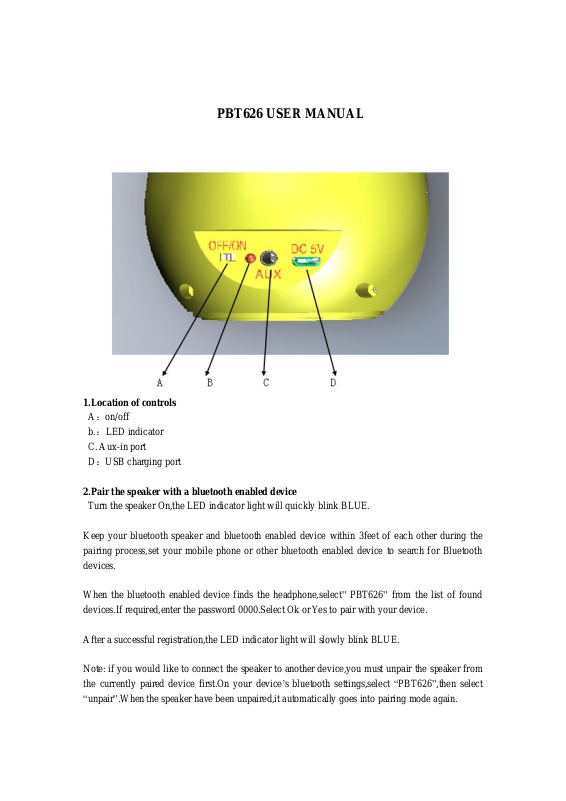

PBT626 USER MANUAL

1.Location of controls

A：on/off
b.：LED indicator
C. Aux-in port
D：USB charging port

2.Pair the speaker with a bluetooth enabled device

Turn the speaker On,the LED indicator light will quickly blink BLUE.

Keep your bluetooth speaker and bluetooth enabled device within 3feet of each other during the
pairing process,set your mobile phone or other bluetooth enabled device to search for Bluetooth
devices.

When the bluetooth enabled device finds the headphone,select” PBT626” from the list of found
devices.If required,enter the password 0000.Select Ok or Yes to pair with your device.

After a successful registration,the LED indicator light will slowly blink BLUE.

Note: if you would like to connect the speaker to another device,you must unpair the speaker from
the currently paired device first.On your device’s bluetooth settings,select “PBT626”,then select
“unpair”.When the speaker have been unpaired,it automatically goes into pairing mode again.

3.Aux-in

Insert the audio cable into Aux-in port,the device automatically goes into Aux mode

4.Charging the bluetooth speaker
Connect the small end of the Micro USB cable to the charging port on the speaker Connect the
large end of the Micro USB cable to your computer’s USB port or an AC adaptor(not included).
The LED indicator light turns RED when charging.It will turn off when fully charged.

FCC ID warning statement

This equipment has been tested and found to comply with the limits for a Class B digital device,
pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection
against harmful interference in a residential installation. This equipment generates, uses and can
radiate radio frequency energy and, if not installed and used in accordance with the instructions,
may cause harmful interference to radio communications. However, there is no guarantee that
interference will not occur in a particular installation. If this equipment does cause harmful
interference to radio or television reception, which can be determined by turning the equipment off
and on, the user is encouraged to try to correct the interference by one or more of the following
measures:

• Reorient or relocate the receiving antenna.

• Increase the separation between the equipment and receiver.

• Connect the equipment into an outlet on a circuit different from that to which the receiver is

connected.

• Consult the dealer or an experienced radio/TV technician for help.

Caution: Any changes or modifications to this device not explicitly approved by manufacturer

could void your authority to operate this equipment.

This device complies with part 15 of the FCC Rules. Operation is subject to the following two
conditions: (1) This device may not cause harmful interference, and (2) this device must accept any
interference received, including interference that may cause undesired operation.
