Linpa Technology LBS138 User Manual

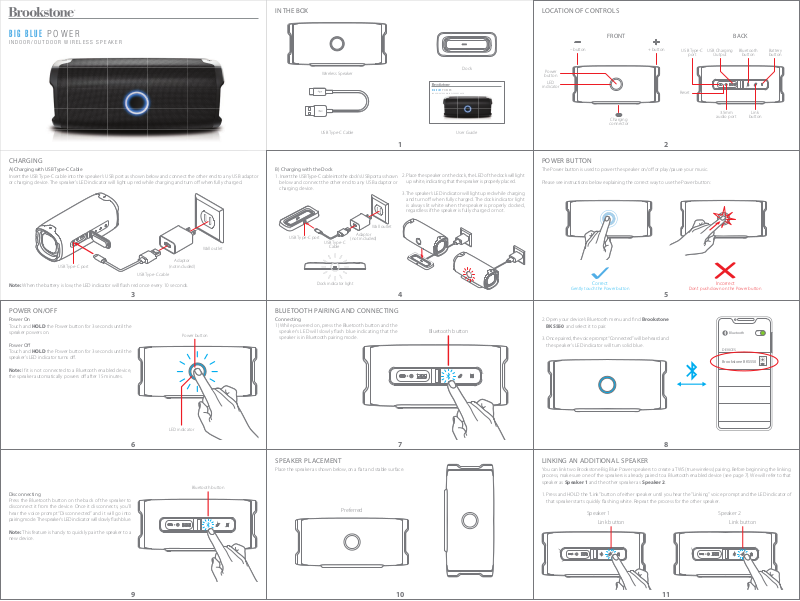

IN THE BOX LOCATION OF CONTROLS
BIG BLUE POWER
INDOOR/OUTDOOR WIRELESS SPEAKER
CHARGING
A) Charging with USB Type-C Cable
Insert the USB Type-C cable into the speaker’s USB port as shown below and connect the other end to any USB adaptor
or charging device. The speaker’s LED indicator will light up red while charging and turn off when fully charged.
Wireless Speaker
USB Type-C Cable User Guide
B) Charging with the Dock
1. Insert the USB Type-C cable into the dock's USB port as shown
below and connect the other end to any USB adaptor or
charging device.
FRONT
– button + button
BIG BLUE
POWER
INDOOR/OUTDOOR WIRELESS SPEAKER
Dock
Power
button
LED
indicator
Charging
connector
1 2
POWER BUTTON
The Power button is used to power the speaker on/off or play/pause your music.
2. Place the speaker on the dock, the LED of the dock will light
up white, indicating that the speaker is properly placed.
3. The speaker’s LED indicator will light up red while charging
and turn off when fully charged. The dock indicator light
is always lit white when the speaker is properly docked,
regardless if the speaker is fully charged or not.
Please see instructions below explaining the correct way to use the Power button:
USB Type-C
port
Reset
USB Charging
Output
3.5mm
audio port
BACK
Bluetooth
button
Link
button
Battery
button
Adaptor
USB Type-C port
USB Type-C cable
(not included)
Note: When the battery is low, the LED indicator will flash red once every 10 seconds.
3 4 5
POWER ON/OFF
Power On
Touch and HOLD the Power button for 3 seconds until the
speaker powers on.
Power O
Touch and HOLD the Power button for 3 seconds until the
speaker’s LED indicator turns off.
Note: If it is not connected to a Bluetooth enabled device,
the speaker automatically powers off after 15 minutes.
Power button
Wall outlet
Wall outlet
USB Type-C port
USB Type-C
Cable
Dock indicator light
Adaptor
(not included)
BLUETOOTH PAIRING AND CONNECTING
Connecting
1) While powered on, press the Bluetooth button and the
speaker’s LED will slowly flash blue indicating that the
speaker is in Bluetooth pairing mode.
Bluetooth button
Gently touch the Power button
Correct
2. Open your device’s Bluetooth menu and find Brookstone
BKS550 and select it to pair.
3. Once paired, the voice prompt “Connected” will be heard and
the speaker’s LED indicator will turn solid blue.
Don’t push down on the Power button
Incorrect
Bluetooth
DEVICES
Brookstone BKS550
Disconnecting
Press the Bluetooth button on the back of the speaker to
disconnect it from the device. Once it disconnects, you’ll
hear the voice prompt “Disconnected” and it will go into
pairing mode. The speaker’s LED indicator will slowly flash blue.
Note: This feature is handy to quickly pair the speaker to a
new device.
LED indicator
6 7 8
SPEAKER PLACEMENT
Place the speaker as shown below, on a flat and stable surface.
Bluetooth button
Preferred
LINKING AN ADDITIONAL SPEAKER
You can link two Brookstone Big Blue Power speakers to create a TWS (true wireless) pairing. Before beginning the linking
process, make sure one of the speakers is already paired to a Bluetooth enabled device (see page 7). We will refer to that
speaker as Speaker 1 and the other speaker as Speaker 2.
1. Press and HOLD the “Link” button of either speaker until you hear the "Linking" voice prompt and the LED indicator of
that speaker starts quickly flashing white. Repeat the process for the other speaker.
Speaker 1
Link button
9 10 11
Speaker 2
Link button
2. Once the speakers are linked, you'll hear the "Speaker Linked" voice prompt and the LED indicator of Speaker 1 will turn
solid blue while Speaker 2 will be solid white.
Unlinking the speakers
Press the "Link" button of either speaker to unlink them. The
LED indicator of Speaker 1 will remain solid blue while
Speaker 2 will slowly flash white.
Link button
BATTERY INDICATOR
Battery button
Press the battery button on the back of the speaker to
know the current battery level.
Battery 25%
Speaker 1 Speaker 2
The additional speaker that is linked to the main speaker.The main speaker that is connected to a Bluetooth
enabled device and which is used as the audio source.
Note: When the speakers are linked, right and left channels are created for a true stereo experience.
12 13 14
POWER BANK
While on the go, use the Big Blue Power speaker as a power bank.
Use the “USB Charging Output” port as shown below to charge your devices.
Disconnect a device from linked speakers
Press the "Bluetooth" button of Speaker 1 and you will hear
Bluetooth button
the voice prompt "Disconnected" and the LED indicator of
that speaker will slowly flash blue. You can now connect that
speaker to another device.
WATERPROOF RATING – IPX7 FCC INFORMATION
• This speaker has an ingress protection rating of 7 (IPX7). This means it can be completely submerged in water for up to
30 minutes at a depth of 1 meter.
• The protective rubber seal needs to completely cover the speaker’s input panel to protect it from water damage.
• Dry the speaker off completely before charging or using the AUX inputs.
• Do NOT charge near sources of water or wet areas.
BEFOR EXPOSING TO WATER:
• REMOVE ALL CABLES CONNECTED TO THE SPEAKER
• MAKE SURE THE PORTS COVER IS SEALED TIGHTLY
• DO NOT EXPOSE TO WATER WHILE CHARGING
This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause
harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired
operation.
Warning: Changes or modications to this unit not expressly approved by the party responsible for compliance could void the
user's authority to operate the equipment.
NOTE: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the
FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This
equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions,
may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular
installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning
the equipment o and on, the user is encouraged to try to correct the interference by one or more of the following measures:
• Reorient or relocate the receiving antenna.
• Increase the separation between the equipment and receiver.
• Connect the equipment into an outlet on a circuit dierent from that to which the receiver is connected.
• Consult the dealer or an experienced radio/ TV technician for help
15 16 17
LITHIUM POLYMER BATTERY WARNINGS
This device contains a non-removable Lithium-Polymer battery. The battery must be recycled or
disposed of properly. Contact your local waste management oce for information on battery
recycling or disposal.
Rating Label Denitions
Direct current symbol.
This symbol signies the product must not be discarded as household waste, and should be delivered to an appropriate
collection facility for recycling. Proper disposal and recycling helps protect natural resources, human health and the
environment.
This symbol signies and declares that this equipment has battery charging which complies with California CEC and
energy eciency.
This symbol signies that this is a wireless device powered by Bluetooth® technology. The Bluetooth® word mark and
logos are registered trademarks owned by Bluetooth SIG, Inc., used under license.
18 19
LIMITED WARRANTY
1-Year Limited Warranty Territory: United States/Canada
LIMITED WARRANTY TO ORIGINAL CONSUMER
This product (including any accessories included in the original packaging) as supplied and distributed new by an authorized retailer is
warranted by Southern Telecom, Inc. to the original consumer purchaser against defects in materials and workmanship (“Warranty”) as
follows:
To obtain warranty service:
• Visit our website at www.southerntelecom.com
• Click on Product Support
• Select the Brand of your device
• Select Service Request and fill out the form to begin your inquiry
Or call the Customer Support number below:
1-877-668-4839 (Toll Free)
Monday - Friday: 8AM - 10PM (EST)
Your product will be repaired or replaced, at our option, for the same or similar model of equal value if examination by the service
center determines this product is defective. Products received damaged as a result of shipping will require you to file a claim with the carrier.
Warranty service not provided
This warranty does not cover damage resulting from accident, misuse, abuse, improper installation or operation, lack of reasonable
Information Regarding Exposure to Radio Frequency Energy
Your device is designed and manufactured not to exceed the emission limits for exposure to RF energy set by the Federal Communications
Commission of the United States (FCC). Information on your Device is on le with the FCC and can be found under the Display Grant
section of http://www.fcc.gov/oet/ea/ after searching on the FCC ID for your Device, which can be found on the back of the Device.
care, unauthorized modification including software modifications such as the installation of custom firmware. This warranty is voided in
the event any unauthorized person opens, alters or repairs this product. All products being returned to the authorized service center
for repair must be suitably packaged.
NO WARRANTIES, WHETHER EXPRESS OR IMPLIED, INCLUDING, BUT NOT LIMITED TO, ANY IMPLIED WARRANTIES OF MERCHANTABILITY OR FITNESS FOR A PARTICULAR PURPOSE, OTHER THAN THOSE EXPRESSLY DESCRIBED ABOVE SHALL APPLY. DISTRIBUTOR
FURTHER DISCLAIMS ALL WARRANTIES AFTER THE EXPRESS WARRANTY PERIOD STATED ABOVE. NO OTHER EXPRESS WARRANTY OR
GUARANTY GIVEN BY ANY PERSON, FIRM OR ENTITY WITH RESPECT TO THE PRODUCT SHALL BE BINDING ON DISTRIBUTOR. REPAIR,
REPLACEMENT, OR REFUND OF THE ORIGINAL PURCHASE PRICE - AT DISTRIBUTOR’S SOLE DISCRETION - ARE THE EXCLUSIVE REMEDIES OF THE
CONSUMER. IN NO EVENT WILL DISTRIBUTOR OR ITS MANUFACTURERS BE LIABLE FOR ANY INCIDENTAL, DIRECT, INDIRECT, SPECIAL,
PUNITIVE OR CONSEQUENTIAL DAMAGES (SUCH AS, BUT NOT LIMITED TO, DAMAGES FOR LOSS OF PROFITS, BUSINESS, SAVINGS, DATA
OR RECORDS) CAUSED BY THE USE, MISUSE OR INABILITY TO USE THE PRODUCT. EXCEPT AS STATED HEREIN, NO OTHER WARRANTIES
SHALL APPLY. NOTWITHSTANDING THE FOREGOING, CONSUMER’S RECOVERY AGAINST DISTRIBUTOR SHALL NOT EXCEED THE
PURCHASE PRICE OF THE PRODUCT SOLD BY DISTRIBUTOR. THIS WARRANTY SHALL NOT EXTEND TO ANYONE OTHER THAN THE
ORIGINAL CONSUMER WHO PURCHASED THE PRODUCT AND IS NOT TRANSFERABLE.
Some countries, states or provinces do not allow the exclusion or limitation of incidental or consequential damages or allow limitations
on warranties, so limitation or exclusions may not apply to you. This warranty gives you specific legal rights, and you may have other
rights that vary from state to state or province to province. Contact your authorized retailer to determine if another warranty applies.
All product names, trademarks, and registered trademarks are property of their respective owners. All company, product, and service
names used in this document are for identification purposes only. Use of these names, trademarks, and brands does not imply
endorsement.
20
The Bluetooth® word mark and logos are registered trademarks owned by Bluetooth SIG, Inc., used under license.
Brookstone® trademark, name and logos are trademarks of BKST Brand Holdings LLC and used under license. Manufactured and
Marked by Southern Telecom, Inc. under license.
Southern Telecom, Inc.
Brooklyn, NY 11220
Model: BKS550
Printed in China
v1.0 08-2019
FCC Statement
This device complies with part 15 of the FCC rules. Operation is subject to the following two conditions: (1) this device may not
cause harmful interference, and (2) this device must accept any interference received, including interference that may cause
undesired operation.
Changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to
operate the equipment.
NOTE: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of
the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation.
This equipment generates uses and can radiate radio frequency energy and, if not installed and used in accordance with the
instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not
occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be
determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the
following measures:
•Reorient or relocate the receiving antenna.
•Increase the separation between the equipment and receiver.
•Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.
•Consult the dealer or an experienced radio/TV technician for help.
The device has been evaluated to meet general RF exposure requirement. The device can be used in portable exposure
condition without restriction.
