Linpa Technology LBS137 User Manual

BSSK9015 draft user manual

Built-in Mic

Bluetooth Button

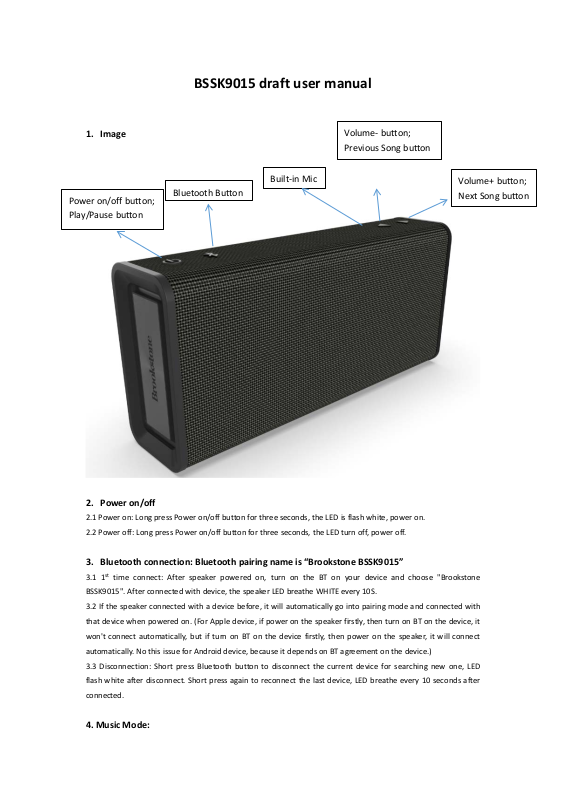

1. Image

Power on/off button;

Play/Pause button

Volume- button;

Previous Song button

Volume+ button;

Next Song button

2. Power on/off

2.1 Power on: Long press Power on/off button for three seconds, the LED is flash white, power on.

2.2 Power off: Long press Power on/off button for three seconds, the LED turn off, power off.

3. Bluetooth connection: Bluetooth pairing name is “Brookstone BSSK9015”

3.1 1st time connect: After speaker powered on, turn on the BT on your device and choose "Brookstone

BSSK9015". After connected with device, the speaker LED breathe WHITE every 10S.

3.2 If the speaker connected with a device before, it will automatically go into pairing mode and connected with

that device when powered on. (For Apple device, if power on the speaker firstly, then turn on BT on the device, it

won't connect automatically, but if turn on BT on the device firstly, then power on the speaker, it will connect

automatically. No this issue for Android device, because it depends on BT agreement on the device.)

3.3 Disconnection: Short press Bluetooth button to disconnect the current device for searching new one, LED

flash white after disconnect. Short press again to reconnect the last device, LED breathe every 10 seconds after

connected.

4. Music Mode:

4.1 Music play/ pause: short press Play/Pause button to play/pause the music.

4.2 Next/previous song: long press 1s Next Song button to the next song, long press 1s Previous Song button to

the previous song.

4.3 Volume+/-: short press Volume+ button to increase the volume, short press Volume- button to decrease the

volume.

5. Talking Mode:

5.1 Short press power on/off button to answer incoming call, short press power on/off button to end a call.

5.2 When a call coming, long press 1s power on/off button to refuse a call.

6. Siri:

Short press power on/off button twice to start Siri function.

7. Battery:

When voltage is below 3.4V (playtime around 30min, low battery alarm then every 5 minutes a reminder);

The LED is Solid red (solid red& breathing white when working and charging) when charging speakers;

Fully charged the Red LED is off.

8. TWS function:

8.1 Power on/off:

8.1.1 Power on: Long press Power on/off button for three seconds on both speakers, the LED is flash white,

power on.

8.1.2 Power off: Long press Power on/off button for three seconds on either speaker, both speakers turn off.

8.2 TWS pairing mode:

8.2.1 Powering on the speakers without paired with any device.

8.2.2 Pressing and holding Bluetooth button of the two speakers for 1 second until the LED indicators flash red

and white, and a tone 1 will be heard.

8.2.3 After pairing successfully, a tone will be heard, the main speaker flashes white, the other breath WHITE

every 10S.

8.3 Disconnect TWS: Short press Bluetooth button twice on either speaker, the main speaker keeps playing and

LED breathe white every 10s, the other one goes into to the pairing mode, ready for pairing and LED is flash

white.

8.4 Bluetooth connection mode:

8.4.1 1st time connect: When TWS is ready to pair device, turn on the BT on your device and choose

"Brookstone BSSK9015". After connected with device, both 2 speakers breath WHITE every 10S. The main speaker

will act as left channel and the other as right channel.

8.4.2 If the speaker connected with a device before: it will automatically go into pairing mode and connected

with that device when powered on. (For Apple device, if power on the speaker firstly, then turn on BT on the
