Linpa Technology LBS10 User Manual

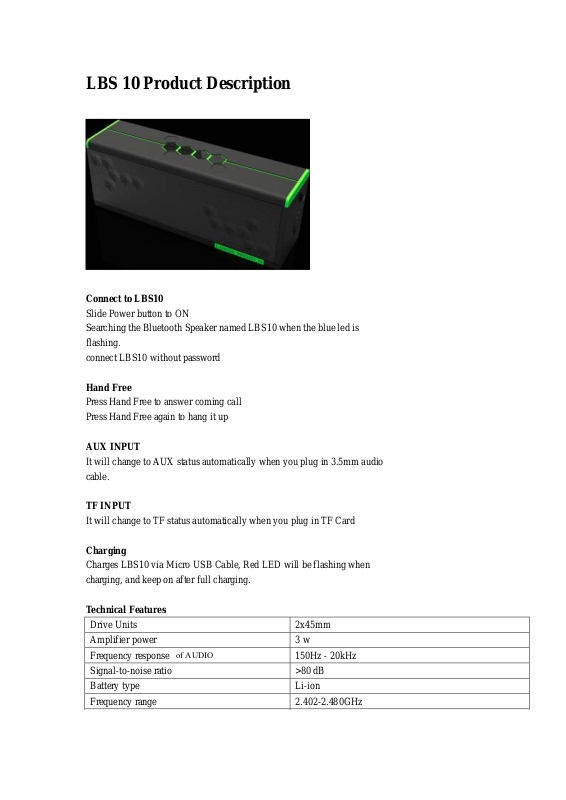

LBS 10 Product Description
of AUDIO
Connect to LBS10
Slide Power button to ON Searching the Bluetooth Speaker named LBS10 when the blue led is flashing. connect LBS10 without password
Hand Free
AUX INPUT
It will change to AUX status automatically when you plug in 3.5mm audio cable.
TF INPUT
It will change to TF status automatically when you plug in TF Card
Charging
Charges LBS10 via Micro USB Cable, Red LED will be flashing when charging, and keep on after full charging.
Technical Features
Drive Units 2x45mm Amplifier power 3 w Frequency response 150Hz - 20kHz Signal-to-noise ratio >80 dB Battery type Li-ion Frequency range 2.402-2.480GHz Transmitter power 0-4dBm
Transmitter modulation GFSK Working time >5 hours @ 0.2W Battery capacity 600mah Battery charge time 2 hours Dimensions (L x W x H) 155x47x42mm
Operation Instruction
FCC Warning Statement
FCC Statement This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation .
Changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate the equipment. NOTE: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures:
-- Reorient or relocate the receiving antenna.
-- Increase the separation between the equipment and receiver.
-- Connect the equipment into an outlet on a circuit different from that to which the receiver is
