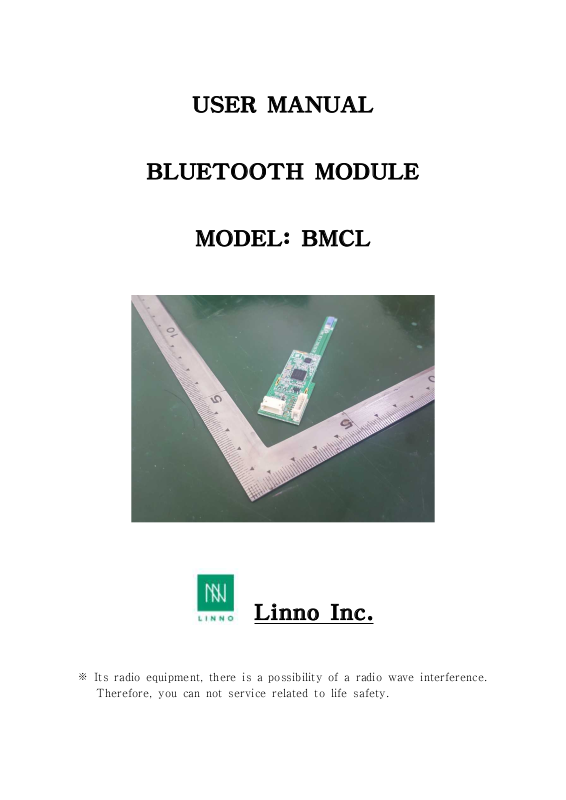

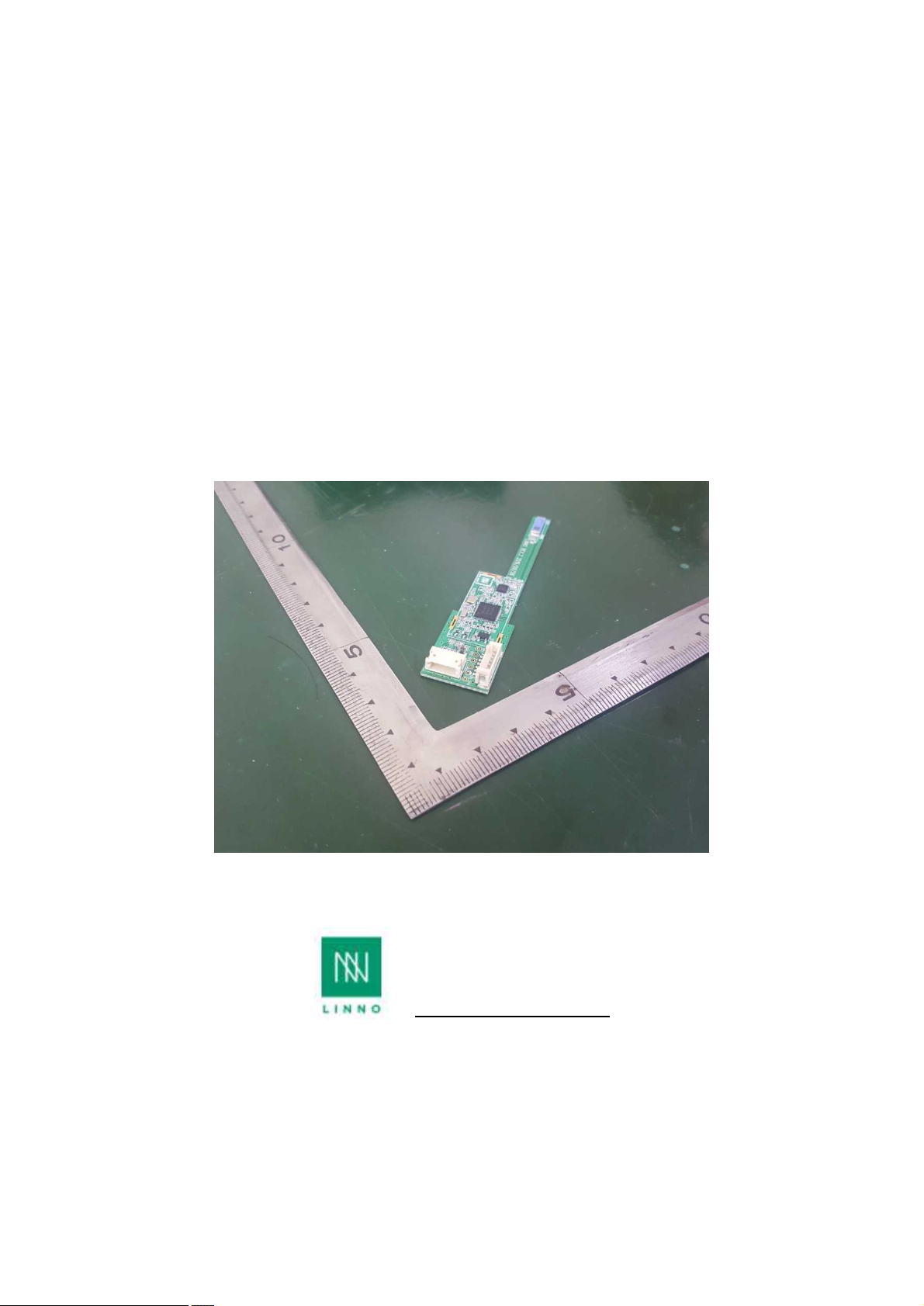

Linno BMCL User Manual

USER MANUAL

BLUETOOTH MODULE

MODEL: BMCL

Linno Inc.

※ Its radio equipment, there is a possibility of a radio wave interference.

Therefore, you can not service related to life safety.

1. Package

BLUETOOTH MODULE

User manual

2. Summary

1) It is installed in smart lighting and is used to control the status of

lighting after connecting with smartphone.

2) Remote control of brightness and color of light

3. How to use

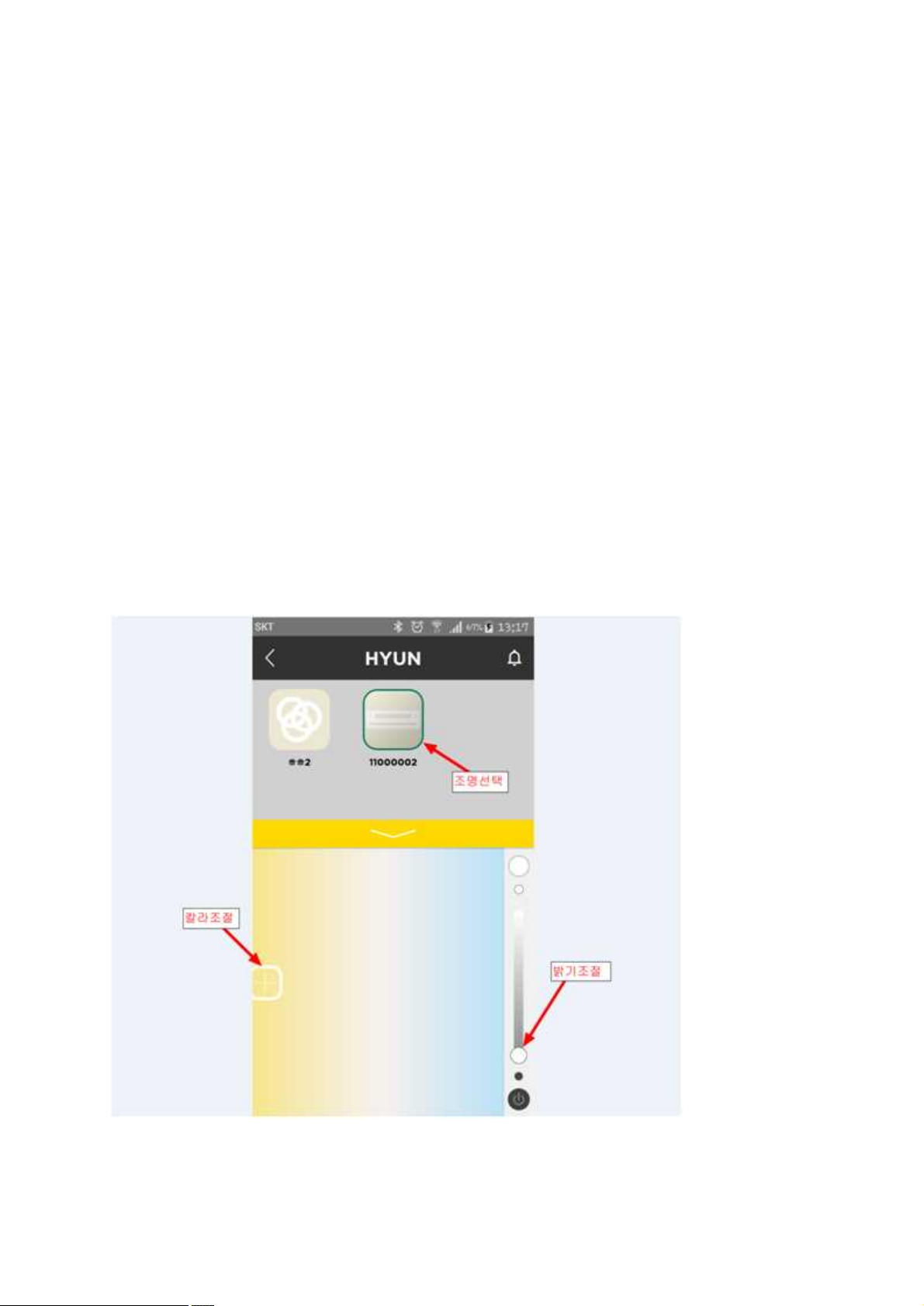

1) You need to install a separate smartphone app for control

4. Features

1) Bluetooth Spec : Ver 4.0 BLE

2) Chip Set : nRF51822 Rev.3 (Nordic)

3) Program Memory Size : 256KB Memory, 32KB RAM

4) Interface : PWM1 and PWM2 interface for lighting control

5) Antenna Type : Chip Antenna

5. Caution

1) If you randomly disassemble and repair, exchanged and A / S is not

allowed.

2) Vulnerable to shock, please note, without a strong shock is not applied.

3) In the metal surface, there is a problem with the recognition and the

recognition distance of the keyboard can be generated.

6. Specifications

1) Operating voltage: DC 1.8 V ~ 3.6 V

2) Communication Method: Wireless (Bluetooth)

3) Operating distance: 10 M

4) Output: Max +10 dBm

5) Receive sensitivity: -102 dBm typ.

6) Operating frequency

Send: 2.402 ~ 2.480 MHz, 2.4G ISM band

Reception: 2.402 ~ 2.480 MHz, 2.4G ISM band

7) Channel: 40 channels

8) Modulation scheme: GFSK

9) Channel spacing: 2 MHz

10) Profile: Bluetooth Ver 4.0

11) Protocol: Asynchronous serial communication

12) Size: 18 X 79 X 1.0 mm

13) Weight: About 4 g

7. A/S Inquiry

- Company : Linno Inc.

- Address : 96-22, Yangji-ro 281beon-gil, Onam-eup, Namyangju-si,

Gyeonggi-do, Korea

- Tel: [phone]

- Fax: [phone]

- Homepage : www.linno.com

Information for the OEM Integrators

This device is intended for OEM integrators only. It is only equipped in a host
that
complies with the following condition:

1. It has power regulation circuit; the supply voltage for this module is 3.3
V dc.

2. It has an enclosure that covers all the PCB.

Label Information to the End User by the OEM or Integrators

If the FCC ID of this module is not visible when it is installed inside another
device, then the outside of the device into which the module is installed must
be label with

“Contains FCC ID: 2AMUZBMCL

FCC Information to User

This equipment has been tested and found to comply with the limits for a Class B
digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to
provide reasonable protection against harmful interference in a residential installation.
This equipment generates, uses and can radiate radio frequency energy and, if not
installed and used in accordance with the instructions, may cause harmful interference
to radio communications. However, there is no guarantee that interference will not
occur in a particular installation. If this equipment does cause harmful interference to
radio or television reception, which can be determined by turning the equipment off
and on, the user is encouraged to try to correct the interference by one of the
following measures:

• Reorient or relocate the receiving antenna.

• Increase the separation between the equipment and receiver.

• Connect the equipment into an outlet on a circuit different from that to which the
receiver is con-nected.

• Consult the dealer or an experienced radio/TV technician for help.

Caution

Modifications not expressly approved by the party responsible for compliance could
void the user’s authority to operate the equipment.

FCC Compliance Information : This device complies with Part 15 of the FCC Rules.
Operation is subject to the following two conditions: (1) This device may not cause
harmful interference, and (2) this device must accept any interference received,
including interference that may cause undesired operation

1.

IMPORTANT NOTE:

FCC RF Radiation Exposure Statement:

This equipment complies with FCC RF radiation exposure limits set forth for an
uncontrolled environment.

The antennas used forth is transmitter must be installed to provide a separation
distance of at least 20 cm from all persons and must not be co-located or operating
in conjunction with anyother antenna or transmitter.

CONTACT INFORMATION

Manufacturer Address : 96-22, Yangji-ro 281beon-gil, Onam-eup, Namyangju-si,

Gyeonggi-do, Korea

To locate in-country Linno Inc., distributors of the BMCL

please refer to the Linno Inc. Website http://linno.co.kr/

These distributor(s) represent local contacts for this product.

CORPORATE HEADQUARTERS:

Linno Inc

96-22, Yangji-ro 281beon-gil, Onam-eup, Namyangju-si, Gyeonggi-do, Korea

Tel: [phone]

Fax: [phone]

Web: http://linno.co.kr/

This device complies with Industry Canada license-exempt RSS standard(s).

Operation is Subject to the following two condition: (1) this device may not cause
interference

,and (2) this device must accept any interference, including interference that may
cause undesired

operation of the device.
