LinMot C1250-PD-XC-0S, C1250-PD-XC-1S, E1450-PD-QN-0S, E1450-PD-QN-1S, C1450-PD-VS-0S User Manual

...
Download
Documentation of the PROFIdrive Interface of the following
Drives:
• C1450-PD-VS-0S/1S
• E1450-PD-QN-0S/1S
PROFINET PROFIdrive Interface
User Manual
Page 2/38 User Manual PROFINET PROFIdrive Interface NTI AG / LinMot
© 2018 NTI AG This work is protected by copyright. Under the copyright laws, this publication may not be reproduced or transmitted in any form, electronic or mechanical, including photocopying, recording, microfilm, storing in an information retrieval system, not even for didactical use, or translating, in whole or in part, without the prior written consent of NTI AG. LinMot® is a registered trademark of NTI AG. Note: The information in this documentation reflects the stage of development at the time of press and is therefore without obligation. NTI AG reserves itself the right to make changes at any time and without notice to reflect further technical advance or product improvement.
Document version 1.3 / Whp, August 2018
NTI AG / LinMot User Manual PROFINET PROFIdrive Interface Page 3/38
1 System overview ............................................................................................................ 5
1.1 References .............................................................................................................. 5
1.2 Port assignement .................................................................................................... 5
2 Setup in Simotion Motion Control System ...................................................................... 6
2.1 Assumed preconditions ........................................................................................... 6
2.2 TIA Configuration .................................................................................................... 6
2.2.1. Create a new project ........................................................................................ 6
2.2.2. Configure a Device ........................................................................................... 7
2.2.3. Add new Device ............................................................................................... 7
2.2.4. Select Device ................................................................................................... 8
2.2.5. Configure PROFINET ....................................................................................... 8
2.2.6. Install LinMot GSDML device description file .................................................... 9
2.2.7. Select correct GSDML device description file ................................................... 9
2.2.8. Add NTI drive to PROFINET network ..............................................................10
2.2.9. Assign NTI drive to the SIMOTION .................................................................. 11
2.2.10. Define the PROFINET Topology .................................................................. 11
2.2.11. Add communication module to the NTI PROFIdrive drive ................................12
2.2.12. Define the PROFIBUS Cycle time ................................................................14
2.2.13. Compile the HW Configuration ....................................................................14
2.2.14. Download the HW Configuration ..................................................................15
2.3 SIMOTON SCOUT TIA Configuration .....................................................................16
2.3.1. Insert axis ........................................................................................................17
2.3.2. Configure axis .................................................................................................17
2.3.3. Download SIMOTION SCOUT configuration ...................................................21
2.3.4. Move the Axis with the Control panel ...............................................................24
3 Process Data Object (PDO) Configuration ....................................................................28
3.1 Input PDO Modules ................................................................ ................................28
3.1.1. Standard telegram 3 ........................................................................................28
3.1.2. Standard telegram 5 ........................................................................................28
3.1.3. Standard telegram 7 ........................................................................................28
3.1.4. Standard telegram 9 ........................................................................................29
3.1.5. Siemens telegram 105 ....................................................................................29
3.1.6. Siemens telegram TDB 200 ............................................................................29
3.1.7. Real Time Config telegram 404 .......................................................................29
3.1.8. Actual Position telegram 405 ........................................................................... 29
3.1.9. Demand Position telegram 406 .......................................................................29
3.1.10. WarnWord telegram 407 ................................ .............................................. 29
3.1.11. ErrorCode telegram 408 ..................................................................................30
Page 4/38 User Manual PROFINET PROFIdrive Interface NTI AG / LinMot
3.1.12. Demand Current 32b telegram 409 ..............................................................30
3.1.13. Mon Channel 1 telegram 410 .......................................................................30
3.1.14. Mon Channel 2 telegram 411 .......................................................................30
3.1.15. Mon Channel 3 telegram 412 .......................................................................30
3.1.16. Mon Channel 4 telegram 413 .......................................................................30
3.1.17. Demand Current 16b telegram 414 ..............................................................30
3.1.18. Actual Velocity telegram 415 ........................................................................30
3.1.19. Demand Velocity telegram 416 ....................................................................31
3.2 Output PDO Modules .............................................................................................32
3.2.1. Standard telegram 3 ........................................................................................32
3.2.2. Standard telegram 5 ........................................................................................32
3.2.3. Standard telegram 7 ........................................................................................32
3.2.4. Standard telegram 9 ........................................................................................32
3.2.5. Siemens telegram 105 ....................................................................................33
3.2.6. Siemens telegram TDB 200 ............................................................................33
3.2.7. Real Time Config telegram 404 .......................................................................33
4 Asynchronous Configuration Protocol............................................................................34
4.1 PROFIdrive Profile Area .........................................................................................34
4.2 Manufacturer specific Profile Area ..........................................................................34
4.3 Suported Services ..................................................................................................34
5 PROFIdrive Parameters ................................................................................................35
5.1 Parameters ............................................................................................................35
5.1.1. PROFdrive/Dis-/Enable ...................................................................................35
5.1.2. PROFdrive/Byte Order ................................ .................................................... 35
5.1.3. PROFdrive/Word Order ...................................................................................35
5.1.4. PROFdrive/Monitoring Channels .....................................................................36
5.1.5. PROFdrive/Axis Configuration/ Axis Type ........................................................36
5.1.6. PROFdrive/Axis Configuration/ Linear/Rotative Reference Velocity .................36
5.1.7. PROFdrive/Axis Configuration/ MDI Configuration ..........................................36
6 Connecting to the PROFINET Network .........................................................................37
6.1 Pin Assignment of the Connectors X17-X18 ...........................................................37
7 Contact Addresses ........................................................................................................38
NTI AG / LinMot User Manual PROFINET PROFIdrive Interface Page 5/38
1 System overview
PROFINET is the open real-time Ethernet network, in this manual the PROFIdrive profile drivs are described. The LinMot drives act as slave in this network and is implemented with the TPS1 chip from Renesas.
For further information on the PROFINET and PROFIdrive fieldbus protocols please visit:
http://www.profibus.com/
1.1 References
All user manuals are distributed with the LinMot-Talk software the newest versions can be downloaded from the LinMot homepage in the download section.
Ref
Title
Source
1
User Manual Motion Control SW
www.linmot.com
2
LinMot Drive Configuration over Fieldbus Interfaces SG5
www.linmot.com
1.2 Port assignement

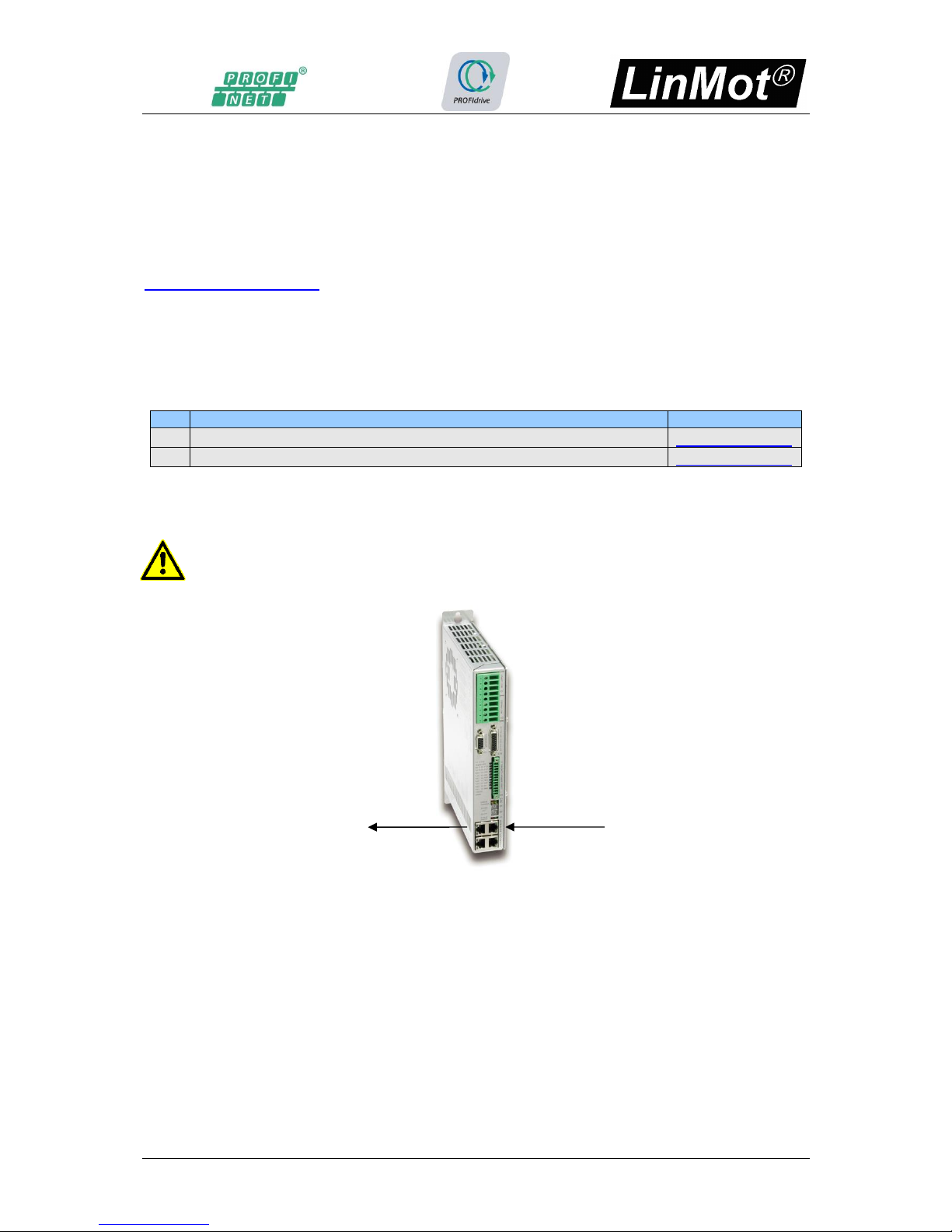

Within the PROFINET network normally the topology is defined, for easy setup and replacement of devices. The real time Ethernet RJ45 connector X17 is the P1 port and the real time RJ45 connector X18 is the P2 port in this context.
PLC/ Master
X17/ P1
X18 / P2
Other Devices
Page 6/38 User Manual PROFINET PROFIdrive Interface NTI AG / LinMot
2 Setup in Simotion Motion Control System
In the following steps the integration of a LinMot PROFIdrive servo drive with a LinMot linear motor into the SIMOTION motion controller is described. In the example a Siemens SIMOTION D445 and a Linmot C1250-PD-XC-0S drive is used.
2.1 Assumed preconditions
The SIMOTION is in factory reset condition, the programming PC is connected over X127/P1. The Linmot drive is completely wired, the PROFINET is wired from the SIMOTION X150/P1 to the LinMot X17.
It is supposed, that the motor and the drive have PnP functionality, means the motor is basically setup automatically, otherwise the mtor has to be setup manually with the LinMot­Talk Motor-Wizard in the drive.
To achieve a good response of the master setpoint, it is important to tune also the position controller in the LinMot-drive well!
2.2 TIA Configuration
2.2.1. Create a new project

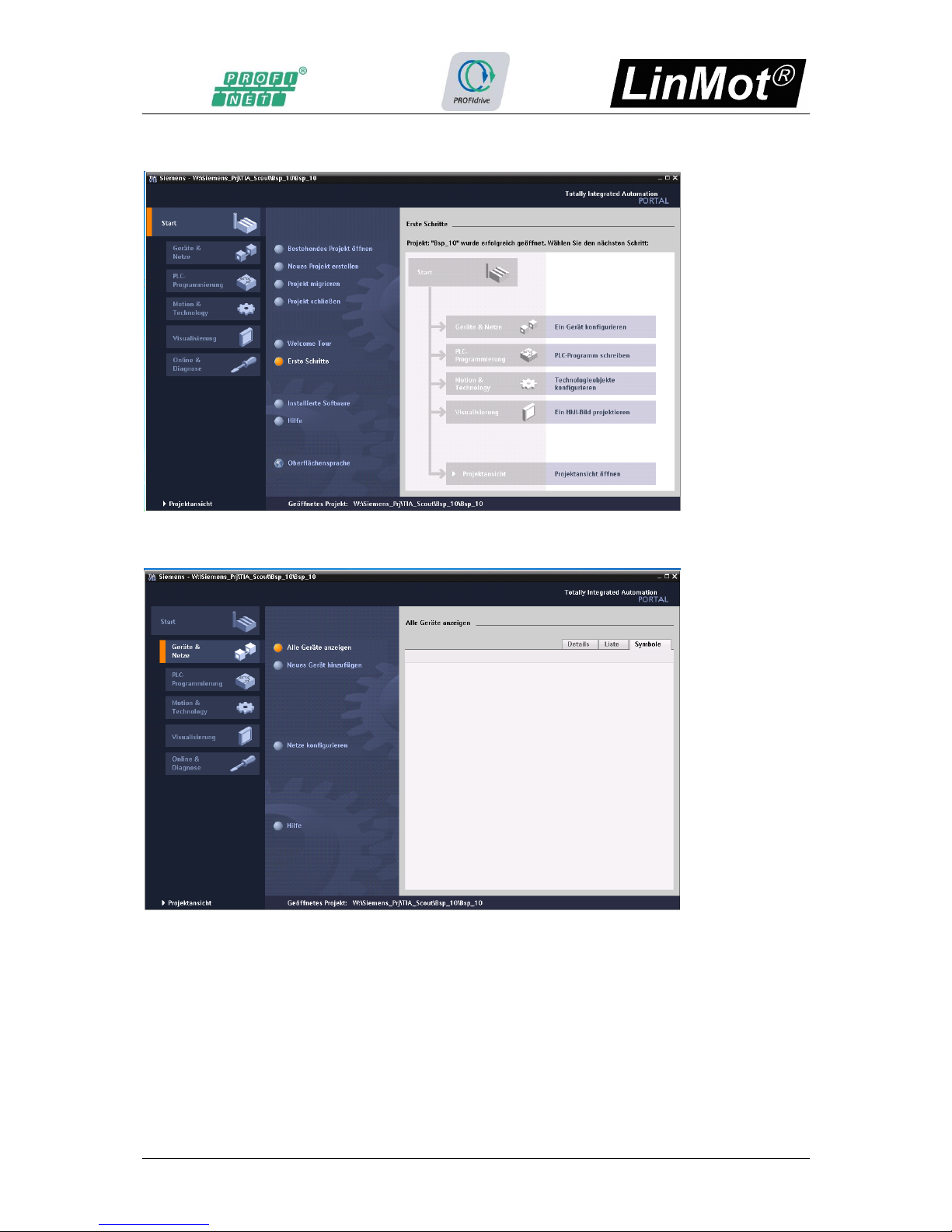

Start the TIA Portal and create a new project BSP_10.
NTI AG / LinMot User Manual PROFINET PROFIdrive Interface Page 7/38
2.2.2. Configure a Device
2.2.3. Add new Device
Page 8/38 User Manual PROFINET PROFIdrive Interface NTI AG / LinMot
2.2.4. Select Device
2.2.5. Configure PROFINET
Add the PROFINET network PN/IE_1 here assigned to X150 and choose the IP-address and subnet netmask.
NTI AG / LinMot User Manual PROFINET PROFIdrive Interface Page 9/38
Define the SIMOTION controller as Sync master in the real time settings
2.2.6. Install LinMot GSDML device description file
If not already installed, install now the newest device description file of the device you want to use. The device description files are distributed together with the firmware under path
C:\Program Files (x86)\LinMot\LinMot-Talk 6.4 Build 20151112\Firmware\Interfaces\ProfiNet\GSDML_PD
2.2.7. Select correct GSDML device description file
Page 10/38 User Manual PROFINET PROFIdrive Interface NTI AG / LinMot

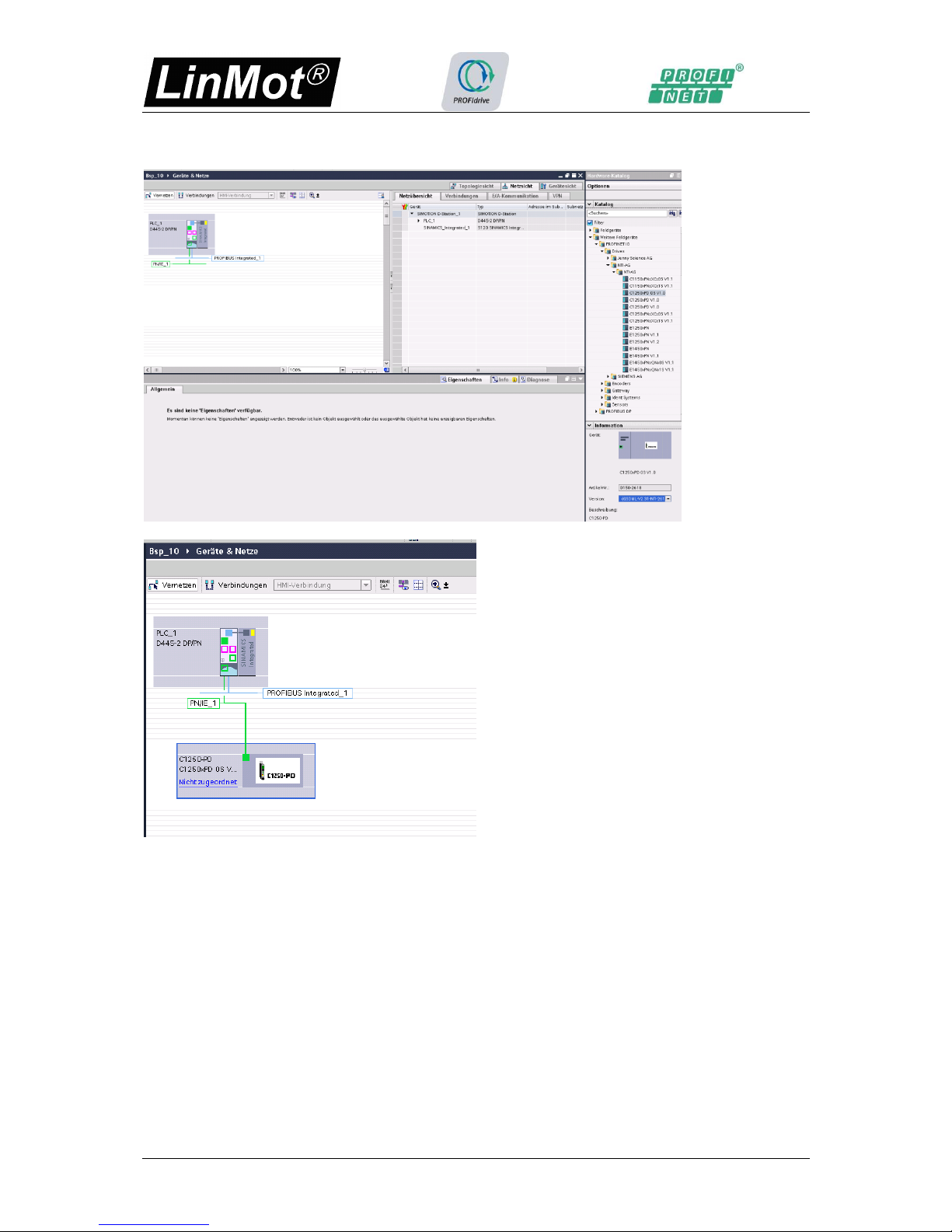

2.2.8. Add NTI drive to PROFINET network

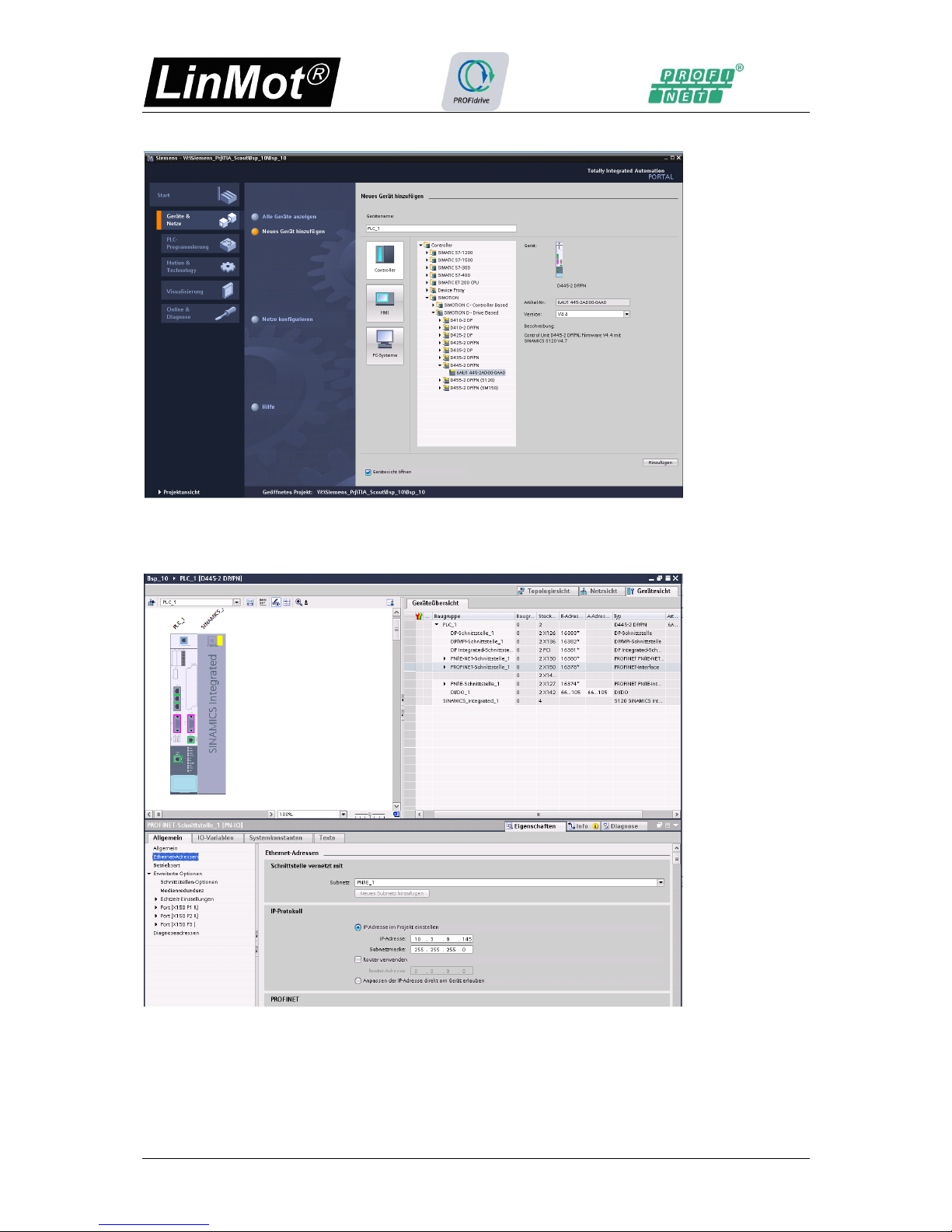

Now change to the network view and add the desired LinMot PROFIdrive device.
Select the correct NTI drive and drag and drop it to the PN/IE1 network
Then Network looks like this.
NTI AG / LinMot User Manual PROFINET PROFIdrive Interface Page 11/38
2.2.9. Assign NTI drive to the SIMOTION
Assigne the LinMot drive to the SIMOTION master PLC_1.
Select PLC_1 as IO Controller
2.2.10. Define the PROFINET Topology

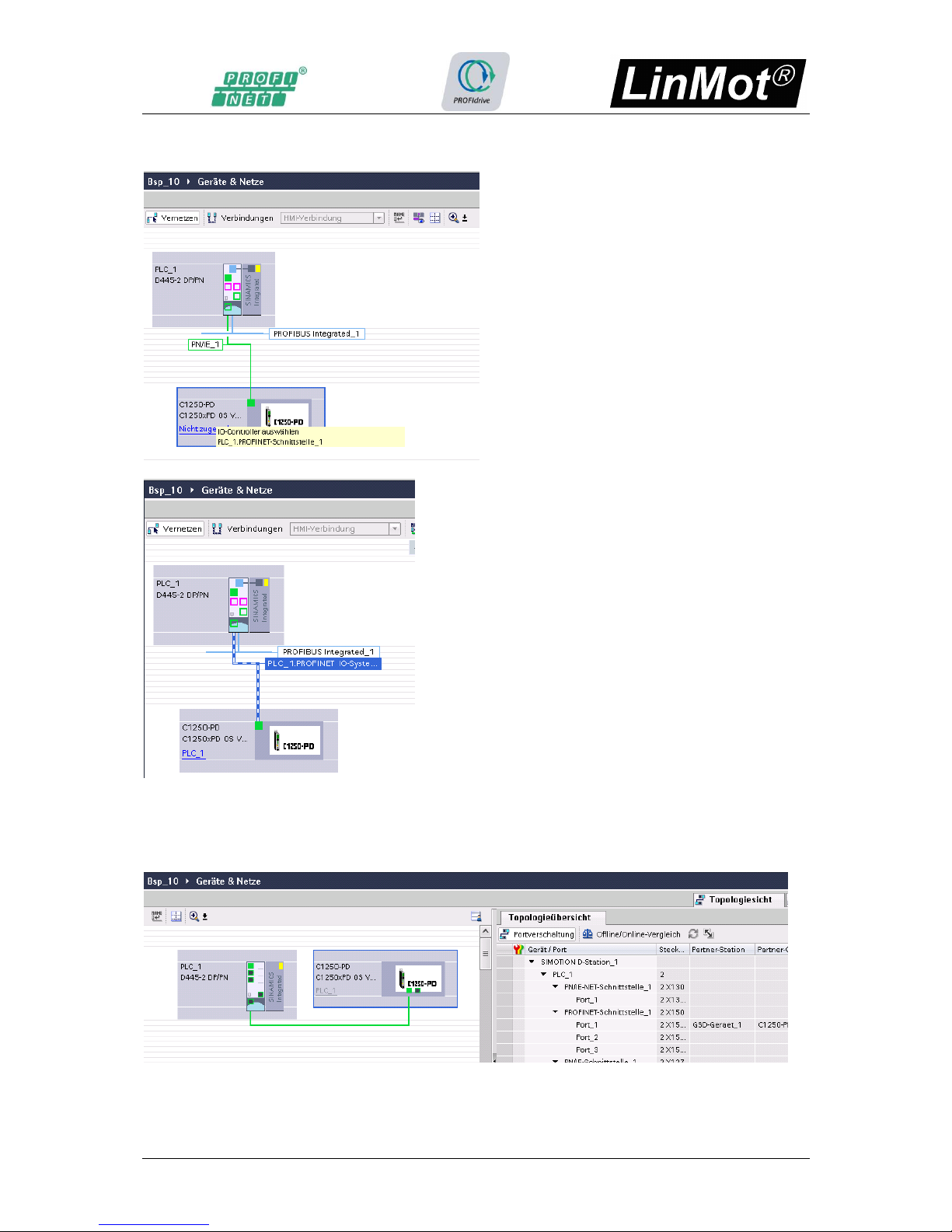

Change to Topology view, and wire the PROFINET connection from PLC-1 X150/P1 port to the C1250-PD/P1 port.
Page 12/38 User Manual PROFINET PROFIdrive Interface NTI AG / LinMot

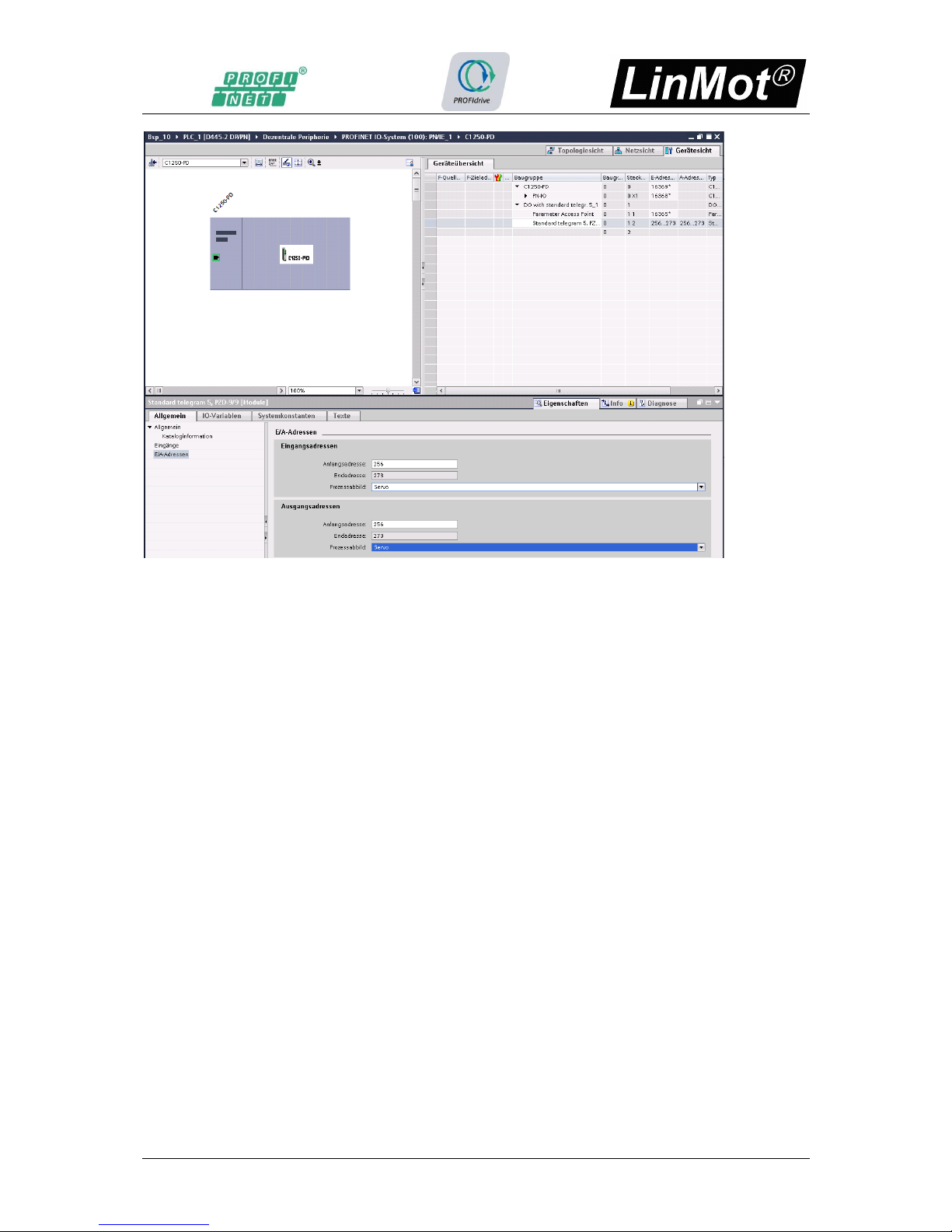

2.2.11. Add communication module to the NTI PROFIdrive drive
Double click in the Topology view the LinMot drive, then automatically the device view of the LinMot drive opens.
Drag and drop from the Catalog the DO with standard telegr. 5 to the device Slot 1. Double click the device and define the isochronous mode.
NTI AG / LinMot User Manual PROFINET PROFIdrive Interface Page 13/38
Double click thethe Slot 1.2 and assign the I/O address to the Servo Process image.
Page 14/38 User Manual PROFINET PROFIdrive Interface NTI AG / LinMot
2.2.12. Define the PROFIBUS Cycle time
For the SIMOTION D devices the DP cycle time has to be the same as the Isochronous PROFINET IO cycle time, so change it to 1ms.
2.2.13. Compile the HW Configuration
Select the SIMOTION device and click Compile button for compiling the HW configuration.
NTI AG / LinMot User Manual PROFINET PROFIdrive Interface Page 15/38
2.2.14. Download the HW Configuration

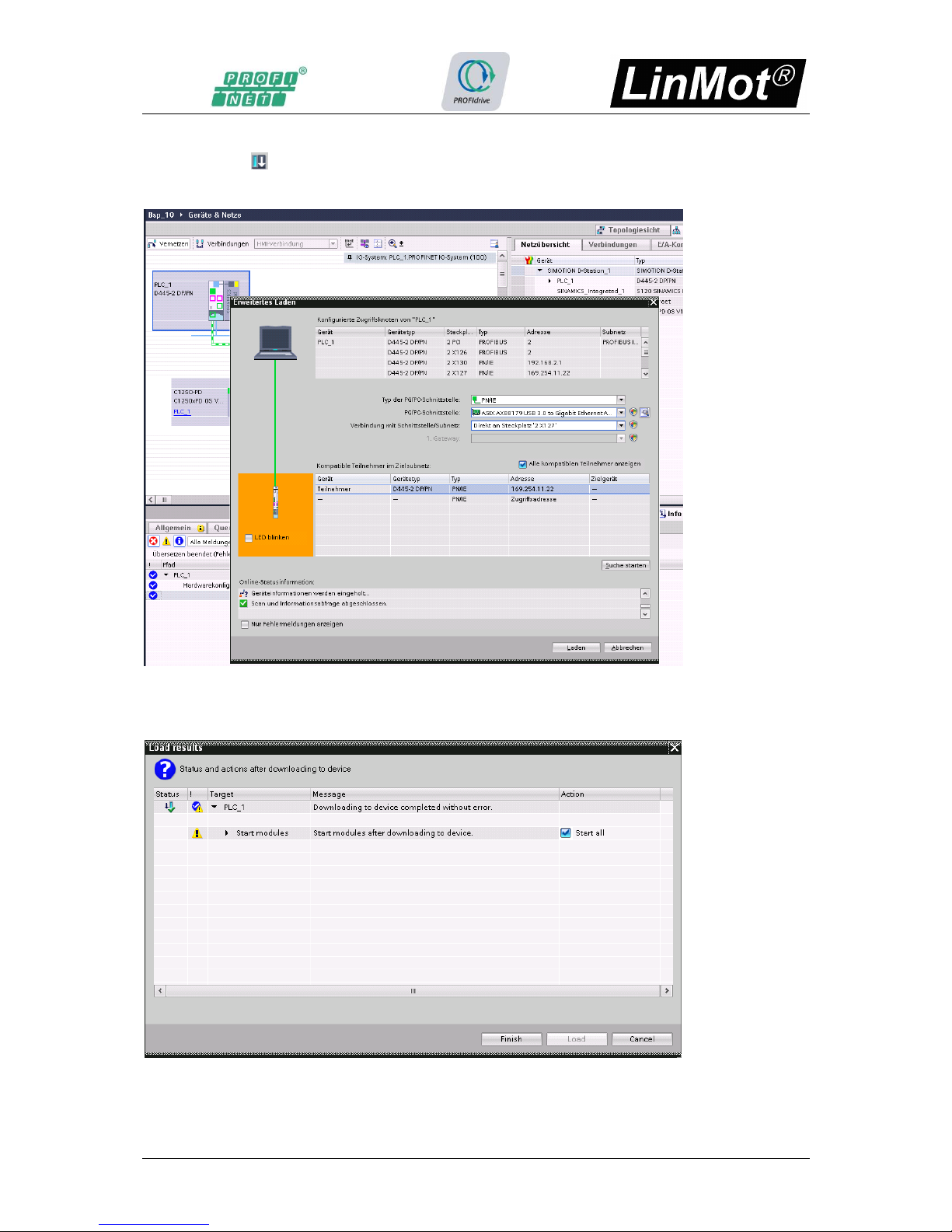

By clicking the button you start the download of the HW configuration. Select your HW devices for accessing the SIMOTION master, click search, then select the SIMOTION device and start the loading by clicking on the “Load” button.
After successful download you get ask for starting the devices select “Start all” check box and click the “Finish” button.
Page 16/38 User Manual PROFINET PROFIdrive Interface NTI AG / LinMot
2.3 SIMOTON SCOUT TIA Configuration
Now change to the configuration in the SIMOTION SCOUT configuration tool by double cklicking the “SIMOTION configuration” in the Project tree
Then the SIMOTION SCOUT TIA tool opens with the configured HW PLC_1 [D445-2DP/PN] and C1250-PD drive
NTI AG / LinMot User Manual PROFINET PROFIdrive Interface Page 17/38
2.3.1. Insert axis
Open the Axes and double click on the “Insert Axis” entry.
2.3.2. Configure axis
The axis type could be left as suggested, click the next button.
Page 18/38 User Manual PROFINET PROFIdrive Interface NTI AG / LinMot

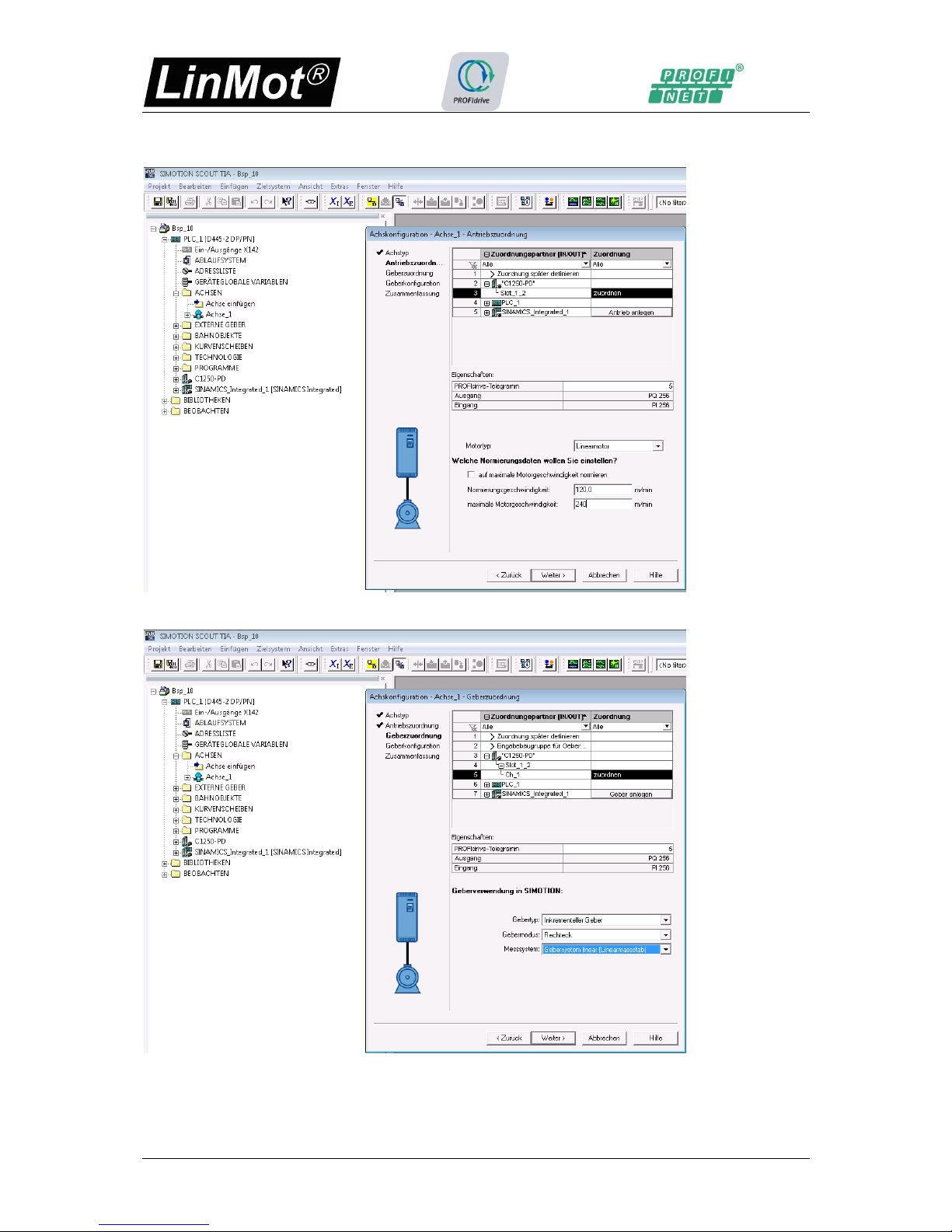

The drive assignment is also correct mapped to the C1250-PD drive, but change the motor type to Linear motor, then click Next>.
In the Encoder assignement change the ??? to linear, then click Next>.
NTI AG / LinMot User Manual PROFINET PROFIdrive Interface Page 19/38

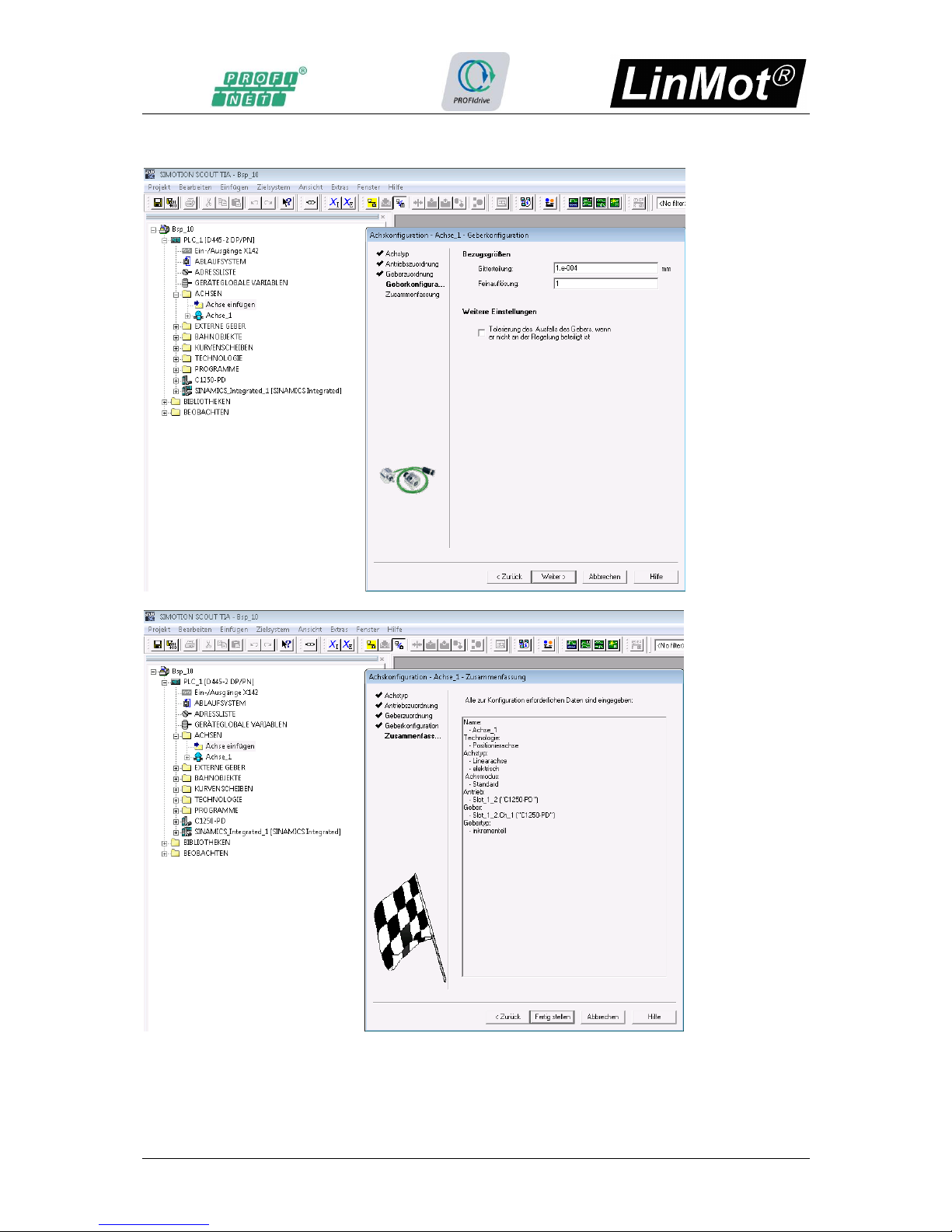

Change the resolution to 1e-004mm because the NTI drives works with a fix resolution of 100nm. Then Click next>.
Now a summary of the configured axis appears. Click Finished.
Page 20/38 User Manual PROFINET PROFIdrive Interface NTI AG / LinMot
To avoid axis errors due too high encoder frequencies the parameter
“encoderFrequencylimit” has to be increased in the “expert list” Tab “Configuration data”
Entry: TypeOfAxis/NumberOfEncoders/Encoder_1/FrequencyLimit/encoderFrequencyLimit to 100’000’000. With this value a theoretical maximal velocity of 10m/s is possible, due the encoder resolution of 100nm.
NTI AG / LinMot User Manual PROFINET PROFIdrive Interface Page 21/38
2.3.3. Download SIMOTION SCOUT configuration
Now it is possible to save and compile the project, by clicking the Toolbox button.
For Downloading the project first connect to the target system, by clicking the button .
Page 22/38 User Manual PROFINET PROFIdrive Interface NTI AG / LinMot
Select the target system, the click OK
For downloading the project, click the button, and check the „After loading, copy RAM to ROM Checkbox entry, the click the Yes button.
NTI AG / LinMot User Manual PROFINET PROFIdrive Interface Page 23/38
Now the SIMOTION tool ask for stopping the target system, click Yes
After the successful download, the tool ask for set the RUN mode again click the Yes button.
Page 24/38 User Manual PROFINET PROFIdrive Interface NTI AG / LinMot

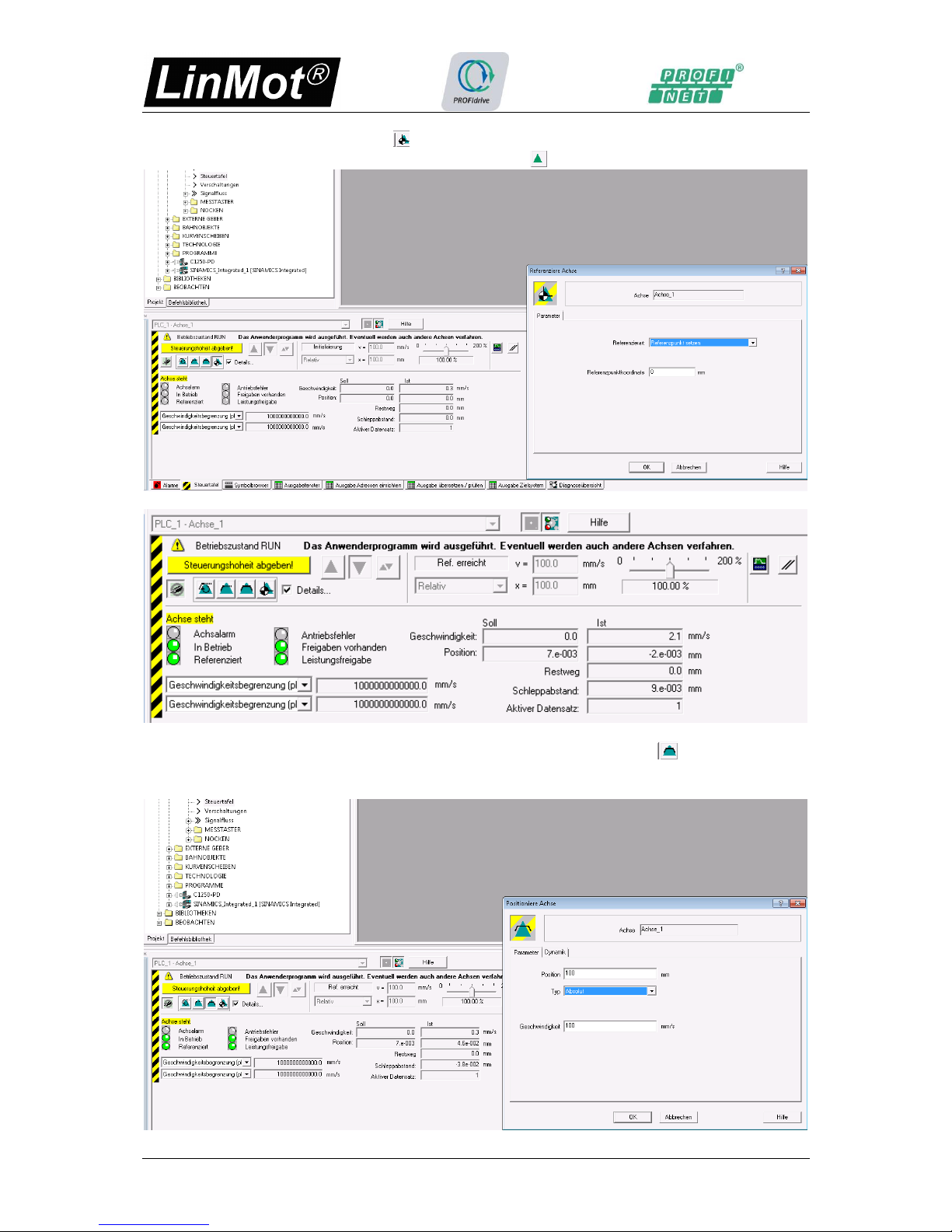

2.3.4. Move the Axis with the Control panel
Now the system is ready for motion commands over the control panel, to do this double click the “Control panel” entry in the AXES tree.
NTI AG / LinMot User Manual PROFINET PROFIdrive Interface Page 25/38
In the next step we have to get the control priority click the button, then accept the safety note if you could do so.
In the next step you have to set the enables, click the button and then Ok in the appeared popup window. Now the motor is position controlled.
Page 26/38 User Manual PROFINET PROFIdrive Interface NTI AG / LinMot
Now Home the axis by clicking the button, select „set home position„ as Homing type and press Ok, for the action homing you have to press the Button.
After the homing the green LED left from Homed glows.
Now the axis is ready for absolute position motions. For this click on the button and select the absolute motion if possible the position could be left at 100mm if your motor have more limited position range reduce this value. Then click OK.
NTI AG / LinMot User Manual PROFINET PROFIdrive Interface Page 27/38
To start the motion, click again the button.
To move back to 0mm you could directly change the x= value to 0mm, then start the motion with clicking again the button.
The motor moves back to 0mm and the position changes also back to 0mm.
Before leaving the control panel click the button.
Page 28/38 User Manual PROFINET PROFIdrive Interface NTI AG / LinMot
3 Process Data Object (PDO) Configuration
The cyclic process data is configured in the master and transmitted to the slave during startup. The data Object modules could be configured by trag and trop to the device slots
1..8.
Overview of the supported Data Objects Modules
3.1 Input PDO Modules
3.1.1. Standard telegram 3
Index
Size [Byte]
Byte Offset
Name
Data Type
Tlg 3
18 - Variables
RECORD
1 2 0
ZSW1
Uint16
2, 3
4 2 NIST_B
Int32
4 2 6
ZSW2
Uint16
5 2 8
G1_ZSW
Uint16
6, 7
4
10
G1_XIST_1
Int32
8, 9
4
14
G1_XIST_2
Int32
3.1.2. Standard telegram 5
Index
Size [Byte]
Byte Offset
Name
Data Type
Tlg 5
18 - Variables
RECORD
1 2 0
ZSW1
Uint16
2, 3
4 2 NIST_B
Int32
4 2 6
ZSW2
Uint16
5 2 8
G1_ZSW
Uint16
6, 7
4
10
G1_XIST_1
Int32
8, 9
4
14
G1_XIST_2
Int32
3.1.3. Standard telegram 7
Index
Size [Byte]
Byte Offset
Name
Data Type
Tlg 7
4 - Variables
RECORD
1 2 0
ZSW1
Uint16
2 2 2
AKTSATZ
Uint16
NTI AG / LinMot User Manual PROFINET PROFIdrive Interface Page 29/38
3.1.4. Standard telegram 9
Index
Size [Byte]
Byte Offset
Name
Data Type
Tlg 9
10 - Variables
RECORD
1 2 0
ZSW1
Uint16
2 2 2
AKTSATZ
Uint16
3 2 4
ZSW2
Uint16
4, 5
4 6 XIST_A
Int32
3.1.5. Siemens telegram 105
Index
Size [Byte]
Byte Offset
Name
Data Type
Tlg 105
20 - Variables
RECORD
1 2 0
ZSW1
Uint16
2, 3
4 2 NIST
Int32
4 2 6
ZSW2
Uint16
5 2 8
MELDEW
Uint16
6 2 10
G1_ZSW
Uint16
7, 8
4
12
G1_XIST_1
Int32
9, 10
4
16
G1_XIST_2
Int32
3.1.6. Siemens telegram TDB 200
Index
Size [Byte]
Byte Offset
Name
Data Type
Tlg TDB
20 - Variables
RECORD
1 2 0
M_act
Int16
3.1.7. Real Time Config telegram 404
Index
Size [Byte]
Byte Offset
Name
Data Type
Tlg 404
8 - Variables
RECORD
1 2 0
Config Status Word
Uint16
2 2 2
Config Index/..
Uint16
4, 5
4 4 Config Value
Word32
3.1.8. Actual Position telegram 405
Index
Size [Byte]
Byte Offset
Name
Data Type
Tlg 405
4 - Variables
RECORD
1, 2
4 0 Actual Position
Int32
3.1.9. Demand Position telegram 406
Index
Size [Byte]
Byte Offset
Name
Data Type
Tlg 406
4 - Variables
RECORD
1, 2
4 0 Demand Position
Int32
3.1.10. WarnWord telegram 407
Index
Size
Byte
Name
Data
Page 30/38 User Manual PROFINET PROFIdrive Interface NTI AG / LinMot
[Byte]
Offset
Type
Tlg 407
2 - Variables
RECORD
1 2 0
WarnWord
Uint16
3.1.11. ErrorCode telegram 408
Index
Size [Byte]
Byte Offset
Name
Data Type
Tlg 408
2 - Variables
RECORD
1 2 0
ErrorCode
Uint16
3.1.12. Demand Current 32b telegram 409
Index
Size [Byte]
Byte Offset
Name
Data Type
Tlg 409
4 - Variables
RECORD
1, 2
4 0 Demand Current 32b
Int32
3.1.13. Mon Channel 1 telegram 410
Index
Size [Byte]
Byte Offset
Name
Data Type
Tlg 410
4 - Variables
RECORD
1, 2
4 0 Mon Channel 1
Word32
3.1.14. Mon Channel 2 telegram 411
Index
Size [Byte]
Byte Offset
Name
Data Type
Tlg 411
4 - Variables
RECORD
1, 2
4 0 Mon Channel 2
Word32
3.1.15. Mon Channel 3 telegram 412
Index
Size [Byte]
Byte Offset
Name
Data Type
Tlg 412
4 - Variables
RECORD
1, 2
4 0 Mon Channel 3
Word32
3.1.16. Mon Channel 4 telegram 413
Index
Size [Byte]
Byte Offset
Name
Data Type
Tlg 413
4 - Variables
RECORD
1, 2
4 0 Mon Channel 4
Word32
3.1.17. Demand Current 16b telegram 414
Index
Size [Byte]
Byte Offset
Name
Data Type
Tlg 414
2 - Variables
RECORD
1 2 0
Demand Current 16b
Int16
3.1.18. Actual Velocity telegram 415
Index
Size [Byte]
Byte Offset
Name
Data Type
Tlg 415
4 - Variables
RECORD
1, 2
4 0 Actual Velocity
Int32
NTI AG / LinMot User Manual PROFINET PROFIdrive Interface Page 31/38
3.1.19. Demand Velocity telegram 416
Index
Size [Byte]
Byte Offset
Name
Data Type
Tlg 416
4 - Variables
RECORD
1, 2
4 0 Actual Velocity
Int32
Page 32/38 User Manual PROFINET PROFIdrive Interface NTI AG / LinMot
3.2 Output PDO Modules
3.2.1. Standard telegram 3
Index
Size [Byte]
Byte Offset
Name
Data Type
Tlg 3
10 - Variables
RECORD
1 2 0
STW1
Uint16
2, 3
4 2 NSOLL_B
Int32
4 2 6
STW2
Uint16
5 2 8
G1_STW
Uint16
3.2.2. Standard telegram 5
Index
Size [Byte]
Byte Offset
Name
Data Type
Tlg 5
18 - Variables
RECORD
1 2 0
STW1
Uint16
2, 3
4 2 NSOLL_B
Int32
4 2 6
STW2
Uint16
5 2 8
G1_STW
Uint16
6, 7
4
10
XERR
Int32
8, 9
4
14
KPC
Int32
3.2.3. Standard telegram 7
Index
Size [Byte]
Byte Offset
Name
Data Type
Tlg 7
4 - Variables
RECORD
1 2 0
STW1
Uint16
2 2 2
SATZANW
Uint16
3.2.4. Standard telegram 9
Index
Size [Byte]
Byte Offset
Name
Data Type
Tlg 9
20 - Variables
RECORD
1 2 0
STW1
Uint16
2 4 2
SATZANW
Uint16
3 2 4
STW2
Uint16
4, 5
2 6 MDI_TARPOS
Int32
6, 7
4
10
MDI_VELOCITY
Int32
8 2 14
MDI_ACC
Uint16
9 2 16
MDI_DEC
Uint16
10 2 18
MDI_MOD
Uint16
NTI AG / LinMot User Manual PROFINET PROFIdrive Interface Page 33/38
3.2.5. Siemens telegram 105
Index
Size [Byte]
Byte Offset
Name
Data Type
Tlg 105
20 - Variables
RECORD
1 2 0
STW1
Uint16
2, 3
4 2 NSOLL_B
Int32
4 2 6
STW2
Uint16
5 2 8
TORQUERED
Uint16
6 2 10
G1_STW
Uint16
7, 8
4
12
XERR
Int32
9, 10
4
16
KPC
Int32
The telegram part TORQRED is mapped to the MC SW parameter with UPID 0x1399 “Motor
relative Max Current Limit”.
3.2.6. Siemens telegram TDB 200
Index
Size [Byte]
Byte Offset
Name
Data Type
Tlg TDB
6 - Variables
RECORD
1 2 0
M_Add
Int16
2 2 2
(B+) pos torque Limit
Uint16
3 2 4
(B-) neg torque Limit
Uint16
The additional torque (M_Add) is calculated with UPID 0x119E (maximal Motor Current) and written to UPID 0x139C or 0x13B0 depending on which control parameter set is active. The torque limits B+ and B- are also calculated with UPID 0x119E (maximal Motor Current) and written to UPID 0x13FC/0x13FD or 0x13FE/0x13FF depending on which control parameter set is active.
3.2.7. Real Time Config telegram 404
Index
Size [Byte]
Byte Offset
Name
Data Type
Tlg 404
8 - Variables
RECORD
1 2 0
Config Control Word
Uint16
2 2 2
Config Index/..
Uint16
4, 5
4 4 Config Value
Word32
Page 34/38 User Manual PROFINET PROFIdrive Interface NTI AG / LinMot
4 Asynchronous Configuration Protocol
For configuration purpose (Parameter Handling) the standard PROFINET Protocol is used. With a SIMOTION master the _writerecord() and _readrecord() system function could be
used to access the parameters.
4.1 PROFIdrive Profile Area
PNU
Name
Access
922
Telegram selection
r
924
Status word bit Pulses Enabled
r
925
Number of Controller Sign-Of-Life failures which may be toler­ated
r 928
Control priority DO IO Data
r
930
Operating mode
r
944
Fault message counter
r
947
Fault number
r
950
Scaling of the fault buffer
r
951
Fault number list with text
r
952
Fault situation counter
r
953
Warning parameters
r
964
Drive Unit identification
r
965
Profile identification number
r
974
Base Mode Parameter Access service identification
r
975
DO identification
r
980
Number list of defined parameter
r
60000
Velocity reference value(not yet implemented)
r
LinMot PROFIdrive Object Dictionary
4.2 Manufacturer specific Profile Area
The RAM/ROM value of the drive parameters could be accessed by its parameter number (UPID) added with an offset of 0x2000 (UPID+0x2000).
4.3 Suported Services
The table below shows the services (request IDs) which are supported for parameter acces.
Request ID
Description
0x01
Request Parameter, reads the RAM value of the parameter
0x02
Change parameter, changes the RAM value of the parameter
0x41
Read ROM value of parameter, only valid with value attribute
0x42
Write ROM value of parameter, only valid with the value attribute
NTI AG / LinMot User Manual PROFINET PROFIdrive Interface Page 35/38
5 PROFIdrive Parameters
5.1 Parameters
The PROFIdrive Interface has an additional parameter tree branch (Parameters → Profinet), which can be configured with the distributed LinMot-Talk software.
With these parameters, the PROFIdrive interface can be enabled or disabled. The LinMot-Talk software can be downloaded from http://www.linmot.com under the section download, software & manuals.
5.1.1. PROFdrive/Dis-/Enable
With the Dis-/Enable parameter the LinMot Servo Drive can be run without the Ethernet PROFIdrive Interface going online. So in a first step the system can be configured and run without any bus connection.
PROFIdrive/Dis-/Enable
Disable
Servo Drive runs without PROFINET.
Enable
Servo Drive runs with PROFINET connection.
IMPORTANT: If the PROFIdrive Interface is disabled, the integrated TPS1-ASIC rests in
reset state! No messages will be sent to other devices connected to the PROFINET-Network via the servo drive.
5.1.2. PROFdrive/Byte Order
With the Byte Order parameter the used Byte order of the transmitted data could be defined.
PROFIdrive/Byte Order
reversed
Byte order is reversed. For S7 PLC_s select reversed.
not reversed
Byte order is not reversed.
5.1.3. PROFdrive/Word Order
With the Word Order parameter the used Word order of the transmitted data could be defined.
PROFIdrive/Word Order
Reversed
Word order is reversed.
not reversed
Word order is not reversed.
Page 36/38 User Manual PROFINET PROFIdrive Interface NTI AG / LinMot
5.1.4. PROFdrive/Monitoring Channels
With these parameters the parameters are defined which are copied to the corresponding monitoring channel.
PROFIdrive/Monitoring Channels
Channel 1 UPID
Cource UPID for moniring channel 1
Channel 2 UPID
Cource UPID for moniring channel 2
Channel 3 UPID
Cource UPID for moniring channel 3
Channel 4 UPID
Cource UPID for moniring channel 4
5.1.5. PROFdrive/Axis Configuration/ Axis Type
With this parameter the Axis type is defined.
It has to be the same as configured on the master side!
PROFIdrive/Byte Order
Linear
The axis is linear.
Rotative
The axis is rotative.
5.1.6. PROFdrive/Axis Configuration/ Linear/Rotative Reference Velocity
With PROFIdrive telegrams the setpoint values are transmitted normalised, for this reason
they have to be set into relation to a reference value. The Parameter “Linear Reference
Velocity” is the refrence value for the NSOLL_B and NIST_B values used the the telegrams
3, 5 and 105 if the axis is of type linear, if the xis is of type rotative the Reference value is defined with the parameter “Rotative Reference Velocity”.
5.1.7. PROFdrive/Axis Configuration/ MDI Configuration
With PROFIdrive telegrams the setpoint values are transmitted normalised, in the MDI mode the position and velocity is mapped directly without the use of a refrence value for scaling.
The transmitted position has the resolution [0.1um]. The transmitted velocity has the resolution [1um/s].
Only for the acceleration and deceleration the reference parameter “MDI Acceleration Scale” is used for scaling the acceleration and deceleration of the MC-SW motion command. With
the default value of 1’000 the transmitted acceleration values have the resolution [0.01m/s^3]. With a value of 100’000 they will have the resolution [1m/s^3].
NTI AG / LinMot User Manual PROFINET PROFIdrive Interface Page 37/38
6 Connecting to the PROFINET Network
6.1 Pin Assignment of the Connectors X17-X18
The PROFINET connector is a standard RJ45 female connector with a pin assignment as defined by EIA/TIA T568B:
X17 – X18
PROFINET Connector
Pin
Wire color code
Assignment 100BASE-TX
1 2 3 4 5 6 7 8 case
WHT/ORG ORG WHT/GRN BLU WHT/BLU GRN WHT/BRN BRN
-
Rx+ Rx­Tx+
-
­Tx-
-
-
-
RJ-45
Use standard patch cables (twisted pair, S/UTP, AWG26) for
wiring. This type of cable is usually referred to as a “Cat5e­Cable”.
Page 38/38 User Manual PROFINET PROFIdrive Interface NTI AG / LinMot
7 Contact Addresses
--------------------------------------------------------------------------------------------------------------------------­SWITZERLAND NTI AG / LinMot
Bodenaeckerstrasse 2 CH-8957 Spreitenbach
Sales and Administration: +41-(0)56-419 91 91
office@linmot.com
Tech. Support: +41-(0)56-544 71 00
support@linmot.com
Tech. Support (Skype) : skype:support.linmot Fax: +41-(0)56-419 91 92
Web: http://www.linmot.com
-------------------------------------------------------------------------------------------------------------------------­USA LinMot USA Inc.
N1922 State Road 120, Unit 1 Lake Geneva, WI 53147
Phone: 262-743-2555 E-Mail: usasales@linmot.com
Web: http://www.linmotusa.com/
-------------------------------------------------------------------------------------------------------------------------­Please visit http://www.linmot.com to find the distributor nearest to you.
Smart solutions are…
Loading...
Buy Points How it Works FAQ Contact Us Questions and Suggestions Privacy Policy Cookie Policy Terms of Use
