Linksys WVC54G User Manual [UK]
A Division of Cisco Systems, Inc.
®
2,4
Model No.
GHz
802.11g
Wireless-G
Internet Video Camera
WIRELESS
WVC54G-UK
User Guide
Wireless-G Internet Video Camera
Copyright and Trademarks
Specifications are subject to change without notice. Linksys is a registered trademark or trademark of Cisco
Systems, Inc. and/or its affiliates in the U.S . and certain other countries. Copyright © 2005 Cisco Systems, Inc . All
rights reserved. Other brands and product names are trademarks or registered trademarks of their respective
holders.
How to Use this Guide
Your guide to the Wireless-G Internet Video Camera has been designed to make understanding networking with
the Camera easier than ever. Look for the following items when reading this guide:
This checkmark means there is a Note of interest and
is something you should pay special attention to while
using the Camera.
This exclamation point means there is a Caution or
warning and is something that could damage your
property or the Camera.
This question mark provides you with a reminder about
something you might need to do while using the Camera.
In addition to these symbols, there are definitions for technical terms that are presented like this:
word: definition.
Also, each figure (diagram, screenshot, or other image) is provided with a figure number and description, like
this:
Figure 0-1: Sample Figure Description
Figure numbers and descriptions can also be found in the “List of Figures” section in the “Table of Contents”.
WVC54G-UK-UG-50104NC JL
Wireless-G Internet Video Camera
Table of Contents
Chapter 1: Introduction 1
Welcome 1
What’s in this User Guide? 2
Chapter 2: Planning Your Wireless Network 4
Introduction 4
Ad-Hoc and Infrastructure Modes 4
Network Layout 4
Chapter 3: Getting to Know the Wireless-G Internet Video Camera 6
Camera LCD Screen and Built-in Microphone 6
Camera LEDs 6
Camera Head 6
Camera Ports 7
Chapter 4: Connecting the Wireless-G Internet Video Camera for Setup 8
Overview 8
Connection to a Wired Network for Setup 8
Connection to a Wireless Ad-Hoc Network for Setup 8
Moving the Camera to a Different Network 9
Chapter 5: Setting up and Mounting the Wireless-G Internet Video Camera 10
Setup Wizard 10
Placement Options 16
Audio Option 16
Chapter 6: Installing and Using the Wireless-G Internet Video Camera Viewer
& Recorder Utility 17
Overview 17
Installing the Viewer & Recorder Utility 17
Using the Viewer & Recorder Utility 19
Chapter 7: Setting up the Intamac Camera Monitoring Service 30
Overview 30
Introduction 30
Setup Wizard for the Intamac Camera Monitoring Service 30
Wireless-G Internet Video Camera
Chapter 8: Setting up the Linksys SoloLink™ DDNS Service 37
Overview 37
Introduction 37
Setup Wizard for the SoloLink DDNS Service 37
SoloLink Registration of Additional Cameras 47
Chapter 9: Using the Wireless-G Internet Video Camera’s Web-based Utility 49
Overview 49
How to Access the Web-based Utility 49
View Video 49
Setup 50
Help 62
Appendix A: Troubleshooting 64
Common Problems and Solutions 64
Frequently Asked Questions 67
Appendix B: Wireless Security 70
Security Precautions 70
Security Threats Facing Wireless Networks 70
Appendix C: Upgrading Firmware 72
Appendix D: Windows Help 73
Appendix E: Glossary 74
Appendix F: Specifications 81
Appendix G: Warranty Information 83
Appendix H: Regulatory Information 84
Appendix I: Contact Information 90
Wireless-G Internet Video Camera
List of Figures
Figure 3-1: Camera LCD Screen and Built-in Microphone 6
Figure 3-2: Camera LEDs 6
Figure 3-3: Camera Head 6
Figure 3-4: Camera Ports 7
Figure 4-1: Connect the Ethernet Network Cable 8
Figure 4-2: Connect the Power Adapter 8
Figure 5-1: Setup Wizard - Welcome Screen 10
Figure 5-2: Connection for Setup Screen 10
Figure 5-3: Cameras Found Screen 11
Figure 5-4: Login Screen 11
Figure 5-5: Basic Settings Screen 11
Figure 5-6: Network Settings Screen 12
Figure 5-7: IP Settings Screen 12
Figure 5-8: Mode Settings Screen 13
Figure 5-9: Wireless Settings Screen 13
Figure 5-10: Security Settings Screen 14
Figure 5-11: Review New Settings Screen 14
Figure 5-12: Confirmation Screen 15
Figure 5-13: Congratulations Screen 15
Figure 5-14: Stand Option 16
Figure 5-15: Camera Desktop Stand 16
Figure 5-16: Wall Mount Option 16
Figure 5-17: Wall-Mount Slots 16
Figure 6-1: Install Viewer & Recorder Utility Screen 17
Figure 6-2: Install Viewer & Recorder Utility - Welcome Screen 17
Figure 6-3: Choose Destination Location Screen 18
Figure 6-4: Select Program Folder Screen 18
Figure 6-5: OCX Plug-in Screen 18
Wireless-G Internet Video Camera
Figure 6-6: Setup Complete Screen 18
Figure 6-7: Viewer & Recorder Utility Icon 19
Figure 6-8: Main Screen 19
Figure 6-9: Find Camera from LAN Screen 20
Figure 6-10: Camera Added Successfully Screen 20
Figure 6-11: Find Camera from Internet Screen 21
Figure 6-12: Change Settings Screen 21
Figure 6-13: Delete Camera Screen 22
Figure 6-14: Confirm Deletion of Camera Screen 22
Figure 6-15: View Video Screen 23
Figure 6-16: Recording Icon Screen 23
Figure 6-17: Scheduled Recordings in Progress Screen 26
Figure 6-18: Files Screen 26
Figure 6-19: Recorded Files Screen 26
Figure 6-20: Window Showing SnapShot Folders 27
Figure 6-21: Preferences Screen 27

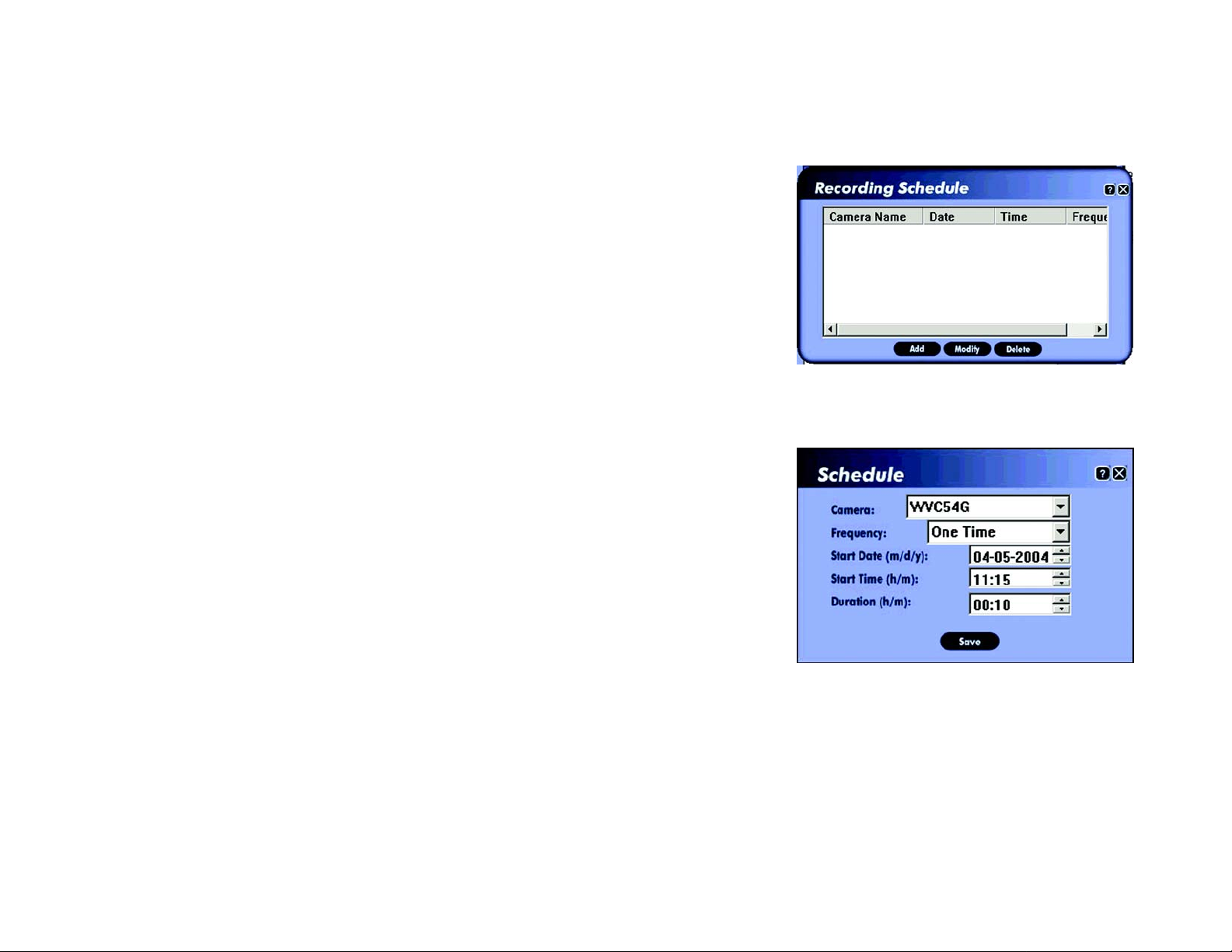

Figure 6-22: Recording Schedule Screen 28
Figure 6-23: Add to Recording Schedule Screen 28
Figure 6-24: Stop Scheduled Recording Screen 29
Figure 6-25: View Video Screen 29
Figure 7-1: Intamac Welcome Screen 30
Figure 7-2: About the Intamac Service Screen 31
Figure 7-3: 30 Day Free Trial Offer Screen 31

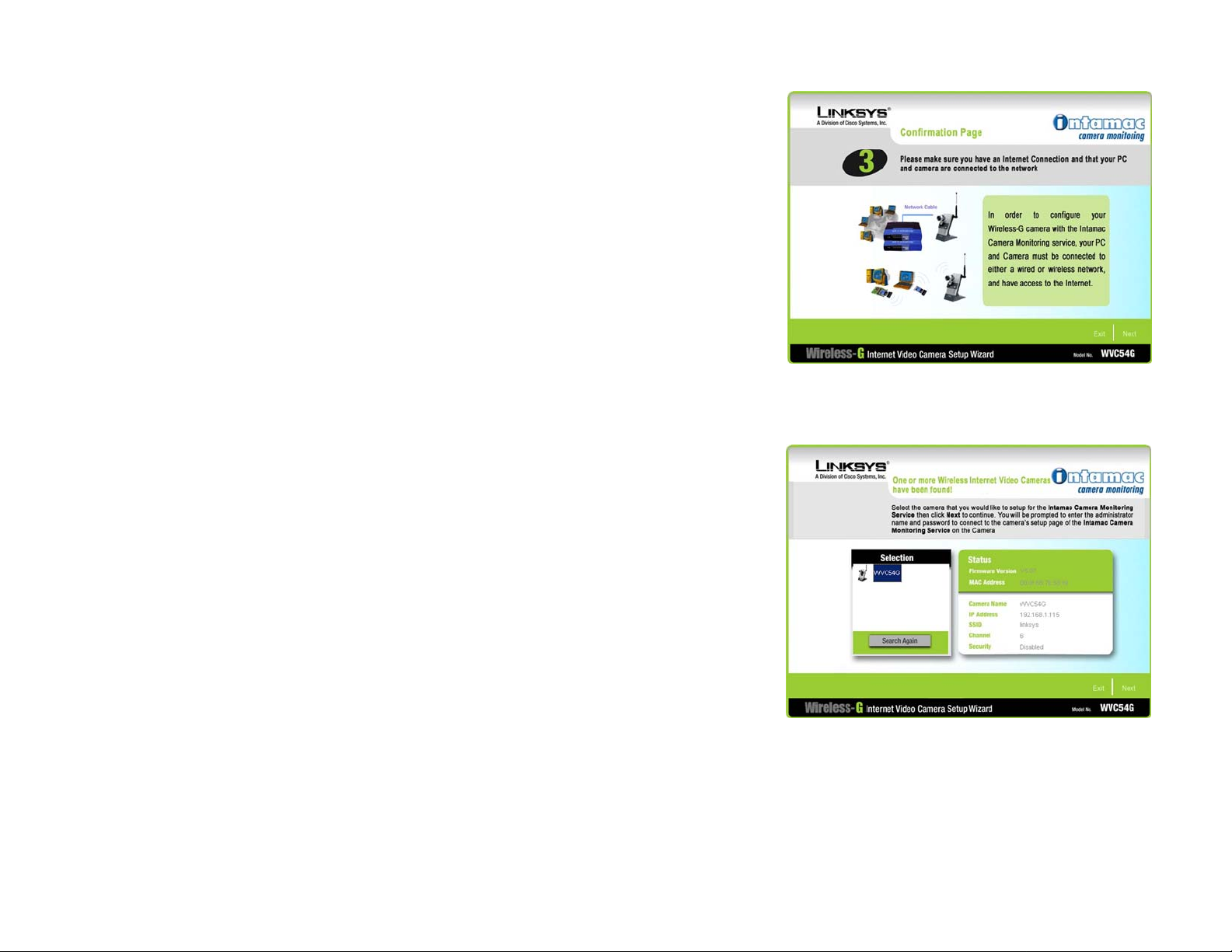

Figure 7-4: Confirmation Page Screen 32
Figure 7-5: Cameras Found Screen 32
Figure 7-6: Login Screen 33
Figure 7-7: Intamac Monitoring Screen 33

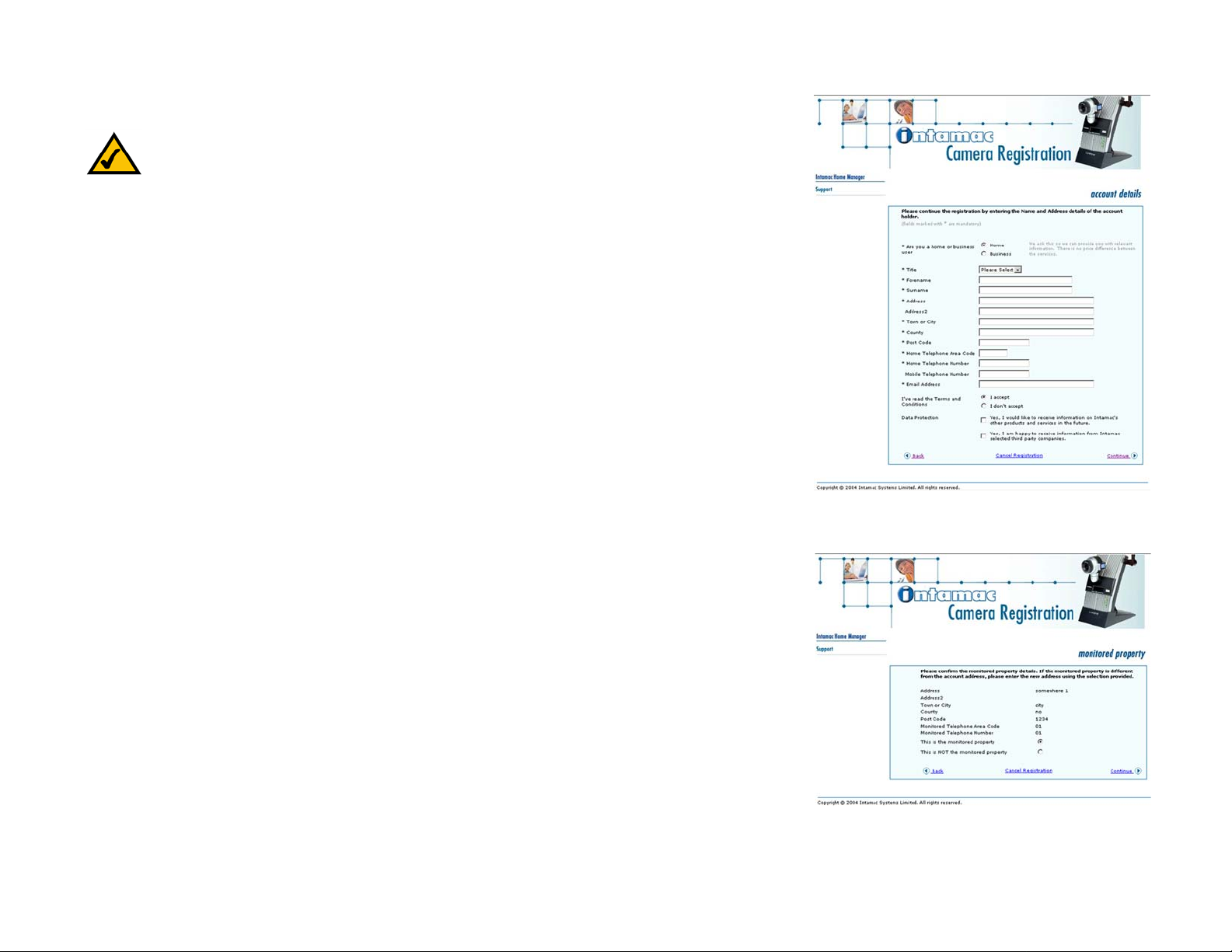

Figure 7-8: Account Details Screen 34
Figure 7-9: Monitored Property Screen 34

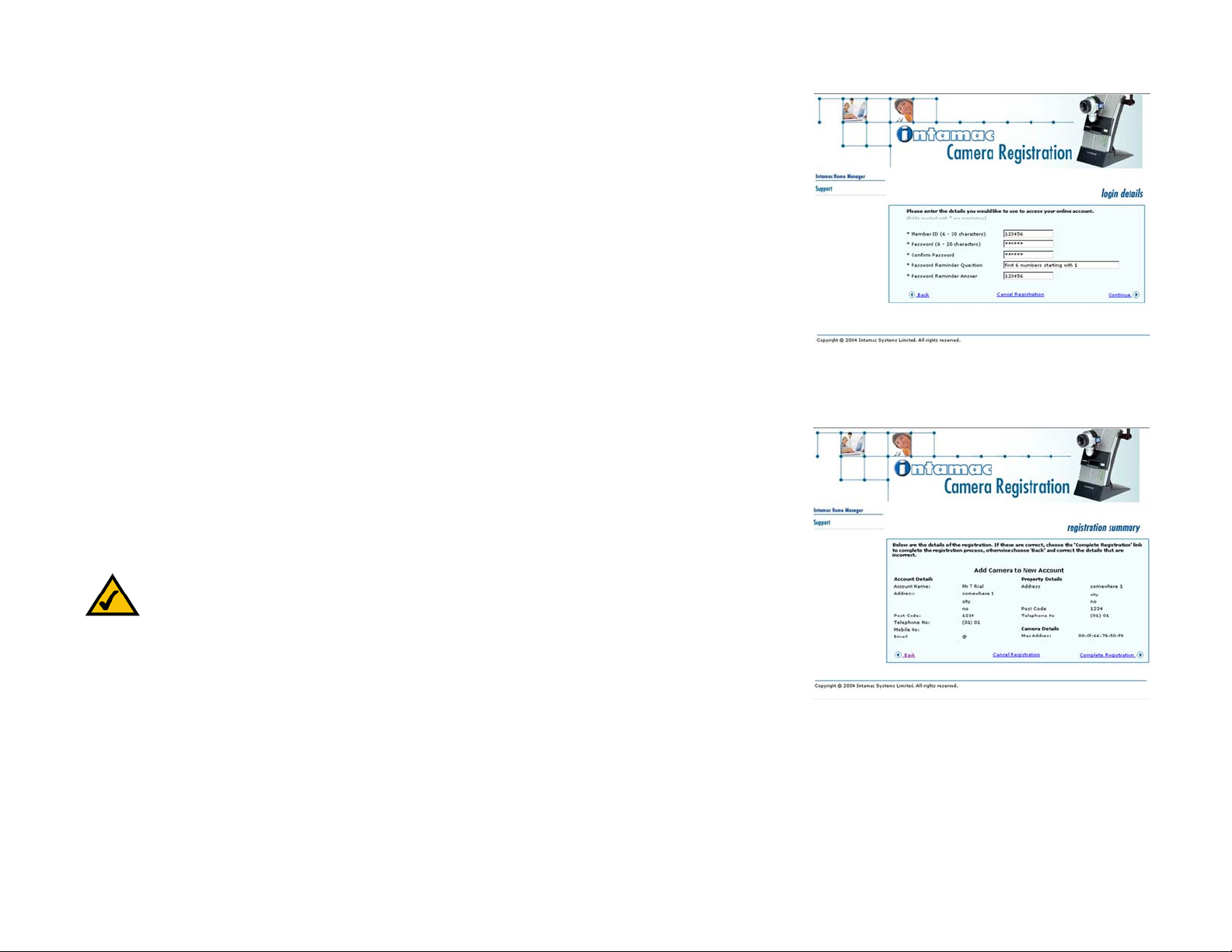

Figure 7-10: Login Details Screen 35
Wireless-G Internet Video Camera
Figure 7-11: Registration Summary Screen 35
Figure 7-12: Registration Complete Screen 36
Figure 7-13: Intamac Monitoring with Registered Camera Screen 36
Figure 8-1: SoloLink Access ID Card 37
Figure 8-2: SoloLink Welcome Screen 37

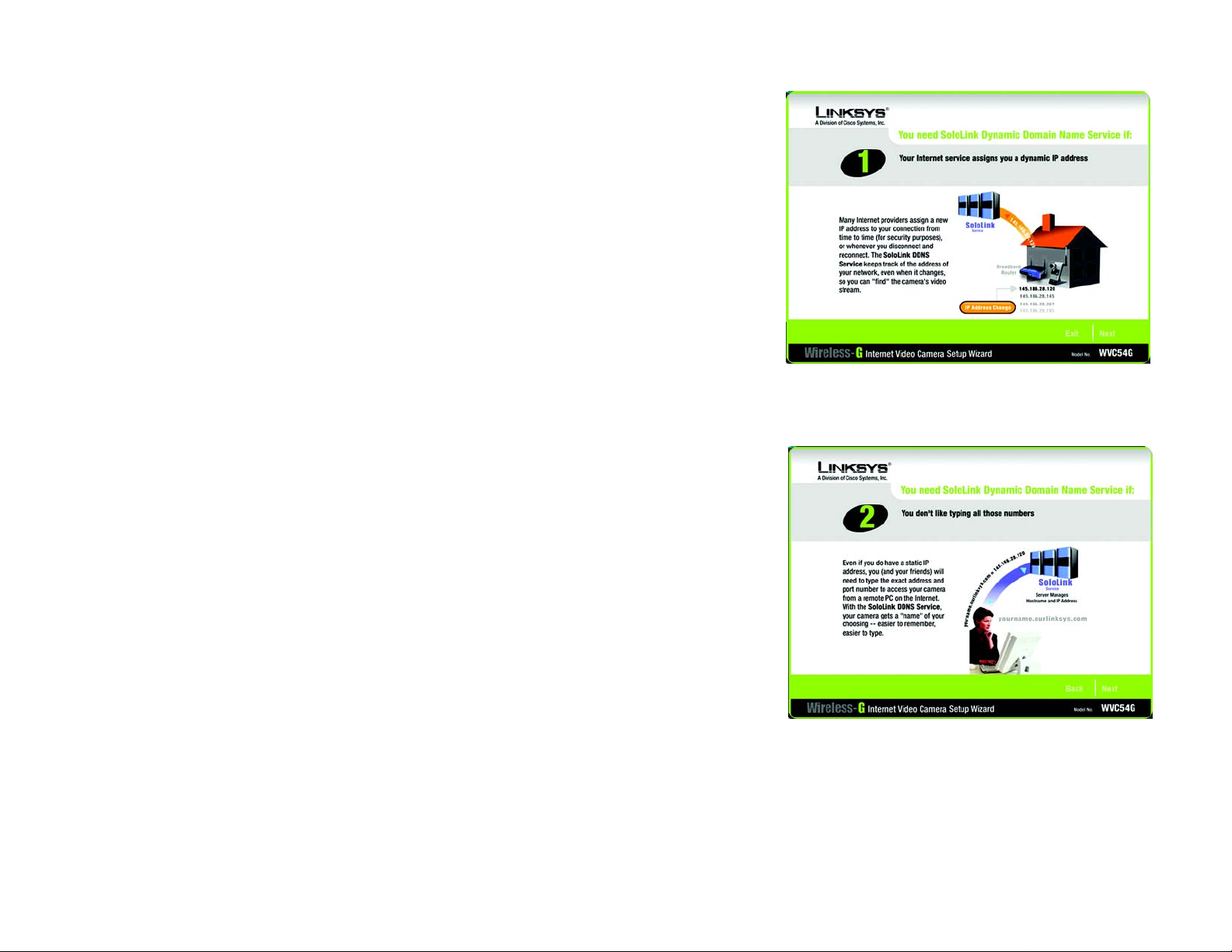

Figure 8-3: SoloLink for Dynamic IP Address Screen 38
Figure 8-4: SoloLink for Convenience Screen 38

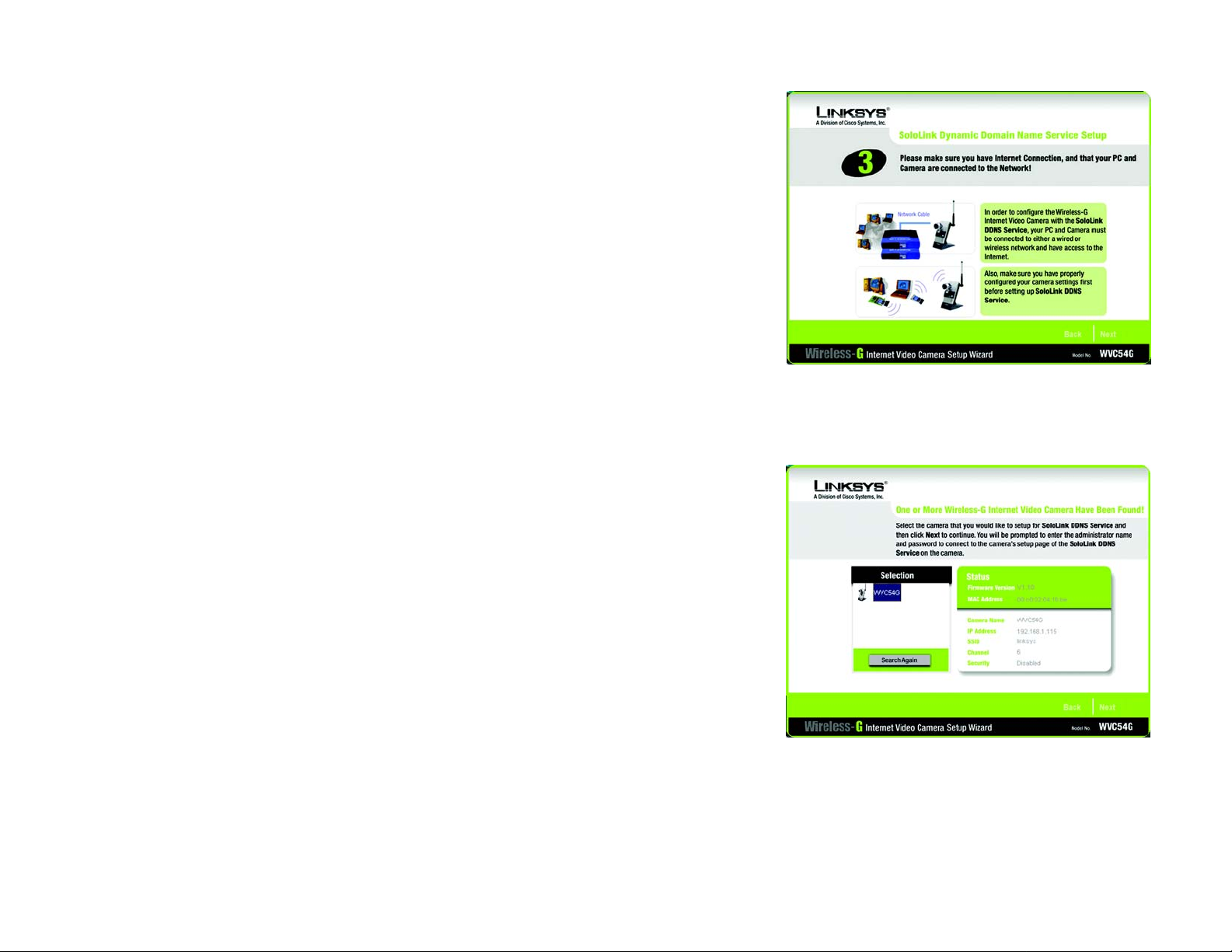

Figure 8-5: Check Connections Screen 39
Figure 8-6: Cameras Found Screen 39
Figure 8-7: Login Screen 40
Figure 8-8: SoloLink DDNS Screen 40

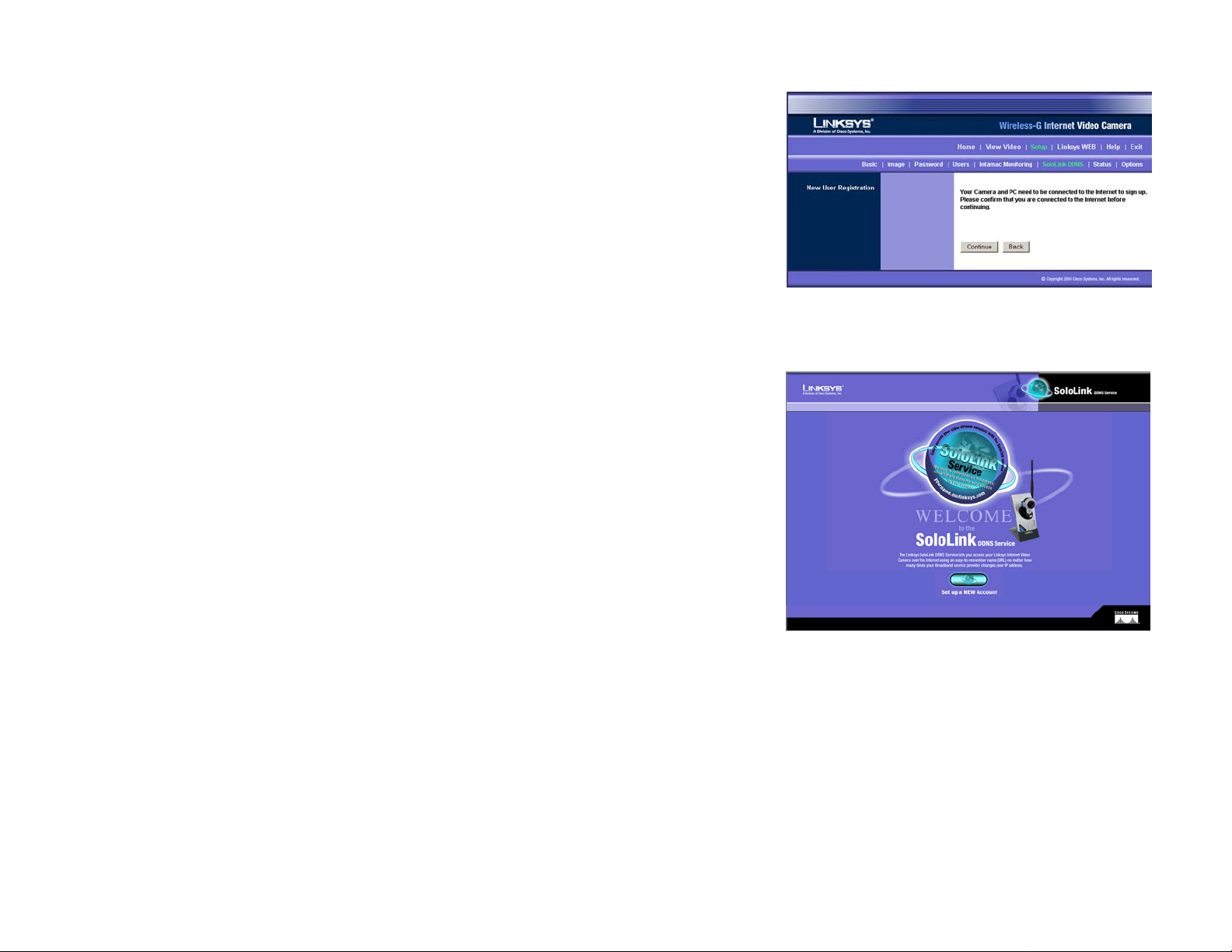

Figure 8-9: Confirm Active Internet Connection Screen 41
Figure 8-10: Welcome to the SoloLink DDNS Service Screen 41
Figure 8-11: Sign Up Screen 42
Figure 8-12: Confirmation of New Settings Screen 42
Figure 8-13: Select a Location ID Screen 43
Figure 8-14: Confirm Your Location ID Screen 43
Figure 8-15: Verification Screen 44
Figure 8-16: Create Links Screen 44
Figure 8-17: Successful Registration Screen 45
Figure 8-18: Account Confirmation of Camera Screen 45
Figure 8-19: Successful Setup Screen 46
Figure 8-20: Port Forwarding Information 46
Figure 8-21: Web-based Utility Welcome 47
Figure 8-22: Web Utility Login Screen 47
Figure 8-23: SoloLink DDNS Screen 48
Figure 8-24: Find Available Port Screen 48
Figure 9-1: Camera’s Default IP Address 49
Figure 9-2: Web-based Utility Welcome 49
Figure 9-3: Security Warning Screen 50
Wireless-G Internet Video Camera
Figure 9-4: Web Utility Login Screen 50
Figure 9-5: Basic Screen 51
Figure 9-6: Confirmation Screen 52

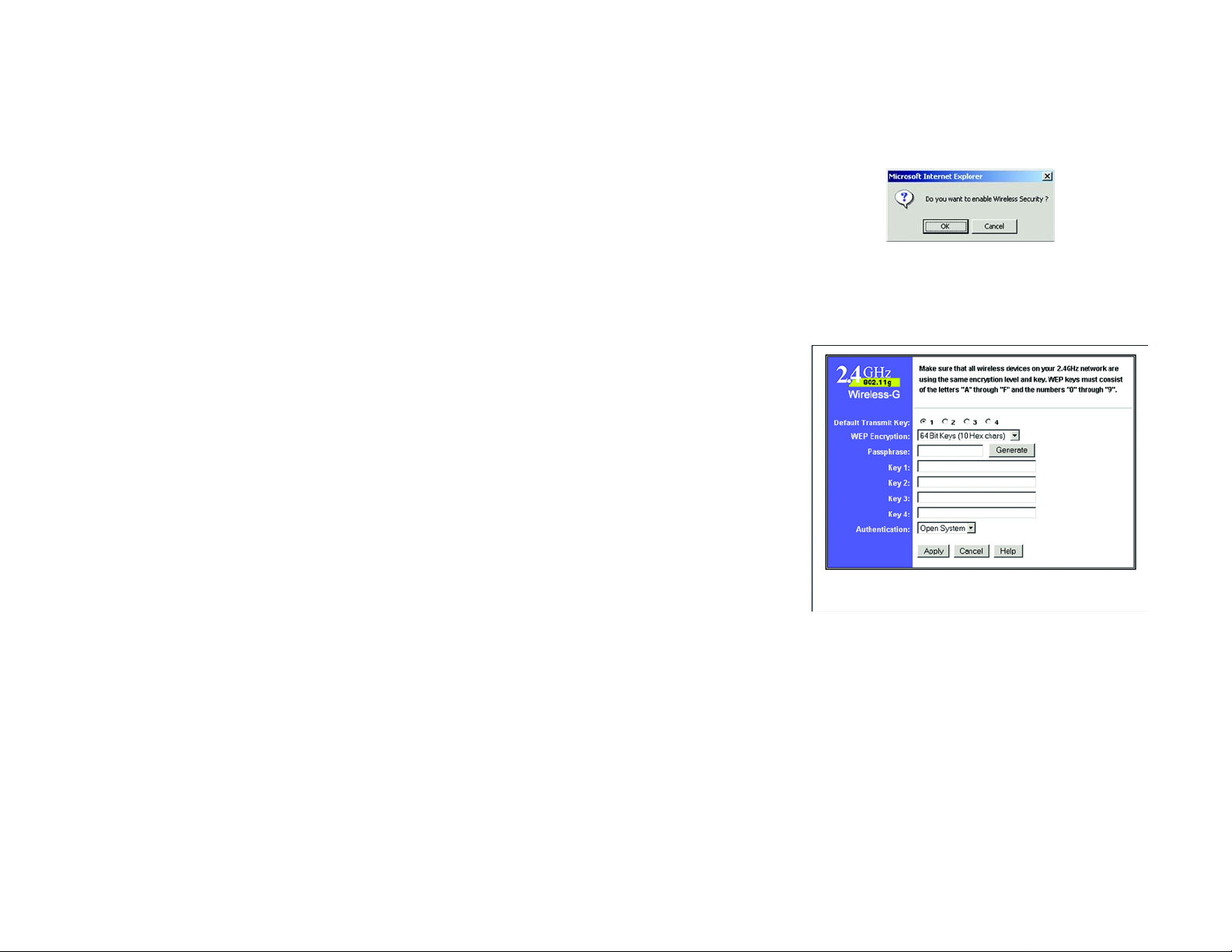

Figure 9-7: WEP Key Settings Screen 52
Figure 9-8: Image Screen 53
Figure 9-9: Password Screen 54
Figure 9-10: Users Screen 55
Figure 9-11: Add/Modify User Screen 55
Figure 9-12: Intamac Monitoring Screen 56
Figure 9-13: SoloLink DDNS Screen 57
Figure 9-14: New User Registration Screen 57
Figure 9-15: Password Request Screen 58
Figure 9-16: Manage Your SoloLink DDNS Account 58
Figure 9-17: Device Removal Screen 58
Figure 9-18: Find Available Port Screen 59
Figure 9-19: Status Screen 60
Figure 9-20: Options Screen 61
Figure 9-21: Administrator Help 62
Figure 9-22: Upgrade Firmware Screen 63

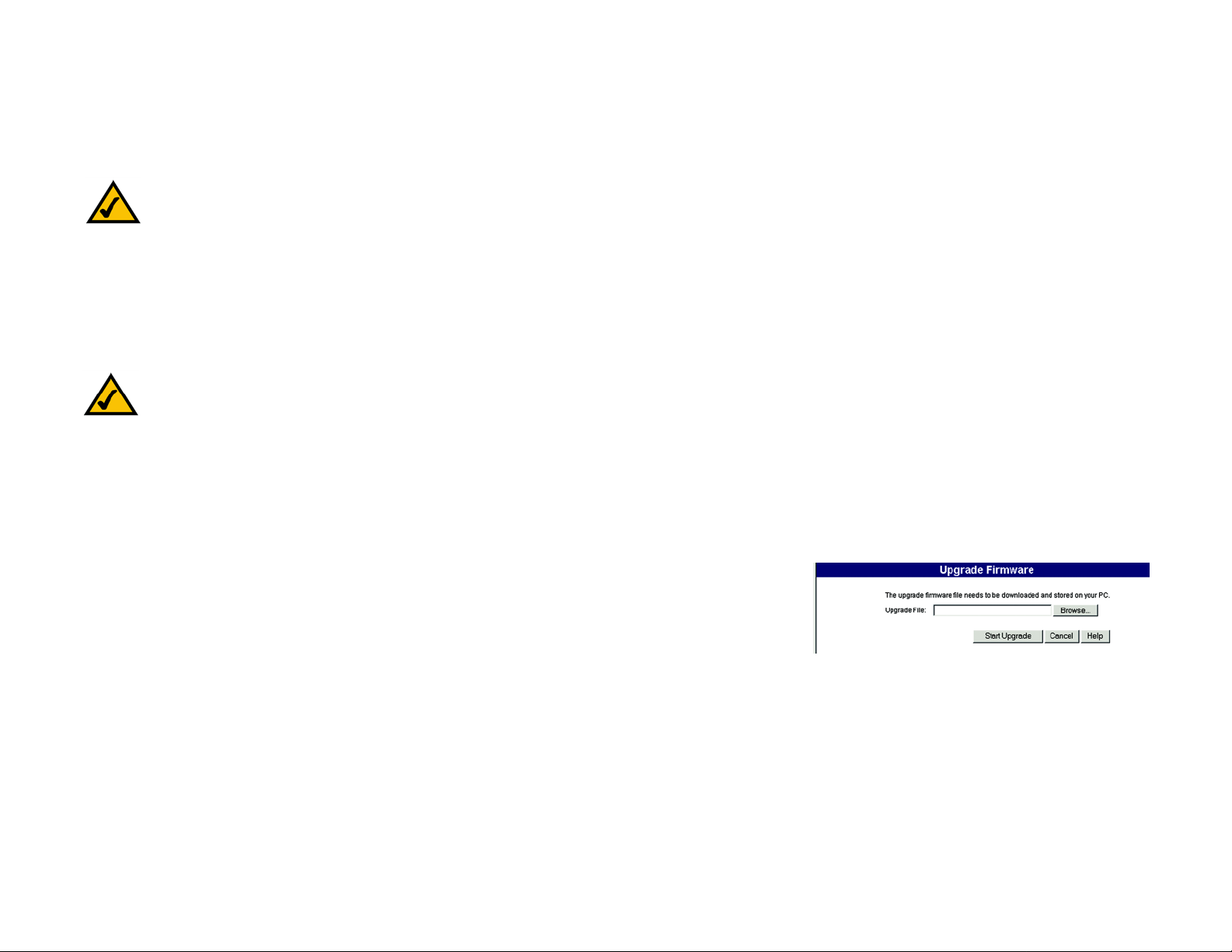

Figure C-1: Upgrade Firmware Screen 72
Wireless-G Internet Video Camera
Chapter 1: Introduction
Welcome
Thank you for choosing the Linksys Wireless-G Internet Video Camera. This Camera sends live video through the
Internet to a web browser anywhere in the world! This compact, self-contained unit lets you keep an eye on your
home, your kids, your workplace—whatever’s important to you.
How does the Camera do all of this? Unlike standard “web cams” that require an attached PC, the Internet Video
Camera contains its own web server, so it can connect directly to a network, either over Wireless-G (802.11b)
networking, or over 10/100 Ethernet cable. The advanced MPEG-4 video compression produces a high-quality,
high-framerate, up to 640 x 480 audio/video stream.
The Internet Video Camera’s unique form-factor and wireless connectivity allows you to mount it on a wall nearly
anywhere, or slip it into its included stand for desktop use. Once it’s connected to your home network, you can
“see what it sees” from any PC in the house, while the audio/video stream is secured from the outside world,
hidden behind your Router. If you want the video to be visible from outside your home network, you can open an
appropriate port on the Router, and then create password-protected accounts to manage access to the Camera,
or leave it wide open for the world to see. The SoloLink DDNS Service (trial sign-up included) lets you access your
Camera using an easy-to-remember “name”, even if your home Internet connection uses a dynamic IP address.
You can also turn on Security Mode, which tells the Camera to send you an e-mail message with a short video
attached to up to three e-mail addresses whenever it detects motion in its field of view . You can then log onto the
live video stream if the situation warrants. The included Viewer & Recorder utility lets you record the audio/video
stream to your local hard drive, “live” or on a predetermined schedule.
802.11g: An IEEE wireless networking
standard that specifies a maximum
data transfer rate of 54Mbps, an
operating frequency of 2.4GHz, and
backward compatibility with 802.11b
devices.
Ethernet: an IEEE standard network
protocol that specifies how data is
placed on and retrieved from a
common transmission medium.
With the Intamac Monitoring Service (free 30-day trial included), you can use the Camera to monitor your home.
When the Camera spots suspicious activity, you and your contacts will be instantly alerted via phone, text, or
e-mail, with pictures sent straight to your mobile using MMS or video. Through your secure, online account, you
can view events, store video clips, change contact details, and network all of the Cameras you have.
Use the instructions in this Guide to help you integrate the Camera into your network. These instructions should
be all you need to get the most out of the Wireless-G Internet Video Camera.
Chapter 1: Introduction
Welcome
1
Wireless-G Internet Video Camera
What’s in this User Guide?
This user guide covers the steps for setting up and using the Wireless-G Internet Video Camera.
• Chapter 1: Introduction
This chapter describes the Camera’s applications and this User Guide.
• Chapter 2: Planning Your Wireless Network
This chapter discusses a few of the basics about wireless networking.
• Chapter 3: Getting to Know the Wireless-G Internet Video Camera
This chapter describes the physical features of the Camera.
• Chapter 4: Connecting the Wireless-G Internet Video Camera
This chapter instructs you on how to connect the Camera to your network before you run the Setup Wizard.
• Chapter 5: Setting up and Mounting the Wireless-G Internet Video Camera
This chapter instructs you on how to use the Setup Wizard for setup and configuration of the Camera, as well
as how to mount the Camera.
• Chapter 6: Installing and Using the Wireless-G Internet Video Camera Utility
This chapter explains how to install and use the Wireless-G Internet Video Camera Utility on your PC, so you
can view and record video.
• Chapter 7: Setting up the Intamac Camera Monitoring Service
This chapter discusses the advantages of the Intamac Camera Monitoring Service and walks you through the
setup procedure.
• Chapter 8: Setting up the Linksys SoloLink™ DDNS Service
This chapter discusses the advantages of the SoloLink DDNS Service and walks you through the setup
procedure.
• Chapter 9: Using the Wireless-G Internet Video Camera Web-based Utility
This chapter describes the Web-based Utility and the features available, so you can use and alter advanced
configuration settings.
• Appendix A: Troubleshooting
This appendix describes some problems and solutions, as well as frequently asked questions, regarding
installation and use of the Camera.
Chapter 1: Introduction
What’s in this User Guide?
2
Wireless-G Internet Video Camera
• Appendix B: Wireless Security
This appendix discusses security issues regarding wireless networking and measures you can take to help
protect your wireless network.
• Appendix C: Upgrading Firmware
This appendix explains how you can upgrade the Camera’s firmware.
• Appendix D: Windows Help
This appendix describes how you can use Windows Help for instructions about networking, such as installing
the TCP/IP protocol.
• Appendix E: Glossary
This appendix gives a brief glossary of terms frequently used in networking.
• Appendix F: Specifications
This appendix provides the technical specifications for the Camera.
• Appendix G: Warranty Information
This appendix supplies the warranty information for the Camera.
• Appendix H: Regulatory Information
This appendix supplies the regulatory information regarding the Camera.
• Appendix I: Contact Information
This appendix provides contact information for a variety of Linksys resources, including Technical Support.
Chapter 1: Introduction
What’s in this User Guide?
3
Wireless-G Internet Video Camera
Chapter 2: Planning Your Wireless Network
Introduction
A wireless local area network (WLAN) is exactly like a regular local area network (LAN), except that each
computer in the WLAN uses a wireless device to connect to the network. Computers and other devices, such as
peripherals, in a WLAN share the same frequency channel and SSID, which is an identification name for wireless
devices.
Ad-Hoc and Infrastructure Modes
Unlike wired networks, wireless networks have two different modes in which they may be set up: infrastructure
and ad-hoc. An infrastructure configuration is a WLAN and wired LAN communicating to each other through an
access point. An ad-hoc configuration is wireless-equipped computers communicating directly with each other.
Choosing between these two modes depends on whether or not the wireless network needs to share data or
peripherals with a wired network or not.
If the computers on the wireless network need to be accessed by a wired network or need to share a peripheral,
such as a printer, with the wired network computers, the wireless network should be set up in infrastructure
mode. The basis of infrastructure mode centers around an access point, which serves as the main point of
communications in a wireless network. (A wireless router can also be used because a wireless router
incorporates the capabilities of an access point.) Access points transmit data to PCs equipped with wireless
network cards, which can roam within a certain radial range of the access point. Multiple access points can be
arranged to work in succession to extend the roaming range, and can be set up to communicate with your
Ethernet (wired) hardware as well.
If the wireless network is relatively small and needs to share resources only with the other computers on the
wireless network, then the ad-hoc mode can be used. Ad-hoc mode allows computers equipped with wireless
transmitters and receivers to communicate directly with each other , eliminating the need for an access point. The
drawback of this mode is that, in Ad-Hoc mode, wireless-equipped computers are not able to communicate with
computers on a wired network. And, of course, communication between the wireless-equipped computers is
limited by the distance and interference directly between them.
LAN (Local Area Network): the
computers and networking products
that make up the network in your home
or office.
WLAN (Wireless Local Area
Network): A group of computers and
associated devices that communicate
with each other wirelessly.
Infrastructure: configuration in which
a wireless network is bridged to a
wired network via an access point.
Ad-hoc: a group of wireless devices
communicating directly to each other
(peer-to-peer) without the use of an
access point.
Network Layout
The Wireless-G Internet Video Camera is compatible with all 802.11b and 802.11g routers, such as model
numbers BEFW11S4 and WRT54G, as well as access points, including model numbers WAP11 and WAP54G. The
Chapter 2: Planning Your Wireless Network
Introduction
4
Wireless-G Internet Video Camera
Camera will also communicate with network adapters, such as the Wireless-B and Wireless-G Notebook Adapters
(model numbers WPC11 and WPC54G) for your laptop computers, Wireless-B and Wireless-G PCI Adapters (model
numbers WMP11 and WMP54G) for your desktop PCs, and Wireless-B and Wireless-G USB Adapters (model
numbers WUSB11 and WUSB54G) for your computers when you want to enjoy USB connectivity.
With these, and many other Linksys products, your networking options are limitless. Go to the Linksys website at
www.linksys.com/international for more information about products that work with the Wireless-G Internet Video
Camera.
Chapter 2: Planning Your Wireless Network
Network Layout
5
Wireless-G Internet Video Camera
Chapter 3: Getting to Know the Wireless-G Internet Video Camera
Camera LCD Screen and Built-in Microphone
The Camera has a LCD screen that indicates the Camera’s current IP address and whether it is a fixed or dynamic
address. If the Camera uses a fixed IP address, then the screen will display the word “FIXED.” If the Camera uses
a dynamic IP address, then the screen will display the word “DHCP.”
The built-in microphone is located approximately one inch below the LCD screen, in the middle of the Camera’s
front panel. It has a range of approximately 9 feet (3 meters), depending on environmental conditions.
Camera LEDs
The Camera has four LEDs to let you know how the Camera is functioning.
Built-in
Microphone
READY Green. The READY LED lights up when the Camera is powered on. It flashes while the
Camera is initializing and is steadily lit when the Camera is ready for use.
ACT/LINK Green. The ACT/LINK LED flashes when there is activity.
ETHERNET Green. The ETHERNET LED lights up when there is a connection to a wired network. It flashes
when data is transmitted to or received from the wired network.
WIRELESS Green. The WIRELESS LED lights up when there is a connection to a wireless network. It
flashes when data is transmitted to or received from the wireless network.
Camera Head
The Camera head and its focus ring allow you to modify the aim and focus of the Camera.
To alter the Camera’s aim, swivel the Camera head.
To adjust the Camera’s focus, rotate the dark gray focus ring.
Chapter 3: Getting to Know the Wireless-G Internet Video Camera
Camera LCD Screen and Built-in Microphone
Figure 3-1: Camera LCD Screen and Built-in Microphone
Figure 3-2: Camera LEDs
Figure 3-3: Camera Head
6
Wireless-G Internet Video Camera
Camera Ports
Figure 3-4: Camera Ports
The Camera features three ports and a Reset button on the bottom panel.
POWER The POWER port is where you will connect the power adapter.
MIC IN The MIC IN port is where you will connect the 2.5 mm input jack of your external microphone
(optional).
ETHERNET The ETHERNET port is where you will connect the Ethernet network cable.
RESET The RESET button is what you will press if you need to reset the Camera. Insert a paper clip
into the opening next to the Ethernet port. Then press the button and hold it in for five seconds.
Chapter 3: Getting to Know the Wireless-G Internet Video Camera
Camera Ports
IMPORTANT: Resetting the Camera will erase
all of your settings, such as encryption
information, and replace them with the factory
defaults. Do not reset the Camera if you want
to retain these settings.
7
Wireless-G Internet Video Camera
Chapter 4: Connecting the Wireless-G Internet Video Camera for Setup
Overview
Before you set up the Camera, connect it to a wired or wireless network. Proceed to the appropriate section for
your setup.
If you need to move the Camera from a wired network to a wireless network, or vice versa, go to this section,
“Moving the Camera to a Different Network.”
Connection to a Wired Network for Setup
1. Attach the antenna.
2. Connect the Ethernet network cable to your router, switch, or computer.
3. Connect the other end of the cable to the Ethernet port on the Camera.
4. Connect the power adapter to the Power port on the Camera.
5. Plug the power adapter into an electrical outlet.
The Camera’s Ready LED flashes while the Camera is initializing. The Camera is ready for use when the Ready
and Ethernet LEDs are solidly lit.
Proceed to “Chapter 5: Setting up and Mounting the Wireless-G Internet Video Camera.”
Connection to a Wireless Ad-Hoc Network for Setup
1. Make sure your computer has the following wireless settings:
• SSID - linksys
• Network Mode - Ad-Hoc
• Channel - 6
• WEP - Disabled
2. Attach the antenna.
Chapter 4: Connecting the Wireless-G Internet Video Camera for Setup
Overview
Figure 4-1: Connect the Ethernet Network Cable
NOTE: You MUST connect the Camera to a PC,
router, or switch using the Ethernet network
cable BEFORE powering on the Camera.
Otherwise, the Camera will not function.
Figure 4-2: Connect the Power Adapter
8
Wireless-G Internet Video Camera
3. Connect the power adapter to the Power port on the Camera.
4. Plug the power adapter into an electrical outlet.
The Camera’s Ready LED flashes while the Camera is initializing. The Camera is ready for use when the Ready
and Wireless LEDs are solidly lit.
Proceed to “Chapter 5: Setting up and Mounting the Wireless-G Internet Video Camera.”
Moving the Camera to a Different Network
When you move the Camera from a wired network to a wireless network, or vice versa, you must power off the
Camera before connecting to the new network. Proceed to the appropriate instructions.
To move the Camera from a wired network to a wireless network, follow these instructions:
1. Unplug the power adapter from the Camera.
2. Unplug the Ethernet network cable from the Camera.
3. Re-connect the power adapter to the Power port on the Camera.
The Camera’s Ready LED flashes while the Camera is initializing. The Camera is ready for use when the Ready
and Wireless LEDs are solidly lit.
Proceed to “Chapter 5: Setting up and Mounting the Wireless-G Internet Video Camera.”
To move the Camera from a wireless network to a wired network, follow these instructions:
1. Unplug the power adapter from the Camera.
2. Connect the Ethernet network cable to your PC, router, or switch.
3. Connect the other end of the cable to the Ethernet port on the Camera.
4. Re-connect the power adapter to the Power port on the Camera.
The Camera’s Ready LED flashes while the Camera is initializing. The Camera is ready for use when the Ready
and LAN LEDs are solidly lit.
Proceed to “Chapter 5: Setting up and Mounting the Wireless-G Internet Video Camera.”
Chapter 4: Connecting the Wireless-G Internet Video Camera for Setup
Moving the Camera to a Different Network
9
Wireless-G Internet Video Camera
Chapter 5: Setting up and Mounting the Wireless-G Internet Video Camera
Setup Wizard
The Wireless-G Internet Video Camera Setup Wizard will guide you through the installation and configuration
procedure.
1. Insert the Setup CD-ROM into your CD-ROM drive. The Setup Wizard should run automatically, and the
Welcome screen should appear. If it does not, click the Start button and cho ose Run. In the field provided,
enter D:\wvc54g.exe (if “D” is the letter of your CD-ROM drive).
• Setup. Click the Setup button to begin the installation process.
• Install Viewer & Recorder Utility. Click this button to install the Camera’s Viewer & Recorder Utility on
your PC.
• Intamac Camera Monitoring. Click this button to set up the Intamac Camera Monitoring Service.
• Setup SoloLink DDNS Service. Click the Setup SoloLink DDNS Service button to configure and use
Linksys’s Dynamic Domain Name System (DDNS) service.
• User Guide. Click this button to open the PDF file of this User Guide.
• Exit. Click the Exit button to exit the Setup Wizard.
2. To install the Camera, click the Setup button on the Welcome screen.
3. Make sure the Camera is properly connected to either a wired or wireless network. Then click the Next button
to continue.
Chapter 5: Setting up and Mounting the Wireless-G Internet Video Camera
Setup Wizard
Figure 5-1: Setup Wizard - Welcome Screen
Figure 5-2: Connection for Setup Screen
10
Wireless-G Internet Video Camera
4. This screen displays a list of Wireless-G Internet Video Cameras on your network, along with the status
information for the Camera whose name is highlighted. In the Selection box, click the name of the Camera
you are currently installing. Write down the IP address of the Camera, so you can use it to access the Webbased Utility later. Click the Next button.
5. For security purposes, you will be asked to enter a name and password in order to have administrator access
to the Camera. In lowercase letters, enter admin in the Administrator Name and Administrator Password
fields (later you can change these through the Web-based Utility). Then click the OK button.
Figure 5-3: Cameras Found Screen
6. On the Basic Settings screen, you can alter the following settings:
• Camera Name. You can give the Camera a unique name. Memorable names are helpful, especially if you
are using multiple Cameras on the same network. It should have 15 characters or fewer.
• Description. You may enter additional information, such as location, in this field. It has a maximum length
of 32 characters.
• Time Zone. Select the time zone for the Camera’s location.
• Date. Enter today’s date in the fields provided.
• Time. Enter the current time in the fields provided.
When you have finished making your changes, click the Next button.
Chapter 5: Setting up and Mounting the Wireless-G Internet Video Camera
Setup Wizard
Figure 5-4: Login Screen
Figure 5-5: Basic Settings Screen
11
Wireless-G Internet Video Camera
7. If your network has a DHCP server, such as a router with DHCP enabled, click the Automatic ConfigurationDHCP radio button. If you need to assign a static IP address to the Camera, keep the default setting, Static IP
address.
Then click the Next button.
8. If you selected Automatic Configuration-DHCP in step 7, then proceed to step 9.
If you selected Static IP Address, then the IP Settings screen will appear. Enter an IP Address, Subnet Mask,
and Default Gateway appropriate for your network. You must specify an IP Address and Subnet Mask on this
screen. If you are unsure about the Default Gateway, it is better to leave this field blank. Then complete the
Primary DNS and/or Secondary DNS fields. You must enter at least one DNS address, which can be obtained
from your ISP. Click the Next button.
Figure 5-6: Network Settings Screen
Chapter 5: Setting up and Mounting the Wireless-G Internet Video Camera
Setup Wizard
Figure 5-7: IP Settings Screen
12
Wireless-G Internet Video Camera
9. The Mode Setting screen will appear. Click the Infrastructure radio button if you want the Camera to
communicate using an access point or wireless router . Click the Ad-Hoc radio button if you want the Camera
to communicate without using an access point or wireless router. Click the Next button.
10. The Wireless Settings screen will appear, so you can change the wireless settings. Enter your wireless
network’s SSID or network name. If you chose Ad-Hoc mode, select the channel at which the network
broadcasts its wireless signal.
Figure 5-8: Mode Settings Screen
• SSID. The SSID must be identical for all devices in a wireless network. It is case-sensitive and should
have 32 alphanumeric characters or fewer. (You can use any keyboard character, but do not use any
spaces.)
• Channel. If you set the Camera to Ad-Hoc mode, select the appropriate channel from the drop-down
menu. All devices in your wireless ad-hoc network must use the same channel in order to function
correctly.
Then click the Next button.
Chapter 5: Setting up and Mounting the Wireless-G Internet Video Camera
Setup Wizard
Figure 5-9: Wireless Settings Screen
13
Wireless-G Internet Video Camera
11. The Security Settings screen will appear. If your network has WEP encryption enabled, then select the level of
WEP encryption and enter a Passphrase. If you want to manually enter a WEP key, leave the Passphrase field
blank, and enter the WEP key in the Key 1 field. If your network doesn’t have WEP encryption disabled, keep
the default, Disabled.
• WEP. To enable WEP encryption, select 64-Bit Keys or 128-Bit Keys from the drop-down menu. Then
enter a Passphrase. If you want to manually enter a WEP key, leave the Passphrase field blank.
• Passphrase. If you enabled WEP encryption, you can enter a Passphrase, so a WEP key will be
automatically generated. If you want to manually enter a WEP key, leave the Passphrase field blank. The
Passphrase is case-sensitive and should have 16 alphanumeric characters or fewer. It must match the
passphrase of your wireless network and is compatible with Linksys wireless products only. (You will
have to enter the WEP key(s) manually on any non-Linksys wireless products.)
• Key 1. If you want to manually enter a WEP key, complete this field. If you are using 64-bit WEP
encryption, then the key must consist of exactly 10 hexadecimal characters. If you are using 128-bit WEP
encryption, then the key must consist of 26 hexadecimal characters. Valid hexadecimal characters are
“0” through “9” and “A” through “F”.
Click the Next button.
12. Review your settings before the Setup Wizard starts to copy your files. Click the Next button to continue.
Figure 5-10: Security Settings Screen
Chapter 5: Setting up and Mounting the Wireless-G Internet Video Camera
Setup Wizard
Figure 5-11: Review New Settings Screen
14
Wireless-G Internet Video Camera
13. If you want to save the new settings, click the OK button. If you want to cancel your changes, click the Cancel
button.
14. After the files have been successfully copied, the Congratulations screen will appear.
• Install Viewer & Recorder Utility. Click this button to install the Camera’s Utility on your PC.
• Intamac Camera Monitori ng. Click this button to set up the Intamac Camera Monitoring Service.
• Setup SoloLink DDNS Service. Click the Setup SoloLink DDNS Service button to set up and configure
the Linksys Dynamic Domain Name System (DDNS) service.
• Exit. Click the Exit button if you want to install the Camera’s Utility later.
Go to the “Placement Options” section.
Figure 5-12: Confirmation Screen
Chapter 5: Setting up and Mounting the Wireless-G Internet Video Camera
Setup Wizard
Figure 5-13: Congratulations Screen
15
Wireless-G Internet Video Camera
Placement Options
There are three ways to place the Camera. The first way is to place the Camera horizontally on a surface , so it sits
on four small rubber feet. The second way is to stand the Camera vertically on a surface. The third way is to hang
the Camera on a wall. The second and third options are explained in further detail below.
Stand Option
1. The Camera includes a Camera Desktop Stand. Insert the bottom end into the Stand.
2. Place the Camera, and adjust its aim and focus accordingly.
Wall Mount Option
The Camera has two wall-mount slots on its back panel. The distance between the slots is 80 mm (3.15 inches).
1. Determine where you want to mount the Camera. Attach two screws to the wall, so that the Camera’s wallmount slots line up with the two screws.
2. Maneuver the Camera so the screws are inserted into the two slots.
3. Adjust the Camera’s aim and focus accordingly.
Proceed to the next section, “Audio Option.”
Audio Option
If you want to use your own microphone instead of the Camera’s built-in microphone, then follow these
instructions:
1. Connect the 2.5 mm input jack of your microphone to the Camera’s MIC IN port on its bottom panel. The builtin microphone will automatically be disabled.
2. Place the external microphone in an appropriate location.
The installation of the Wireless-G Internet Video Camera is complete. Go to “Chapter 6: Installing the
Wireless-G Internet Video Camera Viewer & Recorder Utility.”
Figure 5-14: Stand Option
Figure 5-16: Wall Mount Option
Figure 5-15: Camera
Desktop Stand
If advanced users wish to access the Camera through its Web-based Utility, then proceed to “Chapter 9:
Using the Wireless-G Internet Video Camera Web-based Utility.”
Chapter 5: Setting up and Mounting the Wireless-G Internet Video Camera
Placement Options
Figure 5-17: Wall-Mount Slots
16
Wireless-G Internet Video Camera
Chapter 6: Installing and Using the Wireless-G Internet Video Camera Viewer & Recorder Utility
Overview
This chapter will instruct you on how to install and use the Wireless-G Internet Video Camera Viewer & Recorder
Utility on your PC. The Utility allows you to easily view and record the Camera’s video.
If the Wireless-B Internet Video Camera Viewer & Recorder Utility has already been installed on your PC, Linksys
recommends that you uninstall it before you install the Wireless-G Internet Video Camera Viewer & Recorder
Utility (this Utility will also work with Wireless-B Internet Video Cameras).
NOTE: To view video using a web browser, you must use Internet Explorer version 5.5 or higher. The
View Video feature will not work with Netscape. Netscape users should use the Viewer & Recorder
Utility instead.
Installing the Viewer & Recorder Utility
1. On the Welcome or Congratulations screen of the Setup Wizard, click the Install Viewer & Recorder Utility
button.
Figure 6-1: Install Viewer & Recorder Utility Screen
2. The Welcome screen will appear. Click the Next button to proceed.
Chapter 6: Installing and Using the Wireless-G Internet Video Camera Viewer & Recorder Utility
Overview
Figure 6-2: Install Viewer & Recorder Utility -
Welcome Screen
17
Wireless-G Internet Video Camera
3. The Choose Destination Location screen will appear. To install the Viewer & Recorder Utility files in the default
folder, click the Next button. To select a different folder, click the Browse button and follow the on-screen
directions.
4. The Select Program Folder screen will appear. To add program icons to the default folder, click the Next
button. If you wish, you can rename the default folder. To add program icons to an existing folder, select one
from the Existing Folders listed, and then click the Next button.
5. You will be notified when the OCX plug-in for video streaming has been installed. Click the OK button.
6. When the setup is complete, click the OK button.
To learn how to use the Viewer & Recorder Utility, proceed to the next section, “Using the Viewer &
Recorder Utility.”
To set up the Intamac Camera Monitoring Service, go to “Chapter 7: Setting up the Intamac Camera
Monitoring Service.”
To set up the Linksys SoloLink Service, go to “Chapter 8: Setting up the Linksys SoloLink DDNS Service.”
Advanced users: If you want to use the Camera’s Web-based Utility, go to “Chapter 9: Using the
Wireless-G Internet Video Camera Web-based Utility.”
Figure 6-3: Choose Destination Location Screen
Chapter 6: Installing and Using the Wireless-G Internet Video Camera Viewer & Recorder Utility
Installing the Viewer & Recorder Utility
Figure 6-4: Select Program Folder Screen
Figure 6-5: OCX Plug-in Screen
Figure 6-6: Setup Complete Screen
18
Wireless-G Internet Video Camera
Using the Viewer & Recorder Utility
After the Viewer & Recorder Utility has been installed, the Viewer & Recorder Utility icon will be displayed in two
locations, one on your desktop and one in the system tray of your desktop’s taskbar.
There are two ways to open the Viewer & Recorder Utility:
• Double-click the icon on your desktop (the icon acts as a shortcut)
• Right-click the icon in the system tray, and then click Main Program.
You will see the Utility’s main screen.
It is divided into two sections, Cameras and Scheduled Recordings in progress. From this screen, you can control
Cameras, view video, and schedule recordings.
To minimize any of the Utility’s screens, click the X button in the upper right-hand corner. To request help
information, click the ? button in the upper right-hand corner. To close the Utility, right-click the Viewer &
Recorder Utility icon in your desktop’s system tray. Then click Exit.
NOTE: This Viewer & Recorder Utility is backward-compatible with the Wireless-B Internet Video
Camera, so you can use this Utility to control Wireless-G and Wireless-B Internet Video Cameras on
your network.
Cameras
From the Cameras section, you can find or delete Cameras, change Camera settings, and view current video.
Camera List
Default ID. The identification name of the Camera used by the Camera and the Utility to exchange data.
Camera Name. The name you gave to the Camera.
Figure 6-7: Viewer & Recorder Utility Icon
Status. The status of the Camera.
Chapter 6: Installing and Using the Wireless-G Internet Video Camera Viewer & Recorder Utility
Using the Viewer & Recorder Utility
Figure 6-8: Main Screen
19
Wireless-G Internet Video Camera
Find
T o find a Camera on your local network or the Internet, click the Find button. There will be two tabs av ailable , LAN
and Internet.
LAN
The LAN screen shows the Cameras found on your local area network, along with the status information for each
Camera.
Cameras on LAN
The Utility will search for Cameras on the local area network and display a list in the Cameras on LAN box. To run
a new search, click the Refresh button.
For the Camera whose name is currently selected in the Cameras on LAN box, the following information will be
displayed:
Camera Info
Camera Name. The name you gave to the Camera.
Description. The information about the Camera that you entered.
Figure 6-9: Find Camera from LAN Screen
Address. The Camera’s IP address.
Port Number. The port number the Camera uses for communication.
Login. If you set up the Camera with a name and password, then you will need to enter them here in order to
access the Camera.
Name. Enter the login Name.
Password. Enter the login Password.
To add a Camera to the Utility’s list, select the Camera you wish to add by clicking its name in the Cameras on
LAN box. Then click the Add button. You will be notified when the Camera has been added. Click the OK button.
Chapter 6: Installing and Using the Wireless-G Internet Video Camera Viewer & Recorder Utility
Using the Viewer & Recorder Utility
Figure 6-10: Camera Added Successfully Screen
20
Wireless-G Internet Video Camera
Internet
The Internet screen shows the Camera found on the Internet, along with the status information for it.
Test Results
First, go to the Camera Info section. Enter the Camera’s Address, Port Number, and login information (if required).
Then click the Test button to find the Camera. The following information will be displayed:
Camera Info
Camera Name. The name you gave to the Camera.
Description. The information about the Camera that you entered.
Address. The Camera’s IP address or SoloLink DDNS address.
Port Number. The port number the Camera uses for communication.
Login. If you set up the Camera with a name and password, then you will need to enter them here in order to
access the Camera.
Name. Enter the login Name.
Figure 6-11: Find Camera from Internet Screen
Password. Enter the login Password.
To add the Camera to the Utility’s list, click the Add button. If you wish to clear a Camera, click the Clear button.
Change Settings
To modify a Camera’s settings, select its name in the Camera List box, and click the Change Settings button.
Test Results
First, make your changes to the Camera’s Address and Port Number fields as needed. If you set up the Camera
with a name and password, then you will need to enter them in the Name and Password fields in order to access
the Camera. Click the Save button to save your changes.
Click the Test button to make sure the Utility is able to find the Camera using the new information.
Chapter 6: Installing and Using the Wireless-G Internet Video Camera Viewer & Recorder Utility
Using the Viewer & Recorder Utility
Figure 6-12: Change Settings Screen
21
Wireless-G Internet Video Camera
For the selected Camera, the following information will be displayed:
Camera Info
Camera Name. The name you gave to the Camera.
Description. The information about the Camera that you entered.
Address. The Camera’s IP address or your SoloLink DDNS address.
Port Number. The port number the Camera uses for communication.
Login. If you set up the Camera with a name and password, then enter them here to access the Camera.
Name. Enter the login Name.
Password. Enter the login Password.
If you want to save any changes, click the Save button.
Delete
T o delete a Camera from the list, select the Camera by clicking its name in the Camera List box, and then click the
Delete button. When asked to confirm the deletion, click the Yes button.
Chapter 6: Installing and Using the Wireless-G Internet Video Camera Viewer & Recorder Utility
Using the Viewer & Recorder Utility
Figure 6-13: Delete Camera Screen
Figure 6-14: Confirm Deletion of Camera Screen
22
