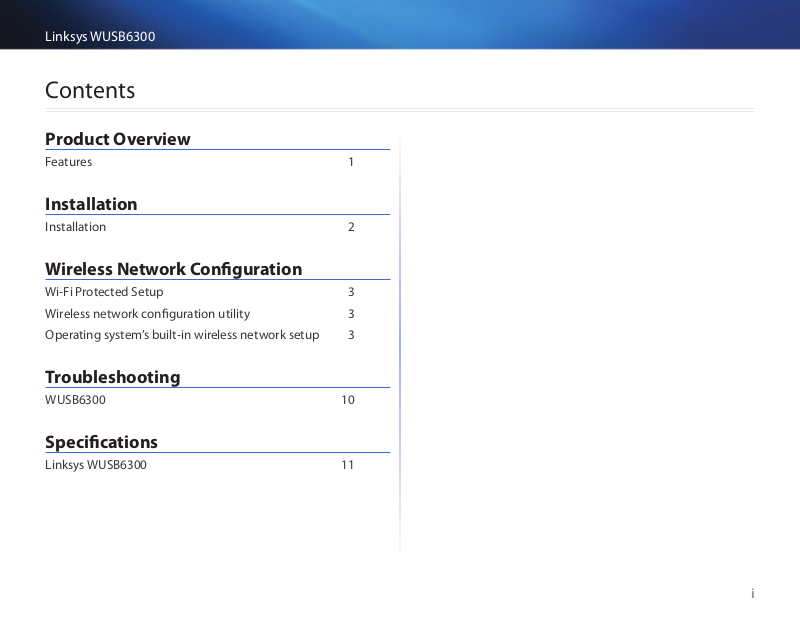

Contents
Product Overview
Features 1
Installation
Installation 2
Wireless Network Conguration
Wi-Fi Protected Setup 3 Wireless network conguration utility 3 Operating system’s built-in wireless network setup 3
WUSB6300 10
Specications
Linksys WUSB6300 11
i
Linksys WUSB6300
Product Overview
Thank you for choosing the Linksys dual-band wireless USB AC1200 adapter. Using the latest wireless networking technology, the adapter adds or upgrades wireless connectivity on your Windows-based desktop or laptop computer. To help protect your data and privacy, you can configure your home network and this adapter to use Wi-Fi Protected Access 2 (WPA2) encryption.
Features
Wi-Fi Protected Setup button
Product Overview
USB plug
WPS/Security LED
USB plug: Connect this end to any available USB port on your computer.
Power/Status LED: Flashes when there is wireless network activity.
Wi-Fi Protected Setup button: Press this button and the Wi-Fi Protected
Setup button on your router or access point to connect your computer to the wireless network.
WPS/Security LED: Indicates security status and provides feedback during Wi-Fi Protected Setup handshaking.
Power/Status LED
1
Linksys WUSB6300
Installation
Installation
This chapter describes the procedure for installing the adapter.
Installation
To install the adapter:
1. Insert the CD into your CD or DVD drive.
2. For Windows 8, click Tap to choose what happens to this disc in the
upper-right corner of the screen.
3. Click Set up your Linksys Adapter.
If you do not see a pop-up menu for the CD, access Setup on the CD directly. To access the CD, perform the following steps for your operating system:
Windows XP
a. Click Start, then click My Computer. b. Double-click your CD or DVD drive.
4. Follow the on-screen instructions to finish setting up your Linksys
wireless adapter.
Note
You need to run Setup only once to install your adapter. After you run Setup, your computer recognizes the adapter each time it is connected to your computer’s USB port.
Windows 8
a. Type Computer at the main screen, then click Computer when it
appears in the Apps list.
b. Double-click your CD or DVD drive.
Windows 7 and Windows Vista
a. Click Start, then click Computer. b. Double-click your CD or DVD drive.
2
Linksys WUSB6300
Wireless Network Configuration
Wi-Fi Protected Setup
To configure the adapter’s wireless connection settings, you can use:
Wi-Fi Protected Setup™ (if your router, gateway, or access point
supportsit)
Your computer’s wireless network configuration utility
Your operating system’s built-in wireless network setup
Wi-Fi Protected Setup
To connect using Wi-Fi Protected Setup:
1. Press the Wi-Fi Protected Setup button on your wireless router, gateway,
or access point.
2. Within two minutes, press and hold the Wi-Fi Protected Setup button
on the side of your adapter for at least three seconds. The LED flashes while connecting, then stays solid when the connection is complete.
Wi-Fi Protected Setup button
Operating system’s built-in wireless network setup
Follow the instructions in the appropriate section below to use your operating system’s built-in utility:
“Windows 8” on page 3
”Windows 7” on page 4
“Windows Vista” on page 5
“Windows XP” on page 7
Windows 8
After you have installed the adapter, move your mouse pointer to the lower-right corner of the screen, then click Settings. Click the wireless network icon . The Network menu opens from the right side of the screen, showing you available wireless networks and your current connection status.
Wireless network configuration utility
If your computer has a wireless network configuration utility installed, refer to that utility’s documentation for instructions.
3
Linksys WUSB6300
Operating system’s built-in wireless network setup
New Wireless Connection
To connect to a different wireless network:
1. Move your mouse pointer to the lower-right corner of the screen, then click Settings.
2. Click the wireless network icon . The Network menu opens, showing
you available wireless networks and your current connection status.
3. If prompted, enter any additional required network information (such as password).
Windows 7
After you have installed the adapter, the Wireless Network Configuration utility icon appears on your computer’s system tray. (If you do not see the icon, click the Show hidden icons arrow in the system tray.)
New Wireless Connection
To connect to a different wireless network:
1. Click the Wireless Network Configuration utility icon. A list of available
wireless networks appears.
2. Select your network, and then click Connect.
When your mouse pointer hovers over the icon, the status information of your wireless connection appears.
If your network does not use wireless security, your computer now connects to the wireless network, and you are done.
4
Linksys WUSB6300
Operating system’s built-in wireless network setup
3. Enter the Wi-Fi Protected Access (WPA/WPA2) passphrase or the Wired Equivalent Privacy (WEP) key (depending on your type of security), then click OK.
This screen appears while the adapter connects to your network. Do not cancel, unless you want to end the connection.
Windows Vista
After you have installed the adapter, the Wireless Network Configuration utility icon appears on your computer’s system tray.
When your mouse pointer hovers over the icon, the status information of your wireless connection appears.
New Wireless Connection
To connect to a different wireless network:
1. Right-click the Wireless Network Configuration utility icon.
2. Click Connect to a network.
Your computer is now connected to your wireless network.
Note
For help with the Wireless Network Conguration utility, click Start, then click Help and Support.
5
Linksys WUSB6300
Operating system’s built-in wireless network setup
3. Select your network, then click Connect.
4. If your network uses wireless security, go to Step 5. If your network does not use wireless security, this screen appears. Click
Connect Anyway and go to Step 6.
5. Enter the Wi-Fi Protected Access (WPA/WPA2) passphrase or the Wired
Equivalent Privacy (WEP) key (depending on your type of security), then click Connect.
This screen appears while the adapter connects to your network. Do not cancel, unless you want to end the installation.
6
Linksys WUSB6300
Operating system’s built-in wireless network setup
This screen appears when you are connected to your network.
6. If you want to save your settings, select Save this network.
7. Click Close.
The Set Network Location screen may appear. This screen helps apply the correct settings for your type of location.
Note
For help with the Wireless Network Conguration utility, click Start, then click Help and Support.
Your computer is now connected to your wireless network.
Windows XP

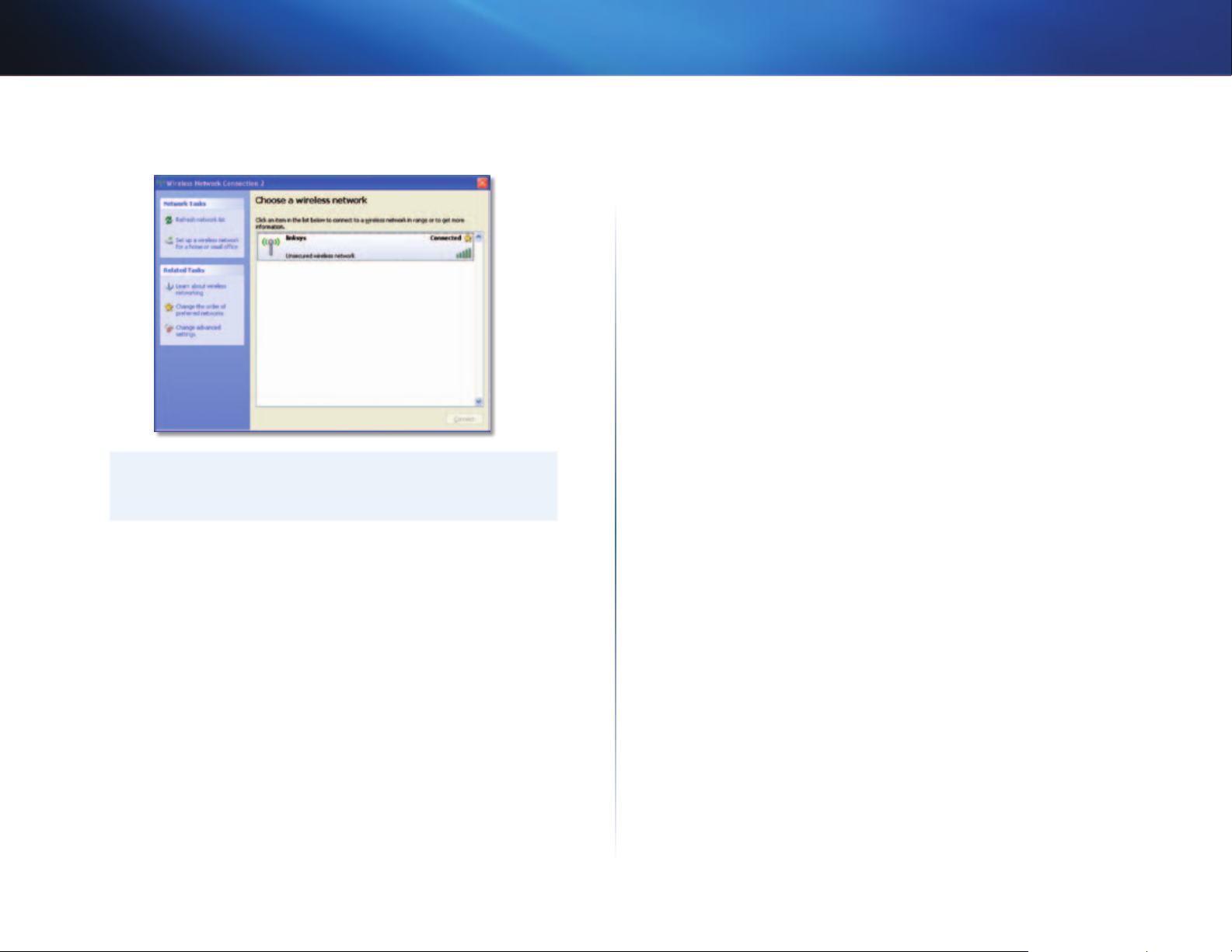

After you have installed the adapter, the Windows XP Wireless Zero Configuration Utility icon appears on your computer’s system tray.
When your mouse pointer hovers over the icon, the status information of your wireless connection appears.
a. Click Home, Work, or Public location, then click Close on the
resulting screen.
7
