EtherFast®Series

10/100 Network In a

Box

Model No.:FENSK05 v2

User Guide

COPYRIGHT & TRADEMARKS Copyright © 2000 Linksys, All Rights Reserved. EtherFast is a registered trademark of Linksys. Microsoft, Windows, and the Windows logo are registered trademarks of Microsoft Corporation. All other trademarks and brand names are the property of their respective proprietors.

LIMITED WARRANTY Linksys guarantees that every EtherFast 10/100 Network In a Box is free from physical defects in material and workmanship under normal use starting at the date of purchase. If the network cards or cables prove defective during this limited lifetime warranty period or if the hub proves defective during this 5-year limited warranty period, call Linksys Customer Support in order to obtain a Return Authorization number. Warranty is for repair or replacement only. Linksys does not issue any refunds. BE SURE TO HAVE YOUR PROOF OF PURCHASE ANDBAR CODE ON HAND WHEN CALLING. RETURN REQUESTS CANNOT BE PROCESSED WITHOUT PROOF OF PURCHASE AND BAR CODE. When returning a product, mark the Return Authorization number clearly on the outside of the package and include your original proof of purchase and bar code.

IN NO EVENT SHALL LINKSYS’ LIABILITY EXCEED THE PRICE PAID FOR THE PRODUCT FROM DIRECT, INDIRECT, SPECIAL, INCIDENTAL, OR CONSEQUENTIAL DAMAGES RESULTING FROM THE USE OF THE PRODUCT, ITS ACCOMPANYING SOFTWARE, OR ITS DOCUMENTATION. Linksys makes no warranty or representation, expressed, implied, or statutory, with respect to its products or the contents or use of this documentation and all accompanying software, and specifically disclaims its quality, per formance, merchantability, or fitness for any particular purpose. Linksys reserves the right to revise or update its products, software, or documentation without obligation to notify any individual or entity. Please direct all inquiries to:

Linksys P.O. Box 18558, Irvine, CA 92623. FCC STATEMENT

This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses, and can radiate radio frequency energy and, if not installed and used according to the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which is found by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures:

• Reorient or relocate the receiving antenna

• Increase the separation between the equipment or device

• Connect the equipment to an outlet other than the receiver’s

• Consult a dealer or an experienced radio/TV technician for assistance 005

Linksys EtherFast®Series 10/100 Network In a Box

Introduction

The Linksys EtherFast 10/100 Network In a Box

The Linksys 10/100 Network In a Box comes with everything you need to get a network up and running in minutes. Plug in the cards, attach the provided network cables, install the software drivers, and go!

Built to run with the fastest video, publishing, graphics, and database applications, the EtherFast 10/100 LAN Card is a high performance network adapter for desktop computers with 32-bit PCI expansion slots. Boasting a maximum data throughput of 200 megabits per second in full duplex mode (100Mbps in half duplex), the 10/100 LAN Card is ready to r un with both 10BaseT and 100BaseTX networks. The card's 10/100 combo port automatically detects your network's maximum speed and adjusts itself accordingly.

The 10/100 LAN Card from Linksys also features Wake-On-LAN event management. If your PCI motherboard has built-in WOL support, you’ll be able to utilize this unique management feature. You can remotely turn on any computer with a WOL network card to perform after-hours tasks or to access files. If you don’t have WOL support on your motherboard or you have no need for it, don’t worry—your EtherFast 10/100 LAN Card will operate perfectly without it.

The 10/100 Fast Ethernet Network In a Box also includes an EtherFast 10/100 5- Port Workgroup Hub. The hub features five 10BaseT/ 100BaseTX RJ-45 ports that allow you to network up to five computers. Each port automatically detects and negotiates 10Mbps and 100Mbps connections. As your network grows, you can uplink the hub to other EtherFast hubs, switches, routers or Broadband modems.

Package

Table of Contents

Introduction 1

Getting to Know the EtherFast 10/100 Network in a Box 3

Installing the EtherFast 10/100 LAN Card 6

Windows 98 Installation and Setup 9

Windows 95 Installation and Setup 18

Windows 2000 Installation and Setup 26

Windows NT 4.0 Installation and Setup 30

Novell Network Server Setup 40

Troubleshooting 44

Appendix 49

Sharing Your Files and Printers 49 Installing the Driver in Windows 95 Version A 51 Novell NetWare 3.x Client Setup for Windows 98 or 95 52 Windows 98 or 95 Client for Windows NT 53 Starting Over in Windows 95,98 or 2000 54 Manually Installing the Network

Components in Windows 95 and Windows 98 59 Installing and Configuring Wake-On-LAN 61 About Plug-and-Play PCI Technology 64 Linux, Open Source and Beta Operating Systems 65 Twisted Pair Cabling 66 Crimping Your Own Network Cables 67 Specifications 68 Customer Support 70

10/100 Network In a Box

Getting to Know the EtherFast 10/100 Network In a Box

The EtherFast 10/100 LAN Card

You will install one EtherFast 10/100 LAN Card into each computer you wish to network.

The Card’s LEDs

Link/Act The Link LED will illuminate when the card has been suc-

cessfully connected to a network and flicker when data is being transmitted or received over the network.

100 The 100 LED will illuminate when

the card is operating at 100Mbps. If the 100 LED is not illuminated and the PC is powered on, the card is operating at 10Mbps.

The Card’s RJ-45 Port

The RJ-45 Port is where you will connect your network cabling. See page 66 for detailed information on cabling.

Linksys EtherFast®Series

Contents for the 10/100 Network in a Box

• Two EtherFast 10/100 LAN Cards (version 4)

• Two Wake-on-LAN wires

• One EtherFast 10/100 5-Port Workg roup Hub (version 2)

• Two Category 5 Network Cables

• One 3.5” Driver Disk

• Internet-Sharing Software

• One AC Adapter

• One User Guide

NNoottee::

Some 10/100 LAN Cards may have the 100 LED labeled Speed. The LEDs all operate as shown above, however, regardless of how they’re labeled.

The Hub’s Ports

1-5 Ports 1-5 are where you will connect your PCs to the hub.

It is through these ports that network information is exchanged.

Uplink You can expand your network by connecting your hub to

another hub, switch, router or Broadband modem through the Uplink port. If the Uplink port is being used, the port adjacent to it will become inactive, reducing the hub’s operable ports from five to four.

10/100 Network In a Box

Linksys EtherFast®Series

The EtherFast 10/100 5-Port Workgroup Hub

Your network revolves around your hub. You can not connect your computers directly to one another. You must connect them through your hub.

The Hub’s LEDs

PWR The Power LED will illuminate when the the hub is receiv-

ing power.

100 The 100 LED will illuminate if the port is operating at (per port) 100Mbps. The LED will be off if the por t is r unning at

10Mbps.

LINK/ACT The LINK/ACT LED will illuminate if the port has an (per port) active network connection. The LED will flicker if the port

is receiving or sending data.

10/100 Network In a Box

5. Once your EtherFast EtherFast 10/100 LAN Card is firmly in place,

secure its fastening tab to your PC's chassis with a mounting screw.

6. Replace your PC's cover.

7. Connect one end of a twisted-pair cable to your PC at the EtherFast

10/100 LAN Card's RJ-45 port.

8. Plug the other end of the cable into your 5-Port Hub.

Linksys EtherFast®Series

Installing the EtherFast 10/100 LAN Card

Overview

Each EtherFast 10/100 LAN Card is equipped with an RJ-45 port that automatically adjusts to either 10Mbps or 100Mbps speeds, allowing your PC to attach to either Fast Ethernet (also known as 100BaseTX) or regular 10BaseT Ethernet network segments without additional hardware or software.

The card should only be used with twisted-pair cabling. 10BaseT and 100BaseTX cabling is available in a number of different grades. For best results, we recommend using 8-wire, category 5 unshielded twisted-pair for both 10BaseT and 100BaseTX network segments, although categor y 3 can be used for 10BaseT segments. The cable that r uns from your PC’s EtherFast card to your network should not exceed 100 meters (328 feet). Both Category 3 and 5 twisted-pair cabling can be purchased at most computer stores, or if you prefer, you can crimp your own cables. See page 67 for wiring information.

Installing the Network Card & Cabling

1. Power off your PC and any peripheral equipment attached to it. Unplug

your PC’s power cord.

2. Remove your computer's outside cover.

3. Open your computer and locate the PCI slot(s) on your motherboard.

PCI slots are easily identified by their beige or white color, and by the fact that network cards fit snugly into them. Remove the metal slot cover on the back of the PC, then insert the EtherFast 10/100 LAN Card into a PCI card slot, as shown in the photograph on the next page (top).

4. If you are interested in Wake-On-LAN, you

can go to page 61 now. Wake-On-LAN can be installed at any time, so there is no need to do it now. If you don’t know what Wake On LAN is, or if you know that you don’t want to use WOL, proceed to step 5 on the next page and return to WOL later.

NNoottee::

Some network cards might need a bit of muscle to be installed.

Our network cards are built strongly, and are hard to break. Avoid a call to technical support by making sure that your card is inserted all the way into your PC’s network slot!

10/100 Network In a Box

Windows 98 Installation & Setup

Overview

After physically installing the EtherFast 10/100 LAN Card in your computer, follow these instructions to install the network driver. The installation procedure for the network driver will vary slightly depending on which version of Windows 98 you are using, and on your current system configuration. If at any time during the installation you encounter problems, consult the Troubleshooting section on page 44.

Installing the Network Card’s Driver

1. If you haven’t already, star t up your computer.

2. Windows 98 will automatically detect the presence of the PCI Ethernet

Controller hardware in your computer.

3. Slide the EtherFast Card Driver Disk into your floppy drive while the Add

New Hardware Wizard window is visible. Click Next.

Linksys EtherFast®Series

9. Reconnect your PC’s power, then power on your computer. Your com-

puter will automatically recognize the card and assign it a unique IRQ ("interrupt") and I/O address.

The card installation is complete. Next, you must configure your PC’s

operating system to work with the EtherFast Card.

• ForWindows 98 configuration instr uctions, turn to page 9.

• For Windows 95 configuration instructions, turn to page 18.

• For Windows 2000 configuration instructions, turn to page 26.

• For Windows NT configuration instructions, turn to page 30.

• For Novell Server conf iguration instructions, tur n to page 40.

If you are using an operating system other than Windows 98, Windows 95,or Windows NT,you will find the network driver installation instructions on the Driver Disk’s readme.exe file.

NNoottee::

Some screen shots in the following sections will vary depending on which version of the LNE100TX card you are installing.

10/100 Network In a BoxLinksys EtherFast®Series

4. Select "Search for the best driver for your device (Recommended).” Click

Next.

5. Select "Floppy disk drives". Click Next to continue.

6. A window will open saying that Windows is now ready to install the Linksys LNE100TX Fast Ethernet Adapter driver (seen on the next page). Click Next.

• If your PC asks for the Linksys Setup or Driver Disk

• If you are asked to supply your Windows 98 Installation Files or Disks

• If you are asked for a file that includes “LNE100TX” in its name

• If you receive a Version Conflict error

1. Click

OOKK

2. Ensure that the

DDrriivveerr DDiisskk

is in your PC’s flop-

py drive.

3. Type “a:\” in the “Copy files from:” box.

4. Click

OOKK

1. Click

OOKK

2. If you have a

WWiinnddoowwss 9988 CCDD--RROOMM

, type “d:\win98” in the “Copy files from:” box, where “d:” is your CD-ROM drive.

3. If you

don’t

have a

WWiinnddoowwss 9988 CCDD--RROOMM

type: “c:\windows\options\cabs”.

4. Click

OOKK

1. Insert the

DDrriivveerr DDiisskk

into your PC’s floppy

drive.

2. Type “a:\” in the “Copy files from:” box.

3. Click

OOKK

1. Choose to keep the newest version of the file by clicking

YYeess

Under no circumstance are you to click Cancel or Skip!

7. Windows will begin copying the EtherFast Card’s driver files to your PC. Refer to the chart below to help guide you through the process.

NNoottee::

Windows 98 may

ask you for a

ccoommppuutteerr oorr

wwoorrkkggrroouupp nnaammee

. If so, skip ahead to the instructions on page 15. Once you have established your computer and workgroup names, return to where you left off and continue with the installation.

10/100 Network In a Box

Linksys EtherFast®Series

Network Component Configuration

1. Once you are back at the Windows 98 desktop, click on your taskbar's

Start button, then Settings, then Control Panel, and then double-click the Network icon.

2. The Network window will appear. Click on the Configuration tab. A

window similar to the one below will appear. There may be other components listed in addition to the ones shown below (for example, a Dial-up Adapter), which is normal. If any of the components shown below are missing, however, you’ll need to manually install them. Refer to Manually

Installing the Network Components on page 59 now.

• Client for Microsoft Networks

• Linksys LNE100TX Fast Ethernet Adapter (LNE100TX v4)

• IPX/SPX-compatible Protocol

• NetBEUI

• TCP/IP

3. Click the File and Print Sharing button. The File and Print Sharing win-

dow will appear.

8. Windows will finish installing the software onto your PC. Click Finish.

9. When asked if you want to restart your PC, remove the Driver Disk and

click Yes. If you are using the Windows CD-ROM, leave it in your PC. You may need it later.

10. If Windows does not ask you to restart your PC, remove the Driver Disk

click the Start button, choose Shut Down, choose Restart, then click Yes.

The Windows 98 driver installation is complete. Please continue on to the

next section, which will provide instructions for configuring Windows

98’s network protocol. Consult your network administrator for your net-

work configuration information if necessary.

NNoottee::

From this point on, you must provide Windows with a User name and

Password every time you are prompted to do so. Remember to click

OOKK

properly log into Windows. If you click

CCaanncceell

or hit the

EEssccaappee ((EESSCC))

key,

you will not log into the network.

10/100 Network In a Box

Linksys EtherFast®Series

8. Click on the Identification tab. Type the name of your computer in the

Computer Name box. Choose a name that is unique from the other computer names on the network.

9. Type the name of your workgroup in the Workgroup box. The

Workgroup name should be the same Workg roup Name in use by all of the other PCs on the network. Use the same Workgroup Name that is in use on your other computers for ease of use. Do NOT click OK when you are done.

10. Enter a description of your computer in the Computer Description box.

This box is optional, and can be left blank.

4. If you'd like others to be able to access the files on your PC's hard drive,

select I want to be able to give others access to my files.

5. If you'd like to share your printer with other users on the network, select I want to be able to allow others to print to my printer.

6. Click the OK button. File and Printer Sharing for Microsoft Networks should now appear in the list of installed components.

7. After ensuring that all of the listed network components are installed on your system, in the Primary Network Logon box select Client for Microsoft Networks .

NNoottee::

If you do not enable File and Print Sharing, your PC will be invisible on the network and inaccessible to other users.

NNoottee::

Your Computer and Workgroup Names must both be fewer than 15 characters, and should only consist only of numbers and letters.

10/100 Network In a Box

Linksys EtherFast®Series

14. A Logon window will appear, requiring you to enter a User name and Password. Make up a user name and password (if you haven’t already)

and click OK. Do not click the Cancel button or Escape key. Clicking either of these buttons will prevent you from logging into the network. If the logon does not appear or if it does not allow you to log on, refer to problem 3 in the Troubleshooting section on page 44.

15. Once you are at the Windows 98 desktop, double-click on the Network Neighborhood icon. You should see one icon for the entire network and the names of the other PCs on the network.

• If you can see your computer along with all the other computers on

the network in Network Neighborhood, then the Windows 98 network configuration is complete. Continue with Sharing Y our Files and Printers on page 49 if you want your PC’s data or printer to be available to others on the network.You may stop here , however, if you wish to configure File and Printer Sharing at a later time.

• If you don't see anything at all in Network Neighborhood, press the F5

key on your keyboard a few times to refresh the screen. If that doesn’t work, go to Troubleshooting problem 8 on page 45.

• If you only see your own computer in Network Neighborhood, skip to problem 6 of the Troubleshooting section on page 45.

• If you see all computers on the network except yours press the F5 key a few times. If, after a minute or so, you still can’t see your own PC, see problem 7 on page 45 of the Troubleshooting section.

• If you only see computers that are running the same operating system as you and you don’t see any others, go to problem 10 on page 46.

11. Optional: Choose the Access Control tab. Ensure that Shared-level access control is selected. If the setting is on User-Level access control and you can’t change it, skip to problem 5 in the Troubleshooting section on page 45.

12. Click the OK button. Your system may or may not ask you for your Windows 98 CD-ROM or the location of the Windows 98 installation files. If it does, direct Windows to the appropriate location, (e.g.,

D:\win98 if you have the Windows 98 CD-ROM, or C:\windows\options\cabs).

13. Once Windows has copied the necessary files, the System Settings Change window appears. Remove all disks from your PC and click Yes to restart your PC. If you don't see this window, simply shut down Windows 98 and restart your PC. Remember to remove any installation disks or CD-ROMs prior to rebooting.

10/100 Network In a Box

Linksys EtherFast®Series

Installing the Driver in Windows 95 Version B

1. While the Update Device Driver Wizard window is visible (previous page),

put the EtherFast Card 10/100 LAN Card Driver Disk into your floppy drive and click Next.

2. Windows 95 will f ind the Linksys LNE100TX Fast Ethernet Adapter (LNE100TX v4) driver on the disk. If Windows fails to f ind the driver, see problem 2 on page 44. Click Finish.

3. Windows will begin copying the EtherFast Card’s driver files to your PC. Refer to the chart on the next page to help guide you through the process.

Windows 95 Installation & Setup

Overview

After installing the EtherFast hardware in your computer, follow these instructions for installing the network driver. The installation procedure for the network driver will vary slightly depending on the version of Windows 95 you are using and your current system configuration. For troubleshooting tips during setup, refer to page 44.

There are different versions of Windows 95:

• Version A

• Version B (also known as OSR2)

The installation procedure for the network driver will vary slightly depending on which version of Windows 95 you are using. To begin the driver installation, and to determine which version of Windows 95 you are using:

1. If you already haven’t, start up your PC.

2. Windows 95 will automatically detect the

EtherFast Card in your computer. If an Update Device Driver Wizard window (below, or another similar window) appears, you are using Windows 95 version B. If not, you are using version A. Skip to page 51.

NNoottee::

During the installation, Windows 95 may ask you for a ccoommppuutteerr oorr wwoorrkkggrroouupp nnaammee

. If so, skip ahead to the instructions on page 23. Once you have established your computer and workgroup names, go back to where you left off and continue with the installation.

10/100 Network In a Box

Linksys EtherFast®Series

Network Component Configuration

1. Once you are back at the Windows 95 desktop, click on your taskbar's

Start button, then Settings, then Control Panel, and then double-click the Network icon.

2. The Network window will appear. Click on the Configuration tab. A

window similar to the one below will appear. There may be other components listed in addition to the ones shown below (for example, Client for Microsoft Networks), which is normal. If any of the components shown below are missing, however, you’ll need to manually install them. If that’s the case, refer to Manually Installing the

Network Components on page 59 now.

• Client for Microsoft Networks

• Linksys LNE100TX Fast Ethernet Adapter (LNE100TX v4)

• IPX/SPX-compatible Protocol

• NetBEUI

• TCP/IP

NNoottee::

If you need to install the TCP/IP Protocol, contact your system administrator or ISP, or refer to the Windows 95 documentation. If

DDHHCCPP

error messages appear during boot up, this is a TCP/IP error. Linksys does not provide technical support for the configuration or troubleshooting of the TCP/IP protocol.

4. When asked if you want to restart your PC, remove the Driver Disk and

click Yes. If you are using the Windows CD-ROM, leave it in your PC. You may need it later.

5. If Windows does not ask you to restart your PC, remove the Driver Disk

click the Start button, choose Shut Down, choose Restart, then click Yes.

The Windows 95 Version B driver installation is complete. Please continue on to the next section, which will provide instructions for configuring Windows 95’s network protocol. Consult your network administrator for network configuration information if necessary.

1. Click

OOKK

2. Ensure that the

DDrriivveerr DDiisskk

is in your PC’s flop-

py drive.

3. Type “a:\” in the “Copy files from:” box.

4. Click

OOKK

1. Click

OOKK

2. If you have a

WWiinnddoowwss 9955 CCDD--RROOMM

, type “d:\win95” in the “Copy files from:” box, where “d:” is your CD-ROM drive.

3. If you

don’t

have a

WWiinnddoowwss 9955 CCDD--RROOMM

type: “c:\windows\options\cabs”.

4. Click

OOKK

1. Insert the

DDrriivveerr DDiisskk

into your PC’s floppy

drive.

2. Type “a:\” in the “Copy files from:” box.

3. Click

OOKK

1. Choose to keep the newest version of the file by clicking

YYeess

• If your PC asks for the Linksys Setup or Driver Disk

• If you are asked to supply your Windows 95 Installation Files or Disks

• If you are asked for a file that includes “LNE100TX” in its name

• If you receive a Version Conflict error

Under no circumstance are you to click Cancel or Delete!

NNoottee::

From this point on, you must provide Windows with a User name and Password every time you are prompted to do so. Remember to click OOKK

to properly log into Windows. If you click

CCaanncceell

or hit the

EEssccaappee

((EESSCC))

key, you will not log into the network.

10/100 Network In a Box

Linksys EtherFast®Series

8. Click on the Identification tab. Type the name of your computer in the

Computer Name box. Choose a name that is unique from the other computer names on the network.

9. Type the name of your workgroup in the Workgroup box. The

Workgroup name should be the same Workgroup Name in use by all of the other PCs on the network. Use the same Workgroup Name that is in use on your other computers. Do not click OK when you have completed these fields.

10. Enter a description of your computer in the Computer Description box. This box is optional. Do not click OK when you have completed these fields.

3. Click on the Configuration tab, followed by the File and Print Sharing

button. The File and Print Sharing window will appear.

4. If you'd like others to be able to access the files on your PC's hard drive,

select I want to be able to give others access to my files.

5. If you'd like to share your printer with other

users on the network, select I want to be able to allow others to print to my printer.

6. Click the OK button. File and Printer Sharing for Microsoft Networks

should now appear in the list of installed components.

7. After ensuring that all of the listed network components are installed on

your system, ensure that Client for Microsoft Networks is listed in the Primary Network Logon box.

NNoottee::

If you do not enable File and Printer Sharing, your PC will be invisible on the network, inaccessible by anyone.

NNoottee::

Your

Computer Name

and

Workgroup Name

must both be fewer than 15 characters, and should only consist of numbers and letters.

10/100 Network In a Box

Linksys EtherFast®Series

11. Optional: Choose the Access Control tab. Ensure that Shared-level

access control is selected. If the setting is on User-Level access control

and you can’t change it, skip to problem 5 in the Troubleshooting section on page 45.

12. Click the OK button. Your system may or may not ask you for your

Windows 95 CD-ROM or the location of the Windows 95 installation files. If you have your Windows CD-ROM, direct Windows to

D:\win95 (where D: is your CD-ROM Drive) , or to C:\windows\ options\cabs if you don’t.

13. Once Windows has copied the necessary files, the System Settings Change window appears. Remove all disks from your PC and click on Yes to restart your PC. If you don't see this window, simply shut down Windows 95 and restar t your PC. Remember to remove the installation disk and CD-ROM, if necessary, prior to rebooting.

14. A Logon window will appear, requiring you to enter a username and pass-

word. Make up a username and password and click OK. Do not click the ESC or Cancel buttons, or you won't be able to log onto the network. If the a logon does not appear or if it does not allow you to log on, refer to problems 3 and 4 in the Troubleshooting section on page 44.

15. Once you are at the Windows 95 desktop, double-click on the Network Neighborhood icon. You should see an icon for the entire network and the names of the other PCs on the network. Open the Entire Network icon.

• If you can see your computer along with all the other computers on

the network in Network Neighborhood, then the Windows 95 network configuration is complete. Continue with Sharing Y our Files and Printers on page 49 if you want data from your PC to be available to others on the network. You may stop here, however, if you wish to configure File and Printer Sharing at a later time.

• If you don't see anything at all in Network Neighborhood, press the F5

key on your keyboard a few times to refresh the screen. If that doesn’t work, go to problem 8 of the Troubleshooting section on page 45.

• If you only see your own computer in Network Neighborhood, skip to

problem 6 of the Troubleshooting section on page 45.

• If you see all computers on the network except yours press the F5 key a

few times. If, after a minute or so, you still can’t see your own PC, see problem 7 on page 45 of the Troubleshooting section.

• If you only see computers that are running the same operating system

as you and you don’t see any others, go to problem 10 on page 46.

10/100 Network In a Box

Linksys EtherFast®Series

3. The Install Hardware Device Drivers dialog box will appear. When

Ethernet Controller is displayed, select “Search for a suitable driver for your device (Recommended)”. Click Next.

4. The Locate Driver Files dialog box will appear. Select “Specify a loca- tion”. Click Next.

Windows 2000 Installation & Setup

Overview

After physically installing the EtherFast 10/100 LAN Card in your computer, follow these instructions to install the network driver. The installation procedure for the network driver will vary slightly depending on which version of Windows 2000 you are using, and on your current system configuration.

Installing the Driver in Windows 2000

After physically installing the EtherFast Card in your computer, follow these instructions to install the network driver.

1. Start your computer if you haven’t already done so, and boot

Windows 2000. Log in with administrative rights if you are asked to.

2. Windows will display the Found New Hardware Wizard box. Click Next.

NNoottee::

Prior to proceeding, ensure that you are operating Windows 2000

with administrative rights. If you log into Windows 2000 without administrative rights, you may run into problems during the installation.

10/100 Network In a Box

7. The Completing the Found New Hardware Wizard dialog box will

appear.The following adapter name will be shown: Linksys LNE100TX Fast Ethernet Adapter (LNE100TX v4). Click Finish.

8. Remove the driver disk from the floppy drive.

The Windows 2000 driver installation is complete. If you want to share

files or printers, refer to your Windows 2000 documentation or check

with your system administrator.

Linksys EtherFast®Series

5. When the Found New Hardware Wizard box appears, insert the Linksys

EtherFast 10/100 Driver Disk into your floppy drive. In the “Copy manu- facturer’s files from“ field, type “A:\Win2000”. Click OK.

6. The Driver File Search Results dialog box will appear. Click Next.

10/100 Network In a Box

Linksys EtherFast®Series

3. Click on the Select from list... button to select a network adapter.

4. Click on the Have Disk button. Inser t the EtherFast 10/100 LAN Card

Driver Disk into drive A. Type a:\ into the box on your screen and hit OK.

5. Highlight the Linksys LNE100TX Fast Ethernet Adapter (LNE100TX v4) entry in the window that appears. Click OK.

Windows NT 4.0 Installation & Setup

Overview

The following instructions will set up the EtherFast 10/100 LAN Card in a computer running NT 4.0 server/workstation. You should have your original Windows NT CD-ROM handy during the installation, as you might be asked to supply it. Always contact your network administrator or consult your NT documentation if you have questions.

To install the network driver for an NT 4.0 Ser ver or Workstation

1. Log into Windows NT as an administrator.

2. Click on Start, Settings, Control Panel, and then double-click on the Network icon.

3. If you have not previously installed Windows NT networking on your computer, a message will appear that reads: Windows NT Networking is

not installed. Do you want to install it now?

• If you see this message, click Yes to install NT networking along with the

EtherFast Card's network driver, and continue with step 1 below.

• If you don't see this message, NT networking is already installed. Skip to step 1 on page 36.

Installing NT Networking & the EtherFast Card Driver

1. After clicking on Yes, the Network Setup Wizard window will appear.

2. Put a checkmark next to the Wired to the network option. Click Next.

10/100 Network In a Box

Linksys EtherFast®Series

8. A list of services will appear. Click Next to approve these services, followed by Next again.

9. NT will probably ask you to supply your original Windows NT CD-ROM or setup disks. If so, place your Windows NT CD-ROM in your CD drive. If the CD-ROM loads a pop-up window, close it. Type D:\i386 (or the appropriate CD-ROM drive letter) in the box and click Continue.

10. NT will ask you to choose a media type for the EtherFast card. Choose AutoSense. You can change these settings later if needed. When finished, click OK.

6. The adapter will be added to the list of installed Network Adapters. Click

Next.

7. Place check marks beside each

listed network protocol that you wish to install. See your Microsoft Windows NT user guide or talk to your network administrator for more information about network protocols. When you're finished, click Next.

NNoottee::

If you install the

TTCCPP//IIPP pprroottooccooll

, refer to your system administrator or your Windows NT documentation when installation steps that aren’t listed in this User Guide appear. Linksys does not provide technical support for the configuration or troubleshooting of the TCP/IP protocol.

10/100 Network In a Box

Linksys EtherFast®Series

13. Click Finish. When asked if you want to restart your computer, remove the Driver Disk and click Yes.

14. Once your PC has rebooted and you are logged in, double-click the Network Neighborhood icon on your desktop. Ensure that you have access to the network. If you do, your card has been properly installed.

• If you had previously installed any NT service packs, you must go back and re-install those service packs now.

• If you need to install the TCP/IP protocol, refer to your system administrator or your Windows NT documentation. Linksys does not provide technical support for the configuration or troubleshooting of the TCP/IP protocol

The Windows NT Installation and Setup of the EtherFast 10/100 LAN

Card is complete. Do not continue on with the next set of instructions.

They are for NT users who already had their networking conf igured.

NNoottee

: If you had previously installed any NT service packs, you must re-install them. Otherwise, you may receive Not Enough Service Storage Space errors in the Event Viewer.

11. NT will copy the necessary network drivers to your PC. When the copying is complete, you will see a list of installed bindings. Change the bindings settings if needed and click Next. Click Next again.

12. Choose either Workgroup or Domain, depending on the type of network

you're setting up. (Your Microsoft documentation explains the difference between Workgroups and Domains.) Click Next.

NNoottee::

For information and help on choosing your bindings, services and protocols, ask your network administrator, or check your Windows NT documentation.

10/100 Network In a Box

Linksys EtherFast®Series

3. When the list of available network adapters appears, click the Have Disk

button.

4. Put the EtherFast Card disk into drive A. Type a:\ into the box on your screen and click OK.

5. Highlight the Linksys LNE100TX Fast Ethernet Adapter (LNE100TX v4) entry in the window that appears. Click OK.

Installing the EtherFast Network Driver if Networking is Already Installed

The following steps will install the EtherFast Card’s driver software on your PC, enabling your PC to properly communicate with the card. Remember that you must be logged on as a network administrator to continue.

1. Click on Start, Settings, Control Panel, then double-click on the Network icon.

2. When the networking window appears, choose the Adapters tab. Click the Add button.

NNoottee::

For information and help on choosing your bindings, services and protocols, ask your network administrator, or check your Windows NT documentation.

10/100 Network In a Box

10. Remove your Driver Disk and CD-ROM and click Yes to restart your PC.

11. Once your PC has rebooted, double-click the Network Neighborhood

icon on your desktop. Ensure that you have access to the network. If you do, your card has been properly installed.

• If you had previously installed any NT service packs, you must re-install them. Otherwise, you may receive Not Enough Service Storage Space errors in the Event Viewer.

The Windows NT Installation and Setup of the EtherFast 10/100 LAN

Card is complete.

Linksys EtherFast®Series

NNoottee

: If you had previously installed any NT service packs, you must re-install them. Otherwise, you may receive Not Enough Service Storage Space errors in the Event Viewer.

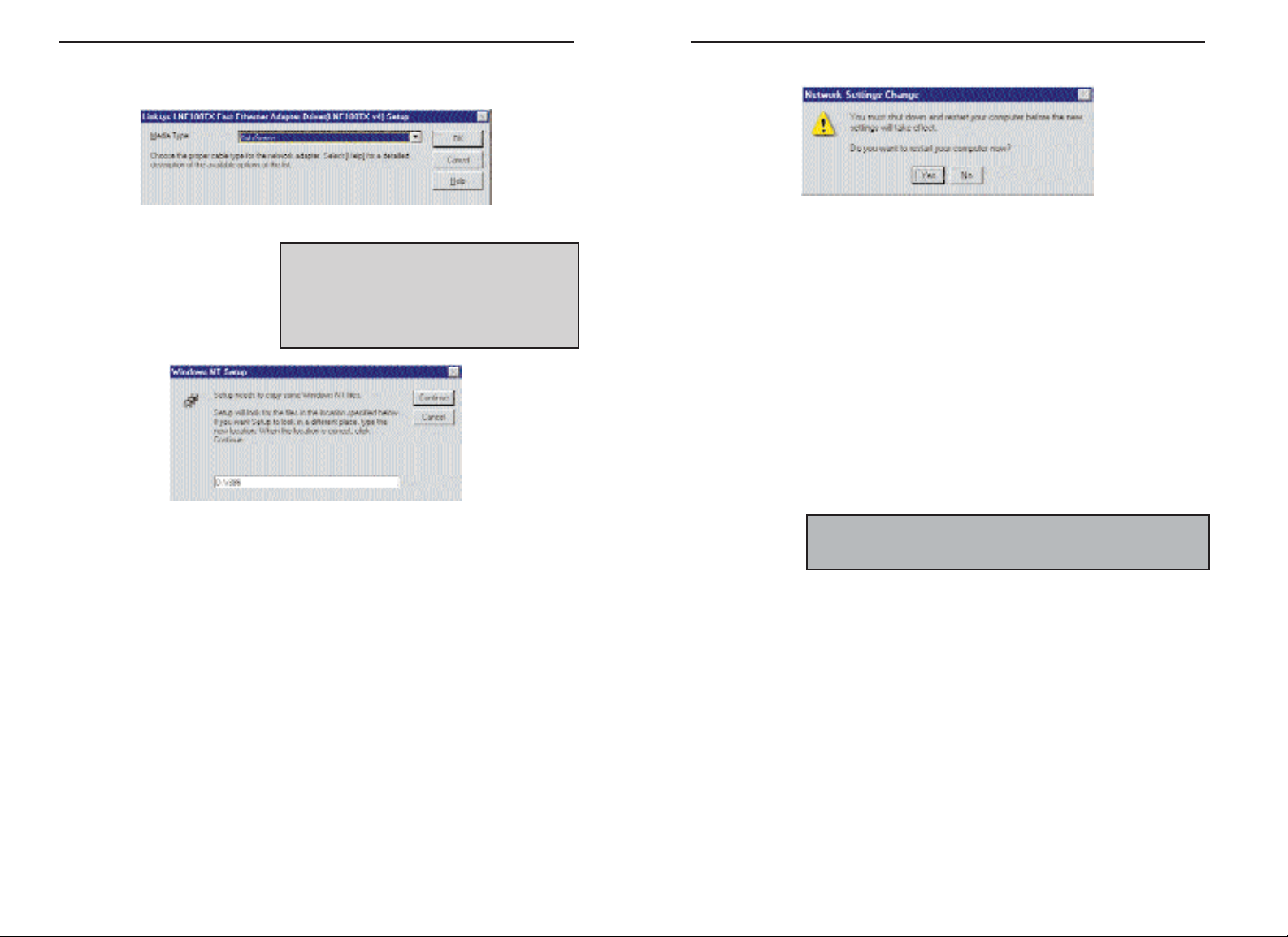

6. When NT asks you for the media type. Choose the AutoSense option. When finished, click on OK. Click Close.

7. NT will probably ask you to supply your original Windows NT CD-ROM or setup disks. Direct Windows NT to the proper location (most likely D:\i386).

8. Click on the Protocols tab. Add any protocols you require by clicking the Add button. (Refer to your Microsoft documentation if you have any questions on adding protocols.)

9. After your bindings, settings, and ser vices are set, click the Close button.

NNoottee::

If you install the

TTCCPP//IIPP pprroottooccooll

10/100 Network In a Box

Linksys EtherFast®Series

5. If the LAN driver is not located in the default directory, specify the file's path on the command line. The LOAD command prompts you for the configuration parameters if they are not supplied on the command line.

6. At the server command line, type (for example):

LOAD c:\LNE100\NBI31X.NLM LOAD c:\LNE100\MSM31X.NLM LOAD c:\LNE100\ETHERTSM.NLM LOAD c:\LNE100\LNE100TX.LAN FRAME = <frame type

in use>

7. Bind a protocol to the driver. For example:

BIND IPX TO LNE100TX NET=XX

where XX is the logical network address for your network. It can be any logical number.

The loading and binding are complete.The server is ready.

Installing a 4.x Server

1. At the NetWare prompt (indicated by the server name), run the INSTALL.NLM program by typing load install.

2. Select Maintenance/Selective Install and press Enter.

3. Select LAN Driver Options and press Enter.

4. Press the Insert or Ins key on your keyboard to insert a new driver. Put the EtherFast Card Driver Disk into drive A.

5. Press F3 and specify the driver path. If the EtherFast Card disk is in drive A, for example, type a:\netware\server\nw411 and press Enter. The pro- gram will locate the EtherFast Card’s LNE100TX.LAN and LNE100TX.LDI files on the disk.

6. The LNE100TX.LAN driver will appear as an option in the Select a LAN Driver field. Choose this driver to start the loading and binding procedure.

NNoottee::

You can save the LOAD command line parameters in a file with the name AUTOEXEC.NCF so they execute automatically when the server starts. See the Novell NetWare 386 v3.12 Installation Manual for details on how to create the AUTOEXEC.NCF file.

Novell NetWare Server Setup

Overview

The EtherFast Card network driver will be automatically installed during all of the following NetWare installation procedures. During the setup you may want to refer to your NetWare Installation Manual for help.

• To Install the NetWare 5.x Ser ver software on your PC, go to page 42.

• To Install the NetWare 4.x Ser ver software on your PC, go to page 41.

• To Install the NetWare 3.12 Ser ver software on your PC, continue below.

Installing a 3.12 Server

1. Create a directory in the DOS partition of your f ile ser ver called LNE100.

2. Copy the following files from the EtherFast Card Driver Disk to your file server's new LNE100 directory:

a:\netware\server\nw31x\NBI31X.NLM a:\netware\server\nw31x\MSM31X.NLM a:\netware\server\nw31x\ETHERTSM.NLM a:\netware\server\nw31x\LNE100TX.LAN

3. Following the Load LAN Driver Module instructions in your Novell NetWare 386 v3.12 manual, star t NetWare and configure the server (if you haven’t already).

4. Load the above LAN drivers using the LOAD command.

NNoottee::

If, after any of these installations, the operating system asks you for a slot number, NetWare needs to know which PCI slot your card has been installed to. The slot variable can be added to the driver line as shown in the example below:

load c:\lne100\lne100tx.lan slot = 3 frame = ethernet_802.2 name = nserv bind ipx to nserv net = 15

In this example, the card is in slot 3, the frame is Ethernet_802.2, the net value is 15 (arbitrary) and the name is nserv (arbitrary name).

10/100 Network In a Box

13. Arrow down the list that appears and choose which protocols you want to

install. Press F10 to save.

14. Highlight Save Parameters and Load Driver. Press Enter.

15. Your PC will examine the network. This may take a few minutes.

16. You may be prompted several times for a network on which to bind IPX to LNE100TX_1. Accept the default numbers if you are not sure which values to assign.

17. When asked Do you want to select an additional Network driver?, high- light No and press Enter.

18. Press ESC a few times to exit the program.

The loading and binding are complete.The server is ready.

Linksys EtherFast®Series

7. Add the LOAD and BIND statements to your server's AUTOEXEC.NCF file so that the LAN driver loads automatically each time your server is started up.

The loading and binding is complete. The server is ready.

Installing a 5.x Server

1. On the PC in which you installed the EtherFast card, simultaneously press

CTRL and ESC.

2. When the next screen pops up, select the number for System Console

and press Enter.

3. In the System Console prompt, load NWCONFIG by typing nwconfig

and hitting Enter.

4. Highlight Driver Options. Press Enter.

5. Highlight Conf igure network drivers. Press Enter.

6. Highlight Select a driver. Press Enter.

7. Press INS to Install an unlisted driver.

8. Press F3 to Specify a different path.

9. In the Specify a directory path box, type A:\NETWARE\SERVER\NW50

and press Enter.

10. In the next box, ensure that LNE100TX.LAN | Linksys LNE100TX Fast

Ethernet Driver is highlighted. Press Enter.

11. You will be asked Do you want to copy driver LNE100TX.LAN. Highlight

Yes, then press Enter.

12. Files will begin copying to your hard drive. Afterwards, a Protocol and

Parameter screen will pop up. Highlight Select/Modify driver parame- ters and protocol. Press Enter.

10/100 Network In a Box

Linksys EtherFast®Series

5. On the Access Control Tab,User Level Access is selected,but Shared Level Access is grayed out and not accessible.

• You previously had your primary network logon set to Client for NetWare

Networks. On the Configuration tab of the Network Properties window, ensure that your primary network logon is set to Client for Microsoft Networks.

• Your personal web server PC or Microsoft Front Page may require you to choose a user level for security reasons.

6. In Network Neighborhood you can only see yourself and no other computers on the network.

• Make sure that the cables are connected correctly. Make sure you are getting Link or Activity lights on both the EtherFast Card and your hub. Try changing to a new cable that you know is working.

• Your workgroup name may be different from other computers on your network. Make sure each PC on the network is using the same workgroup name and protocol.

• Tr y using the Find Computer function (see problem 10).

7. In Network Neighborhood, you can see all other computers on the network but not yourself,and all other computers can see each other and not your computer.

• You may have not have enabled File and Printer Sharing. To do so, go to p step number 3 on page 49.

• The network card might not be setup properly. Try reinstalling the card’s drivers. To clean your system of the old installation, go to page 54 and then re-install.

8. Network Neighborhood is Empty.

• Verify that your Microsoft Client is installed. See the Windows 95 or 98 setup instructions in this guide for directions. Verify that you have logged in correctly. Refresh the screen by pressing F5 several times.

9. You receive DHCP Errors in Windows.

• If you are connecting to a DHCP server, check your cabling and connection. If you require TCP/IP to be configured, check with your network administrator or your Windows documentation for proper settings.

• If you don’t have a DHCP server on your network and your network setup doesn’t require TCP/IP, you may remove the TCP/IP component from Windows’ networking. To do this, click on Start, Settings, Control

Panel, then double-click on Network. Click once on the component entry with the words TCP/IP and Linksys or TCP/IP on its own, then

click on the Remove button. Click OK when finished and restart your PC. If the problem persists, try running the diagnostics on page 48.

Troubleshooting

Troubleshooting hints for Windows can be found below. If you are using Windows NT, NetWare, or another network operating system, skip to the Card Diagnostics instructions on page 48.

Troubleshooting Hints for Windows 95 and 98

1. Windows doesn’t detect new hardware with the EtherFast Card hardware installed, or it continues to detect the card each time you restart your PC.

• You might not have inserted the PCI card correctly or securely into the appropriate slot of your computer. Check that the card is securely inserted into the appropriate slot.

• Tr y inserting your card into an alternate PCI slot.

• You may have previously aborted a new hardware setup. Follow the directions on page 54.

• The motherboard in your system might not be Plug-and-Play compatible, your PC’s Plug-and-Play settings may not be enabled, or the motherboard may have Plug-and-Play options not supported by Windows 95/98. If you are not sure, contact your PC’s manufacturer.

2. Windows can’t locate the driver for the EtherFast Card device.

• You may have inser ted the wrong diskette into your PC’s drive.

• The diskette may be defective or files may be missing. Make sure the disk has a few files in a:\ starting with lne100 or a folder called Win95 for Window 95 or Win98 for Windows 98

3. The Windows Logon screen doesn’t appear after you restart your computer.

• Click on Start, Shut Down, then Close All Programs and Logon as a Different User, (in Windows 98, select Log Off). If this doesn’t solve the problem, your PC’s manufacturer may have disabled Windows’networking. Contact your computer’s manufacturer for help.

4. After entering a username and password,a window appears that reads,“No Domain Server could be found to validate your Username and Password.”

• Click on Start, Settings, Control Panel. Double-click on Network. Click on the Configuration tab. Under The Following Network Components are Installed box, highlight Client for Microsoft Networks and click on the Properties button. Once you are in the Client For Microsoft Networks Properties window, make sure that Log on to Windows NT Domain is unchecked. Once you have made sure that it is unchecked click on the OK button and restart your computer.

10/100 Network In a Box

Linksys EtherFast®Series

• Click on the IRQ Steering tab. Remove the check from Use IRQ Holder and click OK. Windows will ask you to restart the PC (if it doesn’t ask you, then reboot the PC manually).

• After the computer boots up, Windows will try to re-detect the PCI Steering. Continue rebooting the PC until Windows stops detecting new hardware and settings for PCI Steering. This nor mally takes a total of four reboots.

10. In Network Neighborhood you can only see computers running the same operating system as your computer (i.e.,your PC is running Windows 95 and it can only see other Windows 95 computers and not any computer running Windows 98).

• Choose Start, Find, Computer and type the name of the computer in the window that comes up and click Find Now.

• Now make sure that the you are using the same protocol(s) and workgroup name on the 95 and 98 computers. To do this, click Start, Settings, Control Panel on two computers running different Windows operating systems. Click on the Network icon, choose the Configuration tab, then click on the Identification tab for Workgroup name. Compare the protocols on both computers and make sure that they are the same. If any protocols are missing, refer to page 59 to install any needed protocol(s).

• If all computers are using the same protocol(s) and Workgroup name, and Windows 95 computers can't see Windows 98 computers, enable NetBIOS on all the computers using Windows 95 and 98. Follow these instructions:

• The IPX/SPX-compatible protocol should be installed on all Windows computers (see page 59 if you need to add this protocol). Bring up the properties of the IPX/SPX-compatible protocol by clicking on Start, Settings, Control Panel, then double-click the Network icon. Choose the Configuration tab and highlight IPX/SPX-compatible Protocol. Click on Properties. Now, to install NetBIOS, click on the NetBIOS tab. Put a check next to I want to enable NetBIOS over IPX/SPX. Click OK, then OK again. Windows will copy the appropriate files to your computer. When asked to restart your PC, remove any floppy disks and click OK. Be sure to do this on all of your computers that are having trouble seeing your entire network.

11. The workgroup,protocols, cabling and driver are all working properly, but the PC uses an AMD processor and it can only see itself in network neighborhood.

• In some instances with PCs using AMD processors, the IRQ assigned to the card by the BIOS (as it gets listed on the bootup screens of most PCs) doesn't correspond to the IRQ assigned by Windows. This can be fixed by disabling the IRQ holder for PCI Steering in the Windows Device Manager. Refer to your PC's documentation for instr uctions or you can follow the suggested instructions below. Keep in mind that this procedure will vary depending on your computer’s configuration.

• Click on Start, Settings, Control Panel, then double click the System icon. Click on the Device Manager tab. Open System Devices, then open PCI Bus.

10/100 Network In a Box

Appendix

Sharing Your Files and Printers

Overview

By sharing your files and printers, other PCs on your network will be able to access the resources on your PC.

Before sharing your files and printers, you should prepare your computer to be used with any file servers that may be on the network. If you are not using Windows 95 or Windows 98 with an NT or NetWare file ser ver, or if you are not sure if you have a file server, continue below.

If you are using a NetWare or NT file server, go to page 52 or 53, respectively, for client setup.

Enabling File Sharing

1. Double-click your My Computer icon. A window of available disk drives

will appear.

2. Using your right mouse button, click once on the drive or folder that you want to make available to other users.

3. Click on Sharing, followed by the Sharing tab. Click on Shar e As.

4. In the Share Name box, enter a name for the drive or folder you are sharing. This can be any drive on your PC—floppy drive, hard drive, CD drive, zip drive, etc.

5. Decide on the type of access that you want to give other users.

• Read-Only access lets other users view the files on

the selected drive.

• Full access lets users create, change, or delete files on the selected drive.

• Depends on Password lets users have Read-Only and/or Full access to

the selected drive, depending on the password that you decide to give them.

NNoottee::

If you are only using your PC to access the Internet, it is highly recommended that you use passwords for your shares.

Linksys EtherFast®Series

Running the Card’s Diagnostics

If you suspect that there may be a problem with the Fast Ethernet Card, or if you need to identify the card’s MAC address, you can use the DIAG diagnostic program on the EtherFast 10/100 LAN Card Driver Disk.

To r un the program, start up your computer in DOS. The program only works in standard “real DOS mode” DOS – it will not work in a Windows DOS window. To get into “real DOS mode,” do the following:

• In Windows 95, start your computer. When the Starting Windows... mes-

sage appears, press the F8 key. You will then get to the Microsoft Windo w Startup Menu.

• In Windows 98, start your computer (No Starting Windows... message

will appear). Immediately and rapidly press the F8 key until you get the Microsoft Window Startup Menu.

1. Choose the Safe mode command prompt only option. Press Enter on

the keyboard.

2. Insert the Linksys Fast Ethernet 10/100 Network Card Driver Disk into drive A. Enter the appropriate commands after the following prompts:

• When “C:\>” appears, type “a:” then press Enter.

• When “A:\>” appears, type “cd diag” then press Enter.

• When “A:\diag>” appears, type “diag” then press Enter.

You can also copy the software to your local (c:\) drive and run DIAG from your hard disk.

3. The Fast Ethernet Diagnostics Program will appear, providing a display of the card’s basic information (Ethernet Address, IRQ, I/O Port and Media Type). Press Enter to begin the testing cycle. If the card isn’t found, power off the PC and ensure that the card is properly seated in the PCI slot.

4. The word “pass” will appear next to each successful test. If the card fails the Link Status Test check your cabling and hub connections. If the card fails the Loopback test, check your computer’s settings, then contact Linksys Customer Support for help.

10/100 Network In a Box

Linksys EtherFast®Series

Installing the Driver in Windows 95 Version A

1. Windows 95 will detect the EtherFast card and display a New Hardware Found window.

2. Slide the EtherFast Card Driver Disk into drive A.

3. Select Driver from disk provided by hardware manufacturer, then click OK.

4. When asked for the location of the files, type a:\ and click OK. If Windows 95 goes straight to the desktop, refer to problem 2 on page 44.

5. Windows 95 will copy the appropriate network drivers to your PC. If Windows 95 asks you to supply your original Windows 95 installation CDROM or setup files, enter the appropriate path for those f iles (e.g.:

A:\,

D:\WIN95, C:\WINDOWS\OPTIONS\CABS).

6. During the installation, windows may ask you for a computer and workgroup name. If so, refer to the step 8, on page 23. Once you have established computer and workgroup names, return here to continue with the installation.

7. After Windows 95 has completed copying the necessary files to your PC, it may ask you to restart your computer. Remove the Driver Disk and click

OK.

The Windows 95 Version A driver installation is complete . Please contin-

ue on to Windows 95 Network Component Configuration section on page

21. Consult your network administrator for network configuration information if necessary.

6. If you want to assign access passwords, type the passwords into the Password boxes.

7. When you're done, click on the Apply button, followed by OK. Repeat steps 1-7 for any drive or folder you desire to share on the network.

You have successfully enabled File Sharing on your PC.Your selected drives or folders can now be accessed by other network users. If a user tries to access one of your password-protected drives or folders,he or she will be asked for the appropriate Read-Only or Full-Access password. Continue on if you wish to share your PC’s printer over the network.

Enabling Printer Sharing

1. Double-click on the My Computer icon.

2. Double-click the Printers folder. A window of available printers will appear.

3. Using your right mouse button, click once on the printer that you want to share with other users. Click on Sharing, followed by the Sharing tab.

4. Click on Share As. In the Share Name box, give a name to the printer you want to share. If you want to assign a password to the printer so that only cer tain users can access it, type a password in the Password box.

5. Click on the Apply button, followed by OK. Your printer(s) are now shared.

The Printer Sharing setup and installation is complete. Your printer can

now be accessed by other network users.The printer’s driver may have to

be installed on other PCs. Consult your printer’s documentation.

NNoottee::

Not all printers may be shared on the network. Others may require special instructions. Refer to your printer’s user guide or contact your printer manufacturer if you think this may be the case with your printer.

NNoottee::

Any printer you wish to share from your PC must be physically connected to your PC.

10/100 Network In a Box

Linksys EtherFast®Series

Windows 98 or 95 Client for Windows NT

If you are installing the EtherFast 10/100 Card in a Windows 95 or 98 PC that you plan on logging into a NT domain server, follow the directions below.

1. Follow the Windows 95 setup instr uctions or the Windows 98 setup instructions

2. Start up Windows. Click on Start, Settings, then Control Panel. Doubleclick on Network. The Network window appears. Click on the Configuration tab.

3. In the Primary Logon Box, you have two choices. Choose one Client for Microsoft Networks, which instructs your PC to log into an NT 4.0 server where you already have a username and password set up.

4. Under the the following network components are installed box, highlight Client for Microsoft Networks and click on the Proper ties button.

5. The Client for Networks Properties window will appear. Under the Logon Validation box, make sure that Log on to Windows NT domain is checked. Enter the name of your domain into the Windows NT Domain box

6. Optional: Click on the Access Control tab. Make sure that Share-level access control is selected; do not choose User-level access control. If Access Control is grayed out and cannot be selected, refer to Problem 5 in the Troubleshooting section on page 45.

7. When you’re done, click OK. When asked if you want to restar t your PC, choose to do so.

The NT portion of the Windows setup is complete.

Novell NetWare 3.x Client Setup for Windows 98 or 95

The instructions below explain how to set up the regular Novell NetWare 3.x client for use on a Windows 98 or 95 PC.

1. Follow the Windows 95 setup instr uctions or the Windows 98 setup instructions.

2. Start up Windows 95 or 98. Click on Start, Settings, then Control Panel. Double-click on Network. The Network window appears. Click on the Configuration tab.

3. In the Primary Logon Box, choose Client for NetWare Networks.

4. Under the The following network components are installed box, highlight Client for NetWare Networks and click on the Properties button.

5. The Client for NetWare Networks Properties window appears. Under the

General tab, enter the name of your network’s Preferred Server. Assign the First Network Drive Letter; the default is F. Make sure the Enable logon

script processing is checked.

6. Click OK. Click on the Access Control tab. Make sure the Share-level access control option is selected; do not select User-level access control.

7. When you’re done, click OK to restart your computer.

The NetWare portion of your Windows setup is complete.

10/100 Network In a Box

Linksys EtherFast®Series

4. Remove any instance of the name Linksys in the box. This includes IPX/SPX…Linksys, NetBEUI…Linksys, and TCP/IP…Linksys. Also remove Client for Microsoft Networks, Client for NetWare Networks, and File and Printer Sharing for Microsoft Networks.

In some cases, removing one of these components may in tur n automatically remove other components as well. If this happens, skip ahead to step

5. For PCs with Dial-Up Networking and/or an AOL adapter, remove any instance of the name Linksys, all IPX/SPX protocols, all NetBEUI, all Clients, and File and Printer Sharing for Microsoft Networks. Do not remove Dial-Up Adapter, AOL Adapter, TCP/IP-Compatible Protocol- AOL Adapter or TCP/IP-Compatible Protocol-Dial-Up Adapter.

Starting Over in Windows 95, 98 or 2000

If you experience installation difficulties, you may need to re-install all of the Windows networking components from scratch. The instructions below explain how to give your PC a clean sweep so that you can start the EtherFast Card’s software installation over.

The following instructions are for Windows 95 and 98. To start over in Windows 2000, go to page 57.

Starting Over in Windows 95 &98

1. At the desktop click on the Start Button, highlight Settings, click on Control Panel.

2. Double-click on the Network Icon.

3. If the Configuration box has a component called Dial-Up Adapter, skip forward to step 5. If it doesn’t, continue with step 4.

NNoottee::

The screen shot above, and the ones on the next three pages, are examples only. They may differ from system to system.

10/100 Network In a Box

Linksys EtherFast®Series

Starting Over in Windows 2000

1. Click the Start button, choose Settings, choose Control Panel, then double-click the System icon.The System Properties window will open.

2. Choose the Hardware tab.

3. Click the Device Manager button. The Device Manager window will open.

4. Click the plus sign (+) beside Network Adapters. The LNE100TX Fast Ethernet Adapter listing should appear.

6. When you are done removing all the unnecessar y components, click OK. When asked to restart, click No.

7. Return to the Windows Control Panel. Double-click on the System Icon. The System Properties window will appear. Click on the Device Manager Tab.

8. Scroll down to the Network Adapters item and expand it by clicking on the open [+] sign.

11. Remove all devices with the name Linksys in it’s description. (If at any point you are asked to restart the computer, Click No).

12. Scroll down to the Other Devices section. Remove PCI Ethernet Controller or PCI Ethernet Adapter. (If Other Devices is not listed, proceed to the next step.)

13. When you’re finished, click on the Close button, shut down Windows, and restart your computer.

14. After your computer has restar ted, turn to page 9 for Windows 98 or page 18 for Windows 95 and follow the setup instructions.

10/100 Network In a Box

Linksys EtherFast®Series

Manually Installing the Network Components in Windows 95 & 98

There may be times when you might need to manually install missing Windows networking components.

1. Click on Start, Settings, then Control Panel.

2. Double-click the Network icon. The Network window appears.

3. Click on the Configuration tab. Make sure that the following network

components are installed.

• Client for Microsoft Networks

• Linksys LNE 100TX Fast Ethernet Adapter (LNE100TX v4)

• IPX/SPX-compatible Protocol

• NetBEUI

• TCP/IP

There may be other components listed in addition to the ones shown above. If any of the above components are missing, add them as follows.

Client for Microsoft Networks

If you plan on connecting to an NT file server or peer-to-peer network, click on the Add button. Highlight Client and click on Add. Choose Microsoft as the manufacturer in the Network Client box. Highlight Client for Microsoft Networks and click OK. The com- puter will begin copying files to your system. When the installation is complete, you will be asked if you want to reboot. Click OK.

Client for NetWare Networks

If you plan on connecting to a Novell NetWare server (3.x), click on the Add button. Highlight Client and click on Add. In the Network Client window, select Manufacturer and choose Microsoft. Highlight Client for Microsoft Networks. Click OK. The computer will begin copying files to your system. When the installation is complete, you will be asked if you want to reboot. Click OK.

NNoottee::

You will likely need your Windows CD-ROM to install network

components. If your CDROM isn’t available, try directing Windows to “c:\windows\options\cabs” when asked for a file location.

5. Right-click on LNE100TX Fast Ethernet Adapter. A content menu should open (below).

6. First, choose Disable.

7. When asked if you want to Disable the device, click Yes.

8. Right-click on the LNE100TX Fast Ethernet Adapter again. This time,

select Uninstall.... Click OK.

9. The Network Adapters category should be removed from the Device Manager listing.

10. Close the Device Manager, click the System Properties window’s OK button, and restart your computer.

10/100 Network In a Box

Linksys EtherFast®Series

NNoottee::

Some PME-supporting motherboards may not require the WOL wire to be connected. Check your PC’s documentation for more information.

Installing and Configuring Wake-On-LAN

Overview

Only install the Wake-On-LAN wires if your motherboard supports remote wake-up events. Improperly connecting the wire or connecting it to a motherboard socket other than the designated 3-pin socket can damage your hardware.

The EtherFast 10/100 LAN Card supports both Magic Packet and Link Change remote wake-up events.

Magic Packet An administrator can send a “wake-up” packet to a specific PC on the network. That computer then boots up, allowing the administrator to access the PC’s drives. After the work is done, the PC goes into a sleep mode (using about 10% of the normal amount of power) or shuts off completely, depending on the management software being used.

Link Change is a remote wake up event that is triggered by any change in the EtherFast card’s link state. If you have Wake-On-LAN networking set up on the PC, plugging an active network cable into the LAN Card will cause the PC to automatically turn itself on.

Motherboard Support

WOL-compatible motherboards can offer support for a number of different Wake-On-LAN interfaces. The EtherFast 10/100 LAN Card is compatible with PME and RWU-high. Consult the motherboard documentation that came with your PC to find out which type of WOL interface your computer will use to communicate with the network card. In some cases, you may need to enable the WOL support in your PC’s BIOS.

IPX/SPX-compatible Protocol

Click on the Add button. Choose Protocol and click on the Add button. Select Manufacturer and choose Microsoft. Under the Network Protocol box, highlight IPX/SPX-compatible protocol. Click OK .The computer will begin copying files to your system. When the installation is complete, you will be asked if you want to reboot. Click OK.

NetBEUI

Click on the Add button. Select Protocol, then click Add. Under Manufacturer, highlight Microsoft. Under Network Protocol, highlight

NetBEUI. Click OK. The computer will begin copying files to your system. When the installation is complete, you will be asked if you want to reboot. Click OK.

TCP/IP

Click on the Add button. Select Protocol, then click Add. Under Manufacturer, highlight Microsoft. Under Network Protocol, highlight

TCP/IP. Click OK. The computer will begin copying files to your system. When the installation is complete, you will be asked if you want to reboot. Click OK.

10/100 Network In a Box

Linksys EtherFast®Series

Sending a Magic Packet

In order to use WOL you need to know the MAC address of the card you wish to “wake”. If you don’t know the MAC address of the PC you are on, turn to page 48 to learn how to run the EtherFast Card’s diagnostic program.

1. Turn off the PC on which you want to test the WOL feature. Go to another PC on the network and log in.

2. Go to an MS-DOS prompt. Run the diagnostics program (page 48). Press Enter to begin the test.

3. When the test is complete, press F3 and select Send an ACPI Packet.

4. Press the M key. You will be asked for the destina- tion of the magic packet. Enter the MAC address of the PC you want to “wake up” and press Enter.

5. Check to ensure that the PC has woken up.

Testing a Link Change WOL PC

This test will see if your PC responds to a change in the network link state by waking up. Use a configured PC that is on an active network link.

1. Turn your PC off and disconnect it from the network either by tur ning off the hub or switch or by disconnecting the network cable form the LAN card.

2. Wait about ten seconds, then plug the cable back in or turn on the hub. The PC should wake up.

NNoottee::

The

DDiiaagg

program works only if both the PC sending the magic packet and the PC receiving the magic packet are installed with EtherFast 10/100 LAN (version 4) cards.

Setting Up Your EtherFast LAN Card for Wake-OnLAN Use

1. Turn off your PC and remove the power cable from the wall. Use the picture below to locate where the WOL wire plugs into your EtherFast LAN Card.

2. Connect one end of the 3-pin Wake-On-LAN wire to the EtherFast LAN

Card.

3. If your EtherFast LAN card isn’t plugged into your motherboard, slide it

in now.

4. Connect the loose end of the WOL wire into the WOL plug on your PC’s

motherboard. (Check your motherboard’s documentation for proper WOL wire installation.)

NNoottee::

The location of each motherboard’s WOL connection will vary from PC to PC. Consult your PC’s documentation if you can’t find it.

10/100 Network In a Box

Linksys EtherFast®Series

No Changes Allowed Your PC may not allow you to change the IRQ value(s) of the PCI slot(s). In this case, you will ONLY be able to use the IRQ and I/O values that have been pre-assigned to each slot. The popular BIOS from Phoenix, for example, does not generally allow you to modify BIOS-assigned IRQ settings.

Jumper Changes You may be able to change the IRQ & I/O values for a given PCI slot by setting jumpers on your PC motherboard. Please refer to your PC's motherboard user guide for specific instr uctions.

Menu Changes Your PC may allow you to change the IRQ & I/O values for a given PCI slot by accessing the PC's BIOS setup menu. Please refer to your PC's user guide for specific details. The BIOS from companies like AMI and Award are fully customizable from their BIOS menus, for example.

Linux, Open Source and Beta Operating Systems

Linksys does not provide technical support for Linux, BSD, or other freeware, Beta, or open source operating systems. Although many Linksys products have been proven to perform well under Linux and other freeware OSes, technical support for setup and troubleshooting is not provided. For information on where to find device drivers and setup instructions for Linux and other freeware OSes, visit the support pages and FAQ files on the Linksys website at www.linksys.com.

About Plug-and-Play PCI Technology

The EtherFast 10/100 LAN Card is designed to run in a 32-bit desktop computer equipped with PCI expansion slots. The card is built to the PCI 2.1 standard.

Short for Peripheral Components Interconnect, PCI is a technology that allows special Plug-and-Play expansion cards to be automatically conf igured by a computer’s BIOS (Basic Input/Output System) once they have been installed. (Refer to your computer’s user guide for more information about its BIOS.)

When a PCI card is used in a computer that supports Plug-and-Play, the card is automatically configured each time the computer is booted. The card's IRQ, I/O address, and other operating parameters are automatically assigned.

There is no easy way to change a Plug-and-Play card's IRQ and other settings outside of the BIOS menu(s) that your computer provides. If the resources that are assigned to your EtherFast card seem to conflict with other devices in your computer, you will need to use your system's BIOS to resolve the conflicts. If you have problems configuring your BIOS or resolving IRQ or other hardware conflicts, consult your computer’s manual or contact your PC's manufacturer for BIOS setup and conf iguration directions.

Here are some general guidelines to follow when installing a PCI card (such as the EtherFast card) into your computer:

1. The EtherFast LAN adapter should be used in a 32-bit PCI slot that supports PCI Bus Mastering. It cannot be plugged into a PCI Bus Slave slot. Consult your motherboard's documentation for more information on master and slave slots.

2. If loading the EMM386.EXE program in your PC's CONFIG.SYS, you must use version MS-DOS 6.22 or above. If you load an older EMM386.EXE program (below DOS 6.22), your PC will hang up while loading the network driver.

3. When using NT, set your system’s PNP OS option in the BIOS settings to MANUAL or DISABLE. NT is not a Plug-and-Play OS, and will not usually recognize LAN cards if they are set to be automatically detected and configured. If you need to configure your PC's BIOS in order to resolve an IRQ or other conflict with the EtherFast card, there are a few possibilities:

10/100 Network In a Box

Linksys EtherFast®Series

•• SSttrraaiigghhtt--TThhrroouugghh CCaabblliinngg

••CCrroossss--OOvveerr CCaabblliinngg

Crimping Your Own Network Cables

Twisted-Pair Cabling

There are different grades, or categories, of twisted-pair cabling. Category 5 is the most reliable and is highly recommended. Category 3 is a good second choice. Straight-through cables are used for connecting computers to a hub. Crossover cables are used for connecting a hub to another hub (there is an exception: some hubs have a built-in uplink port that is crossed internally, which allows you to link or connect hubs together with a straight-through cable instead).

You can buy pre-made Category 5 cabling, or cut and crimp your own. Category 5 cables can be purchased or crimped as either straight-through or crossover cables. A Category 5 cable has 8 thin, color-coded wires inside that run from one end of the cable to the other. All 8 wires are used. In a straight-through cable, wires 1, 2, 3, and 6 at one end of the cable are also wires 1, 2, 3, and 6 at the other end. In a crossover cable, the order of the wires change from one end to the other: wire 1 becomes 3, and 2 becomes 6. See the diagrams on the next page for more detailed informa-

tion on straight-through and crossover cabling.

To deter mine which wire is wire number 1, hold the cable so that the end of the plastic RJ-45 tip (the part that goes into a wall jack first) is facing away from you. Face the clip down so that the copper side faces up (the springy clip will now be parallel to the floor).When looking down on the copper side, wire 1 will be on the far left.

10/100 Network In a Box

Linksys EtherFast®Series

10/100 LAN Card Specifications

Model Numbers: LNE100TX v4 System: PCI 2.1 (or higher) compliant PC Standards: IEEE 802.3, IEEE 802.3u, PCI 2.1 & 2.2,

ACPI, PC99 Protocol: CSMA/CD Ports: One Combo RJ-45 10BaseT/100BaseTX Speed:

Full Duplex 200Mbps/20Mbps Half Duplex 100Mbps/10Mbps

Cabling: Category 3 (10BaseT only) or 5 UTP/STP Topology: Star LED Status Lights: Link & Activity (Link/Act), 100Mbps (100)

10/100 LAN Card Environmentals

Dimensions: 5” x 2.3” x 0.75” (122 x 86 x 18 mm) Unit Weight: 2.5 oz. (58 grams) Power: 2W Maximum Certif ications: FCC Class B, CE Mark Commercial Operating Temperature: 0°C - 50°C (32°F - 122°F) Storage Temperature: -20°C - 70°C (-4°F - 158°F) Operating Humidity: 10% - 90% Non-Condensing Storage Humidity: 5% - 95% Non-Condensing

10/100 Network In a Box

Linksys EtherFast®Series

Customer Support

For help with the installation or operation of your EtherFast 10/100 Network in a Box, contact Linksys Customer Support at one of the phone numbers or Internet addresses below.

Customer Support (800) 326-7114

(949) 261-1288

Information (800) 546-5797 Fax (949) 261-8868 E-mail support@linksys.com Web http://www.linksys.com FTP Site ftp.linksys.com

Linksys Warranty Information

Linksys guarantees that every EtherFast 10/100 Network in a Box is free from physical defects in material and workmanship under normal use for five (5) year from the date of purchase. If the product proves defective during this warranty period, contact Linksys Customer Support to obtain a Return Authorization number. When returning a product, mark the Return Authorization number clearly on the outside of the package and include your original proof of purchase.

Tampering with or disassembling this product voids its warranty.

Linksys makes no warranty or representation, expressed, implied, or statutory, with respect to its products or the contents or use of this documentation and all accompanying software, and specifically disclaims its quality, performance, merchantability, or fitness for any particular purpose. Linksys reserves the right to revise or update its products, software, or documentation without obligation to notify any individual or entity.

NNoottee::

You must have your proof of purchase and a barcode from the product’s packaging on hand when calling. Return requests can not be processed without proof of purchase.

Model Numbers EFAH05W v2 Standards IEEE 802.3 (10BaseT),

IEEE 802.3u (100BaseTX) Protocol CSMA/CD Ports Five 10BaseT/100BaseTX RJ-45 Ports,

One Shared RJ-45 Uplink Port Speed Per Por t (Mbps) 10Mbps (10BaseT)

100Mbps (100BaseTX) Cabling Type

10BaseT: Category 3 UTP (or better)

100BaseTX: Category 5 UTP (or better) Topology Star LEDs Power, 100Mbps*, Link/Activity* (*per port)

Dimensions 4.5” x 3.5” x 1.3” Unit Weight 4.7 oz. Power 7.5DC, 700mA Certif ications FCC Class B,

CE Mark Commercial,

UL and CSA Listed Operating Temp 0ºC to 50ºC (32ºF to 122ºF) Storage Temp -20ºC to 70ºC (-4ºF to 158ºF) Operating Humidity 10% to 85% Non-Condensing Storage Humidity 5% to 90% Non-Condensing

10/100 5-Port Workgroup Hub Specifications

10/100 5-Port Workgroup Hub Environmental

http://www.linksys.com

Linksys FENSK05 v2 User Manual

Specifications and Main Features

Frequently Asked Questions

User Manual
