LINK-MI LM-WF03 AllCast Wifi HDMI Display Dongle
User Manual
Introduction:
LM-WF03 is a perfect tool for you to share picture and media with your family.
With samll size and light weight, convenient to carry. Allow you to play games with
big screen, more exciting.
WIFI display dongle supports multi-screen interactive features like DLAN,
miracast and airplay. Transmit multimedia files from your device to big screen
through WIFI. External WIFI antenna for stronger signal transmission. Suitable for
Android and IOS windows.
Features:
1. Can directly play local video/music, support mirroring
2. Extended cable with WiFi dongle to avoid big TV screen blocking wireless signal
3. Full HD 1080P for flowing video playing
4. Support multi-screen interactive features like DLAN, Miracast and Airplay
5. With small size and light weight, convenient to carry
6. Suitable for Android and iPhone smartphones
Specification:
Product Name
Wifi HDMI Display Dongle
Model Number
LM-WF03
DDR Flash
DDR3
128M
NOR flash
16M Bytes
Operation System
OS
Linux 3.0.8
DLNA
Digital Living Network Alliance
Multi-screen interactive
Airplay
To support IOS multi-screen interactive(This feature is under
development)
Support miracast terminal
Miracast
Android Wi-Fi Display(Miracast)
OS
Android 4.2 castrated version
Chip
Qual comm quad-core; MTK Quad; RK30/RK31; Allwinner
A31
WIFI
IEEE 802.11 b/g/n(Built-in Realtek 8188 USB WIFI Module)
Standard
Video Player
MPEG2,MPEG4,AVI,WMV,MKV,MOV,RM,RMVB
JPG,BMP,PNG…
Weight
19g
Dimension
73.15X 28.60X 12.30mm
Operation:
1.Plug AllCast into your TV / Projector.
2.Switch your TV / Projector input / source until you see the setup screen.
We can get the following information from the TV:
SSID : AllCast-*******, Password : *****
IOS operation:
1.Go to phone settings and choose the AllCast SSID network.
2.Open Airplay switch
Android operation:
First,click on the toggle button side of the machine,the Mode changes “Miracast”,then
open the phone’s WLAN display switch can achieve the EZmirror
DLNA:
Play music,viodeos,and movies on your TV while freeing up your device for other
uses.
You must have a DLNA compatible device with a DLNA compatible device with a
DLNA compatible app.We recommend Skifta.
1.Tap the DLNA icon.
2.Choose your DLNA APP.
3.Choose your media source.Your media source will be your Android device.
4.Choose your player.EZCast as your player.
5.Choose your media.
You are now ready to beam by DLNA.
The method of connecting your home wireless router:
1.Enter the password shown at the top of screen.
2.Open the webpage of phone,enter “192.168.203.1” in ul bar.
3.Click on Internet Options,select the home wifi name,enter the password to connect.
4.After set up,you can also set the machine to change the output
resolution,password,language options,the default boot option software updates.
Watch movies online:
Set the machine is connected to the home Wifi.
Open the phone installed video player software,select your favorite TV or movie.
Phone connected to the machine’s wireless signals picture.
Click DLNA button on the screen,and find the name of the machine.

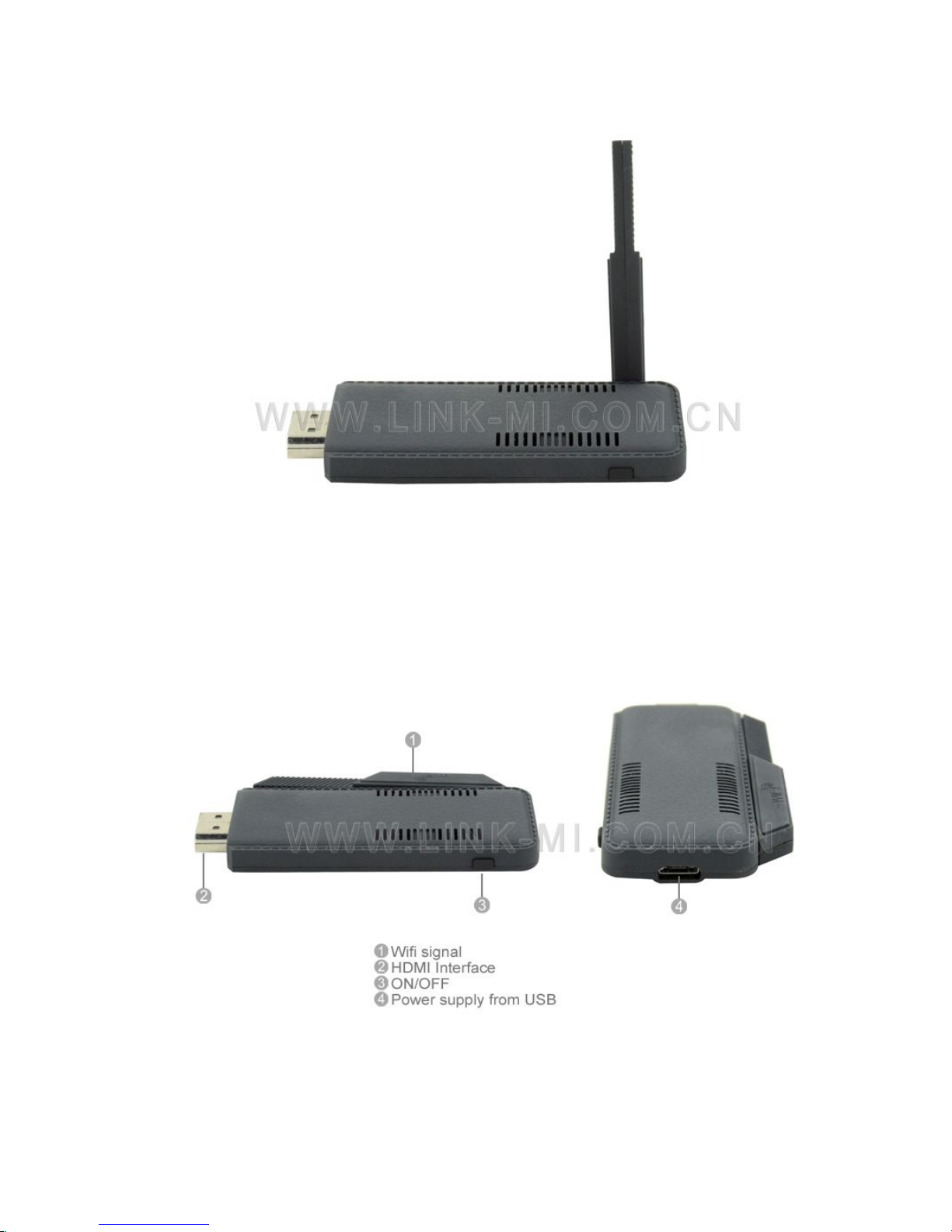

Product Image:
Panel Description:
Connection Diagram:
Packing Contents:
1.1x Wifi HDMI Display Dongle
2.1x USB cable
3.1x User Manual
