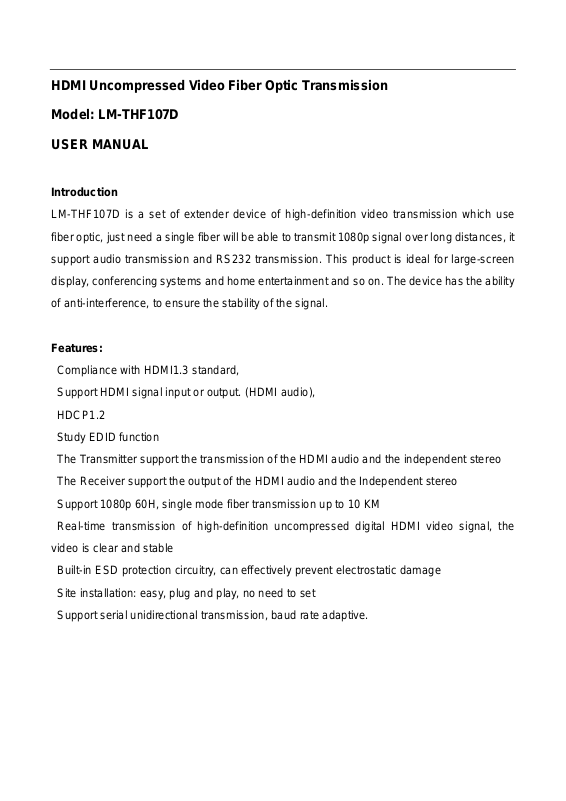

HDMI Uncompressed Video Fiber Optic Transmission
Model: LM-THF107D
USER MANUAL
Introduction
LM-THF107D is a set of extender device of high-definition video transmission which use
fiber optic, just need a single fiber will be able to transmit 1080p signal over long distances, it
support audio transmission and RS232 transmission. This product is ideal for large-screen
display, conferencing systems and home entertainment and so on. The device has the ability
of anti-interference, to ensure the stability of the signal.
Features:
Compliance with HDMI1.3 standard,
Support HDMI signal input or output. (HDMI audio),
HDCP1.2
Study EDID function
The Transmitter support the transmission of the HDMI audio and the independent stereo
The Receiver support the output of the HDMI audio and the Independent stereo
Support 1080p 60H, single mode fiber transmission up to 10 KM
Real-time transmission of high-definition uncompressed digital HDMI video signal, the
video is clear and stable
Built-in ESD protection circuitry, can effectively prevent electrostatic damage
Site installation: easy, plug and play, no need to set
Support serial unidirectional transmission, baud rate adaptive.
Page 2
Package Contents:
DVI fiber Transmitter 1pcs
DVI fiber Receiver 1pcs
Power Adapter 5V/2A 2pcs
User Manual 1pcs
Panel Descriptions
Transmitter
Receiver
Page 3
Port Description
Transmitter port
Function Description
INPUT
DVI Input(support HDMI input)
Audio IN
Stereo audio input, when accessed to audio, HDMI audio
is not transmitted
RS232
DB9 serial port
DC/5V
Power input 5V2A
Fiber
Optical interface LC interface
Receiver port
Function Description
OUTPUT
DVI Output(Support HDMI output)
Audio out
Stereo audio output, when inserted into the speakers,
HDMI no audio output
RS232
DB9 serial port
DC/5V
Power input 5V2A
Fiber
Optical interface LC interface
Operating Temperature Range
-5 to +35°C
Operating humidity range
5 to 90 % RH (no condensation)
Input video signal
0.5-1.0 volts p-p
Input DDC signal
5 volts p-p (TTL)
Support Video Format
DTV/HDTV;
1080P/1080i/720P/576P/480P
/576i/480i
Audio output
Stereo
The maximum transmission
distance
single mode single fiber 10KM
Optical interface
LC fiber optic interface
Optical fiber wavelength
1310nm FP
Specifications
Page 4
Input Power
DC 5V / 2A
Power Consumption
Transmitter 5W
Receiver 5W
Dimensions H*W*D
136mm*130mm*30mm
Package Size
300*252*100mm
Weight
1.8kg
Installation
Connect the DVI signal source to the DVI fiber optic Transmitter.
Connect the stereo audio to the DVI fiber optic Transmitter.(If you have a need.)
Connect the output DVI signal of the Receiver to the displayer(Such as high-definition TV,
splicing screen, etc.).
Connect the output audio of the Receiver to the audio equipment.(If you have a need.)
Use the LC single mode fiber connect the transmitter and the Receiver.
Power in the Transmitter and Receiver of the DVI fiber optic transmission.
Application Diagram
