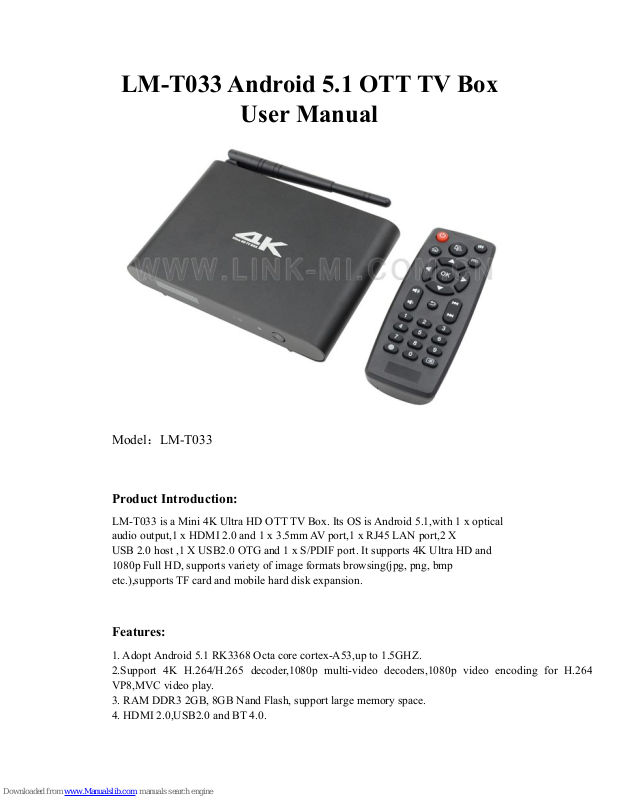

Page 1
LM-T033 Android 5.1 OTT TV Box
User Manual
Model：LM-T033
Product Introduction:
LM-T033 is a Mini 4K Ultra HD OTT TV Box. Its OS is Android 5.1,with 1 x optical
audio output,1 x HDMI 2.0 and 1 x 3.5mm AV port,1 x RJ45 LAN port,2 X
USB 2.0 host ,1 X USB2.0 OTG and 1 x S/PDIF port. It supports 4K Ultra HD and
1080p Full HD, supports variety of image formats browsing(jpg, png, bmp
etc.),supports TF card and mobile hard disk expansion.
Features:
1. Adopt Android 5.1 RK3368 Octa core cortex-A53,up to 1.5GHZ.
2.Support 4K H.264/H.265 decoder,1080p multi-video decoders,1080p video encoding for H.264 and
VP8,MVC video play.
3. RAM DDR3 2GB, 8GB Nand Flash, support large memory space.
4. HDMI 2.0,USB2.0 and BT 4.0.
Page 2
5. Support IR remote and 2.4G Wireless remote.
6. Support TF card and mobile hard disk expansion.
Specification:
Model
LM-T033 Android Smart Box
CPU
RK3368 Octa core cortex-A53,up to 1.5GHz
Main Frequency
PowerVR G6110 GPU,fully OpenGL ES 1.1/2.0/3.0/3.1, OpenGL 3.2
and DirextX 9.3, OpenCL1.2 compliant
Inner Memory
2G DDR3
Memory
8G
Operating System
Android 5.1
User interface
Android system Interface style
Video
4K H.264/H.265 decoder,1080p multi-video decoders
1080p video encoding for H.264 and VP8,MVC
Audio
MP3/WMA/APE/FLAC/AAC/OGG/AC3/WAV etc.
Supports variety of image formats browsing(jpg, png, bmp etc.)
Storage Expansion
Support TF card and mobile hard disk expansion
USB
2 USB HOST 2.0,1 USB OTG
TF card
Support up to 32GB capacity
HDMI
2.0
Bluetooth
BT 4.0
Wifi
2.4G/5G Wifi
RJ45
100M/1000M
Audio Optical
Support
Remote control
Support IR remote and 2.4G Wireless remote
Voltage parameters
5V-2.5A DC

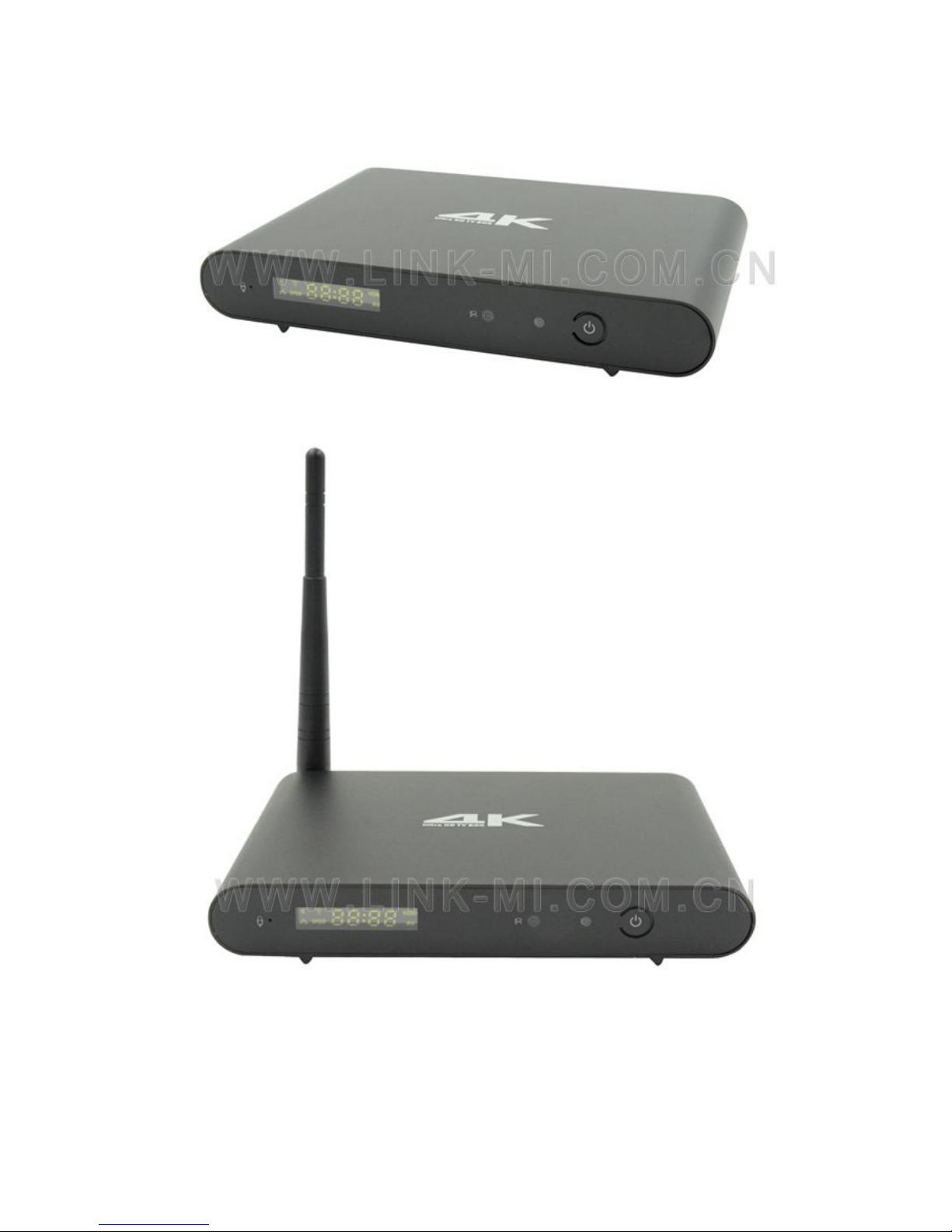

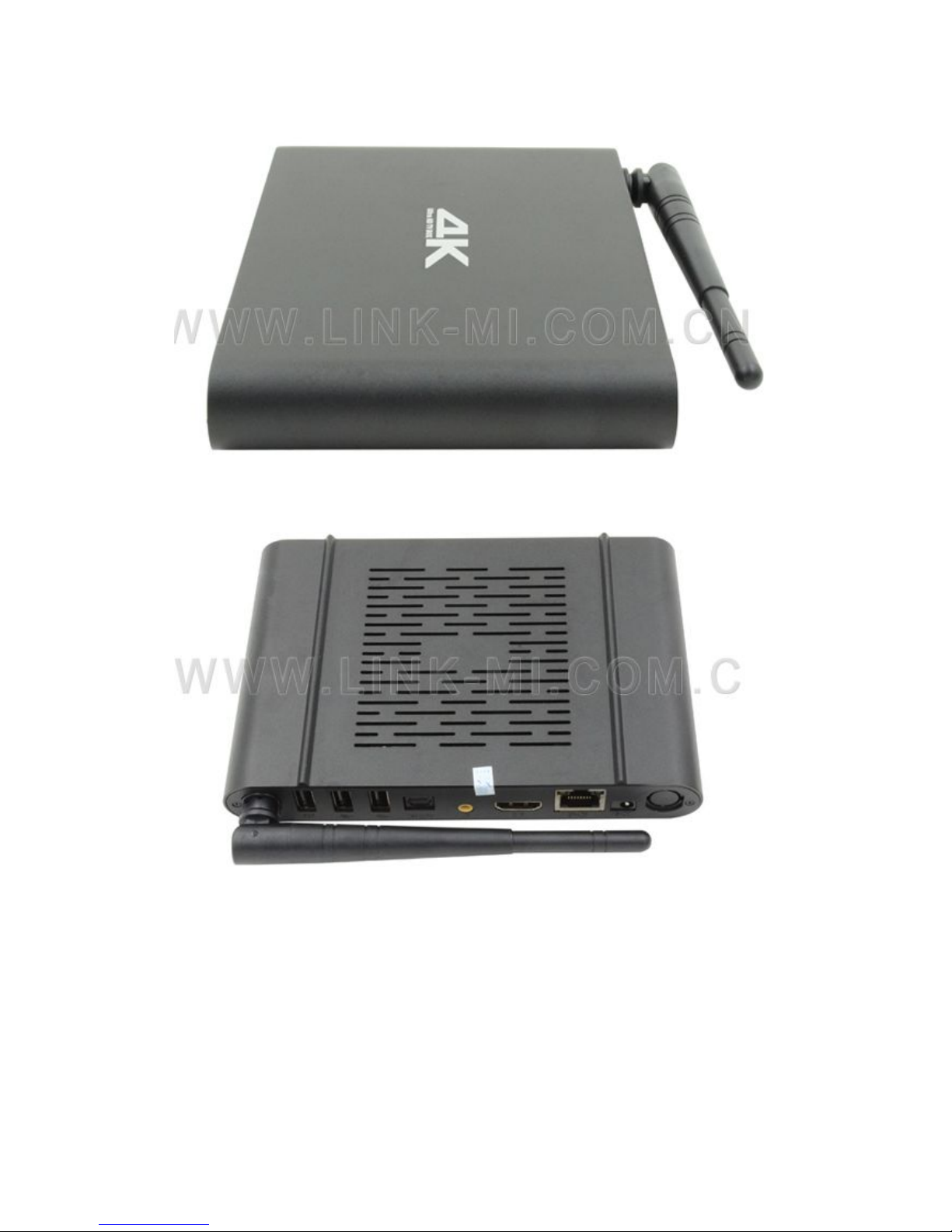

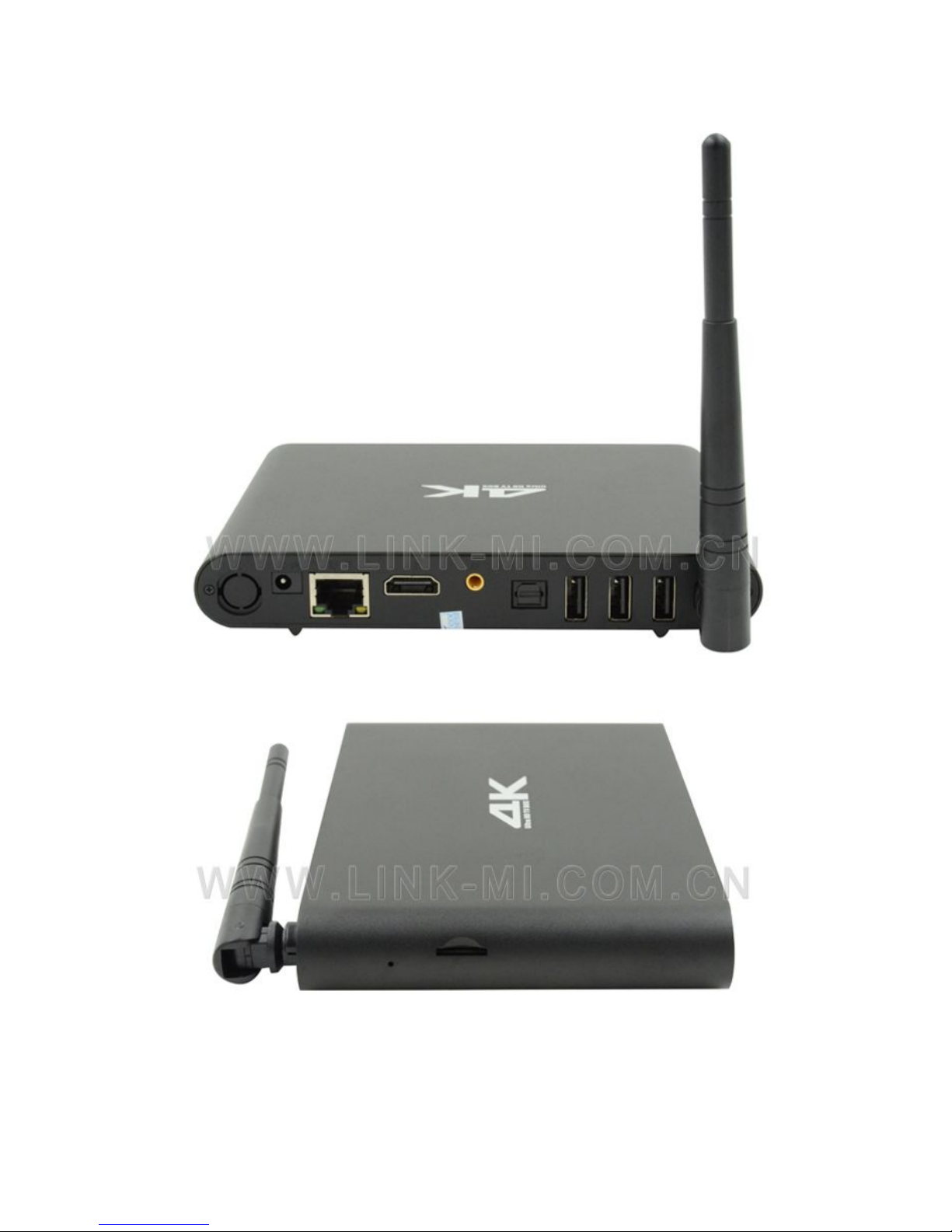

Product Picture:
Page 3
Page 4
Page 5
Page 6

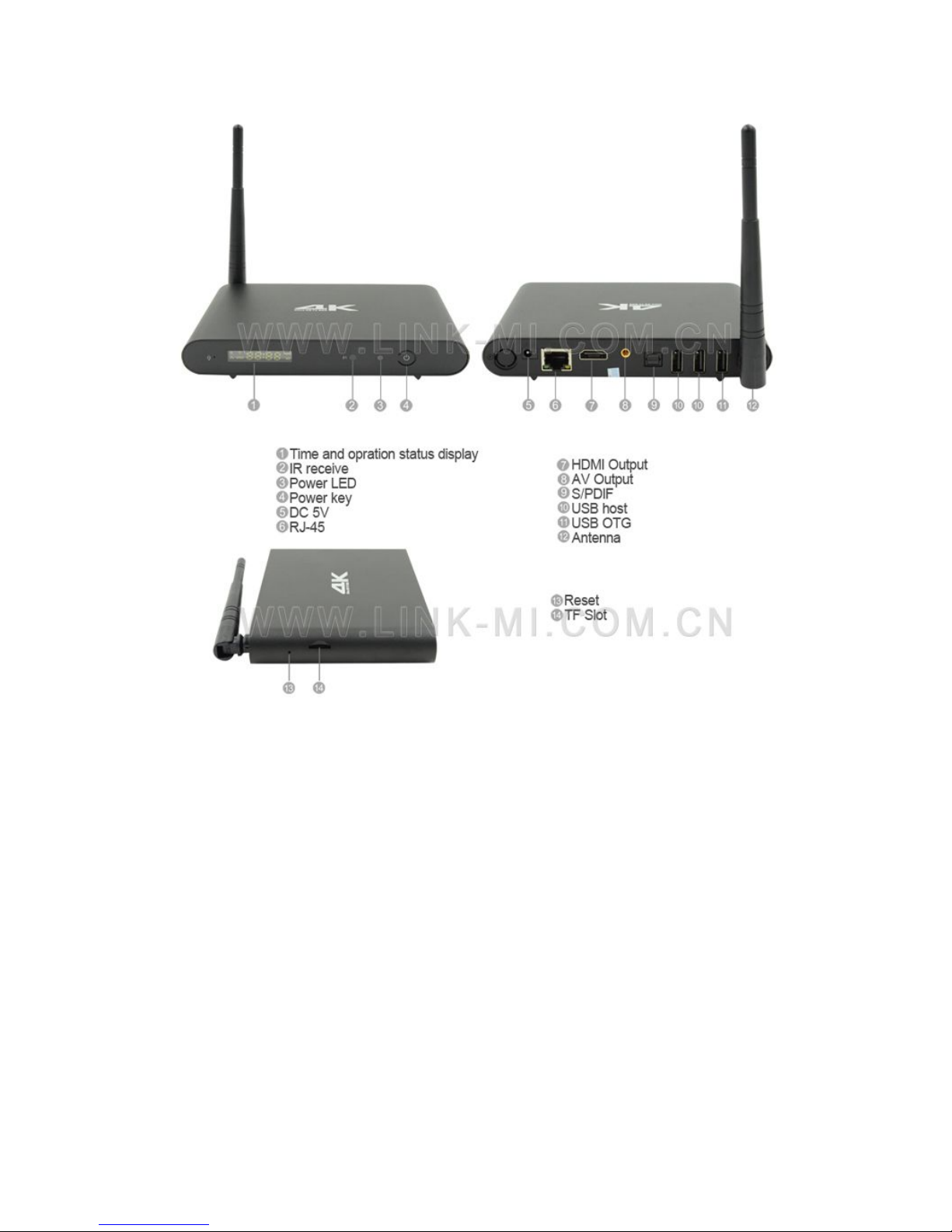

Panel Description:
Page 7
Wiring Diagram
Page 8

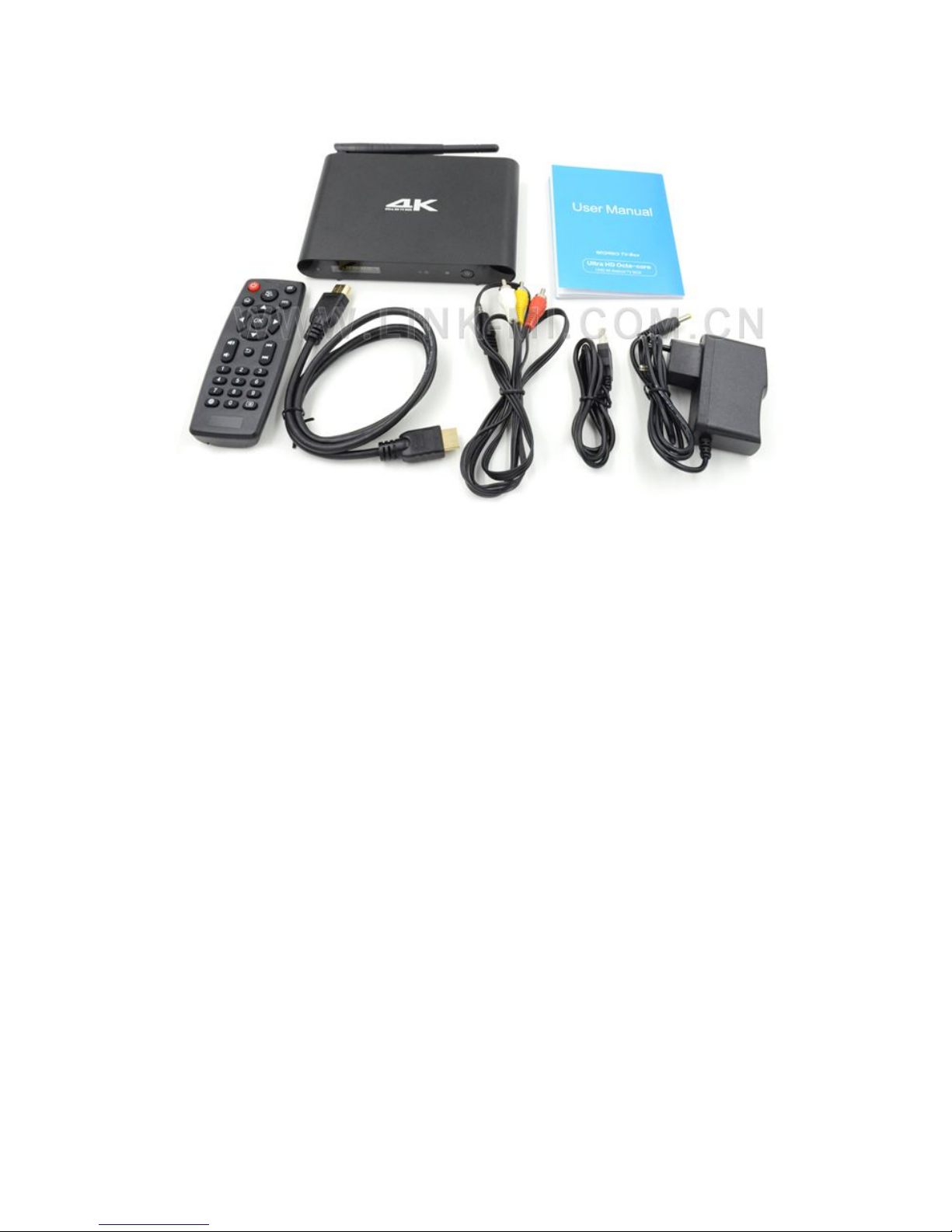

Packing Contents:
1. 1xMini Smart TV Box
2. 1xIR Remote Controller
3. 1xAV Cable
4. 1xHDMI Cable
5. 1xUSB Cable
6. 1xPower Adapter
7. 1xUser Manual
