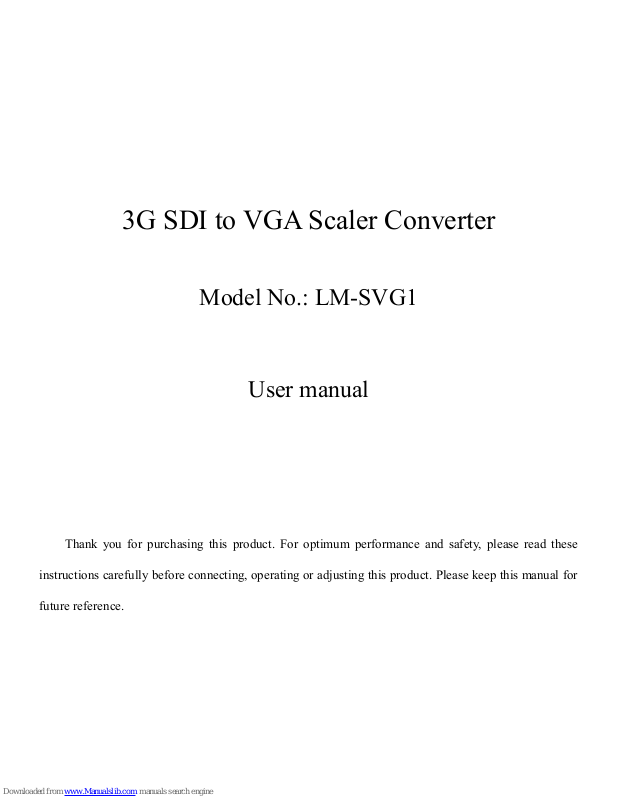

3G SDI to VGA Scaler Converter
Model No.: LM-SVG1
User manual
Thank you for purchasing this product. For optimum performance and safety, please read these
instructions carefully before connecting, operating or adjusting this product. Please keep this manual for
future reference.
1
I. Introduction
The SDI to VGA scaler converter allows SD-SDI, HD-SDI and 3G-SDI signals to be shown on VGA
displays while ensuring high bit rates of 2.970 Gbit/s to give you fast signal transmission without any
loss. For professionals this means that it is now easier to distribute and extend your 3G SDI signal while
giving you the ability to display your work on VGA displays thanks to the built in this converter.
Furthermore, thanks to the loop-through 3G-SDI design, users are able to enjoy both SDI and VGA at
the same time.
II. Features
1. Operation at 2.970Gbit/s, 2.970/1.001Gbit/s, 1.485Gbit/s, 1.485/1.001Gbit/s and 270Mbits/s
2. Equalized and re-clocked loop output
3. Auto video mode detection (3G/HD/SD)
4. Conversion from SMPTE 425M level B to Level A 1080p 50/59.94/60 4:2:2 10-bit
2
5. Connect with other units to extend your signal over long distances
6. Simultaneous display with SDI /VGA signals
7. Alternative audio output to analog 2CH
8. Supports signal transmission distances of up to 300M for SD signals, 200M for HD signals and
100M for 3G signals
9. Note: Cable tested with Belden 1694A. Operating distances may vary if used with another type of
cable.
III. Package
1. 1PCS 3G SDI to VGA Scaler Converter
2. 1PCS 5V DC Power Supply Adapter
3. 1PCS Operation Manual
3
IV. Specifications
SMPTE Standard
425M Level A & B, 424M, 292M, 259M-C
SDI Transmission Rates
2.970 Gbit/s and 2.970/1.001 Gbit/s
SDI in/out Resolution
SD: 480i@60, 576i@50 HD:720p@50/60, 1080i@50/60
3G:1080p@24/25/29.97/30/50/59.94/60
VGA Output Resolution
800x600@60Hz,1024x768@60Hz,1280x720@60Hz,1440
x900@60Hz,1280x1024@60Hz,1680x1050@60Hz,1600x
1200@60Hz,1920x1080@60Hz, 1920x1200@60Hz
Input Port
1 x BNC (SD/HD/3G-SDI)
Output Port
1 x BNC (SD/HD/3G-SDI), 1 x VGA,1 x Earphone(L/R)
ESD Protection Human body model
±8kV (air-gap discharge) ,±4kV (contact discharge)
Operating Temperature
0°C ~ 40°C / 32°F ~ 104°F
4
Storage Temperature
-20°C ~ 60°C / -4°F ~ 140°F
elative Humidity
20 ~ 90% RH (Non-condensing)
Power Supply
DC 5V -12V
Power Consumption (Max)
5W
Dimension
95mm x 60mm x 25 mm
Weight
260g
V. Operation controls and Functions
5
1. SDI IN: This slot is where you connect the SDI source output for SDI signal sending to be
display on screen.
2. SDI OUT: This slot is where you connect the SDI display with SDI cable for input source
display.
3. POWER LED: This red LED will illuminate when the device is connected with power supply.
4. DC IN: Plug the 5V-12V DC power supply into the unit and connect the adapter to AC wall
outlet.
5. Resolution: Press this button to select the output resolution .
6. AUDIO: This slot is where you connect the speaker or amplifier with earphone jack for audio
signal display.
7. VGA OUT: This slot is where you connect the VGA display with VGA cable.
6
VI. Application Example
