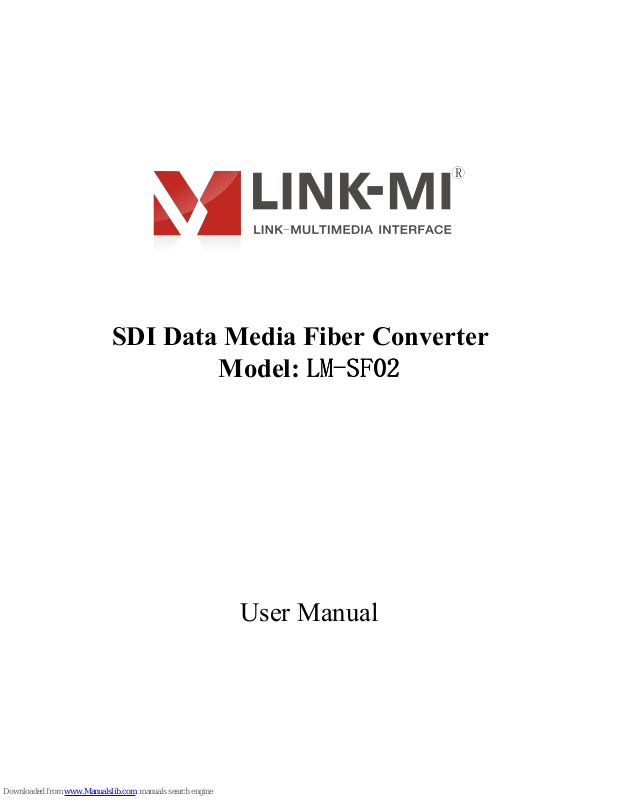

SDI Data Media Fiber Converter
Model: LM-SF02LM-SF02LM-SF02
User Manual
Product Overview
LINK-MI LM-SF02 The HD/3G-SDI to fiber converter includes a
transmitter and receiver, which is a low cost transfer
device for unidirectional HD/3G-SDI video ,1ch 10/100M
ethernet and 1ch rs422 data over a single mode and
multimode optical fiber cable transfer. It is designed by
digital optical transfer technology and supports SMPTE292M
/SMPTE259M /SMPTE424 signal.
And the receiver can be put into a standard19” 3.5U rack
mount chassis,which support 16PCS receiver insert cards
with 2pcs 90~240V power supply.
Main features
1.3G/ HD-SDI video (embedded audio signal) over a fiber
with lossless long-distance transmission
2.Support 1CH unidirectional or bidi RS485 or RS422 or
RS232 control data transmission , 1ch full duplex 10/
100M Ethernet.
3.ASIC integrated designed technology with core independent
intellectual property rights
4.Advanced circuit design, full hardware program to ensure
the reliability of equipment, consistency and stability
5.Widely used in TV live broadcast, high-definition video
conferencing, high-definition video surveillance and
other fields
6.Support single-mode or multi-mode fiber transmission (the
user needs to confirm the transmission cable type)
7.Provide commonly used LC/FC / SC / ST fiber interface
8.Maximum transmission distance up to 120KM over single
mode fiber
9.3G-SDI high digital Video and audio signal optical
transmission
10.Adapt to SDI 270Mbps, 1.485Gbit Speed and 3G
automatically
11.Accept customerization and OEM business mode.
Standard Package
SDI fiber transmitter 1pcs
SDI fiber receiver 1pcs
Power Supply Unit 5V/2A 2pcs
User manual 1pcs

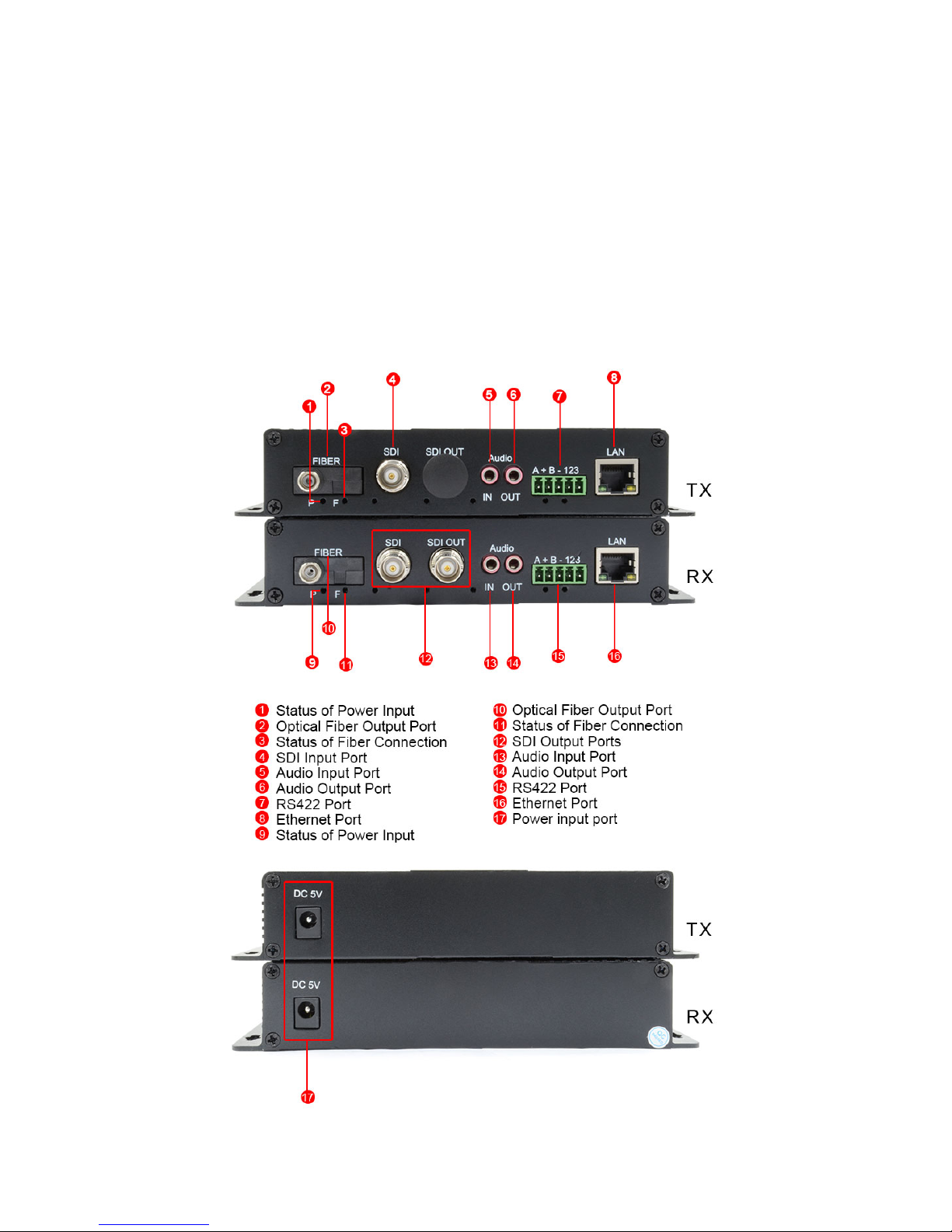

Interface overciew
Specification
Optical：
Wavelength
multi-mode 850nm / 1300nm, single-mode 1310nm /
1550nm
Output Power
-10~-4dBm
allowable chain loss range
18dBm~35dBm
Optic fiber
50/125u multimode，62.5/125u multimode，9/125u
single mode
Light receiving sensitivity
<=30dBm
Optical connector
LC FC、ST、SC (selectable) ,single or dual fibers
Distance
0~500M (MM) / 0~80KM (SM)
Video:
SDI
Signal Type SDI
SMPTE 424M, SMPTE 292M, SMPTE 259M
Video Format
1920*1080P60;1920*1080P50;1920*1080P30;1920*1080P25
1920*1080P24;1920*1080I601920*1080I50;1280*720P60;1280
*720P50;525i ;625i
Data Rates
270Mbit/s - 1.48Gbit/s, 3Gbit/s
Cable Equalization
Automatic cable EQ (Belden 1694A cable)
250m @ 270Mbit/s, 140m @ 1.5Gbit/s,80m @ 3Gbit/s
Connector
BNC 75 Ohm
General
Input Power
5V, 0.2-2.0A
Power consumption (maximum)
Transmitter: 2.5W Receiver: 2.5W
Operating temperature
-20°C to 60°C
Storage temperature
-40°C to85°C
Operating humidity
0 ~ 95% (non-condensing)
Case color
Black
Case material
aluminum
Dimension
15.5x12x3.2CM
Net Weight
1Kg per pair
Case material
Aluminum
MTBF:
>100000 hours
Data
Data protocol
RS422
Data rate
0~500 Kbps
Error rate
< 10
-9
Connector
Phoenix Terminal
Ethernet：
Work mode
Full duplex/half duplex
Data Rate
10/100Mbps(AUTO)
connection terminal
RJ45
Installation
1、Connect SDI signal to SIN port by SYWV cable I
2、Connect SDI output signal to SOUT port by SYWV cable
3、Connect fiber to OPT.
4、Power on
Application Graphics
Indicator Light
status
R
On
Device works smoothly
Off
Device not works smoothly
S
On
SDI signal on
Off
SDI signal off
P
On
Power on
Off
Power off
