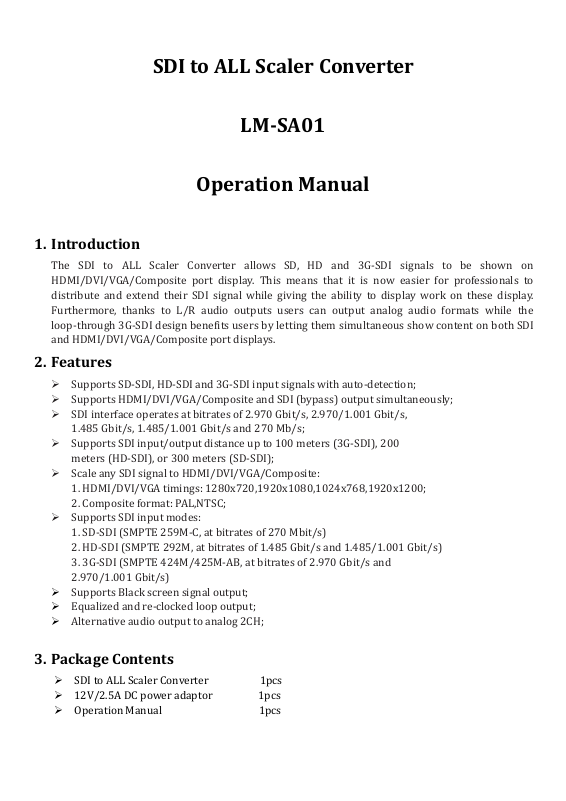

SDI to ALL Scaler Converter
1. Introduction
2. Features
Supports SD-SDI, HD-SDI and 3G-SDI input signals with auto-detection;
Supports HDMI/DVI/VGA/Composite and SDI (bypass) output simultaneously;
SDI interface operates at bitrates of 2.970 Gbit/s, 2.970/1.001 Gbit/s,
Supports SDI input/output distance up to 100 meters (3G-SDI), 200
Scale any SDI signal to HDMI/DVI/VGA/Composite:
Supports SDI input modes:
Supports Black screen signal output;
Equalized and re-clocked loop output;
Alternative audio output to analog 2CH;
3. Package Contents
SDI to ALL Scaler Converter 1pcs
12V/2.5A DC power adaptor 1pcs
Operation Manual 1pcs
LM-SA01
Operation Manual
The SDI to ALL Scaler Converter allows SD, HD and 3G-SDI signals to be shown on
HDMI/DVI/VGA/Composite port display. This means that it is now easier for professionals to
distribute and extend their SDI signal while giving the ability to display work on these display.
Furthermore, thanks to L/R audio outputs users can output analog audio formats while the
loop-through 3G-SDI design benefits users by letting them simultaneous show content on both SDI
and HDMI/DVI/VGA/Composite port displays.
1.485 Gbit/s, 1.485/1.001 Gbit/s and 270 Mb/s;
meters (HD-SDI), or 300 meters (SD-SDI);
1. HDMI/DVI/VGA timings: 1280x720,1920x1080,1024x768,1920x1200;
2. Composite format: PAL,NTSC;
1. SD-SDI (SMPTE 259M-C, at bitrates of 270 Mbit/s)
2. HD-SDI (SMPTE 292M, at bitrates of 1.485 Gbit/s and 1.485/1.001 Gbit/s)
3. 3G-SDI (SMPTE 424M/425M-AB, at bitrates of 2.970 Gbit/s and
2.970/1.001 Gbit/s)
Page 2
4. Specification
SMPTE Standard 425M Level A & B, 424M, 292M, 259M-C
5. Operation and Fuctions
1. BLACK Button: Press this button will output Black screen signal to HDMI/DVI/VGA/Composite
2. HDMI/DVI/VGA OUT button: Press these buttons to select the HDMI/DVI/VGA port resolution.
3. CVBS OUT button: Press these buttons to select the composite output port format.
SDI Transmission Rates 2.970Gbps, 2.970/1.001Gbps,1.485Gbps,
1.485/1.001Gbps, and 270Mbps
Input Port 1×BNC (SD/HD/3G-SDI)
Output Port 1×BNC (SD/HD/3G-SDI bypass),
1×HDMI (Type A connector),
1×DVI with Audio
1x VGA with Audio
1×Composite with R/L
ESD Protection Human-body Model:
±8kV (air-gap discharge)
±4kV (contact discharge)
SDI Cable Distance 3G up to 100m (BELDEN 1694A Cable)
HD up to 200m (BELDEN 1694A Cable)
SD up to 300m (BELDEN 1694A Cable)
Dimensions 110mm (W)×288mm (D)×32mm (H)
Weight 750g
Chassis Material metal
Operating Temperature 0 ˚C~40 ˚C/32 ˚F~104 ˚F
Storage Temperature −20 ˚C~60 ˚C/−4 ˚F~140 ˚F
Relative Humidity 20~90% RH (Non-condensing)
Power Consumption 5W

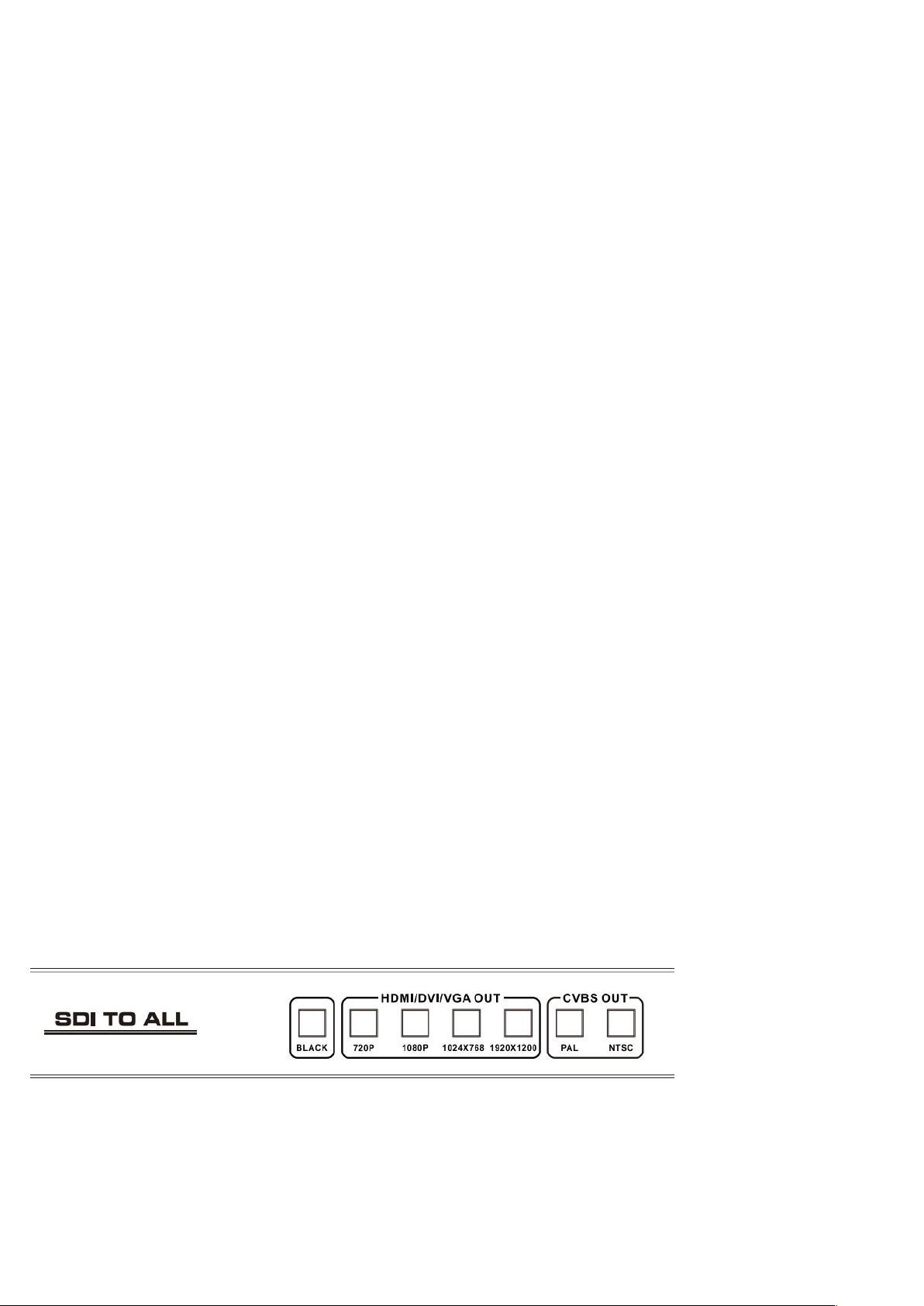

5.1 Front panel
port display.
5.2 Rear panel
Page 3
1. SDI IN:Connect to the SDI output of the SDI source device.Accepts SD,HD or 3G SDI signals.
2. SDI LOOP OUT: Provides a 'loop-through' SDI signal output for connection to a SDI display.
3. OUTPUT: These slot is where you connect the HDMI/DVI/VGA/Composite port display with cable
for input source display.
4. DC 12V: Plug the 12V DC power supply into the unit and connect the adaptor to AC wall outlet.
5. ON/OFF: Power ON/OFF.

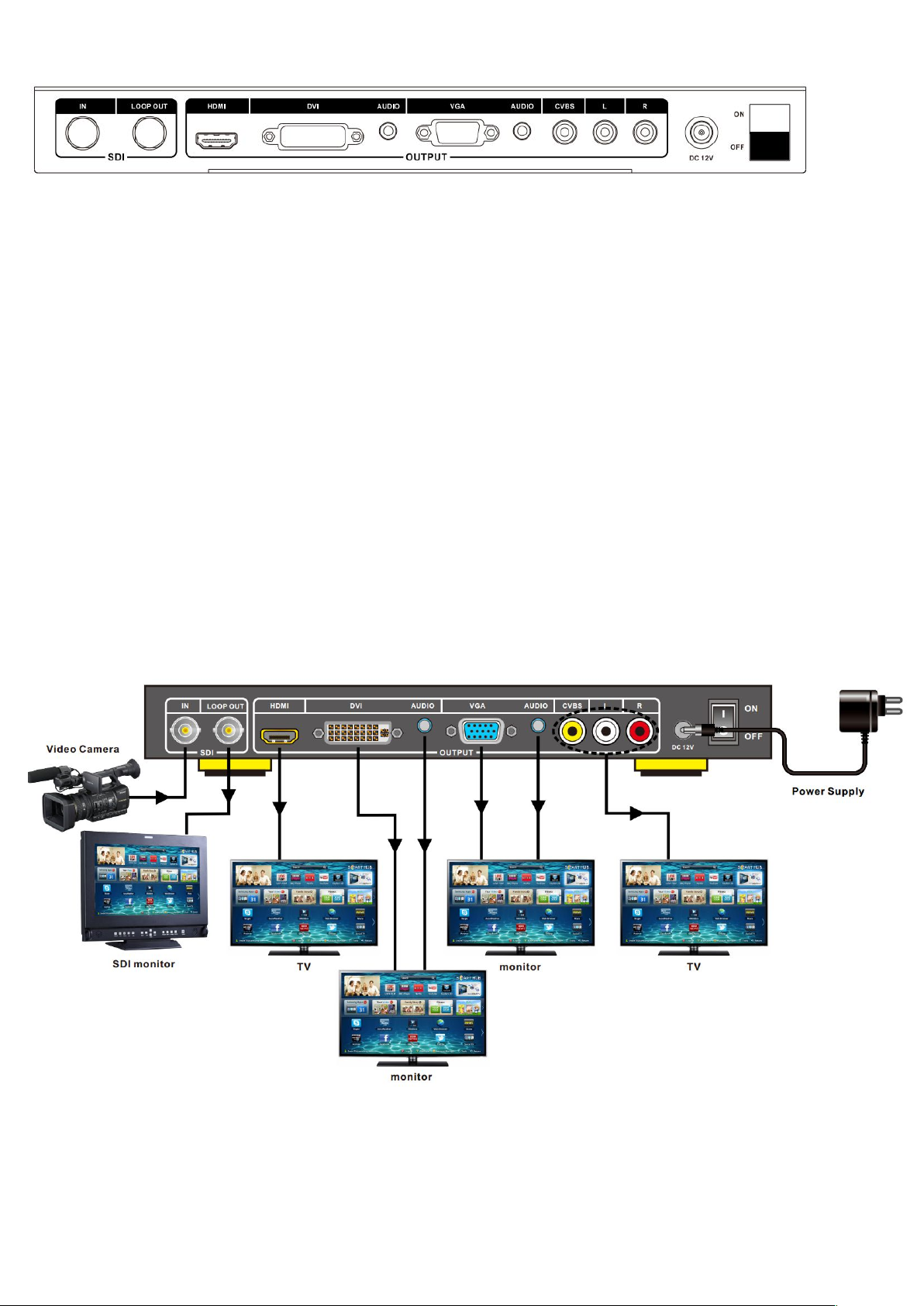

6. Connection Diagram
