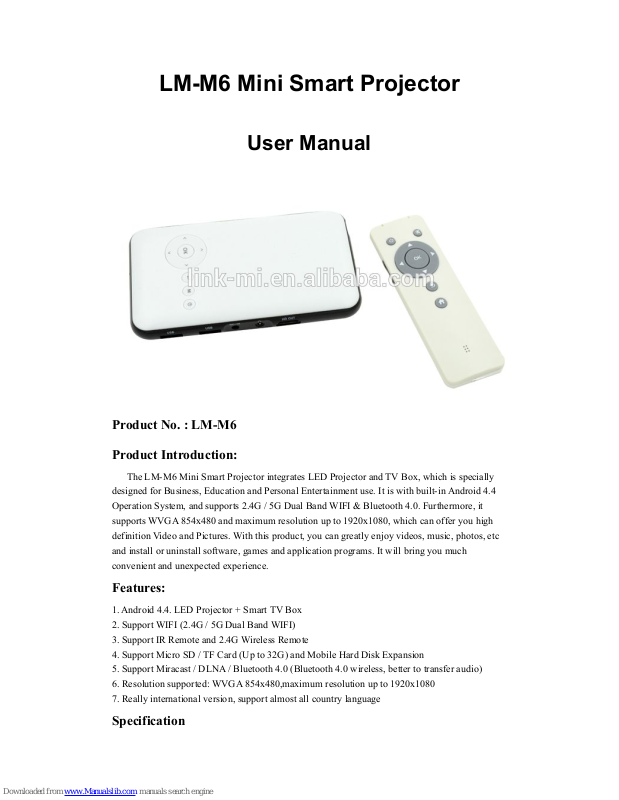

LM-M6 Mini Smart Projector
User Manual
Product No. : LM-M6
Product Introduction:
The LM-M6 Mini Smart Projector integrates LED Projector and TV Box, which is specially
designed for Business, Education and Personal Entertainment use. It is with built-in Android 4.4
Operation System, and supports 2.4G / 5G Dual Band WIFI & Bluetooth 4.0. Furthermore, it
supports WVGA 854x480 and maximum resolution up to 1920x1080, which can offer you high
definition Video and Pictures. With this product, you can greatly enjoy videos, music, photos, etc
and install or uninstall software, games and application programs. It will bring you much
convenient and unexpected experience.
Features:
1. Android 4.4. LED Projector + Smart TV Box
2. Support WIFI (2.4G / 5G Dual Band WIFI)
3. Support IR Remote and 2.4G Wireless Remote
4. Support Micro SD / TF Card (Up to 32G) and Mobile Hard Disk Expansion
5. Support Miracast / DLNA / Bluetooth 4.0 (Bluetooth 4.0 wireless, better to transfer audio)
6. Resolution supported: WVGA 854x480,maximum resolution up to 1920x1080
7. Really international version, support almost all country language
Specification
Page 2
Color
White
Operation System
Android 4.4
Lamp Type
LED
CPU
RK3128 Quad-core ARM Cortex-A7 CPU with up to
1.2Ghz
Inner Cache
1G DDR3
Memory
8GB
Projection Cover Size
30 - 120 inches
Projection Distance
1 - 5m
Light Brightness
Up to 100 lumens
Brightness Average
＞85%
Contrast Ratio
2000:1
Aspect Ratio
4:3 / 16:9 / 16:10
Throw Ratio
1.19:1 (76inch@2M)
Remote Control
Support IR remote and 2.4G Wireless Remote
Flash
Support flash 11.1
Bluetooth Data
Bluetooth 4.0
USB Port
USB HOST 2.0
WIFI
2.4G / 5G Dual Band WIFI
Input/Output Port
1xHDMI Output; 2xUSB Input(Support USB flash
disk, Mobile Hard Disk, etc.); 1x3.5mm Audio
Output(for Earphone, Loud speaker); 1xMicro SD/TF
Card Slot (Up to 32G), 1xPower Input
Extend Storage
Support Micro SD / TF Card (Up to 32G) and Mobile
Hard Disk Expansion
Resolution
WVGA 854x480; Maximum resolution up to
1920x1080(HD 1080P Supported)
Video Supported
H.263, H.264, H.265, VC-1, RV, VP6 / VP8, Sorenson
Spark, MVC, MPEG-1, MPEG-2,MPEG-4 timely
decode, up to 1080P.
Audio Supported
MP3, WMA, MP2, OGG, AAC, M4A, MA4, FLAC,
APE, 3GP, WAV
Support Variety of image formats browsing (Such as
JPG, PNG, BMP, etc)
Lamp Life
30000 Hours
Built-in Battery
4000mAh
Power Supply
DC 5V/2.5A
Power Consumption
5W

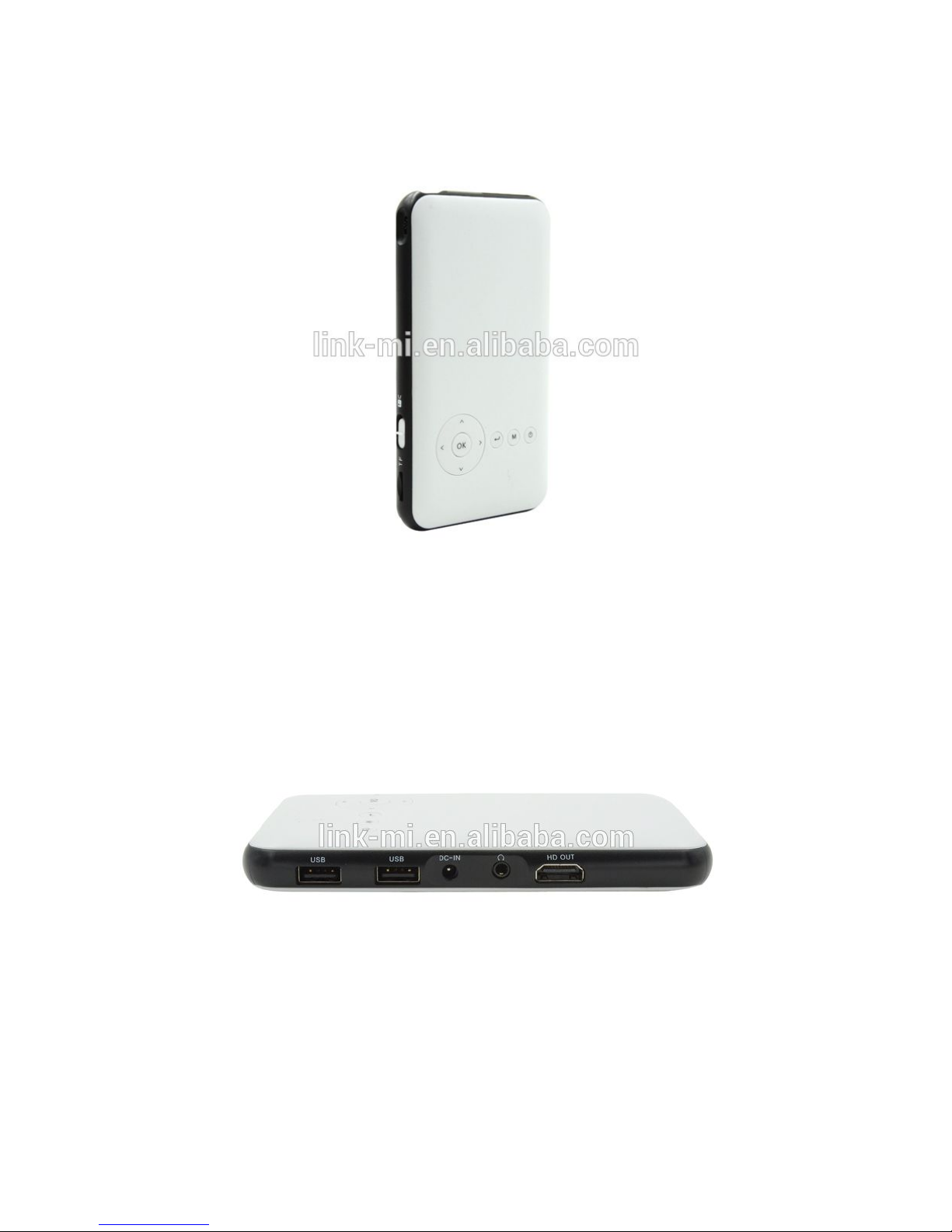

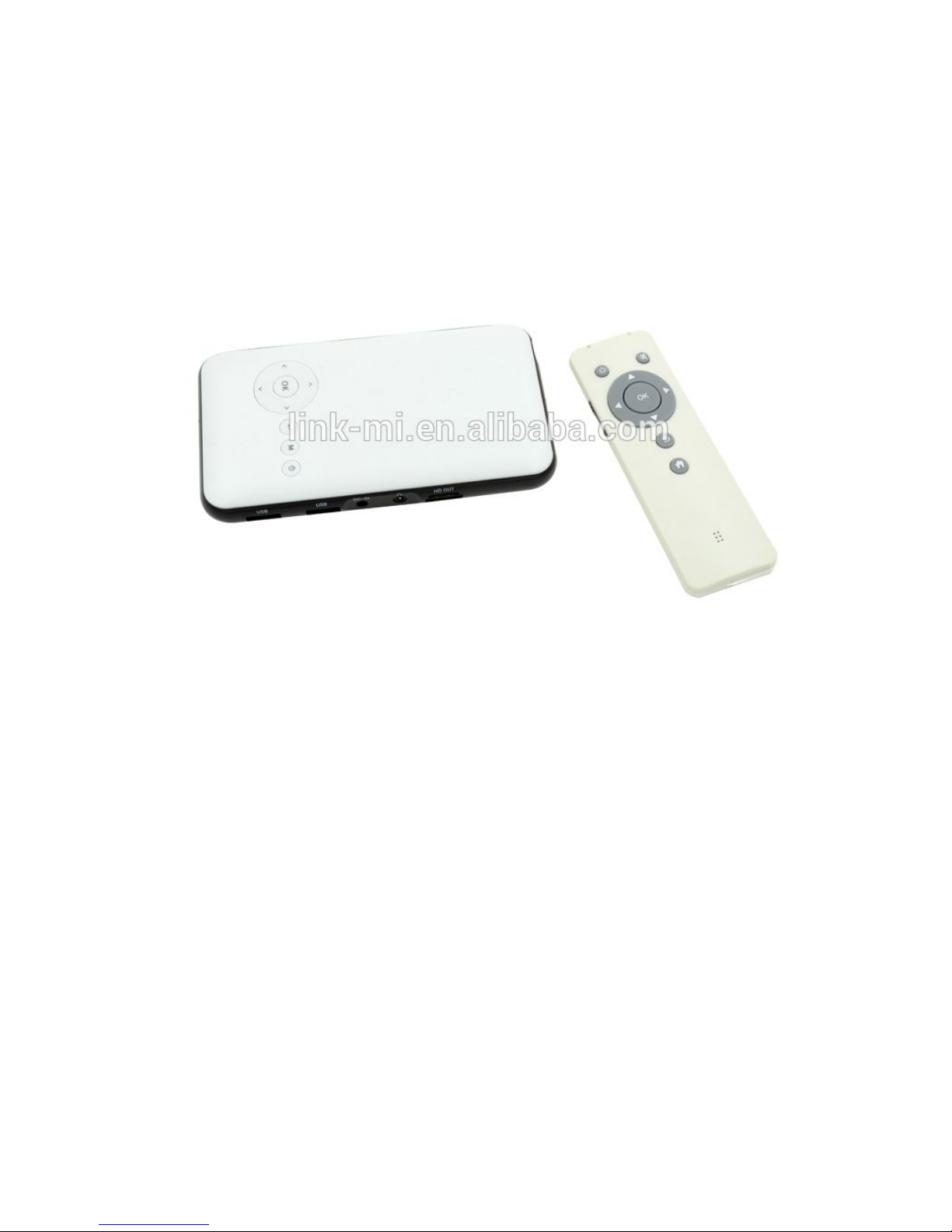

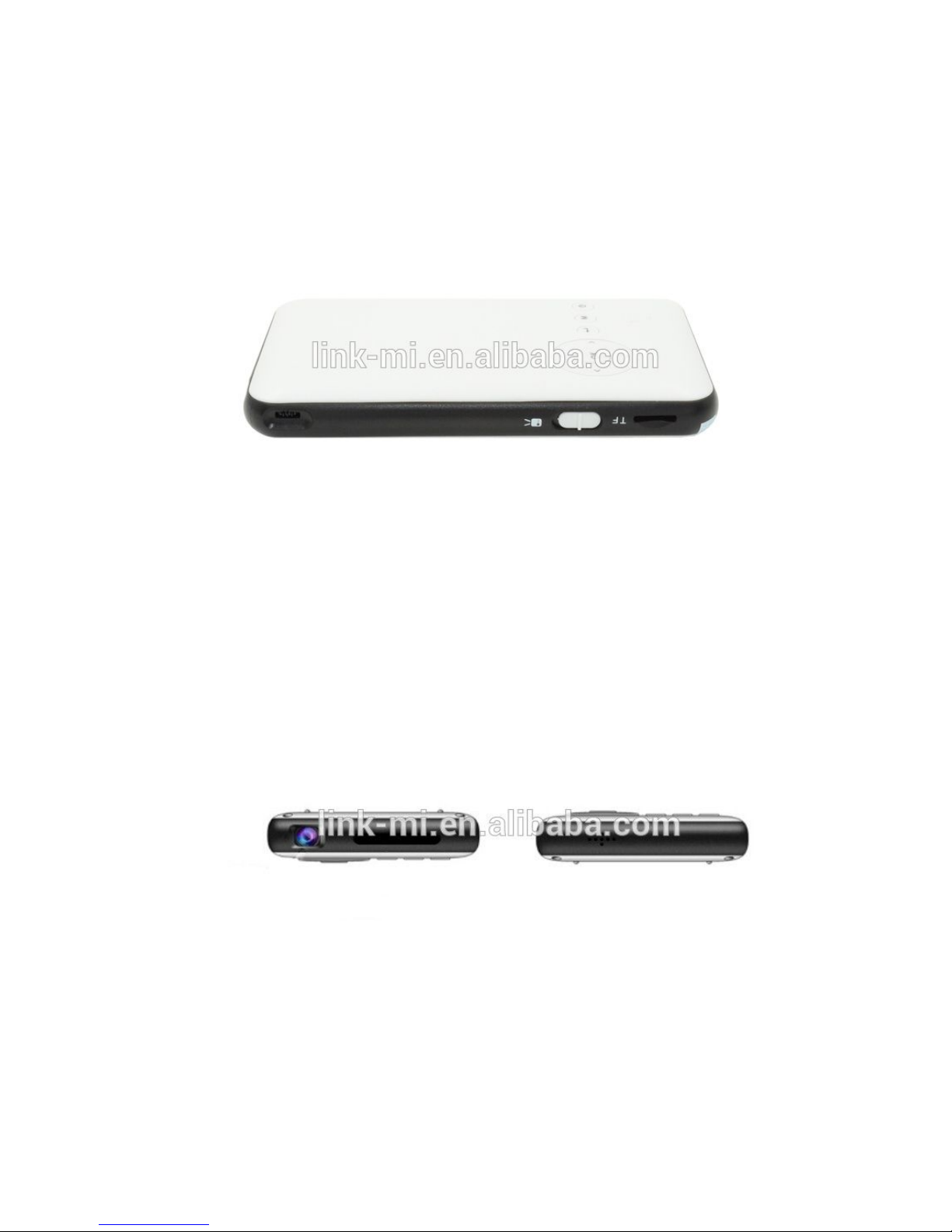

Product Picture
Page 3
Page 4
Page 5

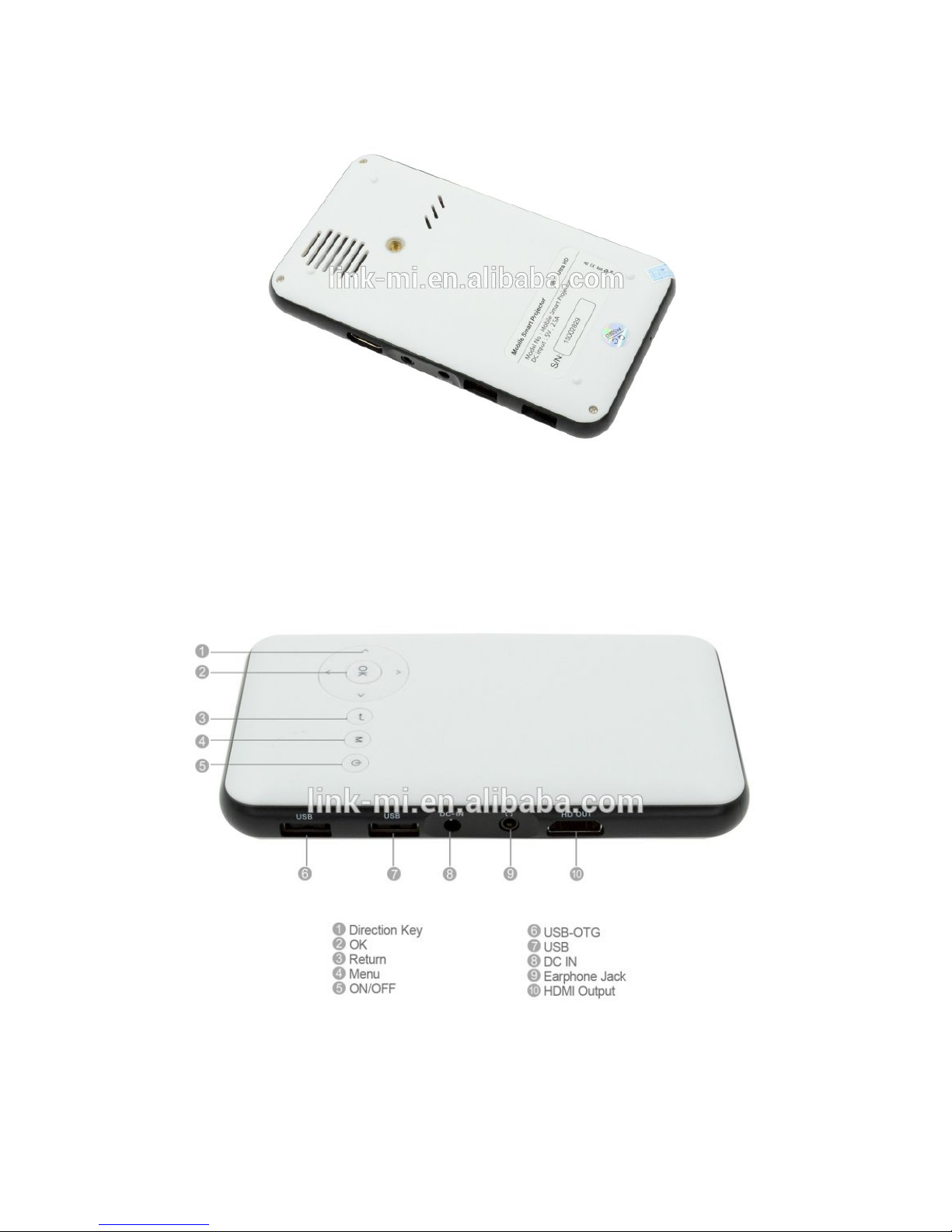

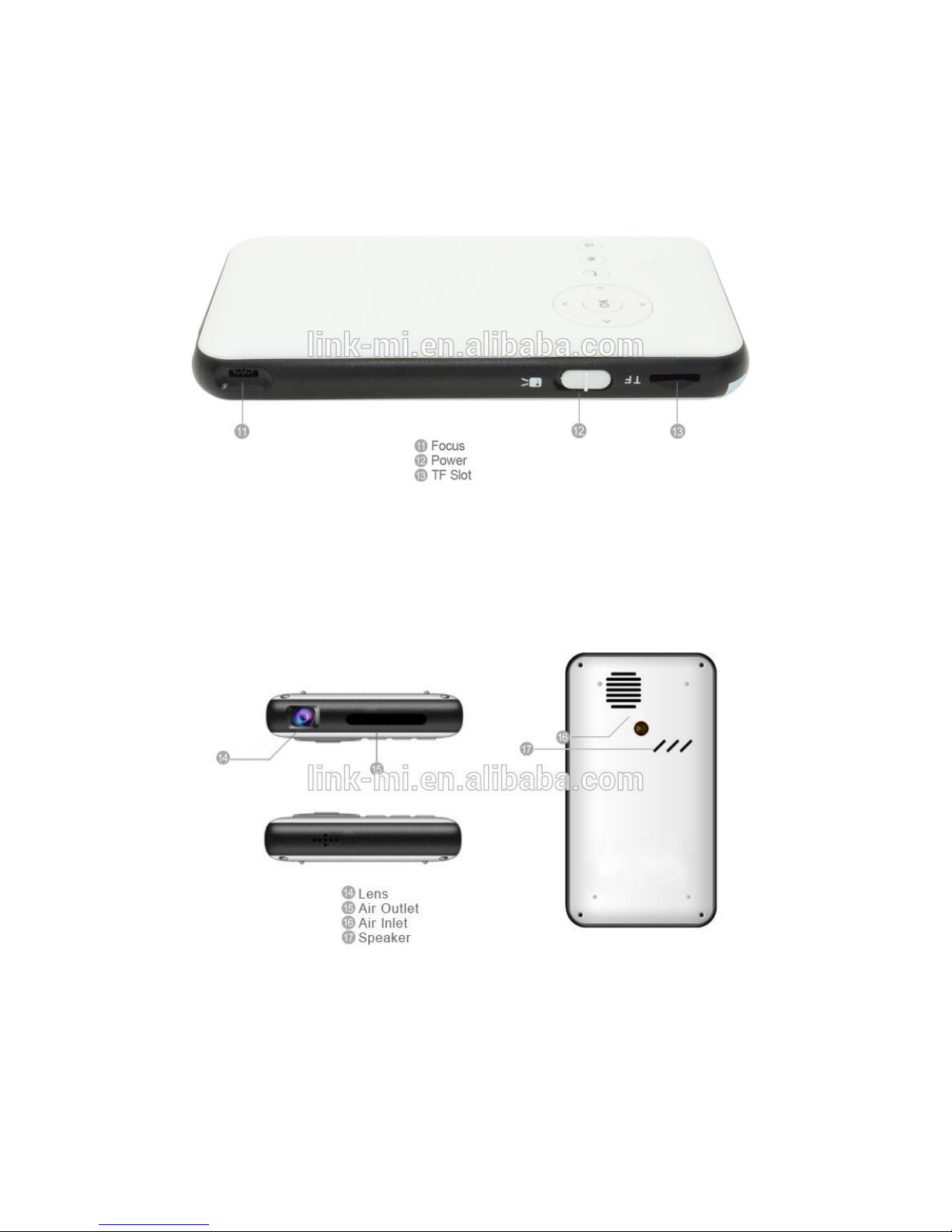

Panel Description
Page 6
Page 7

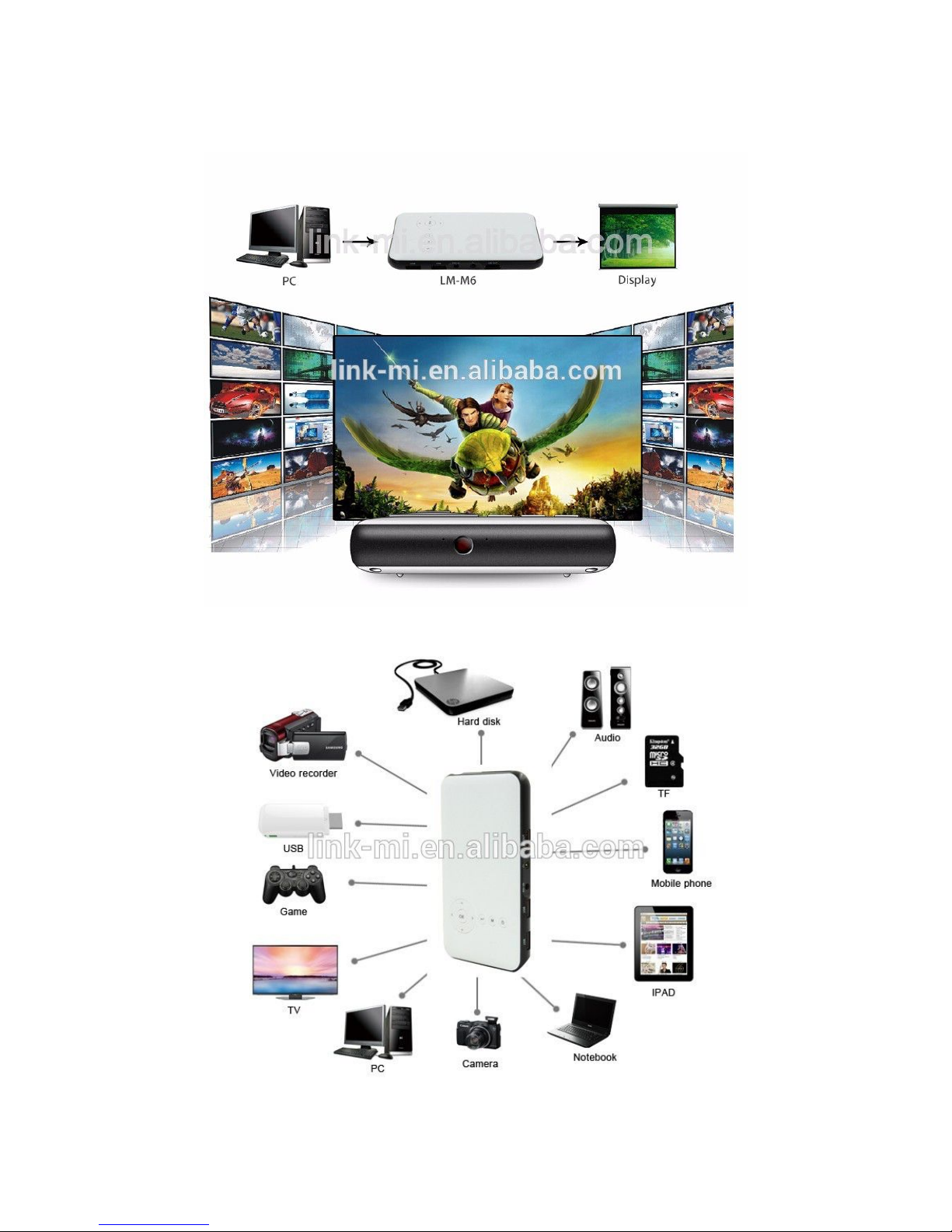

Wiring Diagram
Page 8
Packing Contents:
1. 1xMini Smart Projector
2. 1xIR Remote Controller
3. 1xHDMI Cable
4. 1xPower Adapter
5. 1xUser Manual
