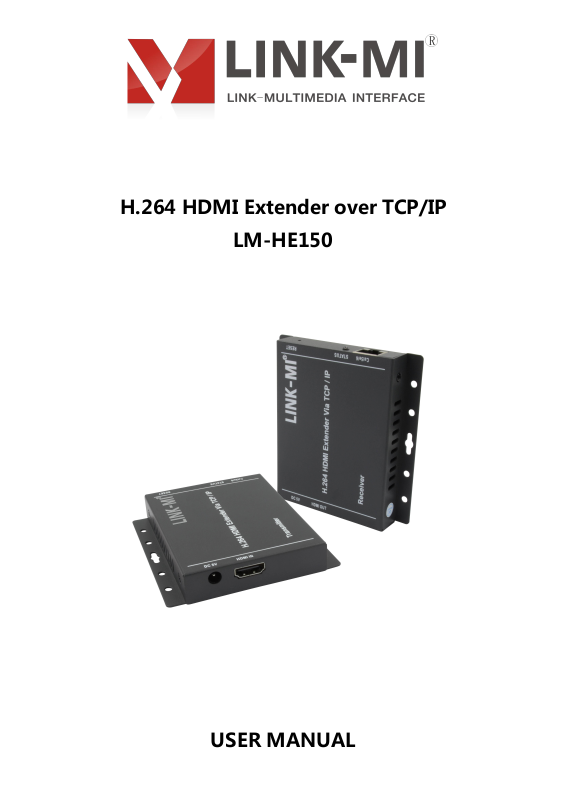

H.264 HDMI Extender over TCP/IP
LM-HE150
USER MANUAL
Description
1. Transmits HDMI video and audio signals up to 150M over a single CAT6 cable
2. Support video resolution max up to 1920*1080p@60Hz
3. Support over TCP/IP, one to many application with Ethernet switch/router
4.
Compliance with HDMI 1.3 and HDCP 1.2 standard
5.
High compatibility, can auto-match source and display device
6. Built-in automatic adjustment system, make the image smooth, clear and stable
7.
Built-in ESD protection system
8.
Simple to install, plug and play
Parameter
Description
Video
Standards
HDMI 1.3; HDCP 1.2
Compressed format
H.264
Maximum pixel clock
165MHz
Maximum data rate
6.75Gbps
Resolution
Max: 1920X1080p@60Hz
Connector
HDMI-A
Impedance
100Ω
Ethernet
Interface
RJ45
Transmission distance
CAT6---150m，
Other
Power supply
The power adapter:
DC 5V
Power dissipation
MAX 6W
Temperature
Operating: -5℃ ~ +70℃
Humidity
Operating: 5% ~ 90%
Dimension
94.5*71*26mm
The warranty
1 year free warranty
LINK-MI LM-HE150 The H.264 HDMI extender transmit HD video and audio over one
cat5e/cat6 cable, over TCP/IP standard, support one to many application over Ethernet.
The equipment has excellent image processing and transmission capacity, makes signal
transmission more smooth and steady, is a kind of economic and efficient way of HDMI
signal extension.
Features
Specifications
Panel
Port name
Description
HDMI IN/HDMI
OUT
HDMI
signal input/output
Cat5e/6
Ethernet interface
DC 5V
Power adapter socket
RESET
Press for 5 second to restore system setting to
factory default
LED indicator
Description
STATUS
Video signal connection indicator/System power
indicator
HDMI transmitter ……………………….……. 1 pcs
HDMI receiver …………………………………. 1 pcs
Power adapter ……………………………….... 2 pcs
User manual …………………………………..… 1 pcs
Transmitter:
Receiver:
Package list
Installation
1. Will the HDMI source access HDMI extender
2. Connect the HDMI extender the receiver to display devices (such as high-definition TV, splicing
screen, etc.),
3. Using CAT6 types of cables connects the
4. The transmitter and the receiver connected to the power, when the lamp lights up normally,
normal operation of system.
transmitter
transmitter
,
and the receiver network interfaces,
Diagram
