Page 1
Full HD Optical transmitter
and receiver
Model : LM-DF02LM-DF02LM-DF02
User ManualManualManual
Page 2
Product Overview
DVI Optical transmitter and receiver adopts the uncompressed digital HD video and high-speed
digital optical fiber transmission technology advanced,It can transfer signal source(computer
signal source, DVI signal source high digital DVD/DVR) to long distance terminal easily,with
strong performance,ensure the signal completed and stable.
Main features
1. Full digital, Uncompressed HD optical fiber transmission.
2. Support Full HD 1920*1080@60Hz.
3. All the ONE-way audio.
4. Automatic identification and configure display mode.
5. Automatic equalization inside, stable and clear graphics.
6. ESD protection circuit inside, to ensure the ESD damage.
7. Easily to installation, plug and play, no need to set up.
Standard Package
Transmitter 1 pcs
Receiver 1 pcs
Power Supply Unit 5V/1A 2 pcs
User Guide 1 pcs
Page 3

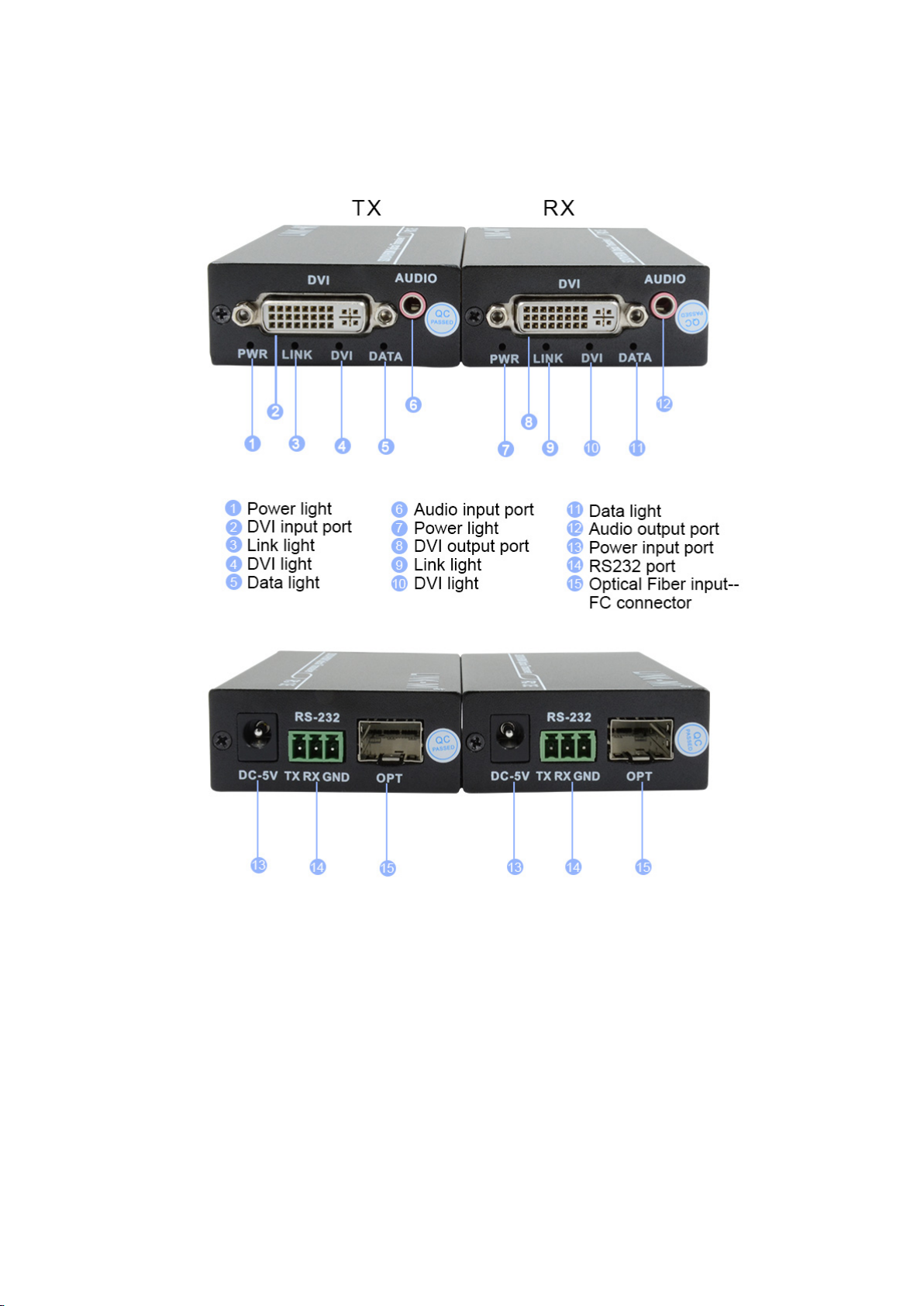

Interface overciew

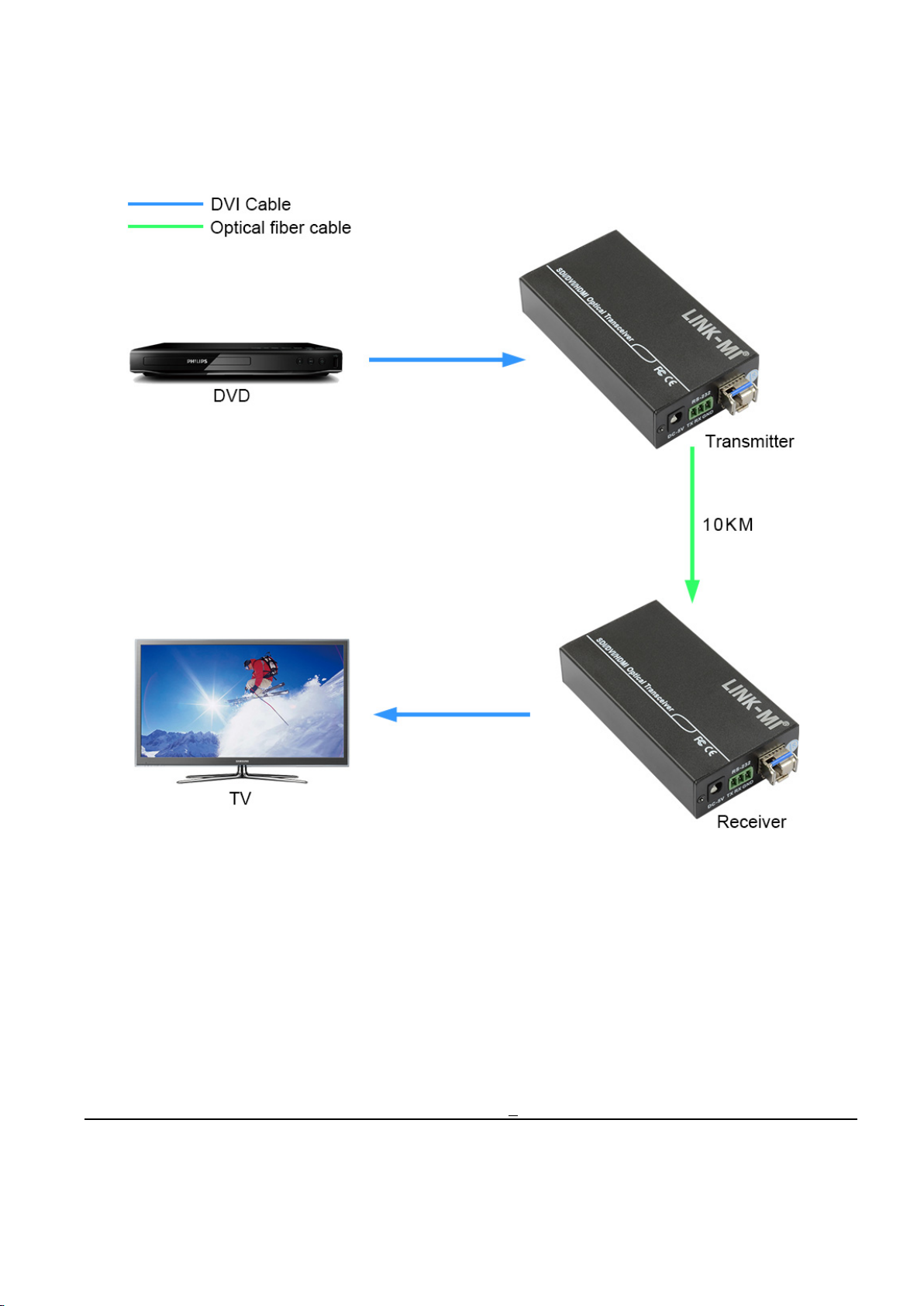

Installation
1. Connect DVI input signal to DVI_IN port by cable
2. Connect DVI output signal to DVI OUT port by cable
3. Connect Audio input signal to AUDIO IN port
4. Connect Audio output signal to AUDIO OUT port
5. Connect FC fiber to OPT IN and OPT OUT
6. Power on
Page 4
Performance and Specification
Temperature
-5°C to +75°C
Humidity
5 to 90 % RH (no condensation)
Pixel band width
165MHz
Video format
800x600P60/1024x768P60
1280x800P60/1280x1024P60
1360x768P60 /1366x768P60
1400x1050P60/1440x900P60
1600x900P60/1600x1200P60
1680x1050P60/1280x720P50
1280x720P60/1920x1080P24
1920x1080P25/1920x1080P30
1920x1080P50/1920x1080P60
1920x1080I60 /1920x1080I50
1920x1200P60
The signa of Audio input and output
3.5MM Audio
Audio format
44.1K,48K,96K,176K,192K
RS232 port
3 ports industrial terminal
RS232 Baud rate
Support 115200 and all below
RS 232 Data bits
8 bits
Fiber port
LC
Fiber wavelength
1550/1310nm
Fiber band width
3Gbps
The Maximum transmission distance
10KM/20KM/40KM/60KM
Input voltage
DC 5V，inside+ outside-
Power consumption
Transmitter 4W; Receiver 4W
Device size
110mm*580mm*25mm(length*width*height)
Packing box size
175mm*74mm*74mm (length*width*height)
Weight
1KG
