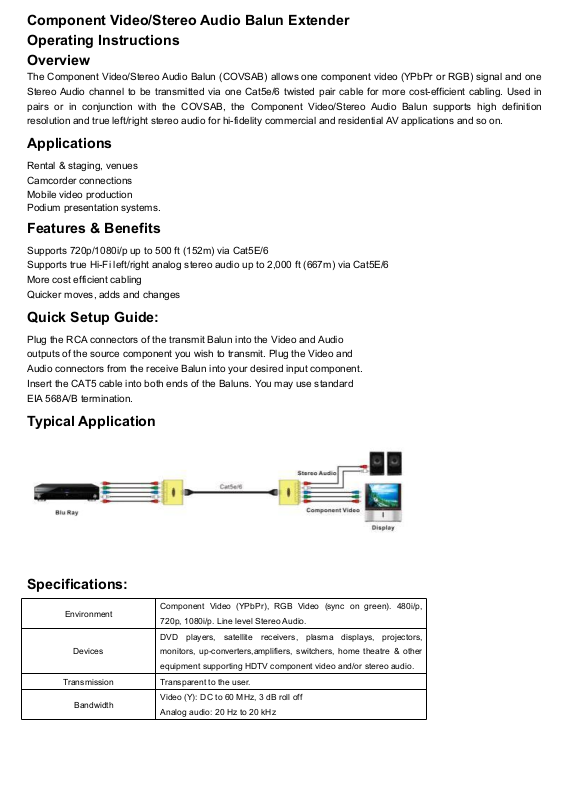

Component Video/Stereo Audio Balun Extender
Operating Instructions
Overview
The Component Video/Stereo Audio Balun (COVSAB) allows one component video (YPbPr or RGB) signal and one
Podium presentation systems.
Environment
Component Video (YPbPr), RGB Video (sync on green). 480i/p,
720p, 1080i/p. Line level Stereo Audio.
Devices
DVD players, satellite receivers, plasma displays, projectors,
monitors, up-converters,amplifiers, switchers, home theatre & other
equipment supporting HDTV component video and/or stereo audio.
Transmission
Transparent to the user.
Bandwidth
Video (Y): DC to 60 MHz, 3 dB roll off
Analog audio: 20 Hz to 20 kHz
Stereo Audio channel to be transmitted via one Cat5e/6 twisted pair cable for more cost-efficient cabling. Used in
pairs or in conjunction with the COVSAB, the Component Video/Stereo Audio Balun supports high definition
resolution and true left/right stereo audio for hi-fidelity commercial and residential AV applications and so on.
Applications
Rental & staging, venues
Camcorder connections
Mobile video production
Features & Benefits
Supports 720p/1080i/p up to 500 ft (152m) via Cat5E/6
Supports true Hi-Fi left/right analog stereo audio up to 2,000 ft (667m) via Cat5E/6
More cost efficient cabling
Quicker moves, adds and changes
Quick Setup Guide:
Plug the RCA connectors of the transmit Balun into the Video and Audio
outputs of the source component you wish to transmit. Plug the Video and
Audio connectors from the receive Balun into your desired input component.
Insert the CAT5 cable into both ends of the Baluns. You may use standard
EIA 568A/B termination.

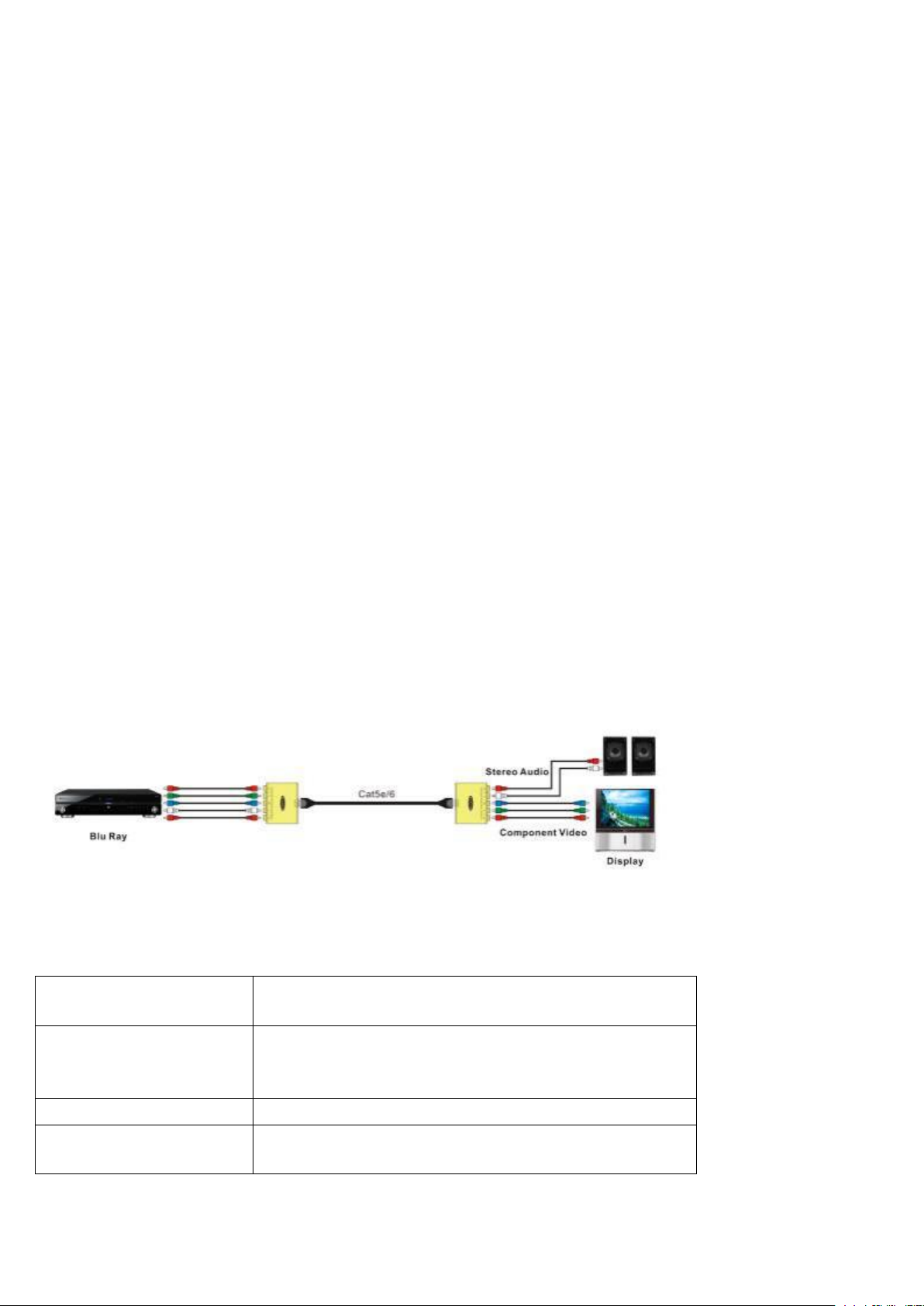

Typical Application
Specifications:
Page 2
Maximum Input
Video: 1.1Vp-p, Audio : 1.1Vp-p
Insertion Loss per Pair (Y
channel)
0.1 dB for 0.1 MHz. Gradually increasing to 2.5 dB over the frequency
range
Insertion Loss per Pair (Audio)
Less than 2 dB over the frequency range per pair of baluns
THD
Less than 0.01% at 1 kHz
Return Loss (Y channel)
Greater than 15 dB over the frequency range
Common Mode Rejection
Ratio (Y channel)
-55 dB at 0.1 MHz
Gradually increasing to -20 dB at 60 MHz
Max. Distance Color via
Cat 5E/6 UTP/STP Cable
Video: 480i/p: 1,000 ft (305 m). 720p and 1080i/p: 500 ft (152 m)
Stereo Audio: 2,000 ft (667m)
Cable:Cat 5E/6 UTP/STP
24 AWG or lower solid copper twisted pair wire
Impedance: 100 ohms at 1 MHz
Maximum capacitance: 20 pf/ft
Attenuation: 6.6 dB/1,000 ft at 1 MHz
Cable: Coax
Impedance: 75 ohms at 1 MHz
Connectors
Three RCA-F connectors: Green (Y), Blue (Pb), Red (Pr)
One RCA-F connector for analog audio
RJ45 for twisted pair
Pin Configuration
Reverse polarity sensitive
Red (Pr): Pins 7(R) & 8(T) Green (Y): Pins 4(R) &5(T)
Blue (Pb):Pins 1(R) & 2(T) analog Audio: Pins 3(R) & 6(T)
Temperature
Operating: 0° to 55°C
Storage: -20° to 85°C
Humidity: Up to 95% non-condensing
Enclosure
Aluminum alloy
Dimensions
(packaging)
155mm*80mm*30mm (including one pair of Balun)
Weight
(packaging)
250g
NOTE: Baluns are interchangeable for transmit or receive functions.
