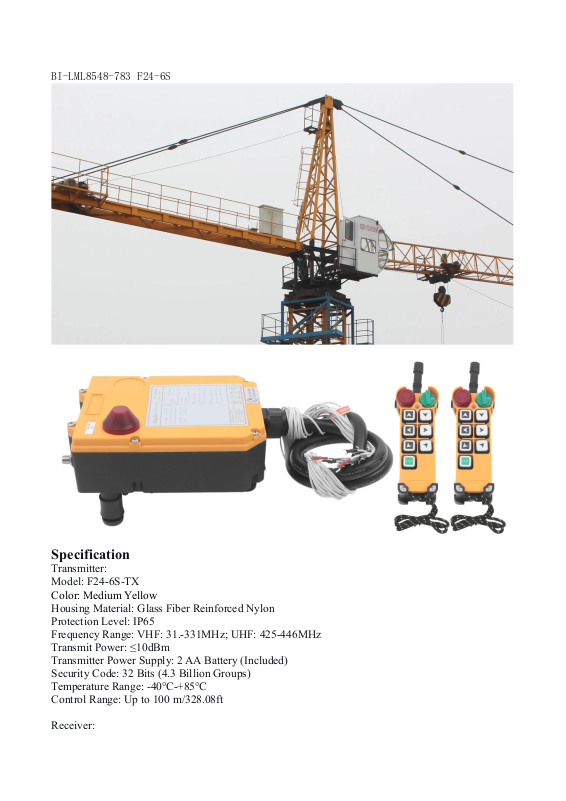

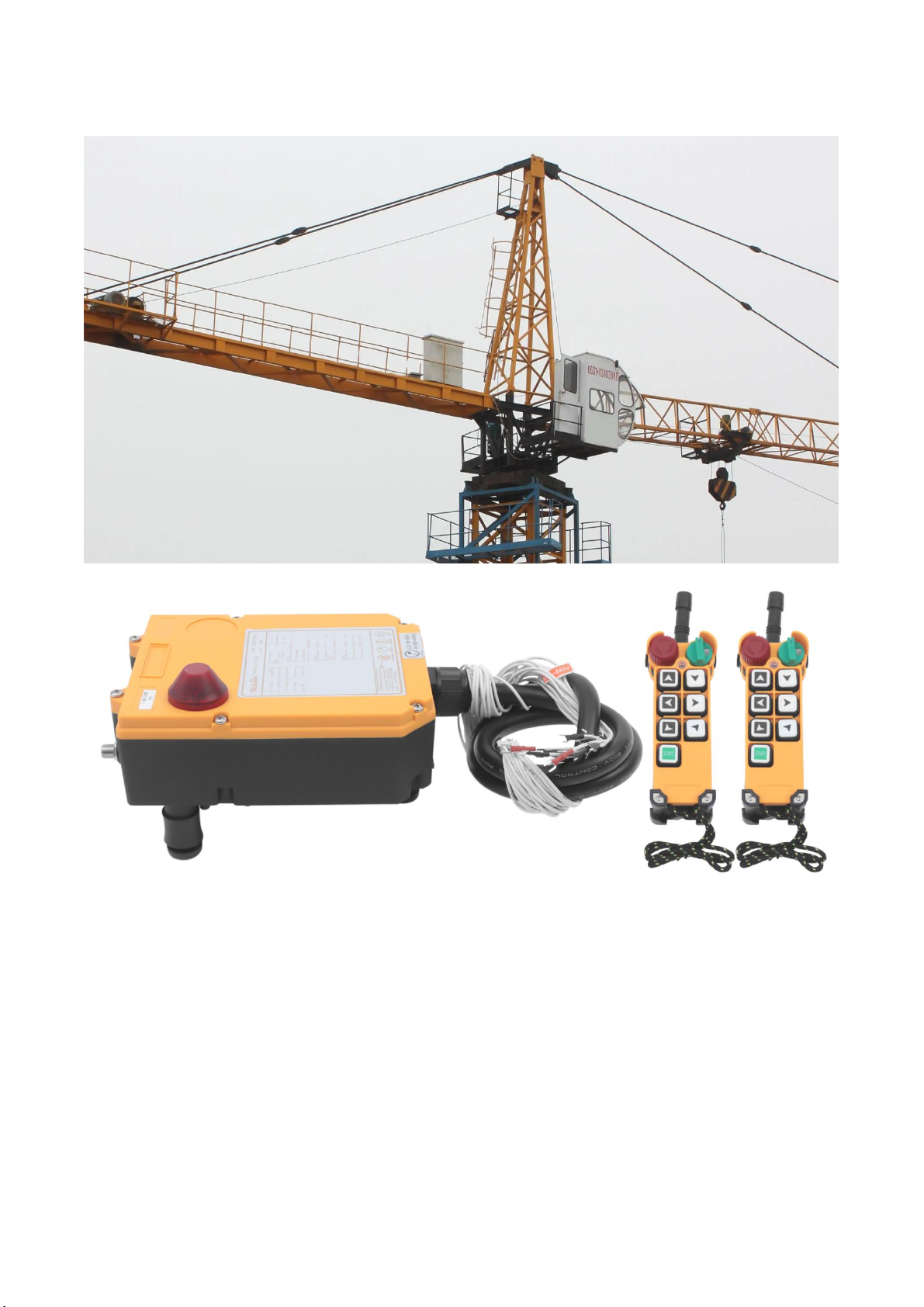

BI-LML8548-783 F24-6S
Specification
Transmitter:
Model: F24-6S-TX
Color: Medium Yellow
Housing Material: Glass Fiber Reinforced Nylon
Protection Level: IP65
Frequency Range: VHF: 31.-331MHz; UHF: 425-446MHz
Transmit Power: ≤10dBm
Transmitter Power Supply: 2 AA Battery (Included)
Security Code: 32 Bits (4.3 Billion Groups)
Temperature Range: -40℃-+85℃
Control Range: Up to 100 m/328.08ft
Receiver:
Page 2
Model: F24-6S-RXC
Color: Medium Yellow
Housing Material: Glass Fiber Reinforced Nylon
Protection Level: IP65
Frequency Range: VHF: 31.-331MHz; UHF: 425-446MHz
Receiver Sensitivity: -110dBm
Receiver Power Supply: 18-65V AC/DC, 65-440V AC/DC
Output Contact Capacity: 8 Amps Fully Sealed Relay Output (AC250V/110A Relay, 10A Fuse)
Control Cable Length: 1.65m/5.41ft
Security Code: 32 Bits (4.3 Billion Groups)
Temperature Range: -40℃-+85℃
Package Size: 48.5*24.5*15.5cm/19.09*9.65*6.1''
Product Size: 21*16.2*10.7cm/8.27*6.38*4.21''
Gross Weight: 3.50kg/7.72lbs
Net Weight: 3.20kg/7.05lbs
Application
They can be used in lifting equipment, ports, docks and mechanical equipment, etc.
Package Included
1*Receiver
1*Receiver Antenna
2*Transmitters
2*Protective Covers
Notes
Please notice that the LED on the front of the transmitter indicates the condition of the
1.
batteries. It will flash green during operation if the battery power is sufficient and will flash red
if the battery power is low. If the LED is flashing red, or if the operation becomes erratic, or will
only work from a short distance, replace both batteries with new AA alkaline batteries.
Please allow the slight color difference caused by the shooting light and 1-3cm error due to
2.
manual measurement, and make sure you do not mind before you place the order.
