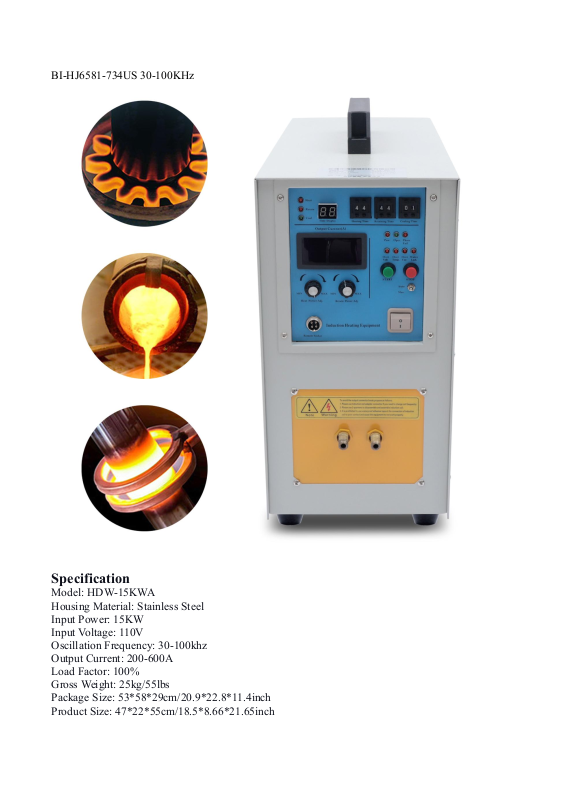

BI-HJ6581-734US 30-100KHz
Specification
Model: HDW-15KWA
Housing Material: Stainless Steel
Input Power: 15KW
Input Voltage: 110V
Oscillation Frequency: 30-100khz
Output Current: 200-600A
Load Factor: 100%
Gross Weight: 25kg/55lbs
Package Size: 53*58*29cm/20.9*22.8*11.4inch
Product Size: 47*22*55cm/18.5*8.66*21.65inch
Page 2
Package Included
1 * High-frequency Induction Heater
2 * Heating Coils
1 * Foot Switch
1 * Crucible
2 * Wires
1 * Chinese Manual
1 * English Manual
Application
It is suitable for the electronics industry, watch and clock soldering, circuit boards, cell phone base
stations, connectors, medical devices, thermostats, diodes, etc.
Notes
1. Please read the manual and special considerations on the back of the machine completely before
use, and pay particular attention to the safety instructions included.
2. The product is used in the industrial field. More than 95% of customers use it directly with wires.
It is recommended not to use a plug because the current is 40A during operation. If the plug is
used for a long time, the plug will heat up and cause accidents.
3. Please allow the slight color difference caused by the shooting light and 1-3 cm error due to
manual measurement, and make sure you do not mind before ordering.
