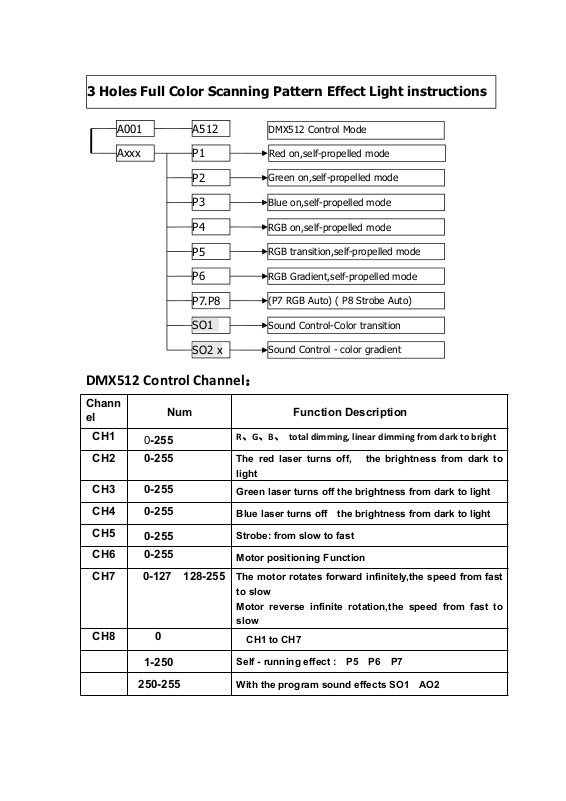

3 Holes Full Color Scanning Pattern Effect Light instructions
P2
P3
Red on,self-propelled mode
Green on,self-propelled mode
Blue on,self-propelled mode
P4
P5
P6
RGB on,self-propelled mode
RGB transition,self-propelled mode
RGB Gradient,self-propelled mode
P7.P8
SO1
SO2 x
(P7 RGB Auto) ( P8 Strobe Auto)
Sound Control-Color transition
Sound Control - color gradient
DMX512 Control Mode
DMX512 Control Channel：
Chann
el
Num
Function Description
CH1
0-255
R、G、B、 total dimming, linear dimming from dark to bright
CH2
0-255
The red laser turns off, the brightness from dark to
light
CH3
0-255
Green laser turns off the brightness from dark to light
CH4
0-255
Blue laser turns off the brightness from dark to light
CH5
0-255
Strobe: from slow to fast
CH6
0-255
Motor positioning Function
CH7
0-127 128-255
The motor rotates forward infinitely,the speed from fast
to slow
Motor reverse infinite rotation,the speed from fast to
slow
CH8
0
CH1 to CH7
1-250
Self - running effect : P5 P6 P7
250-255
With the program sound effects SO1 AO2
