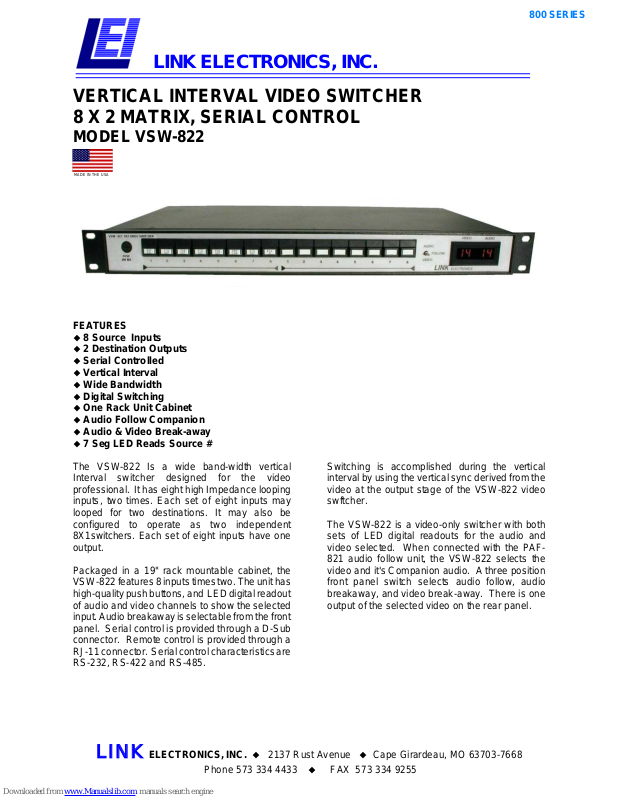

LINK ELECTRONICS, INC.
VERTICAL INTERVAL VIDEO SWITCHER
8 X 2 MATRIX, SERIAL CONTROL
MODEL VSW-822
MADE IN THE USA
800 SERIES
FEATURES
8 Source Inputs
2 Destination Outputs
Serial Controlled
Vertical Interval
Wide Bandwidth
Digital Switching
One Rack Unit Cabinet
Audio Follow Companion
Audio & Video Break-away
7 Seg LED Reads Source #
The VSW-822 Is a wide band-width vertical
Interval switcher designed for the video
professional. It has eight high Impedance looping
inputs, two times. Each set of eight inputs may
looped for two destinations. It may also be
configured to operate as two independent
8X1switchers. Each set of eight inputs have one
output.
Packaged in a 19" rack mountable cabinet, the
VSW-822 features 8 inputs times two. The unit has
high-quality push buttons, and LED digital readout
of audio and video channels to show the selected
input. Audio breakaway is selectable from the front
panel. Serial control is provided through a D-Sub
connector. Remote control is provided through a
RJ-11 connector. Serial control characteristics are
RS-232, RS-422 and RS-485.
Switching is accomplished during the vertical
interval by using the vertical sync derived from the
video at the output stage of the VSW-822 video
swftcher.
The VSW-822 is a video-only switcher with both
sets of LED digital readouts for the audio and
video selected. When connected with the PAF821 audio follow unit, the VSW-822 selects the
video and it's Companion audio. A three position
front panel switch selects audio follow, audio
breakaway, and video break-away. There is one
output of the selected video on the rear panel.
LINK ELECTRONICS, INC. 2137 Rust Avenue Cape Girardeau, MO 63703-7668
Phone 573 334 4433
FAX 573 334 9255
VSW-822 8 X 2 VIDEO SWITCHER
SERIAL CONTROLLED
SPECIFICATIONS
INPUTS:
Number: ...........................................................Eight (8), two times
Impedance: ........................................................... 75Ω Terminated
Configuration: ............................................................Single-ended
Level:.................................................................... 1Vpp ±3dB
OUTPUTS:
Number: .................................................................... One (1)
Destinations: ................................................................. Two (2)
Level:..................................................................... Unity Gain
Impedance: ..................................................................... 75Ω
Frequency Response: .................................................. ±0.5dB to 15MHz
....................................................................-3dB to 3OMHz
Differential Phase:............................................................... <0.1,
Differential Gain: ............................................................... <0.1%
Tilt: ......................................................................... <0.5%
Propagation Delay: ........................................... 16.l ns ±0.2ns (All Channels)
Crosstalk: ......................................................... >6OdB, Worst Case
CONTROL SYSTEM:
Control Port: ................................................. RS-232, RS-422 or RS-485
ENVIRONMENTAL:
Temperature:......................................................... 01 to 50, ambient
Humidity: .................................................... 0% to 90% non-condensing
POWER:
Input: ............................................................. 120/240 VAC ±10%
Power:..................................................................... 7.2 watts
MECHANICAL:
High: .........................................................................1.75"
Wide:...........................................................................19"
Deep: .......................................................................... 8.7"
Weight: ..................................................................... 6.5 lbs.
LINK ELECTRONICS, INC.
2137 Rust Avenue
Cape Girardeau, MO 63703
Phone: 573 334 4433
FAX: 573 334 9255
PROFESSIONAL SERIES-portable television system products--by LINK
