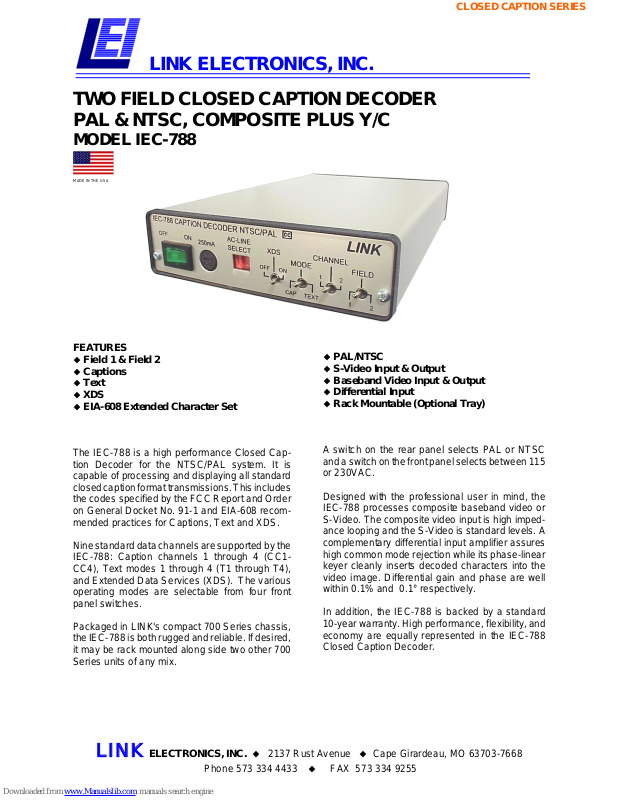

Link electronics Two Field Closed Caption Decoder IEC-788 Specification Sheet

LINK ELECTRONICS, INC.

TWO FIELD CLOSED CAPTION DECODER
PAL & NTSC, COMPOSITE PLUS Y/C

MODEL IEC-788

MADE IN THE USA

CLOSED CAPTION SERIES

FEATURES

 Field 1 & Field 2
 Captions
 Text
 XDS
 EIA-608 Extended Character Set

The IEC-788 is a high performance Closed Cap­tion Decoder for the NTSC/PAL system. It is
capable of processing and displaying all standard
closed caption format transmissions. This includes
the codes specified by the FCC Report and Order
on General Docket No. 91-1 and EIA-608 recom­mended practices for Captions, Text and XDS.

Nine standard data channels are supported by the
IEC-788: Caption channels 1 through 4 (CC1­CC4), Text modes 1 through 4 (T1 through T4),
and Extended Data Services (XDS). The various
operating modes are selectable from four front
panel switches.

Packaged in LINK's compact 700 Series chassis,
the IEC-788 is both rugged and reliable. If desired,
it may be rack mounted along side two other 700
Series units of any mix.

 PAL/NTSC
 S-Video Input & Output
 Baseband Video Input & Output
 Differential Input
 Rack Mountable (Optional Tray)

A switch on the rear panel selects PAL or NTSC
and a switch on the front panel selects between 115
or 230VAC.

Designed with the professional user in mind, the
IEC-788 processes composite baseband video or
S-Video. The composite video input is high imped­ance looping and the S-Video is standard levels. A
complementary differential input amplifier assures
high common mode rejection while its phase-linear
keyer cleanly inserts decoded characters into the
video image. Differential gain and phase are well
within 0.1% and 0.1° respectively.

In addition, the IEC-788 is backed by a standard
10-year warranty. High performance, flexibility, and
economy are equally represented in the IEC-788
Closed Caption Decoder.

LINK ELECTRONICS, INC.  2137 Rust Avenue  Cape Girardeau, MO 63703-7668

Phone [phone]

 FAX [phone]

MODEL IEC-788

SPECIFICATIONS

COMPOSITE INPUT:

Video Level: .............................................................1.0Vpp ±6dB

Impedance: ............................................................>18KΩ Looping

Connector: ..................................................................... BNC

Maximum DC on Inputs: ....................................................... ±6.0VDC

Common Mode Range: ........................................................... 5Vpp

CMRR @60Hz: ................................................................ >50dB

COMPOSITE OUTPUTS:

Number: ....................................................................... Two

Connector: ..................................................................... BNC

Level:..................................................................... Unity Gain

Character Video: .......................................................... 90 IRE Units

Character Background: ..................................................... 10 IRE Units

Impedance: .................................................................75Ω ±1%

Frequency Response: .................................................. ±0.1dB at 15MHz

....................................................................-0.5dB at 17MHz

.................................................................. -1.0dB at 18.5MHz

....................................................................-3.0dB at 26MHz

Differential Gain: ............................................................... 0.10%

Differential Phase:............................................................... 0.10°

Propagation Delay: ..........................................................19nS ±3ns

Hum and Noise: ....................................................... >60dB to 5 MHz

................................................................. >40dB above 5MHz

DC Offset: ............................................................ <2mV, Clamped

Line Rate Tilt: ................................................................. <0.1%

Field Rate Tilt:................................................................. <0.1%

S-VIDEO INPUT:

Y Level:..................................................................1 Vpp ±6dB

C Level:.............................................................. 0.6 Vpp Nominal

Impedance: .................................................................75Ω ±1%

Connector: ........................................................... Four Pin Mini Din

S-VIDEO OUTPUT:

Number: ................................... Two, one 4 Pin Mini Din & One BNC pair (Y & C)

Y Level:................................................................. 1 Vpp ±6dB

C Level:.............................................................. 0.6 Vpp Nominal

ENVIRONMENTAL:

Temperature:........................................................0° to 50° C ambient

Humidity: ..................................................... 10%/90% non-condensing

Power:......................................................................9.5 VAR

AC Voltage: ................................................. 120/240 VAC±10%, 50/60Hz

MECHANICAL:

Height:.................................................................... 1.0 inches

Width: .................................................................... 5.5 inches

Depth: ................................................................... 9.25 inches

Weight: ................................................................... 2lbs., 9oz.

PRT-700 RACK TRAY

LINK ELECTRONICS, INC.  2137 Rust Avenue  Cape Girardeau, MO 63703-7668

Phone [phone]

IEC-788 REAR PANEL
