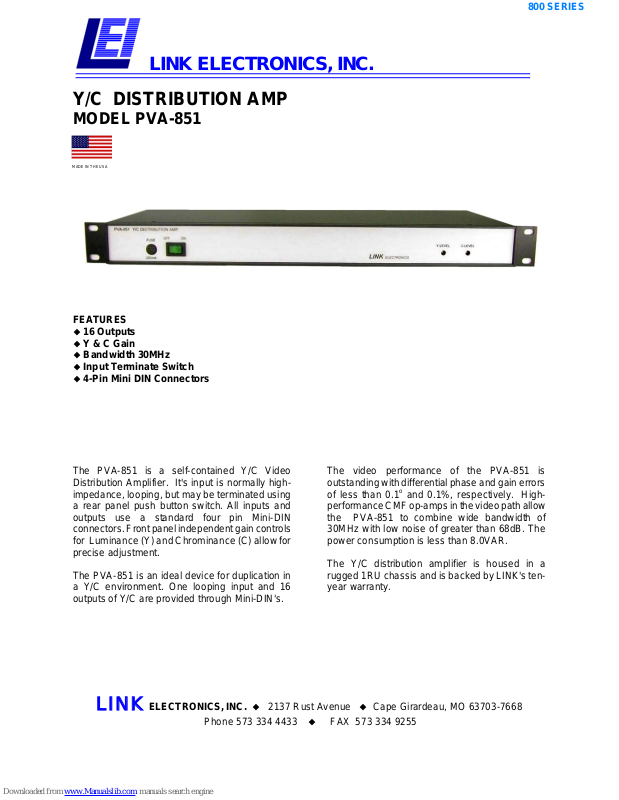

LINK ELECTRONICS, INC.
Y/C DISTRIBUTION AMP
MODEL PVA-851
MADE IN THE USA
800 SERIES
FEATURES
16 Outputs
Y & C Gain
Bandwidth 30MHz
Input Terminate Switch
4-Pin Mini DIN Connectors
The PVA-851 is a self-contained Y/C Video
Distribution Amplifier. It's input is normally highimpedance, looping, but may be terminated using
a rear panel push button switch. All inputs and
outputs use a standard four pin Mini-DIN
connectors. Front panel independent gain controls
for Luminance (Y) and Chrominance (C) allow for
precise adjustment.
The PVA-851 is an ideal device for duplication in
a Y/C environment. One looping input and 16
outputs of Y/C are provided through Mini-DIN's.
The video performance of the PVA-851 is
outstanding with differential phase and gain errors
of less than 0.1
performance CMF op-amps in the video path allow
the PVA-851 to combine wide bandwidth of
30MHz with low noise of greater than 68dB. The
power consumption is less than 8.0VAR.
The Y/C distribution amplifier is housed in a
rugged 1RU chassis and is backed by LINK's tenyear warranty.
o
and 0.1%, respectively. High-
LINK ELECTRONICS, INC. 2137 Rust Avenue Cape Girardeau, MO 63703-7668
Phone 573 334 4433
FAX 573 334 9255
MODEL PVA-851
Y/C DISTRIBUTION AMP
SPECIFICATIONS
INPUT:
Video Level: ...................................................... 1.0Vpp ±3dB
Impedance: ............................................. 20kΩ or 75Ω, selectable
Configuration:.......................................... .Single-ended, AC coupled
Cross Talk ...................................................>65dB @3.58MHz
............................................................>55dB @10.0MHz
OUTPUTS:
Number ...................................................... Sixteen (16) Y/C
Level ..................................................Unity Gain, +3dB, -1.5dB
Impedance ..........................................................75Ω, ±1%
Frequency Response: ...........................................±0.1dB to 10MHz
...............................................................-1.0 @ 20MHz
...............................................................-3.0 @ 30MHz
Differential Gain ........................................................ <0.1%
Differential Phase........................................................ <0.1
Propagation Delay ........................................................17ns
Hum and Noise ........................................................ >68dB
DC Offset ............................................................<0.2Vdc
Field Rate Tilt.......................................................... <0.2%
o
ENVIRONMENTAL:
Temperature: ...............................................0° to 50° C (ambient)
Humidity: ............................................10% to 90% non-condensing
Power: ................................................................ 8VAR
AC Input: ...........................................120/240VAC (±10%) 50/60Hz
MECHANICAL:
Height: ........................................................... 1.75 inches
Width:..............................................................19 inches
Depth: .............................................................. 8 inches
Weight:............................................................. 4.75 Lbs.
LINK ELECTRONICS, INC.
2137 Rust Avenue
Cape Girardeau, MO 63703
Phone: 573 334 4433
FAX: 573 334 9255
PROFESSIONAL SERIES-stand-alone system products--by
LINK
PVA-851/091802
