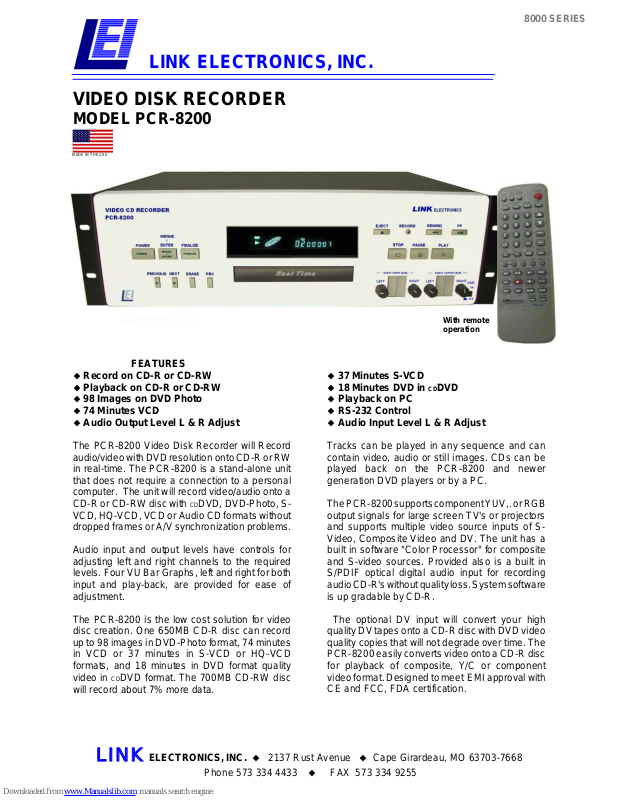

LINK ELECTRONICS, INC.
8000 SERIES
VIDEO DISK RECORDER
MODEL PCR-8200
MADE IN THE USA
FEATURES
Record on CD-R or CD-RW
Playback on CD-R or CD-RW
98 Images on DVD Photo
74 Minutes VCD
Audio Output Level L & R Adjust
With remote
operation
37 Minutes S-VCD
18 Minutes DVD in CDDVD
Playback on PC
RS-232 Control
Audio Input Level L & R Adjust
The PCR-8200 Video Disk Recorder will Record
audio/video with DVD resolution onto CD-R or RW
in real-time. The PCR-8200 is a stand-alone unit
that does not require a connection to a personal
computer. The unit will record video/audio onto a
CD-R or CD-RW disc with
CDDVD, DVD-Photo, S-
VCD, HQ-VCD, VCD or Audio CD formats without
dropped frames or A/V synchronization problems.
Audio input and output levels have controls for
adjusting left and right channels to the required
levels. Four VU Bar Graphs, left and right for both
input and play-back, are provided for ease of
adjustment.
The PCR-8200 is the low cost solution for video
disc creation. One 650MB CD-R disc can record
up to 98 images in DVD-Photo format, 74 minutes
in VCD or 37 minutes in S-VCD or HQ-VCD
formats, and 18 minutes in DVD format quality
video in
CDDVD format. The 700MB CD-RW disc
will record about 7% more data.
Tracks can be played in any sequence and can
contain video, audio or still images. CDs can be
played back on the PCR-8200 and newer
generation DVD players or by a PC.
The PCR-8200 supports component YUV,. or RGB
output signals for large screen TV's or projectors
and supports multiple video source inputs of SVideo, Composite Video and DV. The unit has a
built in software "Color Processor" for composite
and S-video sources. Provided also is a built in
S/PDIF optical digital audio input for recording
audio CD-R's without quality loss. System software
is up gradable by CD-R.
The optional DV input will convert your high
quality DV tapes onto a CD-R disc with DVD video
quality copies that will not degrade over time. The
PCR-8200 easily converts video onto a CD-R disc
for playback of composite, Y/C or component
video format. Designed to meet EMI approval with
CE and FCC, FDA certification.
LINK ELECTRONICS, INC. 2137 Rust Avenue Cape Girardeau, MO 63703-7668
Phone 573 334 4433
FAX 573 334 9255
MODEL PCR-8200
VIDEO DISK RECORDER
RECORDING PLAY TYPE:
Playback Disk Type: .....................
Record Disk Type:.............................................CD-R and CD-R/W, 650 MB
Audio Sampling Rate:..............................................44.1 KHz, 16 Bit quality
Video Formats: .......................................................... NTSC or PAL
Format Recording Time Compression Bit Rate Resolution
650 Mb CD 700 Mb CD
VCD 74 Min. 80 Min. MPEG-1 1.2 Mb/Sec. 352X240
HQ-VCD 37 Min. 40 Min. MPEG-1 2.4 Mb/Sec. 352X240
S-VCD 37 Min. 40 Min. MPEG-2 2.4 Mb/Sec. 352X480
DVD Photo 98 Images MPEG-2 2.4 Mb/Sec. 704X480
cdDVD 18 Min. 20 Min. MPEG-2 5.0 Mb/Sec. 704X480
Note: The digital audio input S/PDIF 44.1 KHz, 16 Bit CD quality.
VIDEO INPUTS:
S-Video: .......................................... Y/C (S-Video) 4 Pin Mini DIN Connector
Composite: .................................................... Composite NTSC 1 V-pp
DV 1394: ...........................................IEEE 1394, 4 Pin Connector, rear panel
VIDEO OUTPUTS:
S-Video: .......................................... Y/C (S-Video) 4 Pin Mini DIN Connector
Composite: .................................................... Composite NTSC 1 V-pp
YUV: ...............................................................Component Video
RGB: ...............................................................Component Video
AUDIO I/O:
Digital Audio Input: ....................................... S/PDIF at 44.1, 16 Bit CD Quality
Analog Audio Input: ................................. Stereo, 20Hz to 20 KHz, XLR Connectors
Analog Audio Output: ............................... Stereo, 20Hz to 20 KHz, XLR Connectors
POWER:
AC Input: .............................................. 115-230 VAC, 50/60 Hz Selectable
ENVIRONMENTAL:
Temperature:....................................................... 0° to 50° C Ambient
Humidity:................................................... 10% to 90% non-condensing
Power:..................................................................... 50 Watts
AC Voltage: ..............................................................115/230 VAC
MECANICAL:
Height:................................................................... 5.25 Inches
Width: .................................................................... 19 Inches
Depth: .................................................................... 12 Inches
Weight: ................................................................ 11.75 Pounds
CDDVD, DVD Photo, S/VCD, HQ-VCD, VCD, Audio CD,
LINK ELECTRONICS, INC. 2137 Rust Avenue Cape Girardeau, MO 63703-7668
Phone 573 334 4433
FAX 573 334 9255
