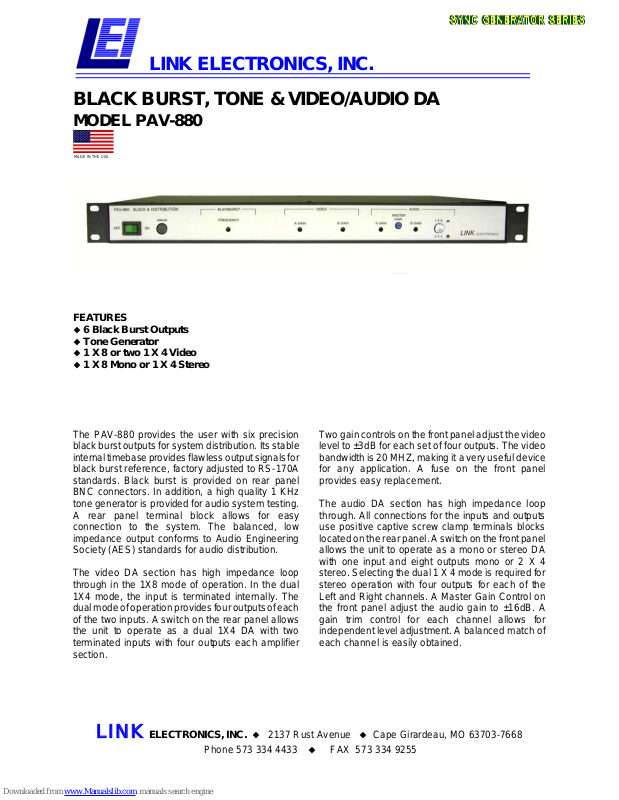

LINK ELECTRONICS, INC.

BLACK BURST, TONE & VIDEO/AUDIO DA

MODEL PAV-880

MADE IN THE USA

FEATURES

 6 Black Burst Outputs
 Tone Generator
 1 X 8 or two 1 X 4 Video
 1 X 8 Mono or 1 X 4 Stereo

The PAV-880 provides the user with six precision
black burst outputs for system distribution. Its stable
internal timebase provides flawless output signals for
black burst reference, factory adjusted to RS-170A
standards. Black burst is provided on rear panel
BNC connectors. In addition, a high quality 1 KHz
tone generator is provided for audio system testing.
A rear panel terminal block allows for easy
connection to the system. The balanced, low
impedance output conforms to Audio Engineering
Society (AES) standards for audio distribution.

The video DA section has high impedance loop
through in the 1X8 mode of operation. In the dual
1X4 mode, the input is terminated internally. The
dual mode of operation provides four outputs of each
of the two inputs. A switch on the rear panel allows
the unit to operate as a dual 1X4 DA with two
terminated inputs with four outputs each amplifier
section.

Two gain controls on the front panel adjust the video
level to ±3dB for each set of four outputs. The video
bandwidth is 20 MHZ, making it a very useful device
for any application. A fuse on the front panel
provides easy replacement.

The audio DA section has high impedance loop
through. All connections for the inputs and outputs
use positive captive screw clamp terminals blocks
located on the rear panel. A switch on the front panel
allows the unit to operate as a mono or stereo DA
with one input and eight outputs mono or 2 X 4
stereo. Selecting the dual 1 X 4 mode is required for
stereo operation with four outputs for each of the
Left and Right channels. A Master Gain Control on
the front panel adjust the audio gain to ±16dB. A
gain trim control for each channel allows for
independent level adjustment. A balanced match of
each channel is easily obtained.

LINK ELECTRONICS, INC.  2137 Rust Avenue  Cape Girardeau, MO 63703-7668

Phone [phone]

 FAX [phone]

MODEL PAV-880 BLACKBURST & A/V DA

SPECIFICATIONS

BLACK BURST OUTPUTS: OUTPUTS, VIDEO SECTION: continued

Number: ............................Six Frequency Response: .......... -3dB at .17Hz

Standard: ................. NTSC, RS-170A ±0.1dB to 14MHz

Sync:.................. -40 IRE, 0.286Vpp -0.3dB at 16MHz

Pedestal: ................7.5 IRE, 0.054Vpp -3dB at 20MHz

Burst:.................. 40 IRE (0.286Vpp) Output Isolation: ........... >36dB at 3.58MHz

Connectors: ........................ BNC DC Offset ........................... <2mV

Impedance: .................75 Ohms +1% Line Rate Tilt:....................... <0.1%

Timebase Stability: .............. ±0.0005% Field Rate Tilt: ...................... <0.1%

...........-10 to +60° C at 14.318180MHz RMS Hum, 20MHz Filtered: ............ >60dB

Tilt & Overshoot: ................... <0.5% RMS Noise, 20MHz Filtered: ........... >60dB

Sync Rise Time: ..............140nS ±20ns

Pedestal Rise Time: ...........140nS ±20ns INPUT, AUDIO SECTION:

Burst Envelope: ...............350nS ±15ns Maximum Level: ....................+50dBm

S/N Ratio: ........................ >55db Impedance: ..................>10KΩ bridging

Residual Subcarrier: .................<2mV CMR Ratio:.................. -80dB at 60Hz

Maximum Common Mode Range: ........ ±10V

TONE OUTPUT:

Number: ...........................One OUTPUTS, AUDIO SECTION:

Configuration: ..... Balanced, Low Impedance Number:

Level:........................ 0dBm ±1 % 1 X8: ................................ 8

Frequency: .................. 1 kHz ±1 Hz 2 X 4:.................... 4, each amplifier

Connector: .......... Positive Capture Screw Maximum Level:......... +24dBm @150 ohms

Impedance: .................... 66Ω ±5% ....................+26dBm @ 600 ohms

THD: ...................... Approx. 0.2% Impedance: ........................... 44Ω

S/N Ratio: ........................ >80dB Frequency Response: . . . ±0.1 dB, DC to 20 KHz

Isolation Between Outs: .... >70dB DC to 20KHz

INPUT, VIDEO SECTION: Gain Range: ........................ ±16dB

Video Level: ................ 1.0 Vpp ±3dB Signal To Noise: ............>-90dB, unity gain

Impedance: Total Harmonic Dist.(THD): . . . <0.2% @ +17dBm

1 X 8 Mode: .......... 100K ohms bridging DC to 20KHz with max. Ioads, Max Gain

2 X 4 Mode: ............. 75Ω terminating Inter-Mod. Dist.(lMD):....4:1 <0.02% @ +22dBm

Maximum DC on Inputs: ............. 4V DC ............................+10dB Gain

Common Mode Range:

CMRR: DC Offset: ............<50mV Phase To Phase

60Hz: .......................... >90dB

30KHz:......................... >70dB ENVIRONMENTAL:

1 MHZ:......................... >45dB Temperature: .............0° to 50° C ambient

Cross Talk: ....................... >60dB Humidity: ........ 10% to 90% non-condensing

OUTPUTS, VIDEO SECTION: Power: ............................4 watts

Number: AC Voltage: ............120/240VAC50/60 Hz

1X8:................................. 8

2 X 4:.........................4 each DA MECHANICAL:

Level:.....................Unity gain ±3dB Height: ........................ 1.75 inches

Impedance: ...... 75Ω ±1% source terminated Width: .......................... 19 Inches

Propagation Delay: ..................12 nS Depth:......................... 11.5 Inches

Differential Gain: ................... 0.15% Weight: ........................ 4.5 Pounds

Differential Phase:................... 0.12°

.............. 8V p-p Cross Talk: .............. <65dB, 20 to 20KHz

LINK ELECTRONICS, INC.  2137 Rust Avenue  Cape Girardeau, MO 63703-7668

Phone [phone]

PAV-880 REAR PANEL
