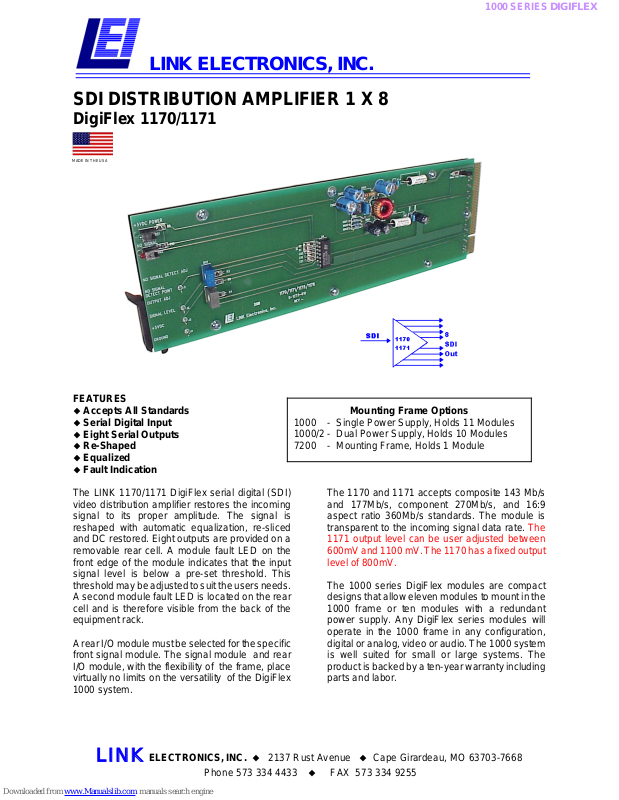

LINK ELECTRONICS, INC.
1000 SERIES DIGIFLEX
SDI DISTRIBUTION AMPLIFIER 1 X 8
DigiFlex 1170/1171
MADE IN THE USA
FEATURES
Accepts All Standards
Serial Digital Input
Eight Serial Outputs
Re-Shaped
Equalized
Fault Indication
The LINK 1170/1171 DigiFlex serial digital (SDI)
video distribution amplifier restores the incoming
signal to its proper amplitude. The signal is
reshaped with automatic equalization, re-sliced
and DC restored. Eight outputs are provided on a
removable rear cell. A module fault LED on the
front edge of the module indicates that the input
signal level is below a pre-set threshold. This
threshold may be adjusted to suit the users needs.
A second module fault LED is located on the rear
cell and is therefore visible from the back of the
equipment rack.
A rear I/O module must be selected for the specific
front signal module. The signal module and rear
I/O module, with the flexibility of the frame, place
virtually no limits on the versatility of the DigiFlex
1000 system.
1000 - Single Power Supply, Holds 11 Modules
1000/2 - Dual Power Supply, Holds 10 Modules
7200 - Mounting Frame, Holds 1 Module
Mounting Frame Options
The 1170 and 1171 accepts composite 143 Mb/s
and 177Mb/s, component 270Mb/s, and 16:9
aspect ratio 360Mb/s standards. The module is
transparent to the incoming signal data rate. The
1171 output level can be user adjusted between
600mV and 1100 mV. The 1170 has a fixed output
level of 800mV.
The 1000 series DigiFlex modules are compact
designs that allow eleven modules to mount in the
1000 frame or ten modules with a redundant
power supply. Any DigiFlex series modules will
operate in the 1000 frame in any configuration,
digital or analog, video or audio. The 1000 system
is well suited for small or large systems. The
product is backed by a ten-year warranty including
parts and labor.
LINK ELECTRONICS, INC. 2137 Rust Avenue Cape Girardeau, MO 63703-7668
Phone 573 334 4433
FAX 573 334 9255
DIGIFLEX 1170/1171 SDI VIDEO DISTRIBUTION AMPLIFIER
SPECIFICATIONS
SERIAL DIGITAL VIDEO INPUT:
Standard: ..................................................... 143Mb/s, SMPTE 259M-C
......................................................................... 177Mb/s
......................................................................... 270Mb/s
......................................................................... 360Mb/s
Impedance: .................................................................... 75Ω
Return Loss: .................................................................. >20dB
Signal Level: ............................................................ 800mV±10%
CMR:............................................................. 30Vp-p, up to 60Hz
Connectors: .................................................................... BNC
Equalization: ..................................................... Automatic up to >30dB
SERIAL VIDEO OUTPUTS:
Number of Outputs:................................................................. 8
Standards: ............................................................. Same as input
Connectors: .................................................................... BNC
Impedance: .................................................................... 75Ω
Return Loss: .................................................................. >20dB
Signal Level: .......................................................(1170) 800mV ±10%
Output Level:........................................... Adj. 410mV to 1080mV (1171 only)
DC Offset: .................................................................. 0V±0.5V
Rise & Fall Time:.......................................................... 1nS ±250 ps
Overshoot: .......................................................... <10% of Amplitude
Through Delay: .................................................................. 4nS
Input Cable Length, Max.: ........................................................500 Ft.
FRONT CONTROLS & INDICATORS:
Power:................................................................... Green LED
No Signal: ................................................................. Red LED
No Signal Detect Adj: ..................................................... Potentiometer
Detect Point: ............................................................... Test Point
+5VDC: ................................................................... Test Point
Ground: ................................................................... Test Point
ENVIRONMENTAL:
Temperature:........................................................ 0° to 50°C Ambient
Humidity:................................................... 10% to 90% non-condensing
Power:...................................................................... 320mW
MECHANICAL:
Height:...................................................... 3.2 Inch
Width: ...................................................... 1.0 Inch
Length .......................................................10 Inch
Weight: ..................................................... 7.25 Oz
Rear Cell I/O
0. Input
LINK ELECTRONICS, INC.
2137 Rust Avenue
Cape Girardeau, MO 63703
Phone: 573 334 4433
FAX: 573 334 9255
PROFESSIONAL SERIES--
1. Output
2. Output
3. Output
4. Output
5. Output
6. Output
7. Output
8. Output
modular system products--by
1170-1171/072202
LINK
1070/1071
REARCELL
